ASI Performance 10 Gallon Aluminum Black Fuel Cell Gas Tank+Cap+Level Sender+Nylon Fuel Line Kit

Fitment:

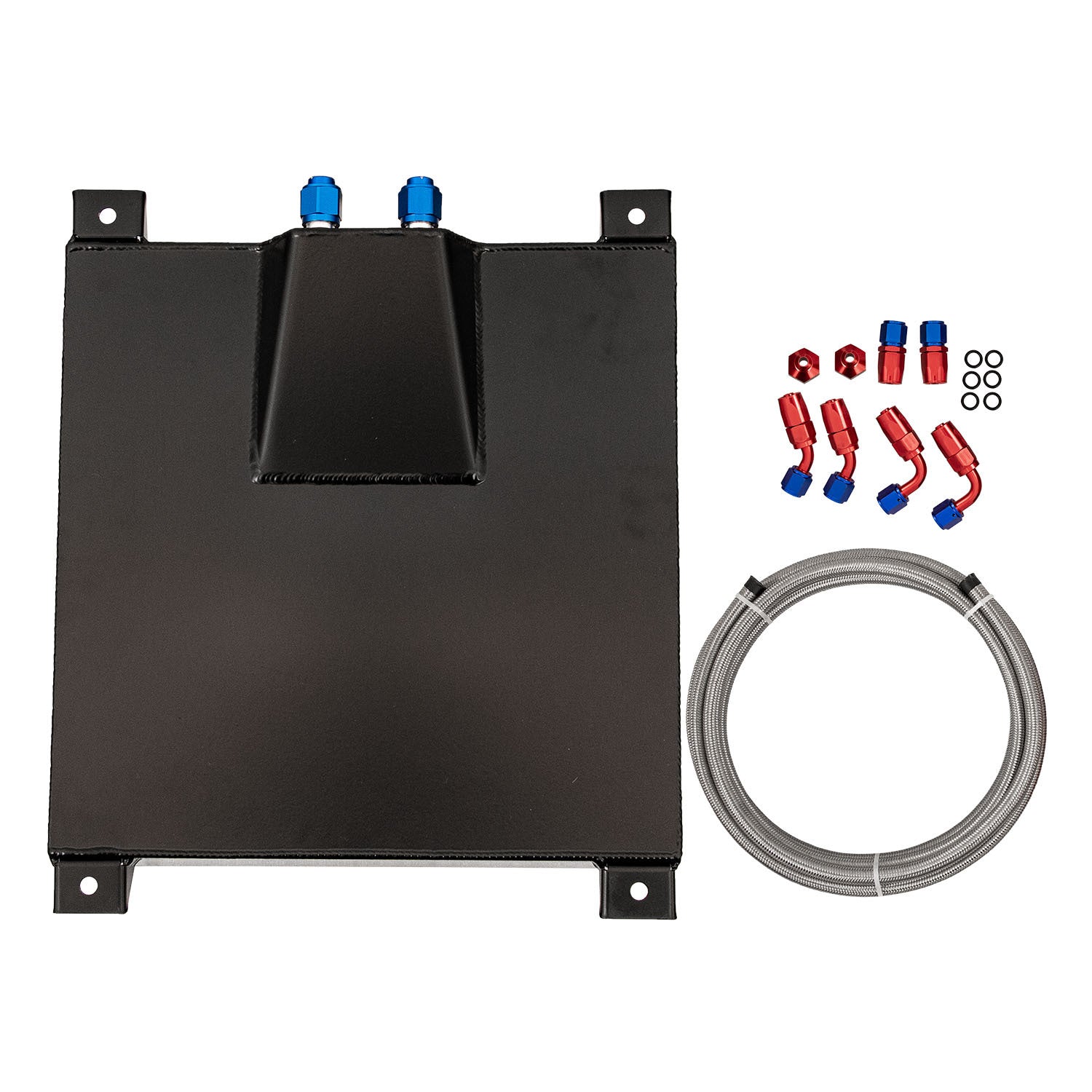

Packing Include:

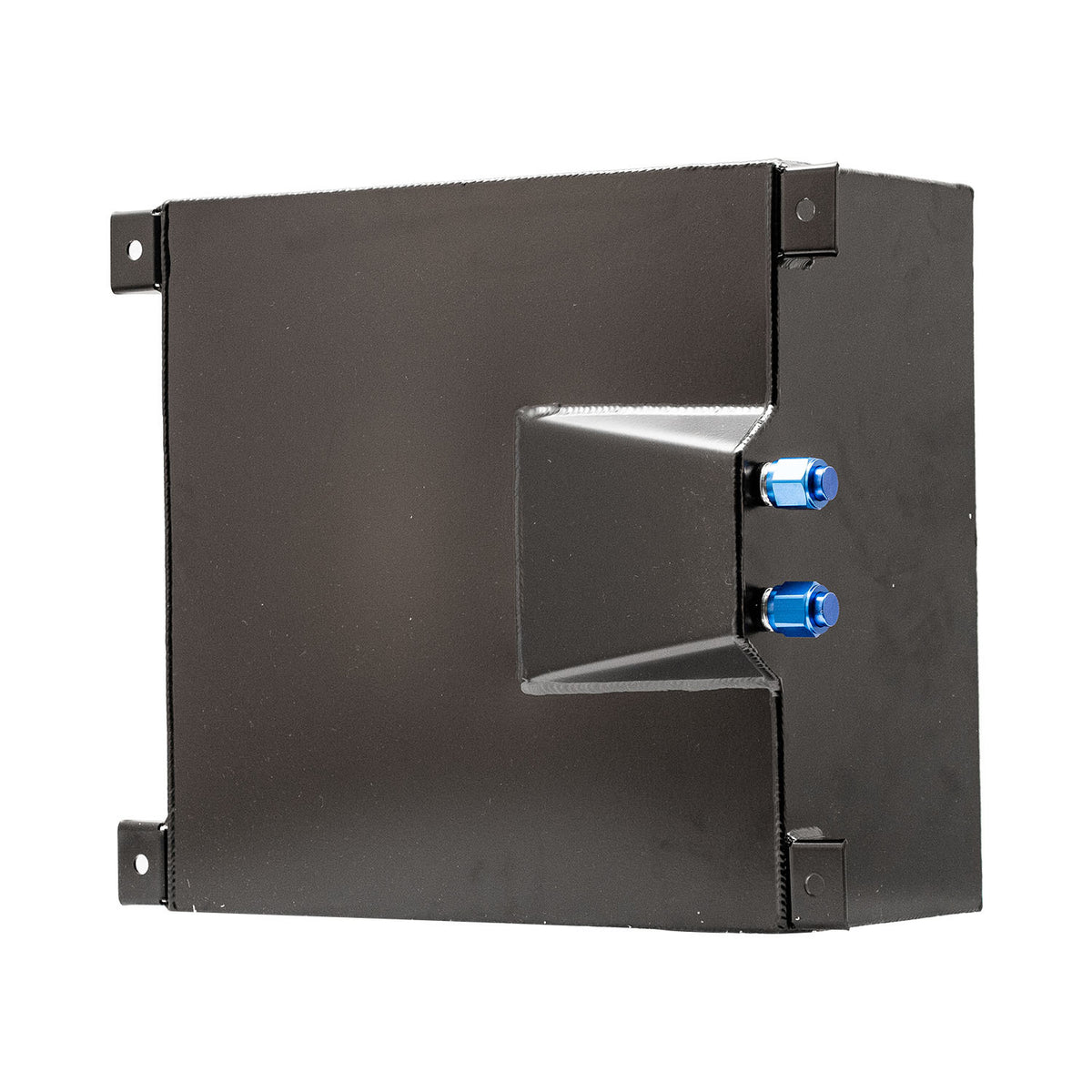

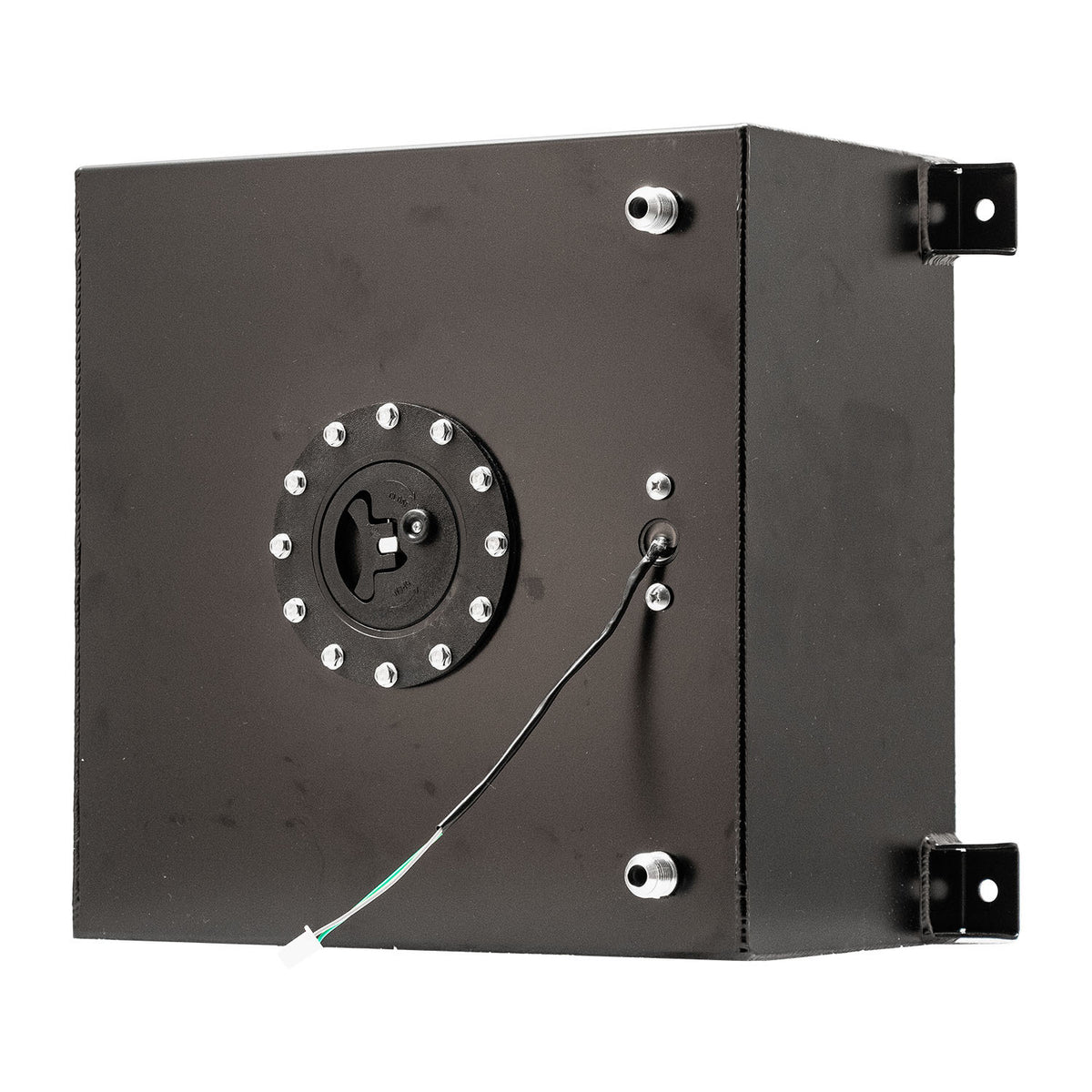

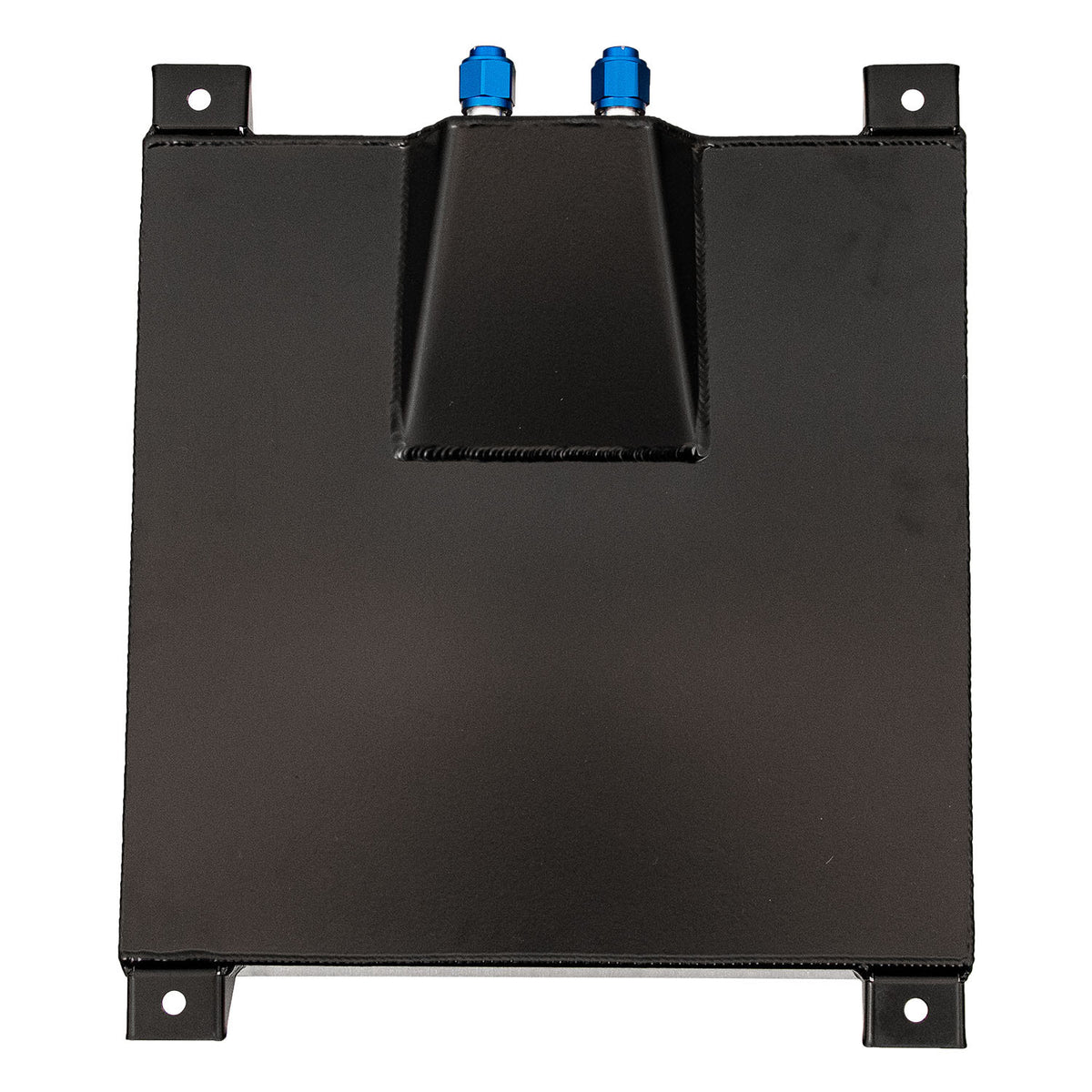

1 Pc 10 Gallon Aluminum Fuel Tank

1 Pc Fuel Line Kit (As the Picture Shown)

Item Specifications:

Condition:100% Brand New

Material: Aluminum

Tank Measures: 16.5" (L) x 16.5" (W) x 9.25" (H) Mounting Tabs Measure 18" (L) x 14-1/4" (W) Center to Center

Dual -10 Outlets

Dual -10 Vent Outlets (Top Of Cell)

Sump Measures: 6" x 6" x 2" Deep

Capacity: 10 Gallon

Fuel Sender: 0-90 Ohm

Anti-slosh Foam Includes: Yes

Color: Black

Fuel Tank and Cap made with high grade aluminum for extra protection

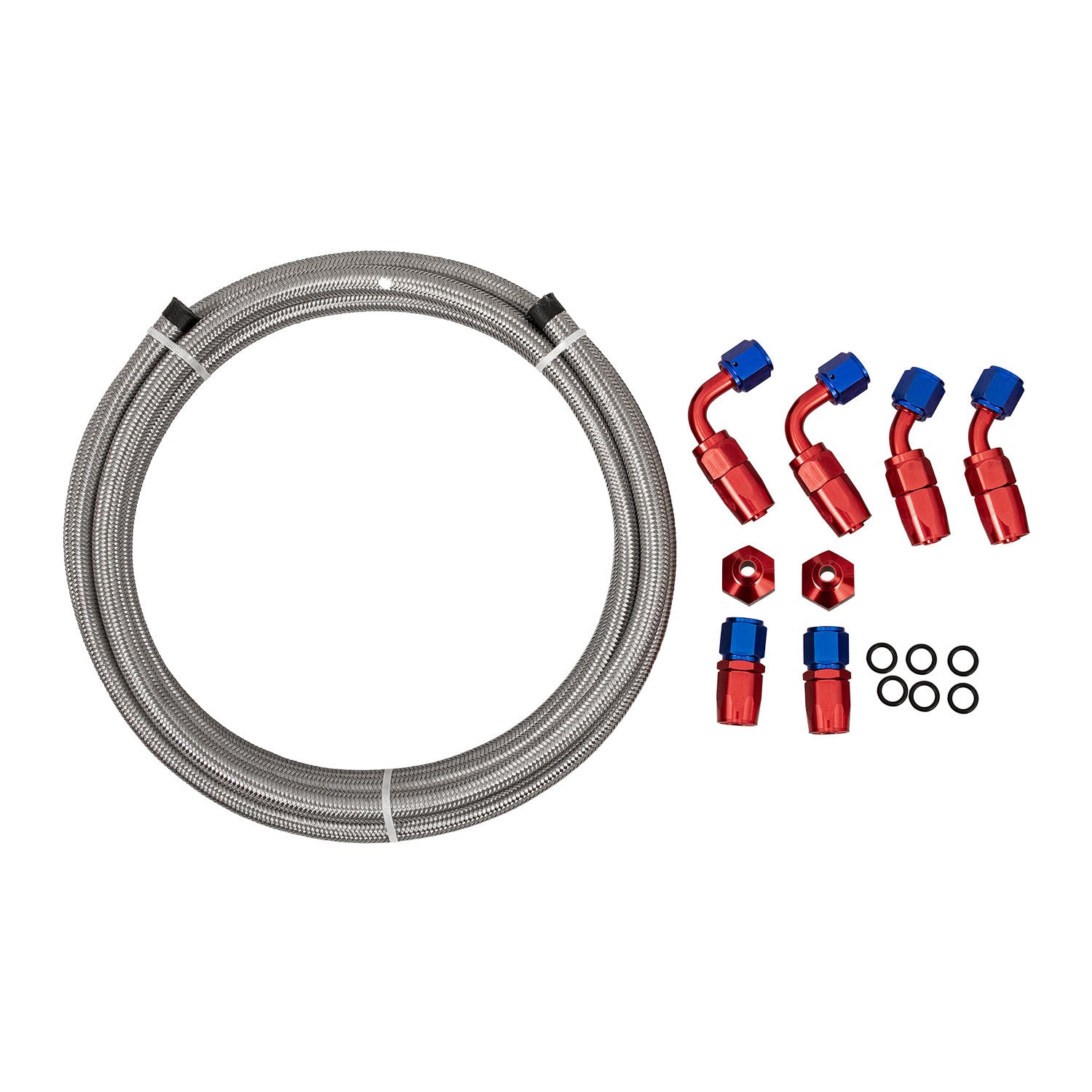

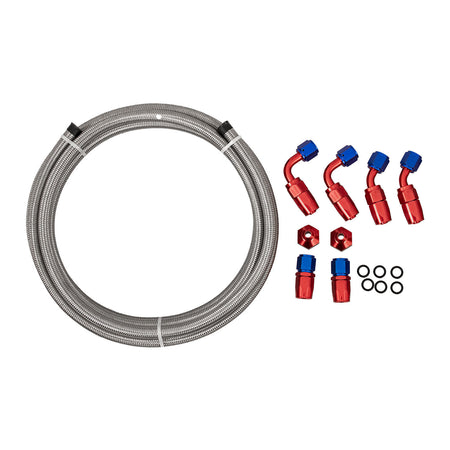

Fuel line kit:

1 x 12ft AN-6 Stainless Steel/Nylon Braided Hose

2 x AN-6 Straight Swivel Hose Ends

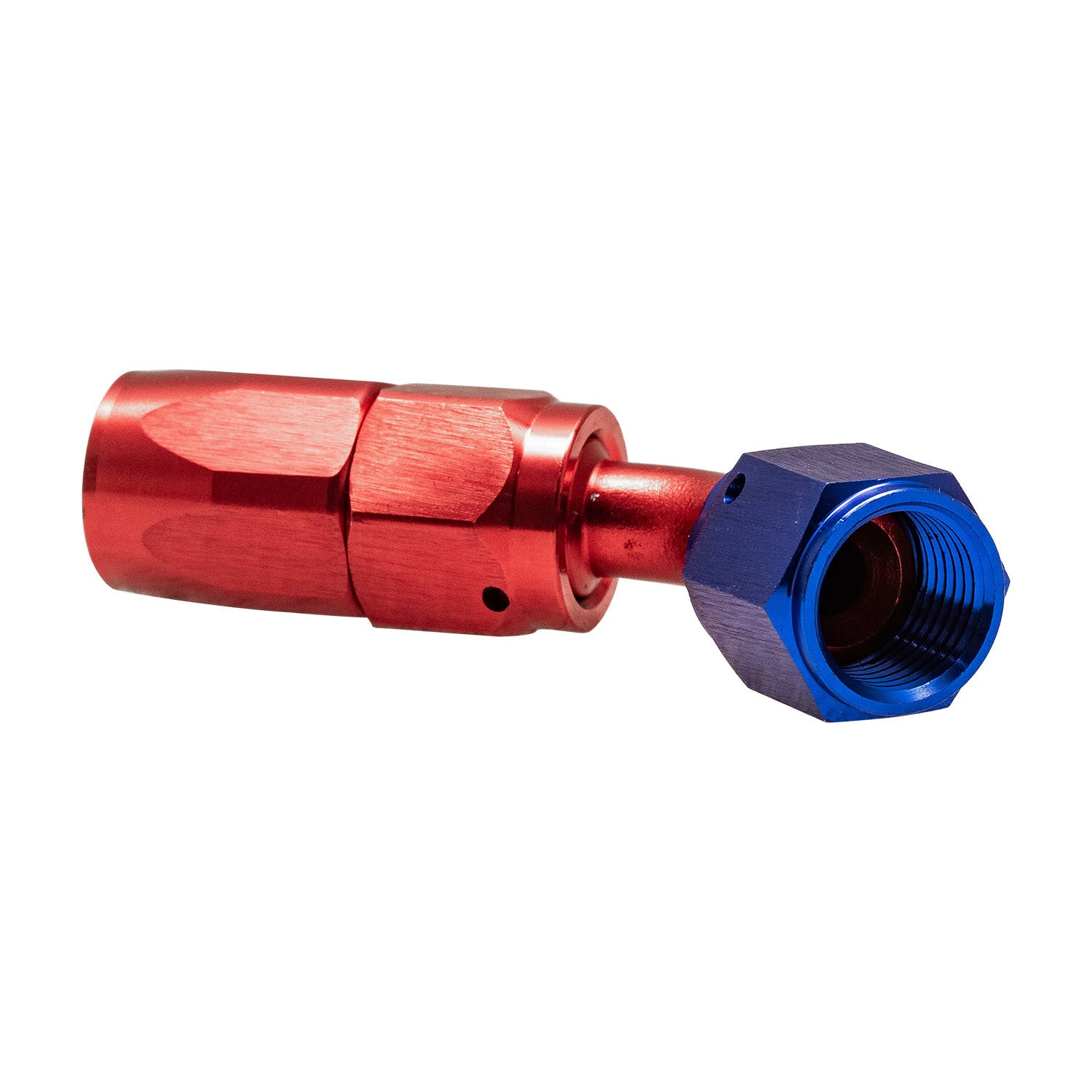

2 x AN-6 45 Degree Swivel Hose Ends

2 x AN-6 90 Degree Swivel Hose Ends

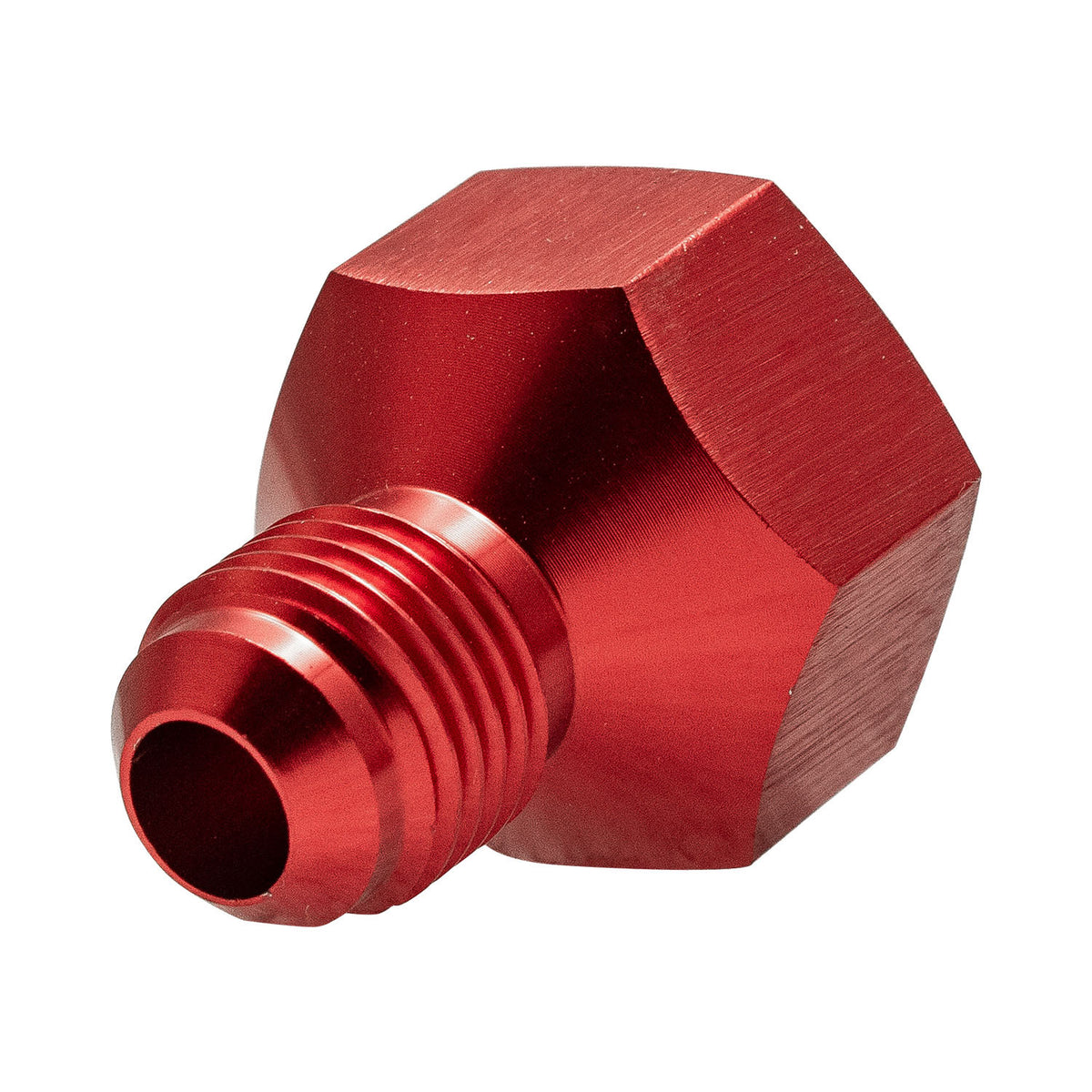

2 x AN-6 to AN-10 Fuel Tank Fitting Adapter

Working Tempertaure - (40 to +350)

Pressure Tolerance - 1500 PSI

Item Features:

1.Made from high quality aluminum material for extra protection, light weight, sturdy, durable and not easy to rust, it can protect the inner liquid in clean and high quality condition for a long time

2.Fuel cells can provide more reliable power wherever electricity is needed, making the whole electric power grid more robust and reliable

3.Easy to install and maintain, Include a fuel tank with oil level sensor and replaceable anti slosh foam in tank

4.Large enough volume

5.Include anti-slosh foam

6.Light weight, easy to clean

7.Include oil level sensor

Fitment:

Universal Appliction to Hot Rod/Street Racing/Track Cars/Truck/SUVs

Note:

Please Refer to Measurement and Make Sure it can be Mounted to Your Desired Location

Professional Installation is Highly Recommended

Installation Instruction is Not Included

Not for use with alcohol, methanol, water

Inspect foam for deterioration regularly

Please Refer to Measurement and Make Sure it can be Mounted to Your Desired Location

Item Description:

The fuel tank equipped on every vehicle is made to last the life of the vehicle and for everyday use. However, for racing purposes, it is overly large and heavy. That is where aluminum fuel cells/tanks come in.

They are smaller, mountable in different locations and It is filled with an open-cell foam core to prevent explosion of vapor in the empty portion of the tank and to minimize sloshing of fuel during competition that may unbalance the vehicle or cause inadequate fuel delivery to the motor (fuel starvation).

For ease of installation, we also have included our braided fuel line kit to adapt to your existing fuel system. The braided cover greatly increases the resistance of the hose to internal pressure and retains it form. These will adapt any 10an fitting tank down to a 6an fuel line and includes 6 different fittings for the perfect fit.
