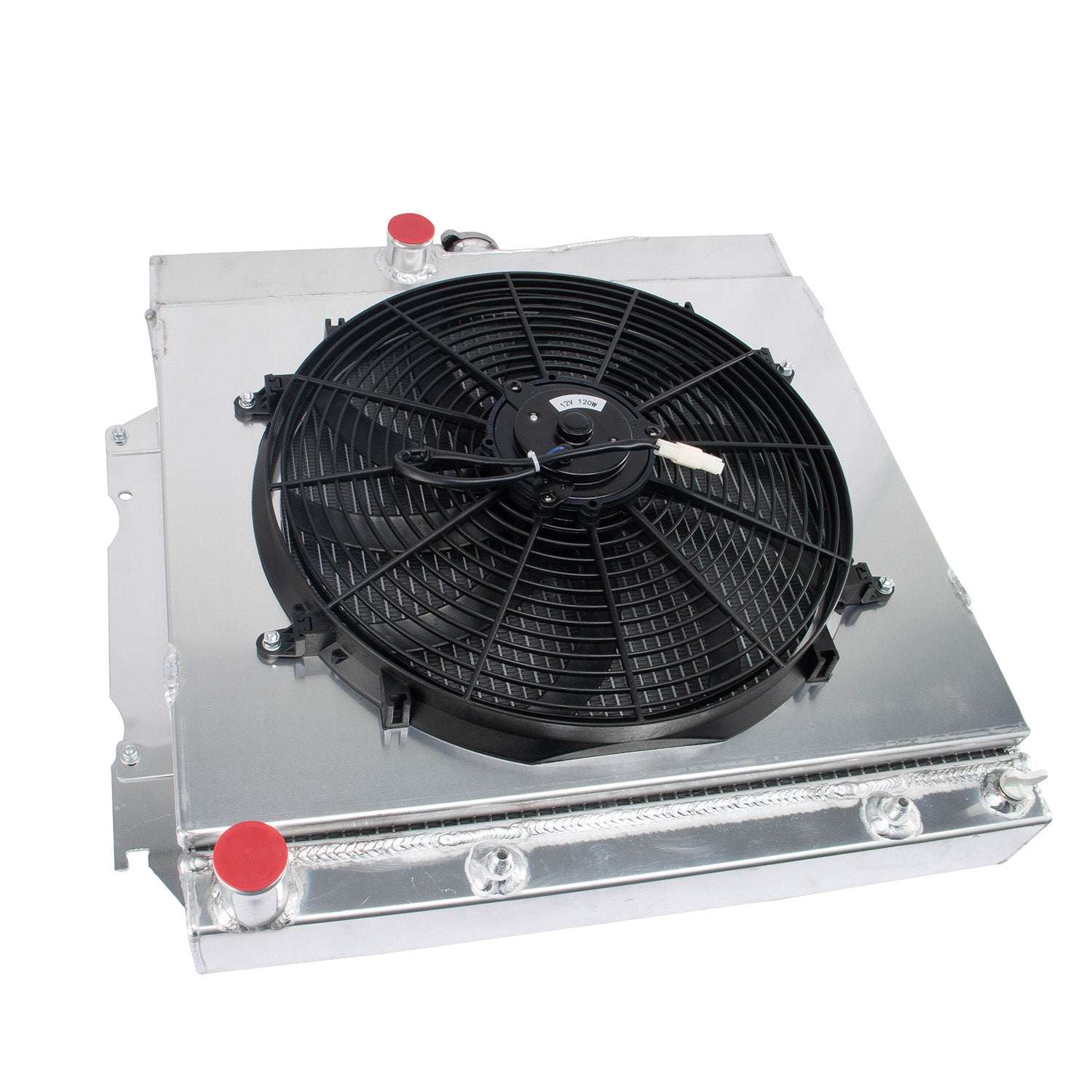

ASI Performance 22"W 4-Row Radiator+Fan Shroud fit 1963-1968 Dodge Charger Dart Coronet Plymouth

Fitment:

Package Include:

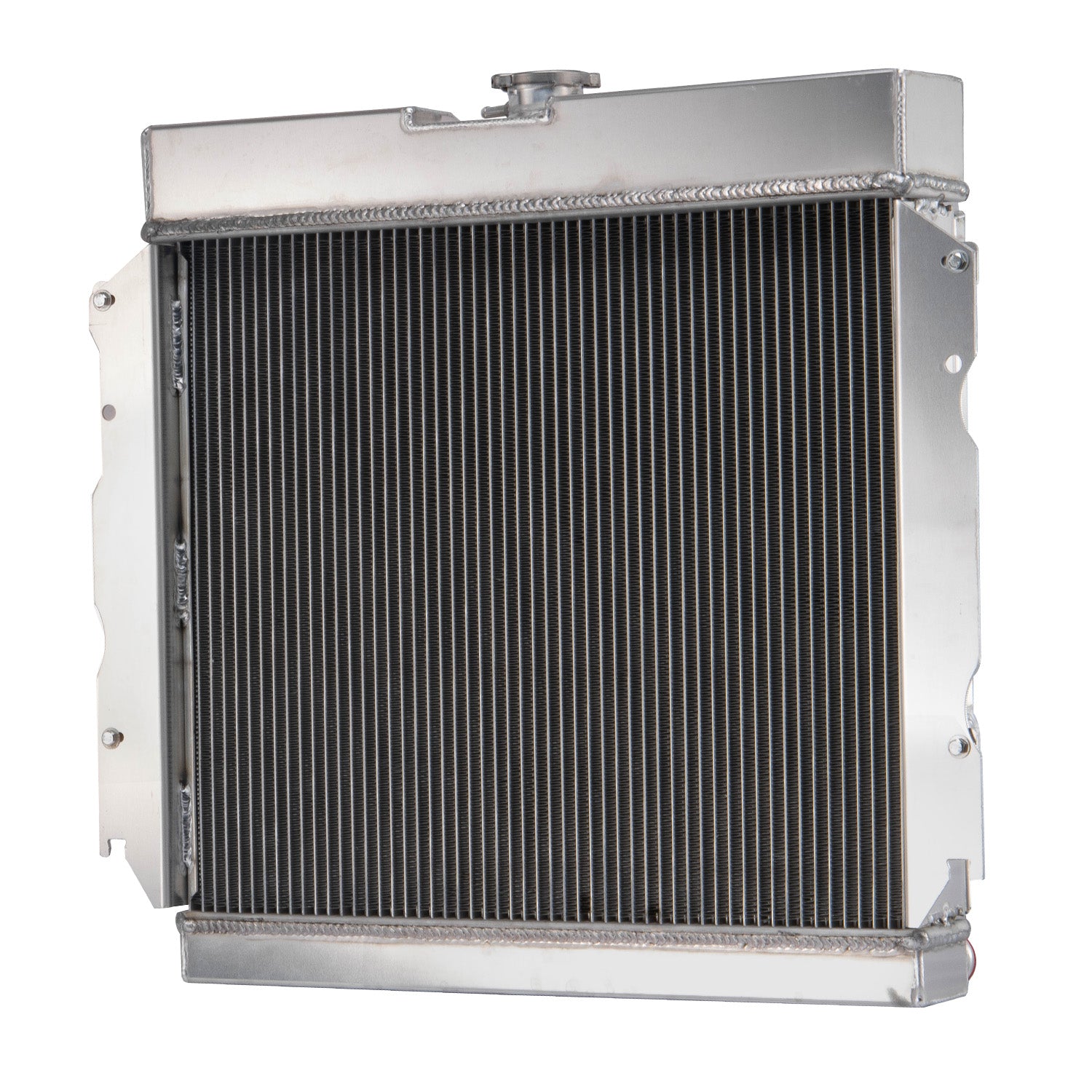

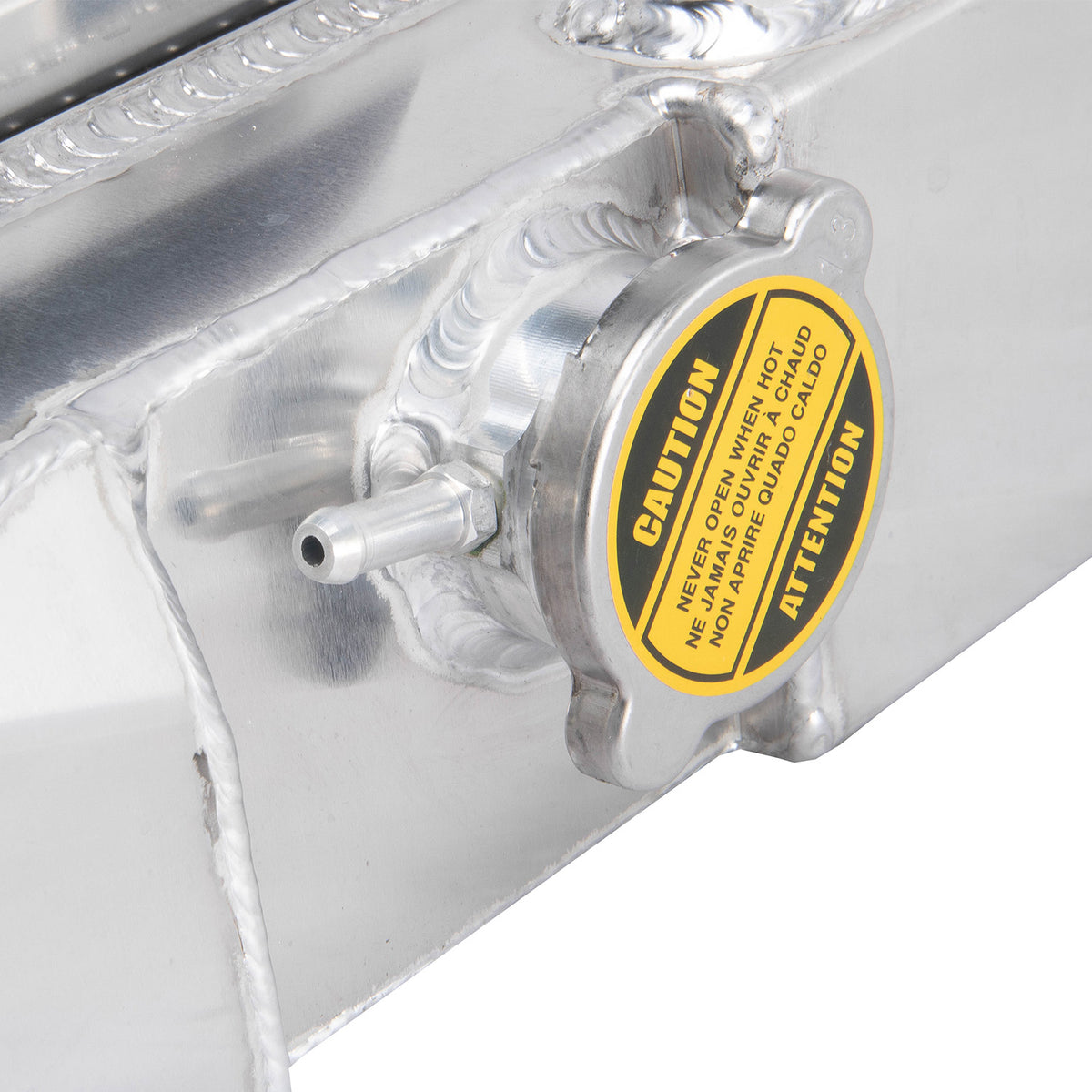

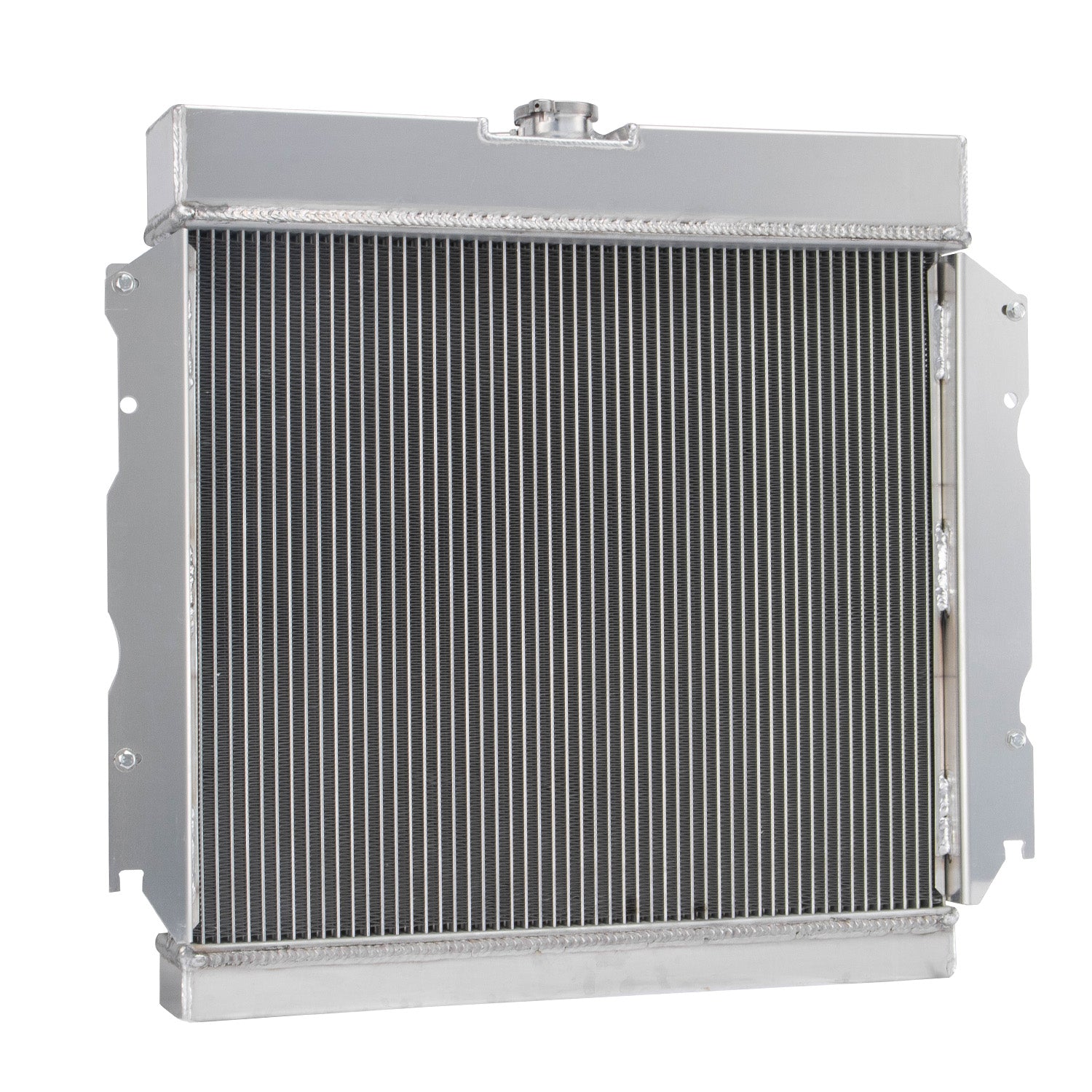

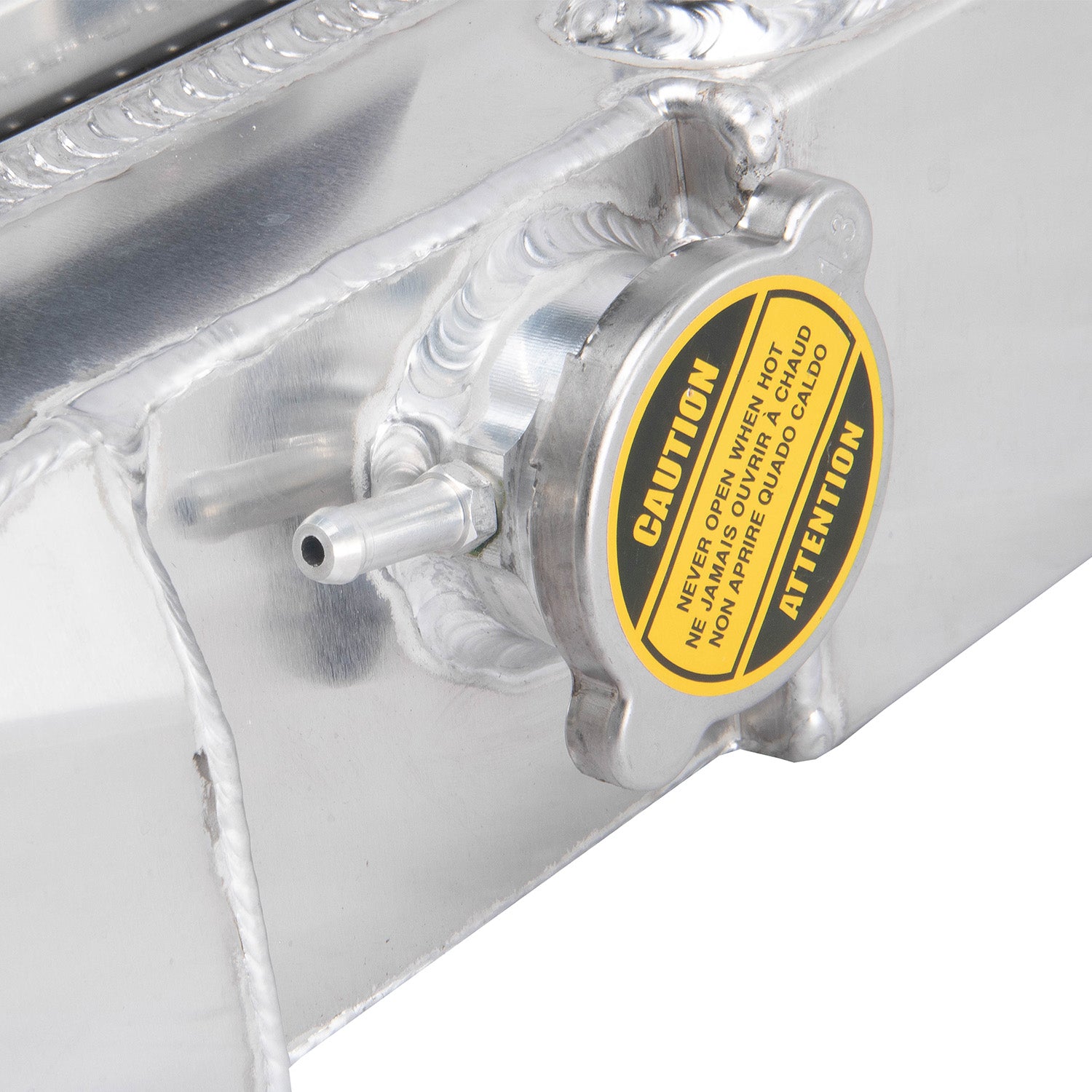

1 X 4-Row Aluminum Radiator W/Radiator Cap

1 X Aluminum Shroud

1 X 16" Fans (Includes mounting kits)

Application:

For 1965-1966 DODGE DART (V8 ONLY) 22" WIDE CORE

For 1966-1969 DODGE CHARGER 22" WIDE CORE

For 1965-1969 DODGE CORONET 22" WIDE CORE

For 1963-1967 DODGE STATION WAGON 22" WIDE CORE

For 1963-1965 DODGE 2-DOOR 22" WIDE CORE

For 1965-1967 PLYMOUTH SATELLITE 22" WIDE CORE

For 1963-1967 PLYMOUTH BELVEDERE 22" WIDE CORE

For 1963-1967 PLYMOUTH STATION WAGON 22" WIDE CORE

For 1965-1966 PLYM VALIANT-SIGNET (V8 ONLY) 22" WIDE CORE

For 1963-1964 PLYMOUTH SAVOY 22" WIDE CORE

For 1963-1967 PLYMOUTH FURY 22" WIDE CORE

Radiator Configuration:

High Performance Racing Spec.

4-Row of tubes Core Racing Design

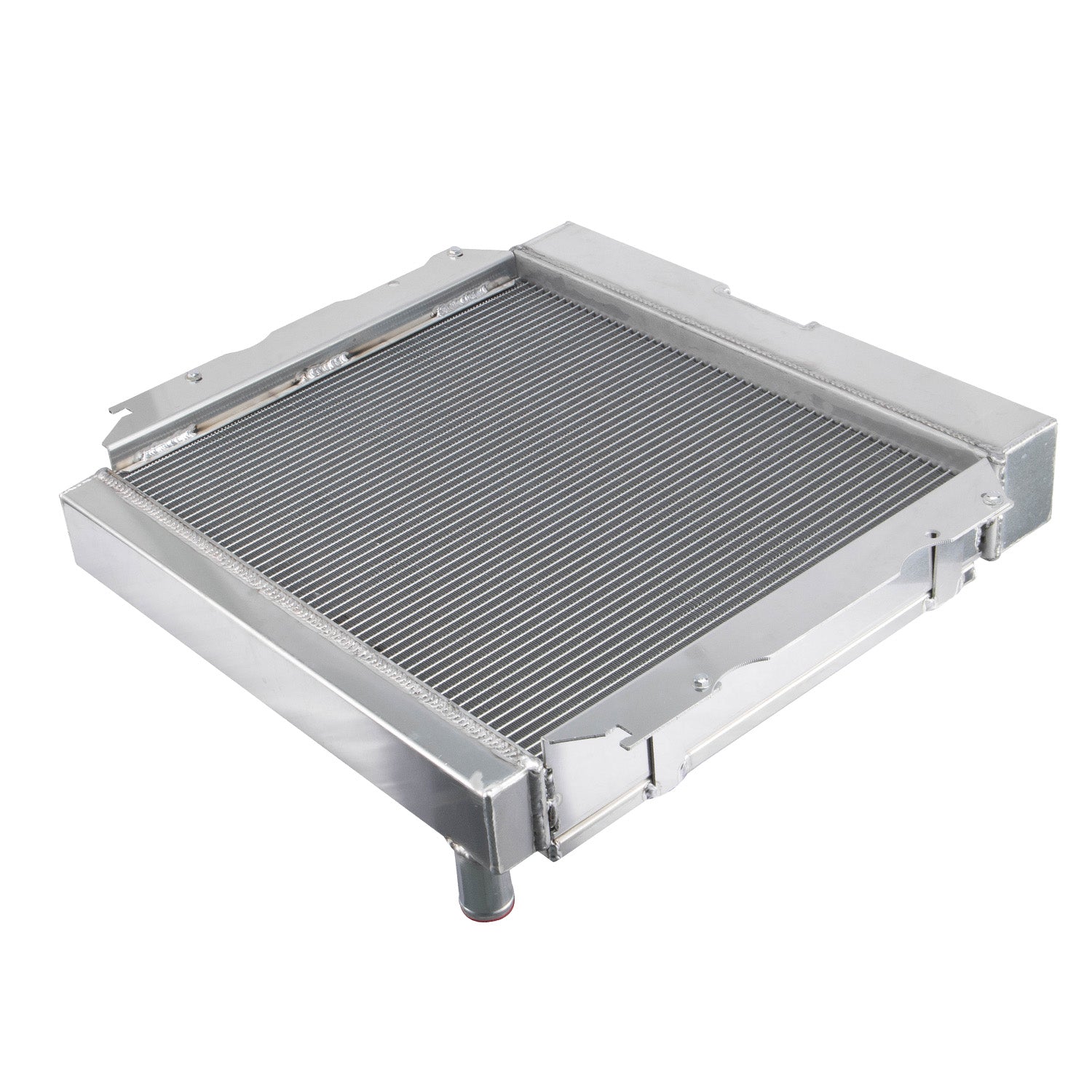

Core Dimensions: 17-1/2" H x 22" W

Overall Dimensions: 23-3/4" H x 26" W

Upper Outlet Diameter : 1-1/2" located off-set in the Center

Lower Inlet Diameter : 1-1/2" located on the Driver side

Please Check the Size Before You Buy!

Fan Specification:

Diameter : 16'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 120W

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

Amp Draw: 10amp

Fan Thickness: 2.95"

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Powerful 120 watt motor will keep your engine cool.

Description:

Our Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.

This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

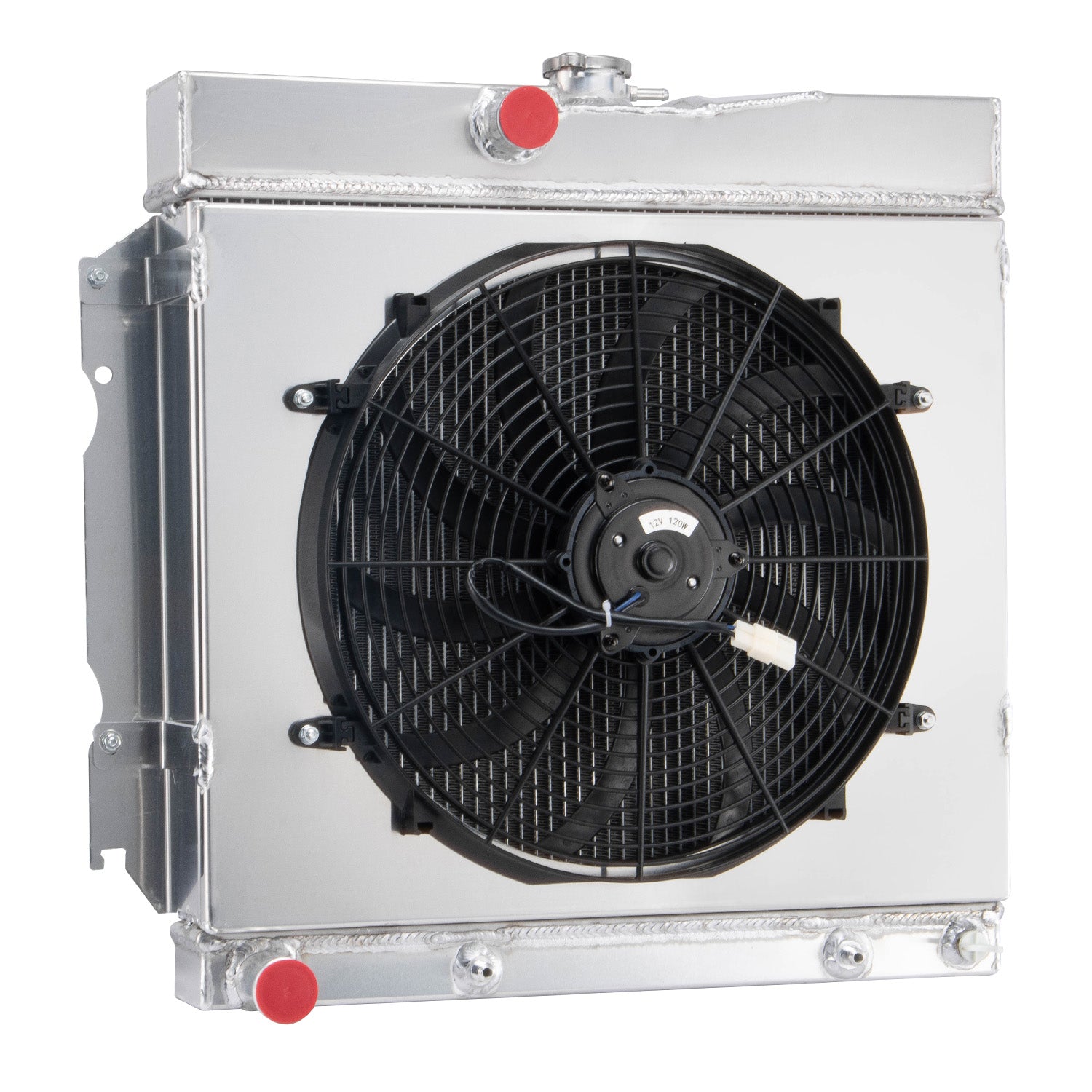

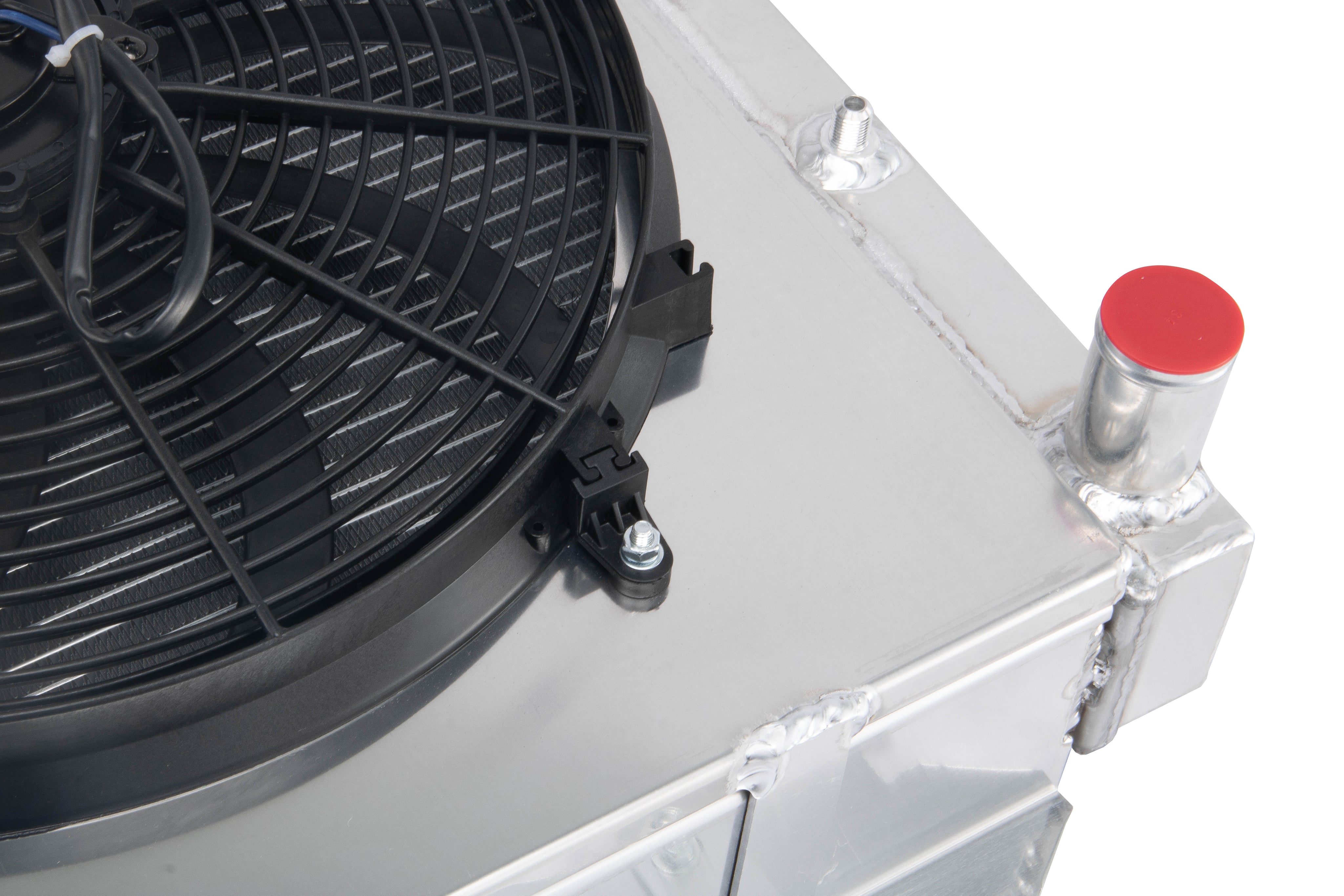

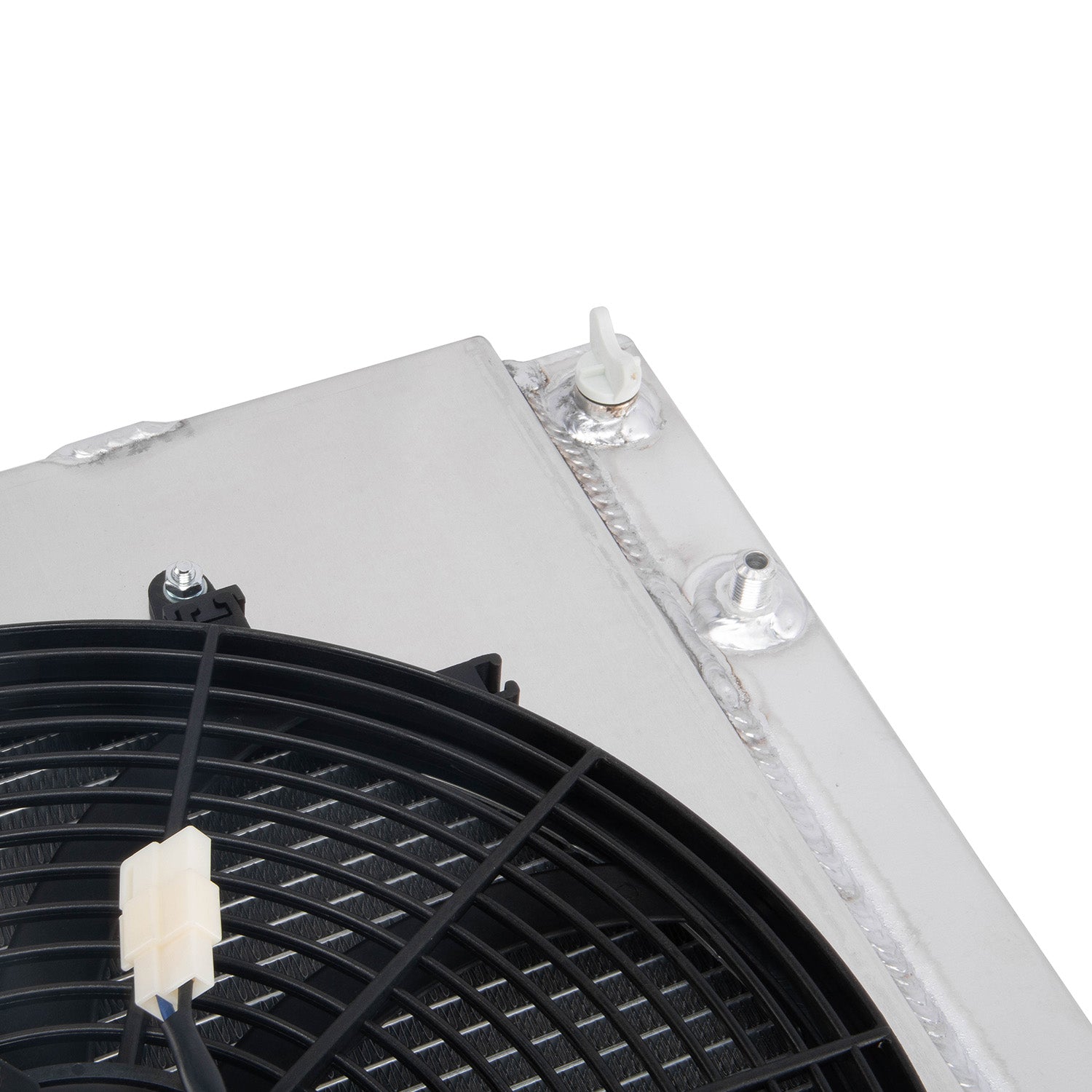

Aluminum Shroud Fan:

These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
