ASI Performance 3 Core Radiator+Shroud Fan for 67 68 69 70 Ford Mustang Mercury Cougar V8 24" W

ASI0244

In stock

SKU: WH338FS-DP01 Barcode: ASI0244

No reviews

$199.00

Overall size

25 3/8''Width x 21 1/2'' Height x 5 1/2''Thick

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Note: Both top hose and bottom hose are on the passenger side for the 24" wide product.

If you need the top hose on the passenger side and the bottom hose on the driver side, or if you need a 20" wide product, we also have them.

Please check your size before ordering.

Package Includes

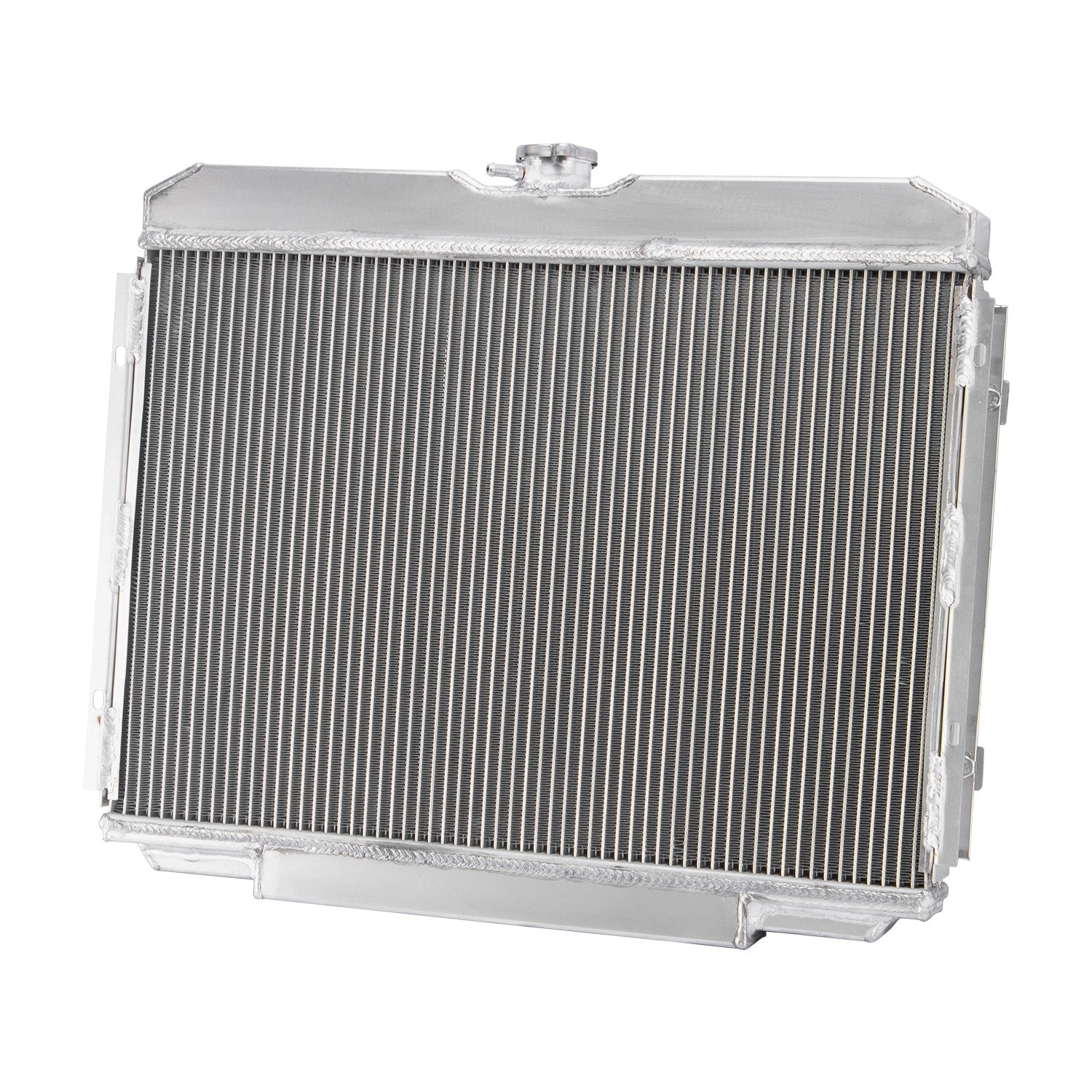

1 × Aluminum Radiator

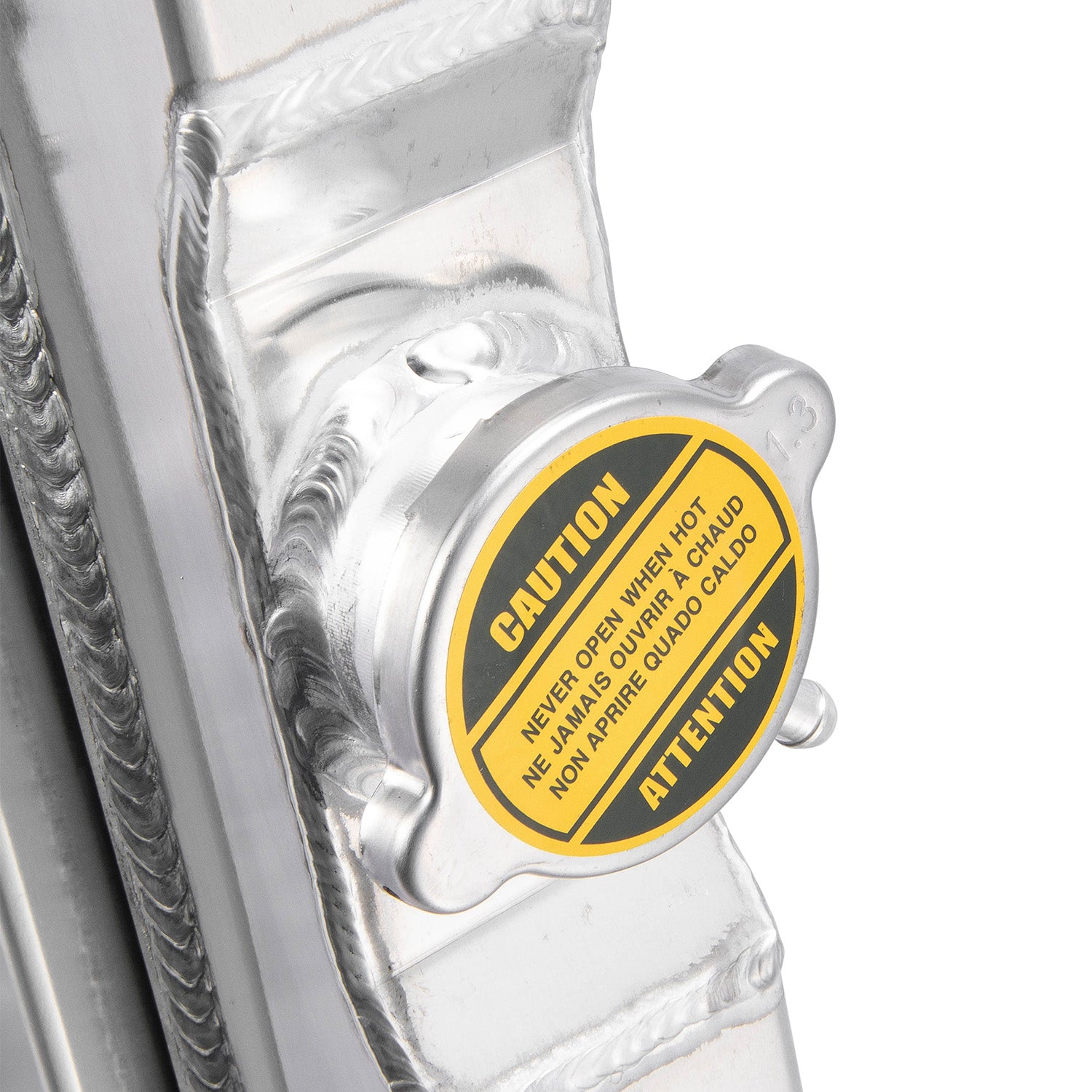

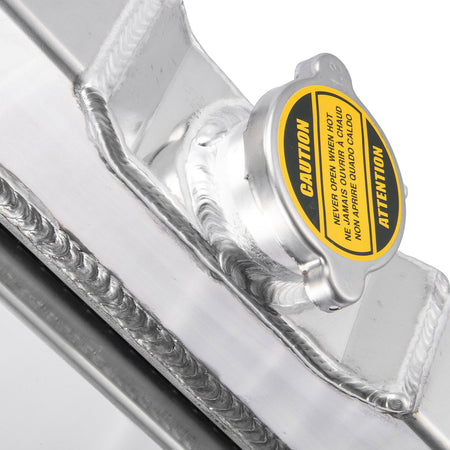

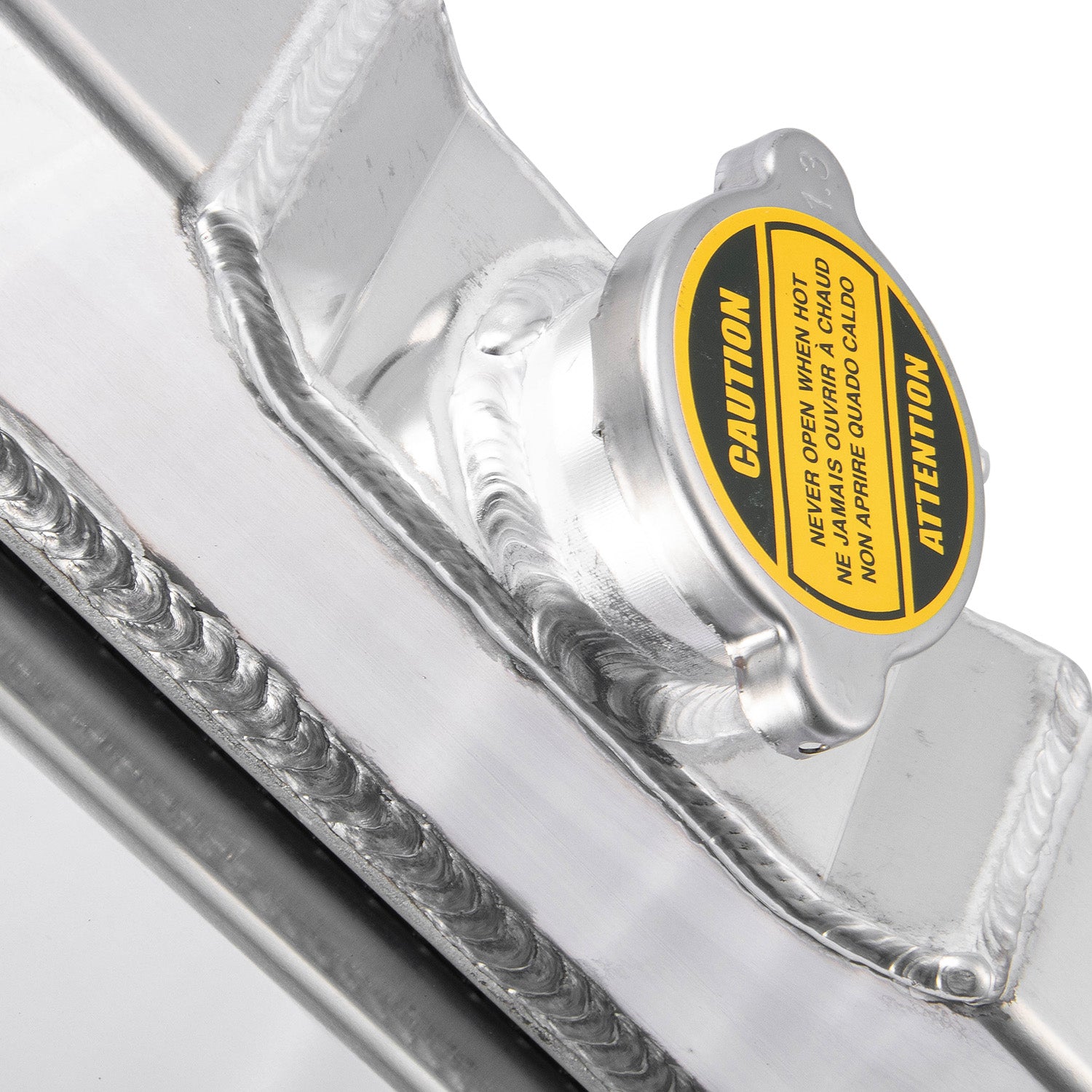

1 × Radiator Cap
1 × Aluminum Shroud
2 × 10" Fans (Includes mounting kits)

Radiator Specifications

Row	3 Row Core
Material	Full Aluminium
Radiator Cap	Included
Core & Tank	All Aluminum
Radiator Flow	DOWN FLOW
Core Size	24'' Width x 16 1/3'' Height x 1 3/4'' Thick
Overall Size	25 3/8''Width x 21 1/2'' Height x 5 1/2''Thick
Inlet Diameter	1.5"
Outlet Diameter	1.75"

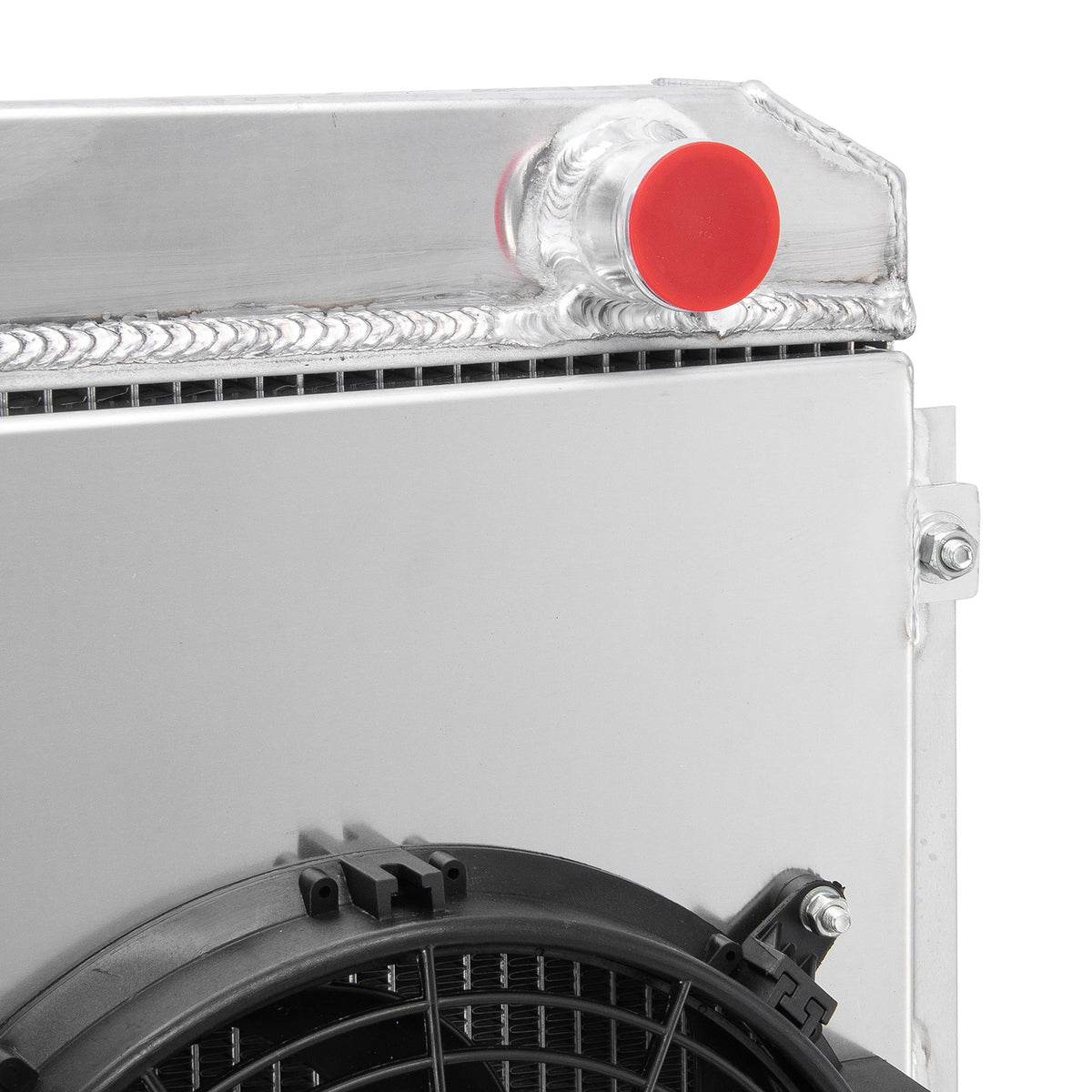

Upper Hose Fitting	PASS

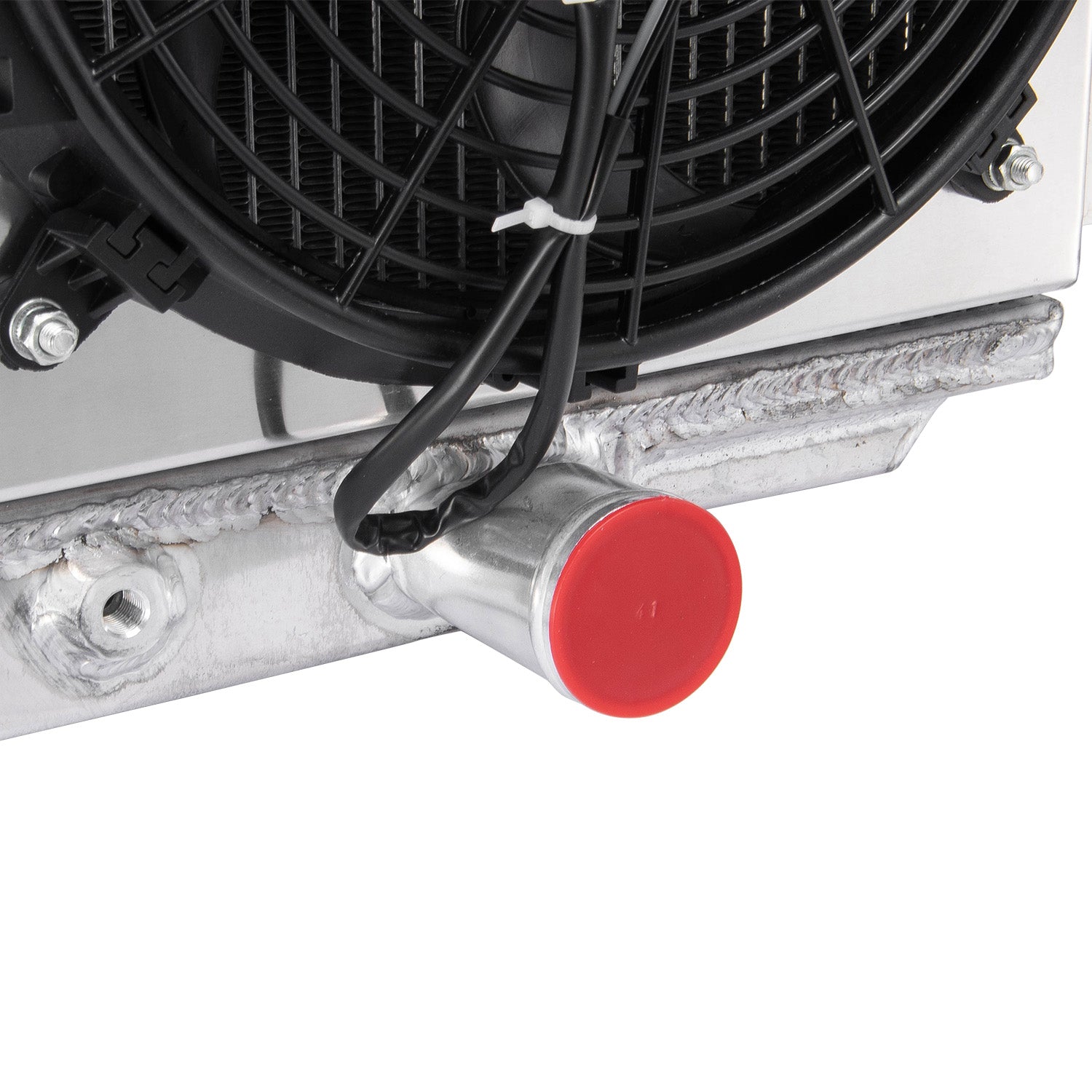

Lower Hose Fitting	PASS

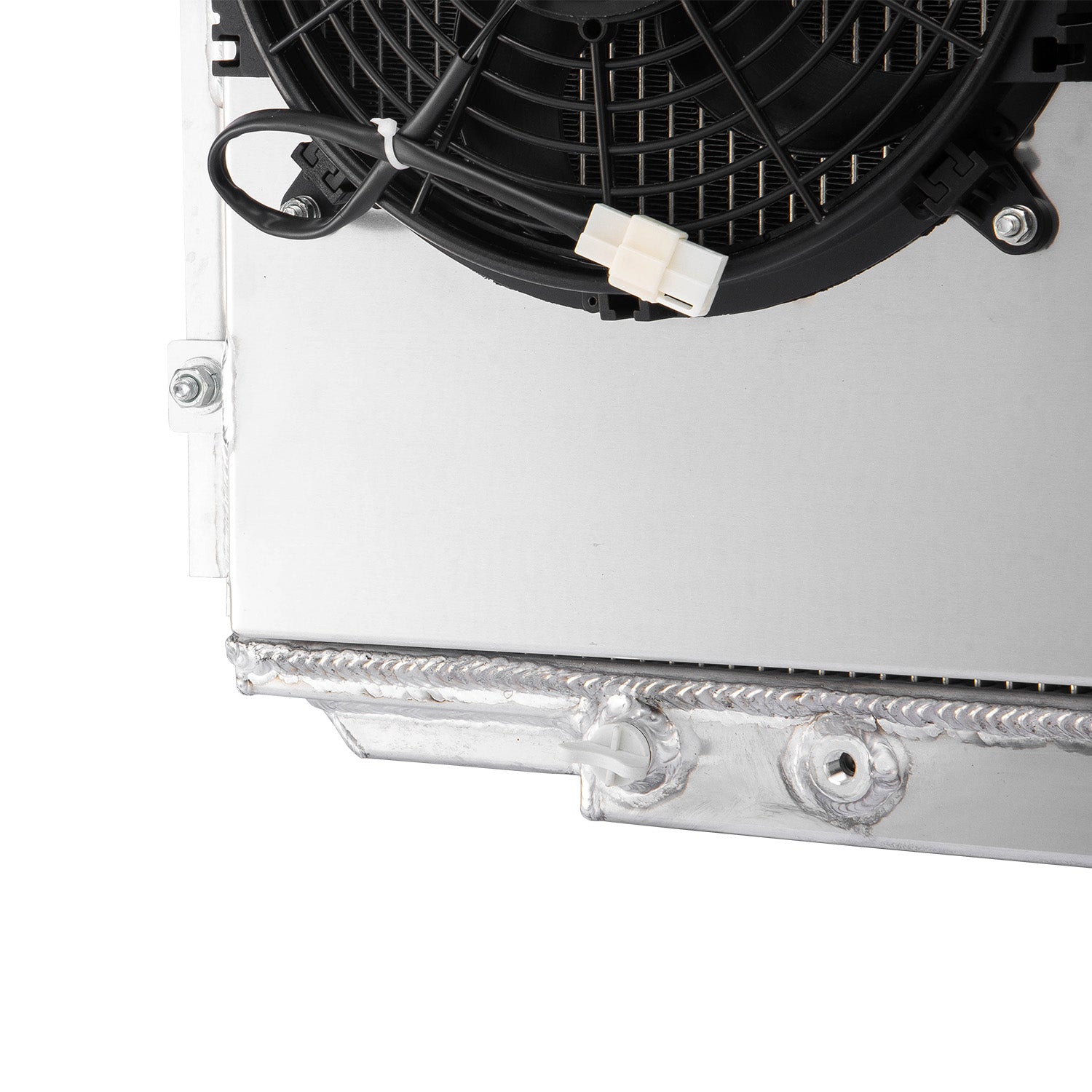

Transmission Cooler	1/8-27NPT
Mounting Type	FLANGES
Mounting Specs	Vert - 9 7/8 Horizontal - 24 5/8
Transmission	Automatic

Vehicle Fitment

1968 Ford Mustang V8 4.7L Engine with AC or Heavy Duty Cooling
1968-1969 Ford Mustang V8 5.0L Engine with AC or Heavy Duty Cooling
1969 Ford Mustang V8 5.8L Engine with AC or Heavy Duty Cooling
1967-1968 Mercury Cougar V8 4.7L Engine with AC
1968 Mercury Cougar V8 5.0L Engine with AC
1969-1970 Mercury Cougar V8 5.8L Engine with AC

Fan Specifications

Voltage	12V
Maximum Fan CFM	1730 CFM
Fan Diameter	10.050"
Thickness	2.500"
Number of Blades	6 Blades
Maximum Fan RPM	2,250 RPM
Blade Material	Plastic
Amp Draw	12.70 Amps

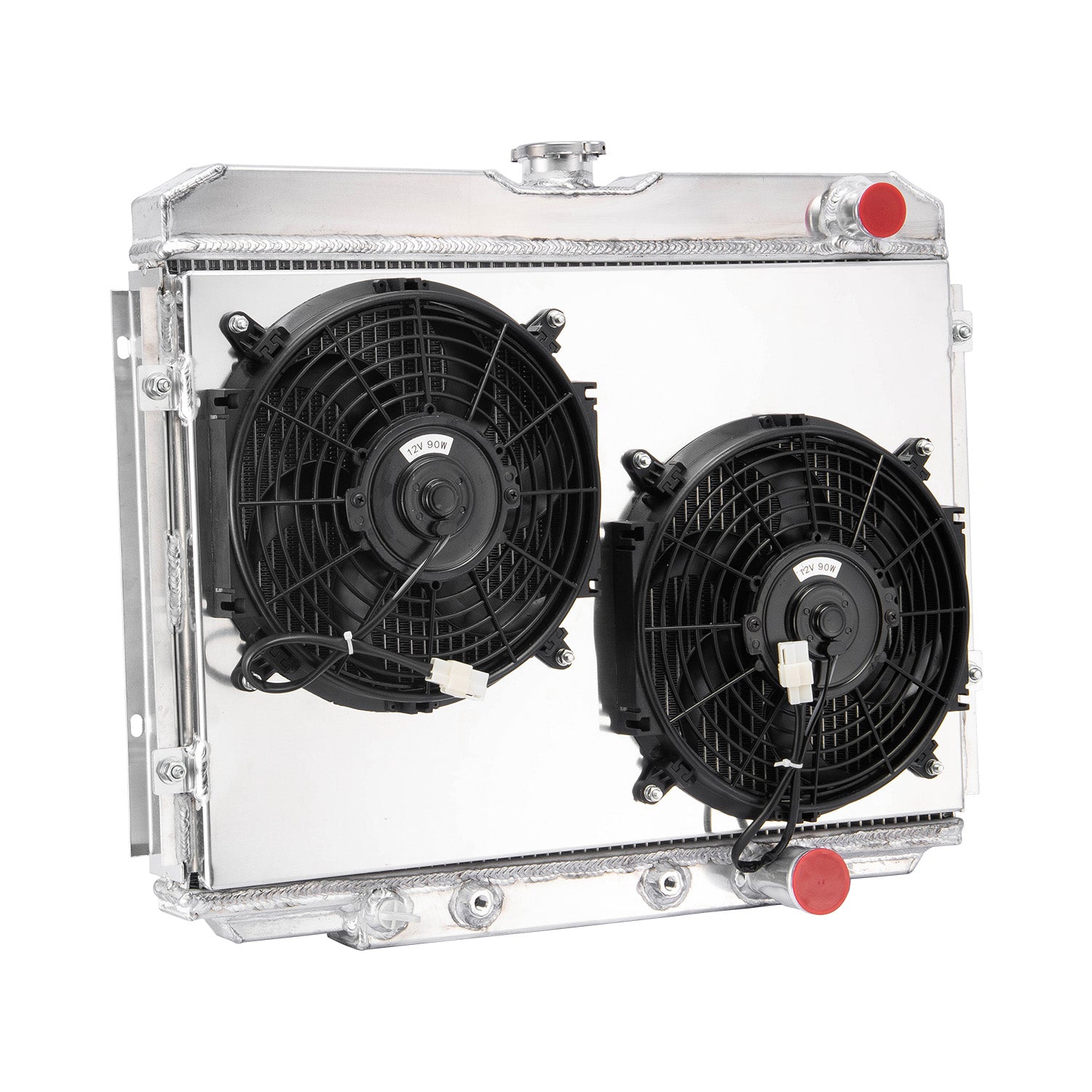

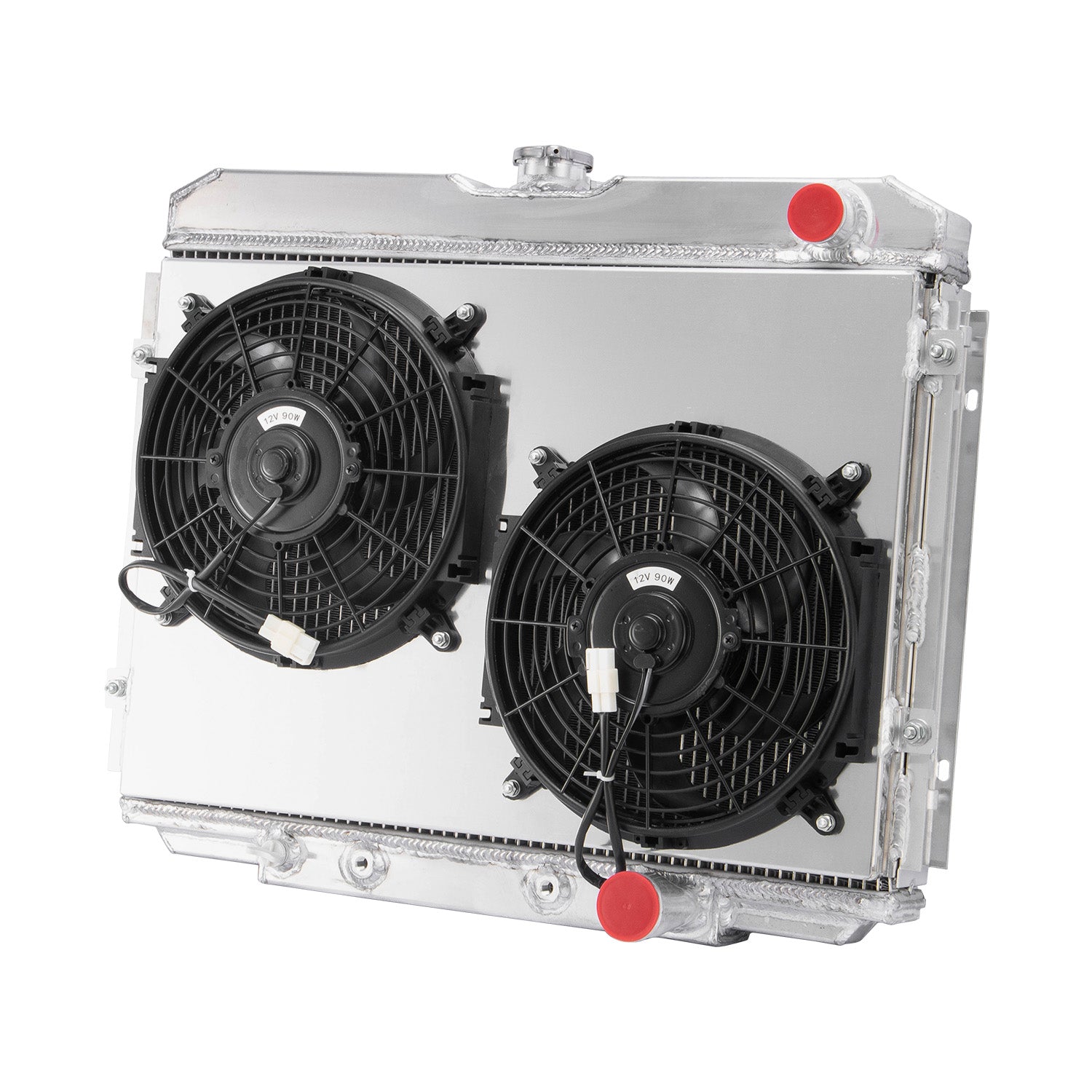

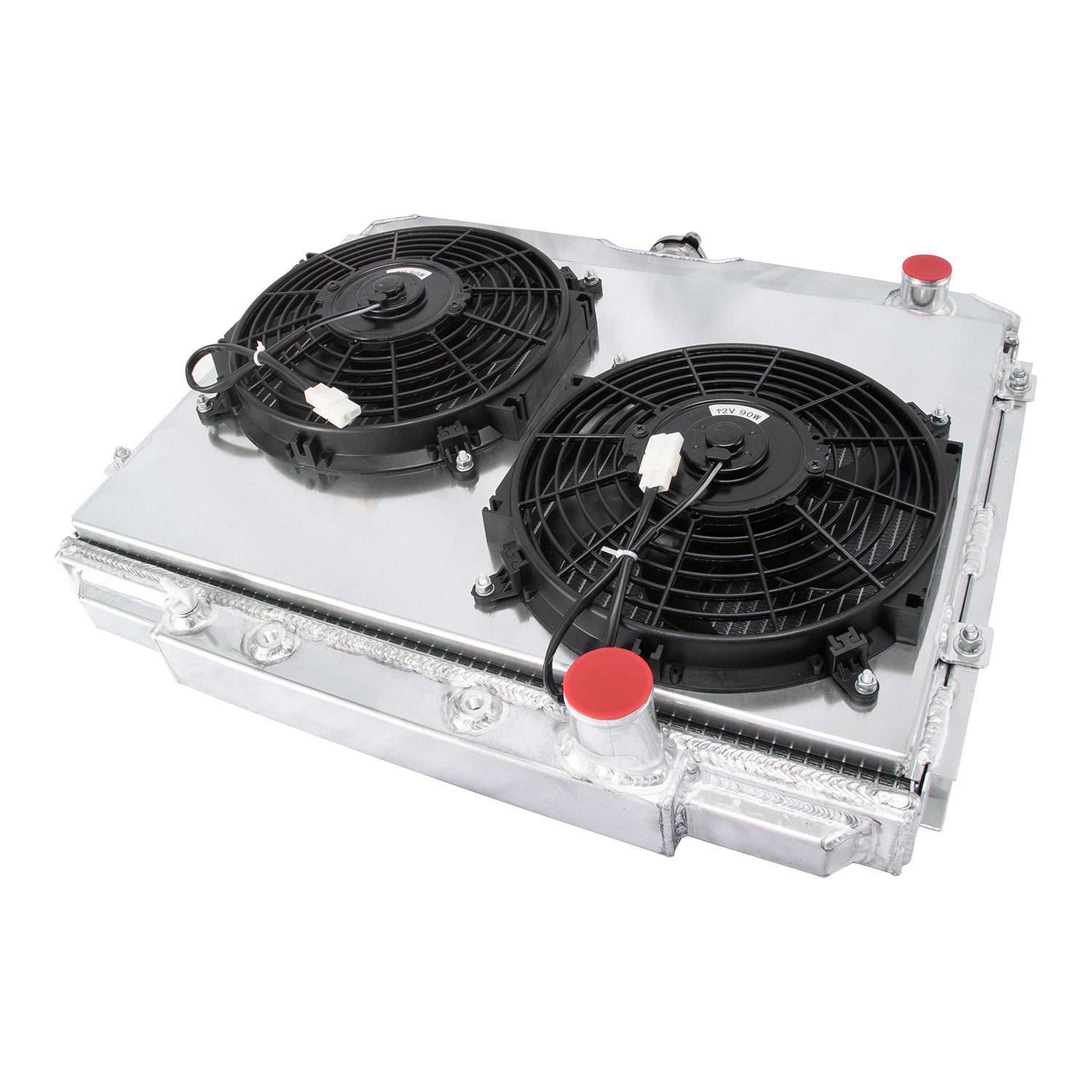

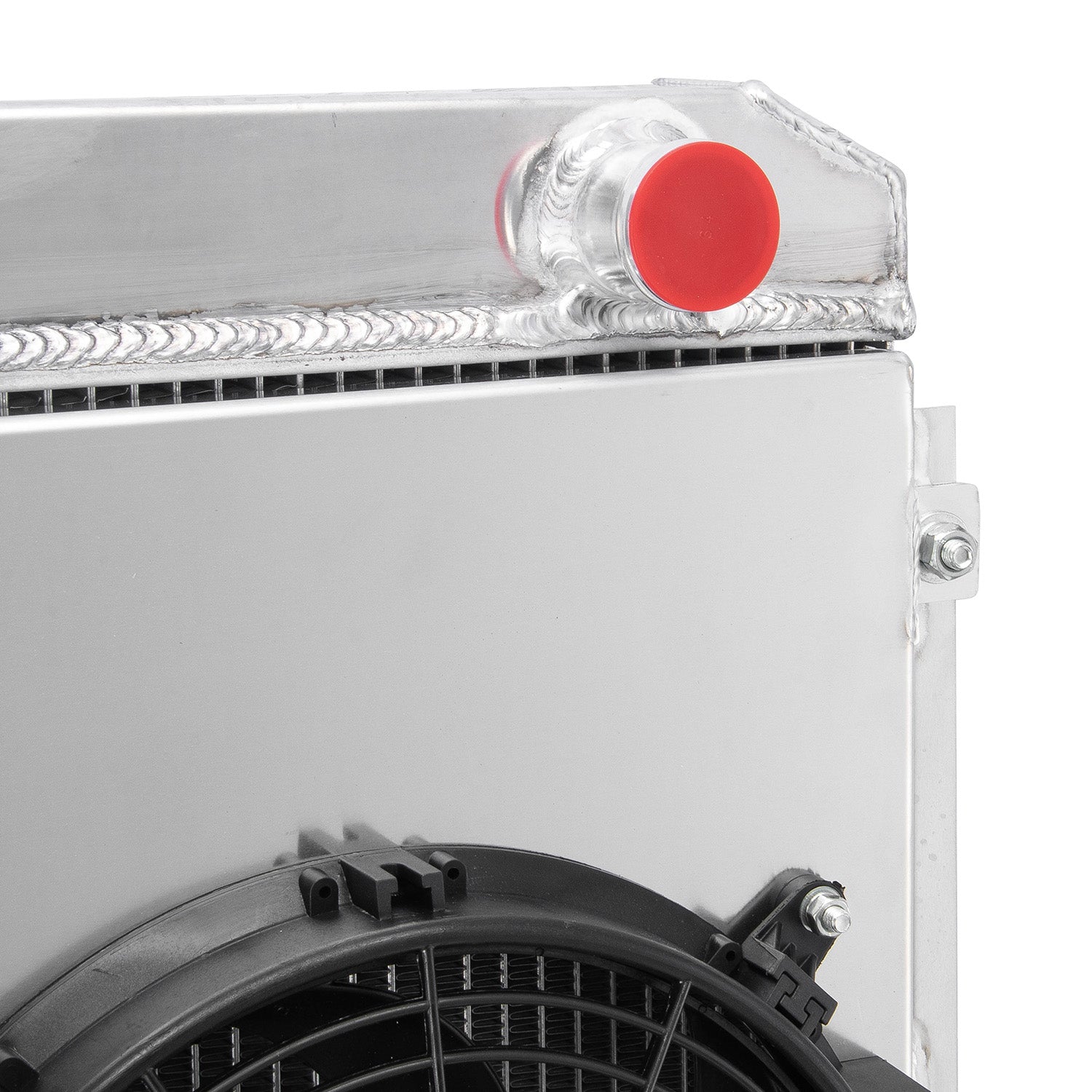

Aluminum Shroud and Fans

The new design fan and fan shroud effectively drive heat over and out of the engine compartment rather than thrusting it into the front of the engine. The fan shroud houses the fan blades, securing them in place and helping prevent interference with other engine components. With effective operating temperature management, engine temperatures can be maintained at appropriate levels. Proper maintenance will also help maintain ideal engine operating conditions and overall driving performance.

1. Shuttered design fan shroud helps ensure airflow passes efficiently through the radiator.
2. S-blade fans feature a push or pull type design with lightweight, durable plastic construction.

Description

This Aluminum Radiator is designed to provide maximum cooling efficiency to help prevent premature engine failure.

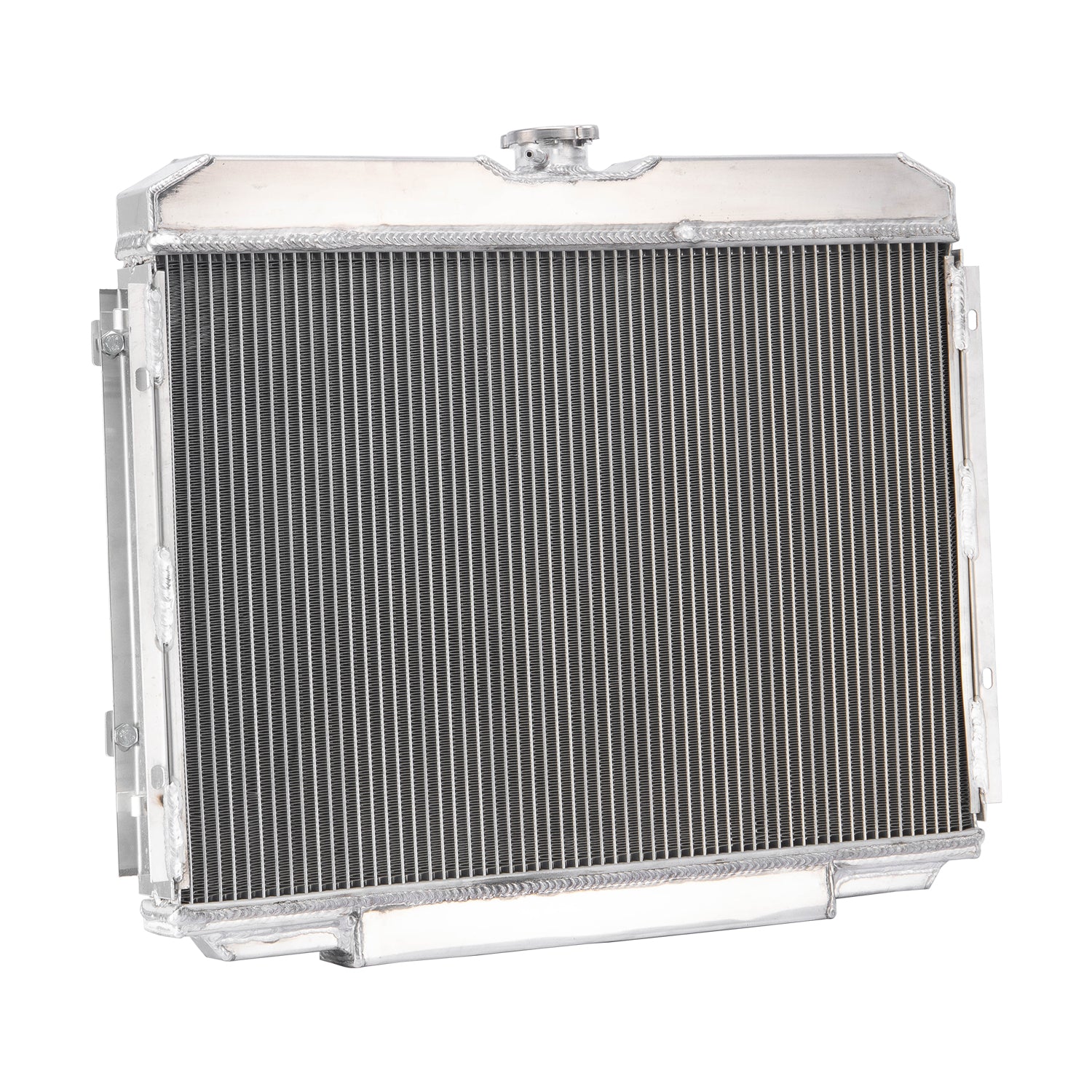

Its lightweight, high-heat-transfer aluminum construction features a tube-and-fin design that dramatically increases surface area and enables heat to dissipate more efficiently.

This Aluminum Radiator is at least 30%–40% more efficient than stock radiators.

Most importantly, it has a much higher coolant capacity than stock radiators, which means the cooling system can operate more efficiently and be more resistant to temperature surges in racing applications.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
