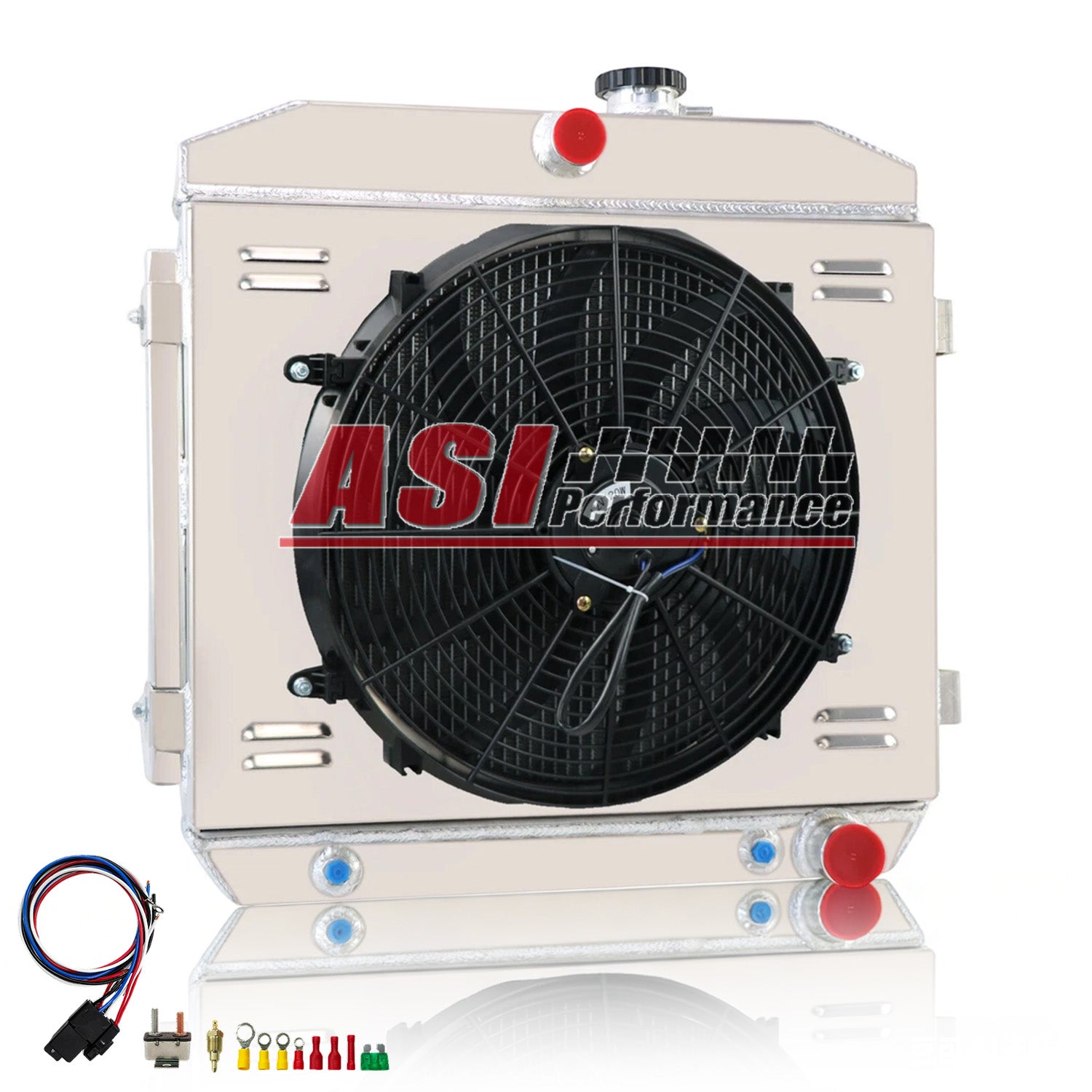

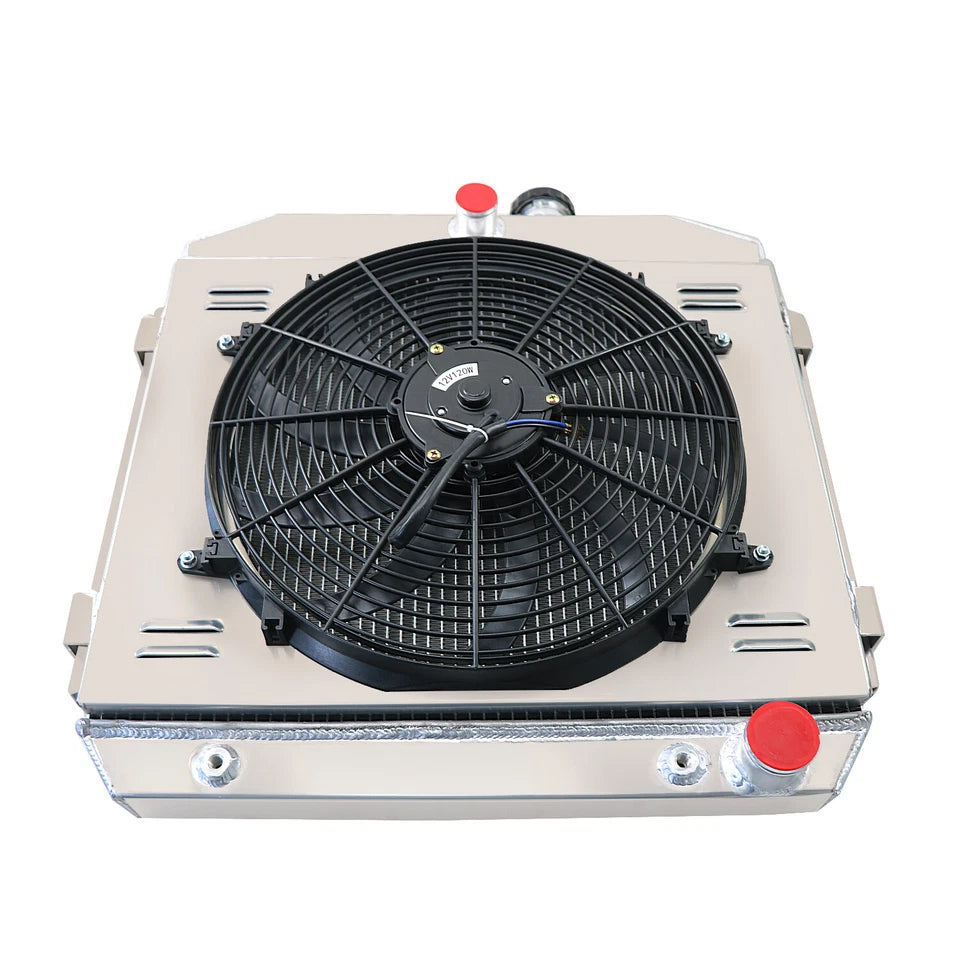

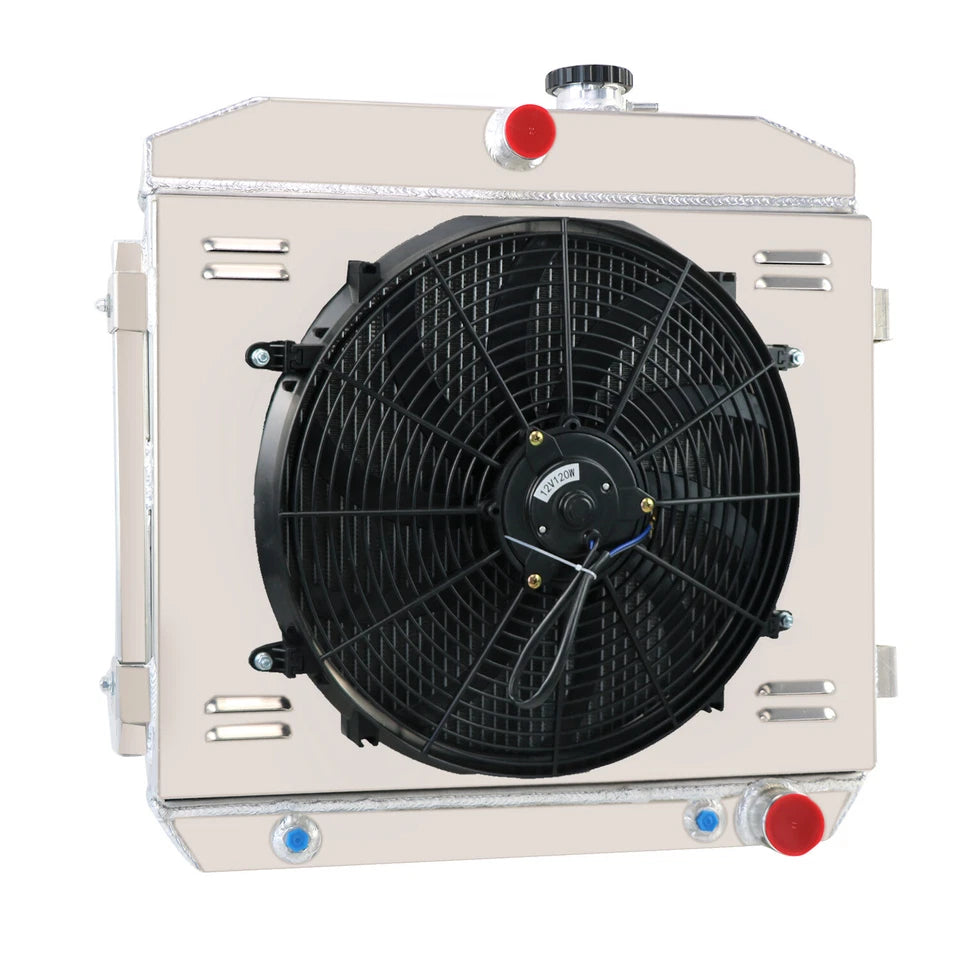

ASI Performance 3 Row Aluminum Radiator+Shroud Fan Kit for 1955-57 Chevrolet Bel Air Nomad V8.

Fitment:

Package Includes:

1 X 3-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
1 X 16" Fan (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Specifications:

3-Row of tubes Core Racing Design
Core Material: All Aluminum
Core Size: 438mm(H)*548mm(W)
Overall Size: 600mm(L)*155mm(H)*600mm (W) ?
Upper Inlet: 1-1/2" located in the Center
Lower Outlet: 1-3/4" located on the Passenger side.
Auto Trans Cooler: included
Bracket mount system
OEM Style Brass Petcock Drain
Please Check the Size Before You Buy!

Fans Details:

Diameter : 16'' (Blade to Blade)
Number of Blades: 10 pcs?
Maximum Fan CFM£¨Cubic Feet per Minute£©: 3,000 cfm
Maximum Fan RPM£¨Revolution(s) Per Minute£©: 2,250 rpm
Max. Amp Draw: 15amp
Voltage: DC 12V
Wattage: 120W

Our electric fan has a 120w power motor, which is more powerful and efficient than other inferior fans selling on market. Most fans on Ebay has a motor power of 80w, which cannot provide enough cooling for the engine. Moreover, they are usually assembled by the straight blades, it is cheaper and poor-quality and easy to get broken.

1. 120W electric motor to provide strong power and high rotation speed
2. S Blade pull push design, to make air flow more efficient and bring more cooling Effect
3. Lightweight and thin volume design, not only to save more engine bay space and also looks very well.
4. Provide extra tempreture relay switch.

Thermostat Kit:

RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.

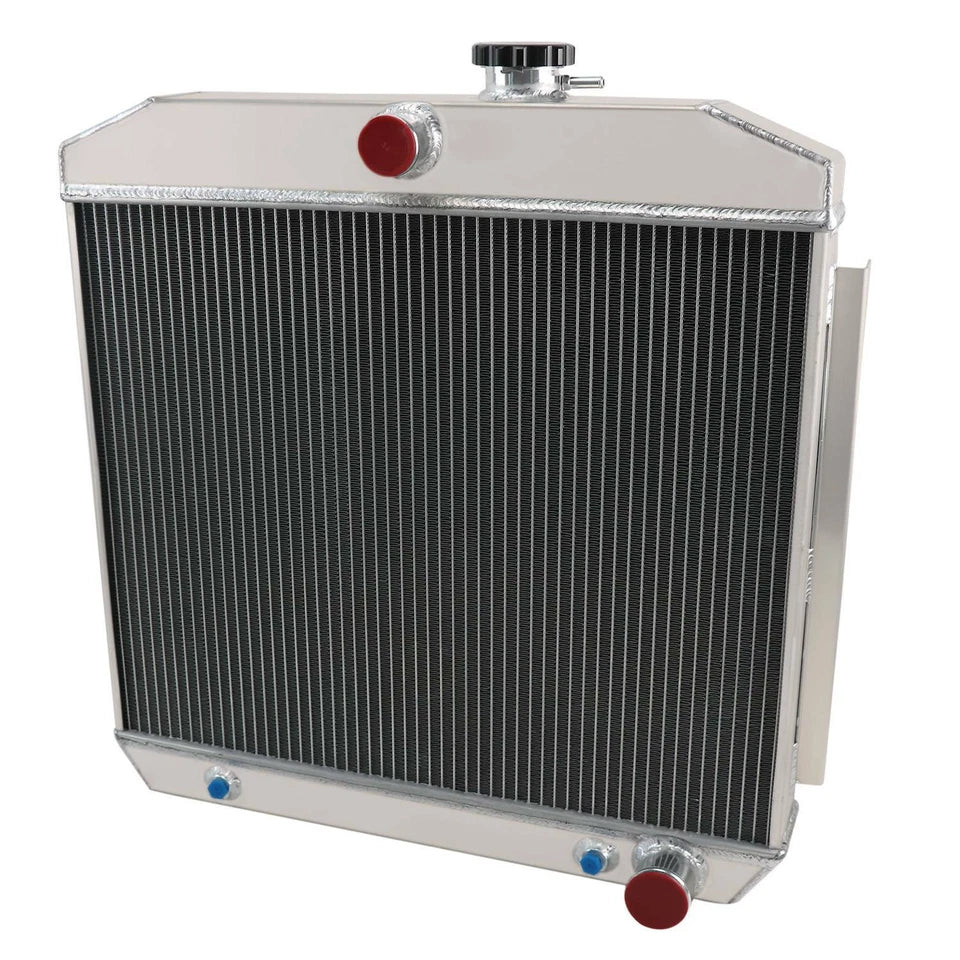

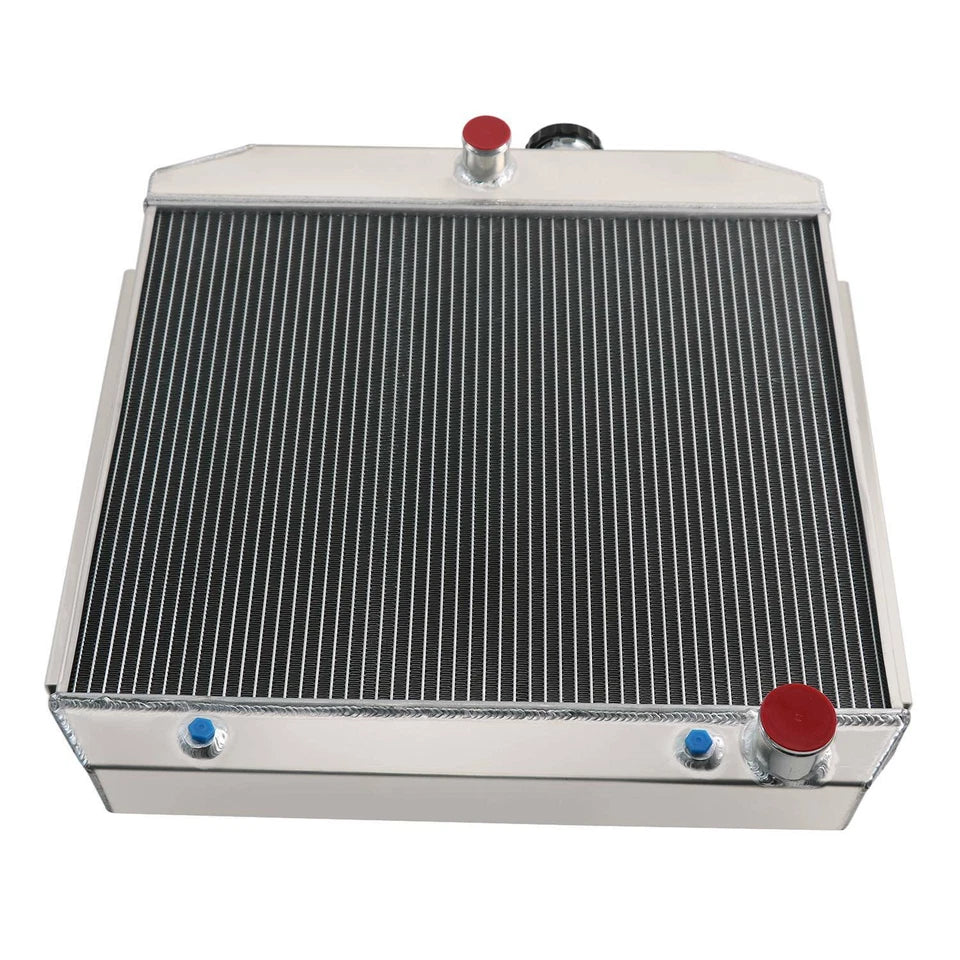

Radiator Details:

Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.

More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold work ability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

1. Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish

2. Brazed core technology to guarantee optimum performance and dependability

3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable

4. Billet Aluminum CNC machined fill neck rugged and durable

5. Carefully crafted to exceptional OE standards for precise fit.

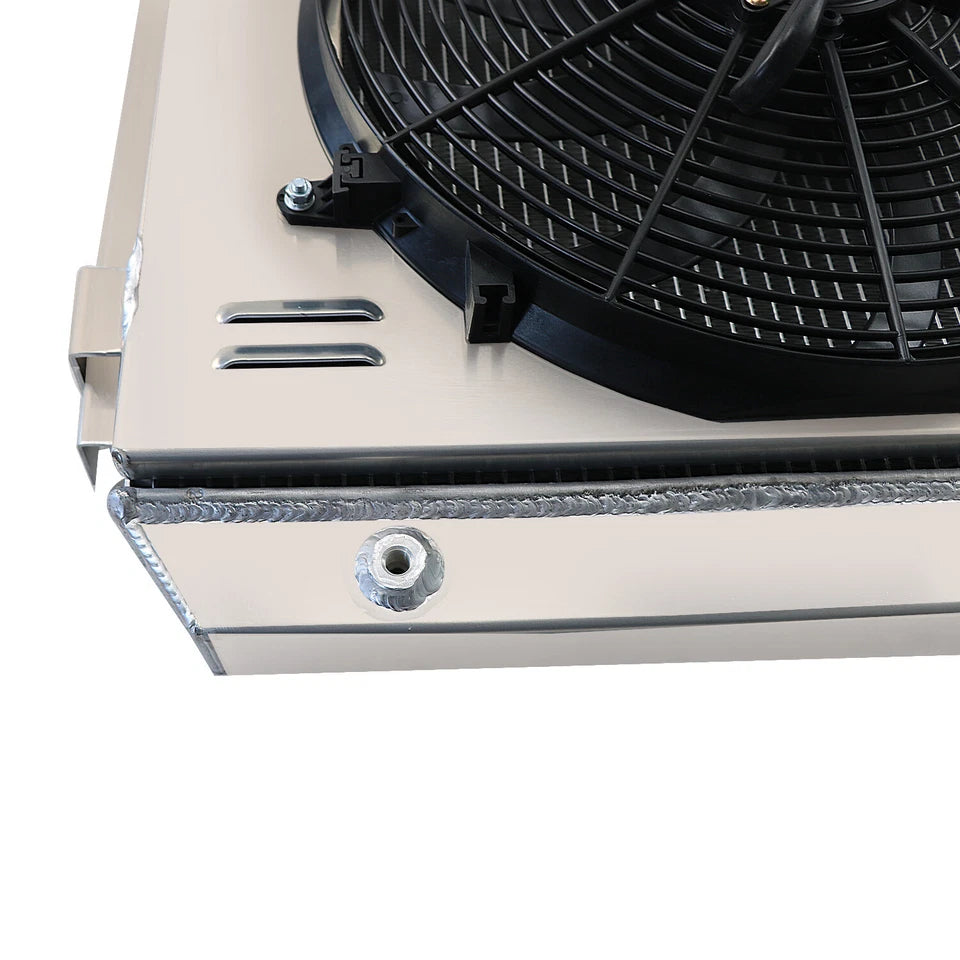

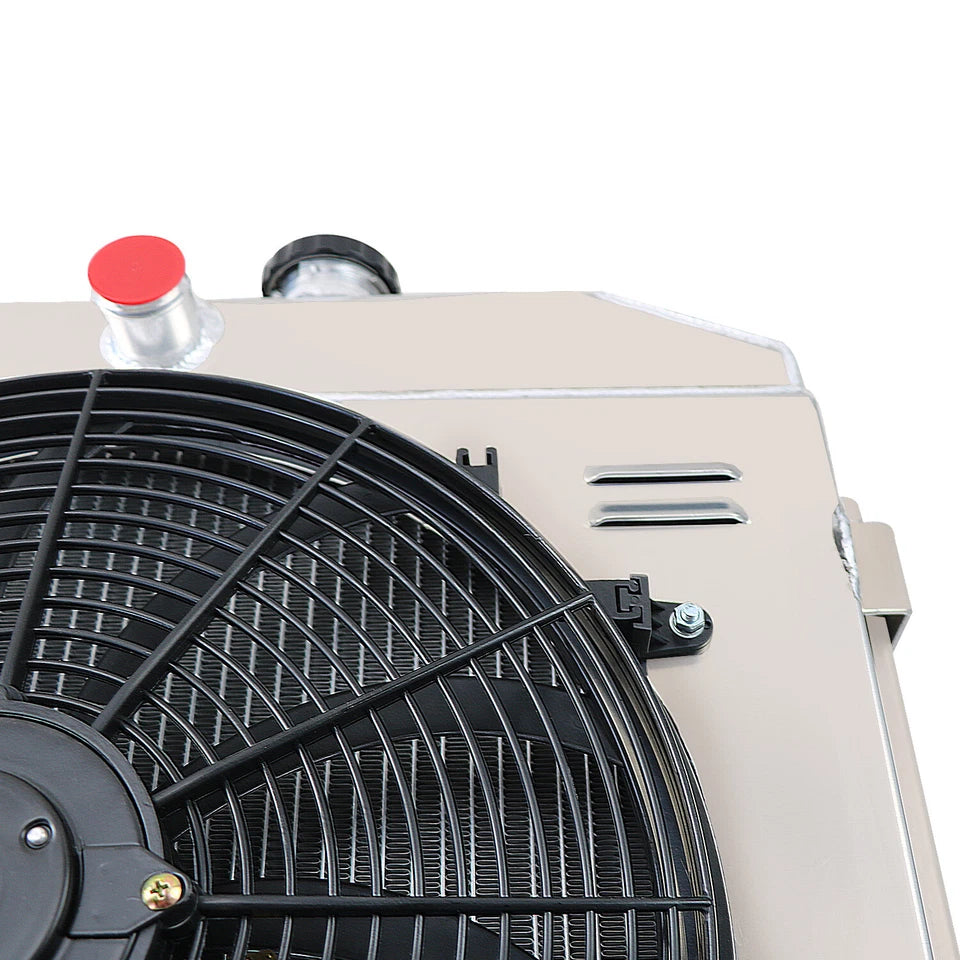

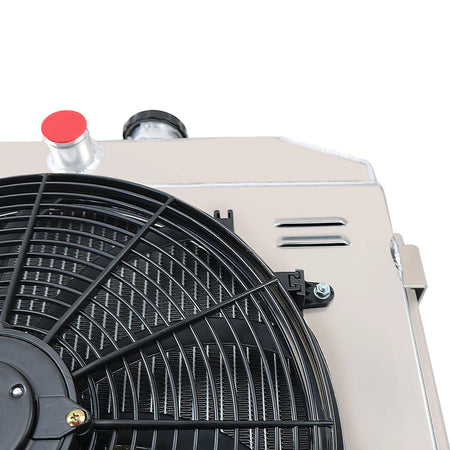

AA5052 Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, consider for every detail and needed

Thermostat Relay Kit:

Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe.
Probe typically threads into radiator, water outlet or manifold.
