ASI Performance 3 Row Radiator Shroud Fan+ Relay Kit Fits 1955-1959 Chevy Truck 3500 GMC 100 150 Pickup 26 1/6"H x 27"W

Vehicle Fitment

1955-1958 Chevy C/K-Series Truck / Pickup / Suburban

1955-1959 Chevy 3100, 3200, 3400, 3500, 3700, 3800

1955-1959 GMC 100

1955-1959 GMC 150

Please Notice:

To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part.

Package Includes

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 16" Fan (Includes Mounting Kit)

1 X Thermostat Relay Kit

Radiator Specifications

Fan Specifications

1. 120W electric motor provides strong power and high rotation speed.

2. S-Type blade push/pull design helps improve airflow and cooling efficiency.

3. Lightweight and slim design helps save engine bay space.

4. Includes an additional temperature relay switch.

Thermostat Kit

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180°F turn-on temperature, 165°F turn-off temperature.

3/8" NPT thread-in brass probe with 1/2" NPT adapter included.

Probe typically threads into radiator, water outlet or manifold.

Description

Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.

More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold work ability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

· Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish.

· Brazed core technology to guarantee optimum performance and dependability.

· All AA5052 Aluminum 2mm thick tanks and fittings, ensuring strength and durability.

· Billet Aluminum CNC machined filler neck, rugged and durable.

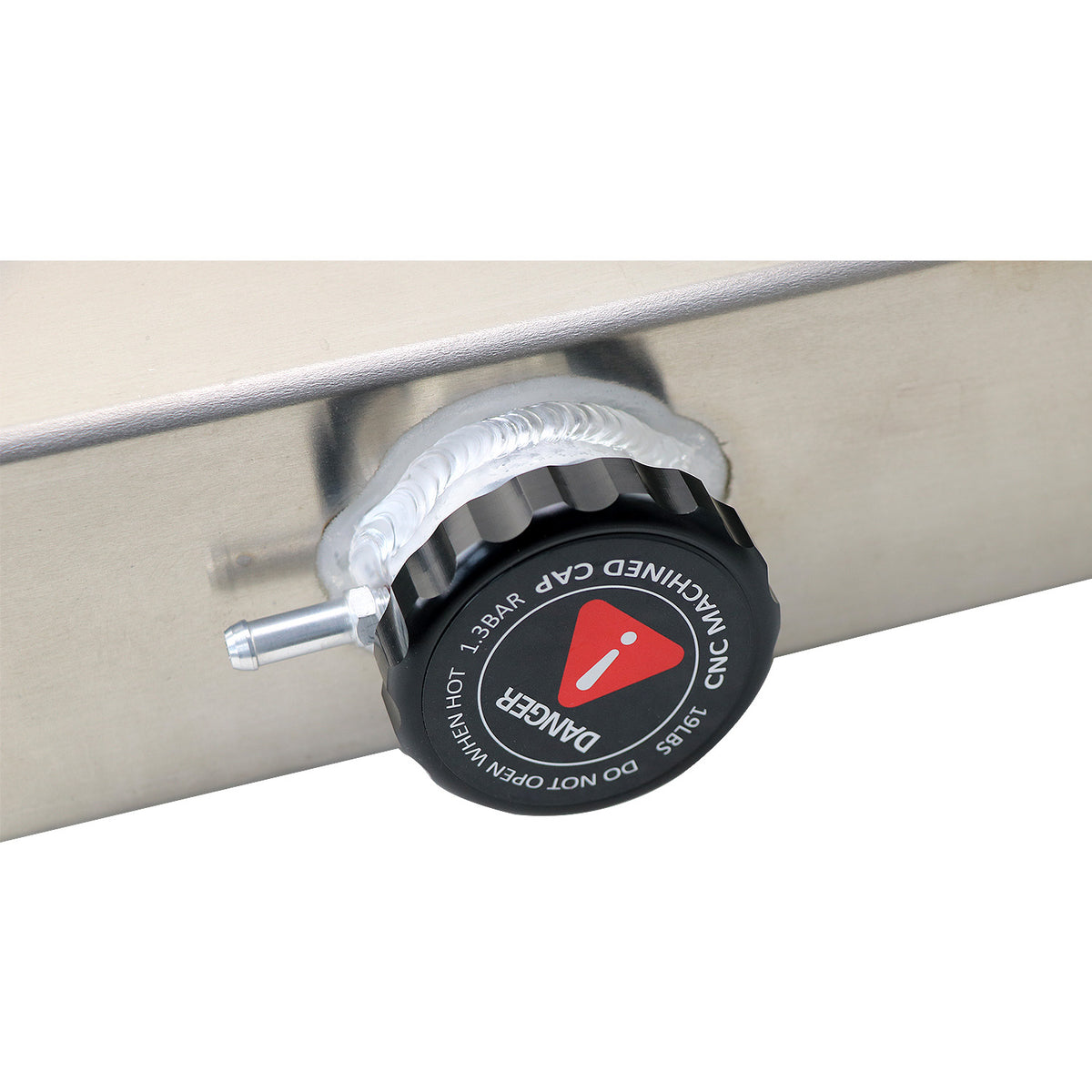

· CNC machined cap with engraved craftsmanship and anodized treatment.

· OEM style brass petcock drain.

· Carefully crafted to exceptional OE standards for precise fit.

AA5052 Aluminum Shroud and Fans

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out of the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades, securing them in place and keeping them from damaging other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized.
