ASI Performance 3 Row Radiator+Shroud Fan for 1963-1969 66 67 Dodge Dart Mopar / Plymouth Fury

ASI6329

In stock

SKU: WH1635FS-DP01 Barcode: ASI6329

No reviews

$229.00

Overall Size

23-3/4" H x 26" W x 3-1/2"

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Technical Specifications

Core Design	3-Row Core
Material	High-Quality Full Aluminum
Core Size	22" W × 17 1/2" H × 2" T
Overall Size	26" W × 23 3/4" H
Tank Thickness	3 1/2"

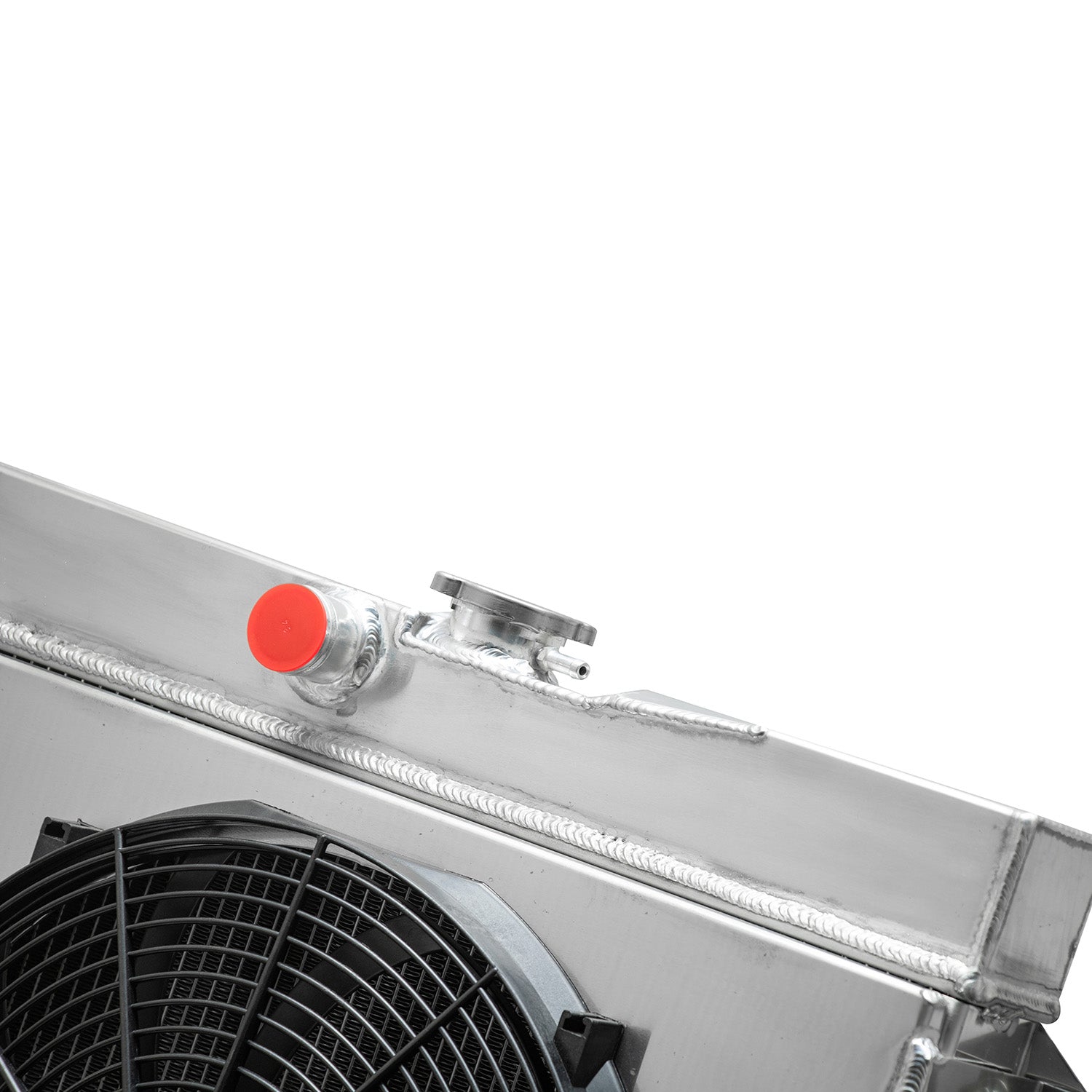

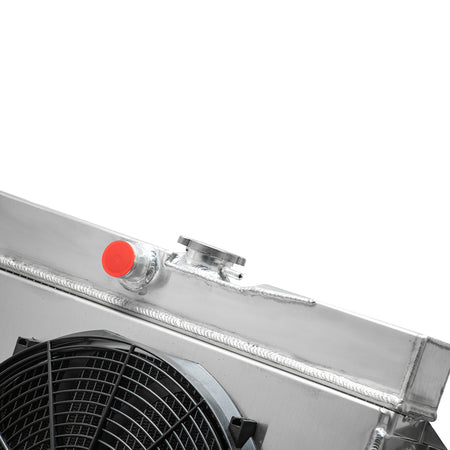

Upper Outlet	1 1/2" Diameter, Offset in the Center

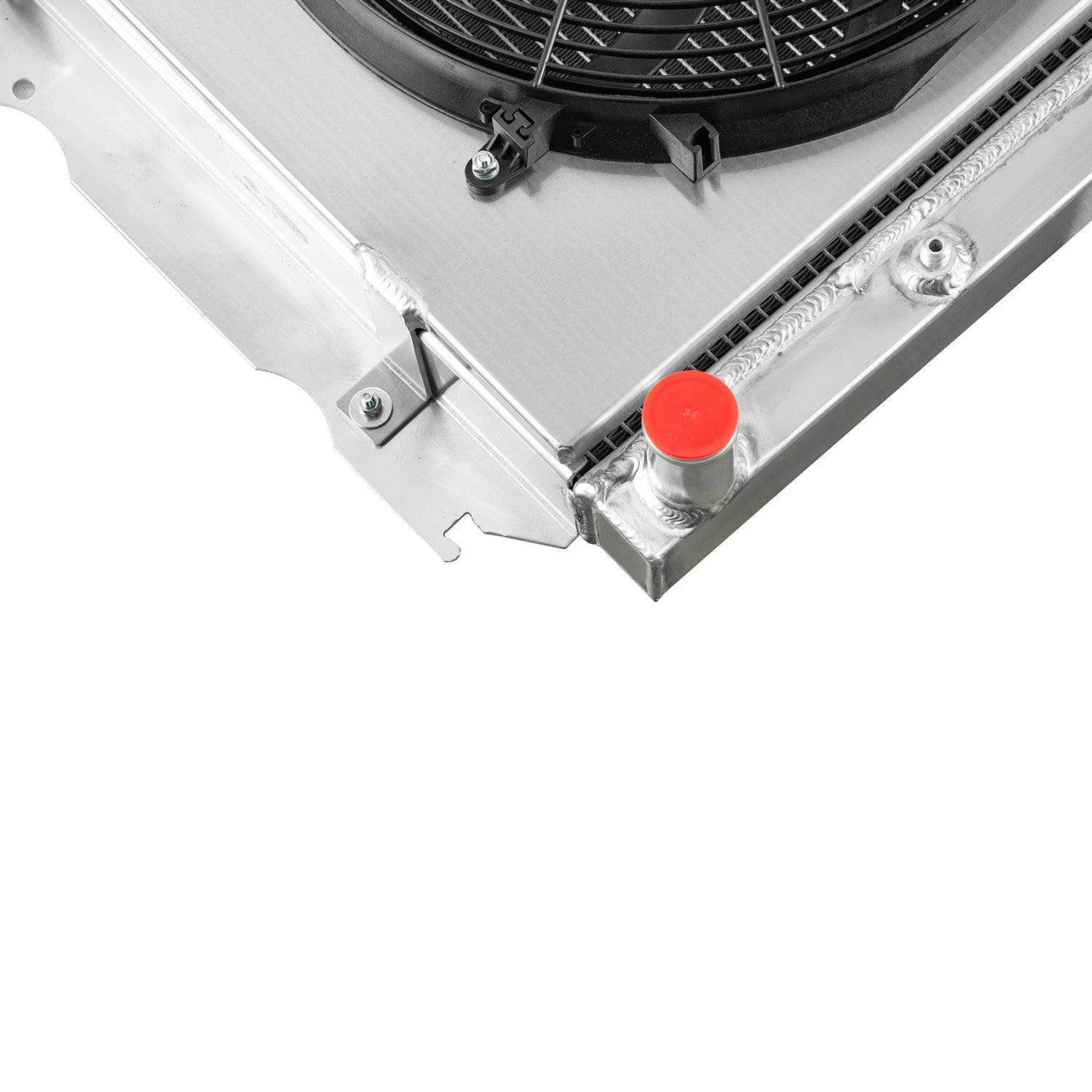

Lower Inlet	1 1/2" Diameter, Driver Side

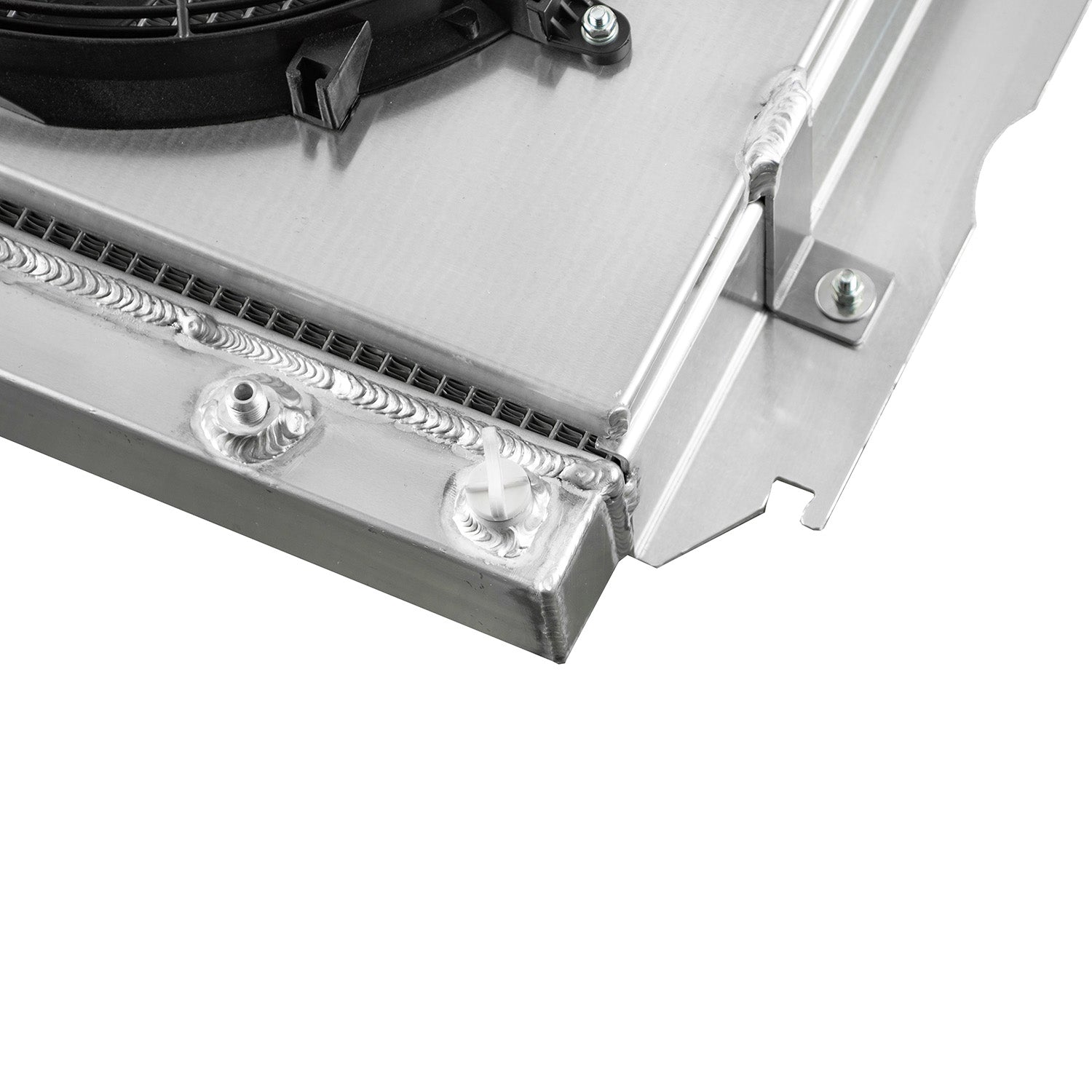

Transmission Oil Cooler	Ø26 × 255 × 1/2-20 UNF
Core Technology	Vacuum-Brazed Core, No Epoxy
Construction	100% TIG-Welded
Cooling Row Spacing	3/8"
Cooling Fin Density	14–16 Fins per Inch
OE / OEM Part Numbers	CC1635, AE1635, EC1635, MC1635, CU1635, DPI1635

Fan Specifications

Fan Size	16" Diameter × 2.95" Thick
Voltage	DC 12V
Wattage	120W
Number of Blades	10 S-Type Blades
Maximum Airflow	3,000 CFM
Maximum Fan Speed	2,000 RPM ±10%
Amp Draw	10 Amps
Fan Type	Push or Pull

The S-type blade push/pull design improves airflow efficiency and cooling performance. The powerful 120W motor helps maintain stable engine temperatures.

Application

1965–1966 Dodge Dart, V8 Only, 22" Wide Core
1966–1969 Dodge Charger, 22" Wide Core
1965–1969 Dodge Coronet, 22" Wide Core
1963–1967 Dodge Station Wagon, 22" Wide Core
1963–1965 Dodge 2-Door, 22" Wide Core
1965–1967 Plymouth Satellite, 22" Wide Core
1963–1967 Plymouth Belvedere, 22" Wide Core
1963–1967 Plymouth Station Wagon, 22" Wide Core
1965–1966 Plymouth Valiant Signet, V8 Only, 22" Wide Core
1963–1964 Plymouth Savoy, 22" Wide Core
1963–1967 Plymouth Fury, 22" Wide Core

Please verify the 22-inch core width, radiator dimensions, hose locations, transmission cooler connection and mounting points before ordering.

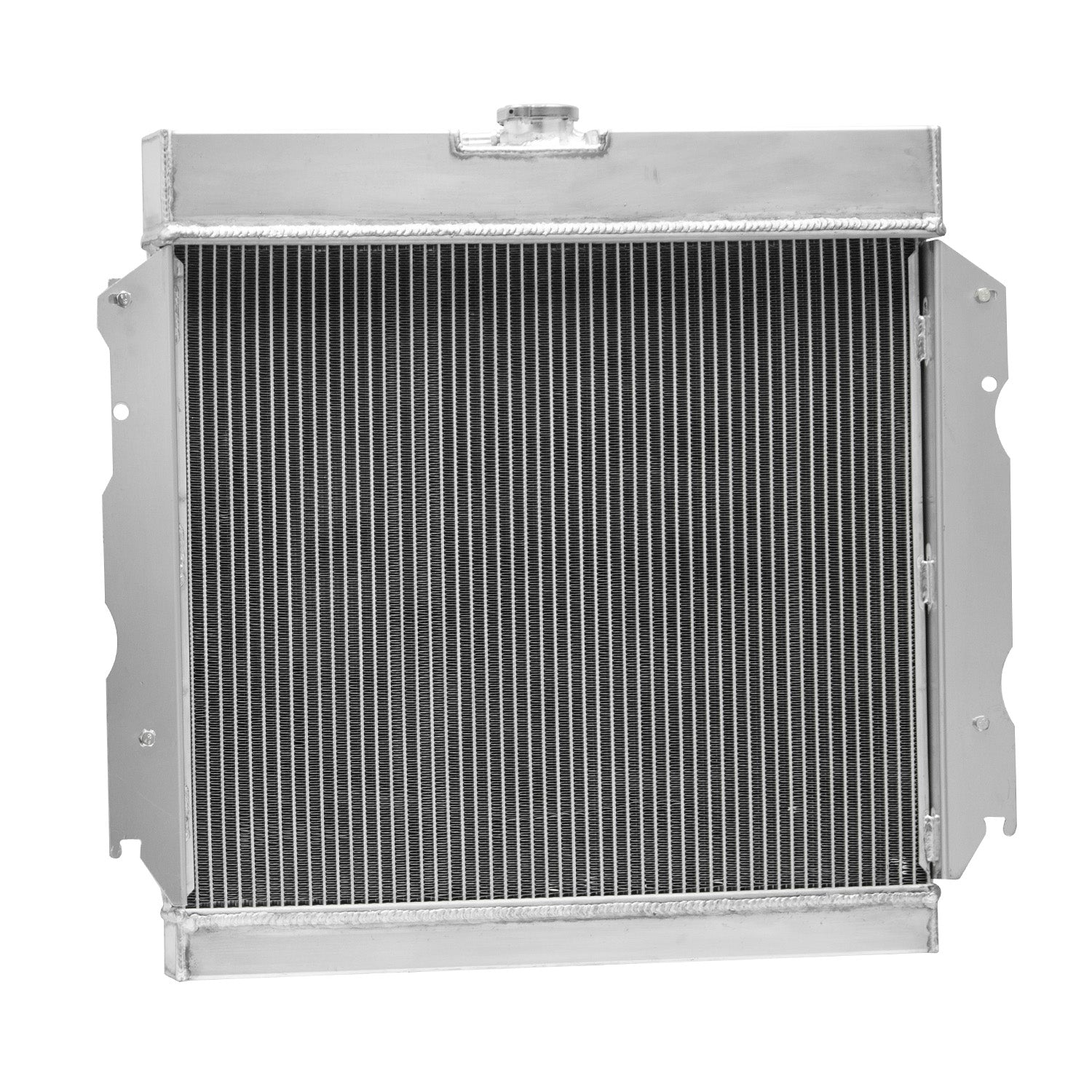

Description

The radiator core is welded in a vacuum-brazing furnace without epoxy, and the radiator is 100% TIG-welded. Its high-quality full-aluminum construction provides greater strength and a higher coolant capacity than standard OEM units.

This aluminum radiator is designed to provide maximum cooling efficiency and help prevent premature engine failure. Its lightweight, high-heat-transfer aluminum construction features a tube-and-fin design that significantly increases the surface area, allowing heat to dissipate more efficiently.

This aluminum radiator is approximately 35%–45% more efficient than a stock radiator. Its higher coolant capacity helps the cooling system operate more efficiently and resist temperature surges in racing applications.

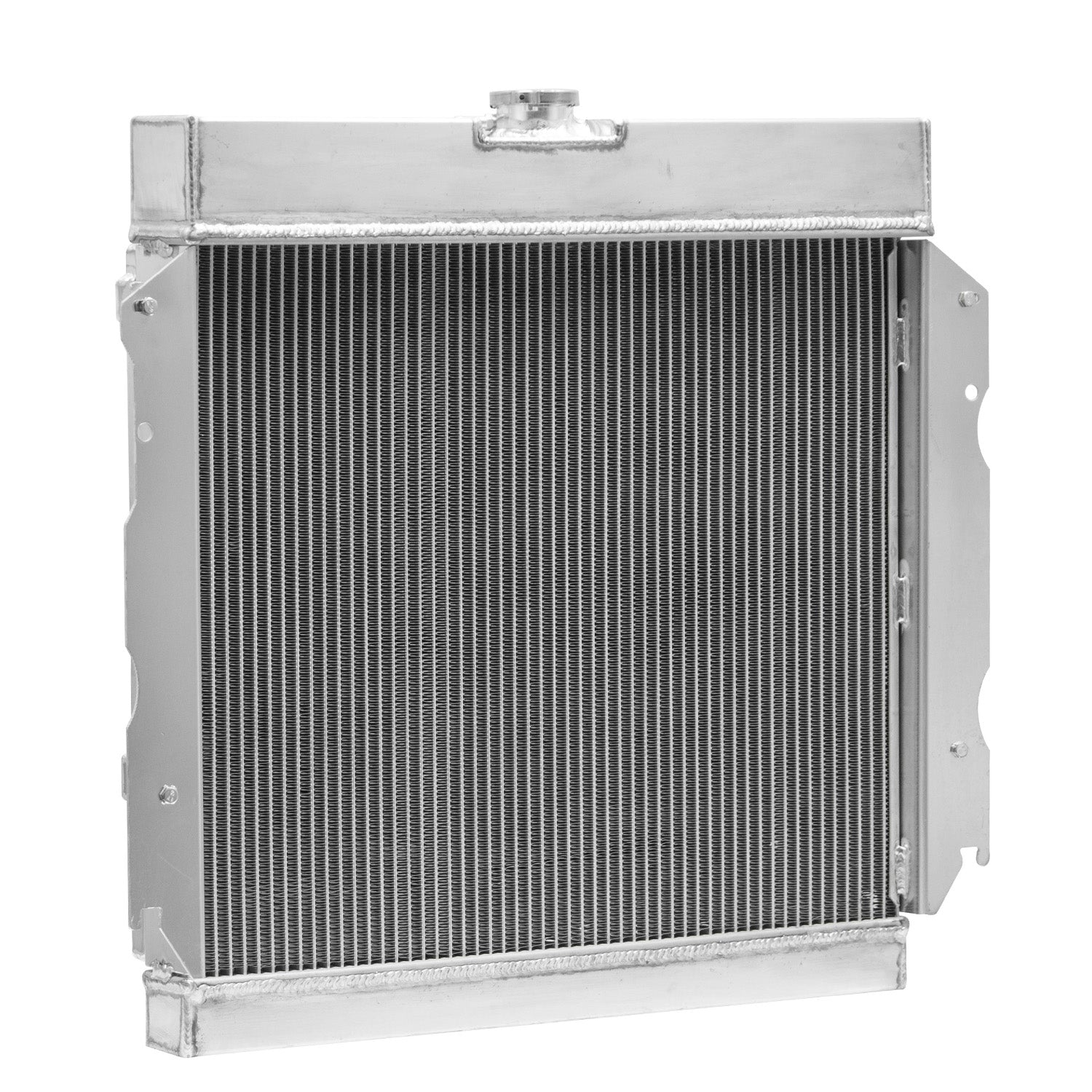

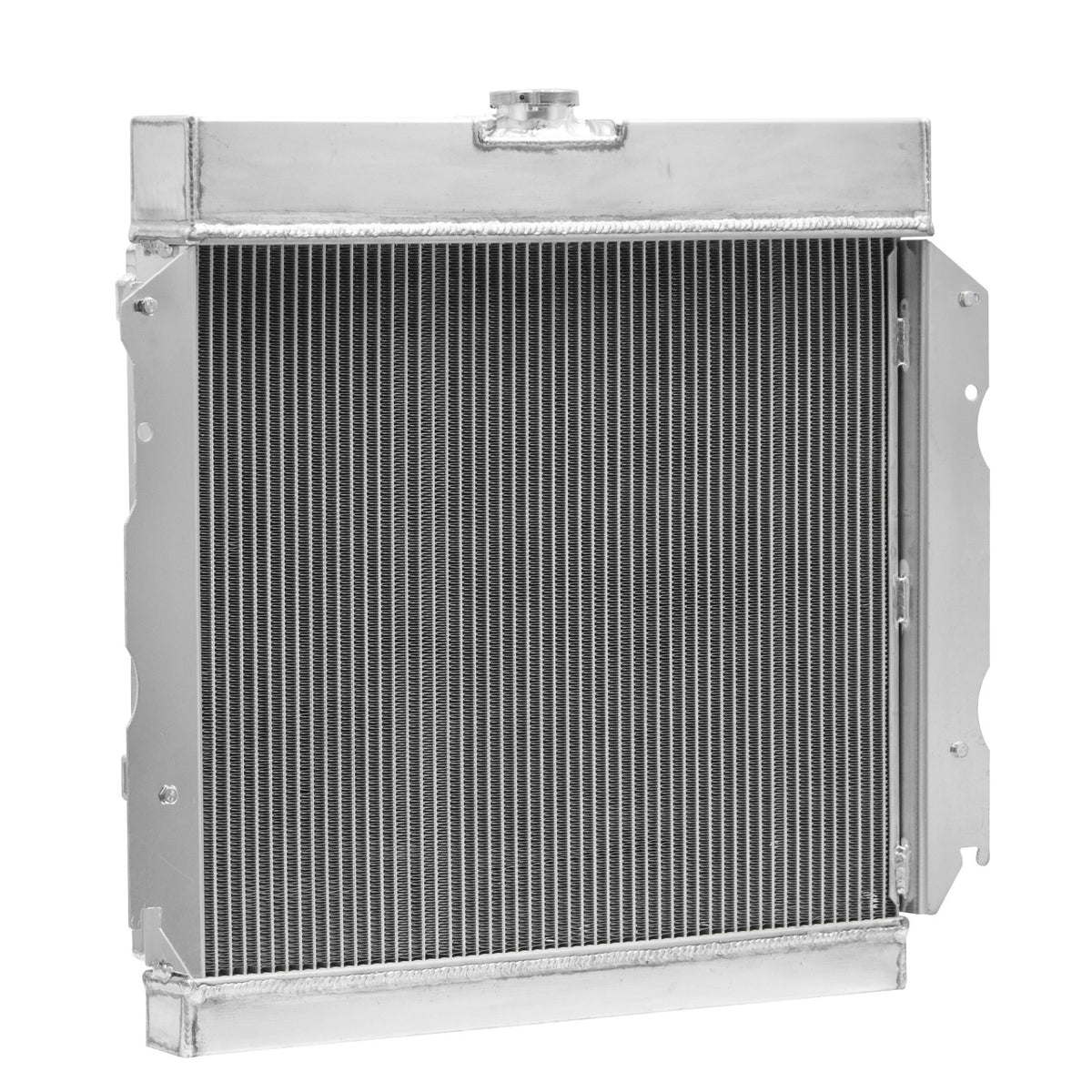

Radiator Construction Features

Higher-density core with cooling rows spaced 3/8" apart, providing approximately 25% more rows within the core than many other aluminum radiators.
14–16 cooling fins per inch, providing approximately 1,500 more cooling fins than many other aluminum radiators for improved heat dissipation.
Vacuum-brazed core construction with no epoxy.
100% TIG-welded full-aluminum construction.

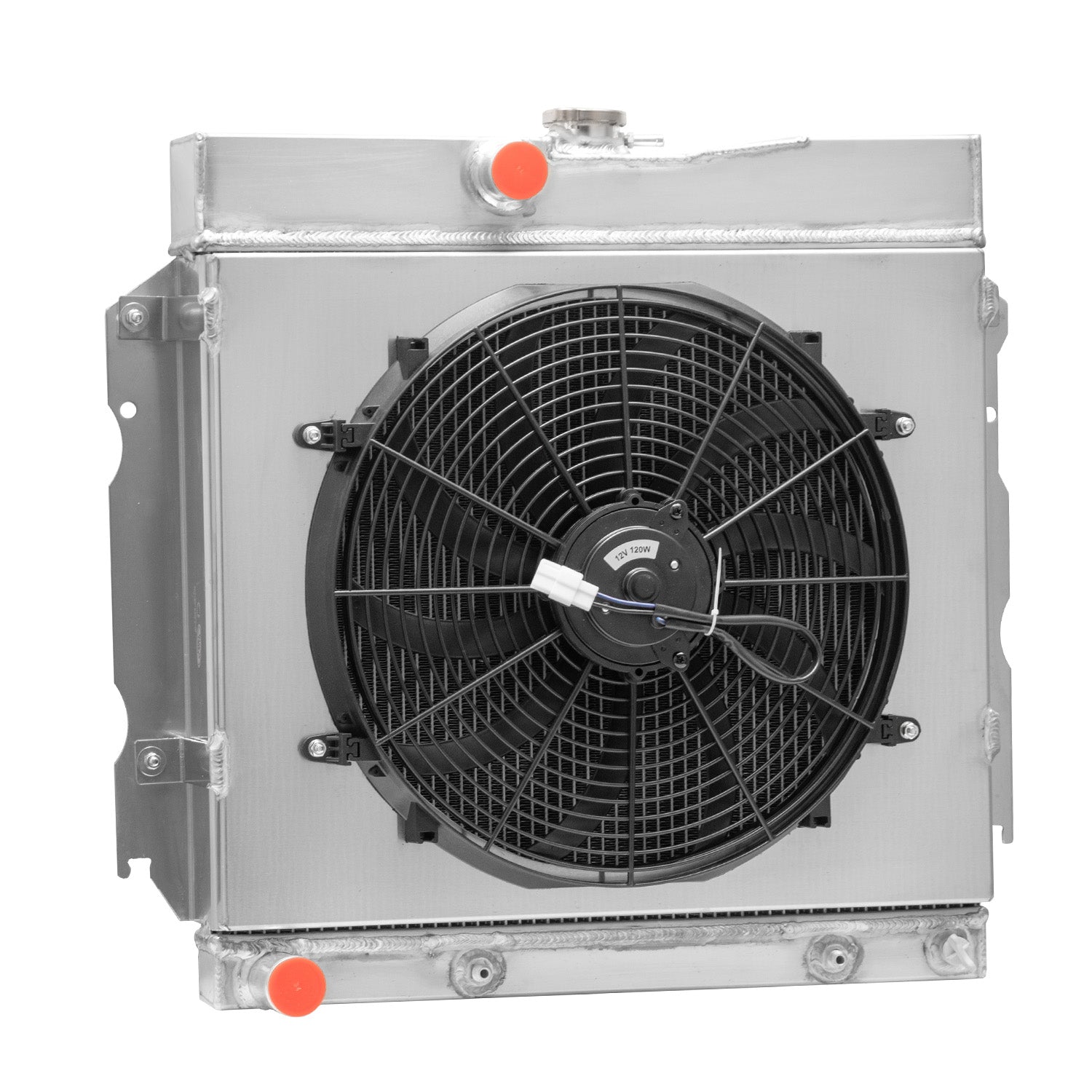

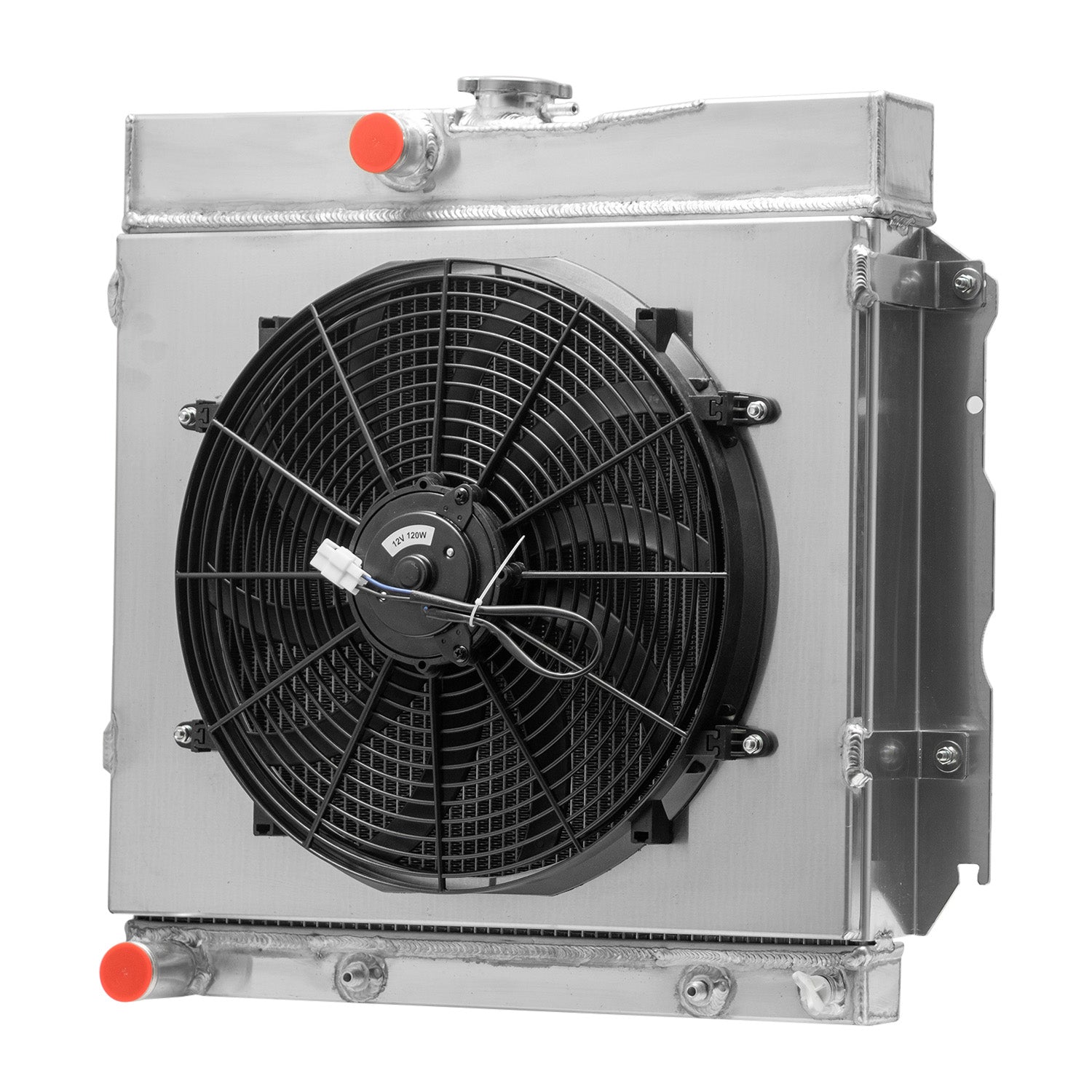

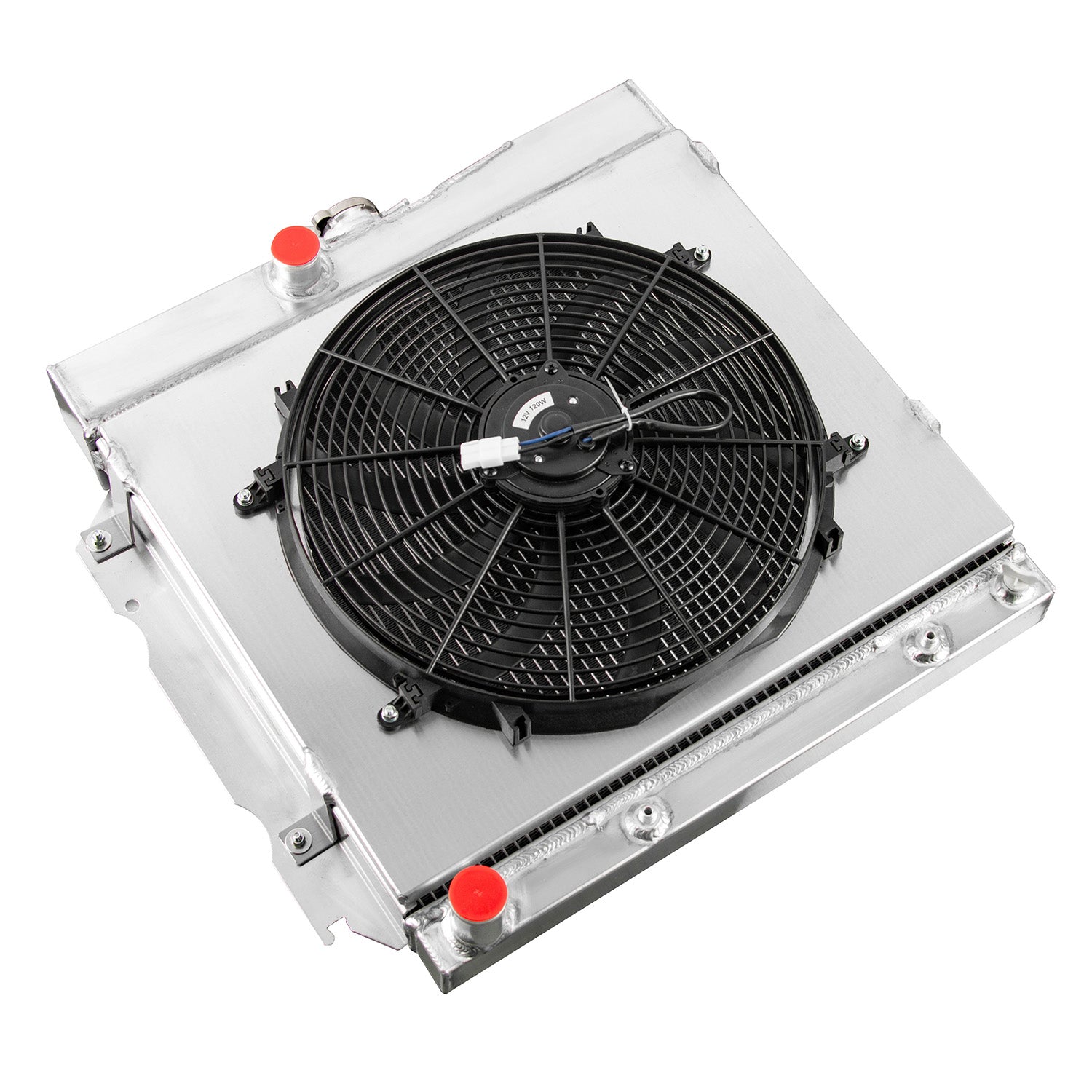

Aluminum Shroud and Fan

The fan and aluminum shroud help direct heat out of the engine compartment instead of pushing it toward the front of the engine. The shroud houses and secures the fan blades, helping prevent contact with nearby engine components and supporting smooth, consistent fan operation.

Effective operating-temperature management helps stabilize engine temperatures. Proper cooling-system maintenance can also improve driving quality and help maintain ideal engine operating conditions.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
