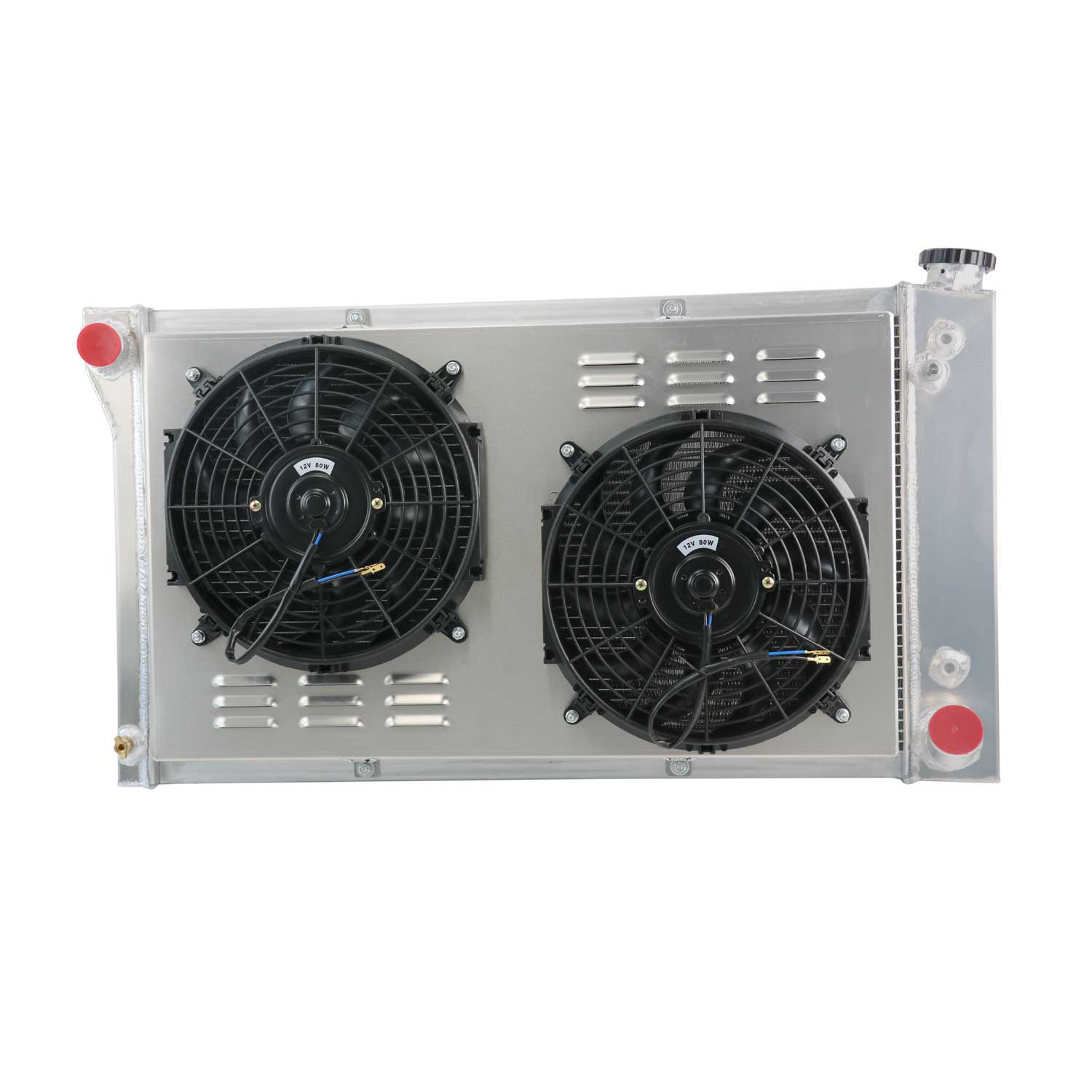

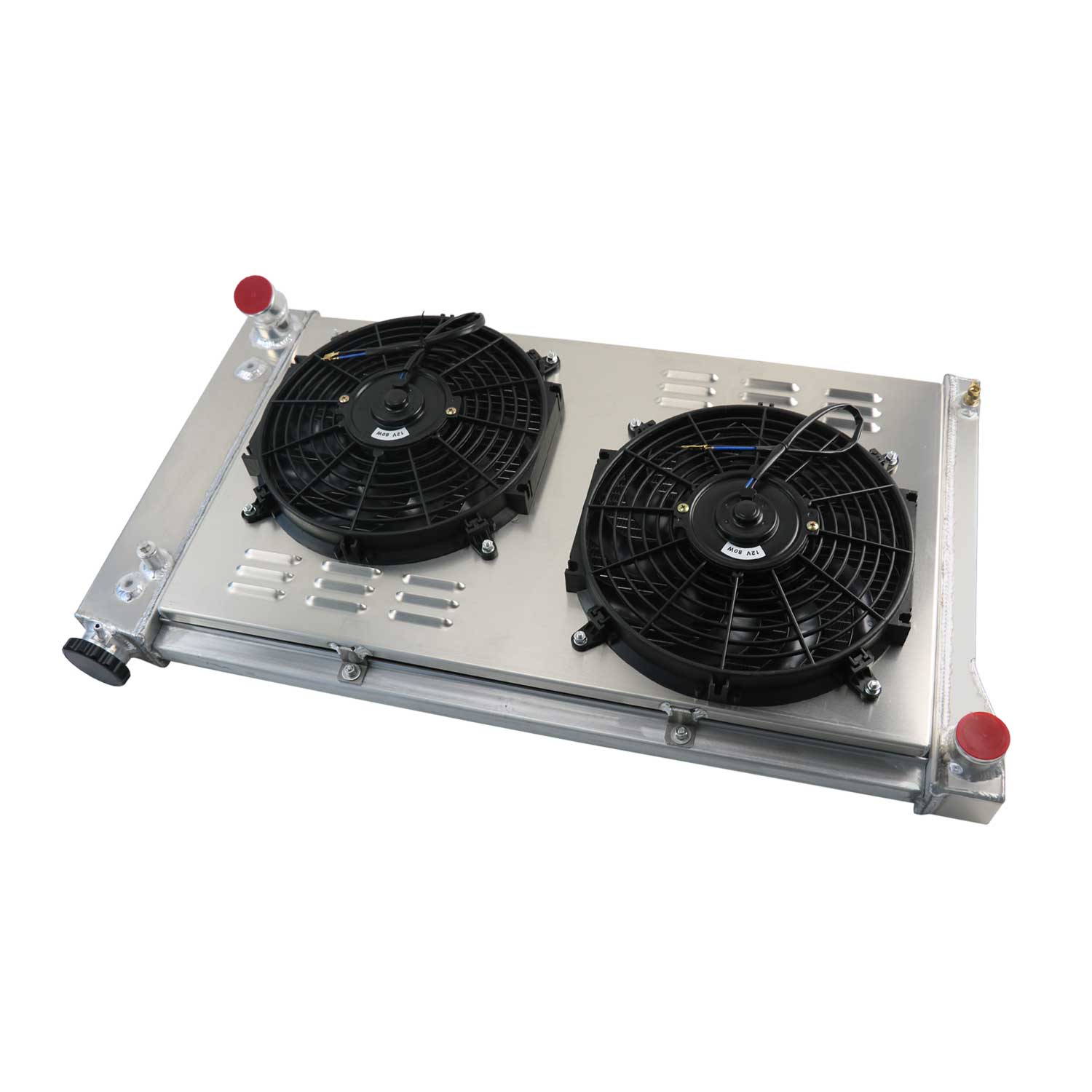

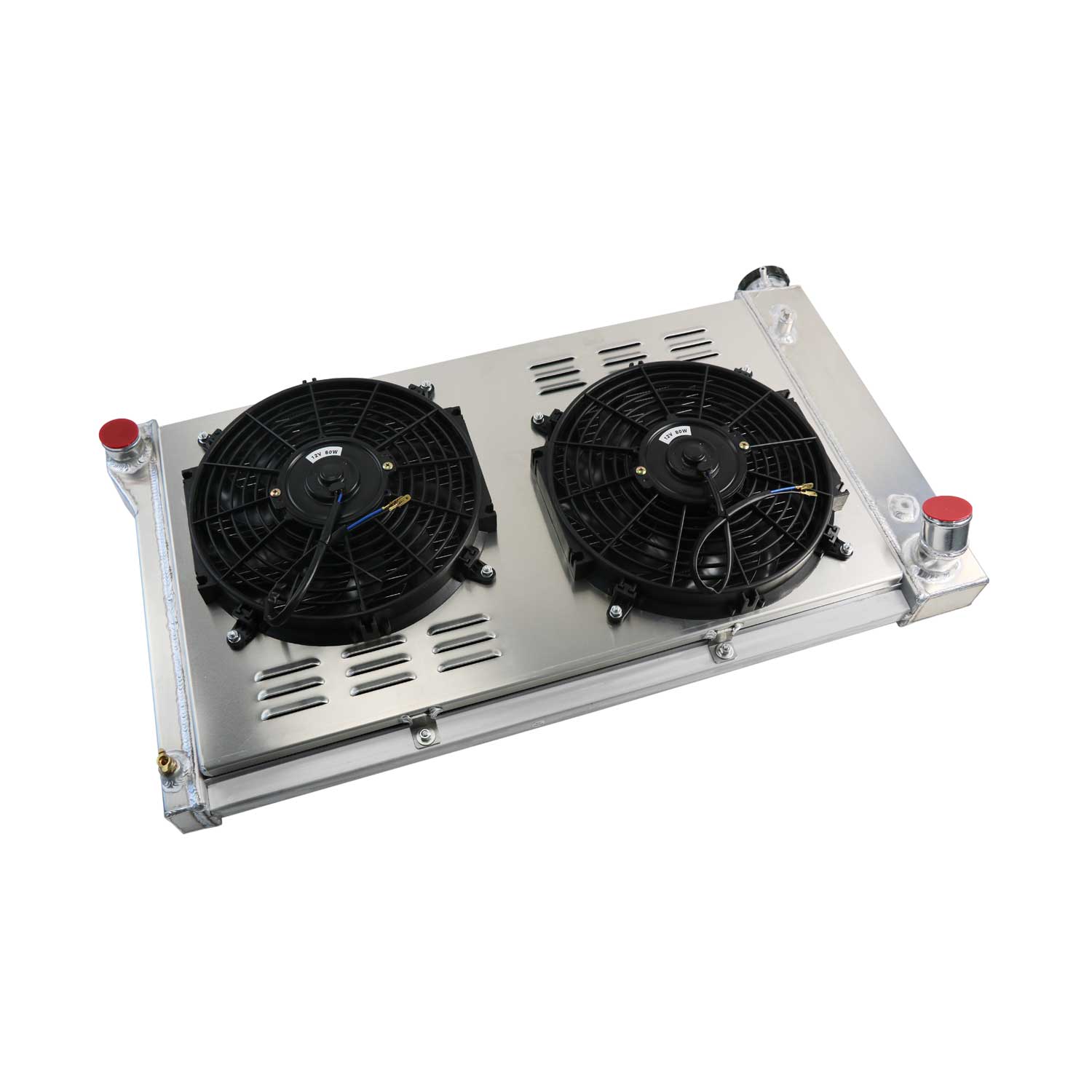

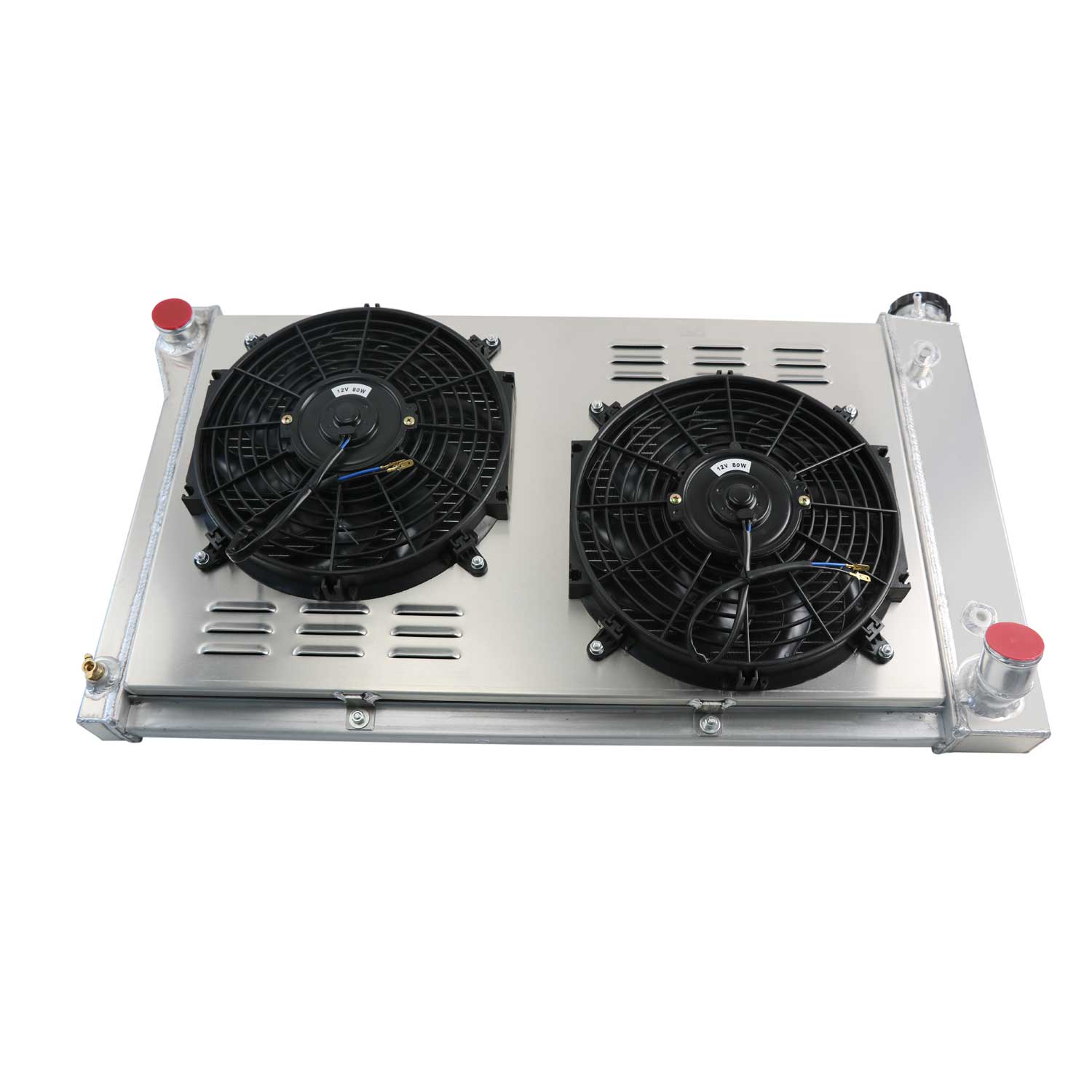

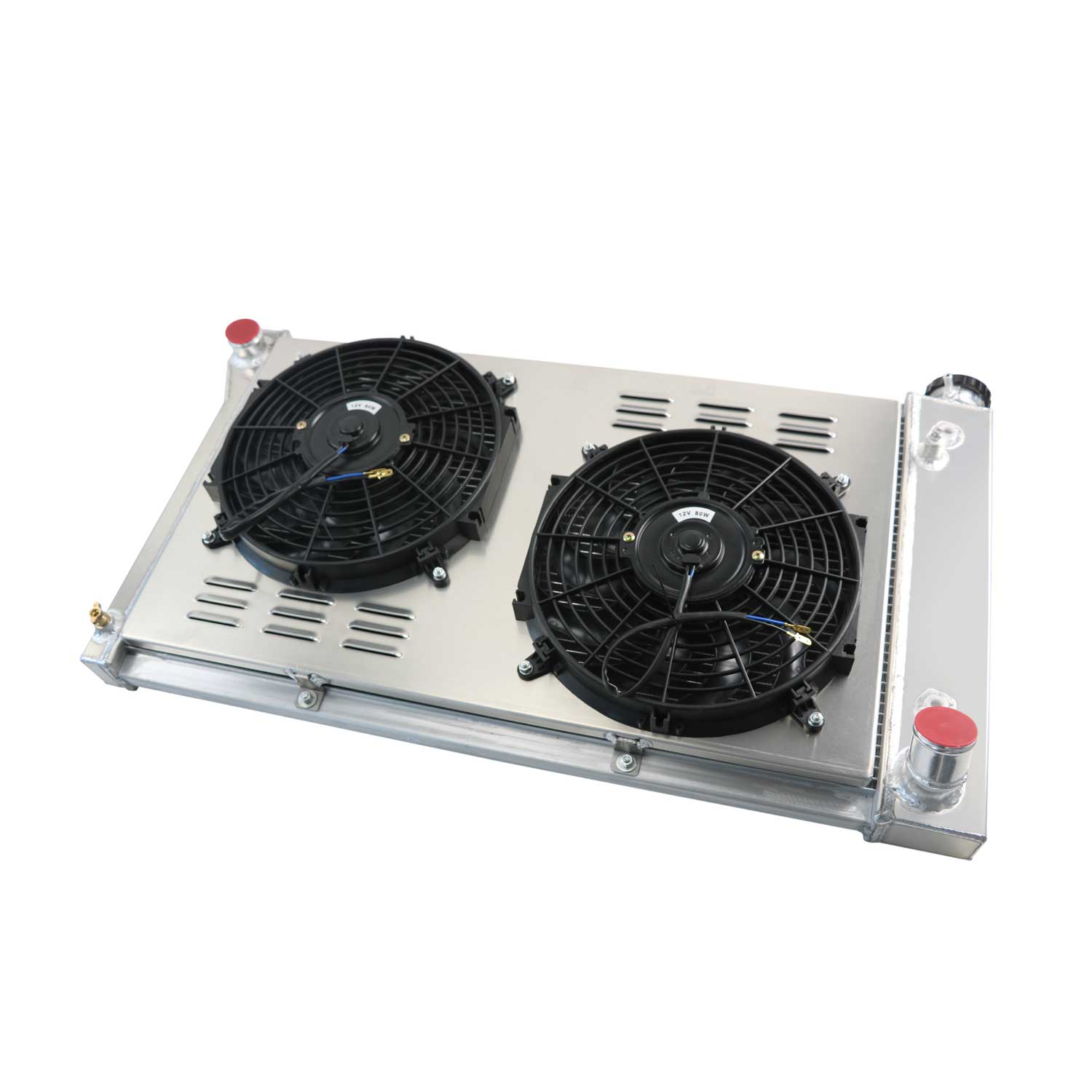

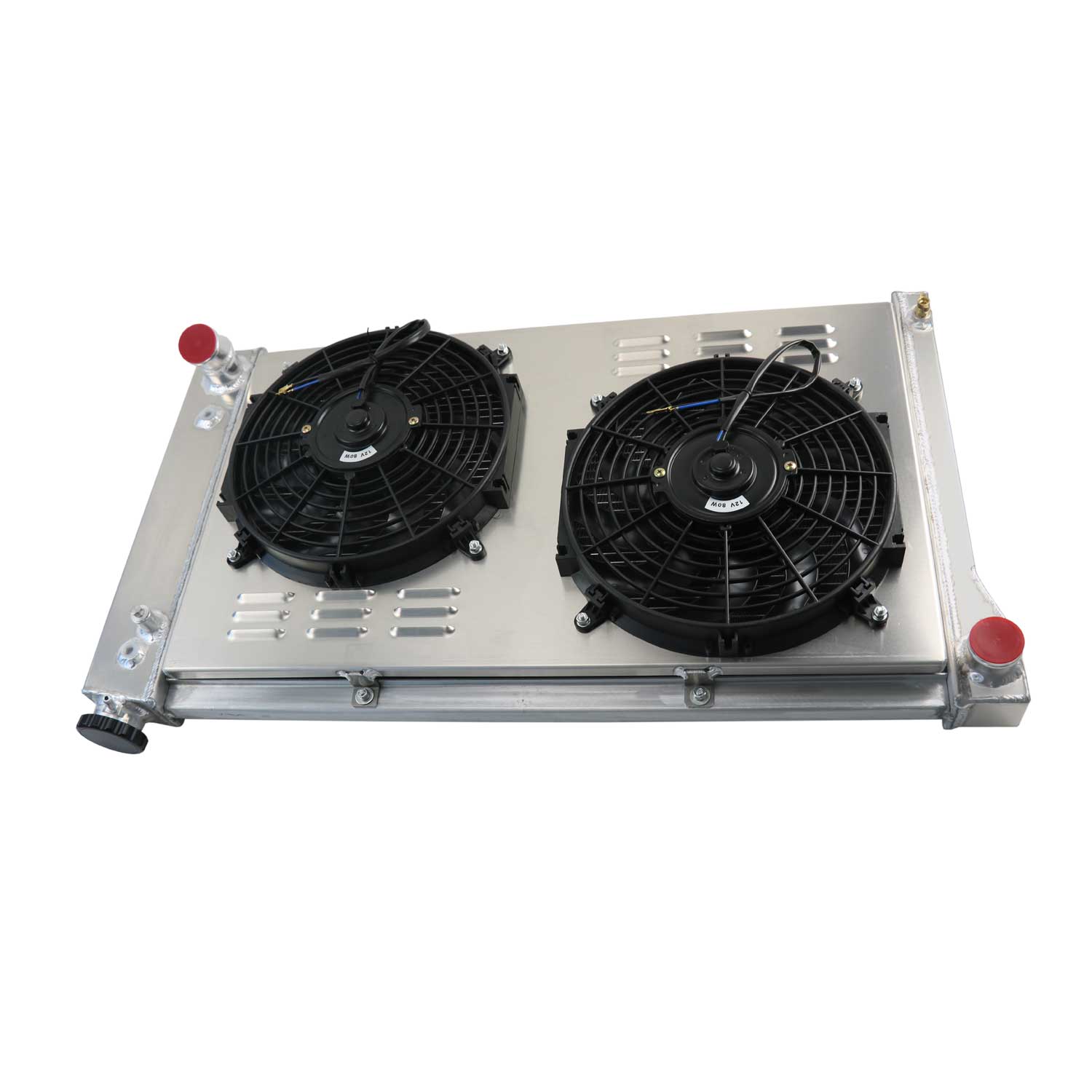

ASI Performance 3 Row Radiator Shroud Fan For 1967-1972 Chevy C/K C10 C20 C30 K10 K20 K30

ASI0010

In stock

SKU: WH369DZFSXJ90W-BN Barcode: ASI0010

No reviews

$259.00

Size

1967-1972 Chevy C/K C10 C20 C30 K10 K20 K30

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

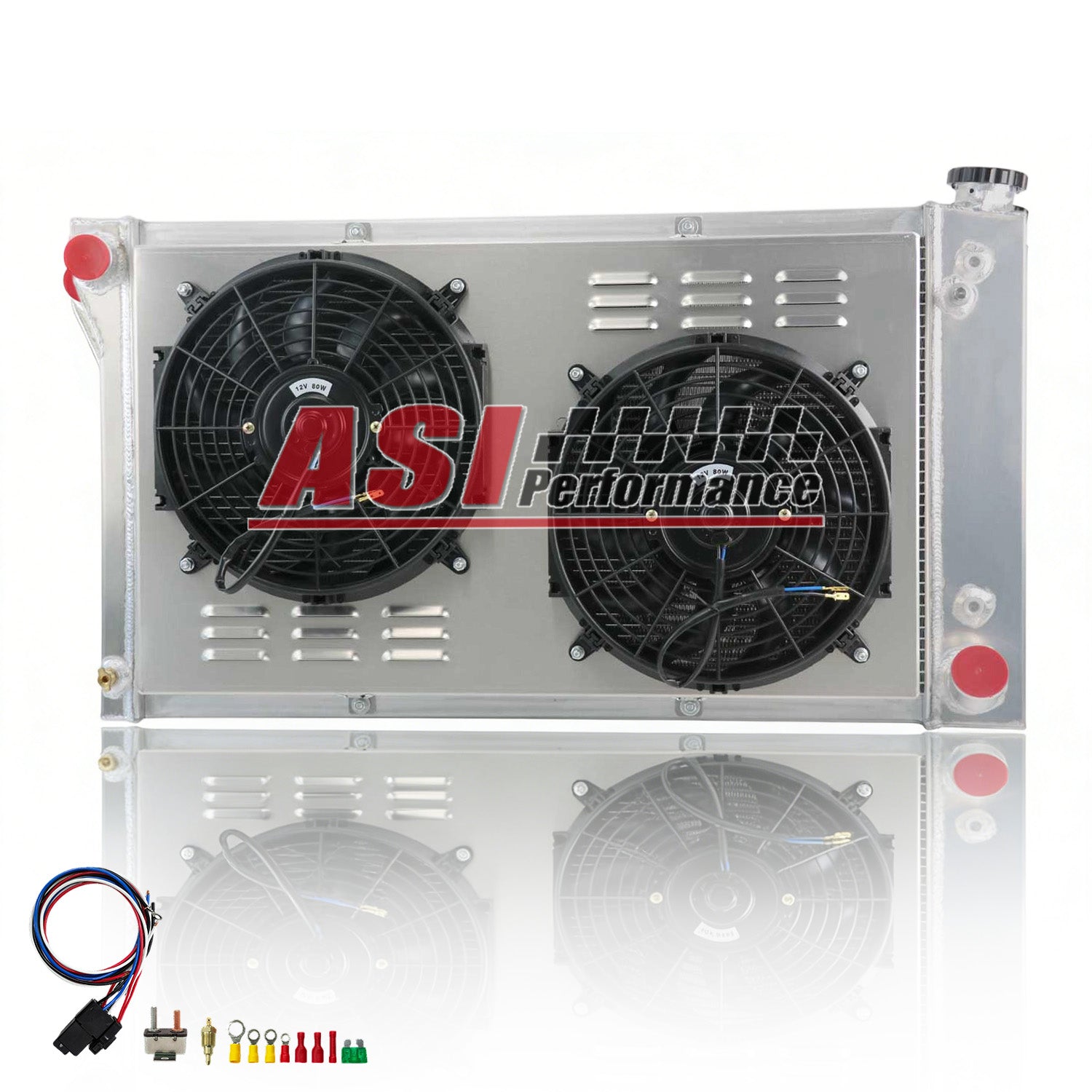

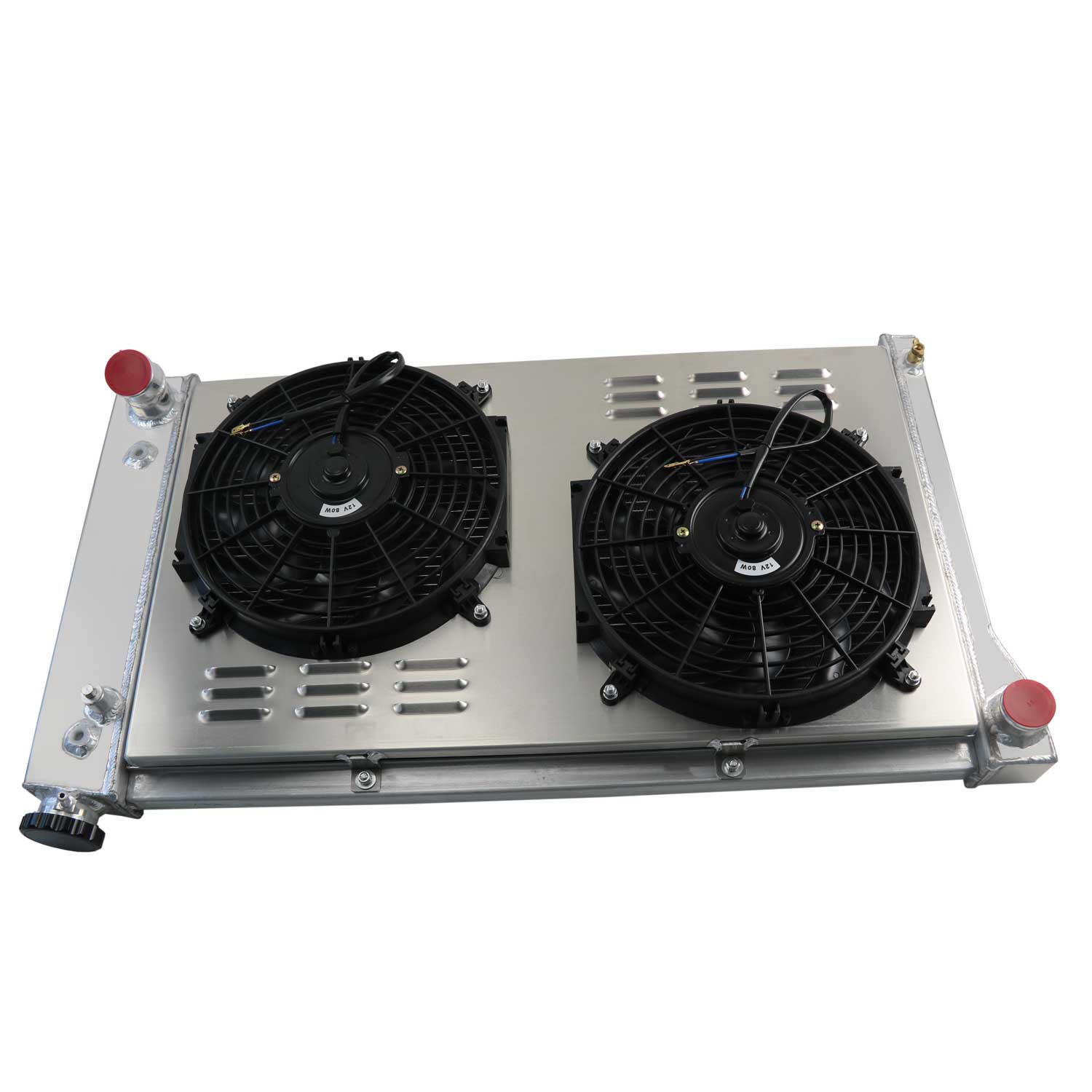

Package Includes

1 × 3-Row AA5052 Aluminum Radiator
1 × CNC Machined Radiator Cap
1 × AA5052 Aluminum Shroud
2 × 12" Fans (Includes Mounting Kits)
1 × Thermostat Relay Kit

Radiator Specifications

Core Design	3-Row Core
Material	Aircraft AA5052 Grade Aluminum
Core Technology	Brazed Core Technology
Tank & Fitting Thickness	2 mm
Core Size	17" H × 28-1/4" W × 2" T
Overall Size	19-1/4" H × 33-7/8" W
Upper Inlet	1-1/2" Located as Pictured
Lower Outlet	1-3/4" Located as Pictured
Transmission Oil Cooler	Included
Fill Neck	Billet Aluminum CNC Machined Fill Neck
Radiator Cap	CNC Machined Cap with Engraved Craftsmanship and Anodized Treatment
Radiator Drain Plug	OEM Style Brass Petcock Drain

Vehicle Fitment

1969-1972 Chevrolet C10 Pickup / C10 Suburban
1969-1972 Chevrolet C20 Pickup / C20 Suburban
1969-1972 Chevrolet C20 Pickup
1969-1972 Chevrolet K10 Pickup / K10 Suburban
1969-1972 Chevrolet K20 Pickup / K20 Suburban
1969-1972 Chevrolet K30 Pickup 4.1L 4.8L 5.0L 5.3L 5.7L 6.5L 6.6L
1969-1972 GMC C15/C1500 Pickup/Suburban
1969-1972 GMC C25/C2500 Pickup/Suburban
1969-1972 GMC C35/C3500 Pickup
1970-1972 GMC K15/K1500 Pickup/Suburban
1970-1972 GMC K25/K2500 Pickup/Suburban
1970-1972 GMC K35/K3500 Pickup

Please Note: To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part.

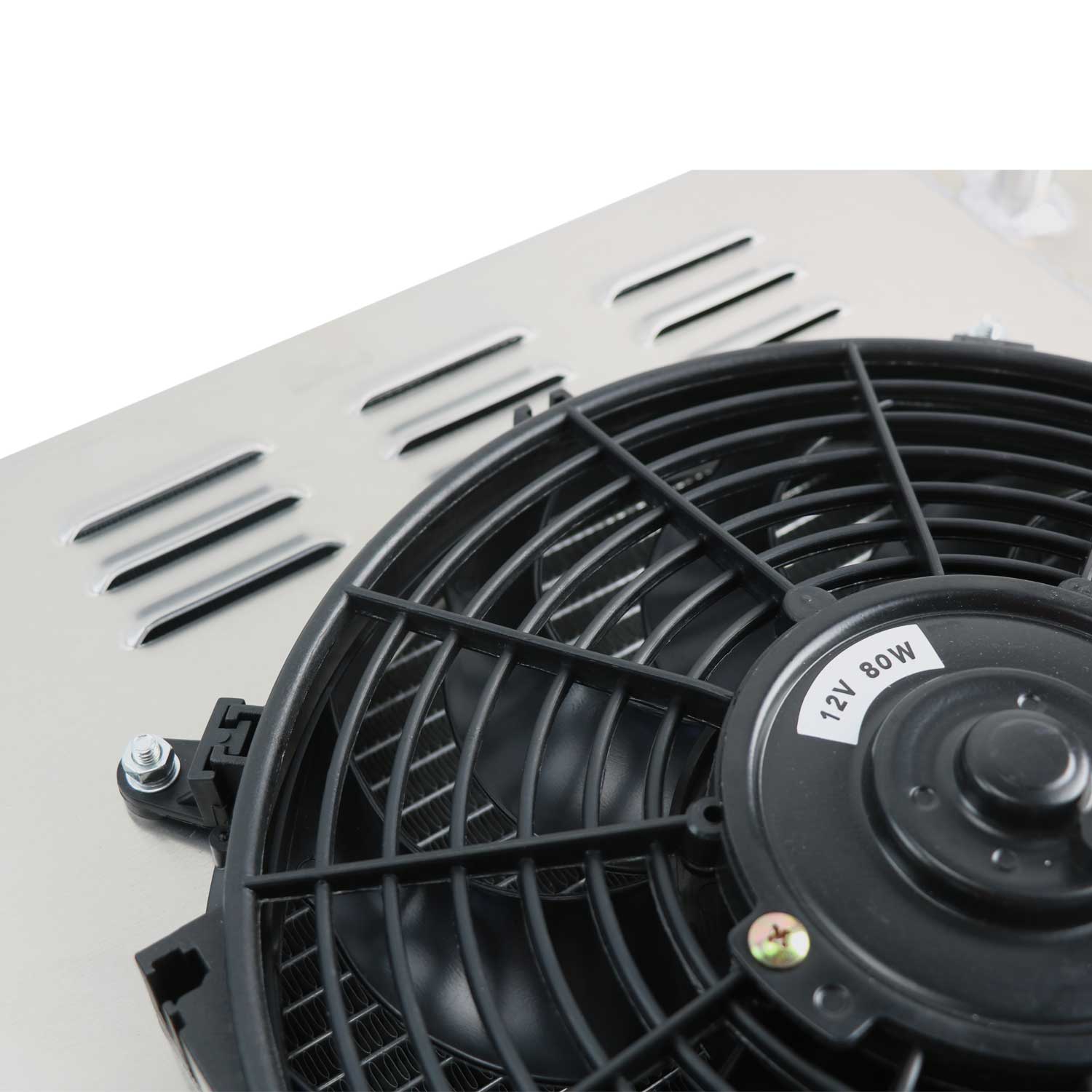

Fan Specifications

Maximum Fan CFM	1730 CFM
Fan Diameter	12.050"
Thickness	2.500"
Number of Blades	10 Blades
Maximum Fan RPM	2,250 RPM
Blade Material	Plastic
Amp Draw	12.70 Amps

Fan Features

Aids in cooling the entire engine bay, including the radiator, A/C system, intercooler, oil system, and transmission.
Curved design provides excellent engine bay clearance.
High-quality lightweight plastic durable material.
Curved style provides more space for engine modification.
Direct bolt-on installation requires no modification.
Performance JDM spec racing design.
OE fitment or replacement, push or pull type.

Thermostat Relay Kit

RED (+) — Connect directly to battery.
WHITE — Connect to ignition switch power source.
BLACK — Connect to thermos switch.
BLUE — Connect to the fans.

Description

Made from Aircraft AA5052 grade aluminum for prolonged lifespan, with a raw aluminum finish.
Brazed core technology to help provide optimum performance and dependability.
AA5052 aluminum 2 mm thick tanks and fittings for strength and durability.
Billet aluminum CNC machined fill neck for durability.
CNC machined cap with engraved craftsmanship and anodized treatment.

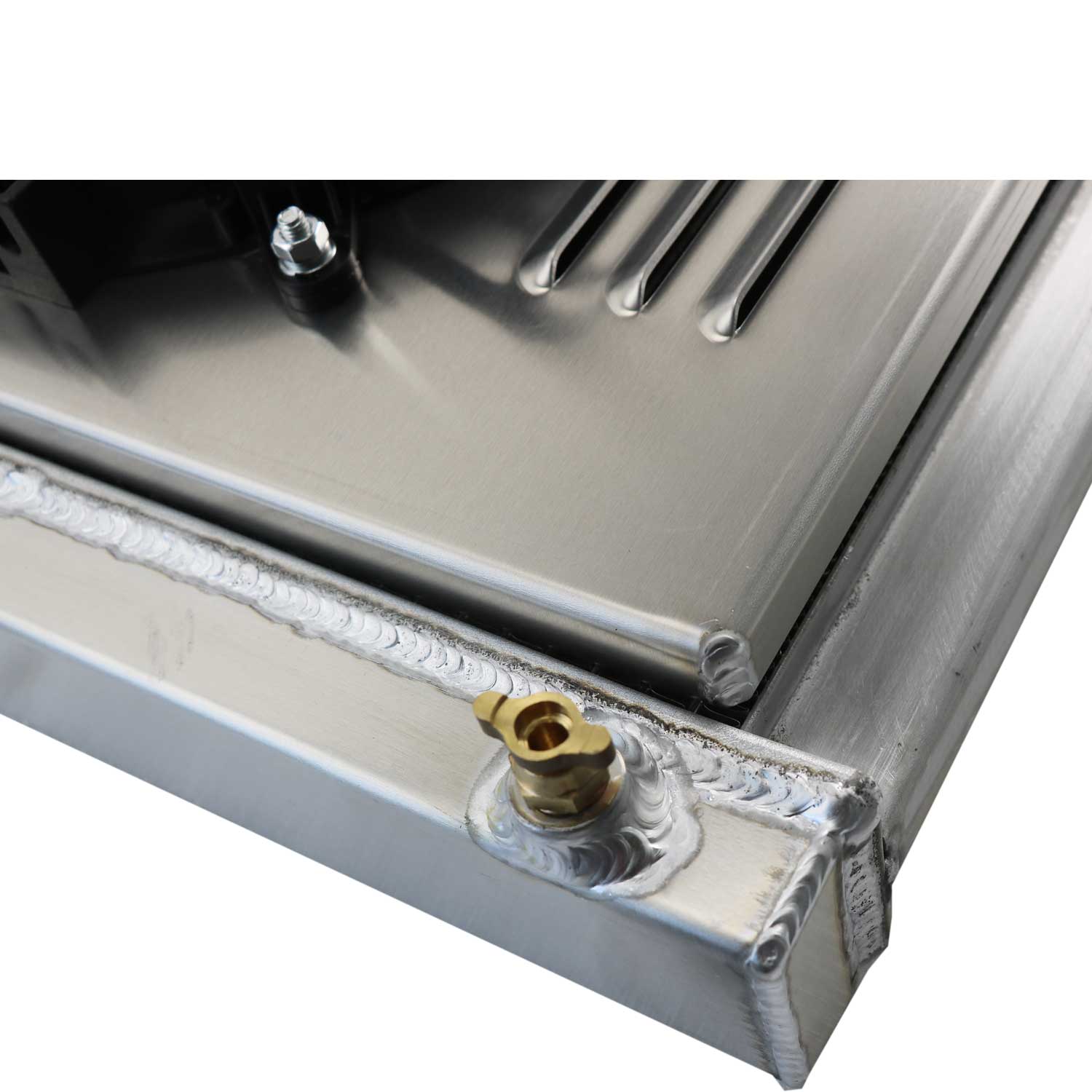

OEM style brass petcock drain.
Carefully crafted to exceptional OE standards for precise fit.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
