ASI Performance 3 Row Radiator Shroud Fan For 1968-86 Chevy/GMC C/K 10 20 30 C15 C1500 V8

ASI0061

In stock

SKU: WH161FS-DP01 Barcode: ASI0061

No reviews

$199.00

Size

1968-1986 Chevy/GMC C/K 10 20 30 C15 C1500

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

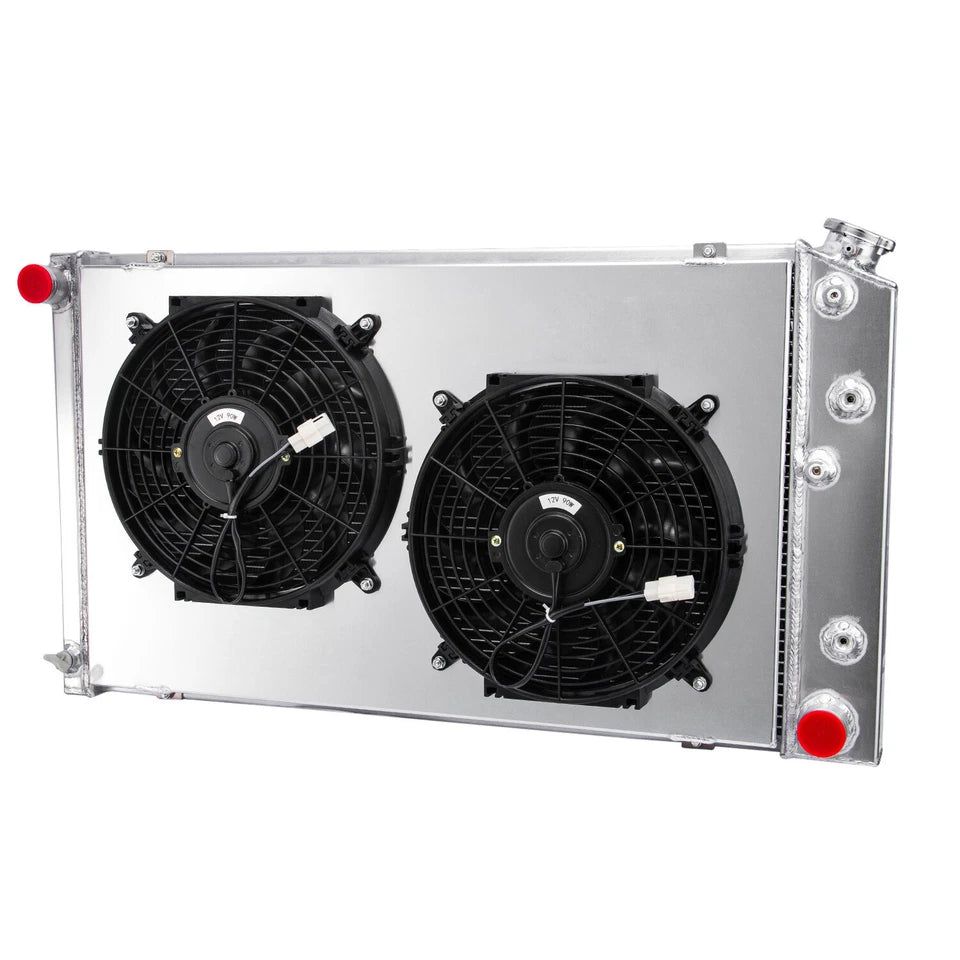

Package Includes

1 × 3-Row Aluminum Radiator
1 × Radiator Cap
1 × Aluminum Shroud
2 × 12" Fans (Includes mounting kits)

Technical Specifications

Performance	High Performance Racing Spec.
Core Design	3-Row Tube Core Racing Design
Core Size	16 6/7" H × 28 1/4" W
Overall Size	18 1/2" H × 33 2/3" W
Upper Inlet	1 4/7" Driver Side
Lower Outlet	1 1/2" Passenger Side
Transmission Oil Cooler	φ32 × 215 × G1/4(Z)
Mounting Type	Saddle Mount
Transmission Compatibility	Automatic and Manual
Fan Voltage	12V
Maximum Fan CFM	1730 CFM
Fan Diameter	12.050"
Fan Thickness	2.500"
Number of Blades	10 Blades
Maximum Fan RPM	2,250 RPM
Blade Material	Plastic
Amp Draw	12.70 Amps

Application

For 1971-1990 Chevy Caprice
For 1968-1973 Chevy Chevelle
For Chevy GM Cars with 28" Wide Core
For 1973-1977 Chevy Truck (28" Wide × 17" Tall Core)
For Chevy Cars Caprice (Fits 28" Wide Core)
For 1968-1977 Chevy El Camino
For 1968-1977 Chevy Chevelle Malibu
For 1971-1972 Chevy Biscayne
For 1967-1969 Buick Riviera
For 1966-1977 Oldsmobile Cutlass
For Cadillac / Oldsmobile GM Cars with 28" Wide Core
For 1973-1980 K5 Blazer / Blazer
For 1972-1980 Chevy / GMC G & P-Series Vans
For 1970-1977 Chevy Monte Carlo
For 1973-1980 Blazer / Jimmy
For 1968-1985 GM Vehicles with 28" Core
For 1973-1980 Chevy C/K Series
For 1973-1980 Chevy K Series
For 1965-1974 Cadillac DeVille
For 1967-1972 Buick Skylark
For 1971-1979 Chevy Impala
For 1967-1985 Buick Riviera
For 1968-1973 Pontiac GTO
For 1971-1972 Chevy Brookwood
For Buick Century 1973-1976 350ci / 455ci / 3.8L
For 1973 Chevy C15 / C20 / C30 Pickup
For 1965-1990 Buick LeSabre
For 1971-1972 Chevy Kingswood
For 1974-1975 Pontiac LeMans
For Chevy GMC Trucks / Suburban
For 1968-1985 Chevy Cars, Trucks, Suburban & GMC Vehicles

Description

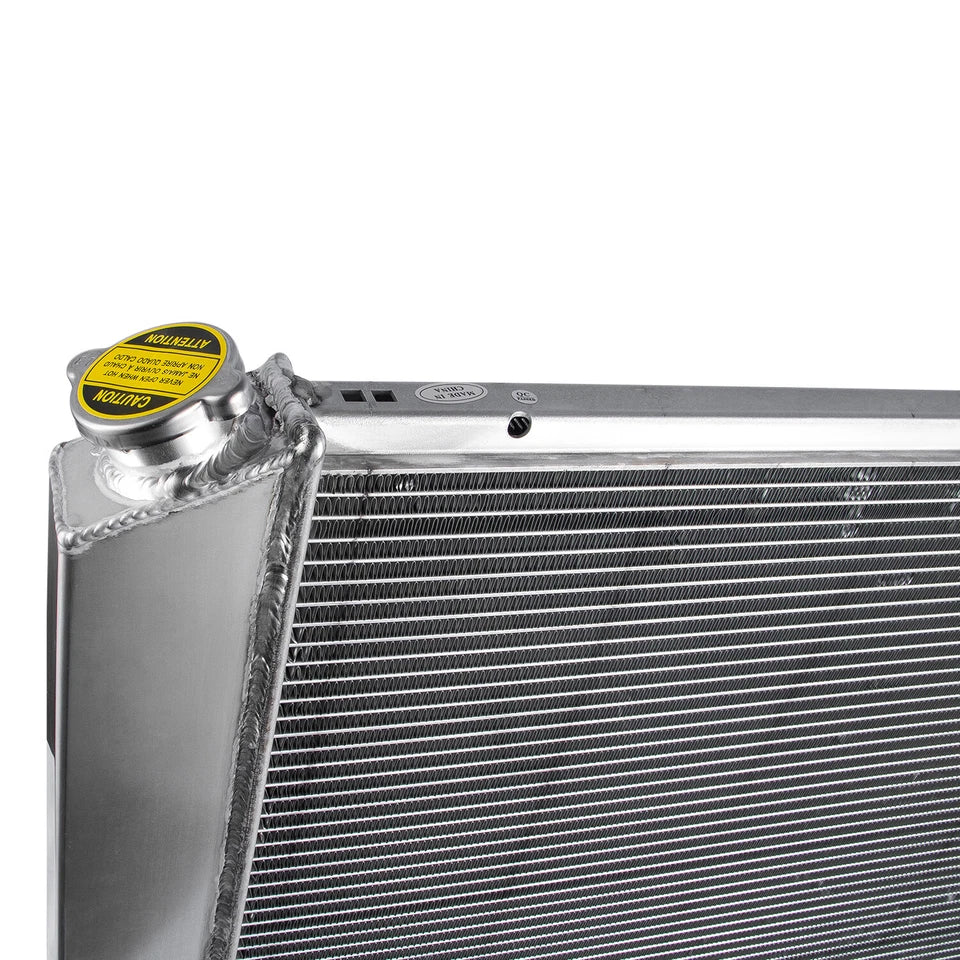

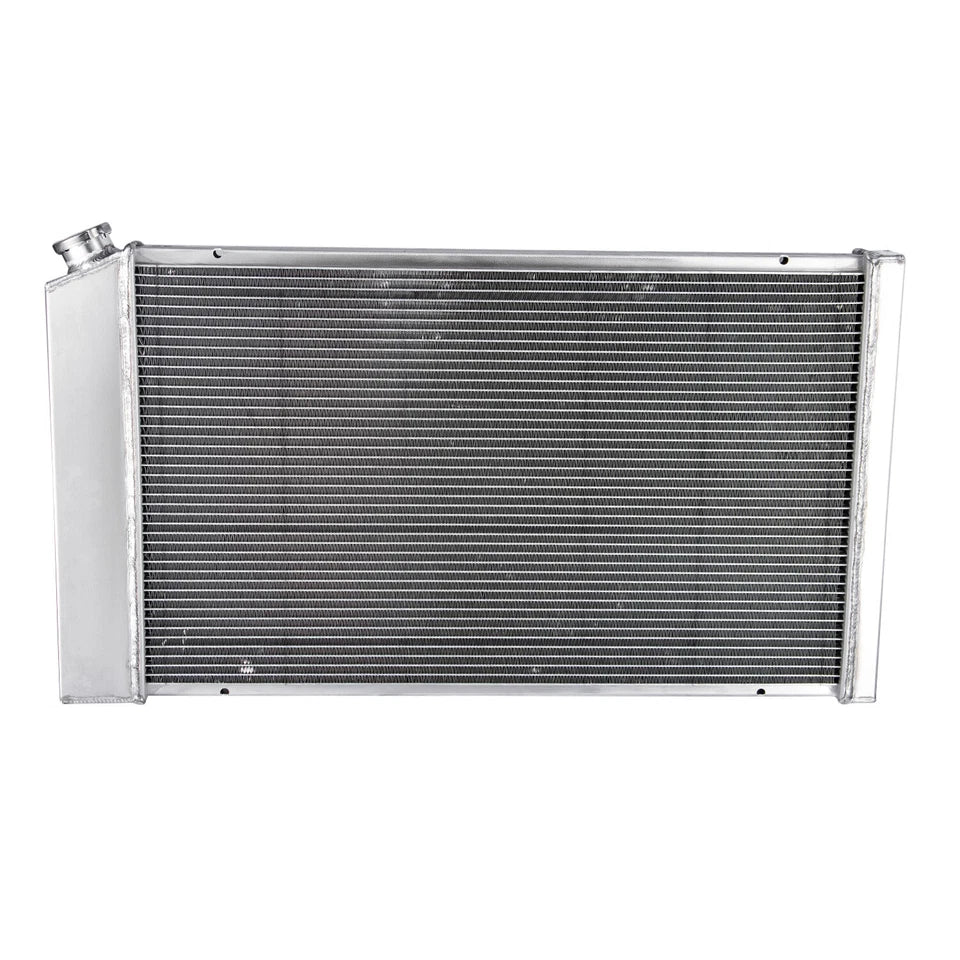

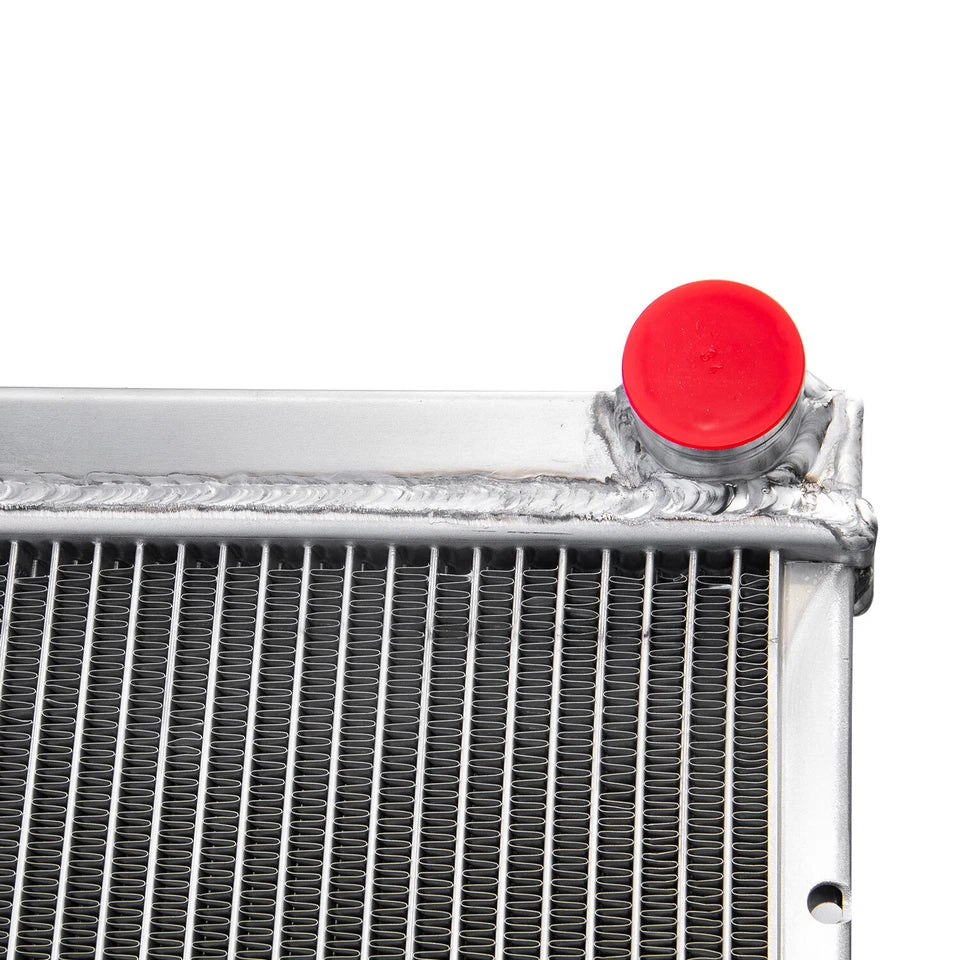

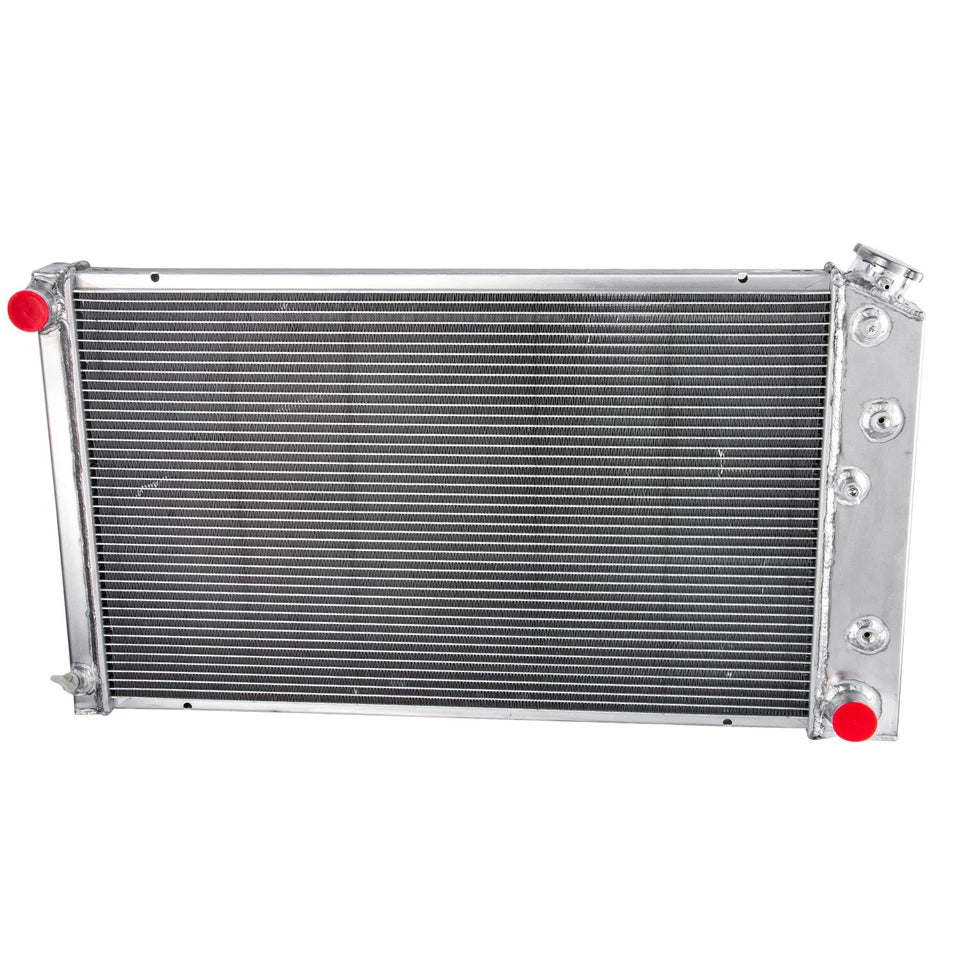

This Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight, high heat-transferring aluminum construction features a tube and fin design that increases surface area, allowing heat to dissipate more efficiently.

This Aluminum Radiator is at least 40% more efficient than stock radiators. It provides higher coolant capacity, helping the cooling system maintain stable temperatures and resist temperature surges in racing applications.

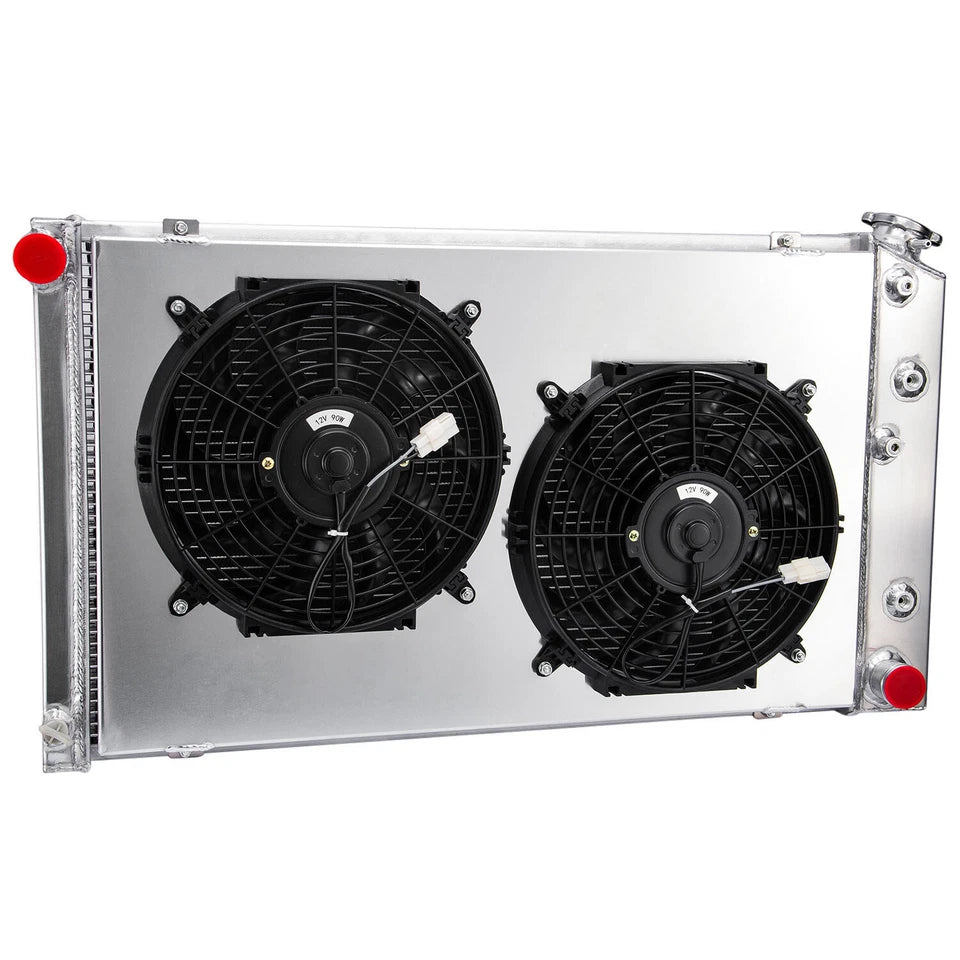

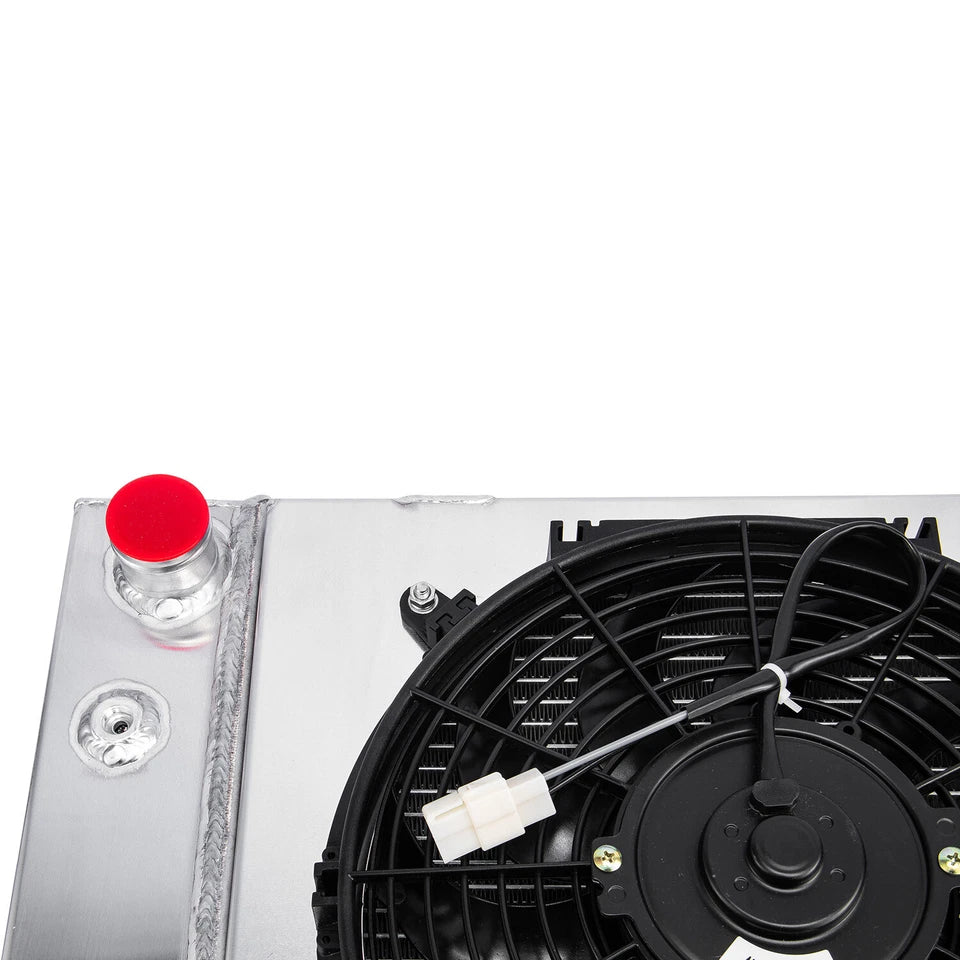

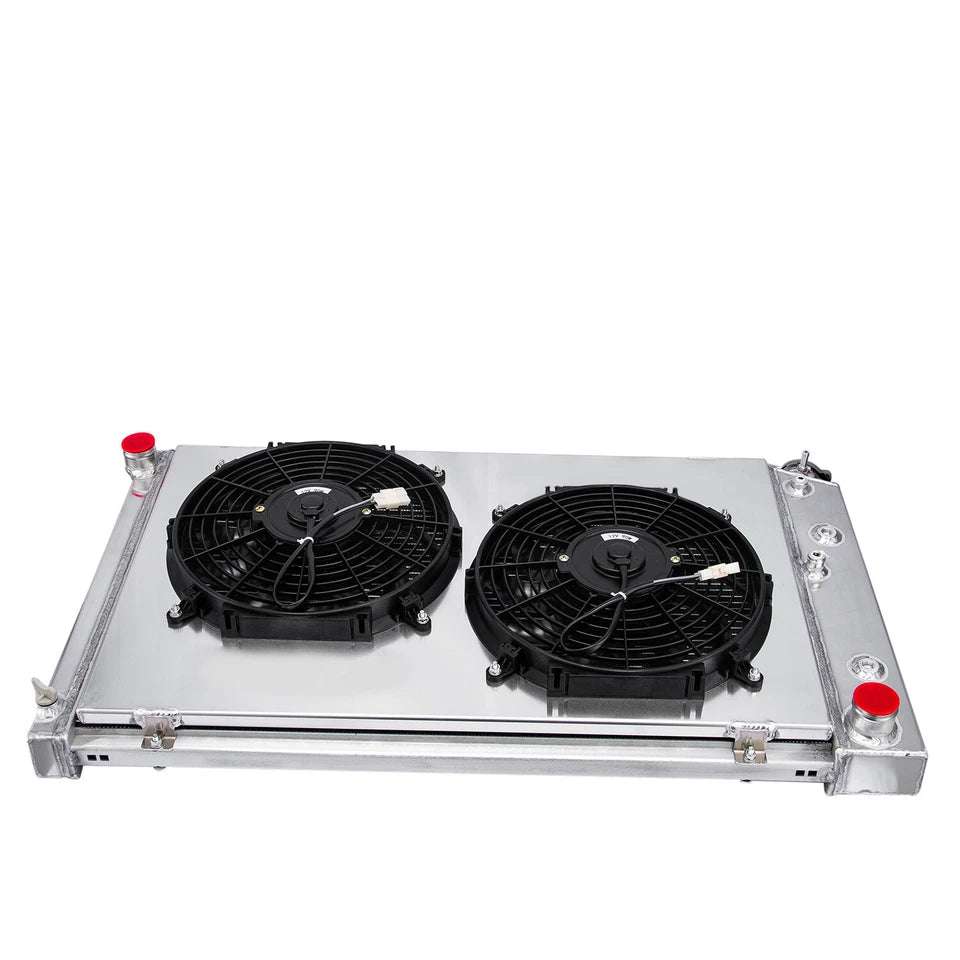

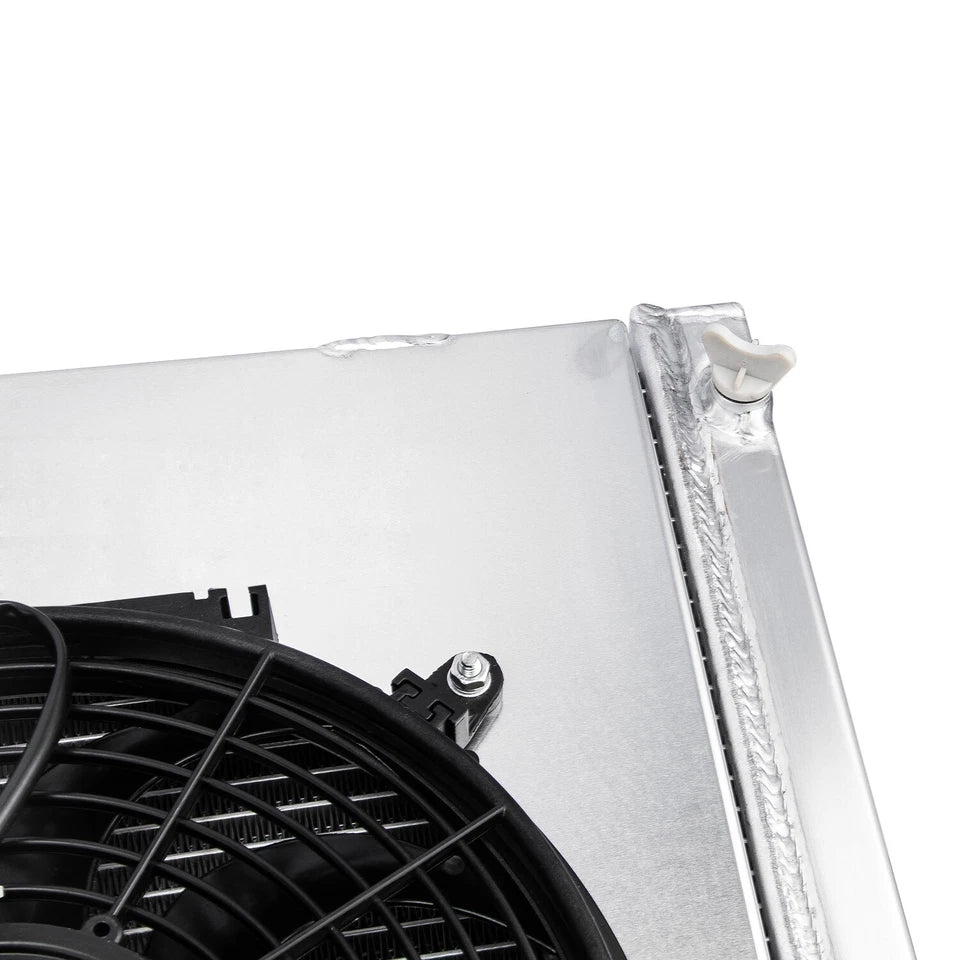

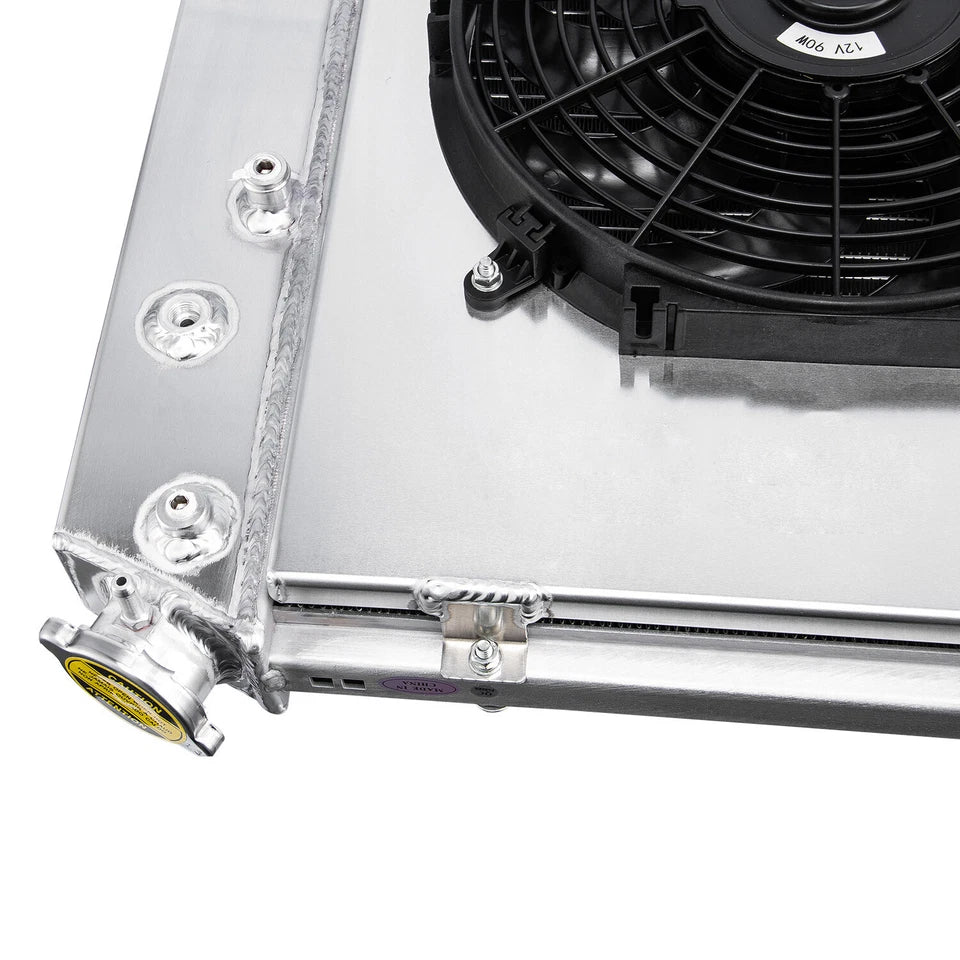

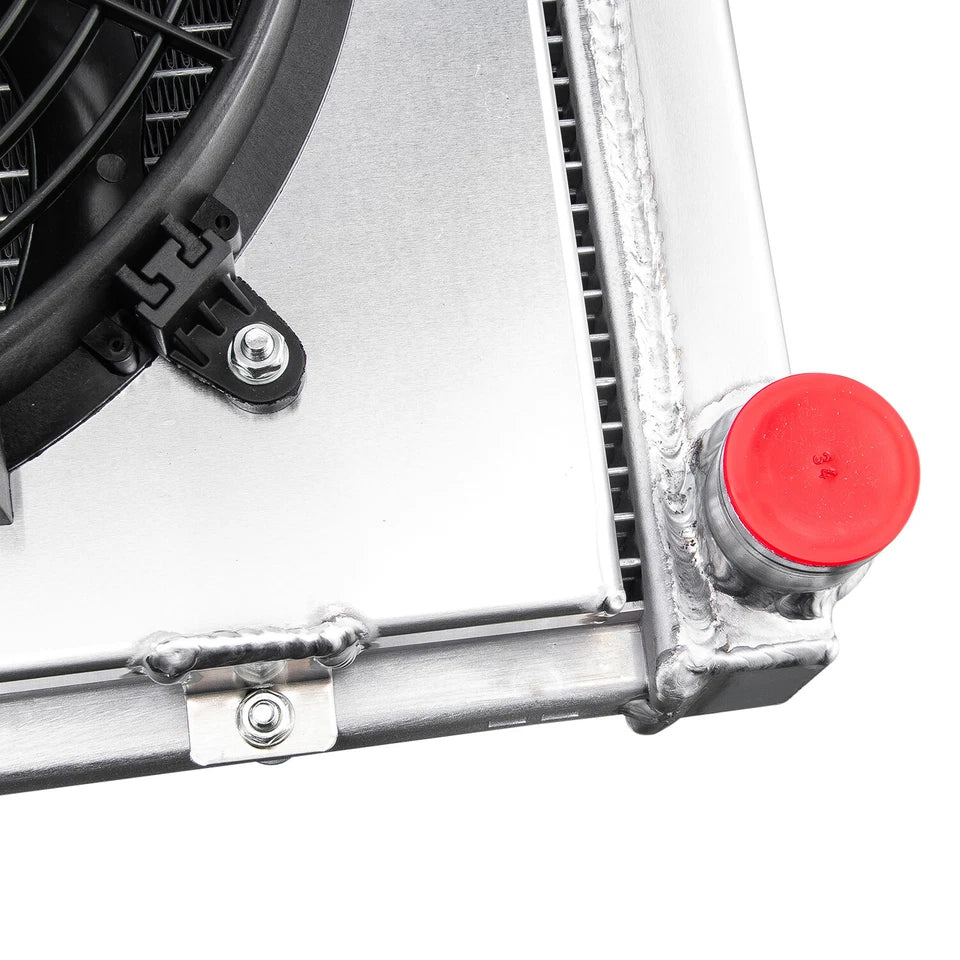

Aluminum Shroud+Fan

The fan and fan shroud effectively drive heat over and out of the engine compartment rather than pushing it back toward the front of the engine.

The fan shroud secures the fan blades in place, prevents contact with other engine components, and improves airflow efficiency. Better temperature management helps maintain stable engine operating conditions for improved performance and reliability.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
