ASI Performance 3 Row Radiator Shroud+Fan FOR 1982-1992 Chevy Camaro Pontiac Firebird V8

ASI6693

In stock

SKU: WH951BZFSXJ90W-BN Barcode: ASI6693

No reviews

$259.00

Overall Size

31 1/2"W x 19 2/3"H

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Package Includes

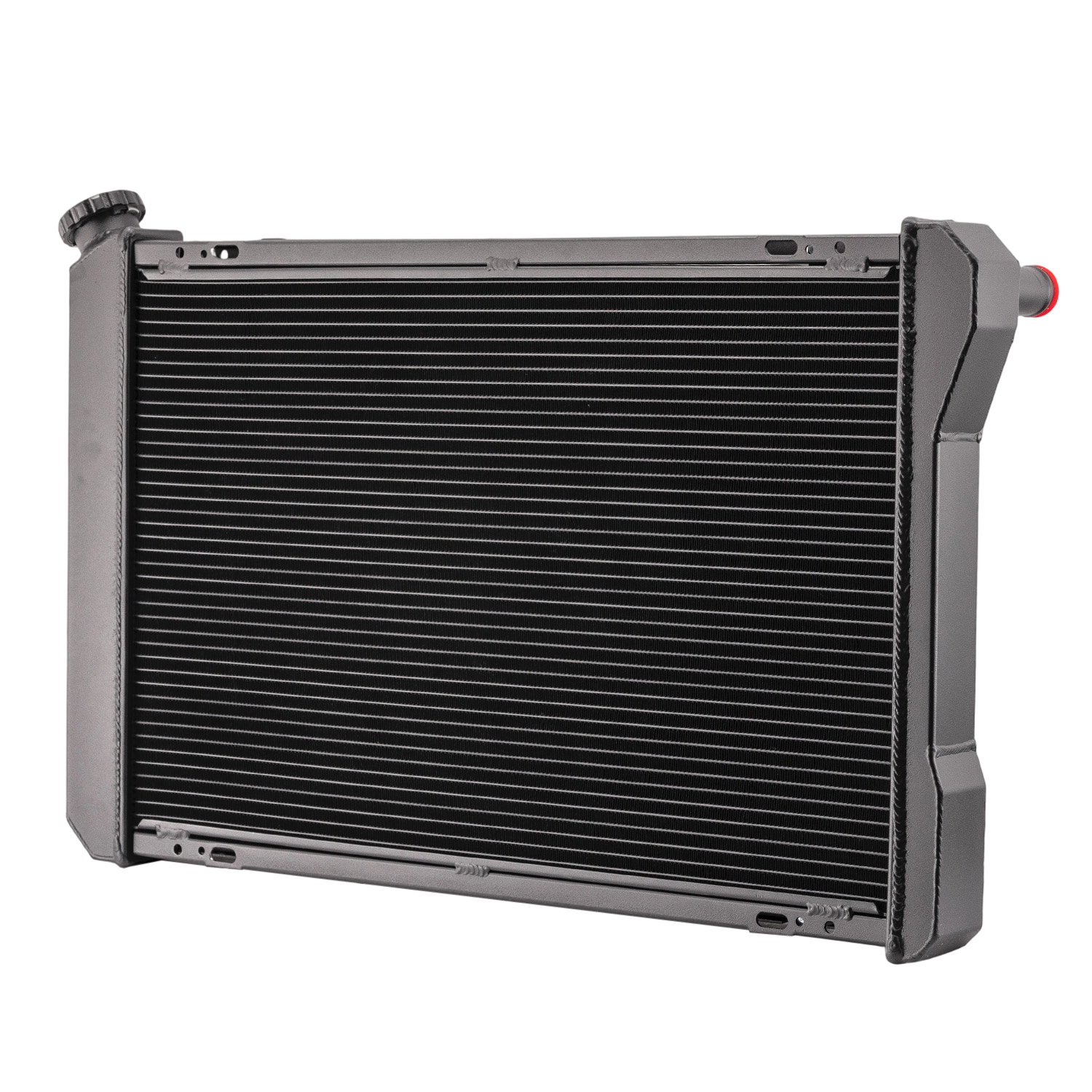

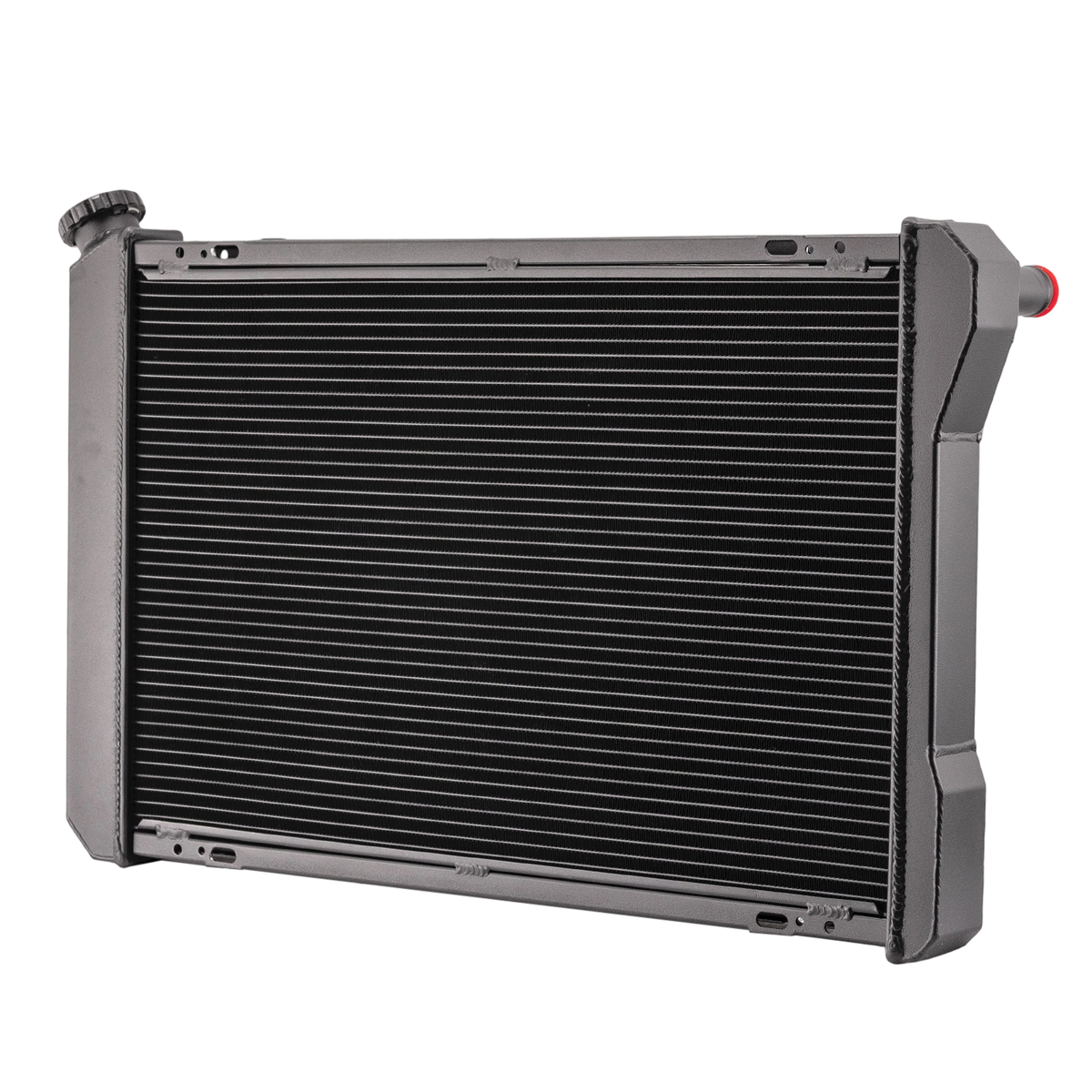

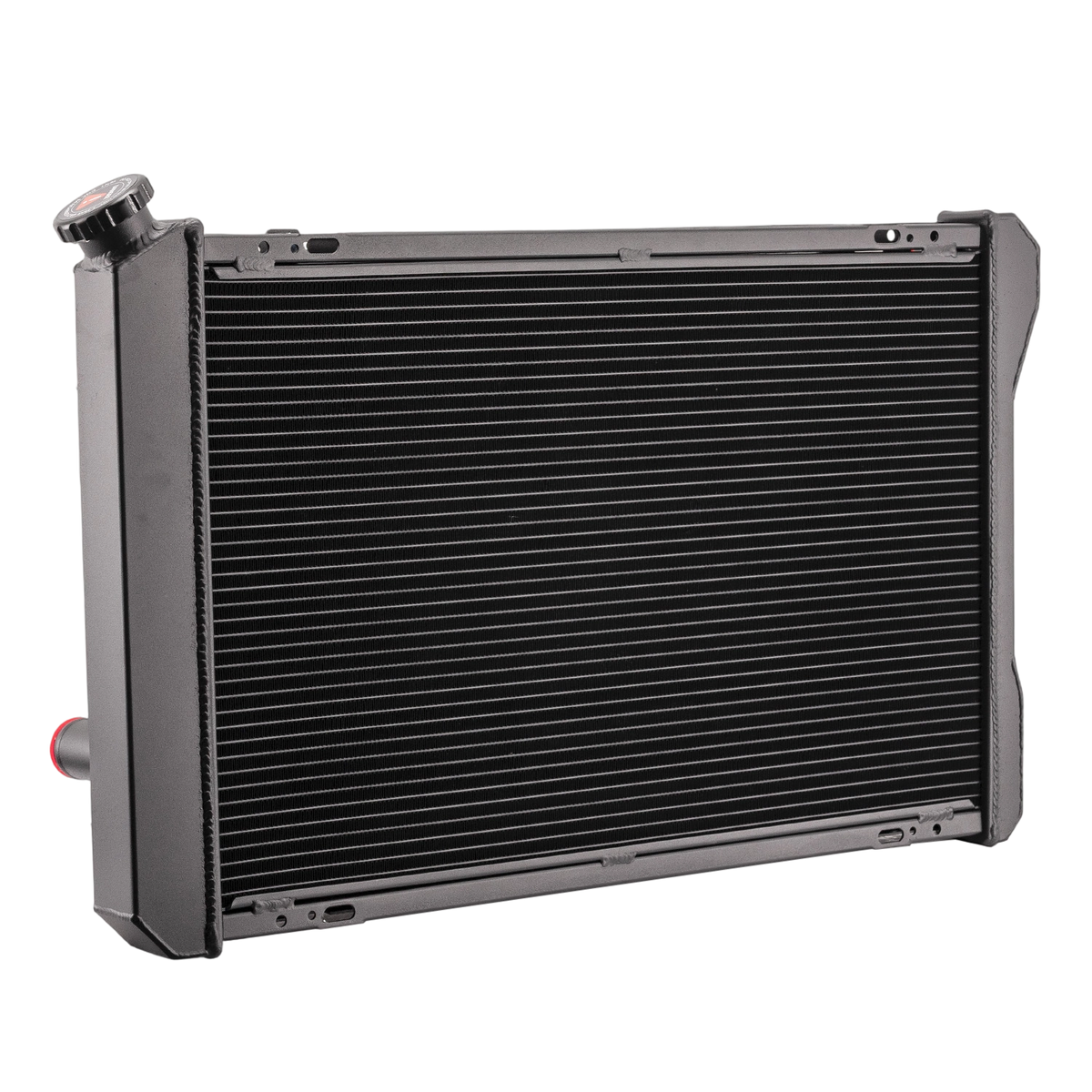

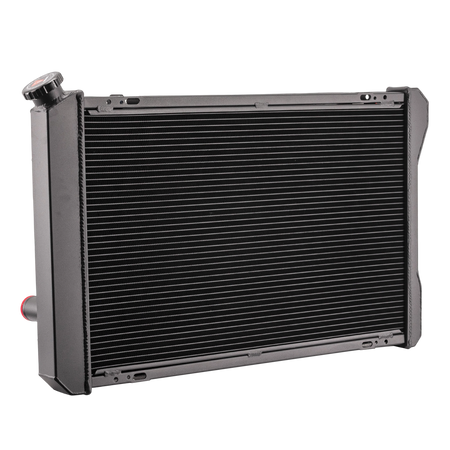

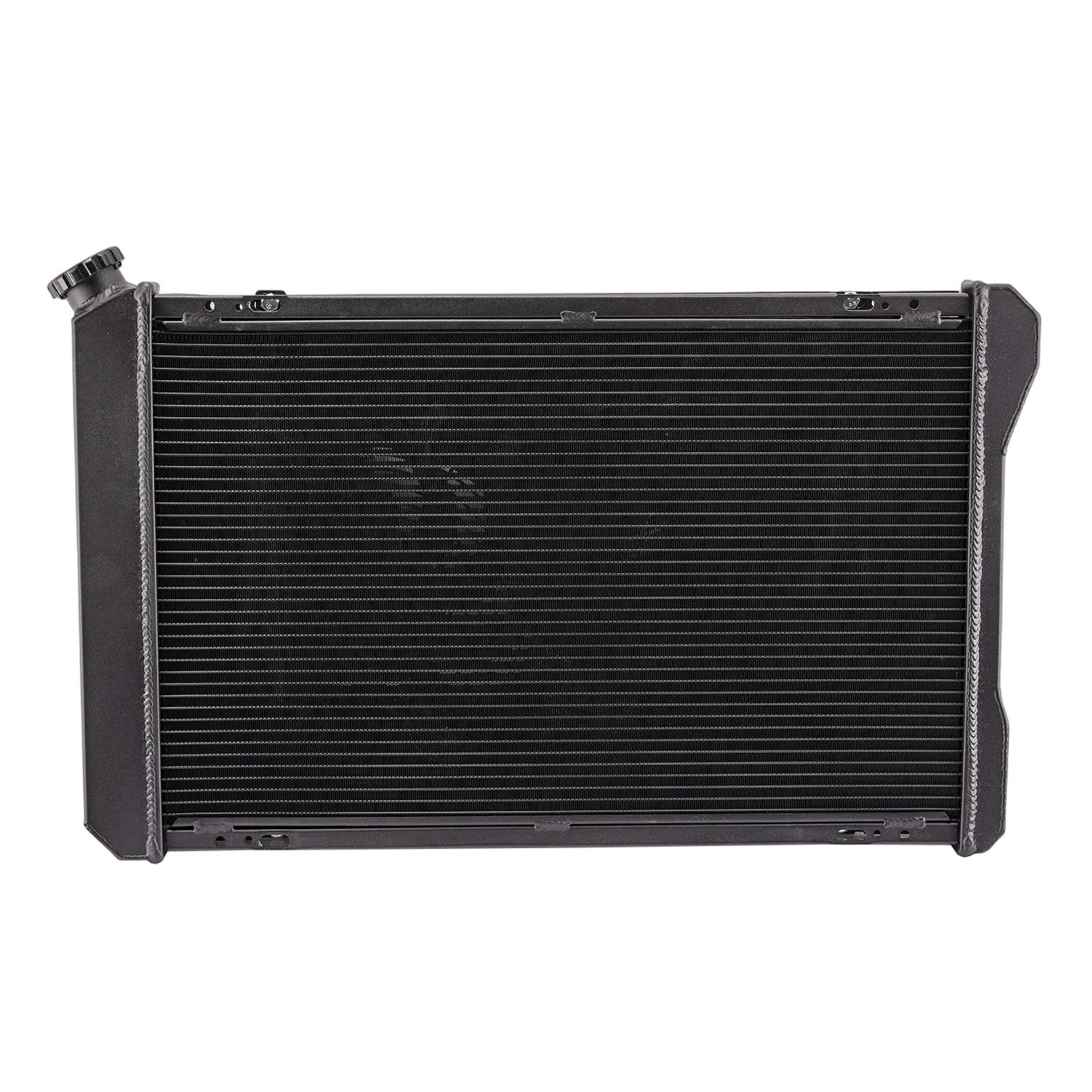

1 × 3-Row AA5052 Aluminum Radiator
1 × CNC Machined Radiator Cap
1 × AA5052 Aluminum Shroud
2 × 12" Fans (Includes mounting kits)
1 × Thermostat Relay Kit

Technical Specifications

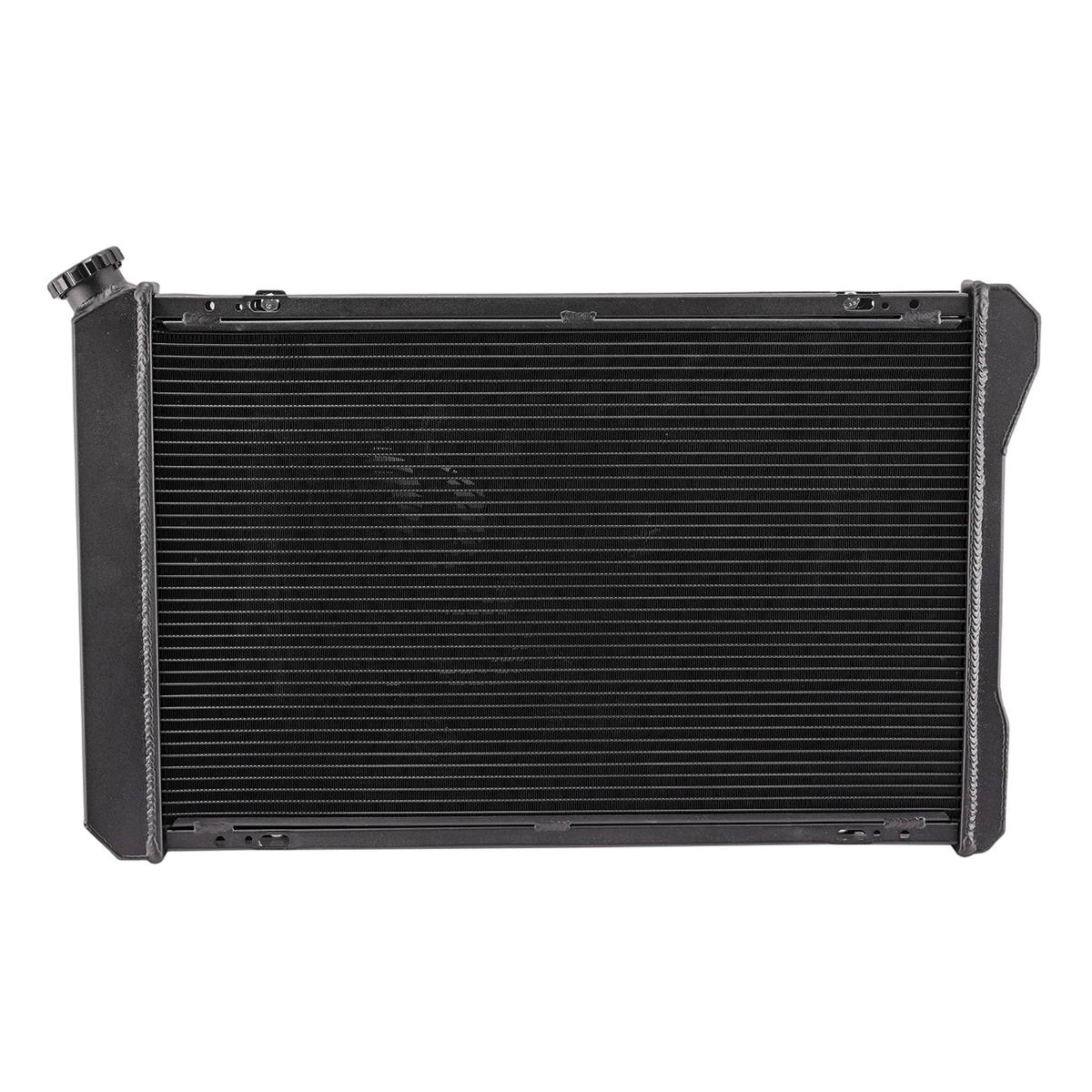

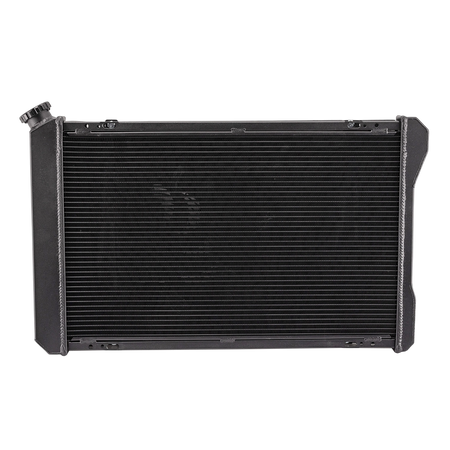

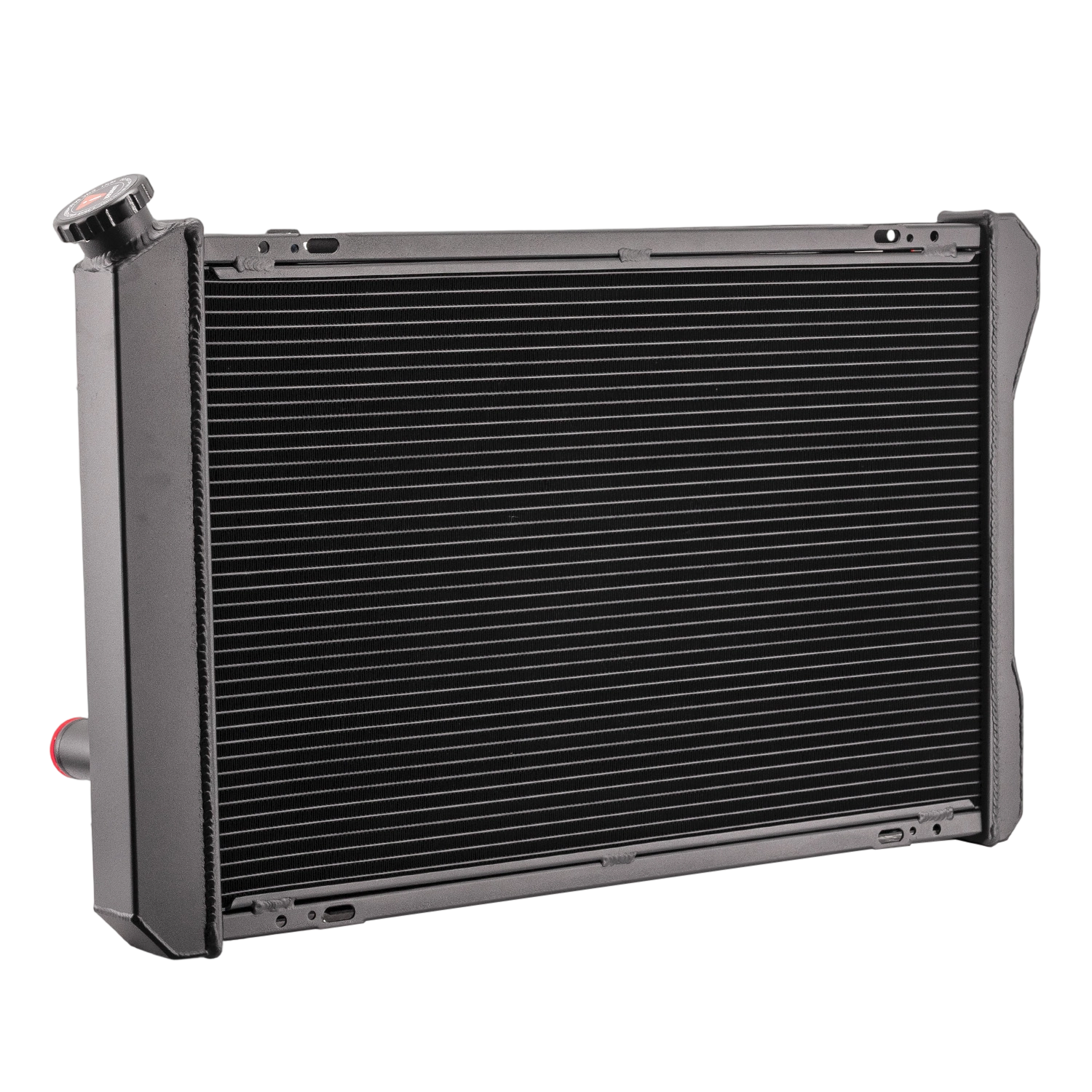

Core Design	3-Row Tube Core Racing Design
Material	High Quality AA5052 Aluminum
Core Size	26 1/4" W × 16 4/9" H
Overall Size	31 1/2" W × 19 2/3" H
Inlet	1 1/4" Diameter, Driver Side
Outlet	1 1/2" Diameter, Passenger Side
Transmission Oil Cooler	φ26 × 290 × M12 × 1.25 (Z)
Transmission	Automatic
Mounting Type	Saddle
Mounting Specs	Vertical: 22 3/8" / Horizontal: 17 1/2"

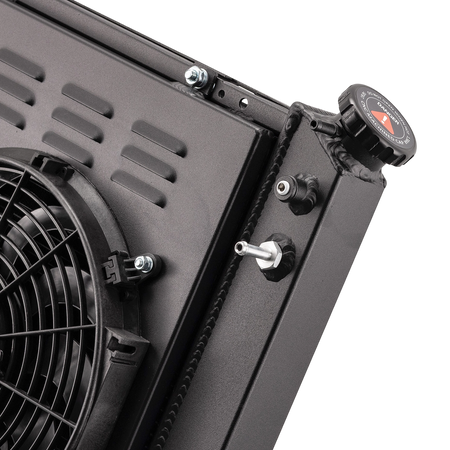

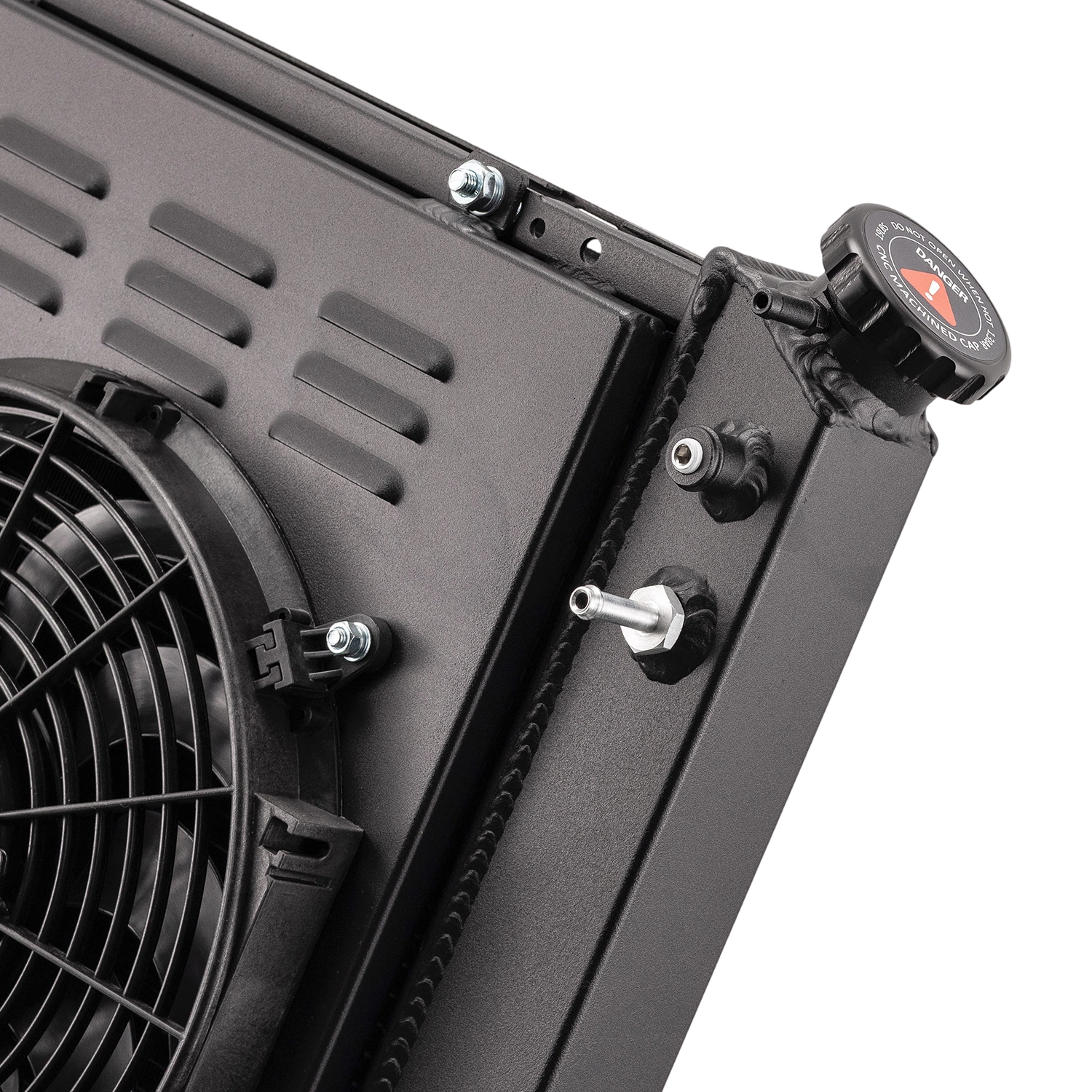

Radiator Cap	CNC Machined Billet High Pressure Radiator Cap, 1.3 Bar
Construction	100% TIG Welded, No Epoxy
Tank & Fitting Thickness	2 mm
Cooling Row Spacing	3/8"
Cooling Fins	14-16 Fins Per Inch

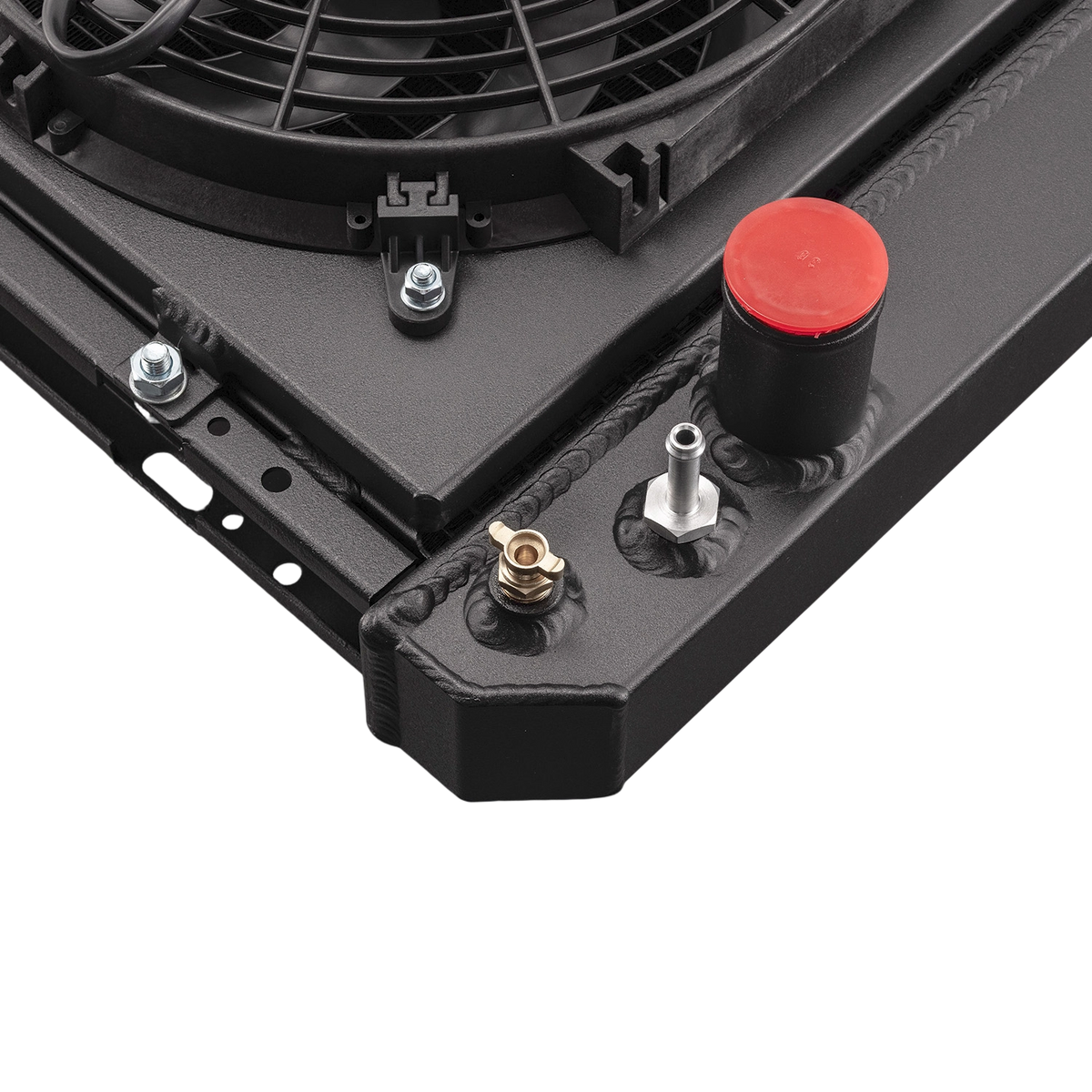

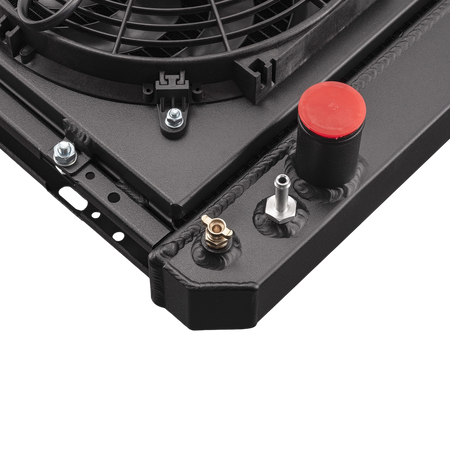

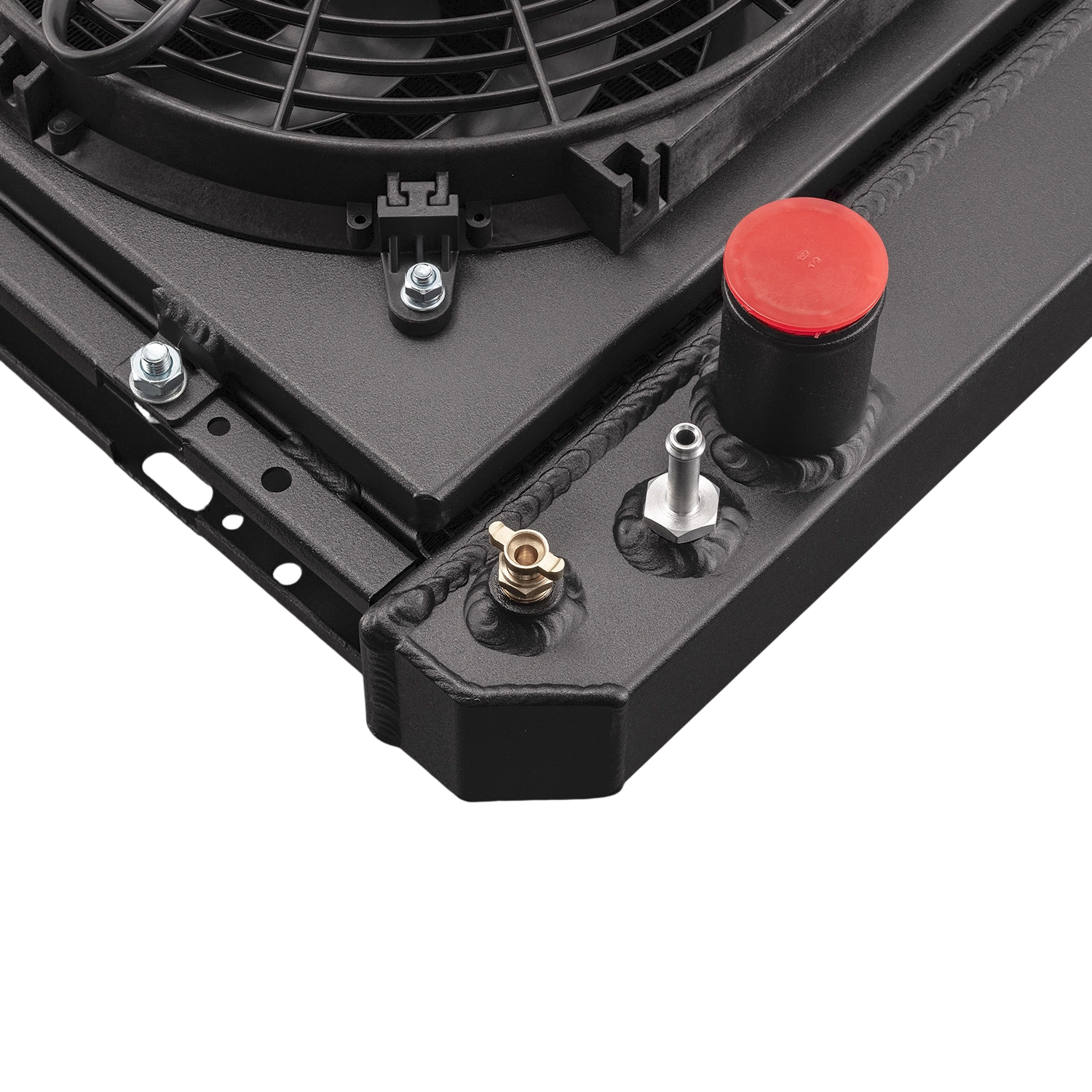

Radiator Drain Plug	OEM Style Brass Petcock Drain

Important Fitment Note:
Fits engines using a 26 1/4" wide core radiator only. Please verify your radiator dimensions before purchasing.

Application

For 1982-1984 Chevrolet Camaro 2.5L-5.0L (26" Wide Core Only)
For 1985-1986 Chevrolet Camaro 5.0L (26" Wide Core Only)
For 1987-1992 Chevrolet Camaro 5.0L-5.7L
For 1982-1984 Pontiac Firebird / Trans Am 2.5L-5.0L
For 1985-1986 Pontiac Firebird / Trans Am 5.0L
For 1987-1988 Pontiac Firebird / Trans Am 5.0L-5.7L
For 1989-1992 Pontiac Firebird / Trans Am 3.1L / 5.0L / 5.7L

Fan Specifications

Fan Diameter	12.050"
Maximum Fan CFM	1730 CFM
Fan Thickness	2.500"
Number of Blades	10 S-Type Blades
Blade Material	Plastic
Amp Draw	12.70 Amps
Mounting	Includes Mounting Tabs for Zip Tie Installation

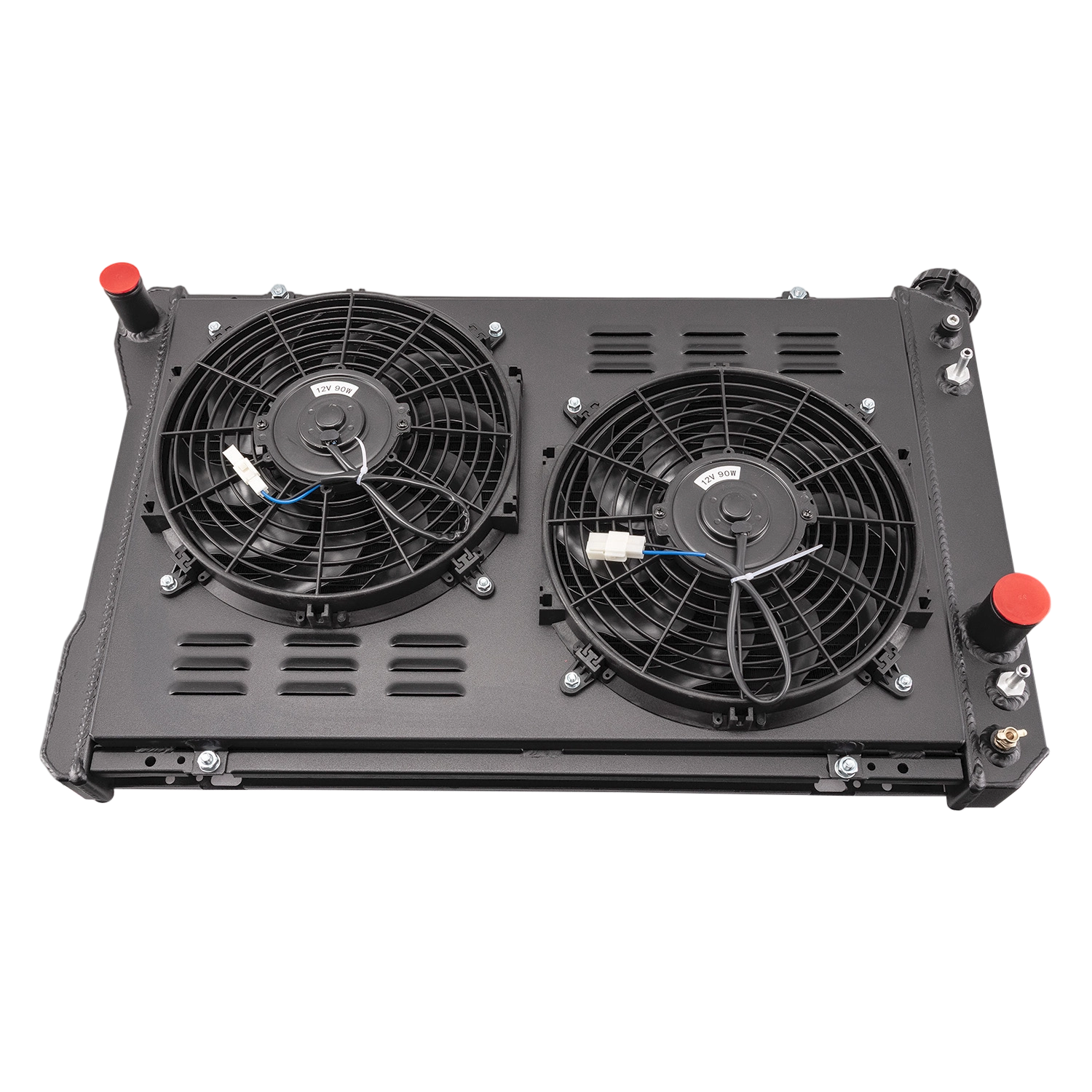

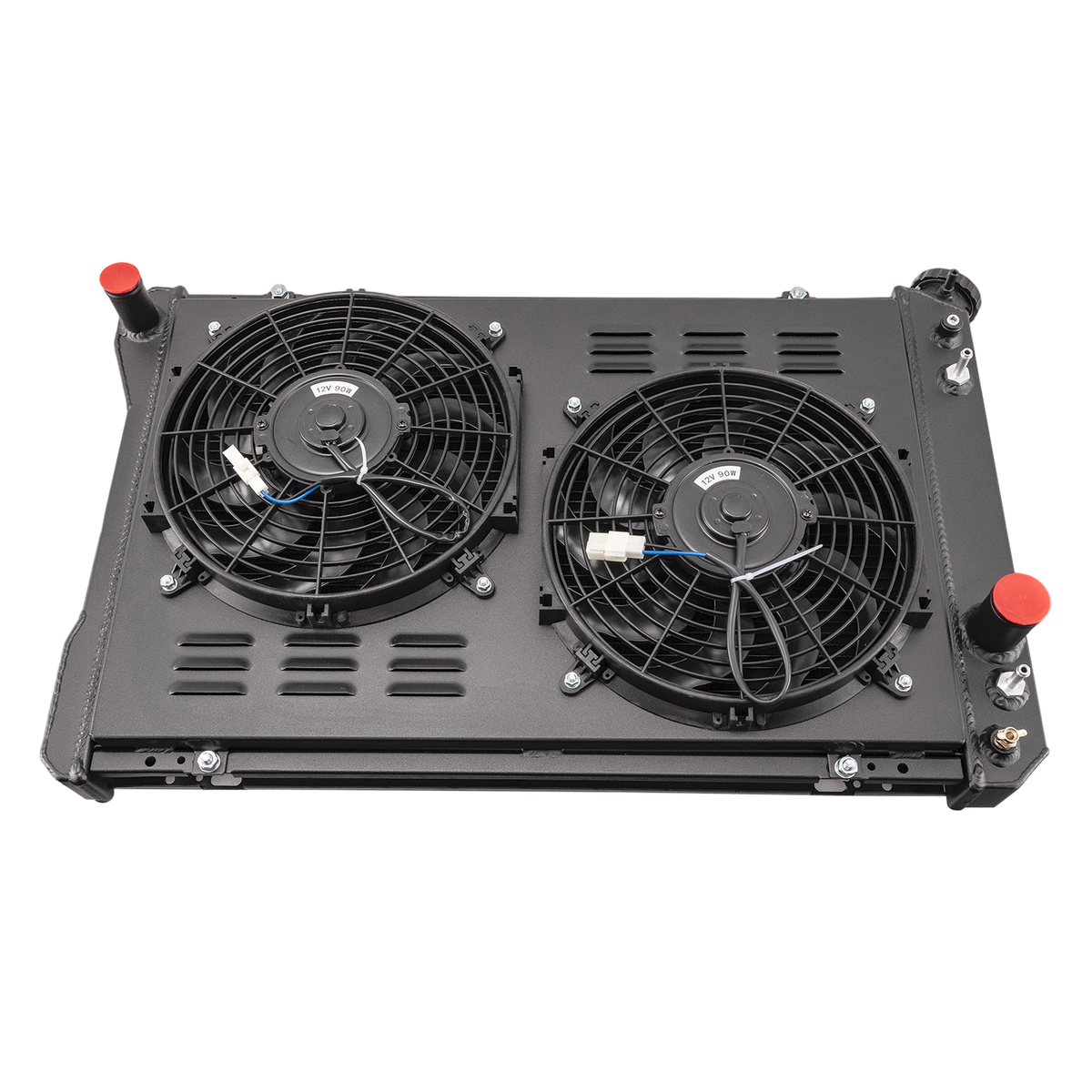

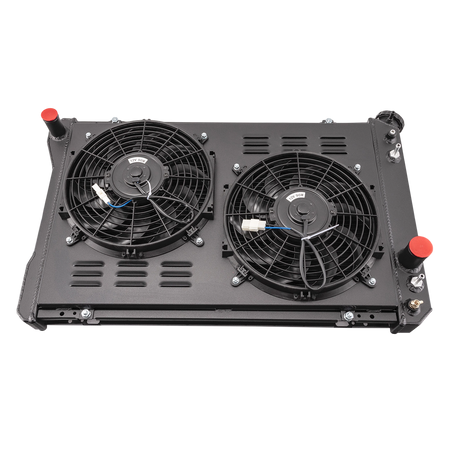

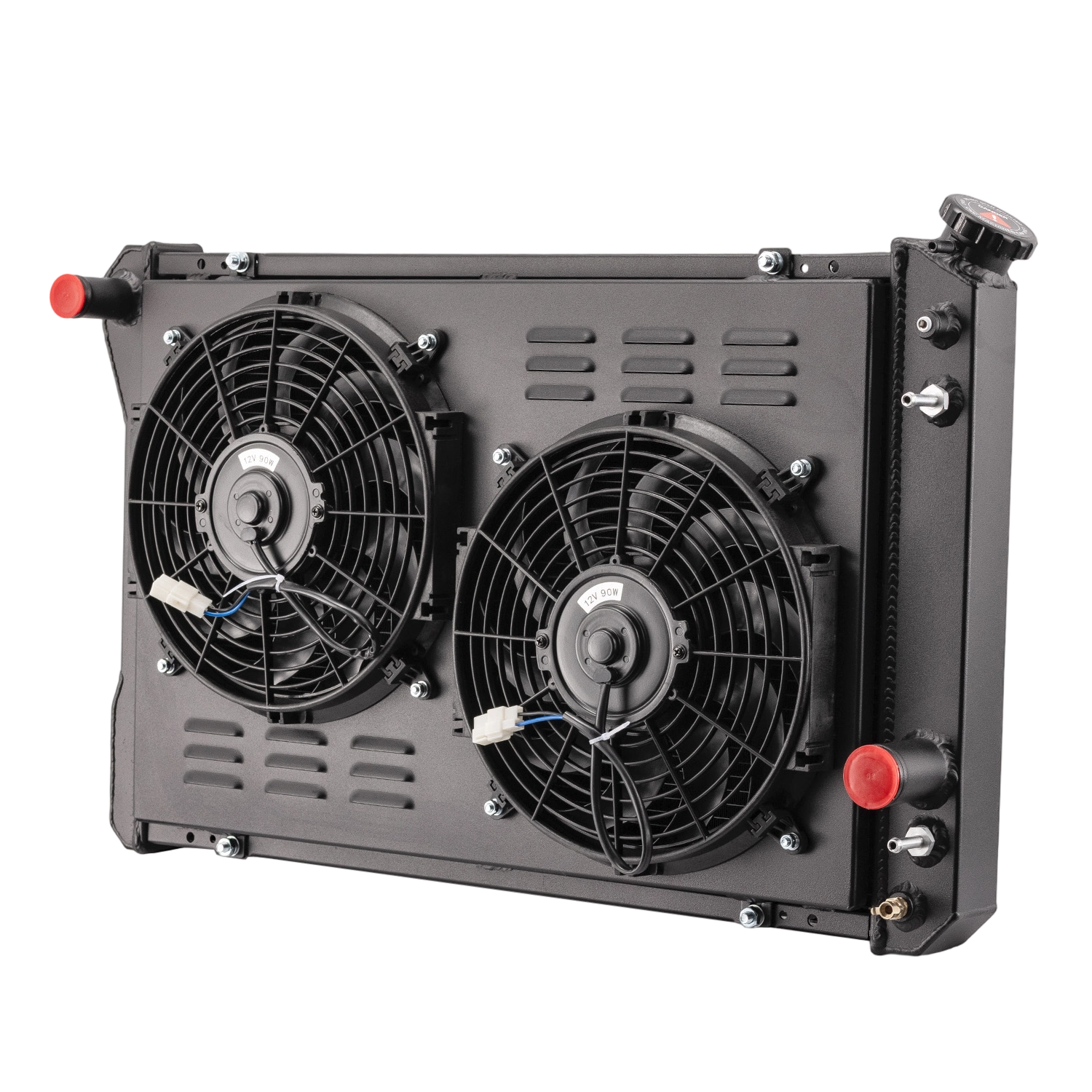

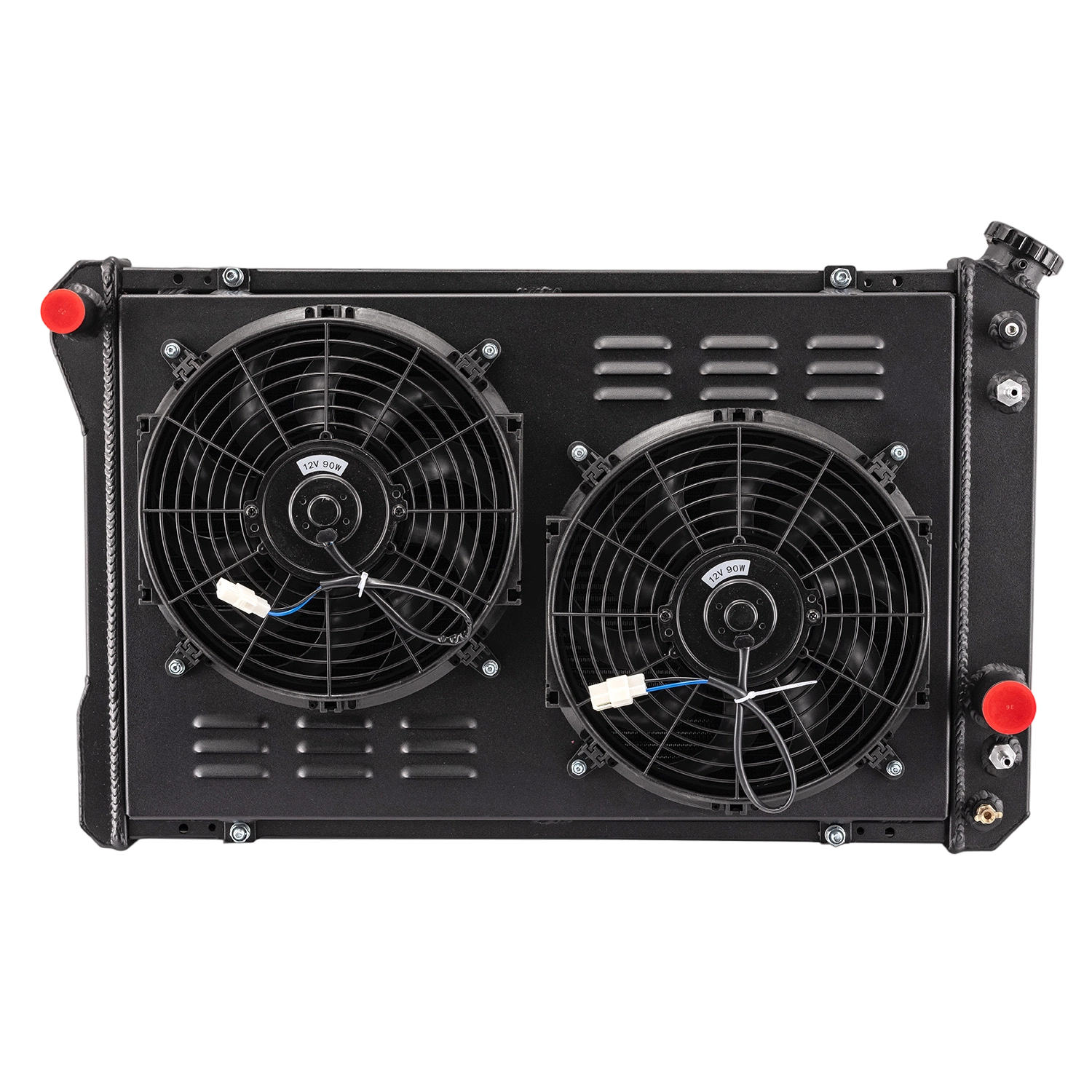

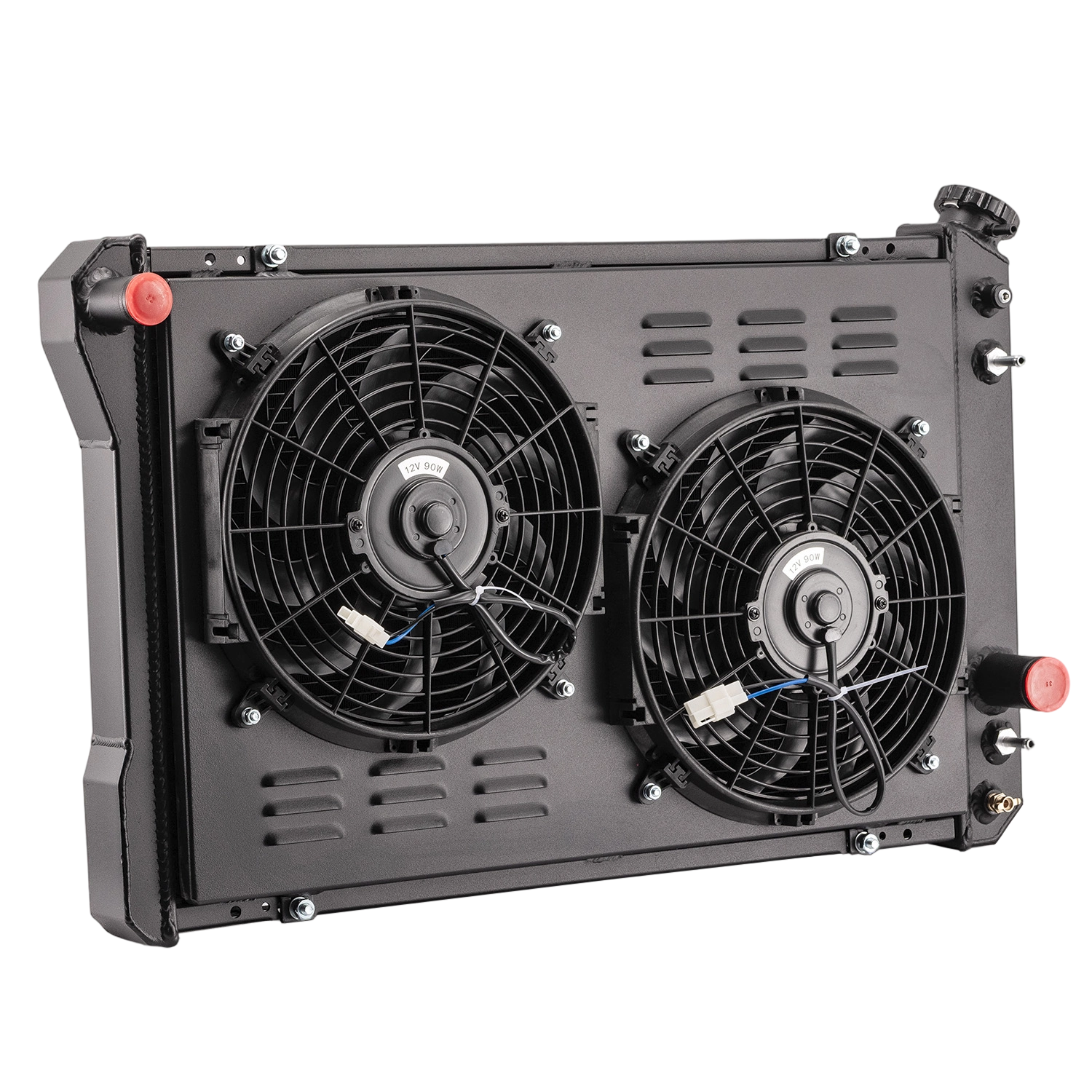

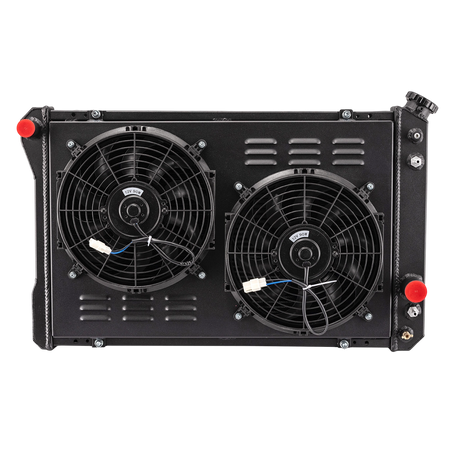

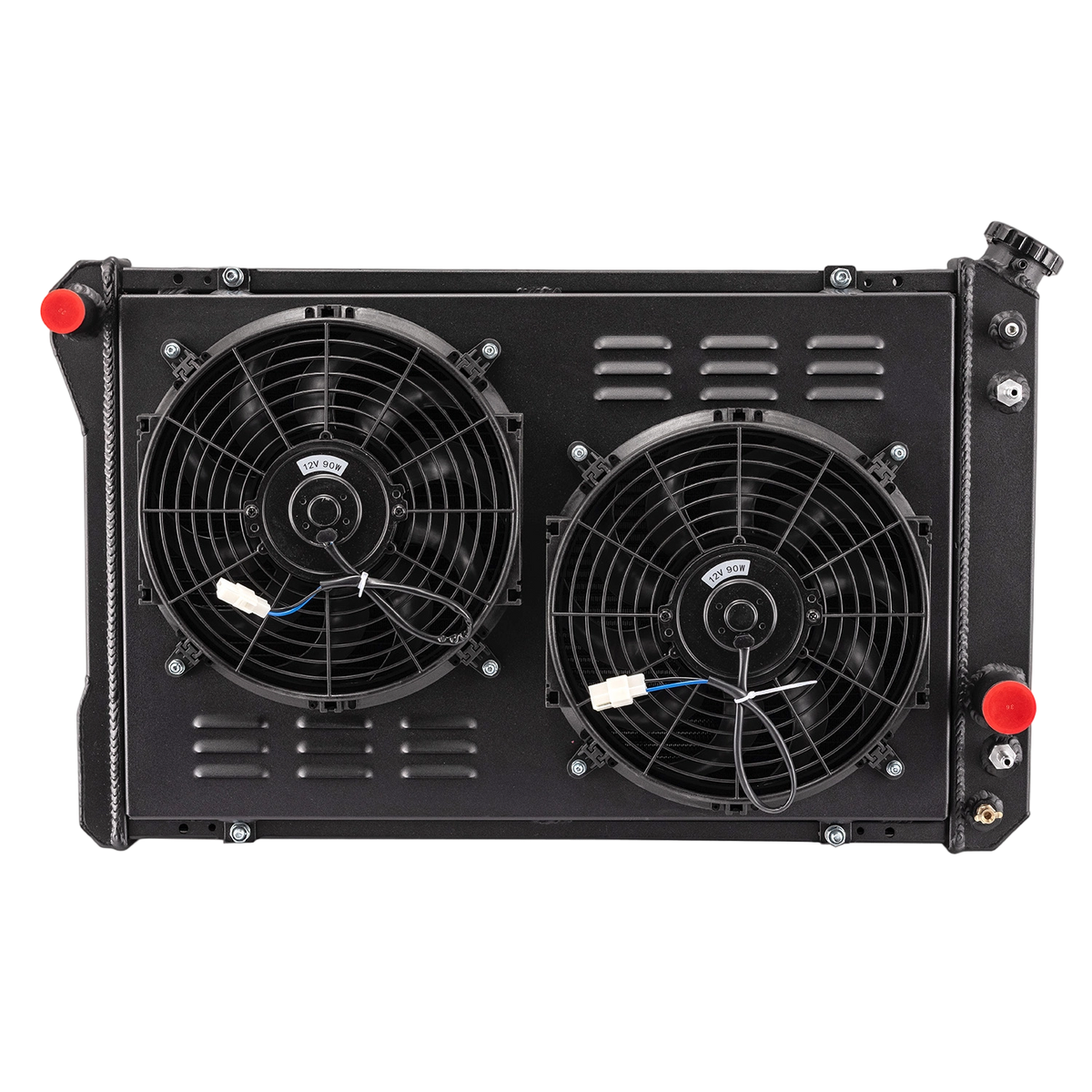

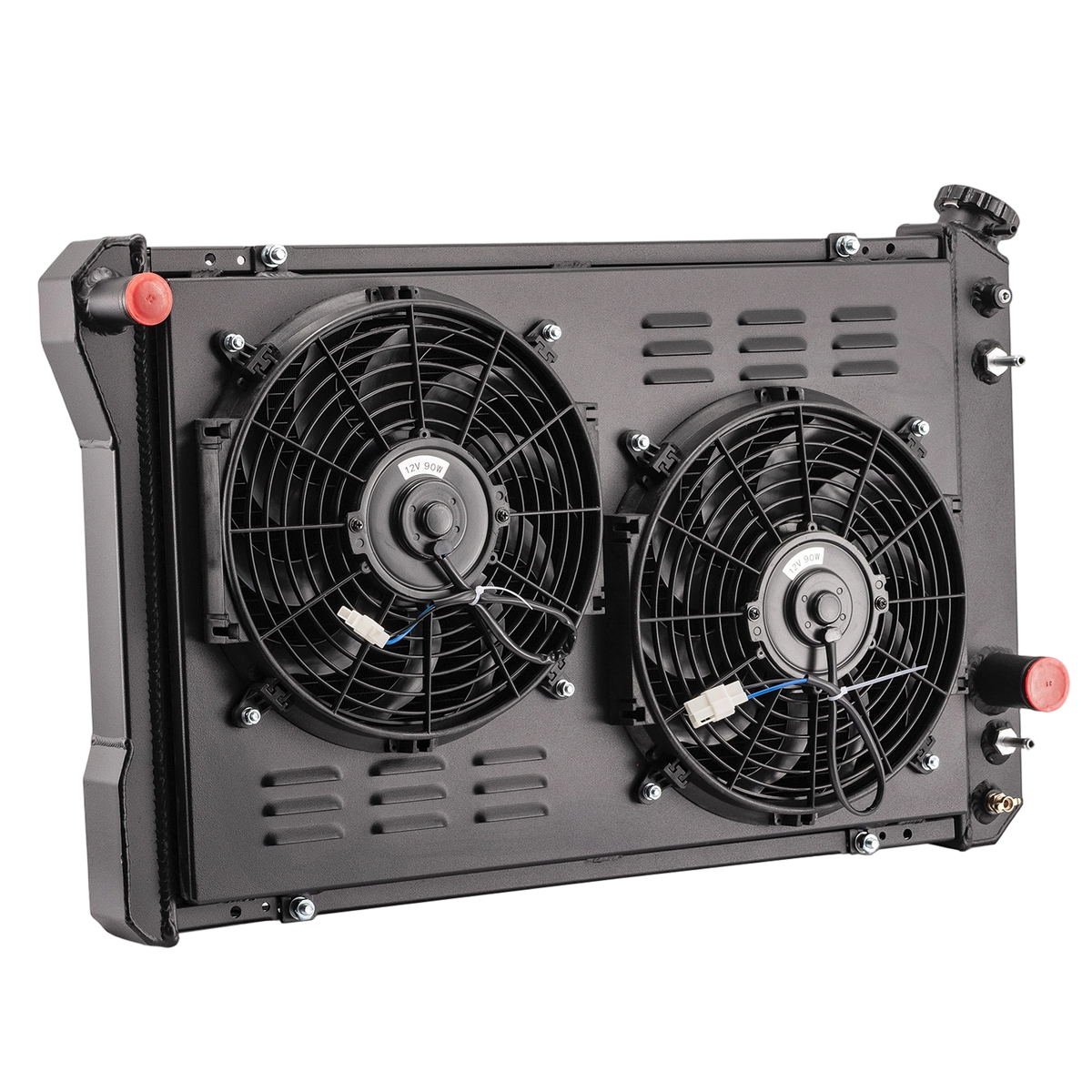

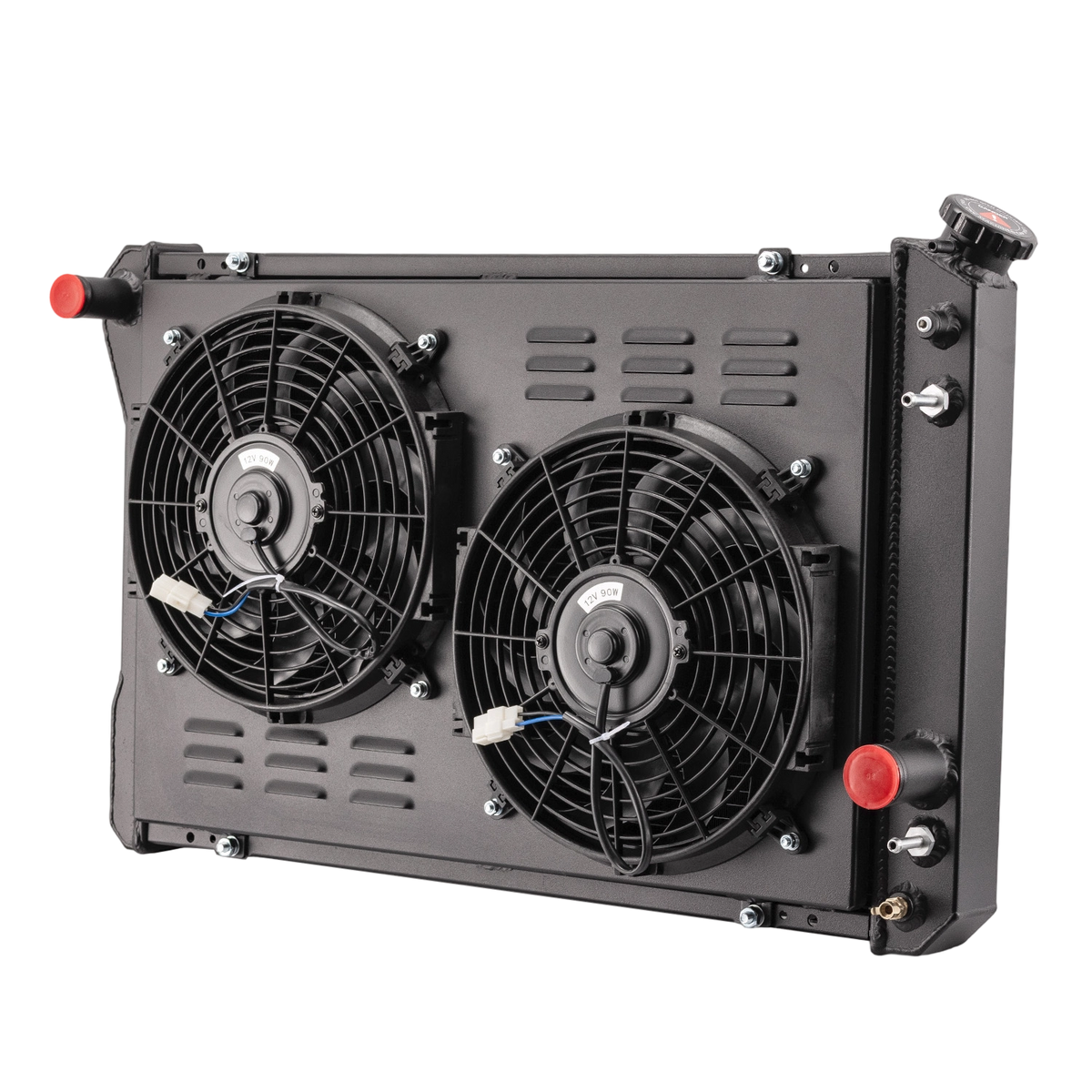

AA5052 Aluminum Shroud and Fans

The fans and AA5052 aluminum fan shroud are designed to improve airflow through the radiator and help direct heat away from the engine compartment.

The fan shroud securely houses the fan blades, helps improve airflow distribution, and reduces the risk of interference with nearby engine components.

1. Shuttered-design AA5052 aluminum fan shroud helps improve airflow efficiency.
2. S-Type blade fans feature a Push or Pull Type design with lightweight, durable plastic construction.
3. Includes a thermostat relay kit for temperature-controlled fan operation.

Thermostat Relay Kit

Works with any 12V system and is designed for universal automotive electric fan applications.

Activates the electric fans by grounding them at the preset temperature.

Turn-On Temperature: 185°F
Turn-Off Temperature: 165°F

The probe typically threads into the radiator, water outlet, or manifold.

Wiring:
RED (+) — Connect directly to the battery.
WHITE — Connect to the ignition switch power source.
BLACK — Connect to the thermostat switch.
BLUE — Connect to the fans.

Advantages

1. Made from AA5052 aircraft-grade aluminum for increased strength and corrosion resistance.
2. Brazed core technology for improved performance and dependability.
3. AA5052 aluminum 2 mm thick tanks and fittings for increased strength and durability.
4. Higher-density core with cooling rows spaced 3/8" apart, providing approximately 25% more rows within the core than other aluminum radiators.
5. 14-16 cooling fins per inch for increased heat dissipation.

Description

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency and help prevent premature engine failure.

Its lightweight, high heat-transfer aluminum construction features a tube-and-fin design that increases surface area, allowing heat to dissipate more efficiently.

This AA5052 Aluminum Radiator is approximately 30%–45% more efficient than stock radiators and provides increased coolant capacity, helping the cooling system maintain stable temperatures and resist temperature surges in demanding applications.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
