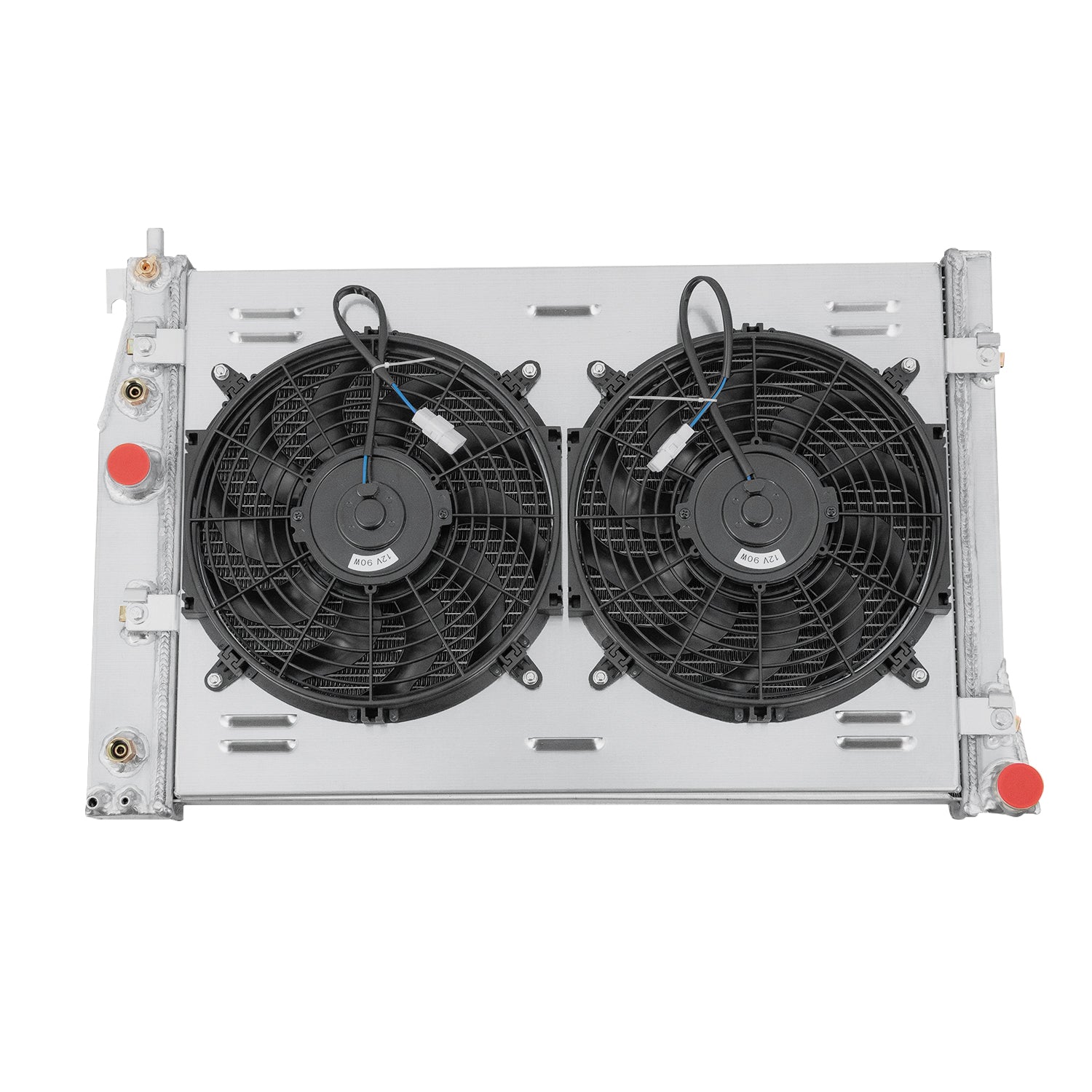

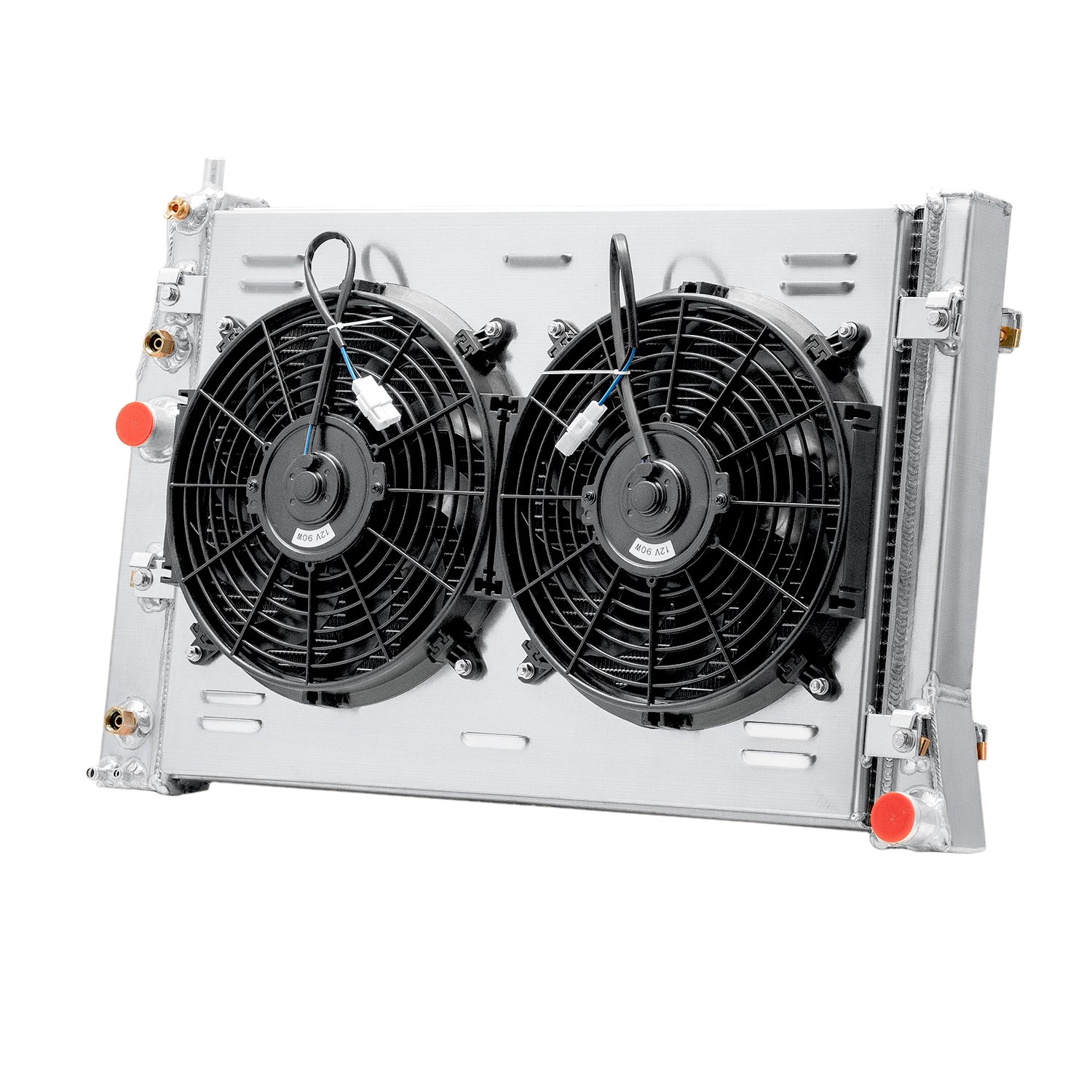

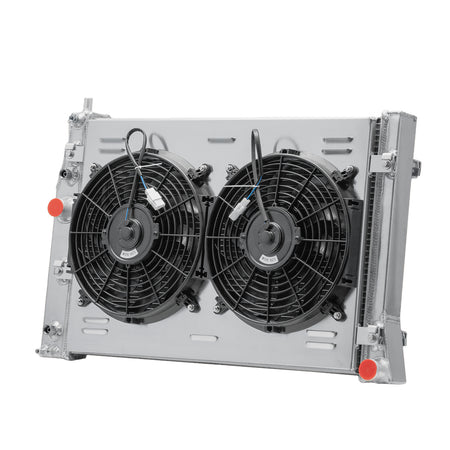

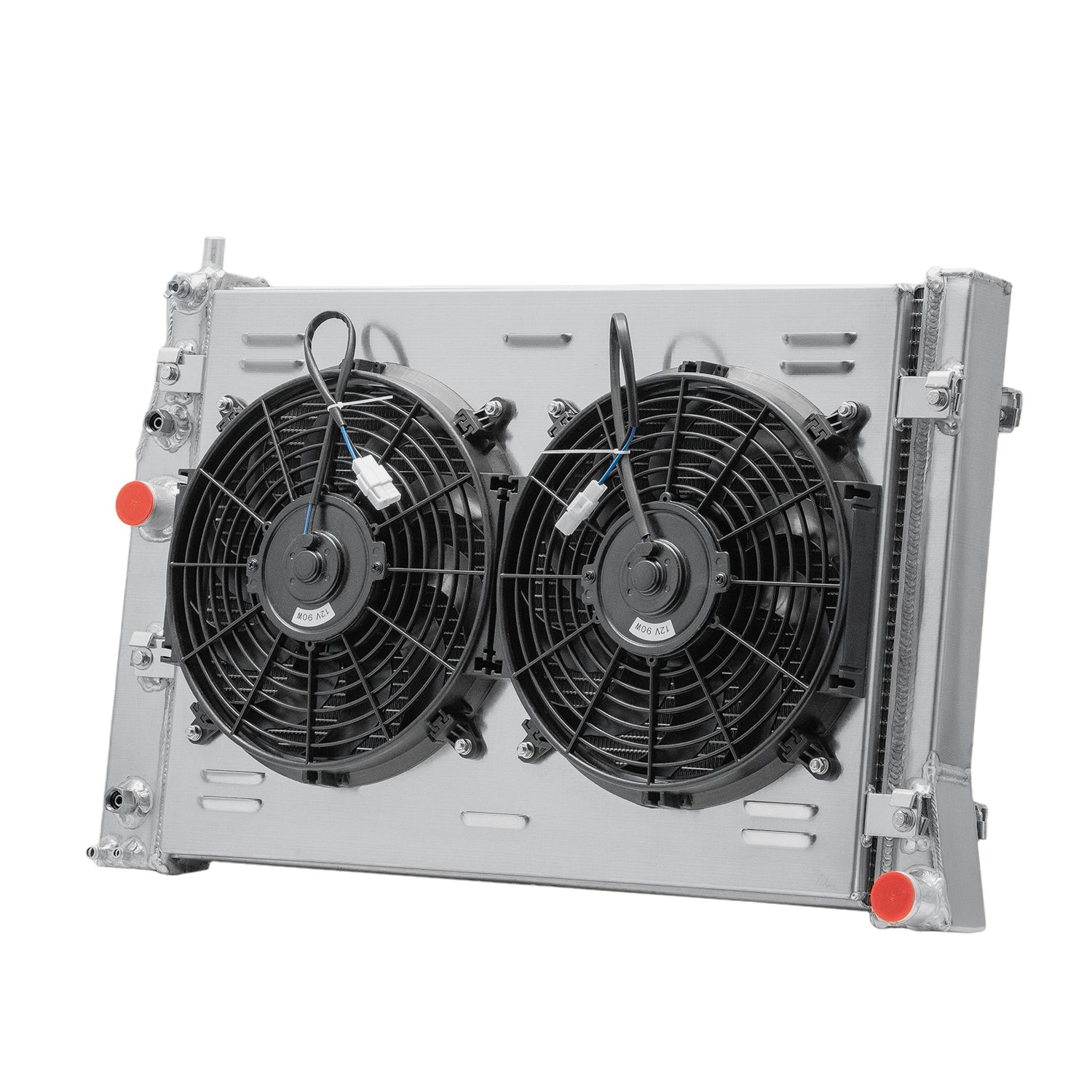

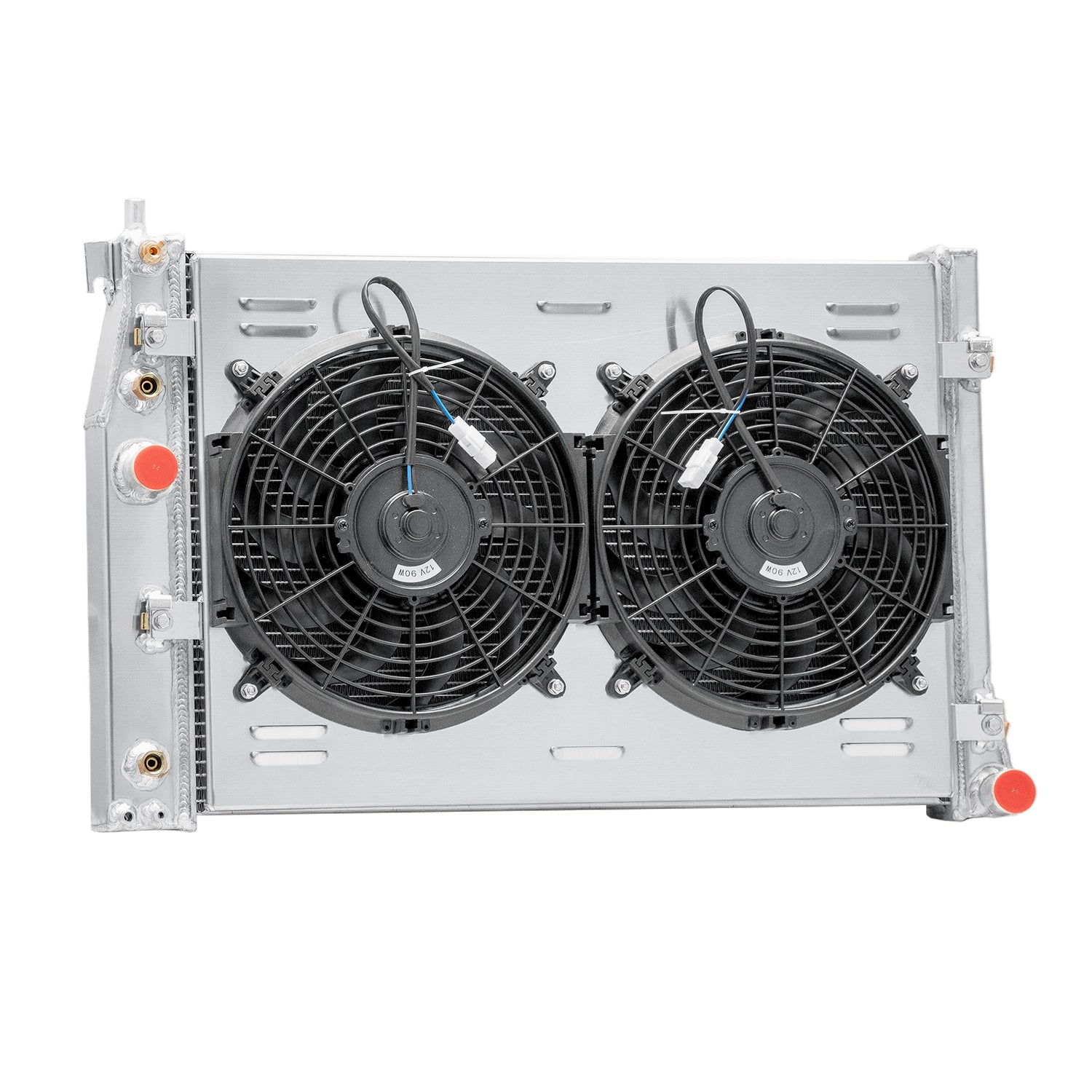

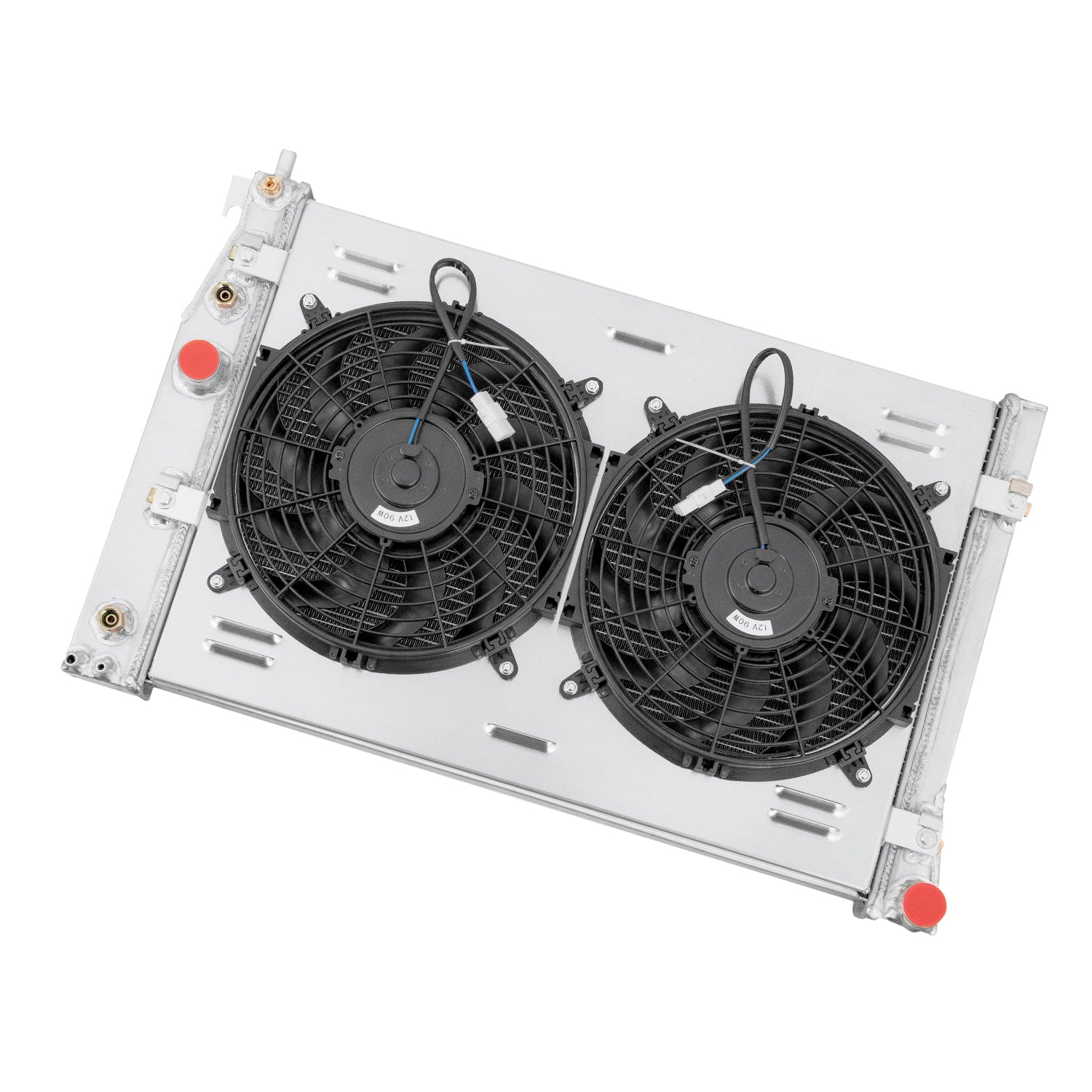

ASI Performance 3 Row Radiator&Shroud Fan For 1997-2004 Chevy Corvette 2-Door Z06 C5 5.7L V8

ASI3501

In stock

SKU: 535-50488DFSXJ90W-BN01 Barcode: ASI3501

No reviews

$284.90

SAVE 8%, code: ASI8OFF

overall size

30" W x 19 1/2" H

Quantity:

US Local Stock Fast Shipping - Arrives in 3 –7 Days

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Package Include:

1 X 3-Row AA5052 Aluminum Radiator

1 X AA5052 Aluminum Shroud

2 X 12" Electric Fans (Includes mounting kits)

1 X Thermostat Relay Kit

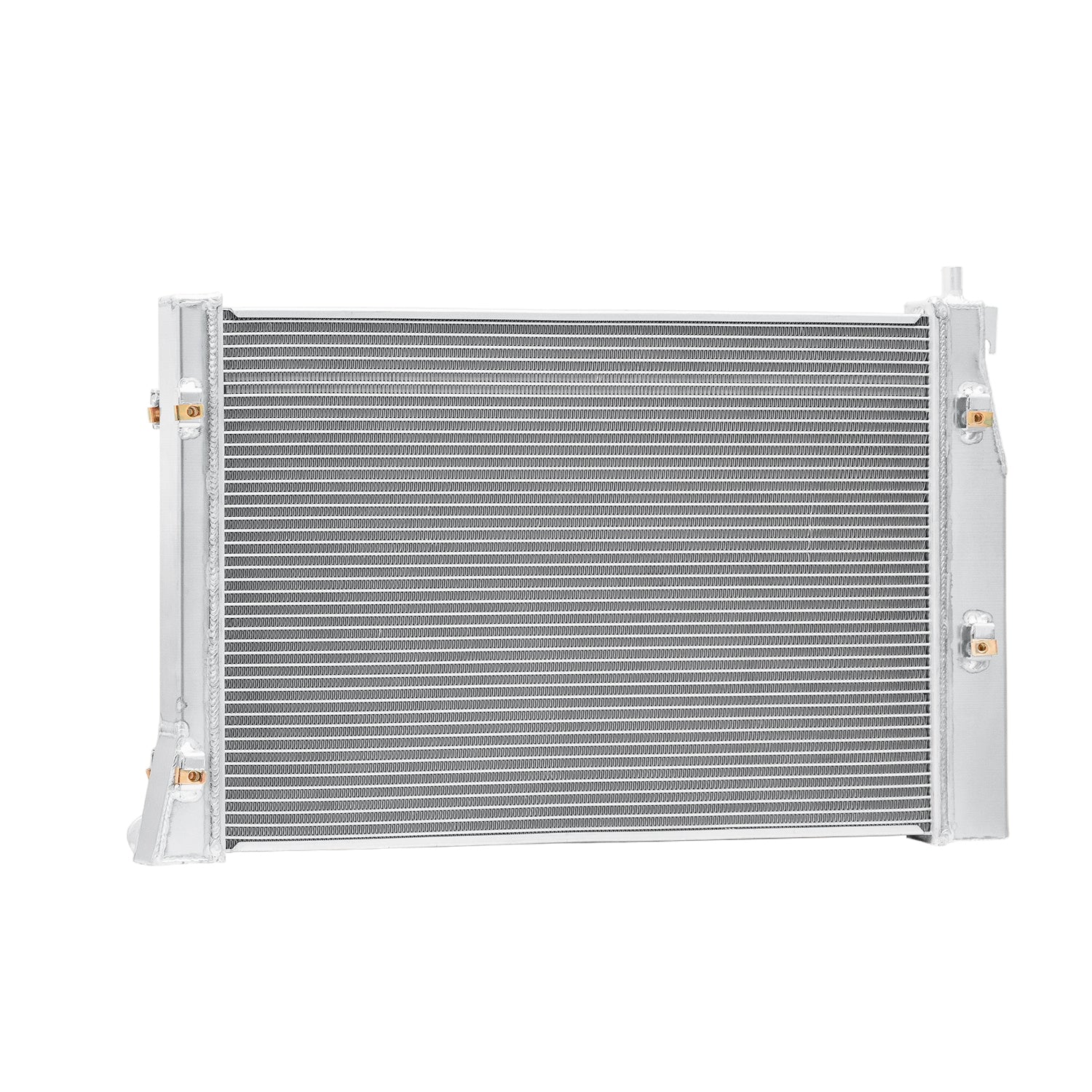

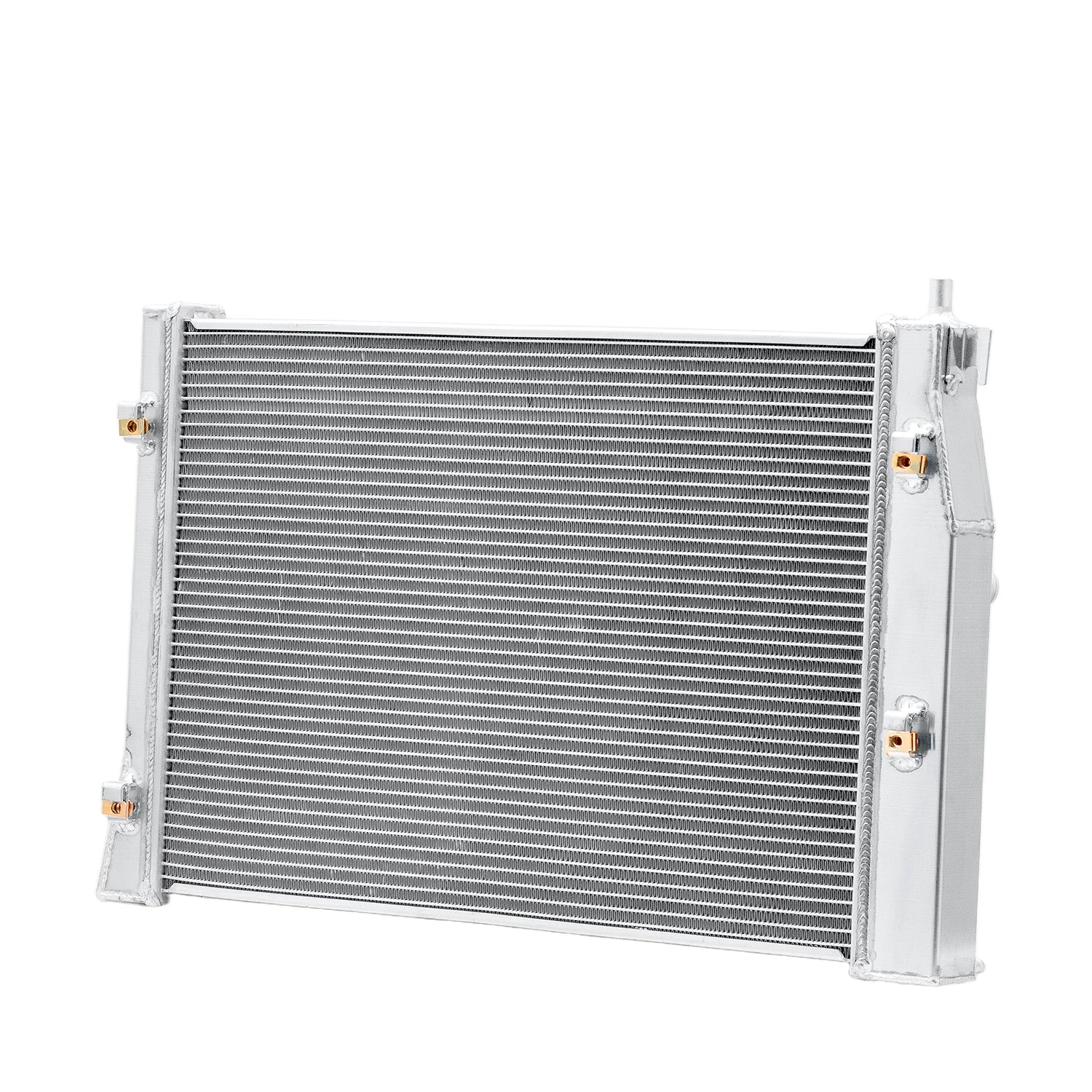

Radiator Configuration:

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Material: High Quality AA5052 Aluminum

Core size : 24 3/4"wide x 17 1/4" Height

Overall Size：30" wide x 19 1/2" Height

Upper inlet Size: 1.33"

Lower outlet Size:1.33"

OEM Style Brass Petcock Drain

Vehicle Fitment:

2004 Chevrolet Corvette 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated

2003 Chevrolet Corvette 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated

2002 Chevrolet Corvette 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated

2001 Chevrolet Corvette 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated

2000 Chevrolet Corvette 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated

1999 Chevrolet Corvette 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated

1998 Chevrolet Corvette 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated

1997 Chevrolet Corvette 5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated

Part Number :1885,52470606,52474697,CU1885,DPI1885,GM3010185,GM3010186

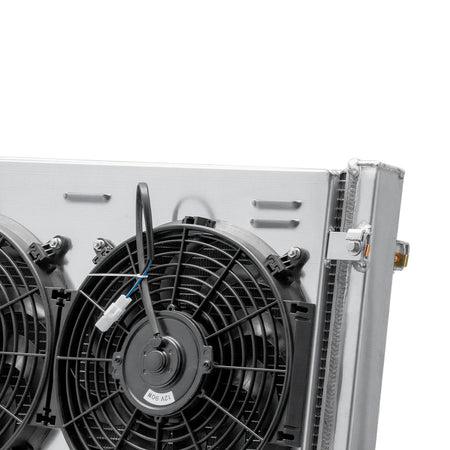

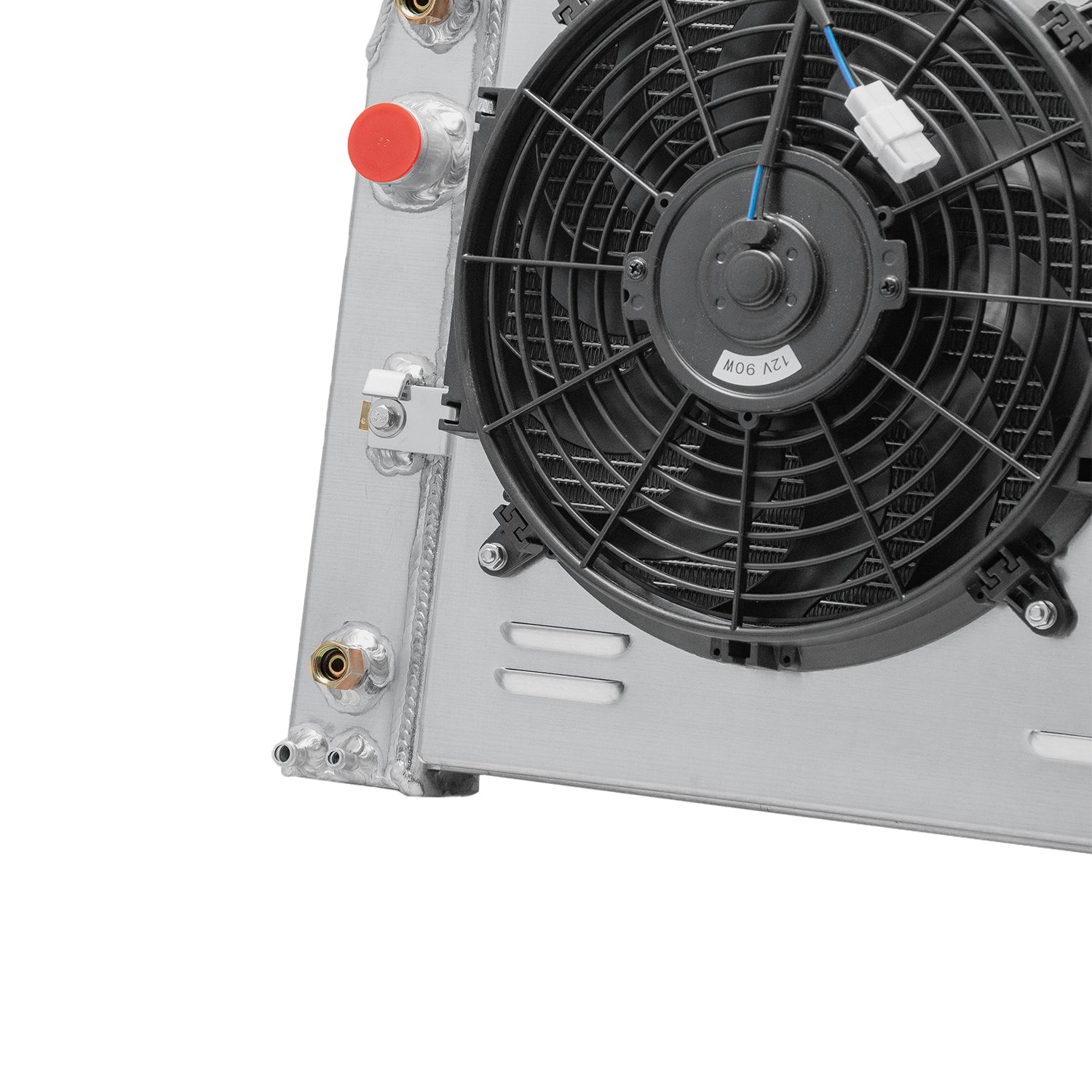

AA5052 Aluminum Shroud and Fans:

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, consider for every detail and needed

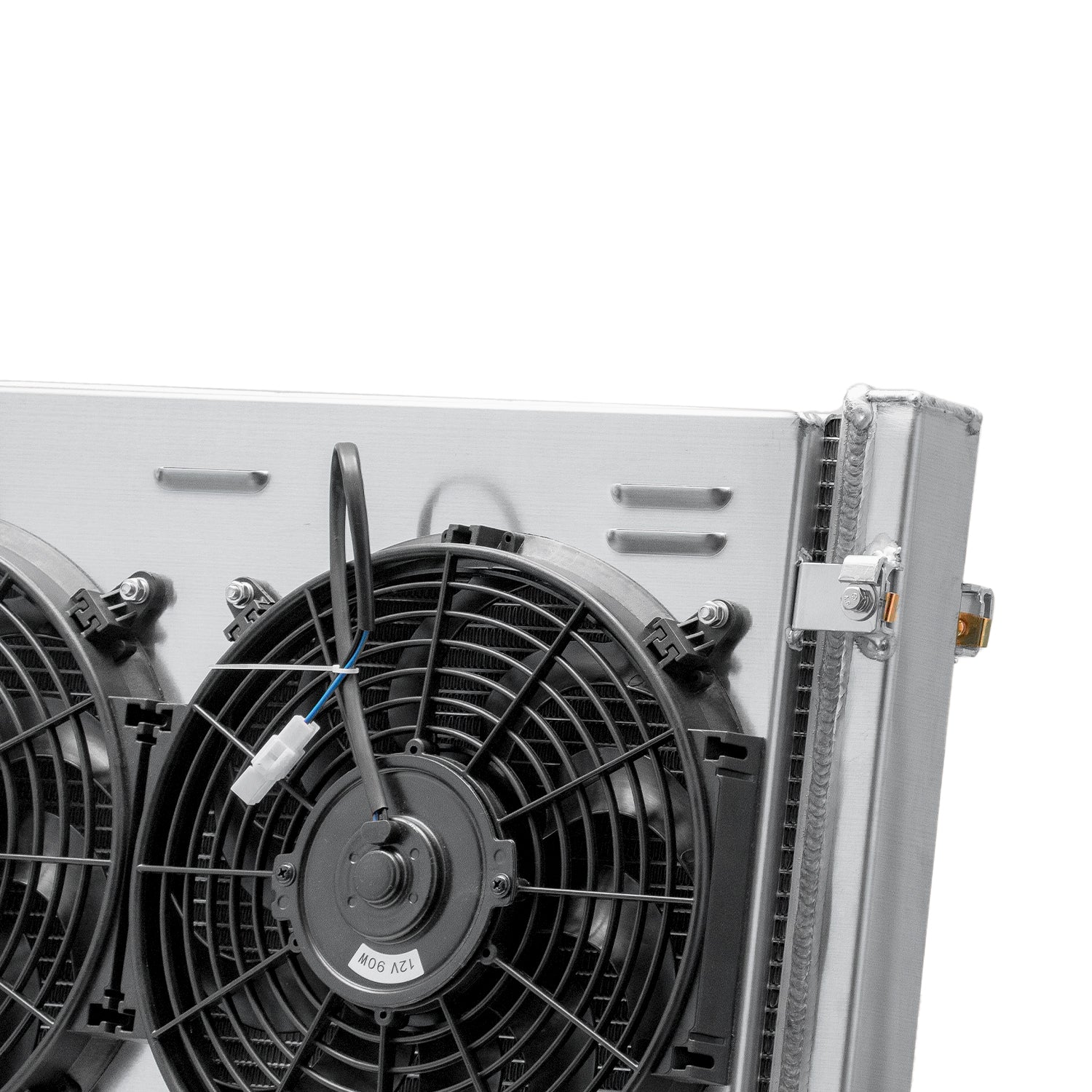

FANS:

Volt :12v

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 S-Type blade

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

Probe typically threads into radiator, water outlet or manifold.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

What About AA5052?

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

1. Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish

2. Brazed core technology to guarantee optimum performance and dependability

3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable

4. OEM style brass petcock drain much better than other plastic one

5. Carefully crafted to exceptional OE standards for precise fit.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
