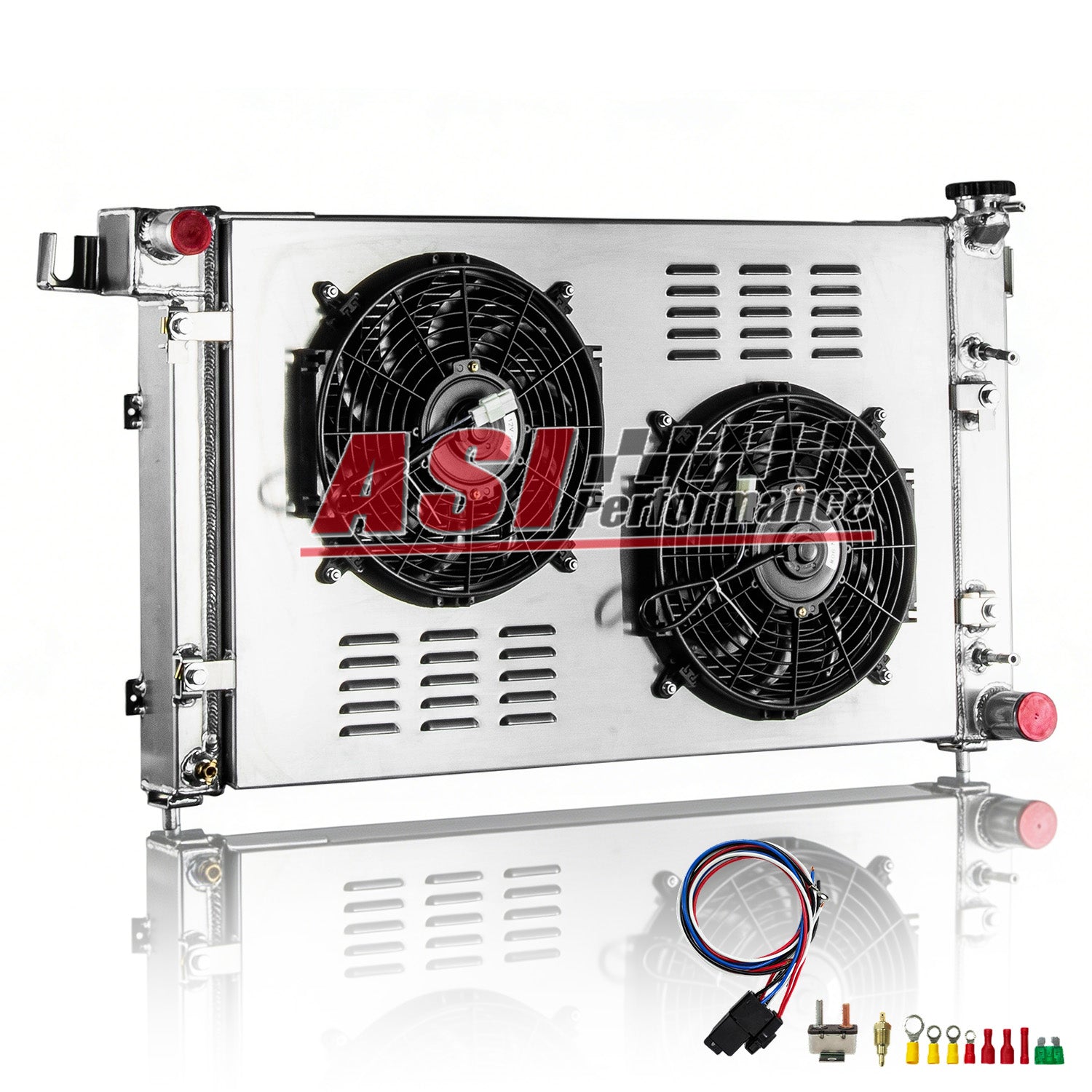

ASI Performance 3 Row Radiator Shroud Fan For 1998-2002 Dodge Ram 2500 3500 1500 5.9L V8

Fitment:

Radiator Configuration:

3-Row of tubes Core Racing Design
Thickness: 52mm
Core Size£º19-3/8 " H X31-5/8"W X 2.05 "
Overall Size£º42" WX 22-1/2"H X5-9/10"
Inlet Header: 20-1/4 In. x 2-1/2 In.
Outlet Header: 20-1/4 In. x 2-1/2 In.

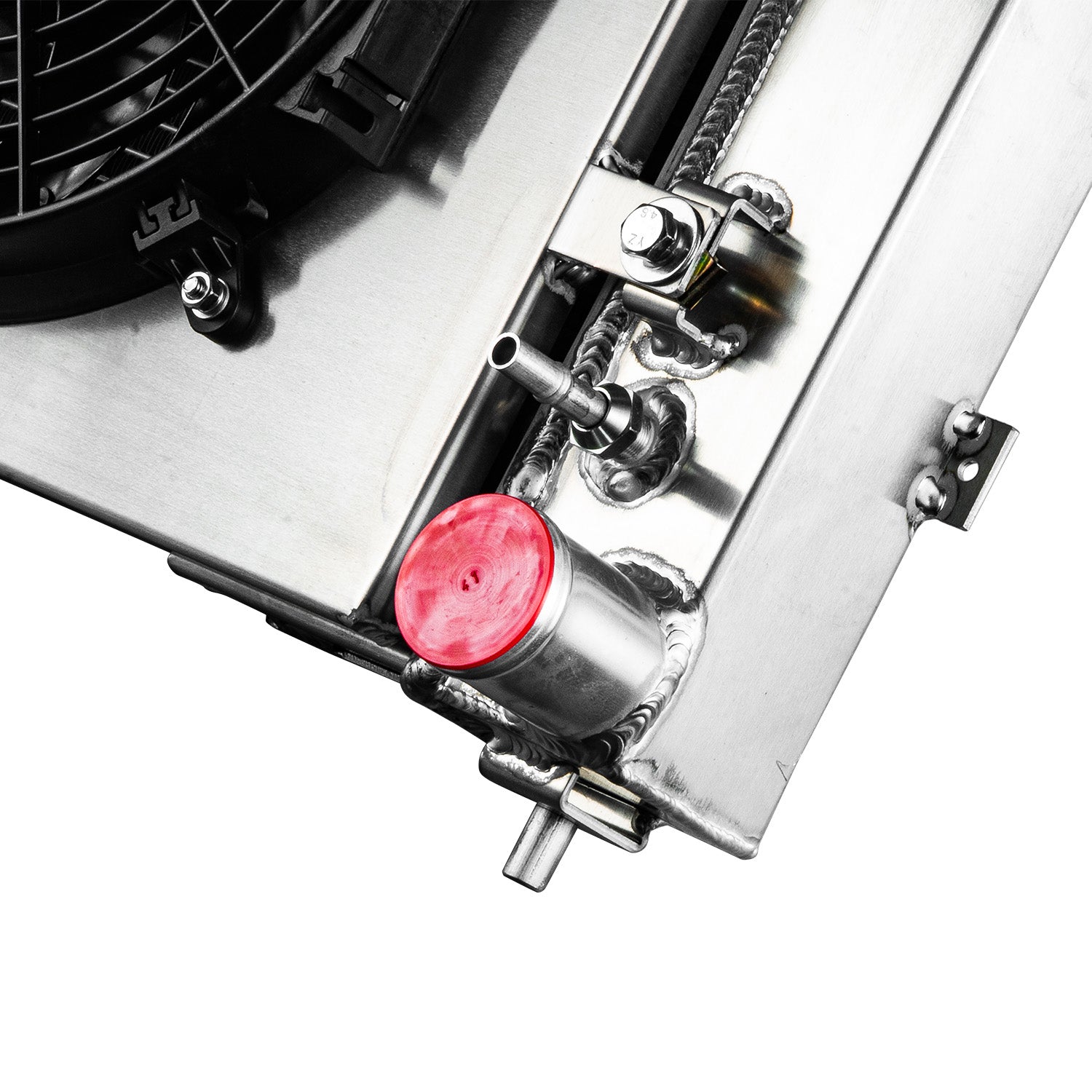

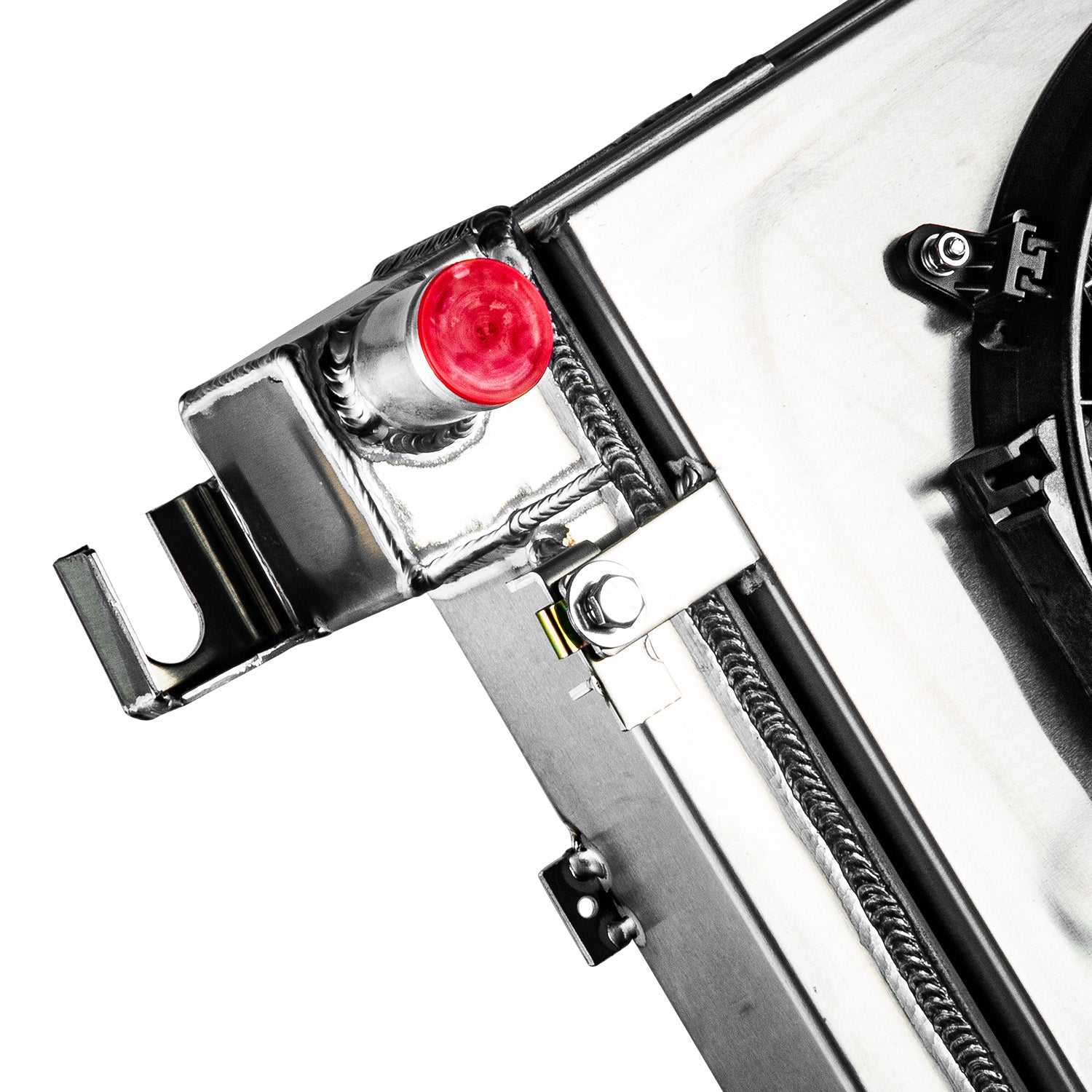

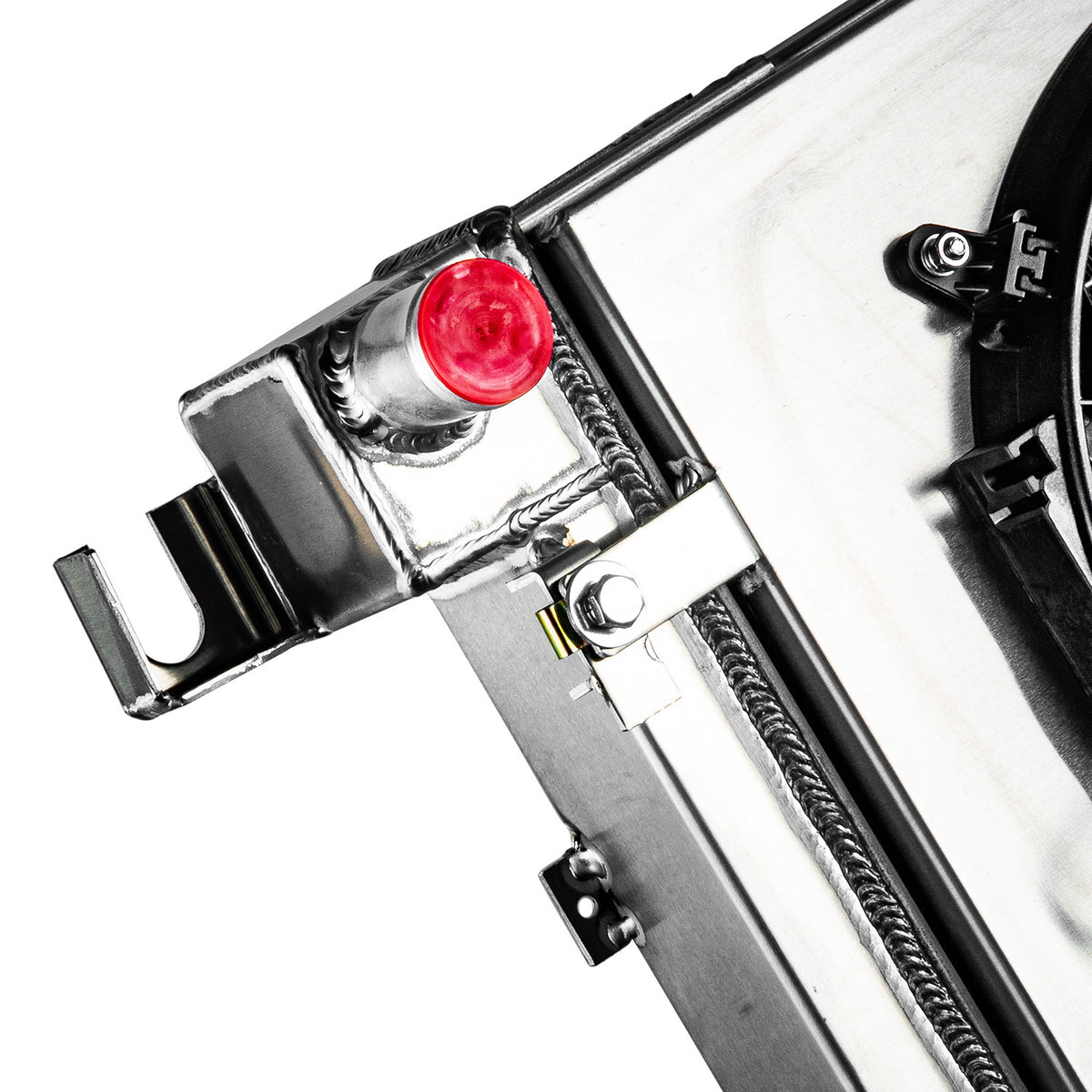

Inlet: 1-1/2 In On Driver Side
Outlet£º1-3/4 In On Passenger Side

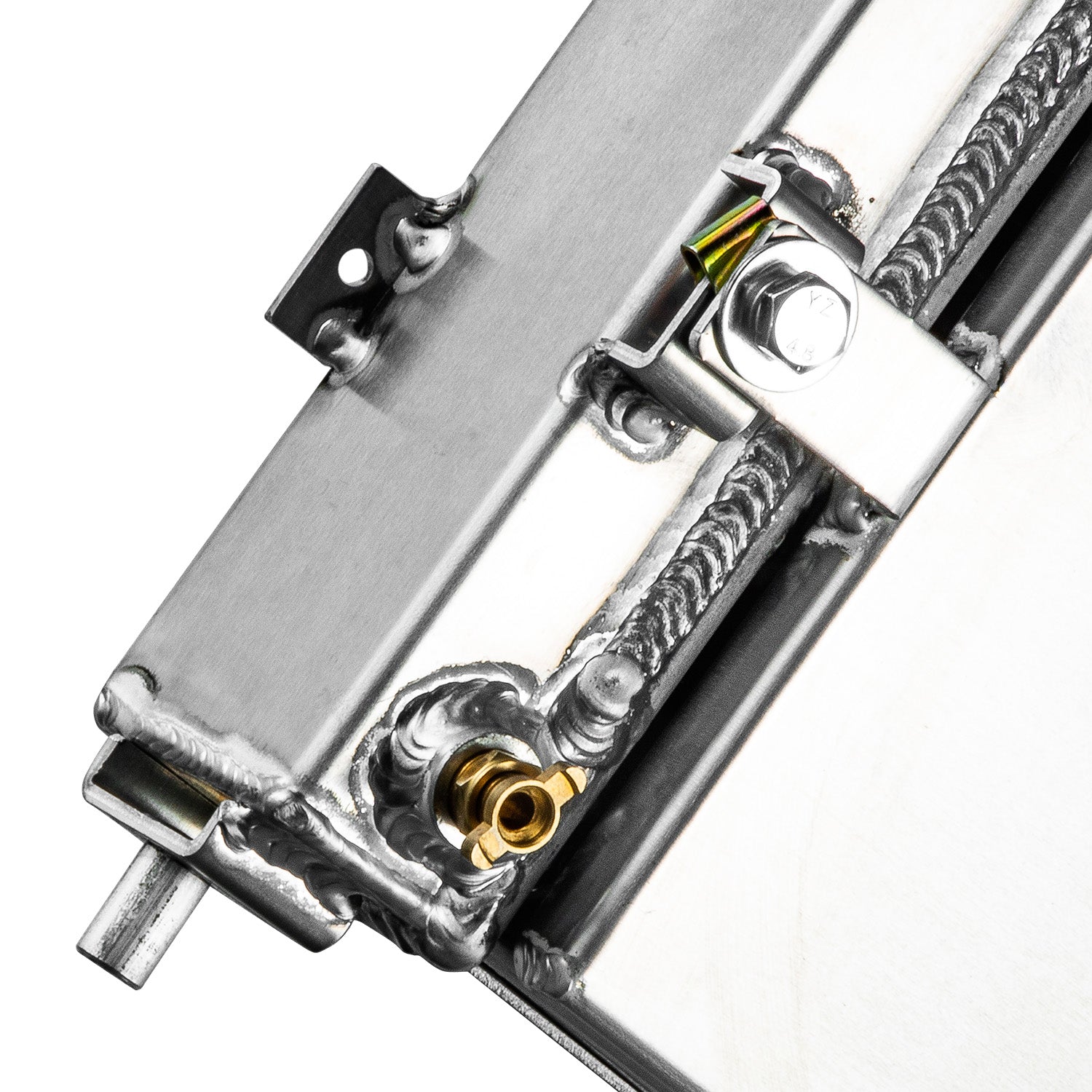

OEM Style Brass Petcock Drain

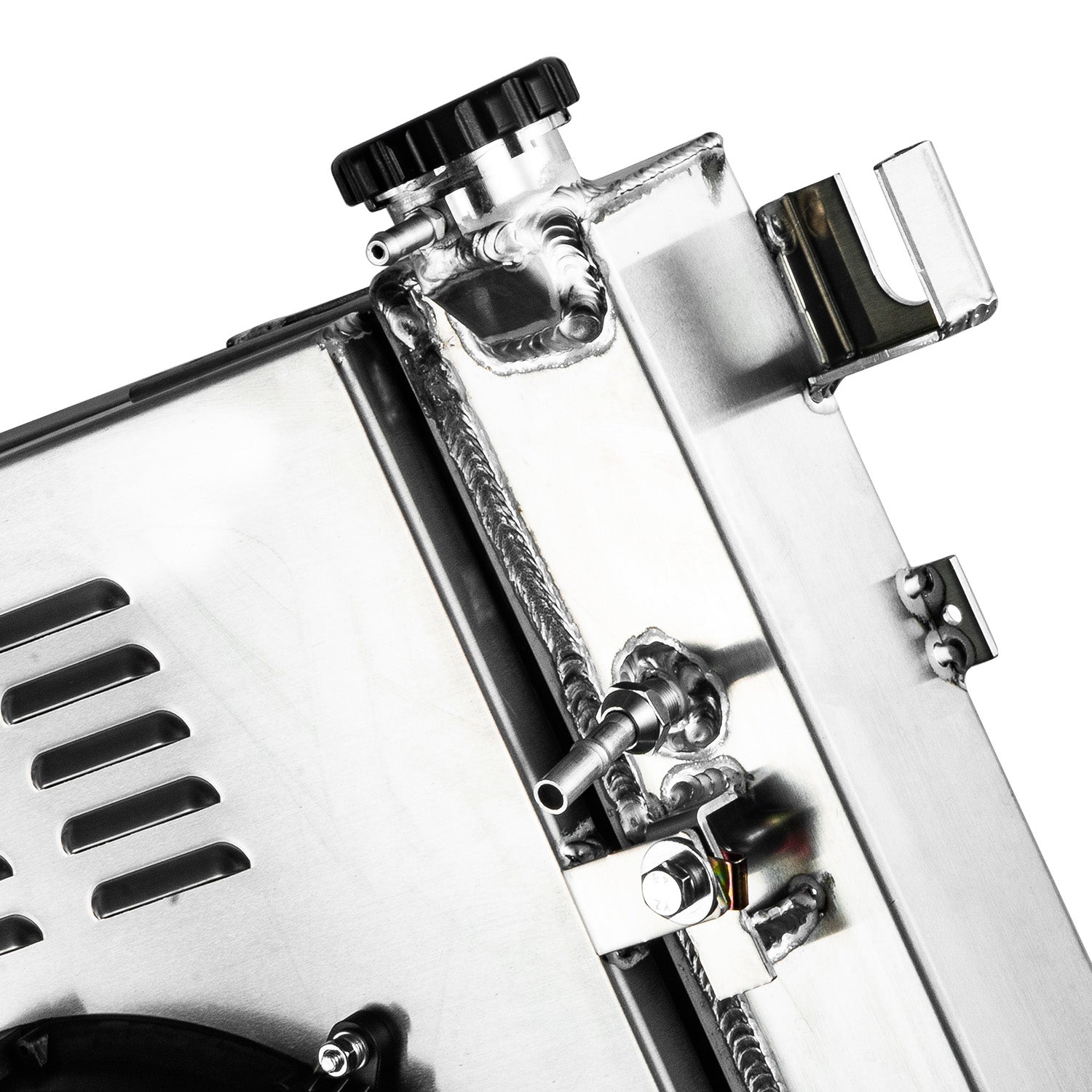

CNC Machined Filler Neck and Cap

Description:

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1.Made of AA5052 aircraft aluminum, stronger than other popular alloys and has increased corrosion resistance.
2.Brazed core technology to guarantee optimum performance and dependability.
3.AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.
4.Higher density core: cooling rows are spaced 3/8" apart, giving you 25% more rows within the core than other aluminum radiators.
5.14-16 cooling fins per inch, giving you approximately 1500 more cooling fins than other aluminum radiators, throws off much more heat.

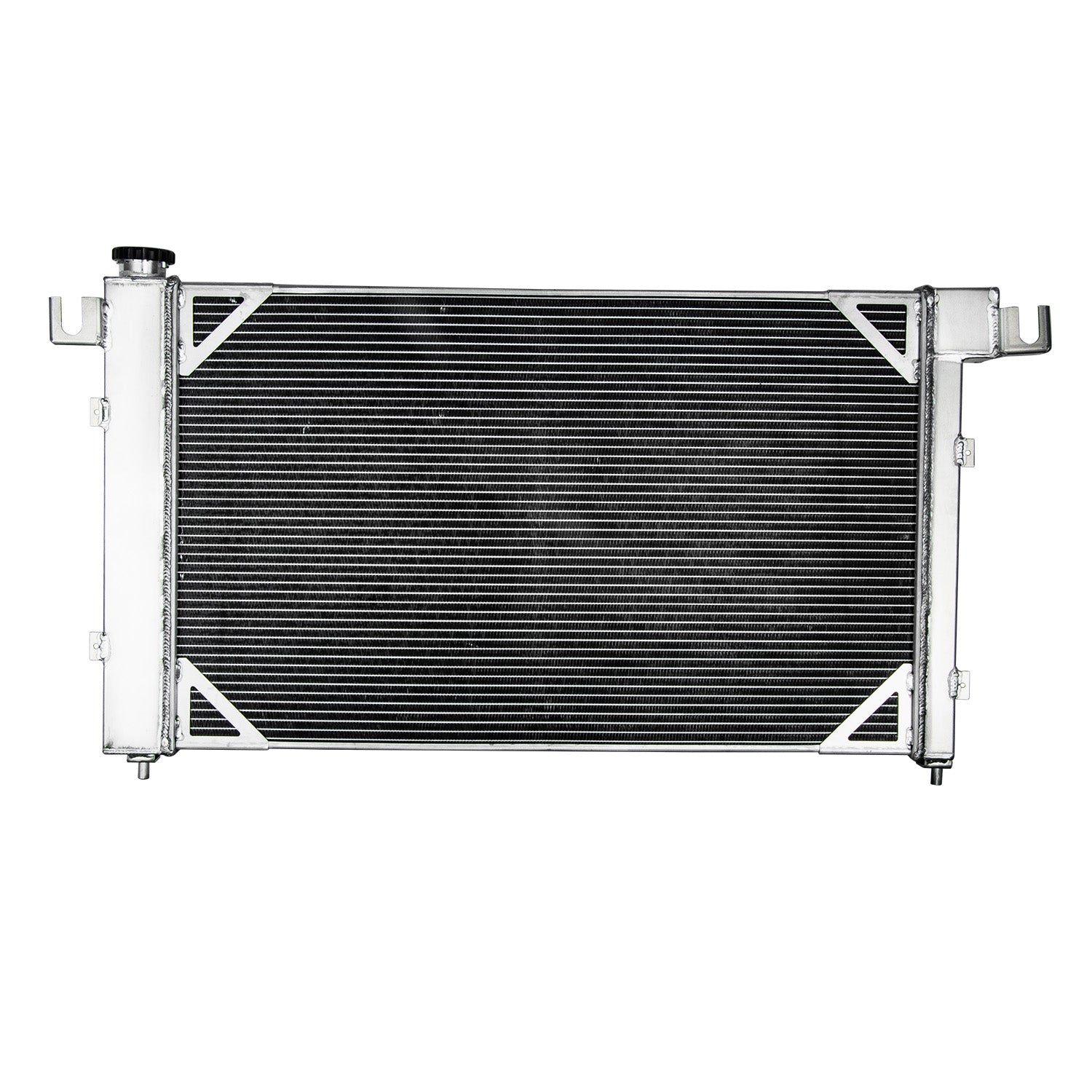

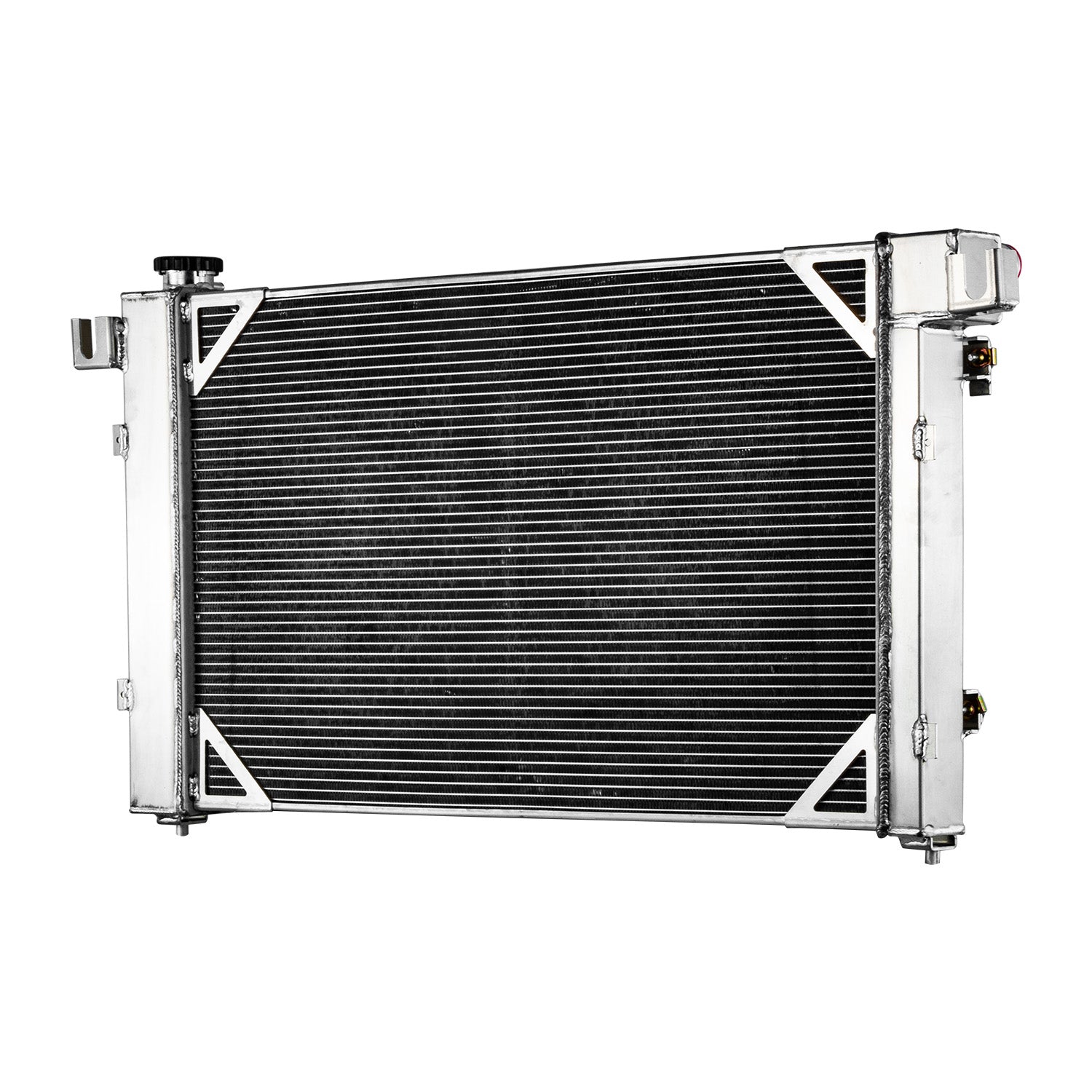

The guard plate is composed of AA5052 aluminum, which has enough strength and toughness. The triangular design does not affect the heat dissipation effect, but also has good stability, preventing the radiator from damage and leakage due to collision, and prolonging the service life of the radiator.

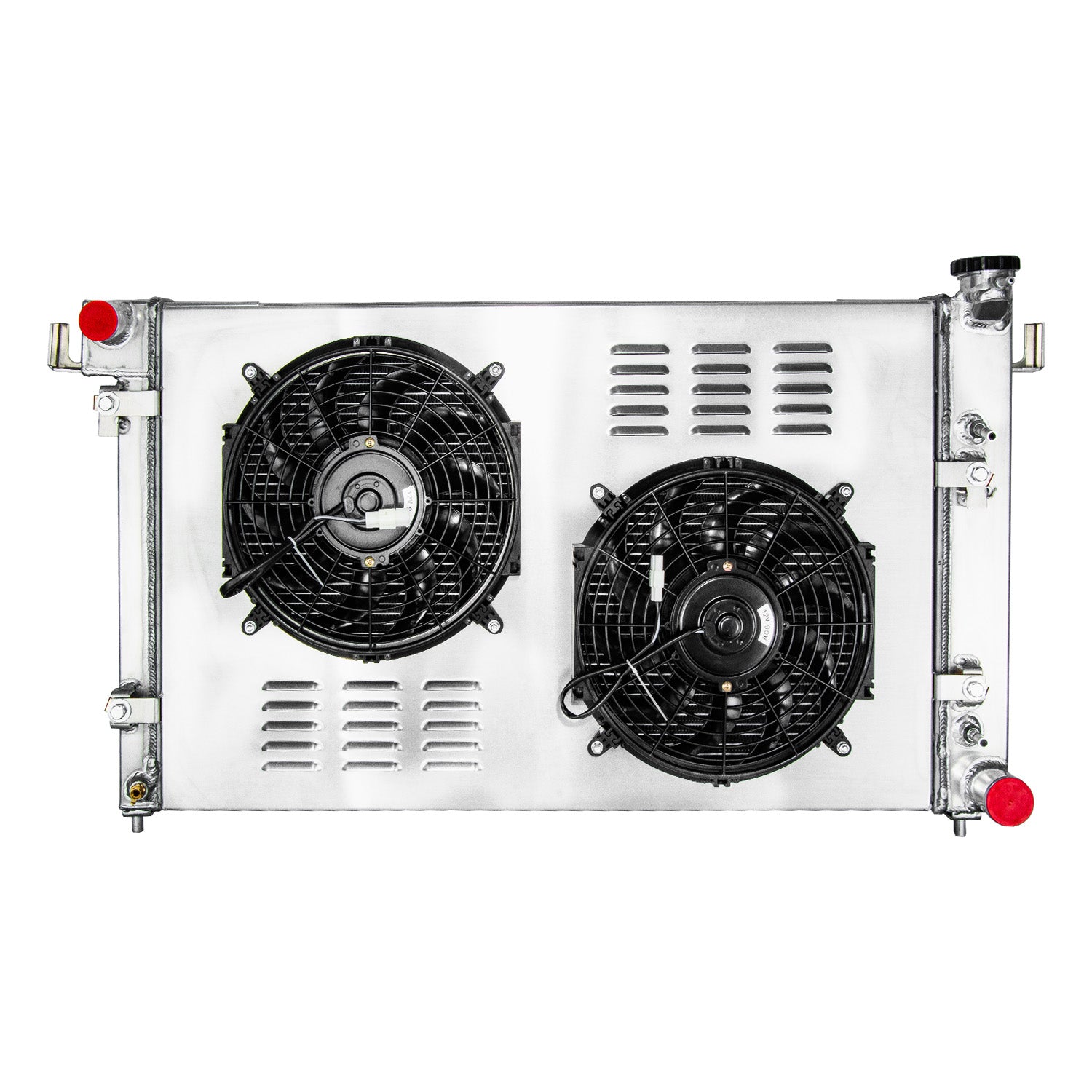

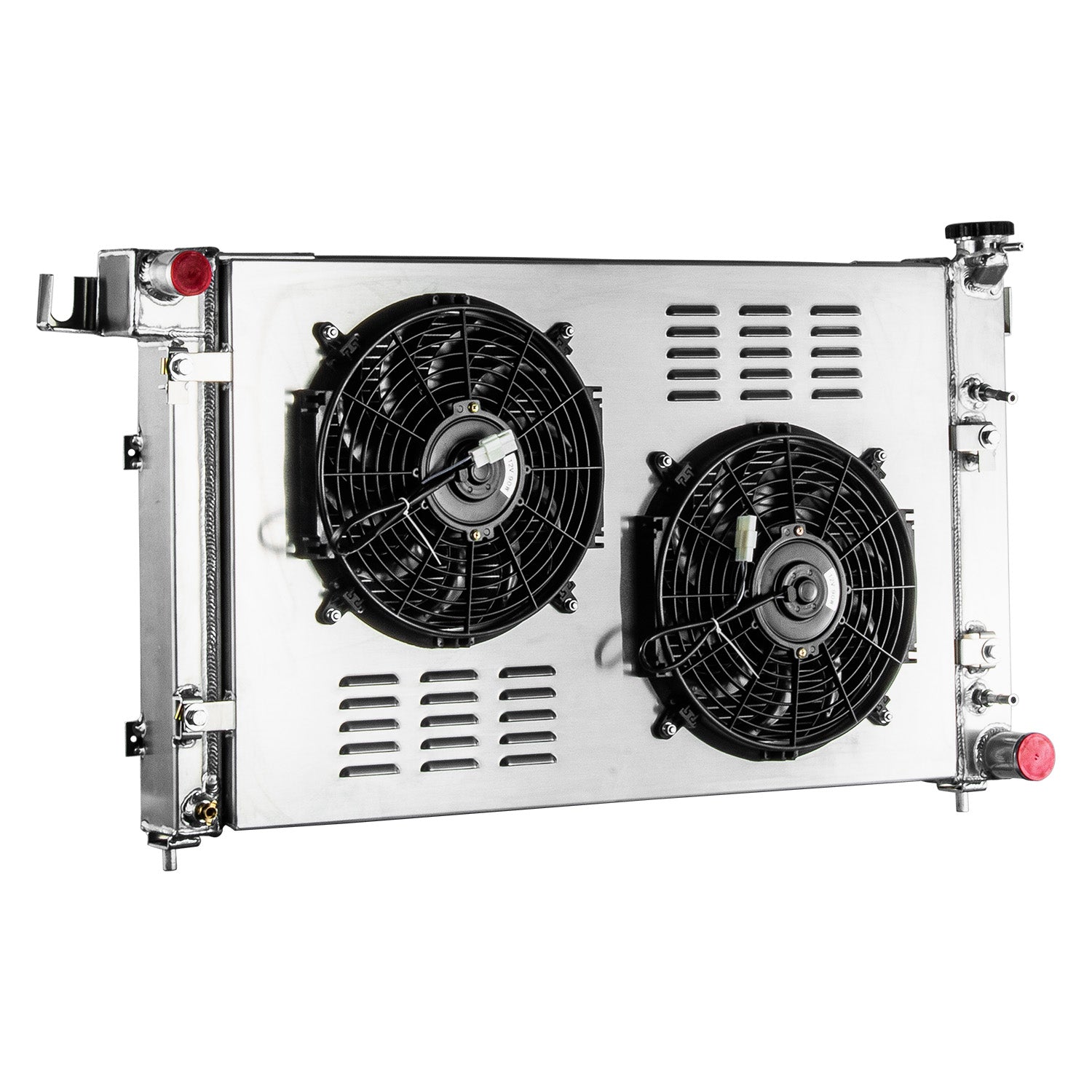

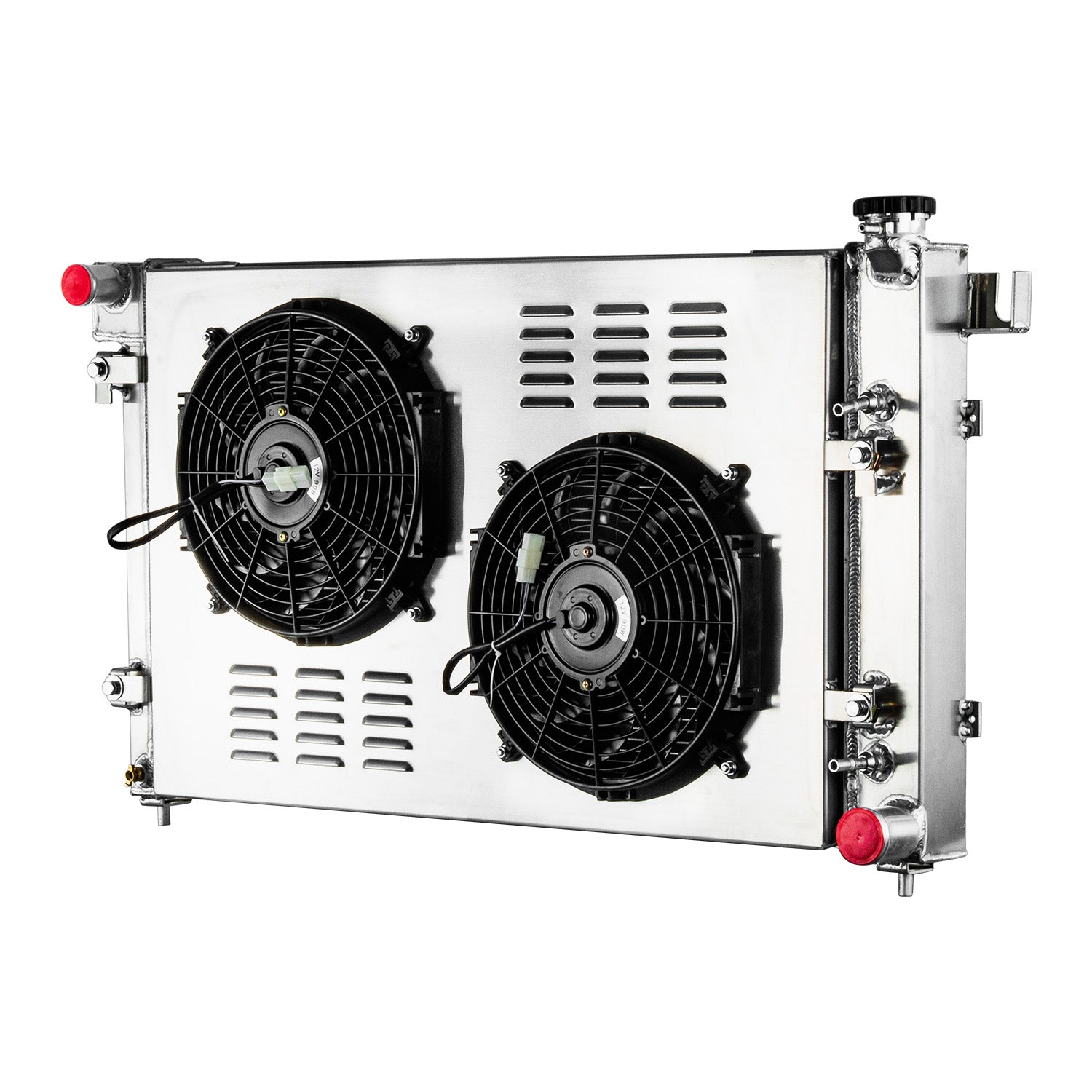

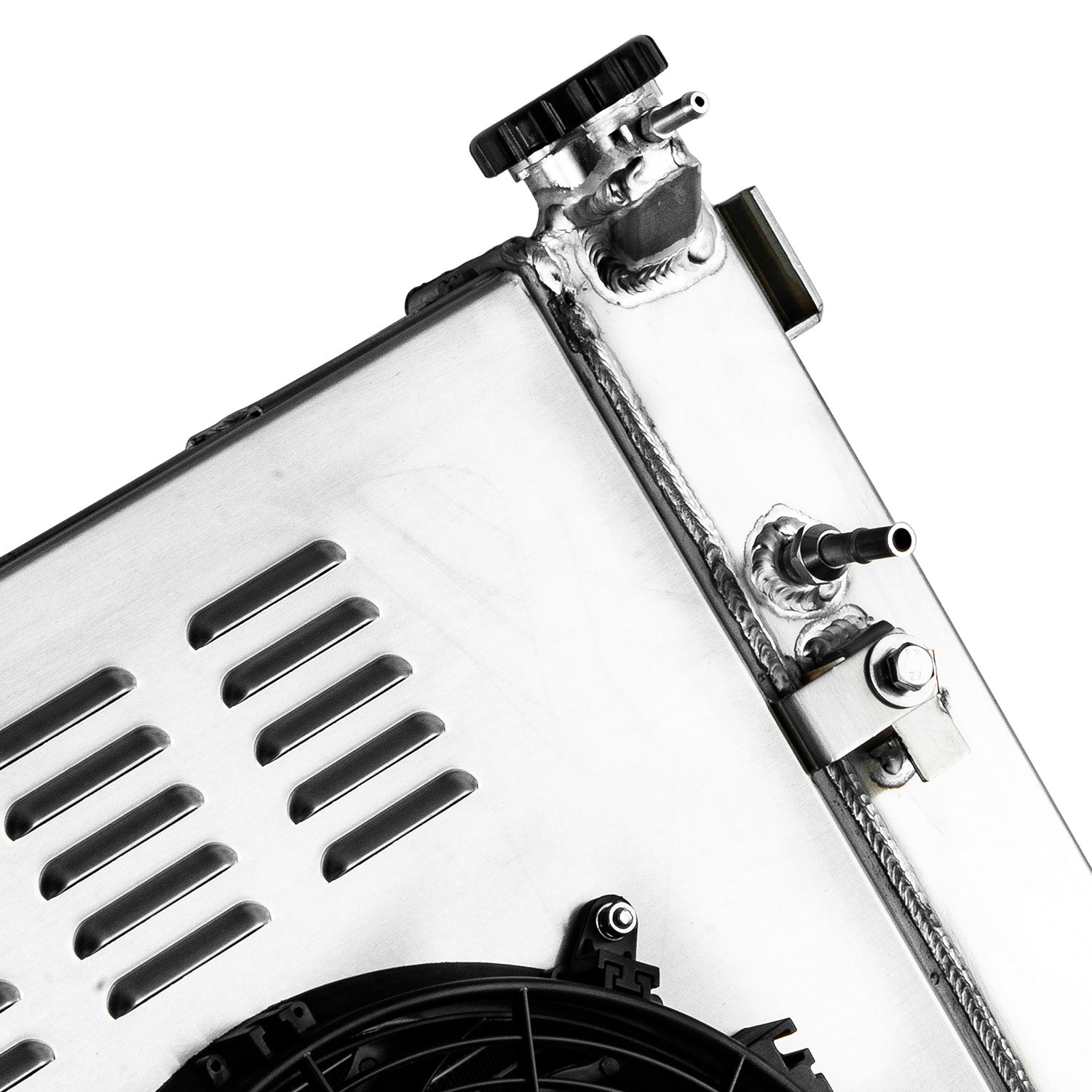

AA5052 Aluminum Shroud+Fan£º

Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1. Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.
2. S blade fans, Push or Pull Type design, lightweight Plastic Durable Material.

Thermostat Kit:

Universal fit for any automotive application.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe adapter included.
Probe typically threads into radiator, water outlet hose or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
