ASI Performance 3 Row Radiator Shroud Fan For Chevy/GMC C/K 2500 3500 7.4L V8 1988-2000 1999

ASI2850

In stock

SKU: WH1696FS-DP04B Barcode: ASI2850

No reviews

$299.99

SAVE 8%, code: ASI8OFF

Overall Size

40 4/5 " Width x 21 1/4" Height

Quantity:

US Local Stock Fast Shipping - Arrives in 3 –7 Days

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

This Listing Is Including:

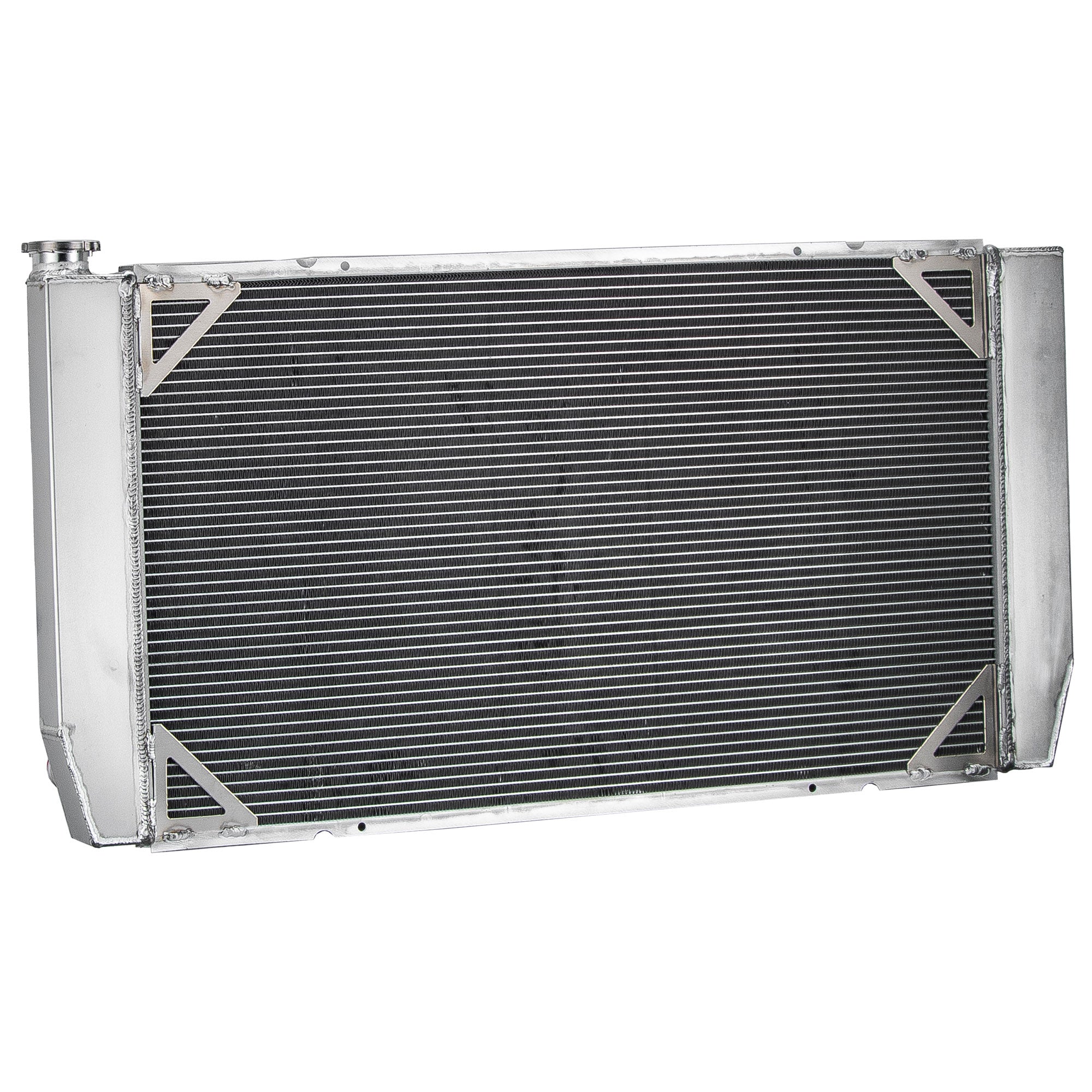

1 X 3-Row Aluminum Radiator

1 x Radiator Cap

1 X Aluminum Shroud

2 X 14" Fans (Includes mounting kits)

Radiator Configuration:

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Core Material: Aluminum

Core Size: 34" Width x 19-3/10" Height

Overall Size: 40 4/5 " Width x 21 1/4" Height

TANK SIZE: 3 1/2" DEEP X 20 3/4" HIGH

Inlet: 1-5/16 In.On Driver Side

Outlet: 1-9/16 In.On Passenger Side

Inlet Header: 20-7/8 In. x 3-1/4 In.

Outlet Header: 20-7/8 In. x 3-1/4 In.

Transmission Oil Cooler: 5/8"-18UNF（Z）

Engine Oil Cooler: M20*1.5

PLEASE CHECK SPECS TO VERIFY FIT !!!

MAKE SURE YOUR RADIATOR HAS 19-3/10" HIGH CORE-21 1/4" HIGH OVERALL

Fan Specification:

Blade Material: Plastic

Fan Diameter (in): 14"

Voltage: DC 12 Volts

Number of Blades: 8 blades

Maximum Fan CFM: 1730 cfm

Maximum Fan RPM: 2,250 rpm

Amp Draw: 15 amps

Brand new radiator cooling fan blade.

Aids to Cool the Entire Engine Bay, including Radiator, A/C System, Intercooler, Oil System, and Transmission.

Slim Design Provides Excellent Engine Bay Clearance.

High Quality Lightweight Plastic Durable Material.

Slim Style; Brings More Space for Engine Modification.

Direct Bolt-On Installation, Requires No Modification.

Description：

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full Aluminum Construction.

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

1 Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.

2 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.

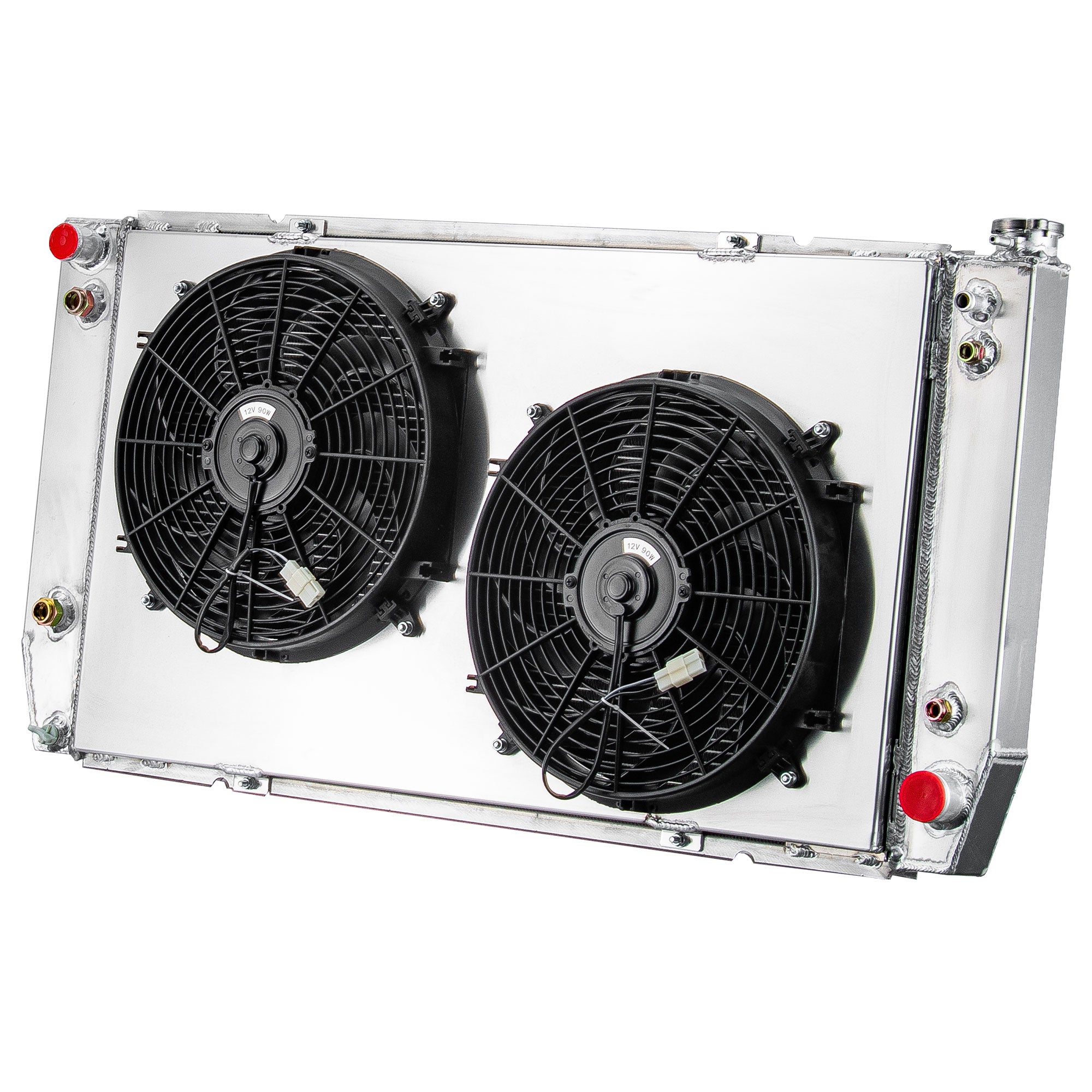

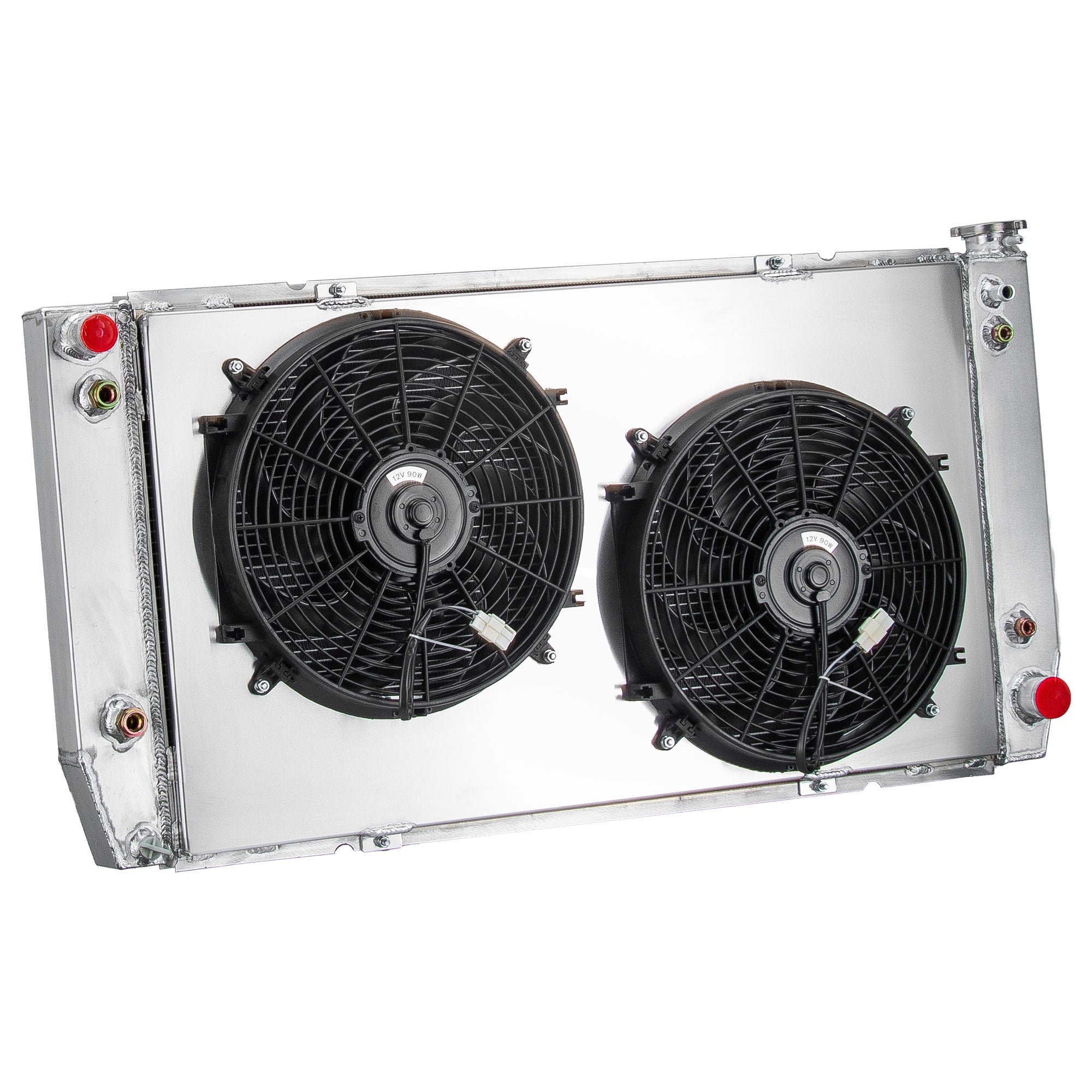

Aluminum Shroud+Fan：

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

Application:

Chevrolet C2500 Base V8 7.4L 1994-1997 1999 2000

Chevrolet C2500 Cheyenne V8 7.4L 1991-1998

Chevrolet C2500 LS V8 7.4L 1999-2000

Chevrolet C2500 Scottsdale V8 7.4L 1991-1992

Chevrolet C2500 Silverado V8 7.4L 1991-1998

Chevrolet C2500 WT V8 7.4L 1994 1995 1998

Chevrolet C2500 Suburban Base V8 7.4L 1992-1999

Chevrolet C2500 Suburban LS V8 7.4L 1995-1999

Chevrolet C2500 Suburban LT V8 7.4L 1995-1997

Chevrolet C2500 Suburban Silverado V8 7.4L 1992-1994

Chevrolet C3500 Base V8 7.4L 1994-1997 1999 2000

Chevrolet C3500 Cheyenne V8 7.4L 1988-1998

Chevrolet C3500 LS V8 7.4L 1999-2000

Chevrolet C3500 Scottsdale V8 7.4L 1988-1992

Chevrolet C3500 Silverado V8 7.4L 1988-1998

Chevrolet C3500HD Base V8 7.4L 1991-2000

Chevrolet K2500 Base V8 7.4L 1994-1997 1999 2000

Chevrolet K2500 Cheyenne V8 7.4L 1998

Chevrolet K2500 Cheyenne V8 7.4L 1991-1997

Chevrolet K2500 LS V8 7.4L 1999-2000

Chevrolet K2500 Scottsdale V8 7.4L 1991-1992

Chevrolet K2500 Silverado V8 7.4L 1991-1998

Chevrolet K2500 WT V8 7.4L 1994 1995 1998

Chevrolet K2500 Suburban Base V8 7.4L 1992-1999

Chevrolet K2500 Suburban LS V8 7.4L 1995-1999

Chevrolet K2500 Suburban LT V8 7.4L 1995-1997

Chevrolet K2500 Suburban Silverado V8 7.4L 1992-1994

Chevrolet K3500 Base V8 7.4L 1994-1997 1999 2000

Chevrolet K3500 Cheyenne V8 7.4L 1988-1998

Chevrolet K3500 LS V8 7.4L 1999-2000

Chevrolet K3500 Scottsdale V8 7.4L 1988-1992

Chevrolet K3500 Silverado V8 7.4L 1988-1998

GMC C2500 Sierra V8 7.4L 1991-1993

GMC C2500 Sierra SL V8 7.4L 1994-2000

GMC C2500 Sierra SLE V8 7.4L 1991-2000

GMC C2500 Sierra SLT V8 7.4L 1997-2000

GMC C2500 Sierra SLT V8 7.4L 1994-1996

GMC C2500 Sierra SLX V8 7.4L 1991-1993

GMC C2500 Suburban Base V8 7.4L 1992-1999

GMC C2500 Suburban SLE V8 7.4L 1992-1999

GMC C2500 Suburban SLT V8 7.4L 1995-1999

GMC C3500 Sierra V8 7.4L 1988-1993

GMC C3500 Sierra SL V8 7.4L 1994-2000

GMC C3500 Sierra SLE V8 7.4L 1988-2000

GMC C3500 Sierra SLT V8 7.4L 1994-2000

GMC C3500 Sierra SLX V8 7.4L 1988-1993

GMC C3500HD Base V8 7.4L 1991-2000

GMC K2500 Sierra V8 7.4L 1991-1993

GMC K2500 Sierra SL V8 7.4L 1994-2000

GMC K2500 Sierra SLE V8 7.4L 1991-2000

GMC K2500 Sierra SLT V8 7.4L 1997-2000

GMC K2500 Sierra SLT V8 7.4L 1994-1996

GMC K2500 Sierra SLX V8 7.4L 1991-1993

GMC K2500 Suburban Base V8 7.4L 1992-1999

GMC K2500 Suburban SLE V8 7.4L 1992-1999

GMC K2500 Suburban SLT V8 7.4L 1995-1999

GMC K3500 Sierra V8 7.4L 1988-1993

GMC K3500 Sierra SL V8 7.4L 1994-2000

GMC K3500 Sierra SLE V8 7.4L 1988-2000

GMC K3500 Sierra SLT V8 7.4L 1994-2000

GMC K3500 Sierra SLX V8 7.4L 1988-1993

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
