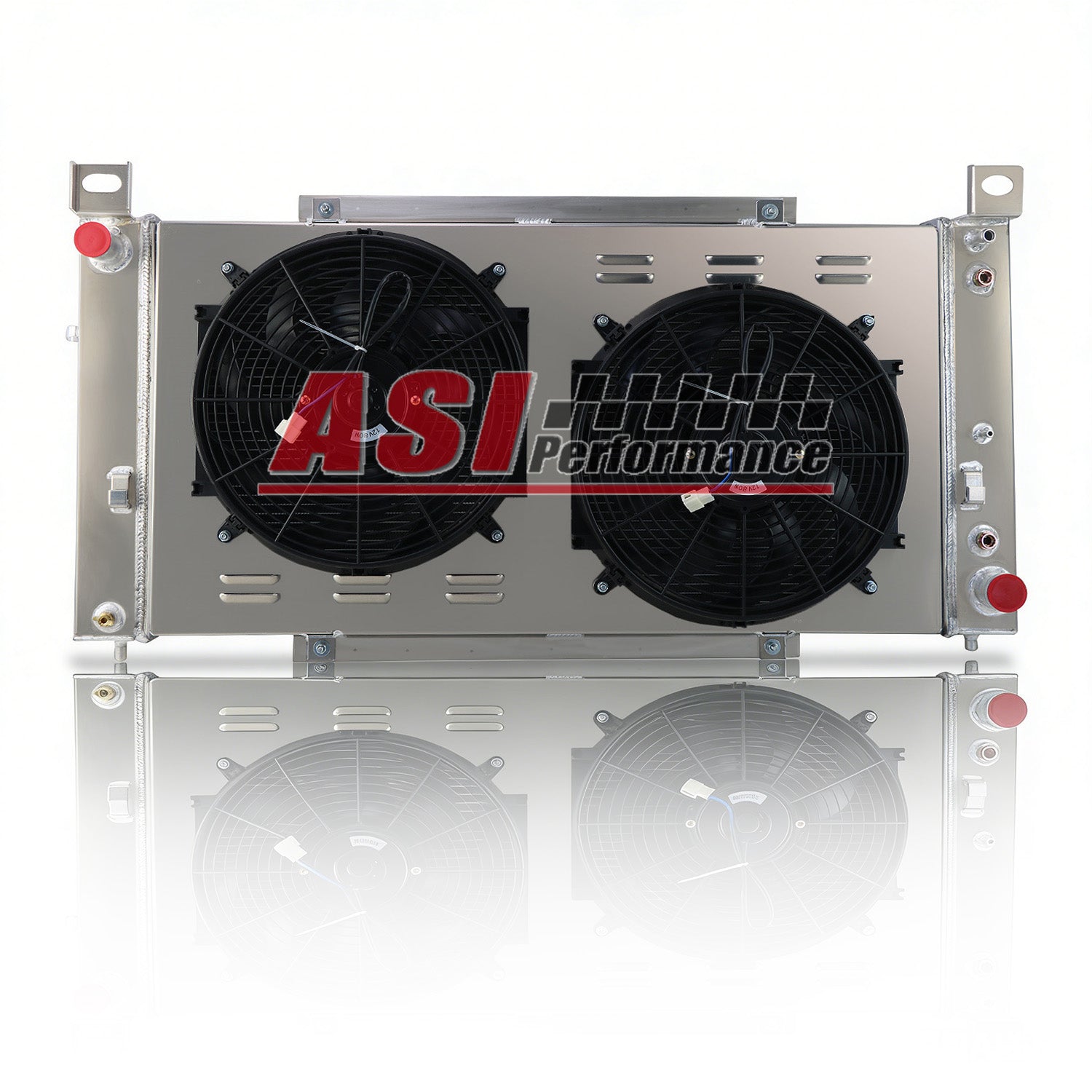

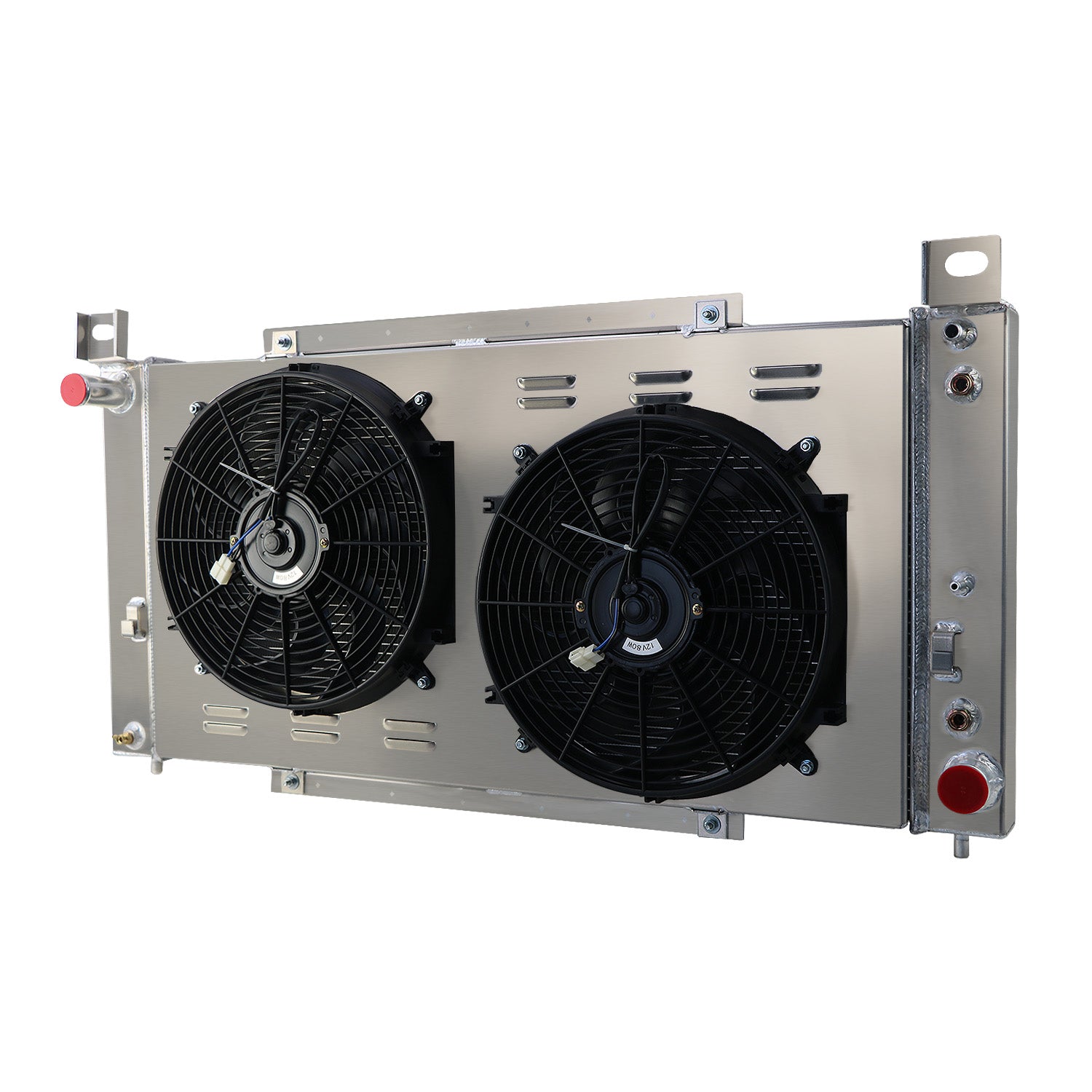

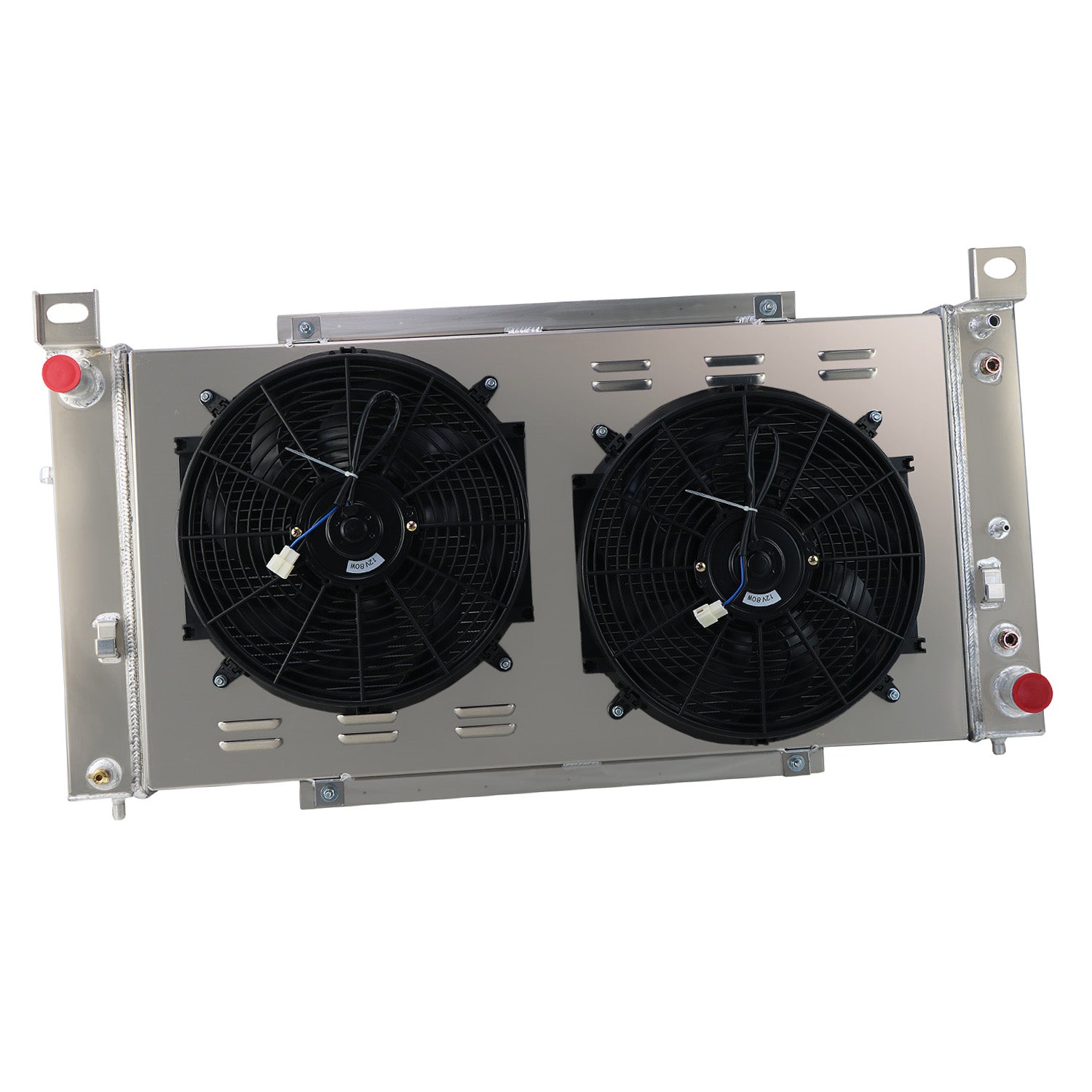

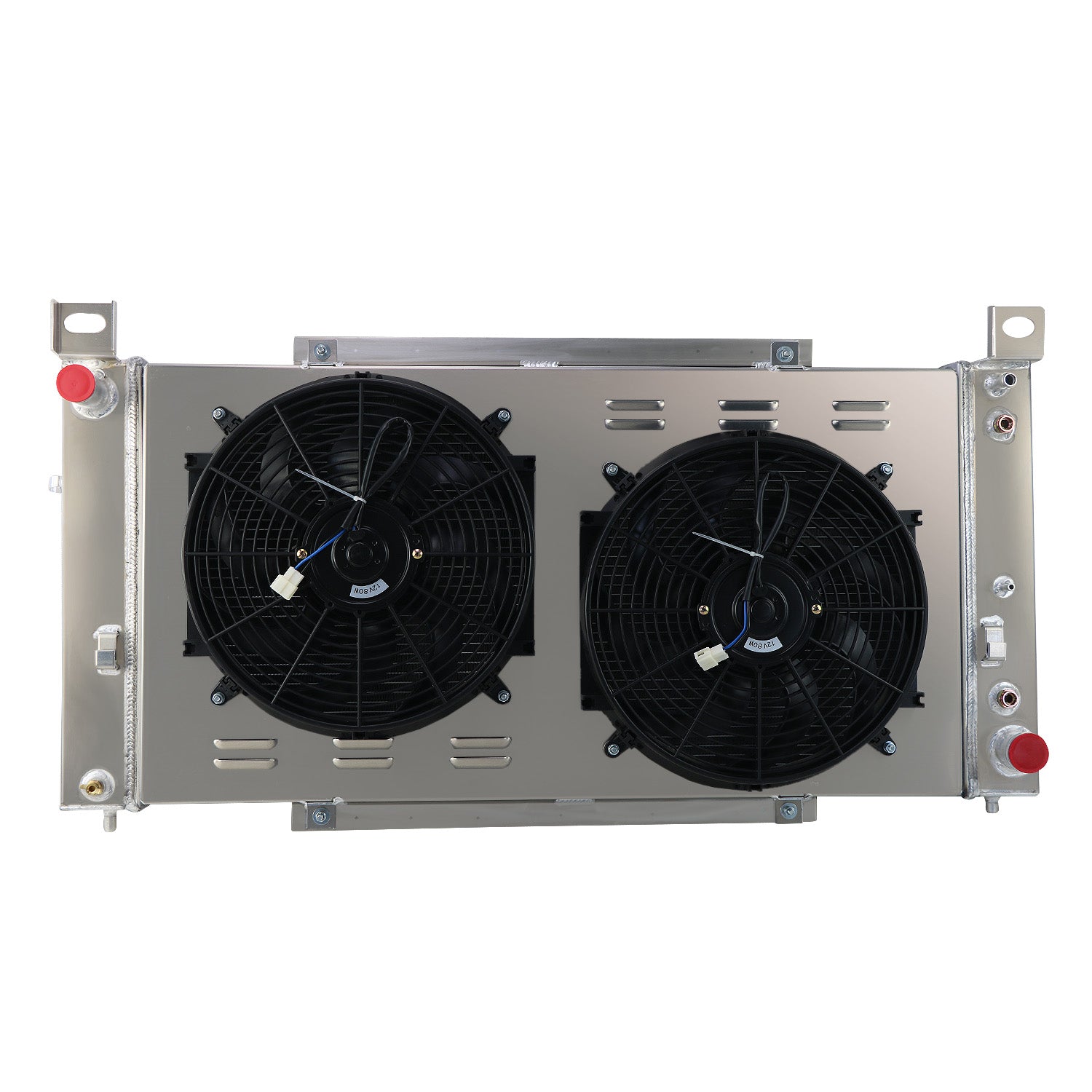

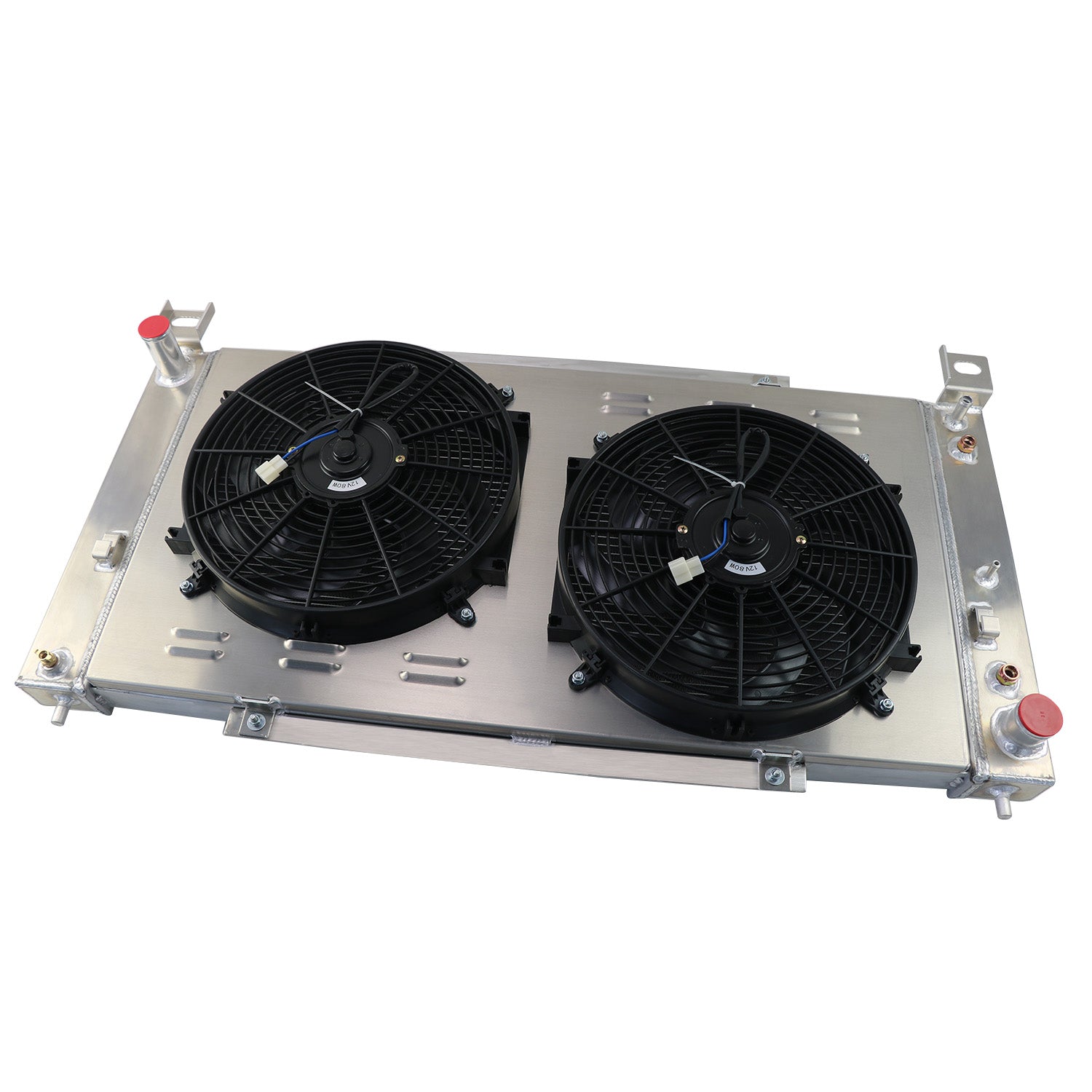

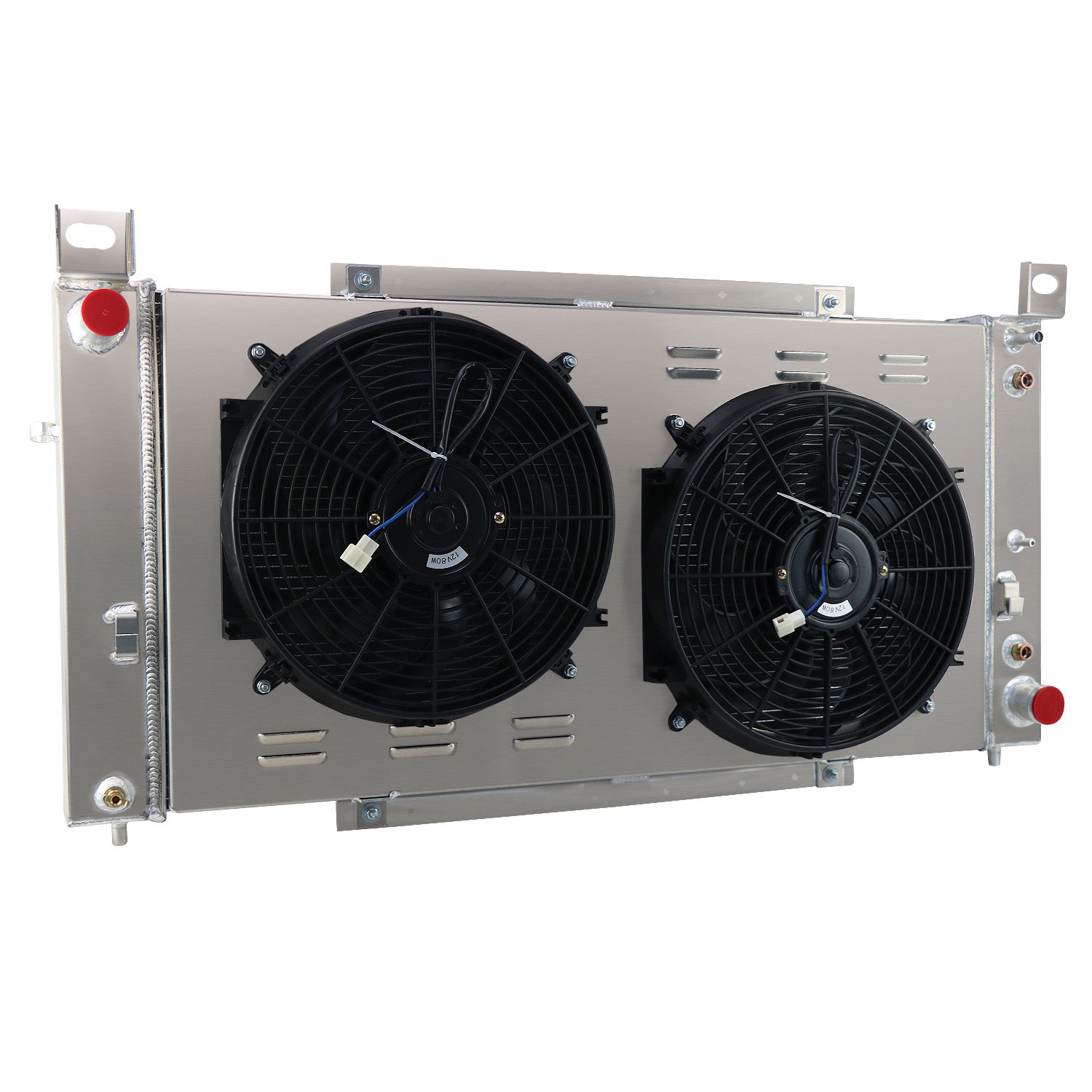

ASI Performance 3 Row Radiator with Shroud Fan Relay Fits 1999-2014 Chevy Silverado 1500 2500/Suburban 40-1/2 W x 21-3/8 H

ASI4441

In stock

SKU: 535-50050DFSXJ90W-BN Barcode: ASI4441

No reviews

$322.92

SAVE 8%, code: ASI8OFF

Size

1999-2014 Chevy Silverado 1500 2500 Suburban

Quantity:

US Local Stock Fast Shipping - Arrives in 3 –7 Days

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Package Include:

1 X 3-Row AA5052 Aluminum Radiator
1 X AA5052 Aluminum Shroud
2 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

This Radiator Size:

Material: AA5052 Aluminum
High-Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Dimensions: 34 " W X 17-1/4" H
Overall Dimensions: 40 1/2" W x 21 3/8 " H
Inlet Size: 1-5/16 In
Outlet Size: 1-9/16 In
Transmission Oil Cooler: include
Engine Oil Cooler: Without

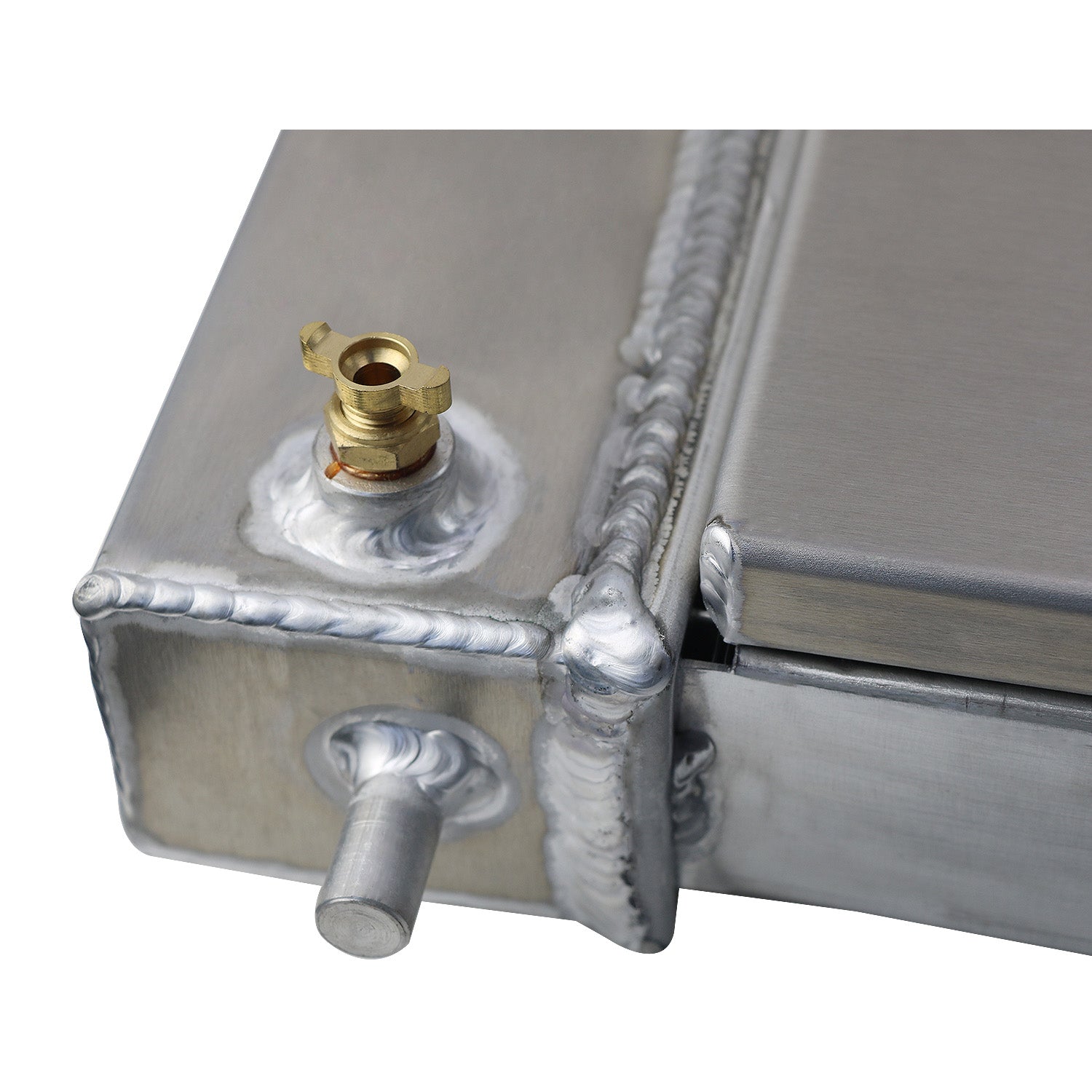

OEM Style Brass Petcock Drain
Please Check the Size Before You Buy!

Fan Specification:

Diameter: 14'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Number of Blades: 8 S-Type blades
Maximum Fan CFM: 1730 cfm
Maximum Fan RPM: 2,250 rpm
Fan Thickness: 2.64"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
A powerful 90-watt motor will keep your engine cool.

Thermostat Kit:

Work with any 12-volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at a preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
The probe typically threads into the radiator, water outlet, or manifold.

Thermostat Relay Kit Instructions:

RED + connect directly to the battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
The BLUE wire goes to the Fans.

?

Reasons for choosing our AA5052 Aluminum Radiator:

Premium Material: Our radiator is made from AA5052 aircraft-grade aluminum, which contains magnesium as its major alloying element, providing superior strength and corrosion resistance (including saltwater resistance).
Higher Density Core: The cooling rows are spaced 3/8" apart, providing 25% more rows than other aluminum radiators, improving heat dissipation.
Enhanced Cooling Efficiency: With 14-16 cooling fins per inch, this radiator offers approximately 1,500 more fins than other radiators. By tightening tube spacing and increasing fin density, the core becomes denser, improving heat transfer. This design provides 30%-45% better cooling performance than OEM radiators.

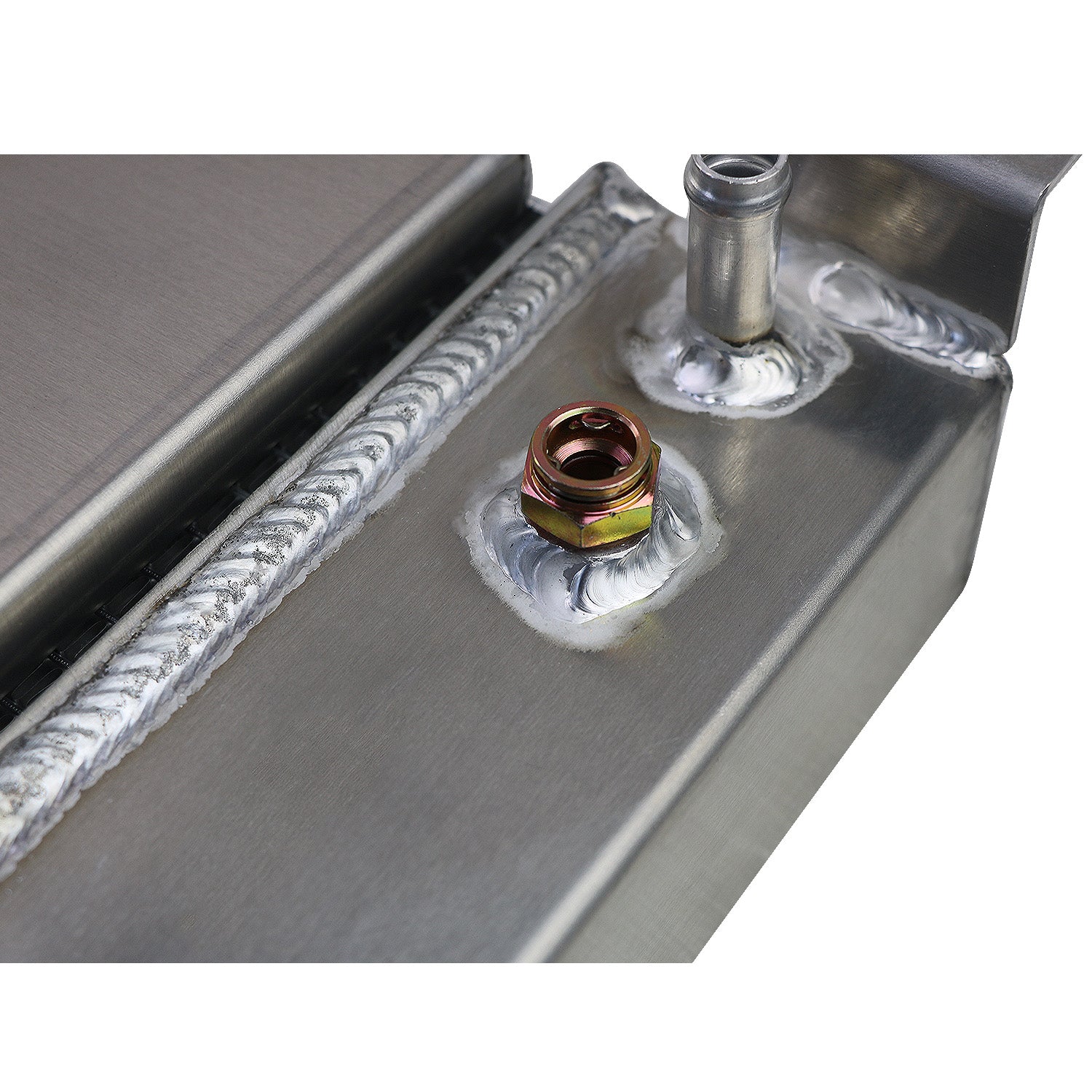

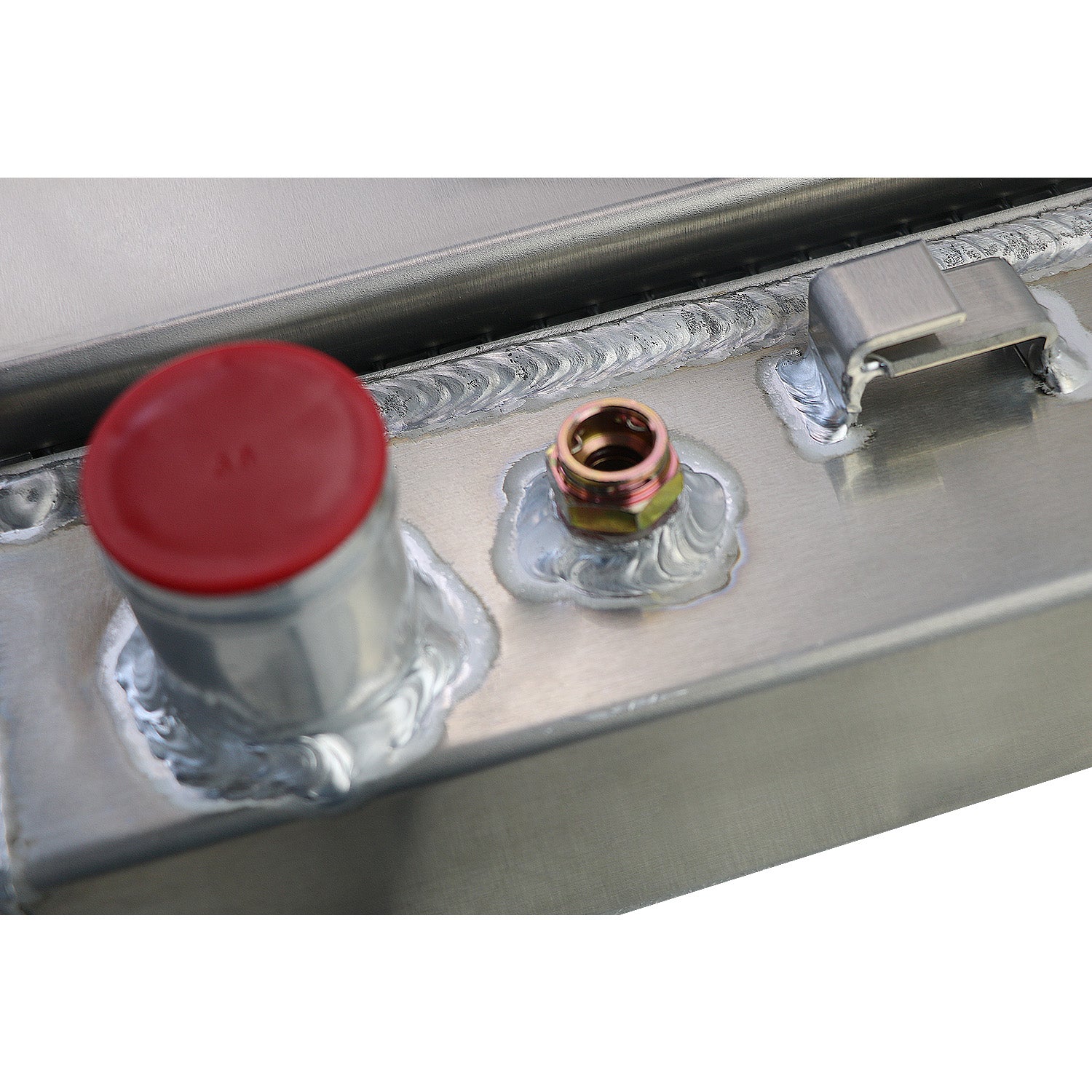

Durability & Performance: The core is welded in a vacuum brazing furnace with no epoxy and 100% TIG-welded for stronger construction. The radiator offers higher coolant capacity than OEM units, ensuring maximum cooling efficiency to prevent premature engine failure.

AA5052 Aluminum Shroud & Fan:

Our custom-made AA5052 aluminum fan shrouds are designed to fit ASI Performance radiators and can accommodate most low-profile electric fans.

Efficient Heat Management: The fan and shroud effectively direct heat out of the engine compartment, preventing it from being pushed into the front of the engine. The fan shroud secures the fan in place, protecting engine components and ensuring smooth operation.
Temperature Stabilization: Excellent airflow management stabilizes engine temperature, improving overall engine performance and preventing overheating, especially during high-stress conditions.

Shuttered Design: The AA5052 fan shroud guarantees efficient airflow, optimizing your engine bay performance.
S-Type Blade Fans: Push or pull-type design, made from durable, lightweight plastic for improved performance and longevity.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
