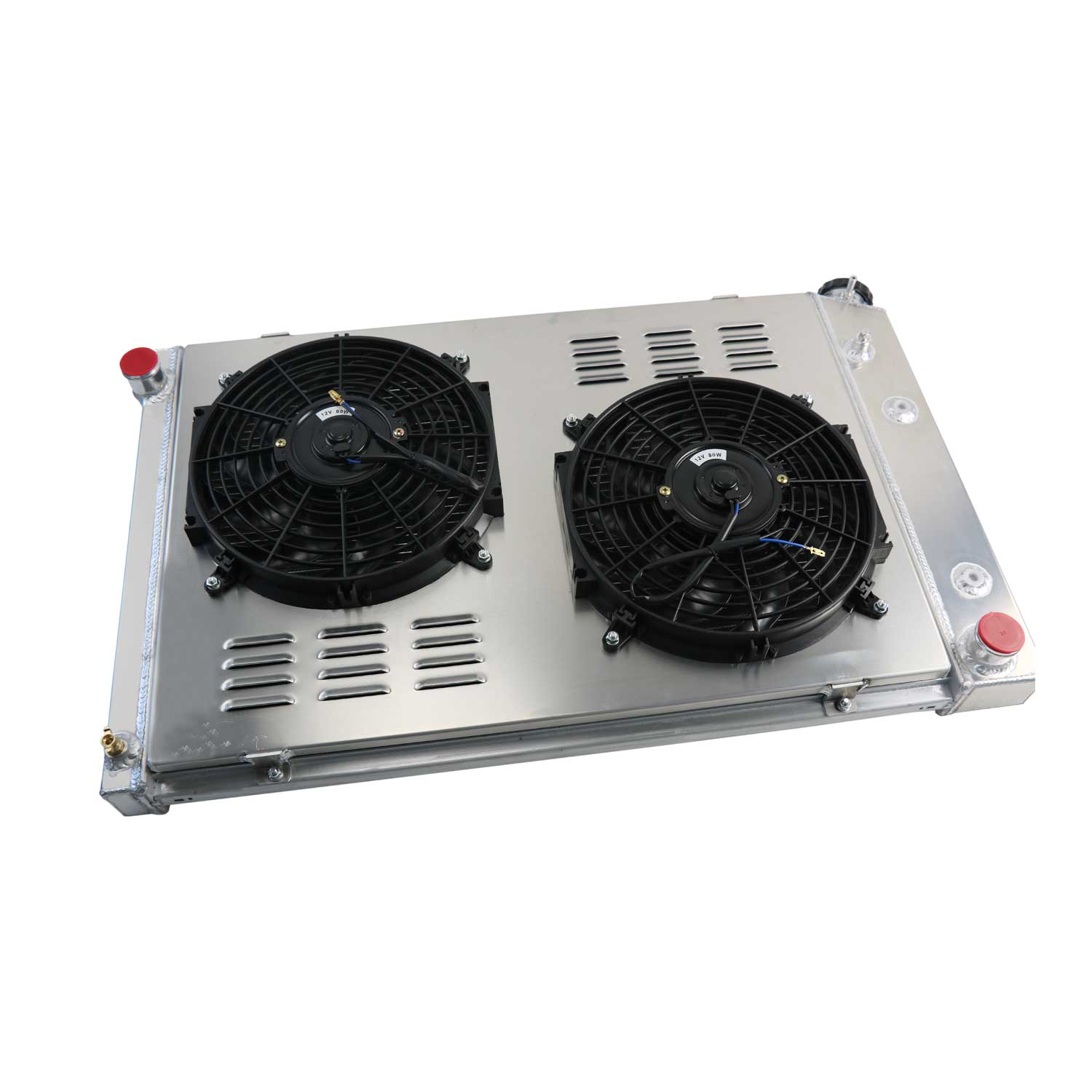

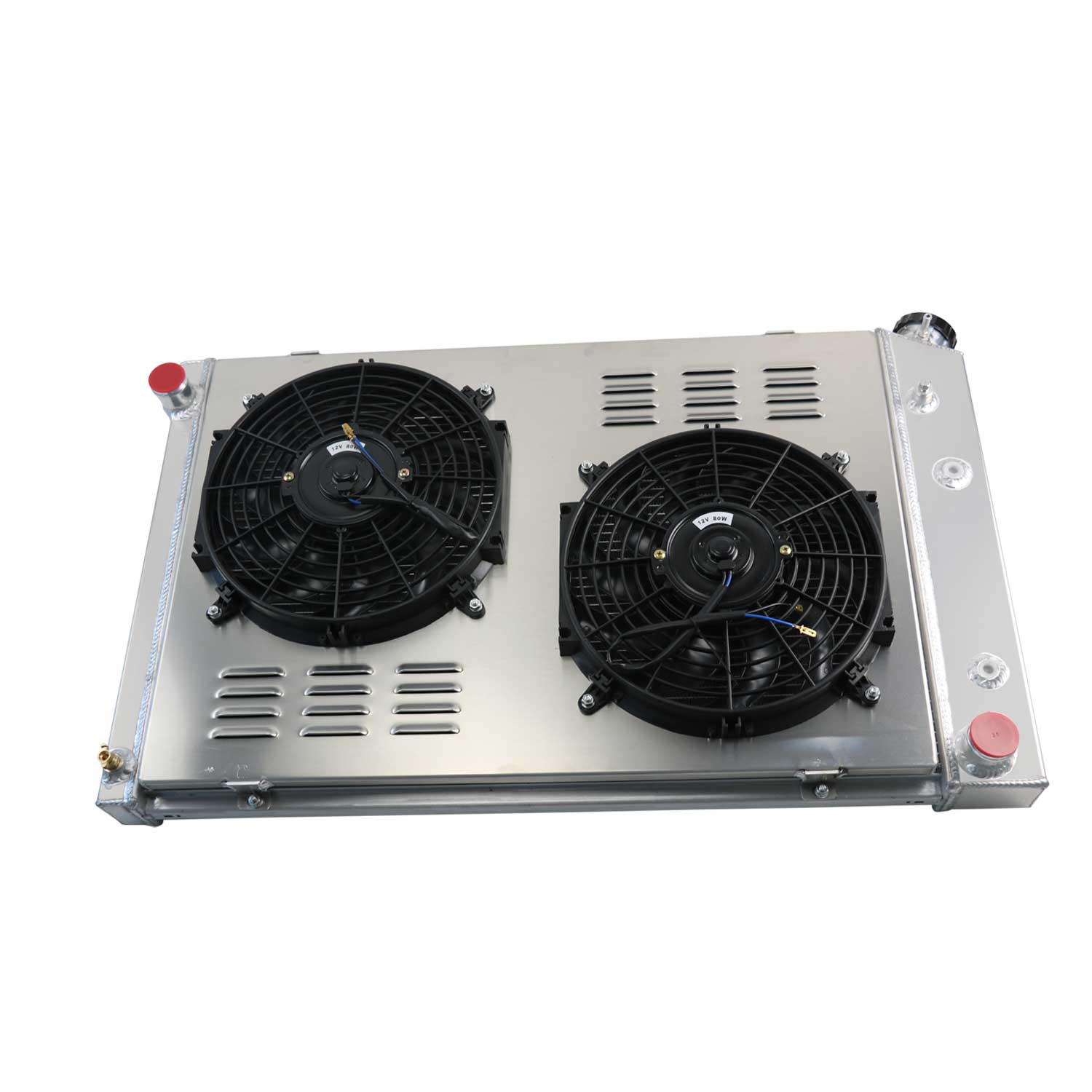

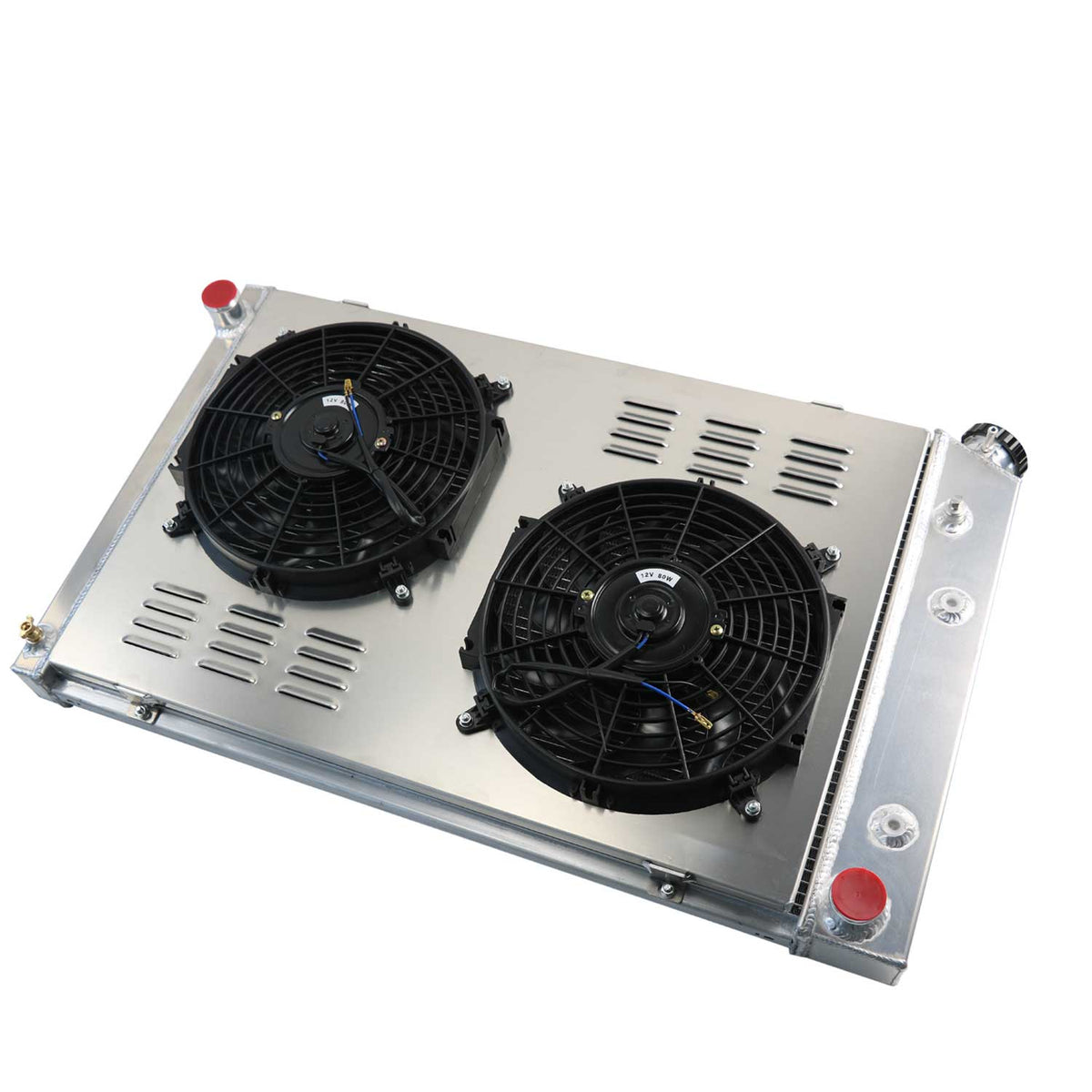

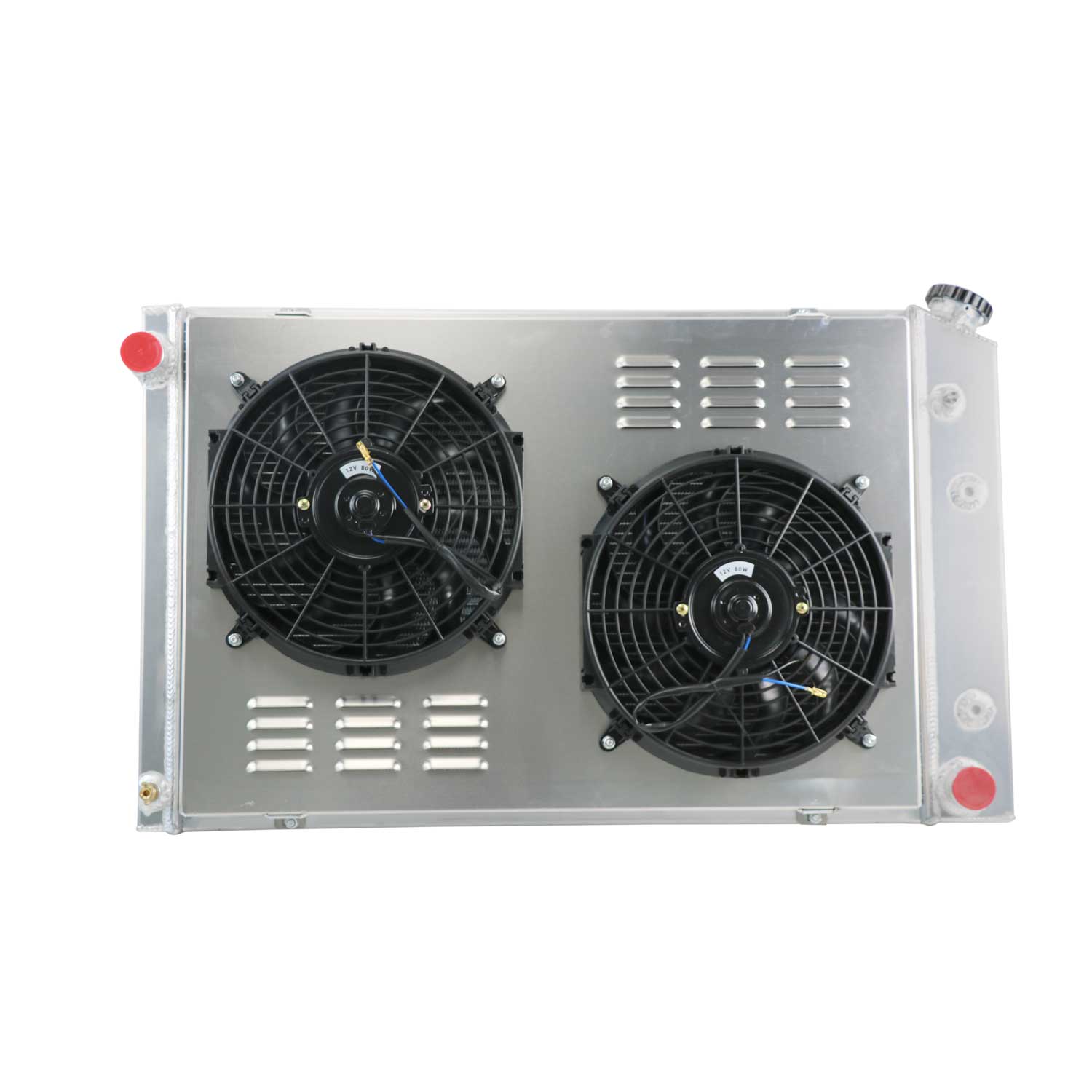

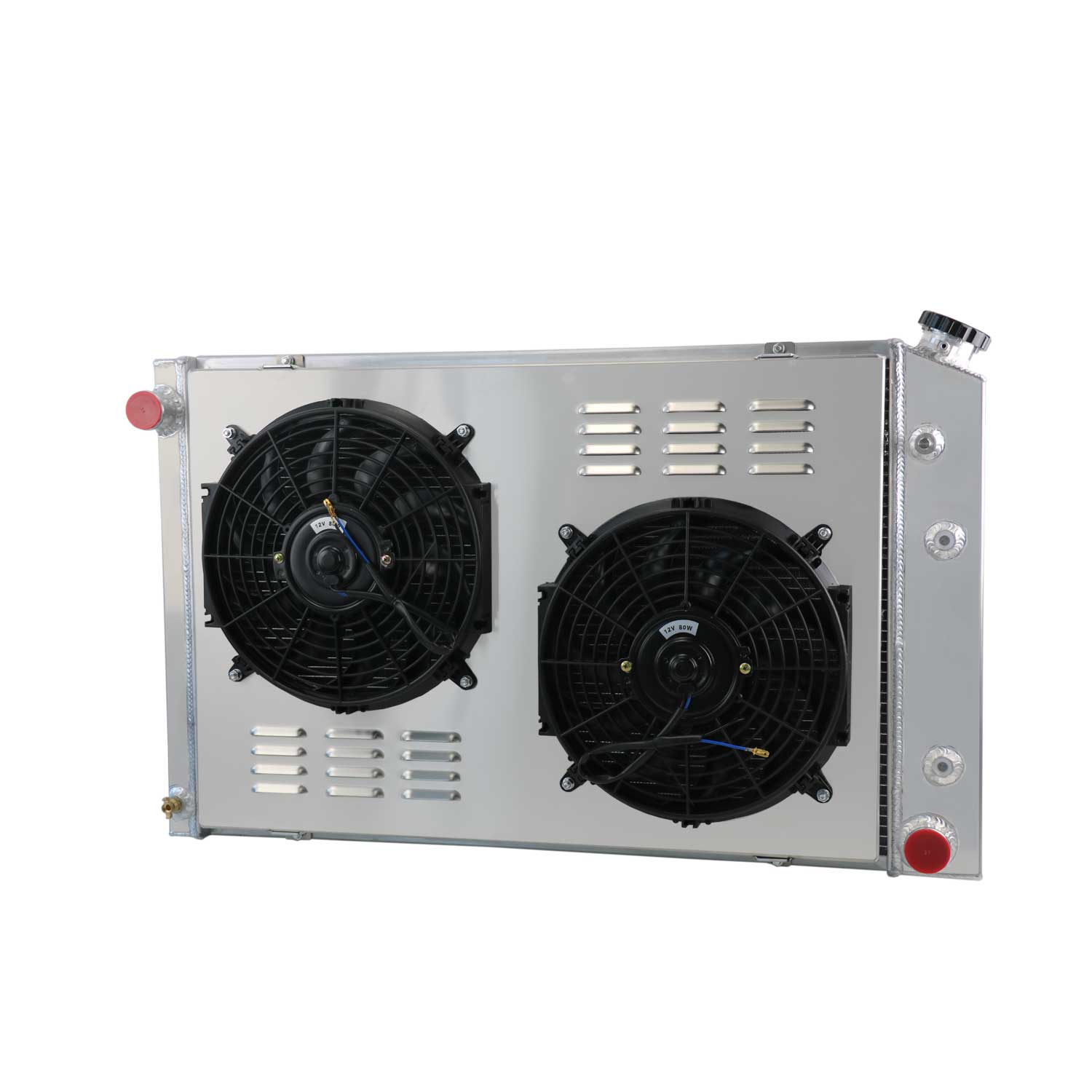

ASI Performance 3 Rows Radiator+Shroud Fan For 1973-1987 Chevy C/K Series Truck Suburban

ASI0086

In stock

SKU: WH716DZFSXJ90W-BN01 Barcode: ASI0086

No reviews

$284.90

SAVE 8%, code: ASI8OFF

Overall Size

842 * 514 * 106 mm

Quantity:

US Local Stock Fast Shipping - Arrives in 3 –7 Days

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

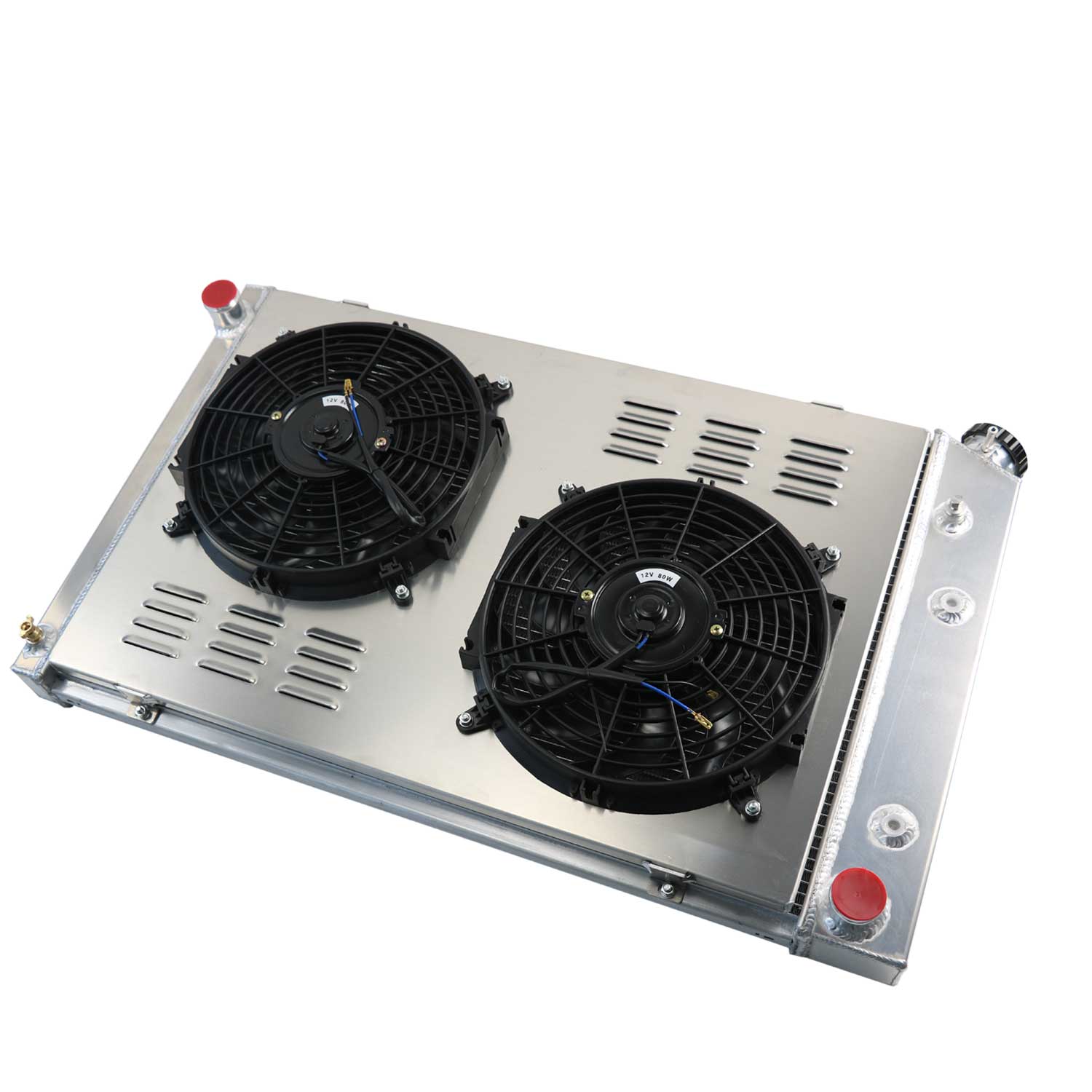

This Listing Is Including:

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

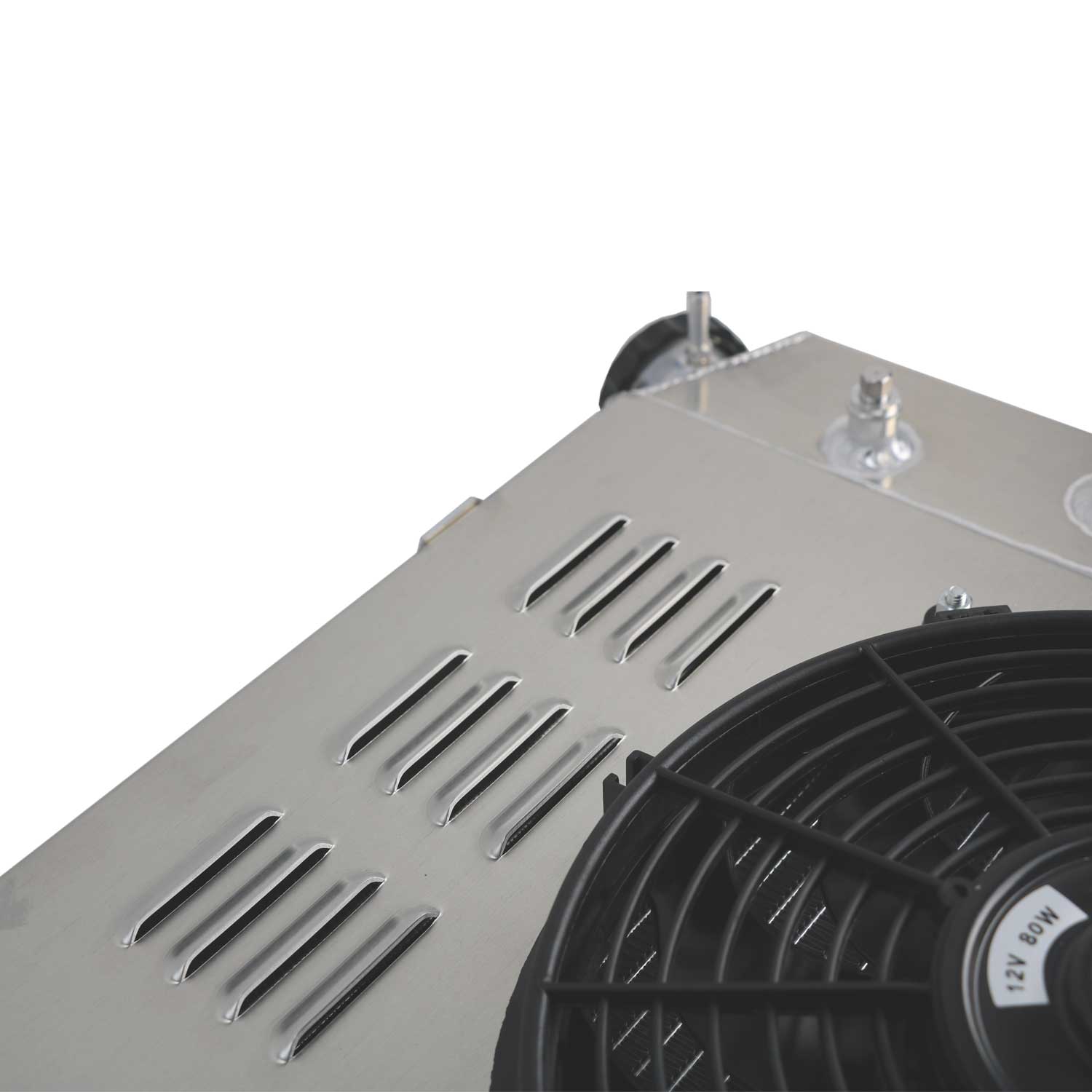

1 X AA5052 Aluminum Shroud

2 X 12" Fan (Includes mounting kits)

1 X Thermostat Relay Kit

Radiator Size

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Core and Tank Material: All Aluminum

Surface Finish: Aircraft Grade Raw Aluminum

Row: 3 Row Core

Core Size: 478 * 717 mm

Overall Size: 842 * 514 * 106 mm

Inlet/Outlet: ￠38(shaped tube)/￠40*34 mm

Transmission: Automatic and Manual.

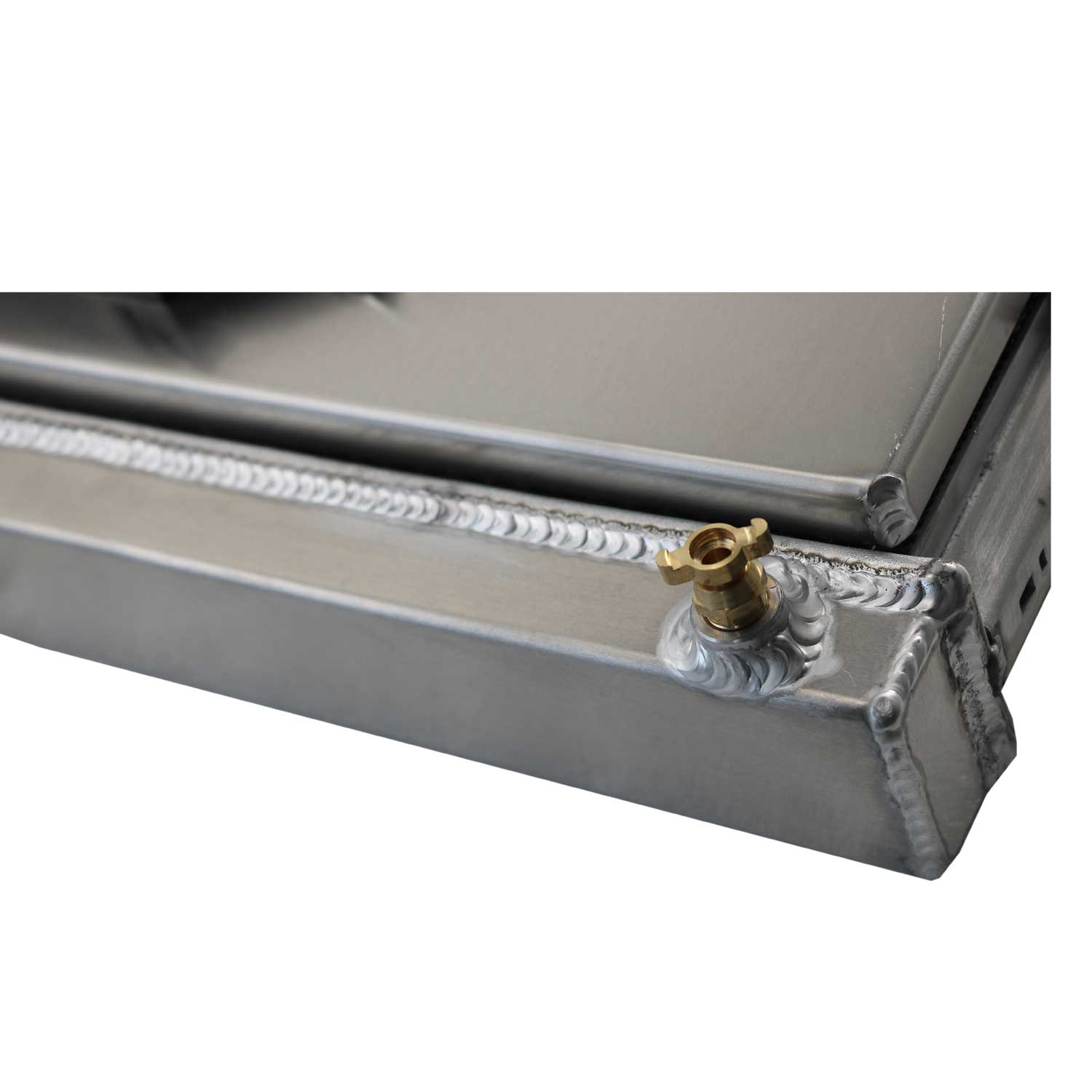

OEM Style Brass Petcoke Drain

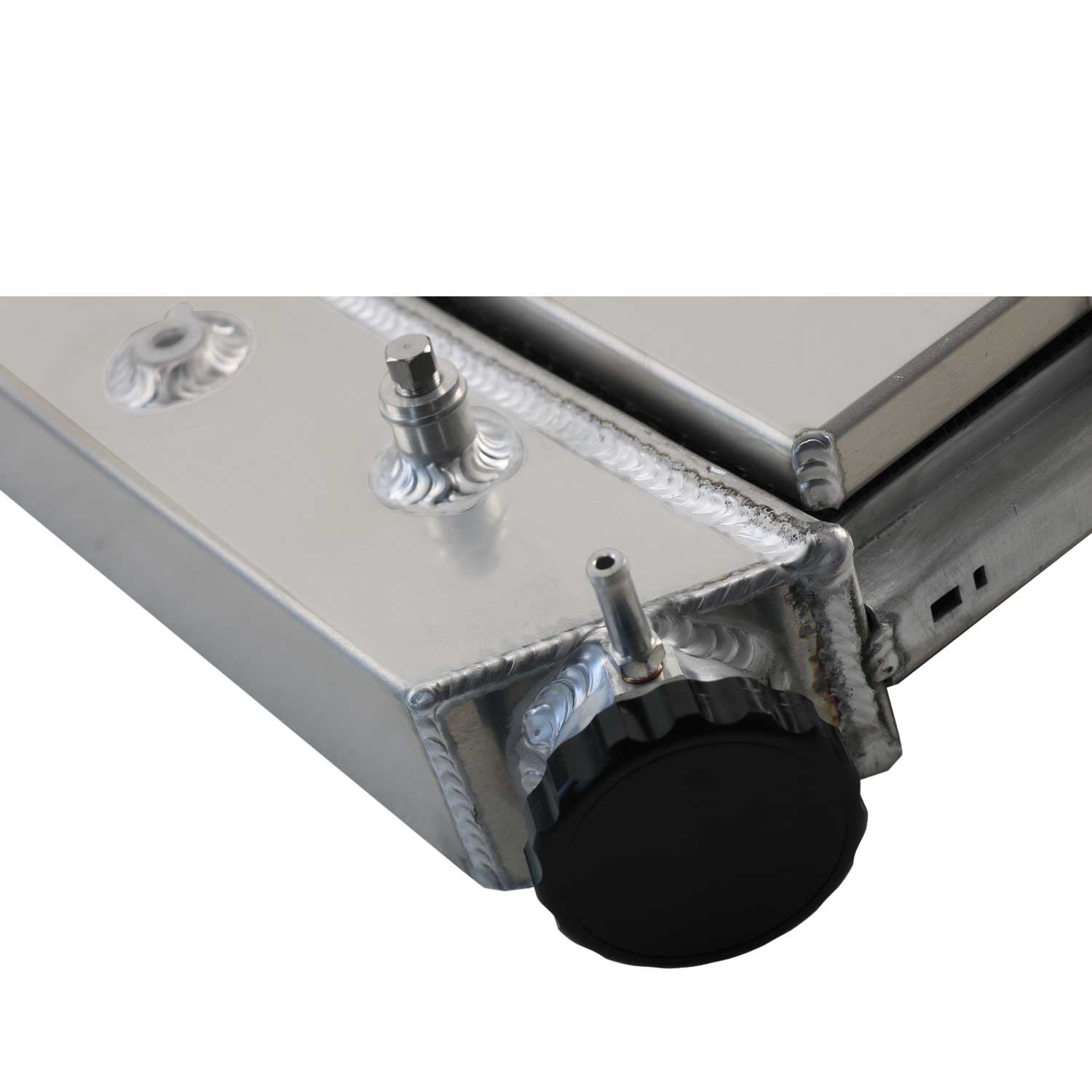

CNC machined filler neck and cap

Aircraft 5052 grade aluminum and with raw aluminum finish

Vehicle Fitment

For 85 86 87 Chevy Pickup Truck 19" Core

For 1981- 1991 Chevy Truck (21" x 33")

For 73-91 Chevy Suburban

For 73-91 Chevy Blazer / Jimmy

For 73-87 Chevy Pickup Trucks

For 81-90 GM Truck 5.7 7.4

For 85 86 GMC C2500 C3500 K1500 K2500

For 81-90 Chevy R Series

For 81-90 Chevy K Series

For Chevy For GMC Blazer Jimmy Suburban

For 73-87 Chevy Truck, 73-91 Blazer (19 x 28-1/4" Core)

For 73-91 Chevy C/K Series Trucks

For 73-81 K5 Blazer

For 73-80 CHEVY C/K SERIES C10/C20/K10 PICKUP

Interchange Part Number: 716 CC716 CU716 DPI716 EC716 AE716 MC716

Other Part Number: 438716 433716 1605-370200 0716-2AA CR1599

Part Number: 1599 8011599 3687 2308 REA411599A SPTCU1599 CU1599

Fans:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Relay Kits:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe.

Probe typically threads into radiator, water outlet or manifold.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

This set up will run Fans & pull air in through radiator.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
