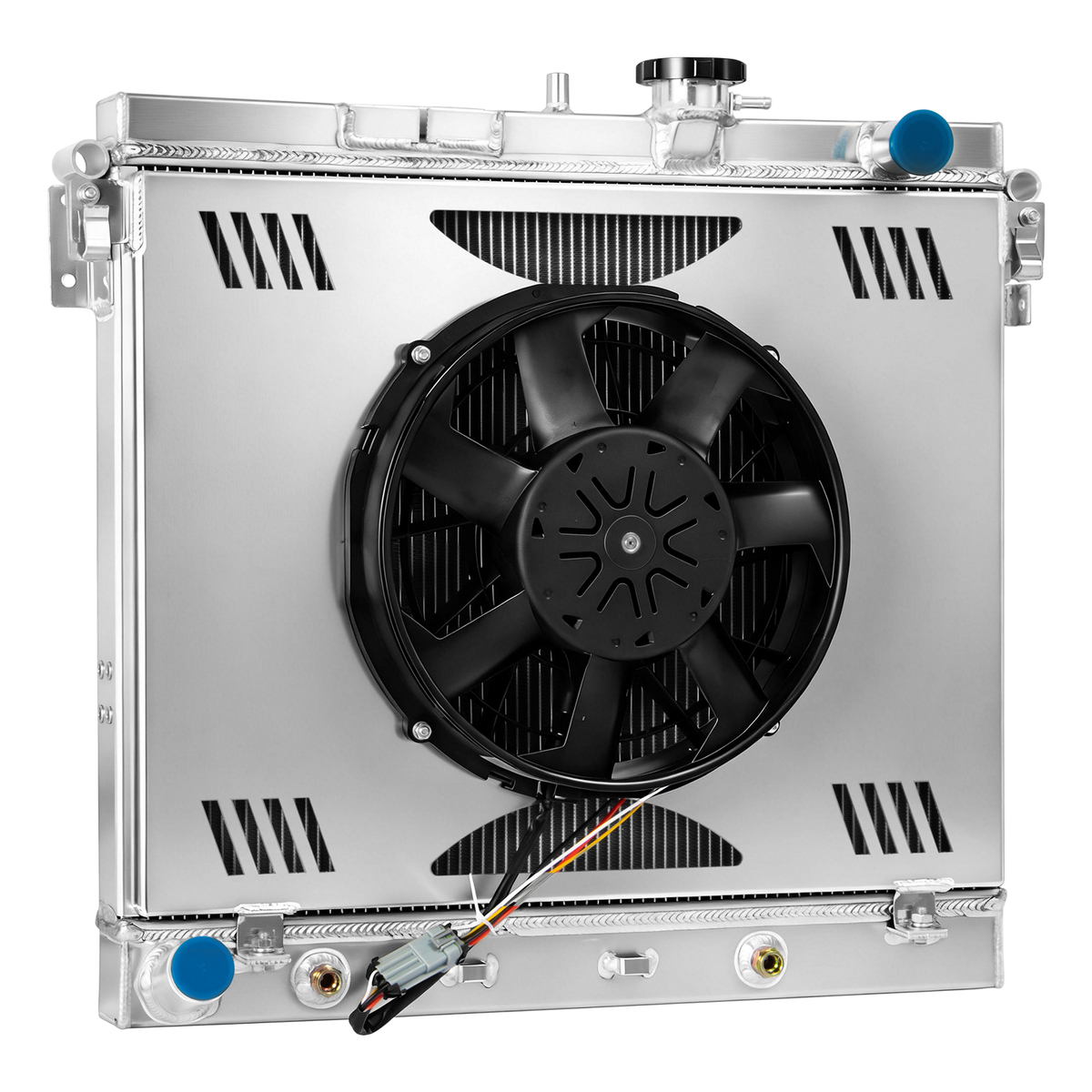

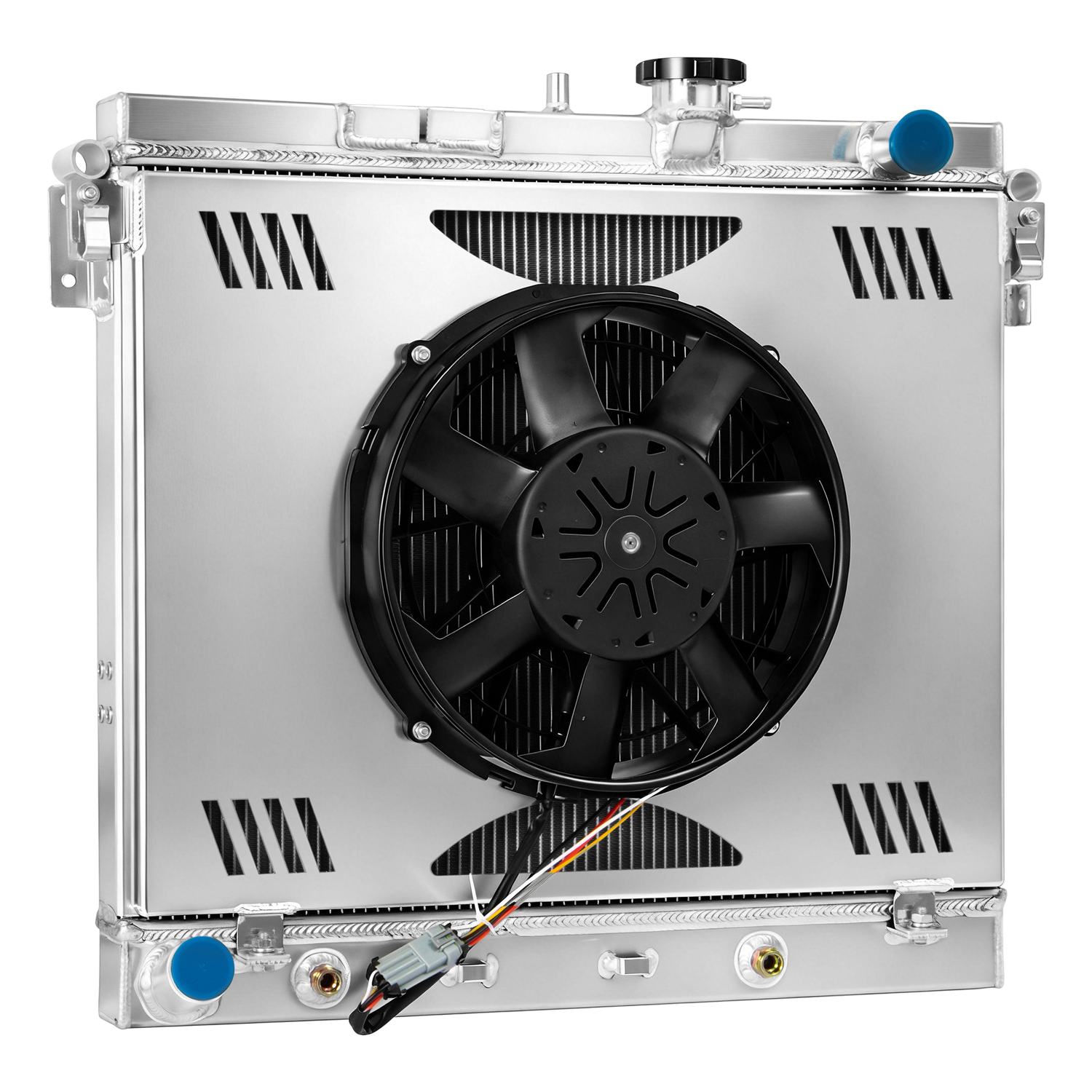

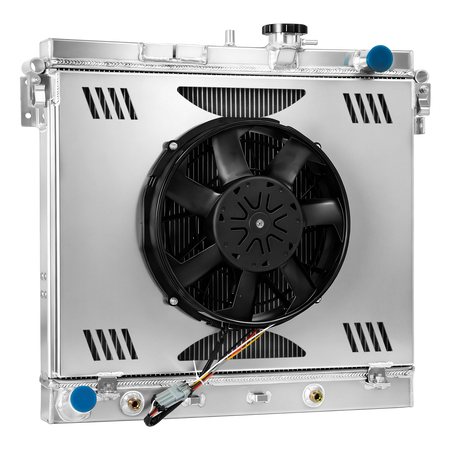

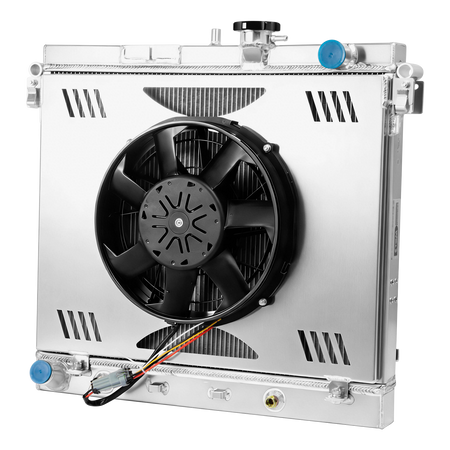

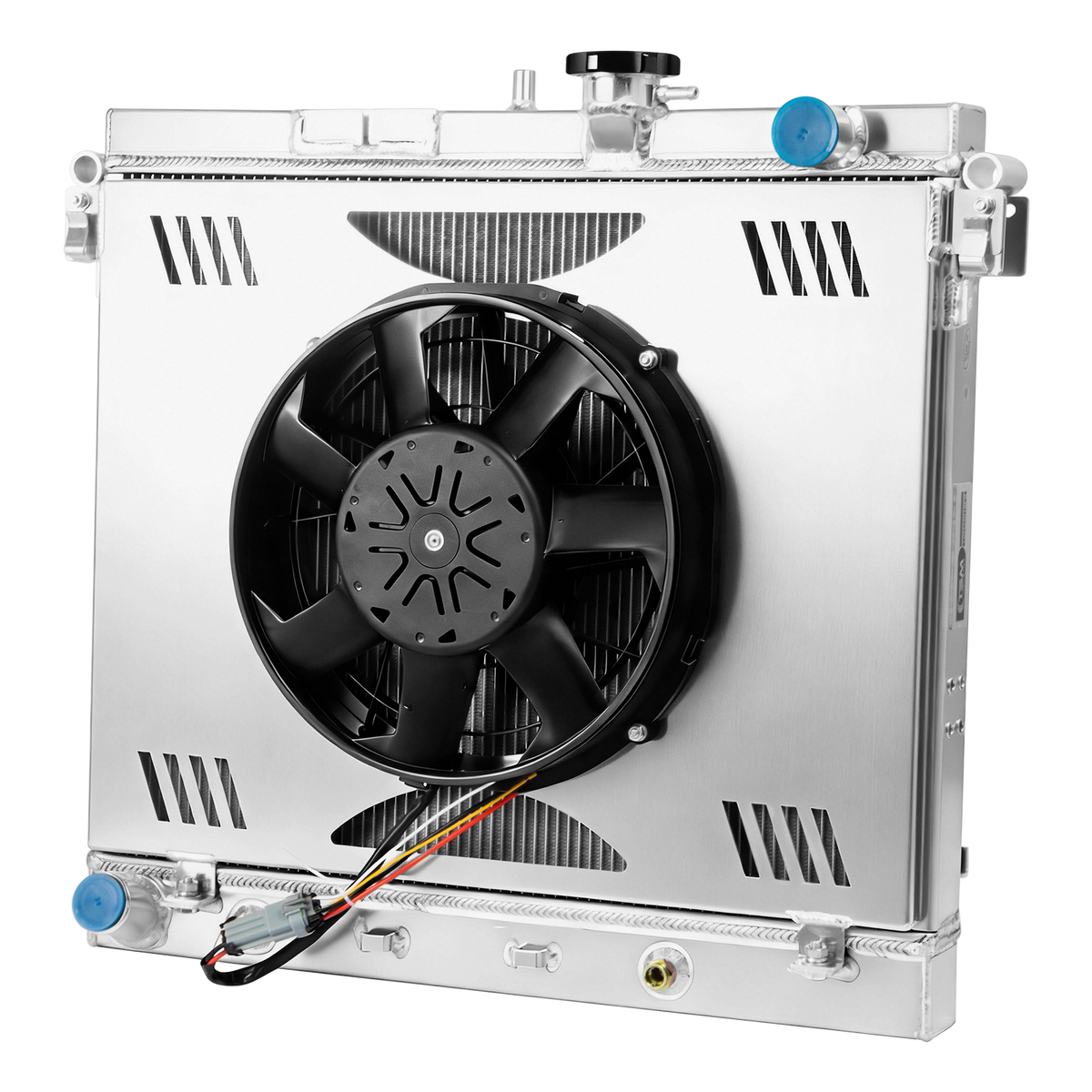

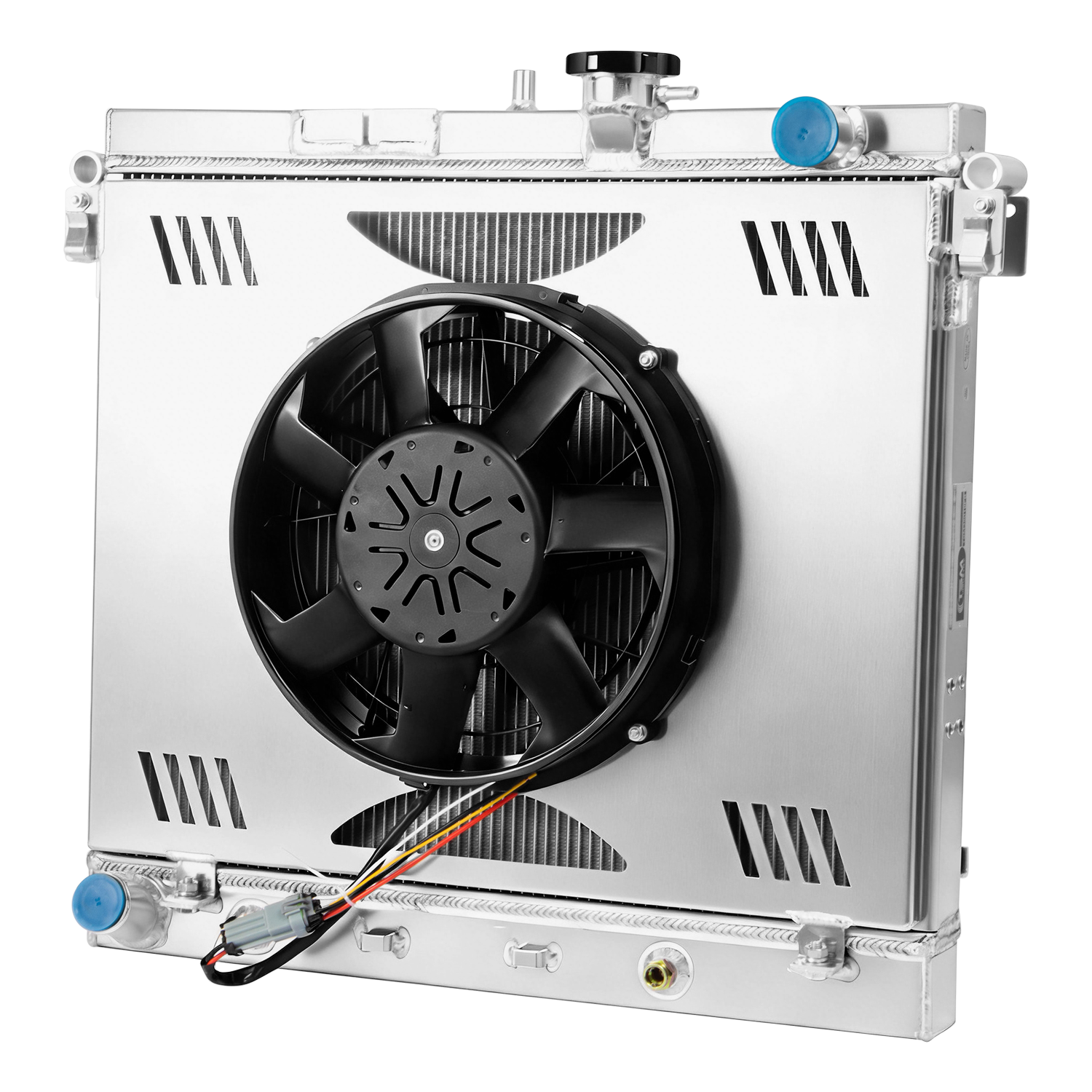

ASI Performance 3Row Radiator Shroud Brushless Fan Fit 2006-12 Chevy Colorado/Hummer H3T,Canyon

ASI6219

Only 3 left

SKU: TSM35019FS Barcode: ASI6219

No reviews

$379.00

Core Size

23.15"x18.66"

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Description:

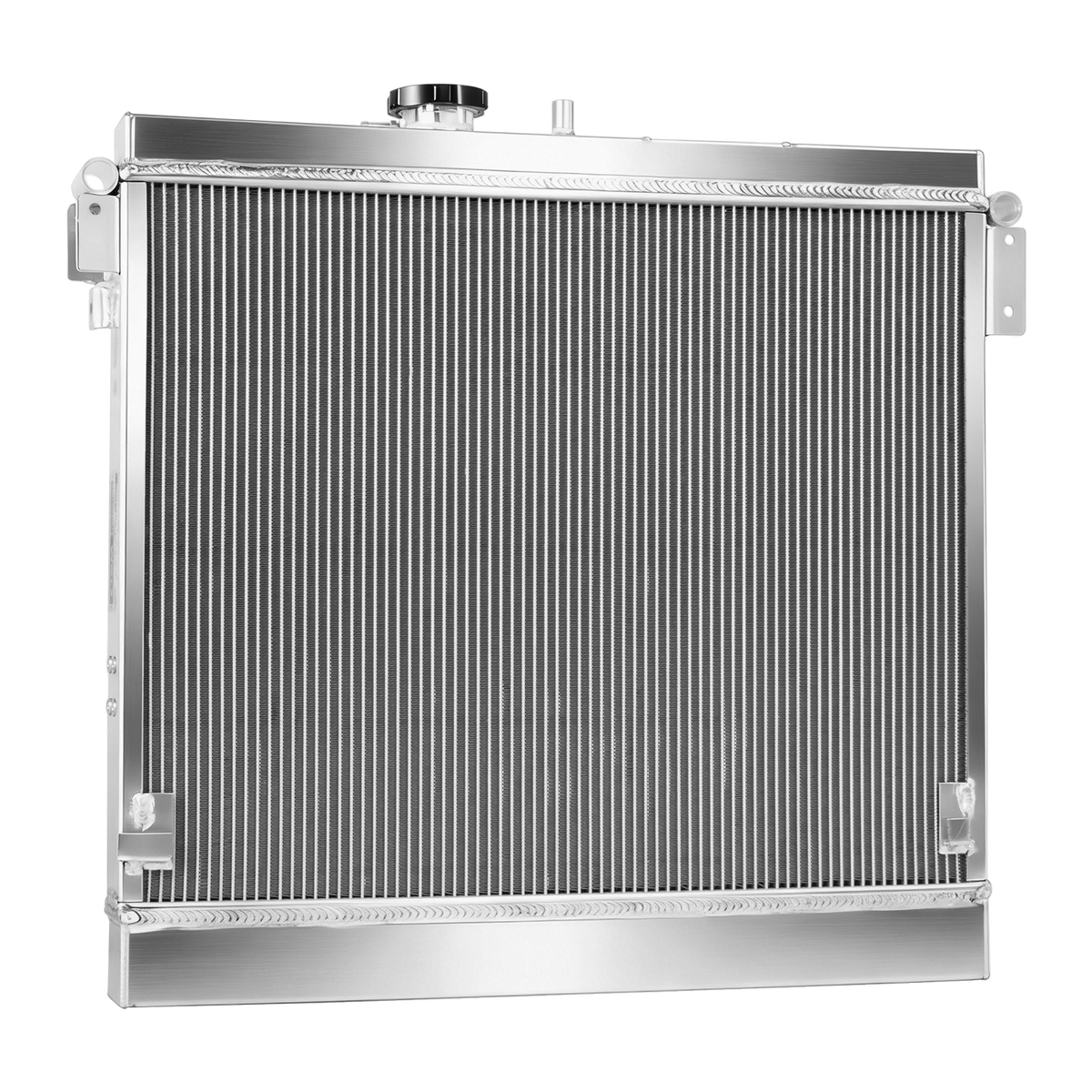

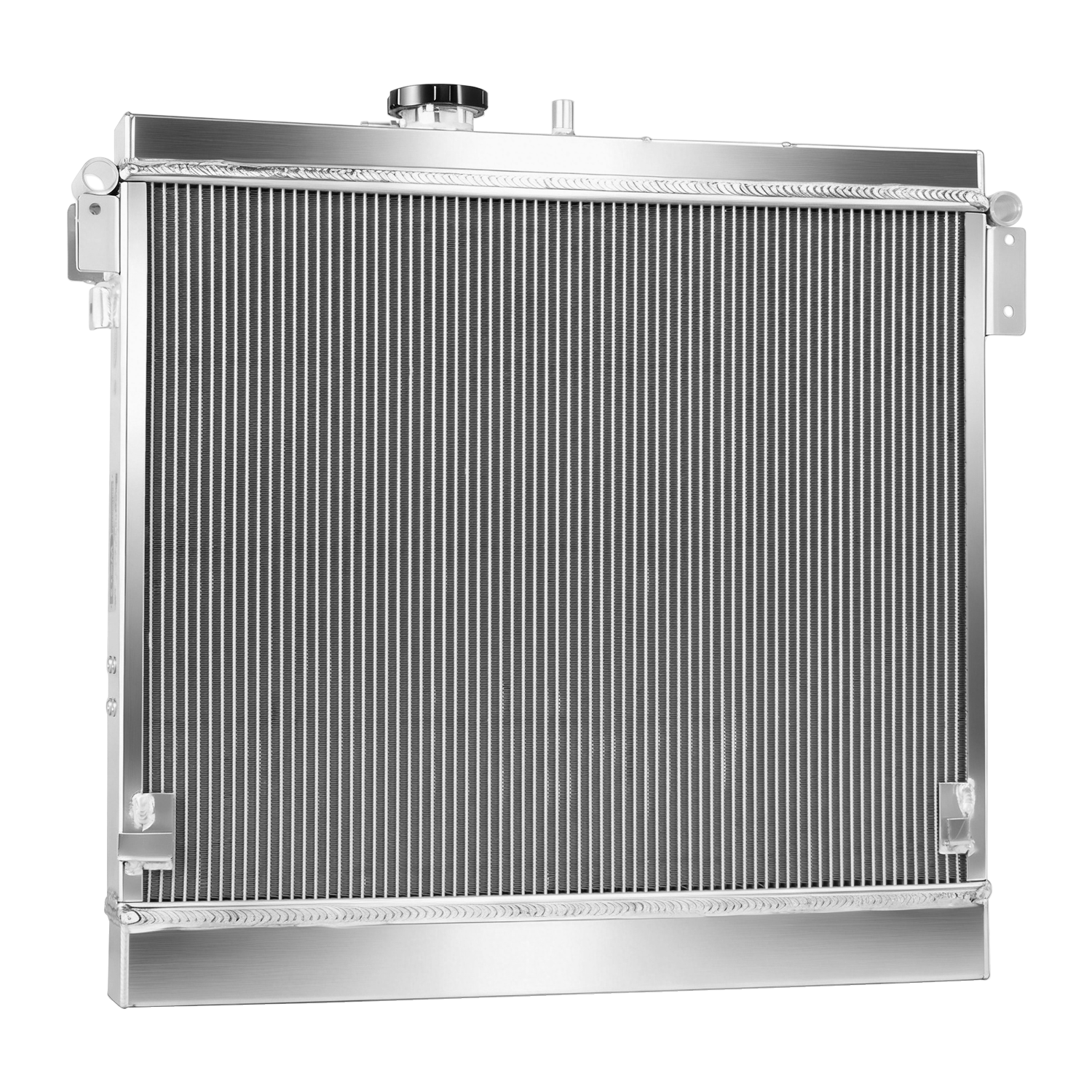

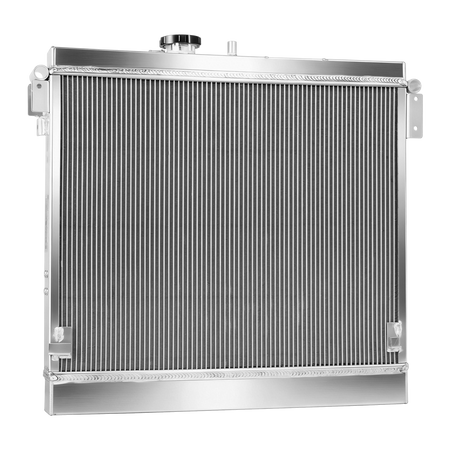

This TSM® AA5083 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5083 Aluminum Radiator is at least 30%-45% more efficient than stock ones and make

your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

1.Made of AA5083 aircraft aluminum.

2.Brazed core technology .

3.2mm thick tanks and fittings.

4.Fin hight: 6mm

5.Higher density core: cooling rows are spaced 3/8" apart.

6.14-16 cooling fins per inch.

Radiator Configuration:

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Material: Aircraft AA5083 Aluminum

Core Size: 23.15"x18.66"

Inlet Connection: 1 5/16"

Outlet Connection: 1 9/16"

Transmission Oil Cooler: Include

OEM Style Brass Petcock Drain.

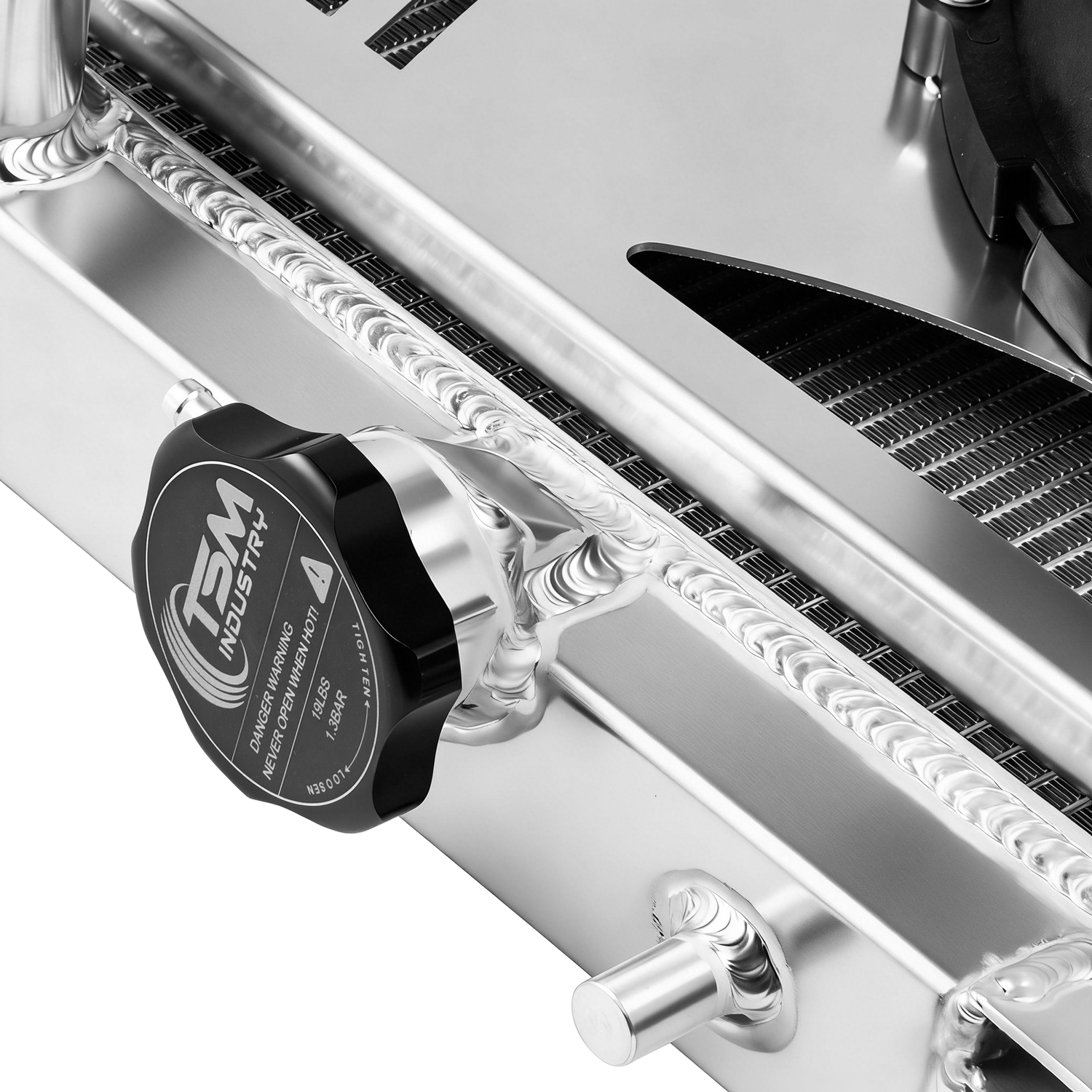

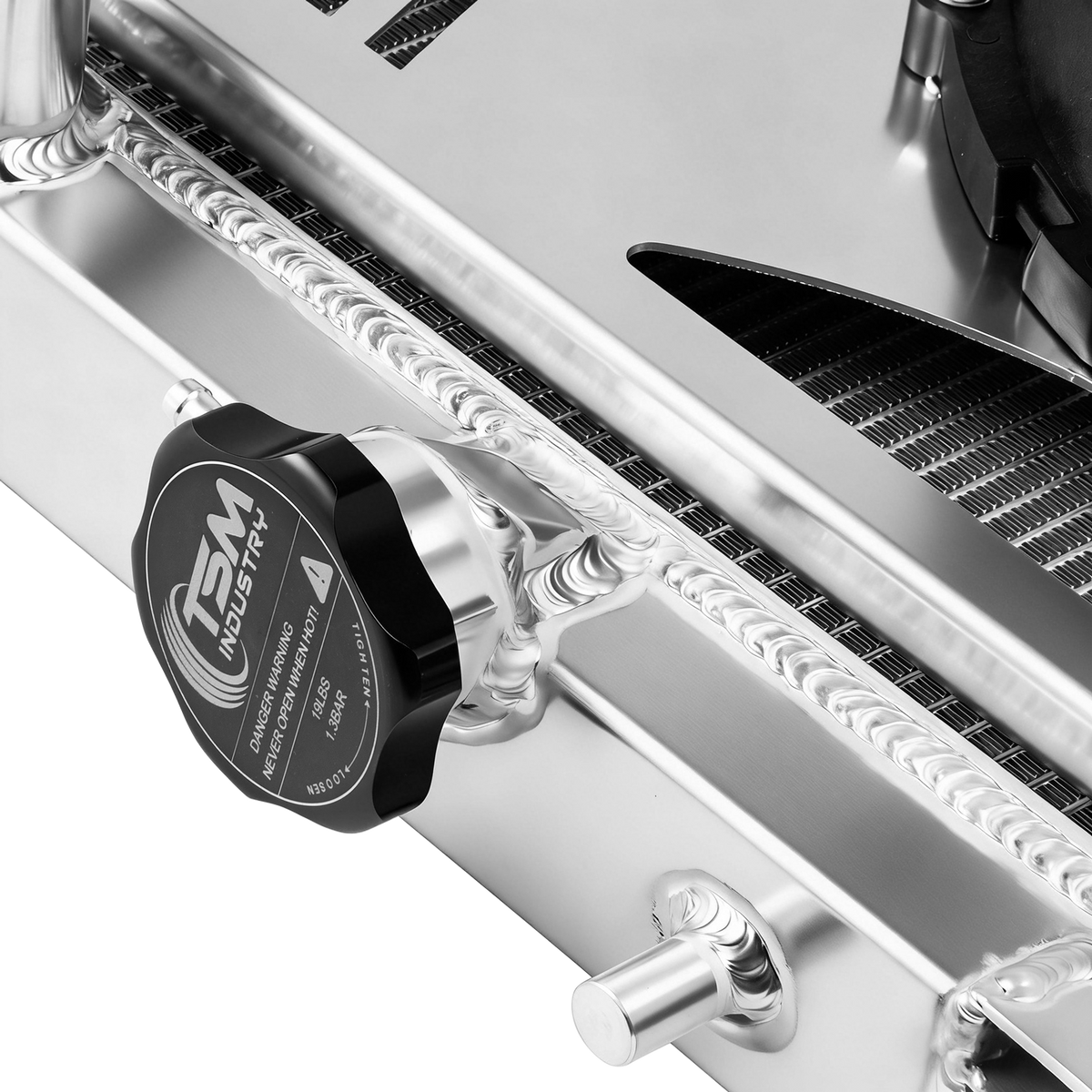

CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar

Fitment:

1. Hummer H3 2006 2007 2008 2009 2010 All Engine

2. Hummer H3T 2009 2010 All Engine

3. GMC Canyon 2009 2010 2011 2012 V8 5.3L

4. Chevrolet Colorado 2009 2010 2011 2012 V8 5.3L Engine

OEM# 25964054,25964053

Parts Link# HU3010101,HU3010102

Interchange Part Number:2855 CU2855 RAD2855 DPI2855

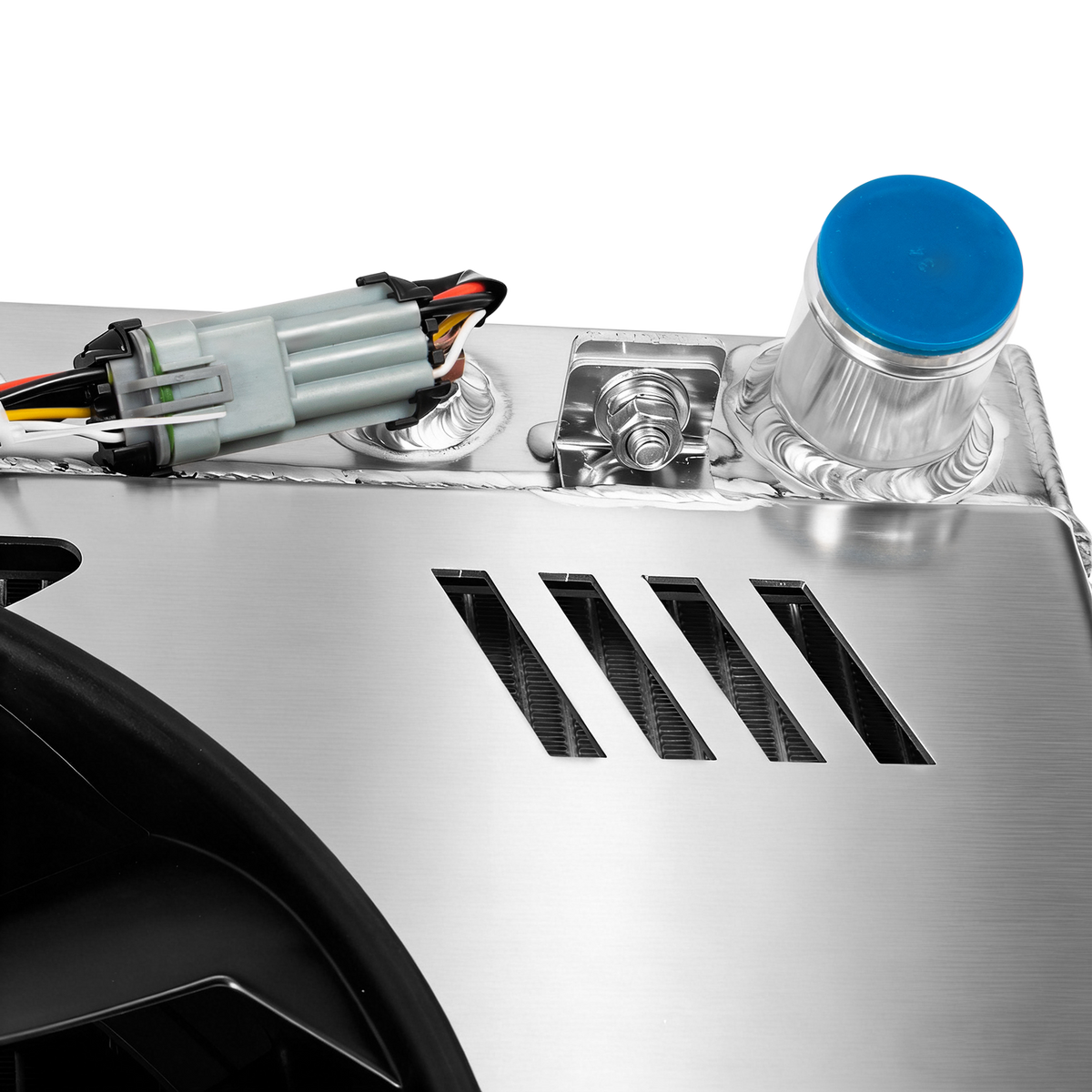

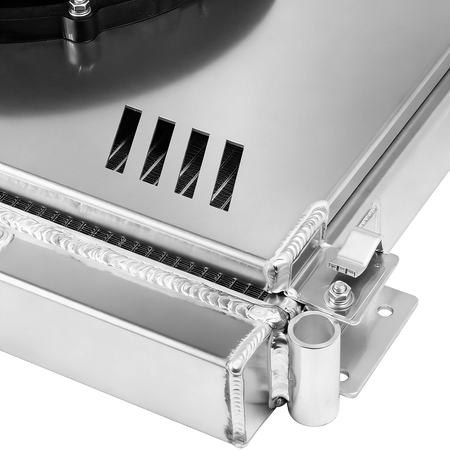

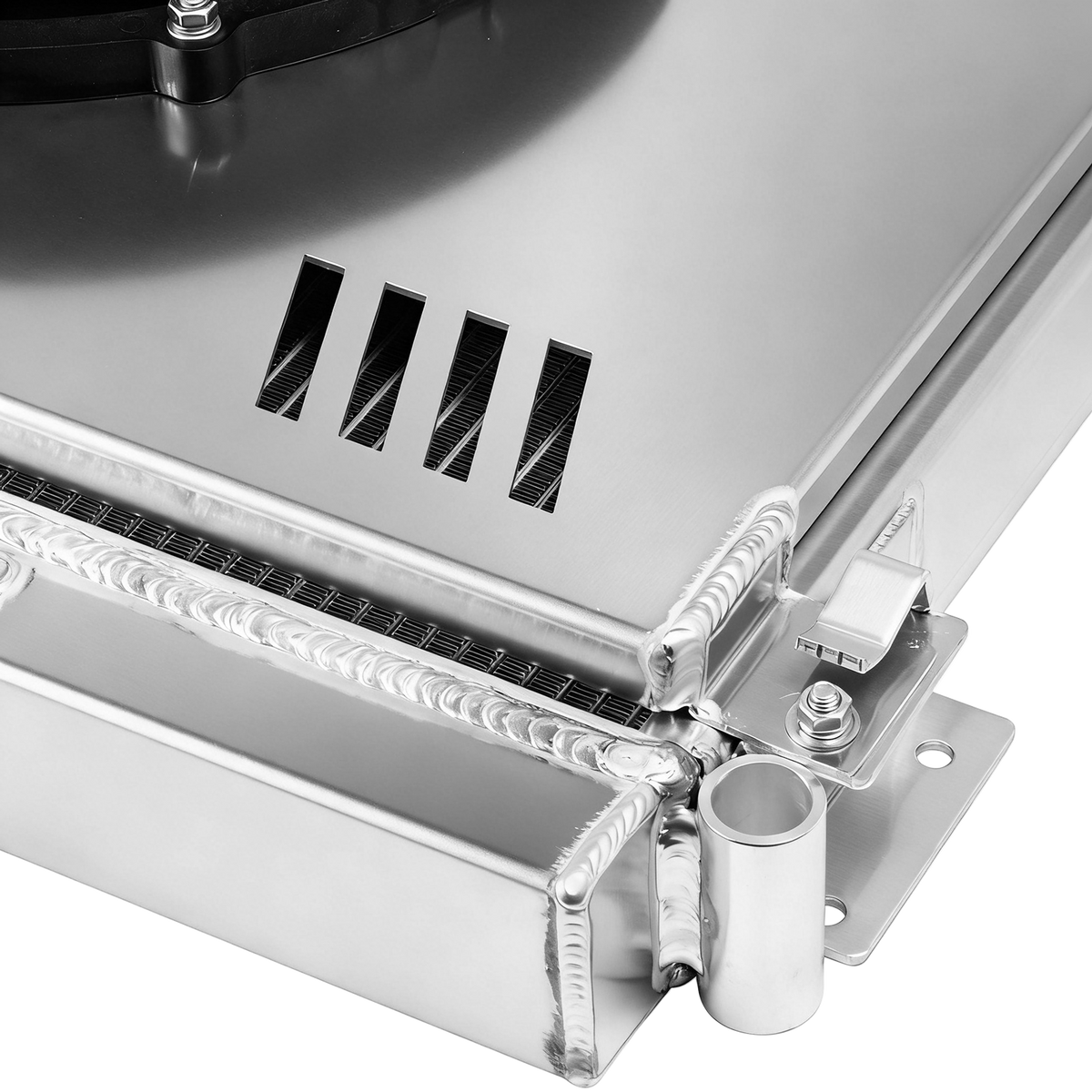

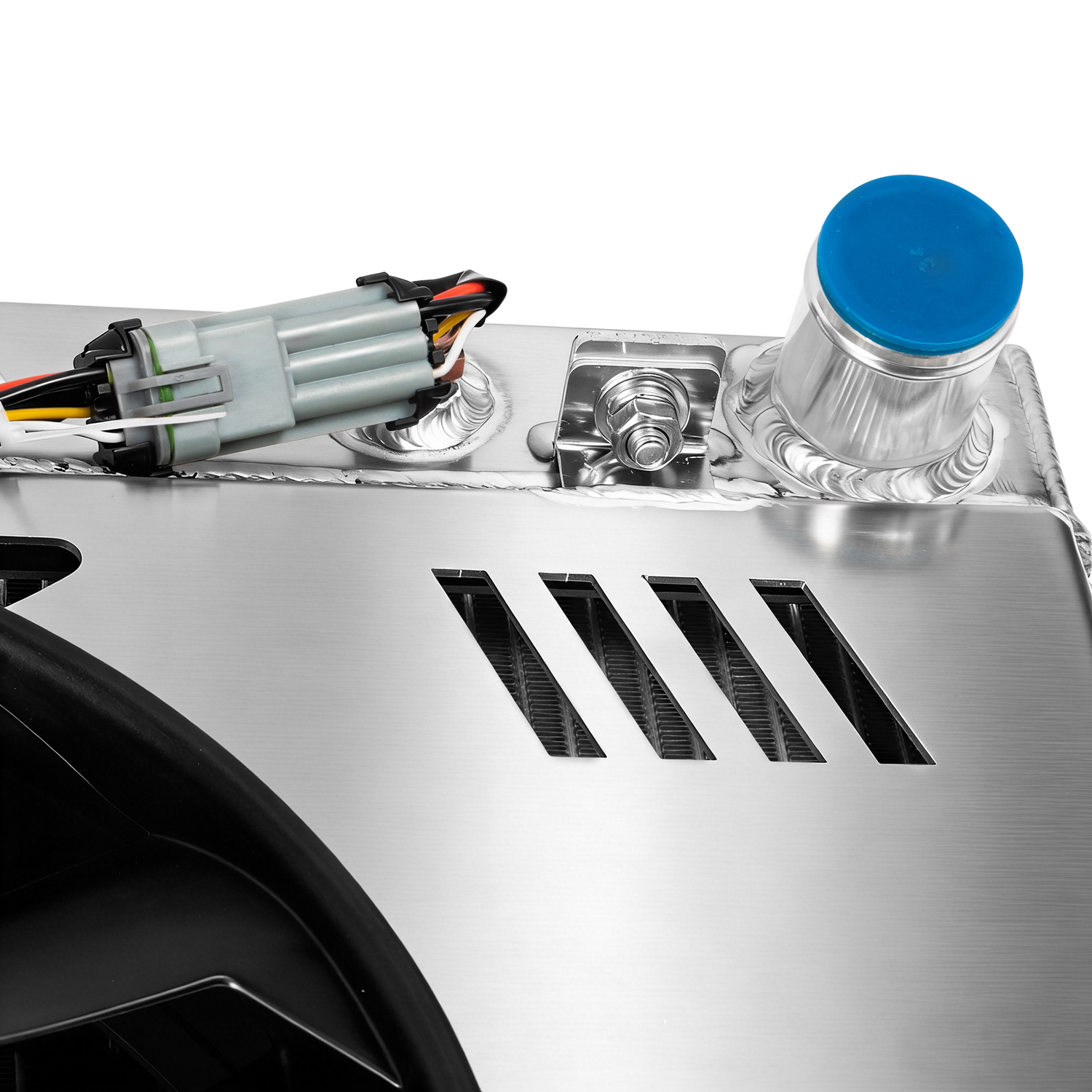

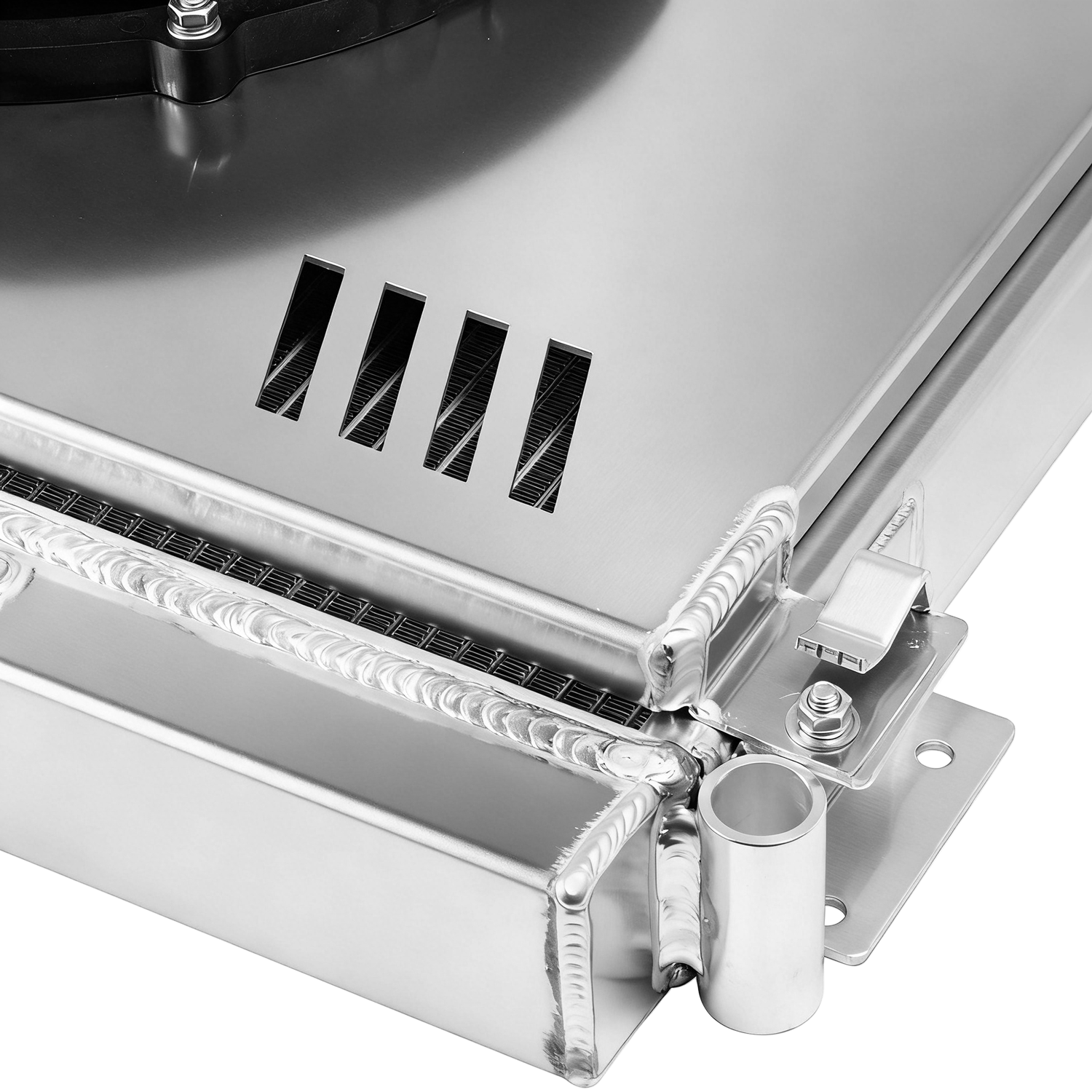

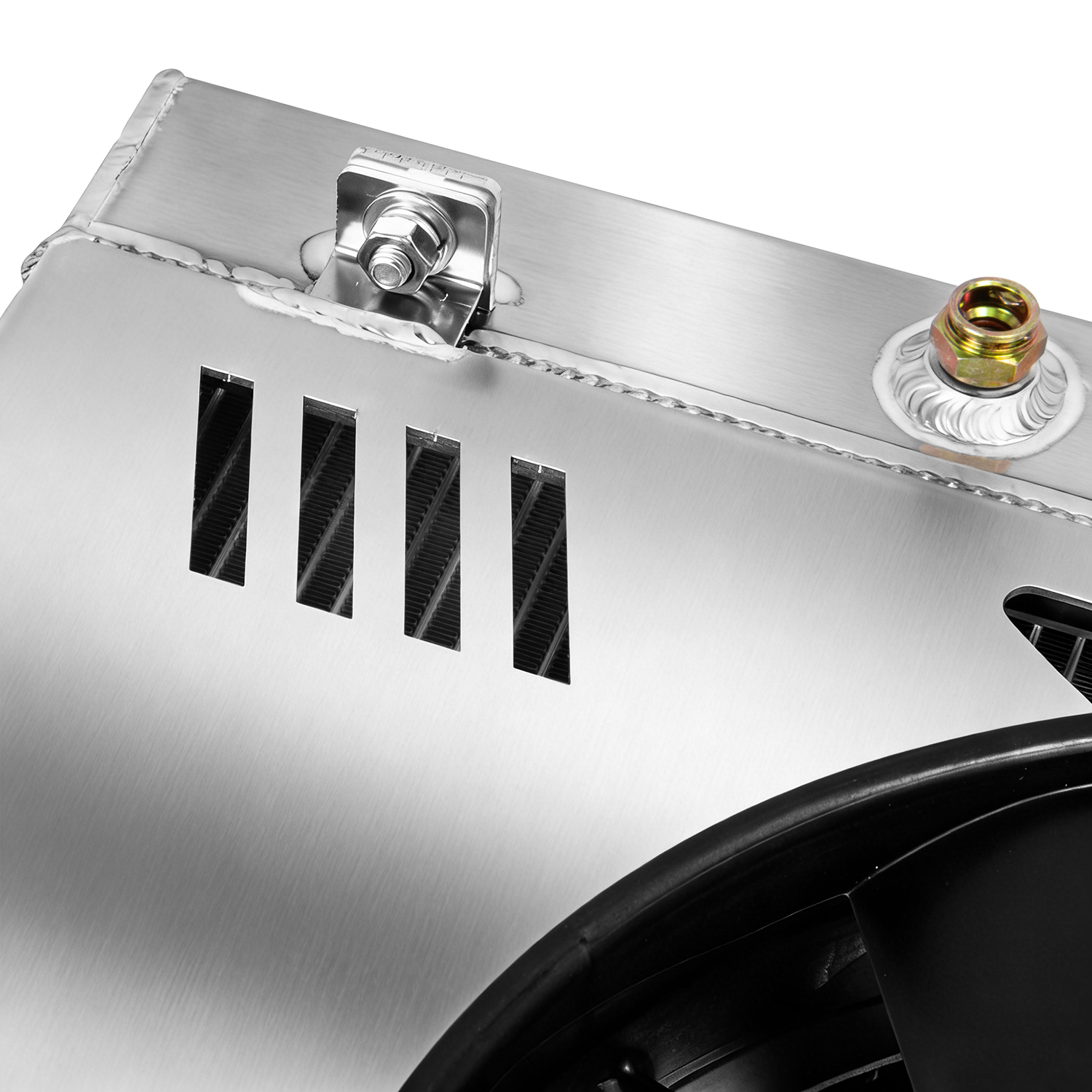

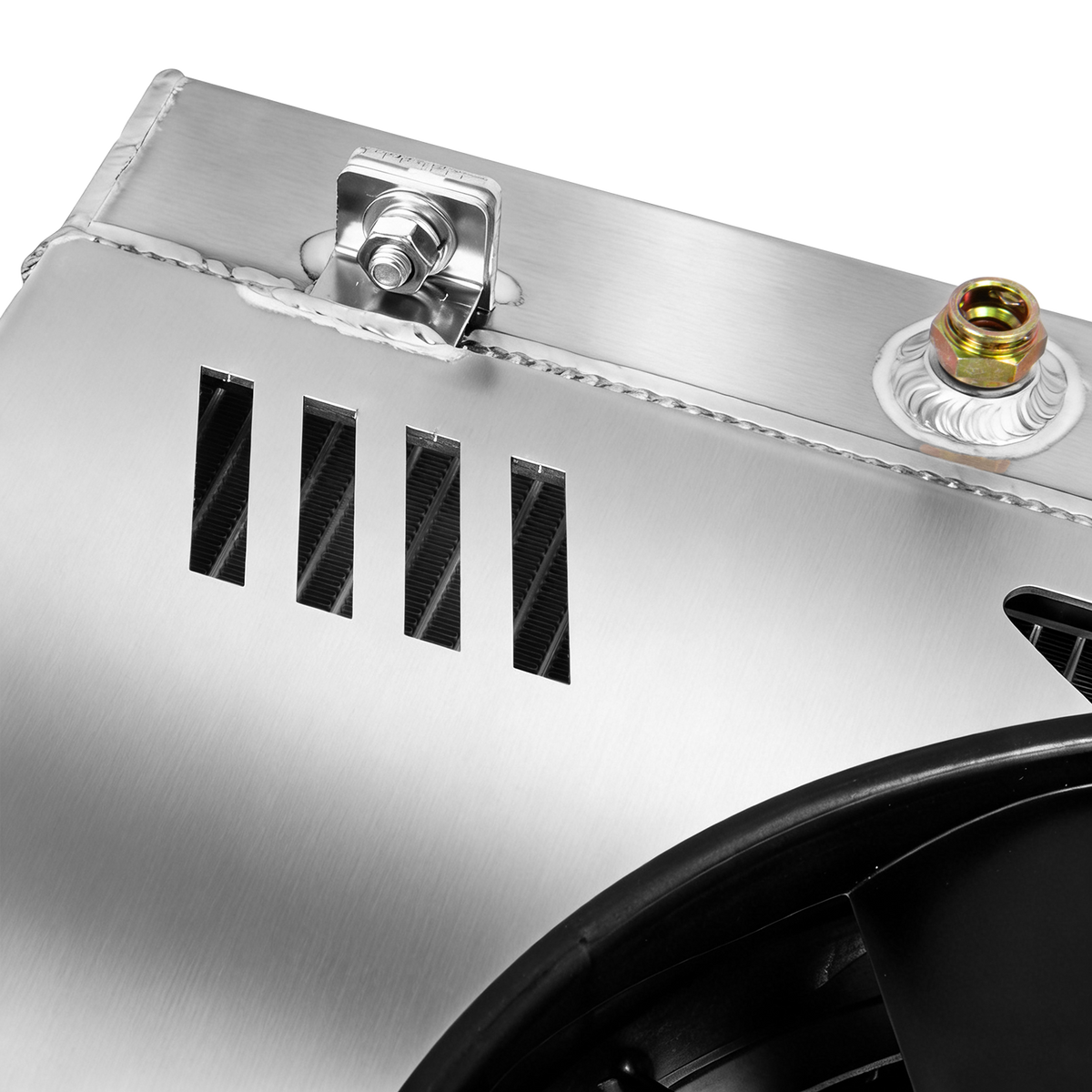

AA5083 Aluminum Fan Shroud Performance Advantages：

1.Premium AA5083 Marine-Grade Aluminum Construction: High-strength, corrosion-resistant alloy delivers superior durability vs. standard aluminum, perfect for harsh engine bay environments

2.Sealed, High-Efficiency Airflow Design: Precision-fitted shroud eliminates air leakage around the radiator core, forcing 100% of fan airflow through the cooling fins for 30-50% better heat rejection than unshrouded setups

3.Aerodynamic Vented Structure: Optimized vent design reduces turbulence, prevents hot spots, and efficiently expels hot air out of the engine compartment, rather than trapping it near the engine

4.Engine Protection & Structural Reinforcement: Secures fan blades in place, preventing contact with other engine components; reinforces the radiator core to resist vibration and road debris damage

5.Maintains Optimal Engine Conditions: Ensures consistent, even cooling to preserve engine performance, extend service life, and improve overall ride quality

6.Direct Bolt-On Fitment: Precision-machined for easy, no-modification installation, perfect for a clean, professional engine bay finish

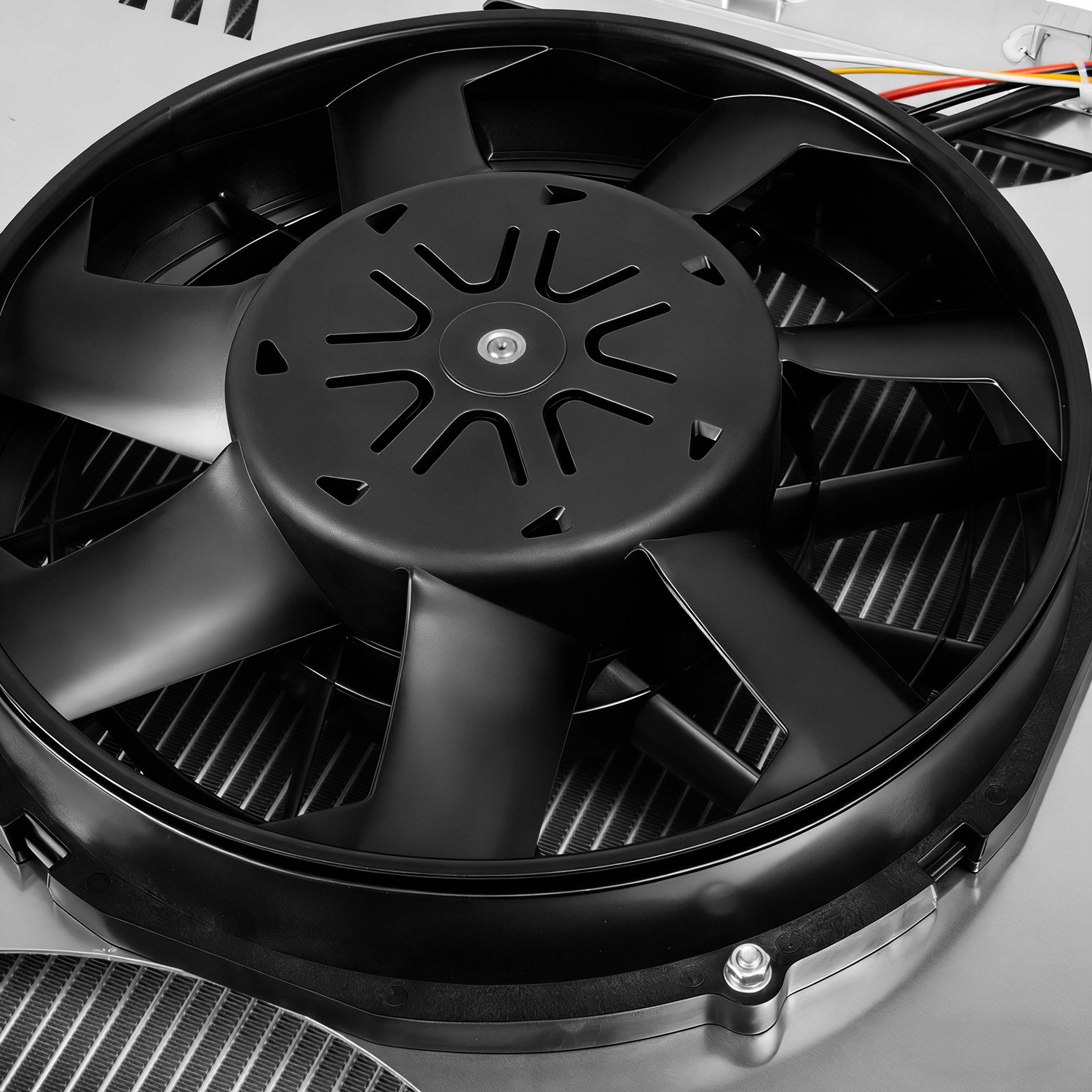

14" 24V Brushless Cooling Fan Features:

1.High-Performance Brushless Motor: Eliminates friction and wear for 10x longer service life than traditional brushed fans, with consistent, reliable performance.

2.Powerful Axial Cooling Design: Compact, high-torque 14-inch fan delivers massive airflow (2200+ CFM), high-horsepower engines, turbocharged builds, and heavy-duty applications.

3.Quiet, Vibration-Free Operation: Precision-balanced blades and motor ensure smooth, low-noise operation, even under continuous use

Built for Harsh Environments: Sealed motor housing resists dust, moisture, and extreme temperatures, engineered for continuous-duty operation.

4.Maintenance-Free Performance: No brushes to replace, no regular maintenance required, for hassle-free ownership

5.Energy-Efficient Operation: Low power draw reduces electrical system load, making it perfect for 24V commercial, performance, and off-road applications

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

185'F turn-on temperature, 165'F turn-off temperature.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

This set up will run Fans & pull air in through radiator.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
