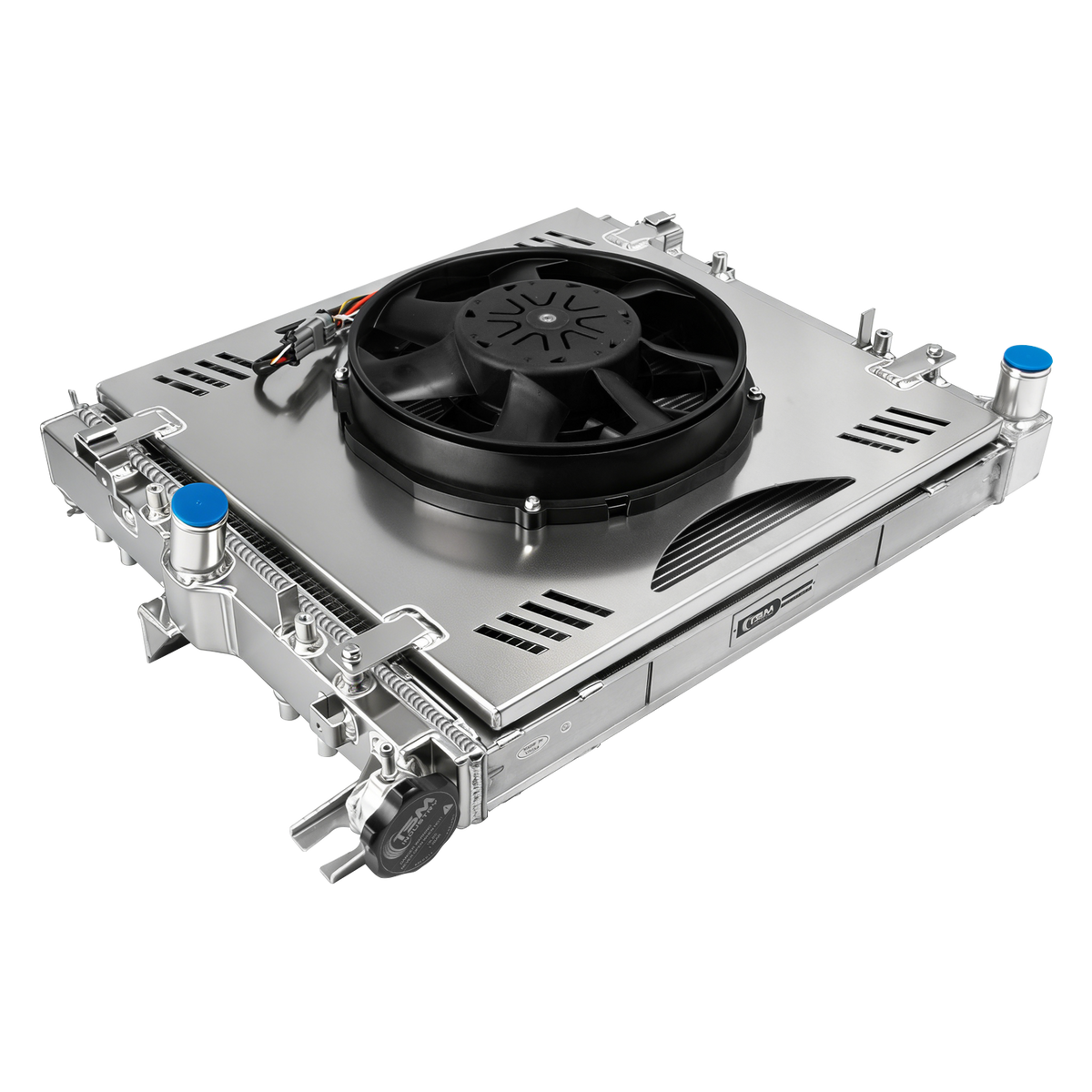

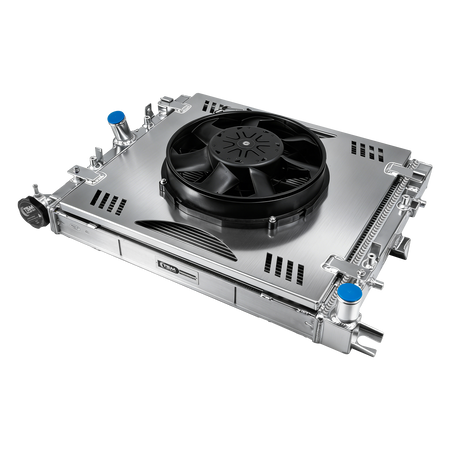

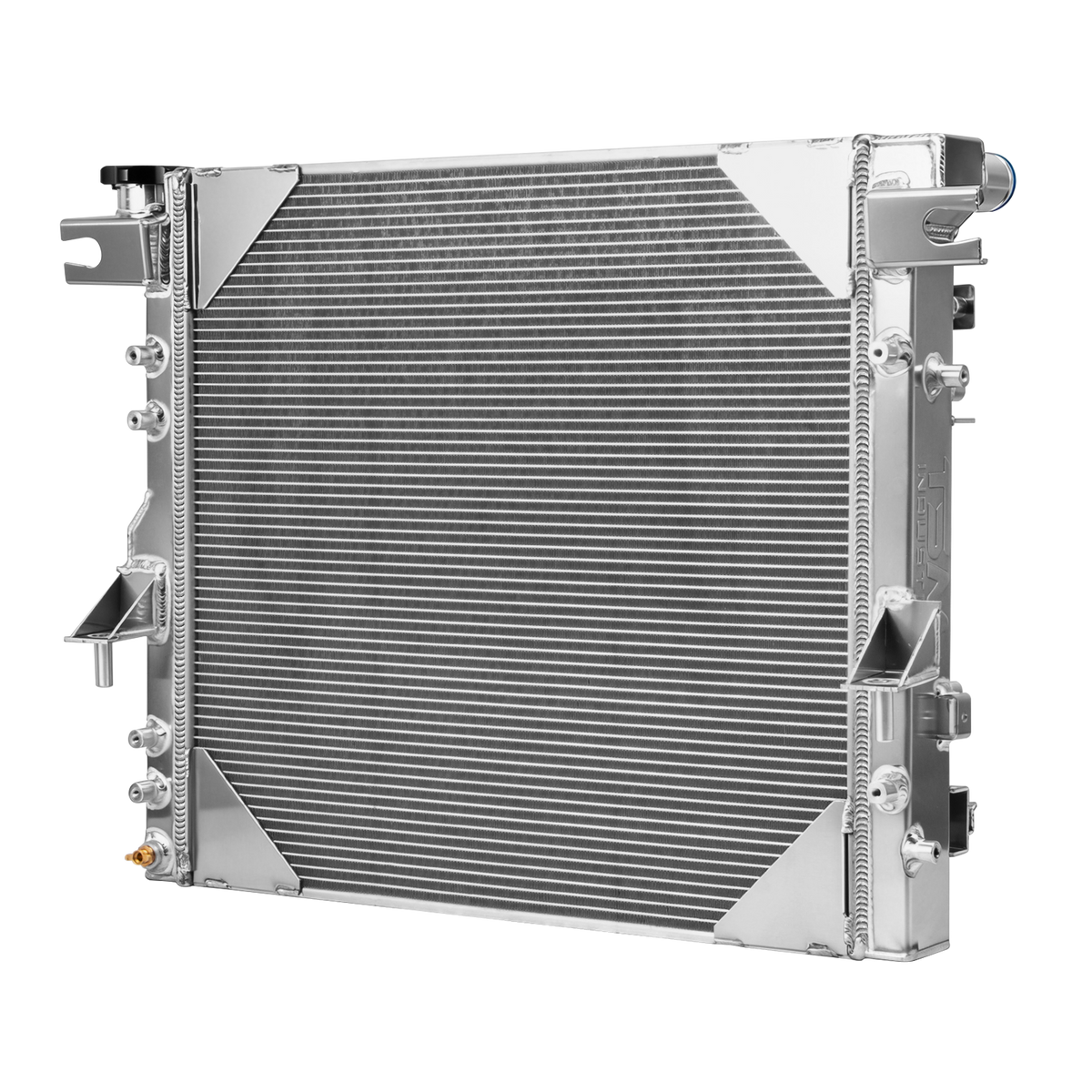

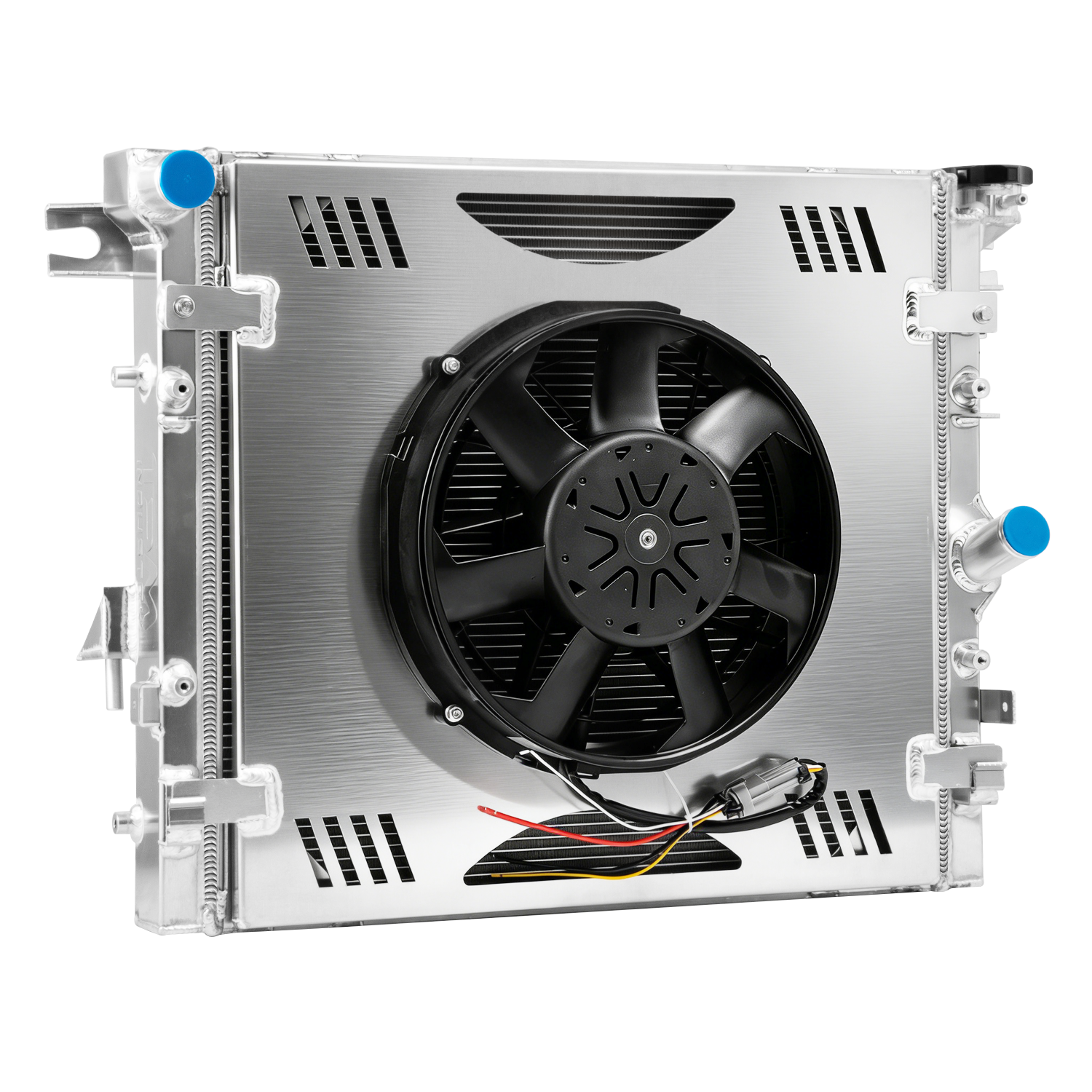

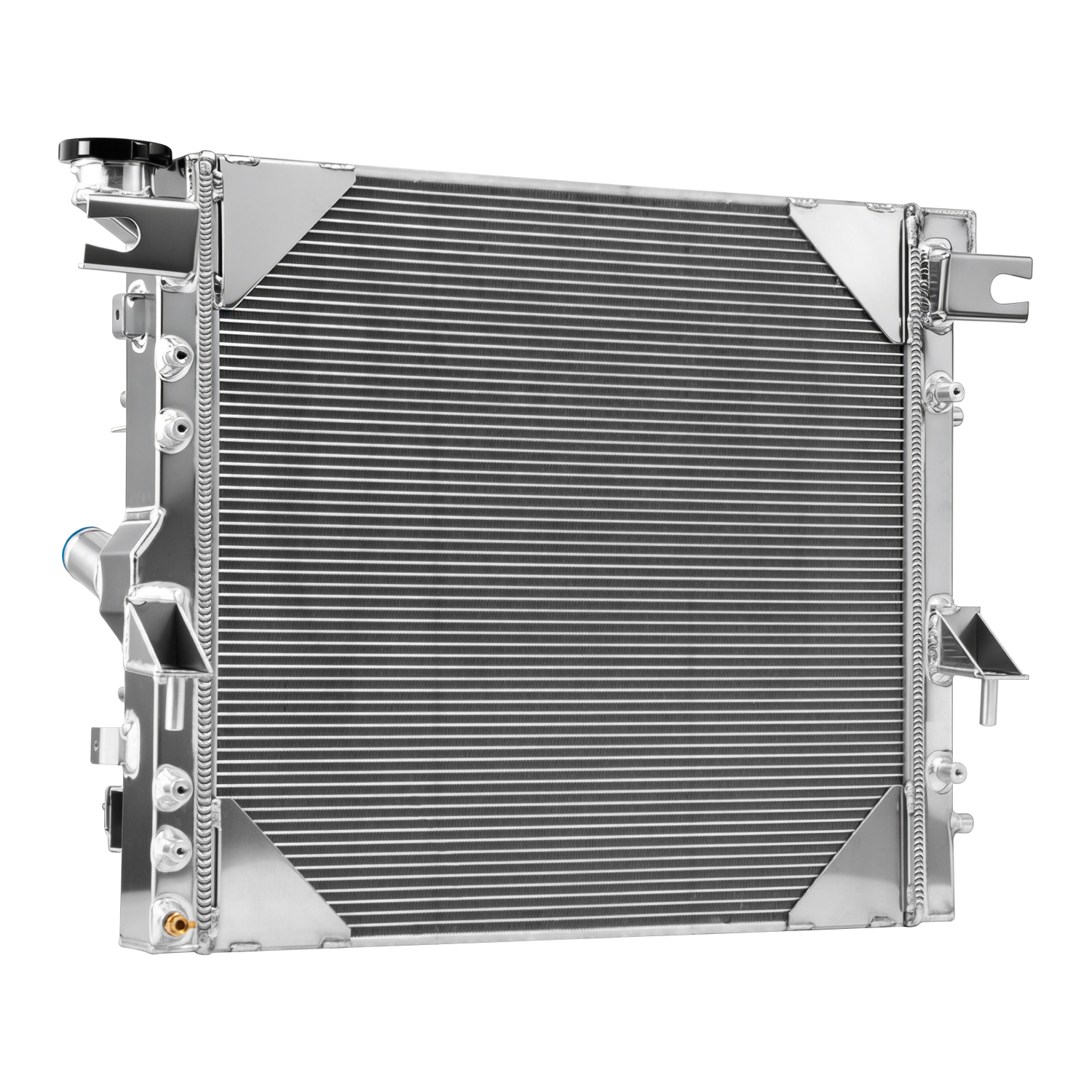

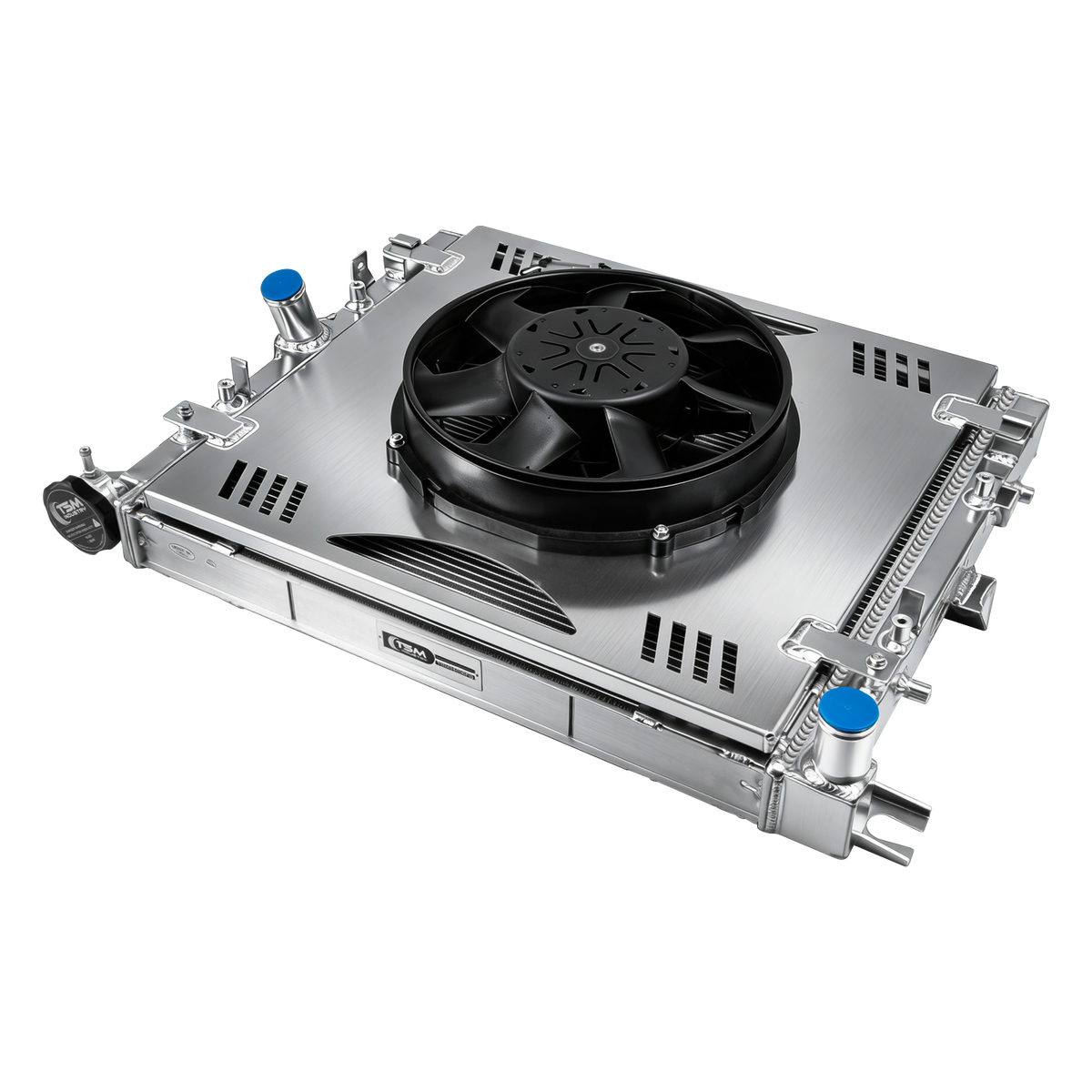

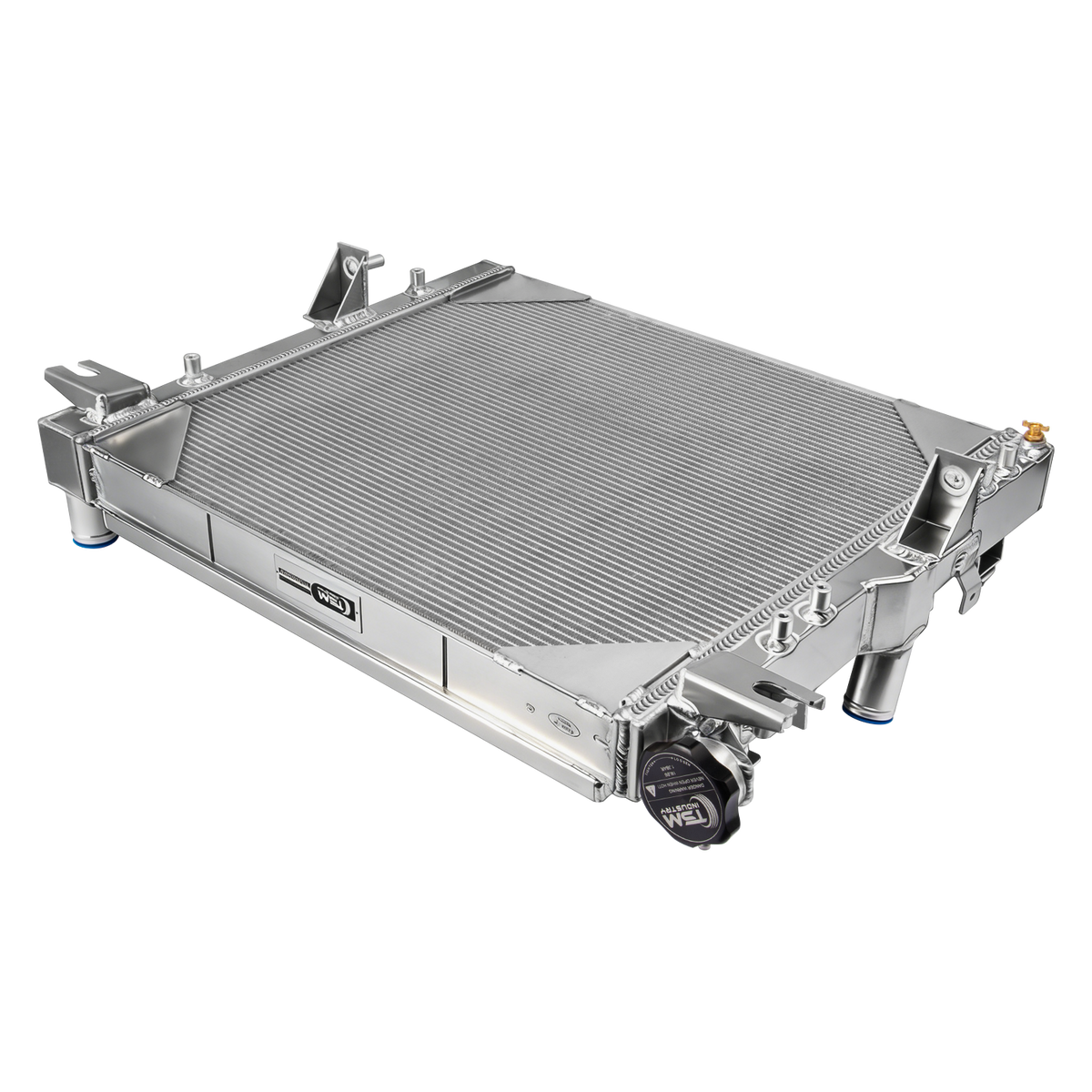

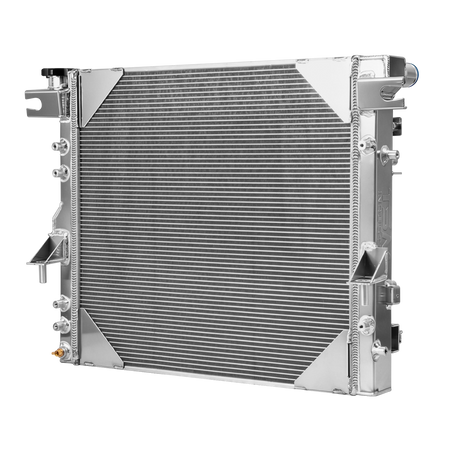

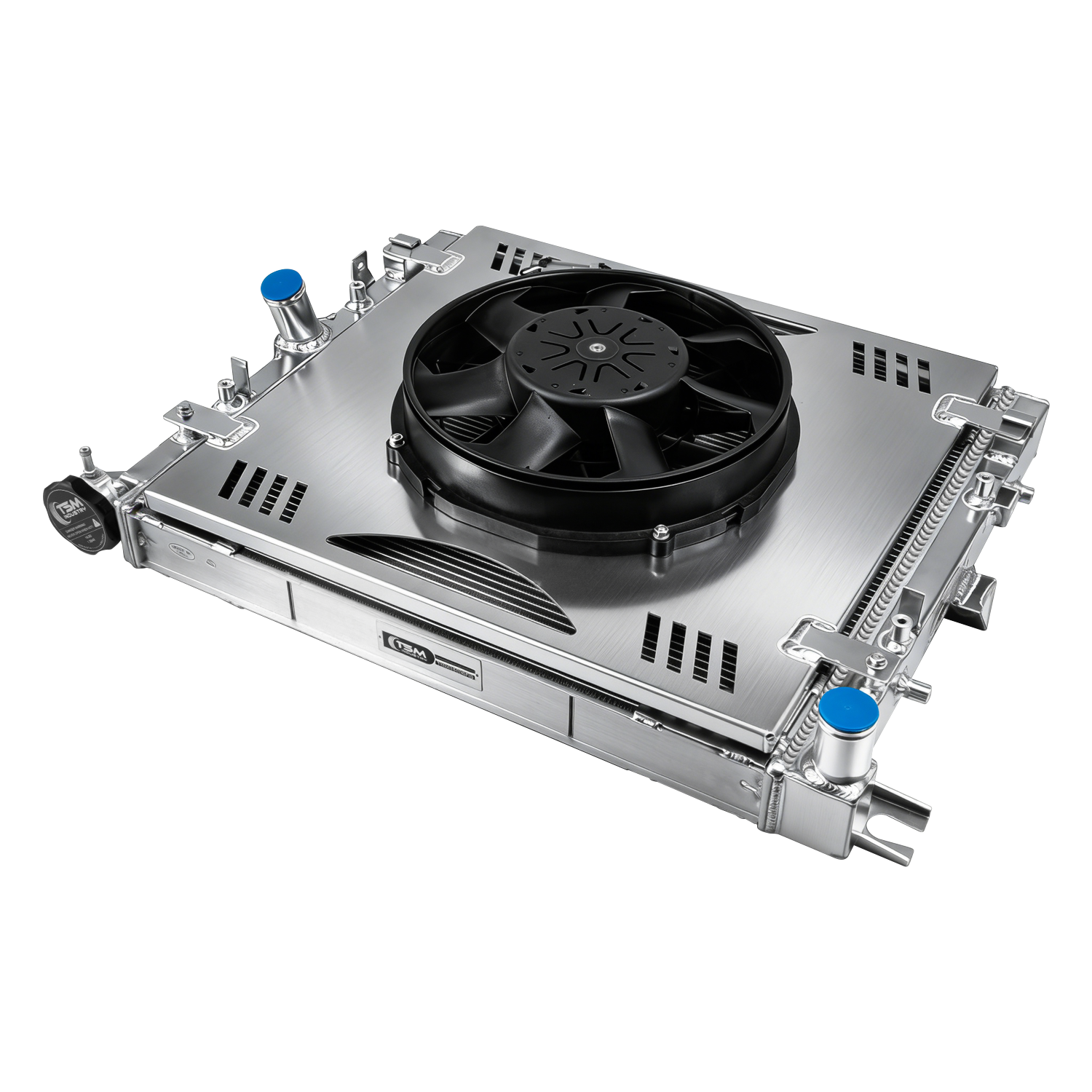

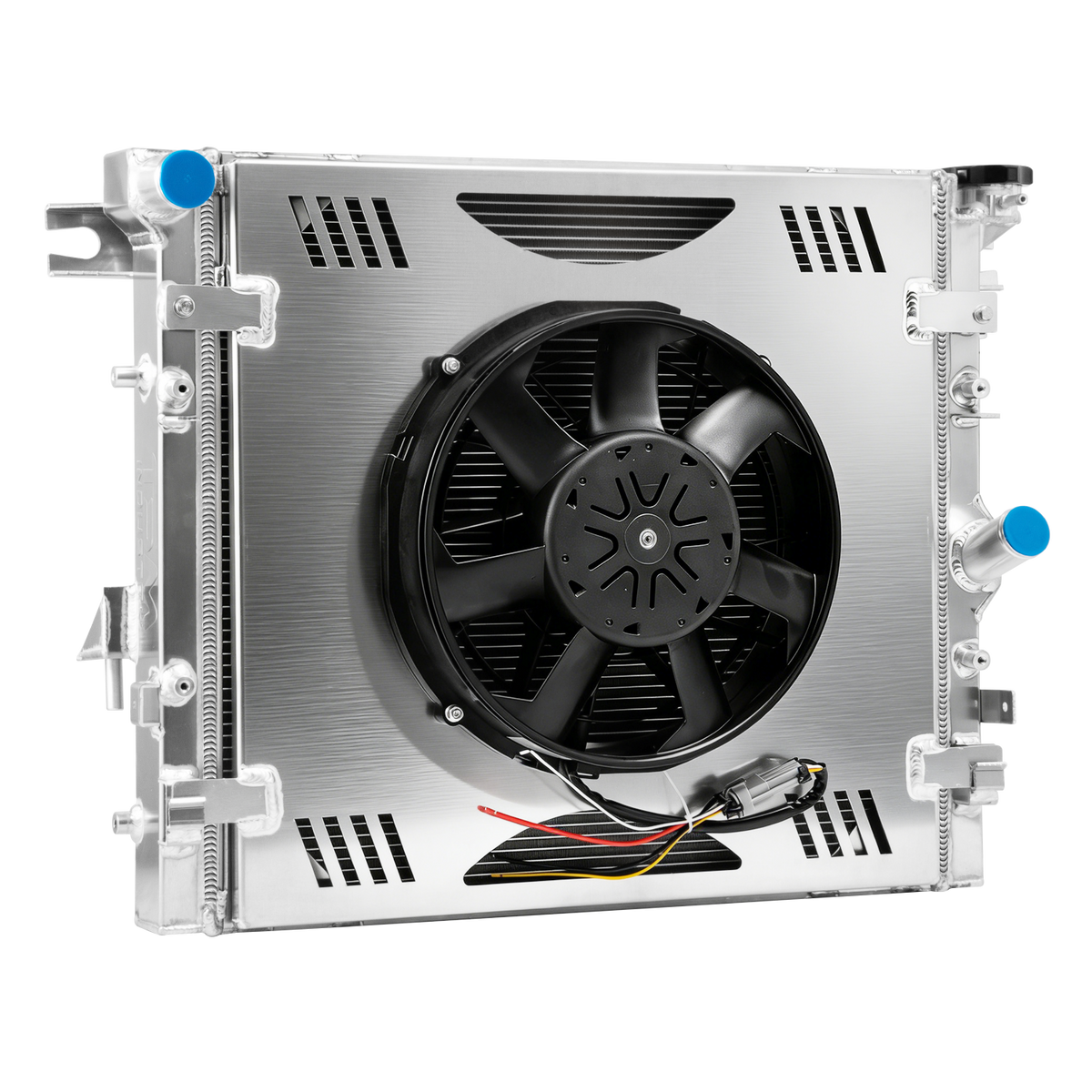

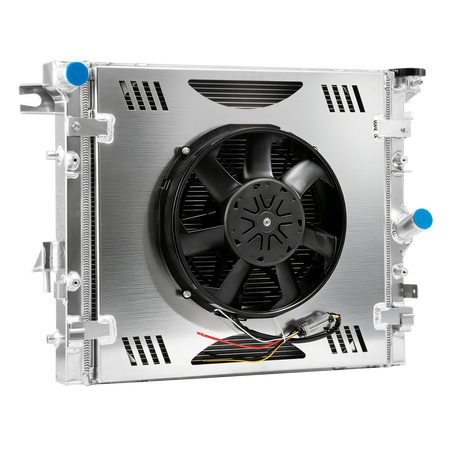

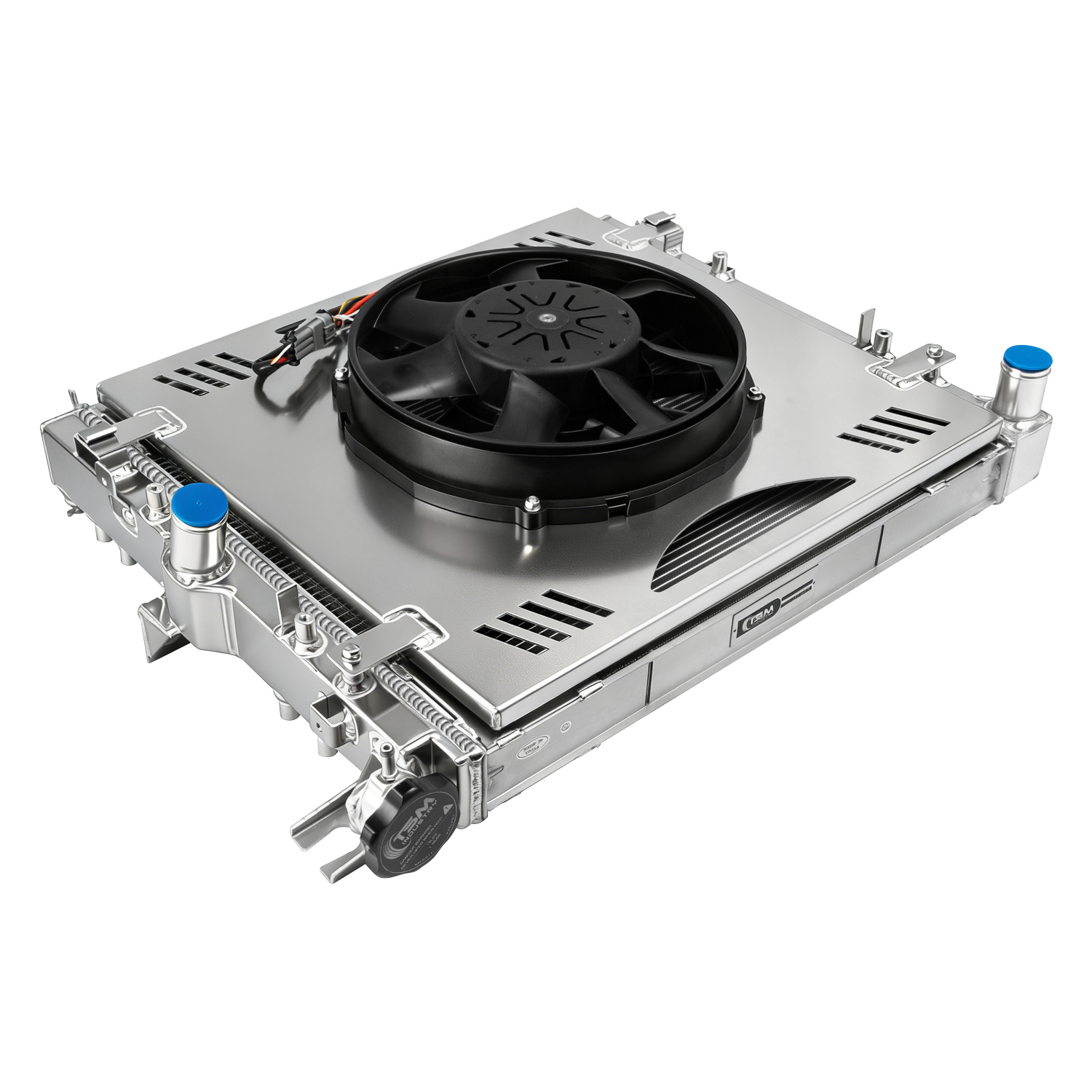

TSM 3Row Radiator+Shroud +Brushless Fan Fit 2007-2017 Jeep Wrangler JK 3.6/3.8L

ASI6229

In stock

SKU: TSM35036FS Barcode: ASI6229

No reviews

$379.00

Overall Size

29.45" W × 21.65" H

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

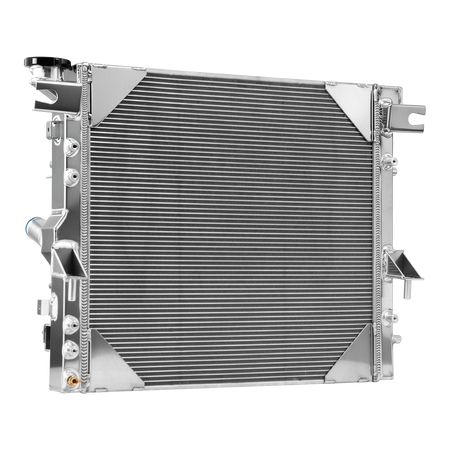

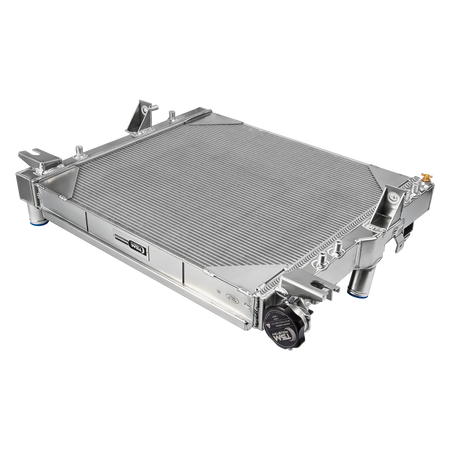

Radiator Specifications

Core Design	3-Row Core
Core Size	20.39" W × 21.06" H
Overall Size	29.45" W × 21.65" H
Inlet / Outlet	1.5" / 1.5"
Petcock Drain	OEM Style Brass Petcock Drain

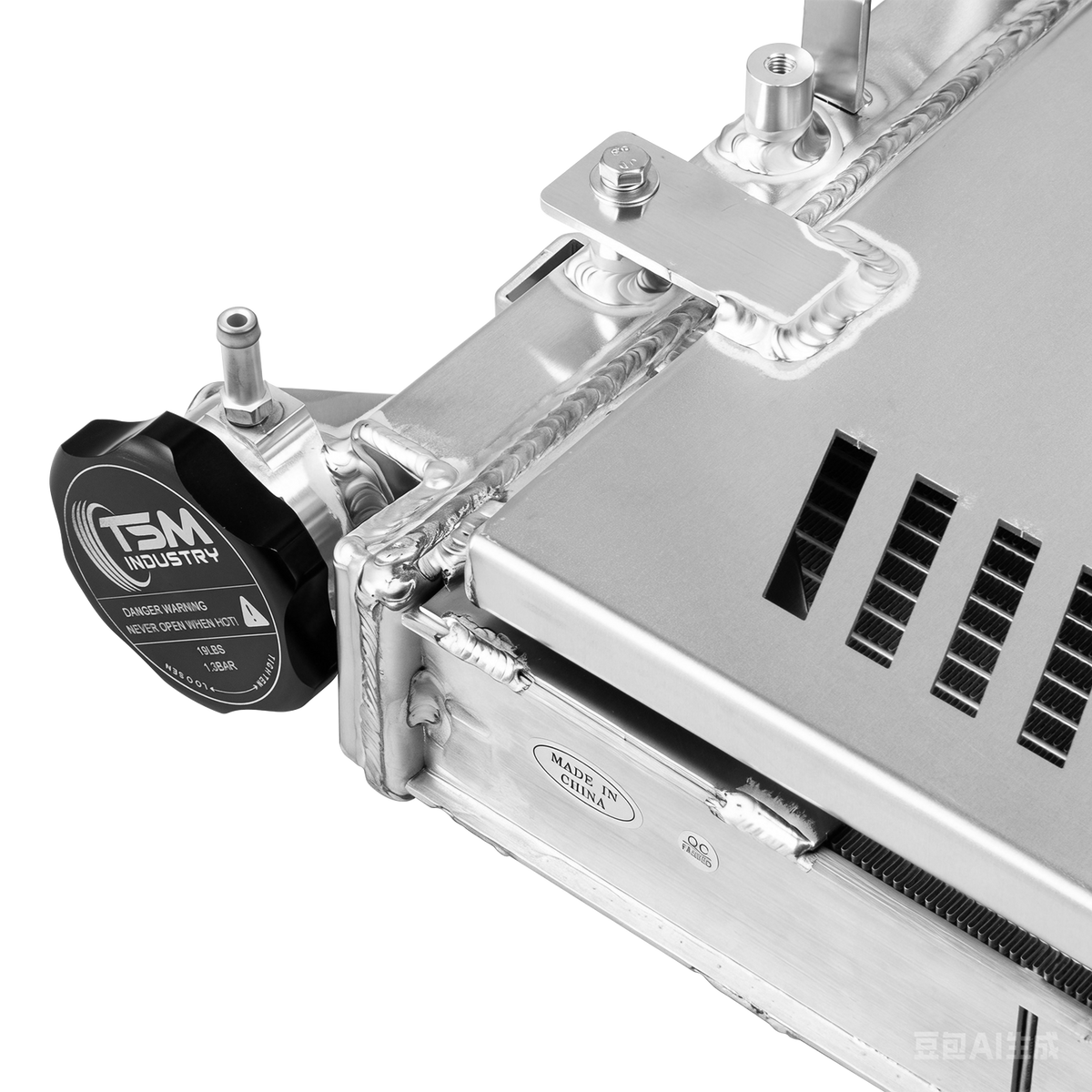

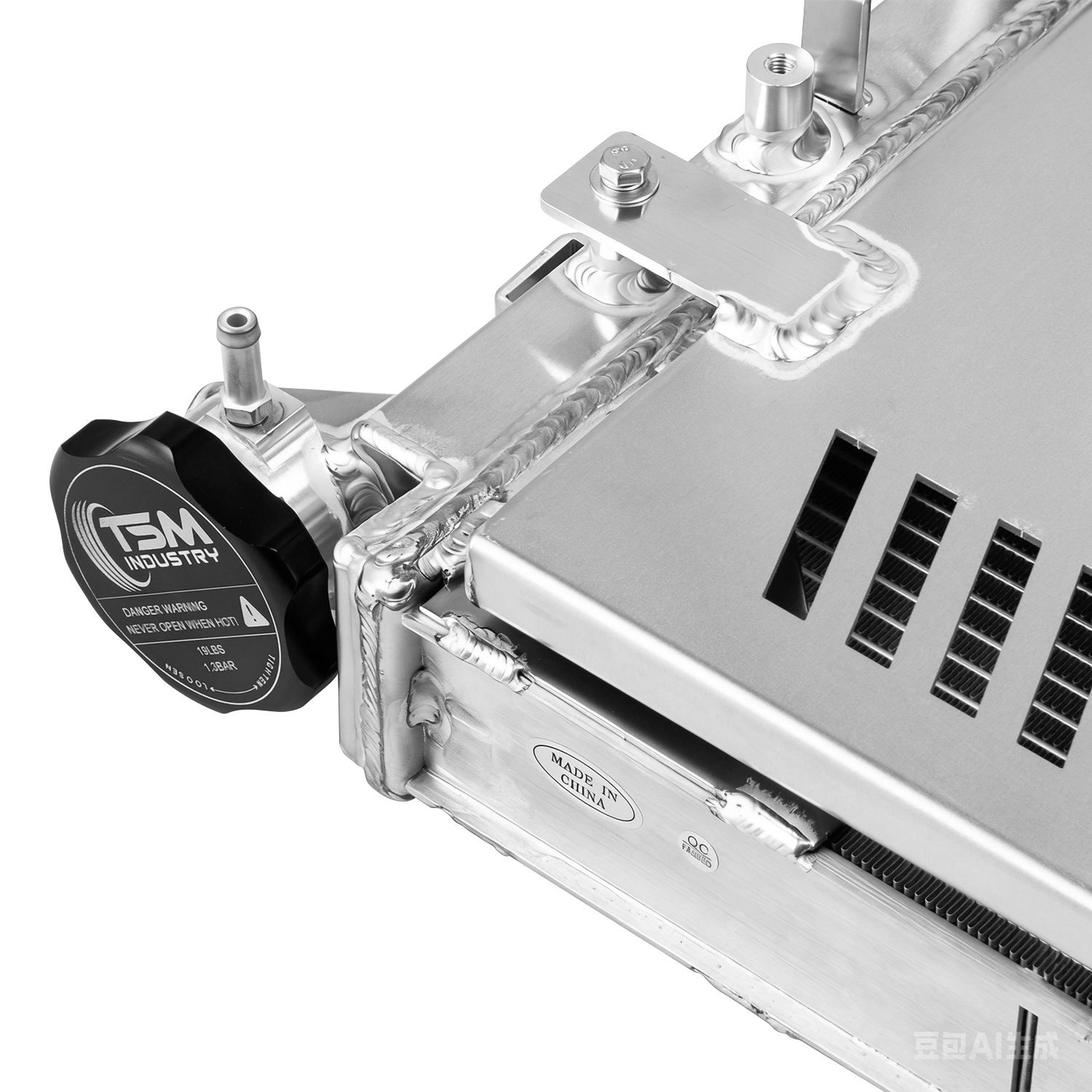

Radiator Cap	CNC Machined Billet and High Pressure Radiator Cap, 1.3 Bar

Vehicle Fitment

2007-2011 Jeep Wrangler 3.8L
2012-2015 Jeep Wrangler 3.6L

Part Numbers

DPI	2957
OE	68143886AA
Partslink	CH3010343
SBCSF	CSF3592
SBQ	Q2957

Fan Specifications

Model	KBRL343
Fan Diameter	12"
Voltage	DC 24V
Maximum Current	≤14A
Speed	≥3400 RPM
Airflow	2500 m³/h
Static Pressure	100 Pa
Overall Diameter	φ305
Mounting Hole	φ12
Cable Length	400 ± 100 mm
Motor Type	Brushless

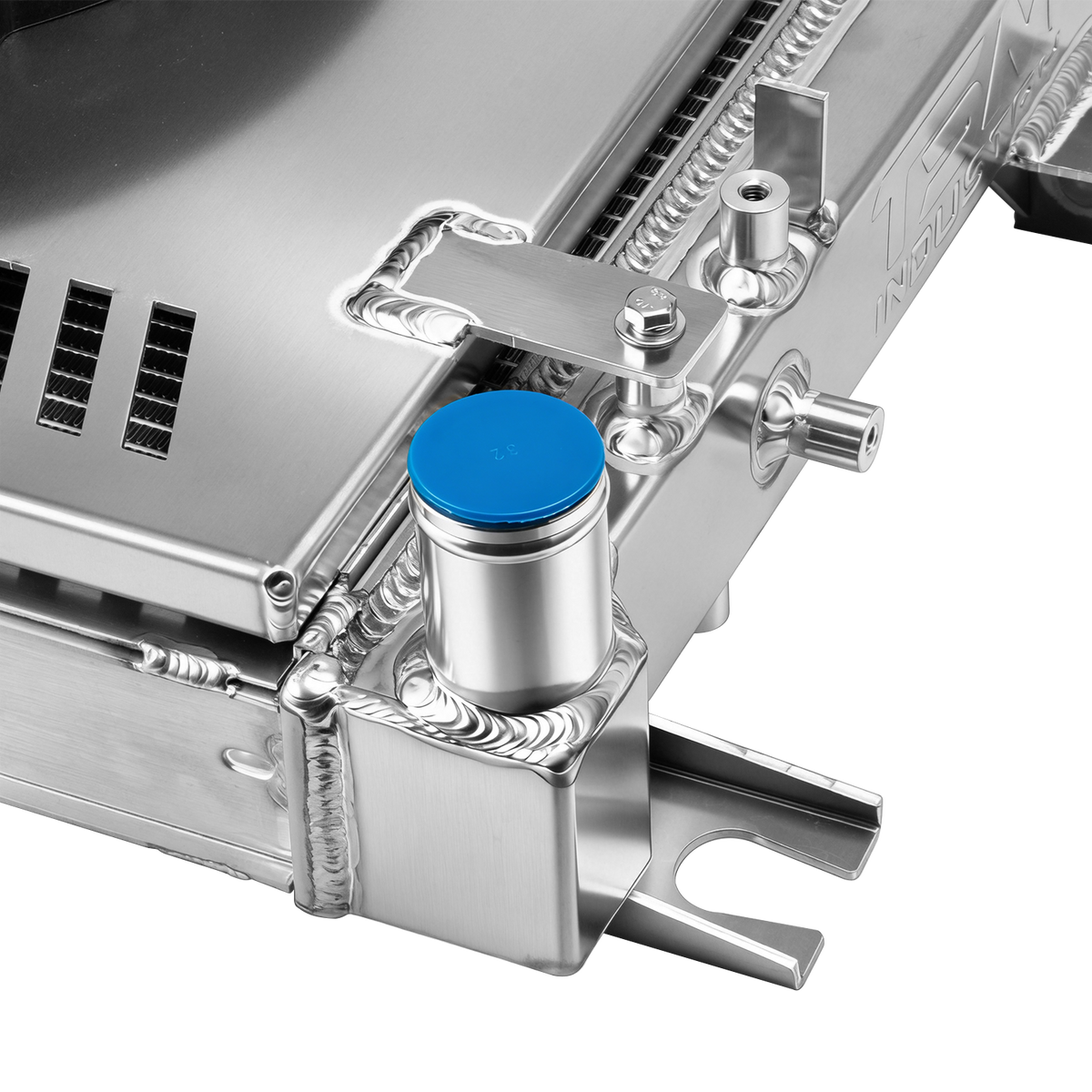

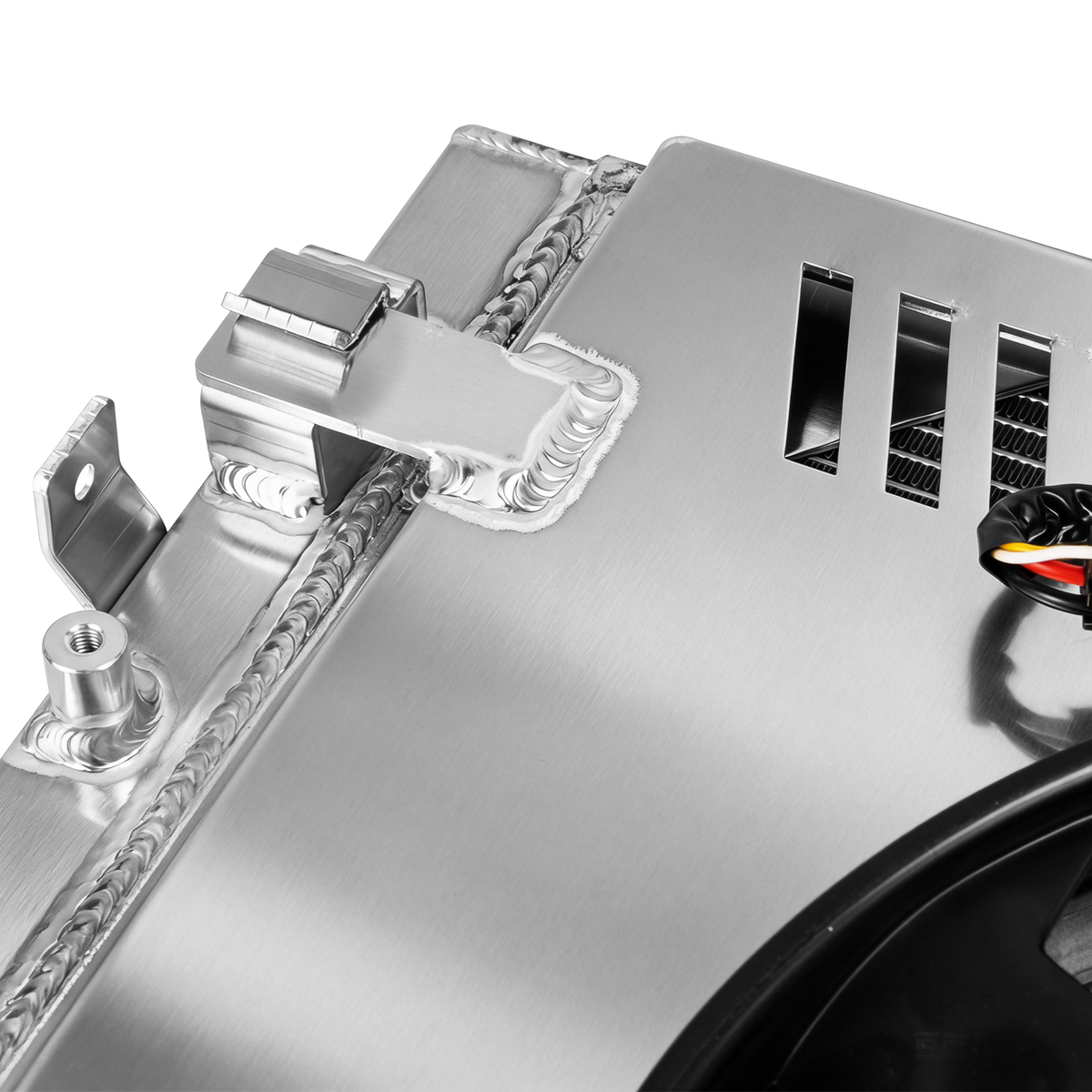

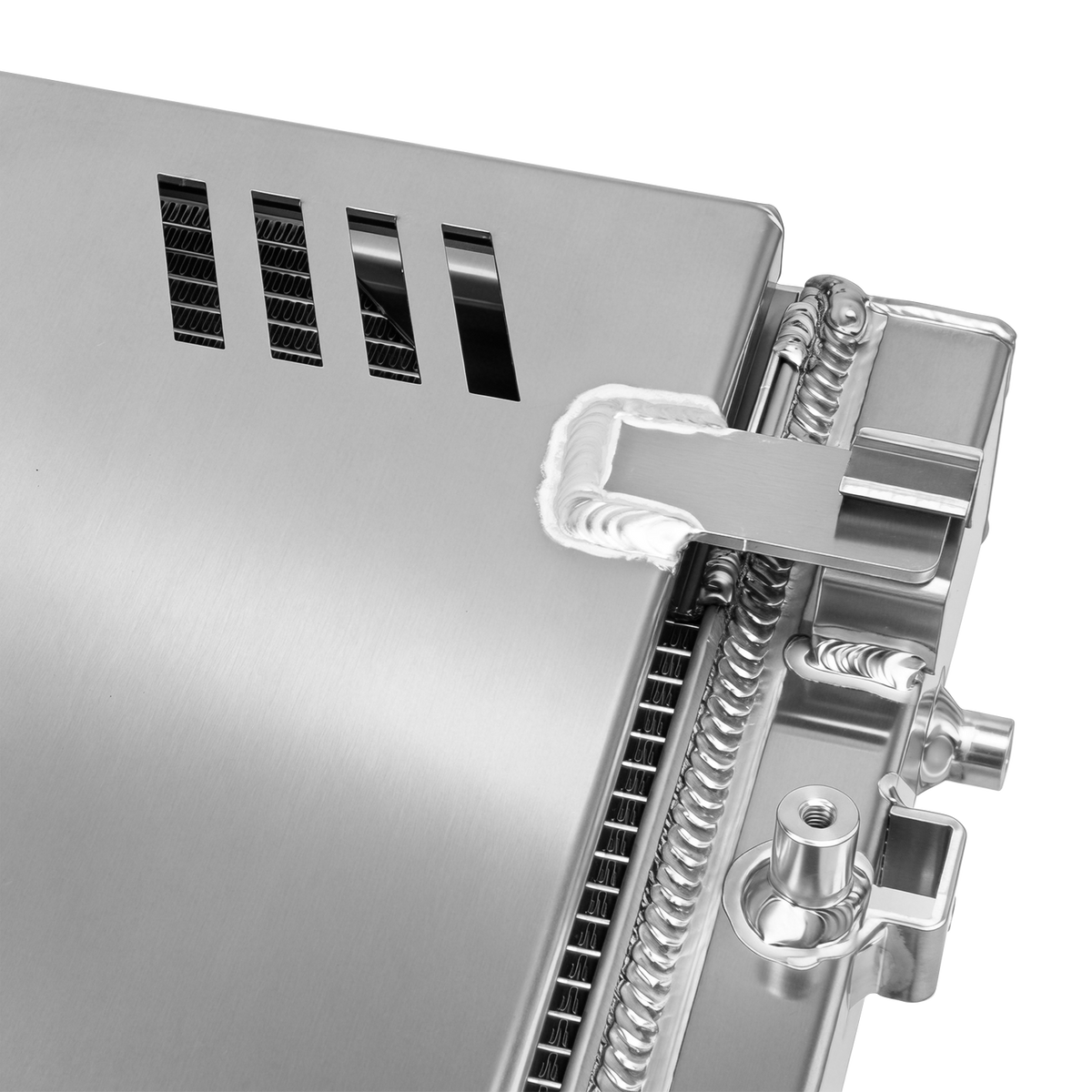

AA5083 Aluminum Fan Shroud Performance Advantages

1. Premium AA5083 Marine-Grade Aluminum Construction: High-strength, corrosion-resistant alloy delivers superior durability compared with standard aluminum, making it suitable for harsh engine bay environments.

2. Sealed, High-Efficiency Airflow Design: Precision-fitted shroud helps eliminate air leakage around the radiator core, forcing fan airflow through the cooling fins for 30%–50% better heat rejection than unshrouded setups.

3. Aerodynamic Vented Structure: Optimized vent design reduces turbulence, helps prevent hot spots, and efficiently expels hot air from the engine compartment.

4. Engine Protection & Structural Reinforcement: Secures fan blades in place, helps prevent contact with other engine components, and reinforces the radiator core against vibration and road debris damage.

5. Maintains Optimal Engine Conditions: Helps provide consistent, even cooling to preserve engine performance, extend service life, and improve overall operating conditions.

6. Direct Bolt-On Fitment: Precision-machined for easy, no-modification installation and a clean engine bay finish.

12" 24V Brushless Cooling Fan Features

1. Long-Lasting Brushless Motor: No carbon brush abrasion, lower operating noise, longer service life than brushed fans, and minimal maintenance required.

2. Excellent Cooling Efficiency: Optimized curved fan blades deliver steady airflow to help dissipate heat from the condenser, radiator, and oil cooler.

3. Simple Bolt-On Installation: Standard 12" frame size with prefabricated φ12 mounting holes and a 400 ± 100 mm factory pre-wired cable for convenient installation.

4. Wide Application: Suitable as an aftermarket replacement for trucks, buses, agricultural vehicles, construction equipment, and industrial refrigeration cooling assemblies.

Description

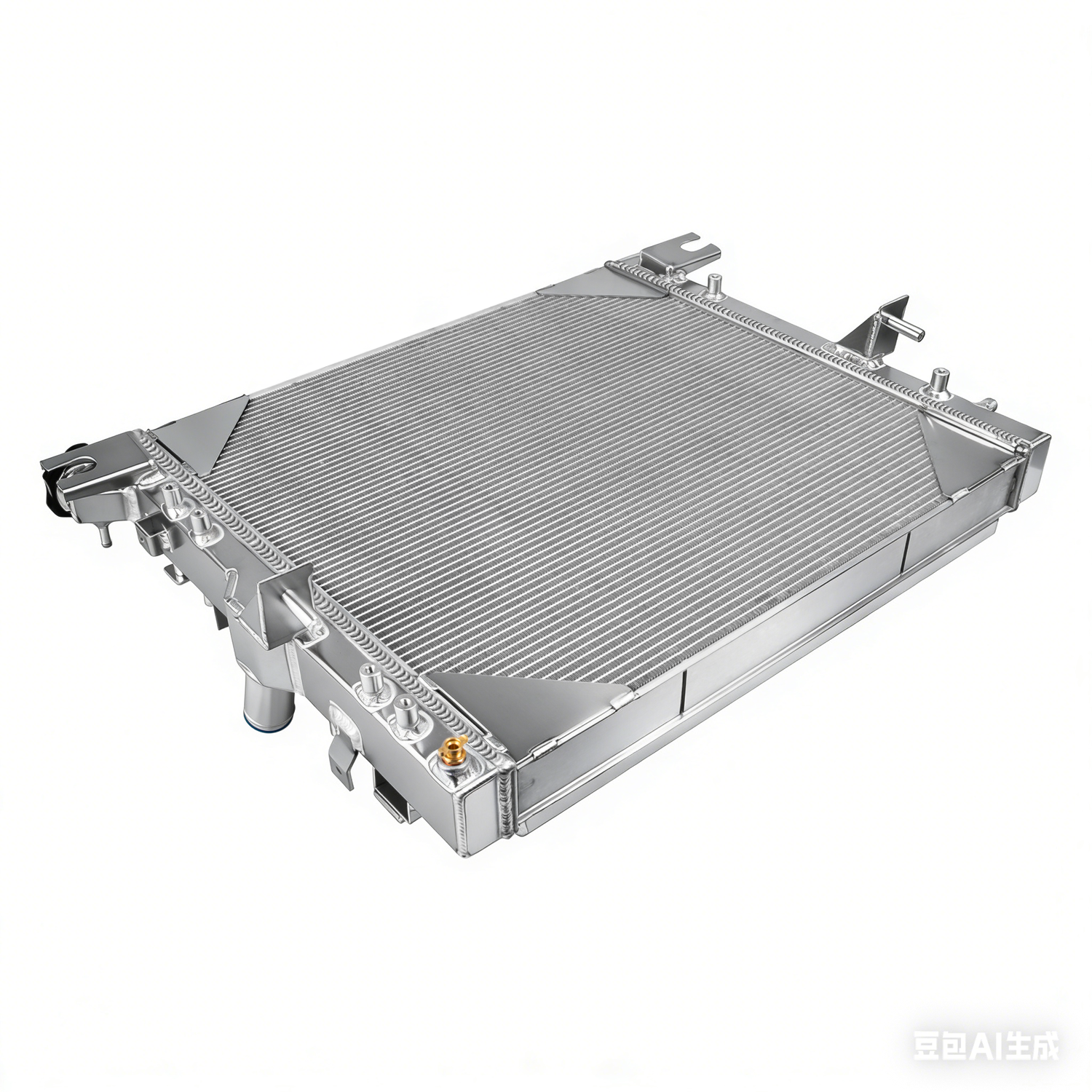

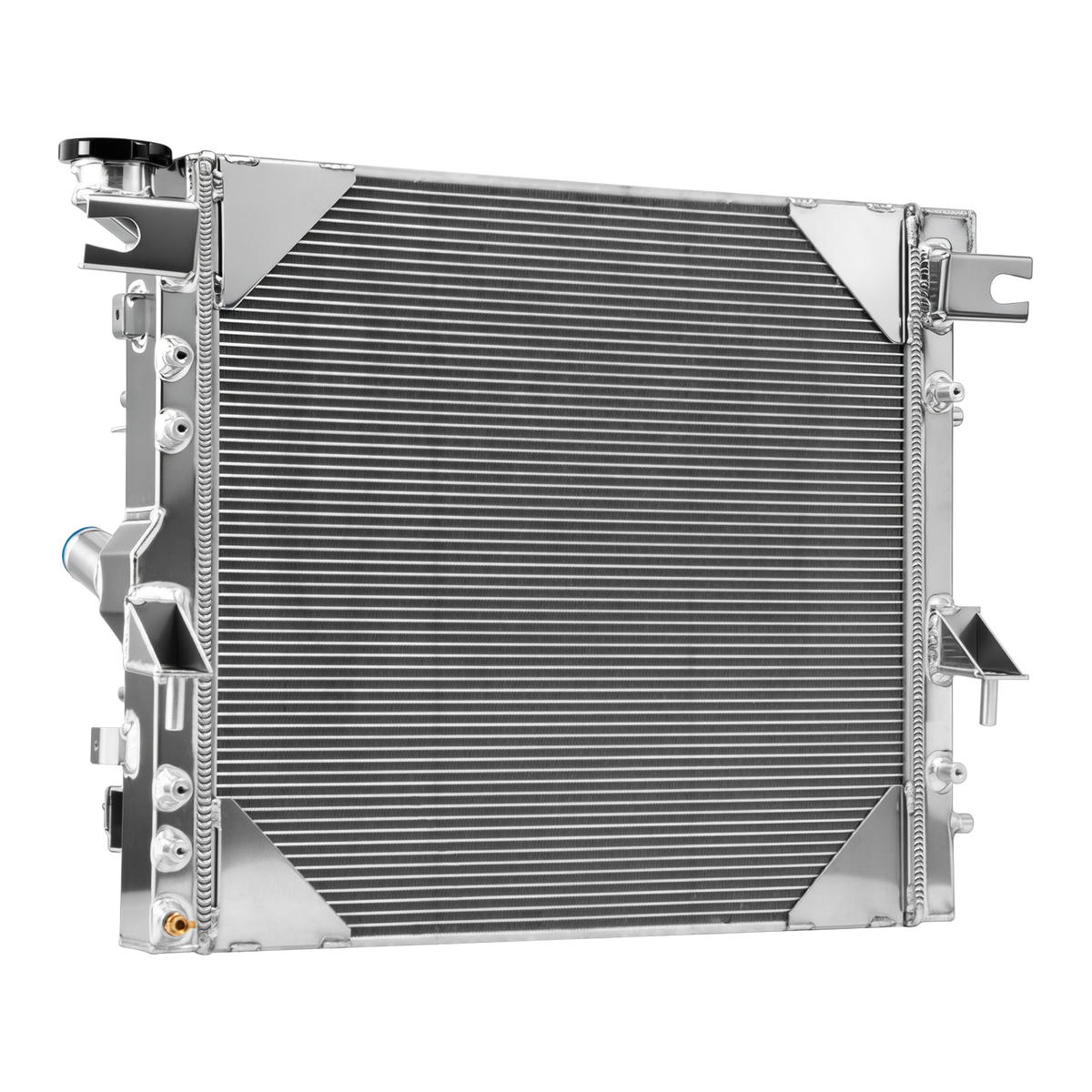

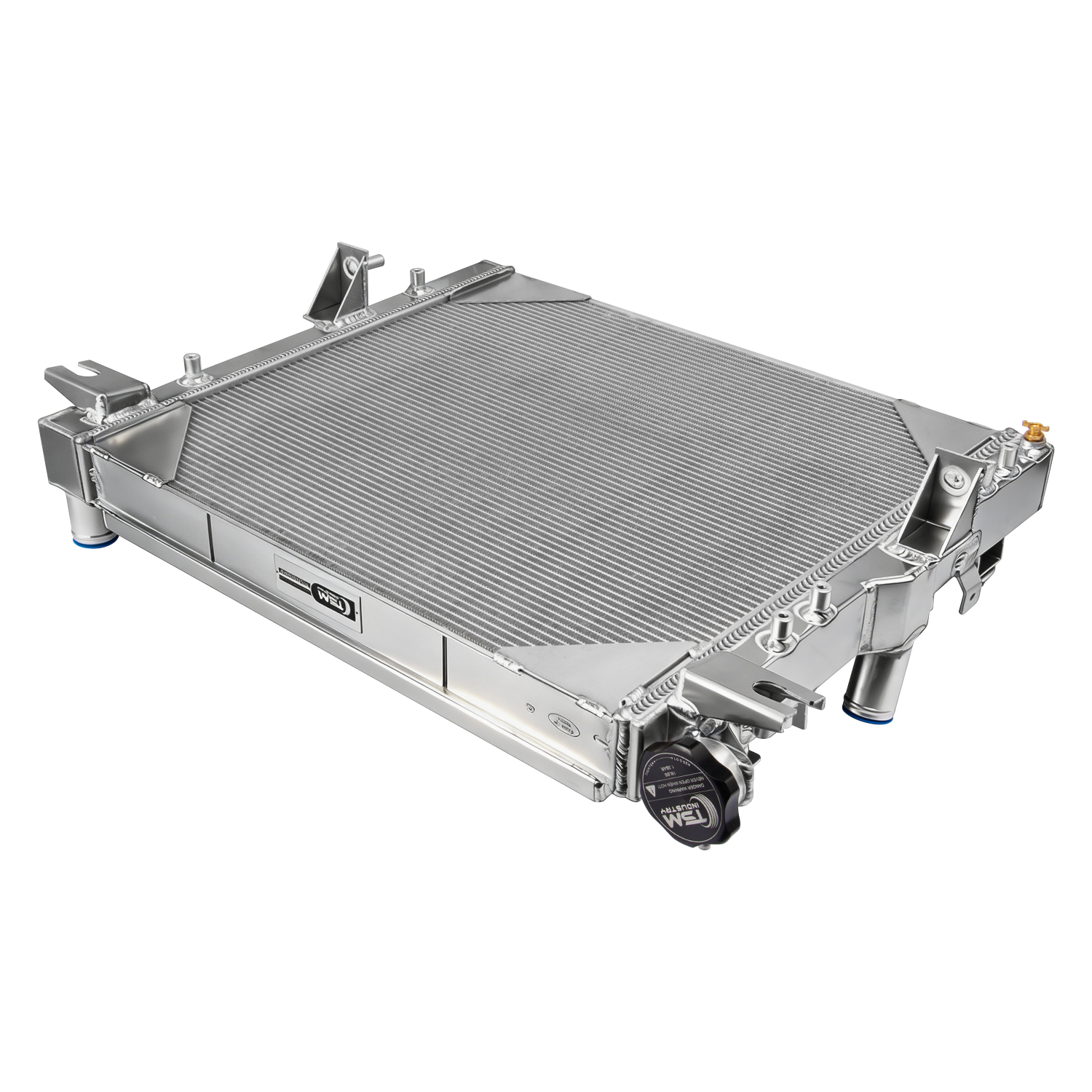

This TSM® AA5083 Aluminum Radiator is designed to provide maximum cooling efficiency to help prevent premature engine failure. Its lightweight, high-heat-transfer aluminum construction features a tube-and-fin design that dramatically increases surface area, allowing heat to dissipate more efficiently.

This AA5083 Aluminum Radiator is at least 30%–45% more efficient than stock radiators and helps the cooling system operate more efficiently while resisting temperature surges in racing applications.

1. Made of AA5083 aircraft aluminum.
2. Brazed core technology.
3. 2 mm thick tanks and fittings.
4. Fin height: 6 mm.
5. Higher density core: cooling rows are spaced 3/8" apart.
6. 14–16 cooling fins per inch.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
