ASI Performance 3Row Radiator Shroud+Fan+Relay Fit 98-05 Toyota Aristo JZS161 LEXUS GS300 GS400

Fitment:

Package Include:

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

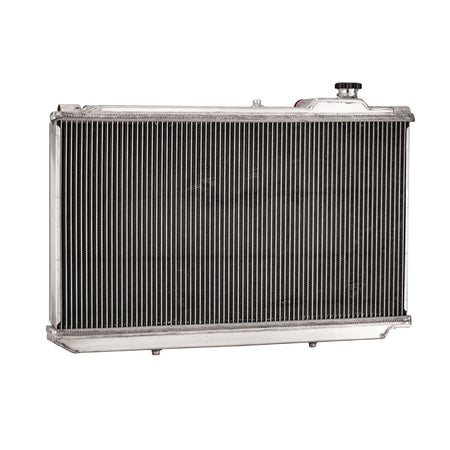

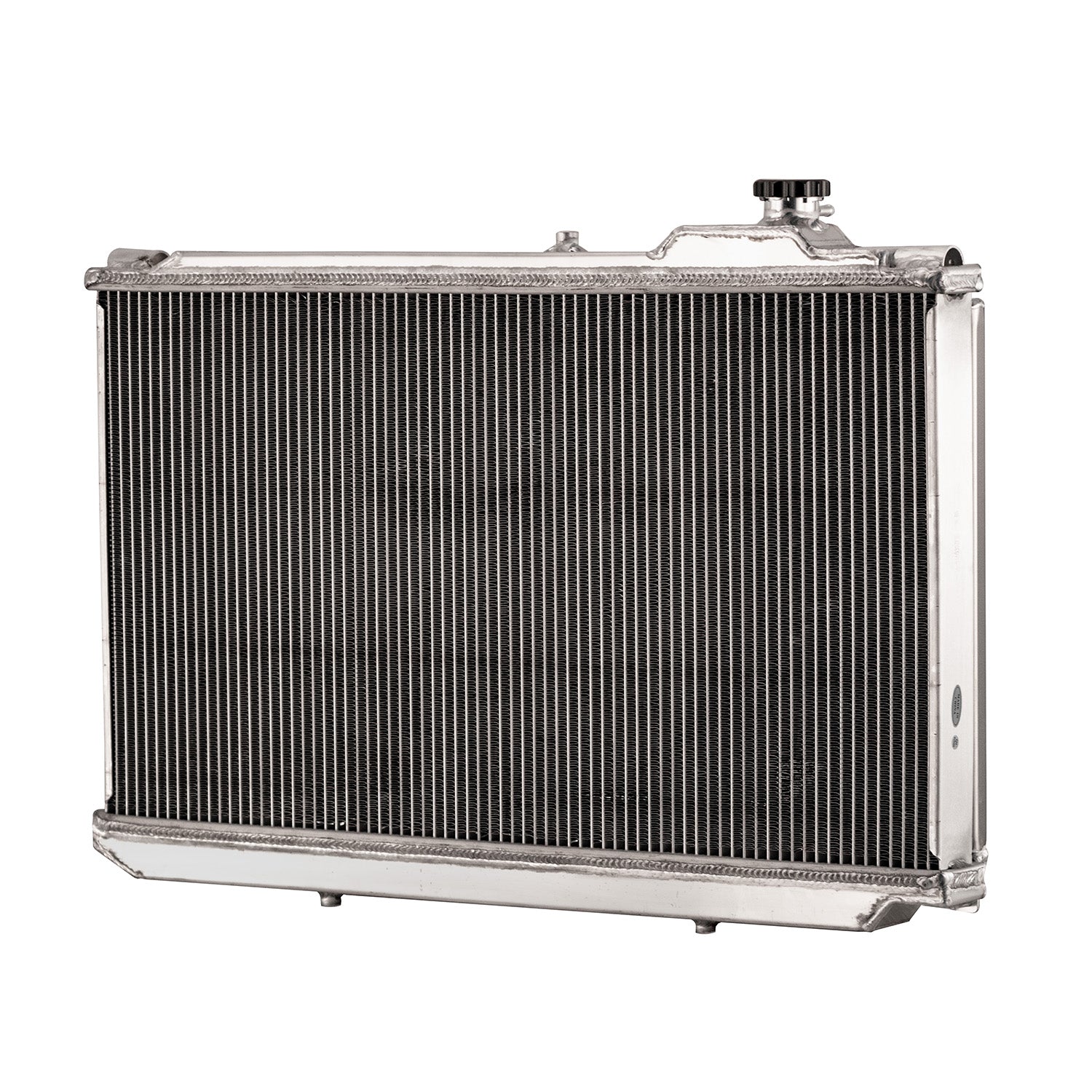

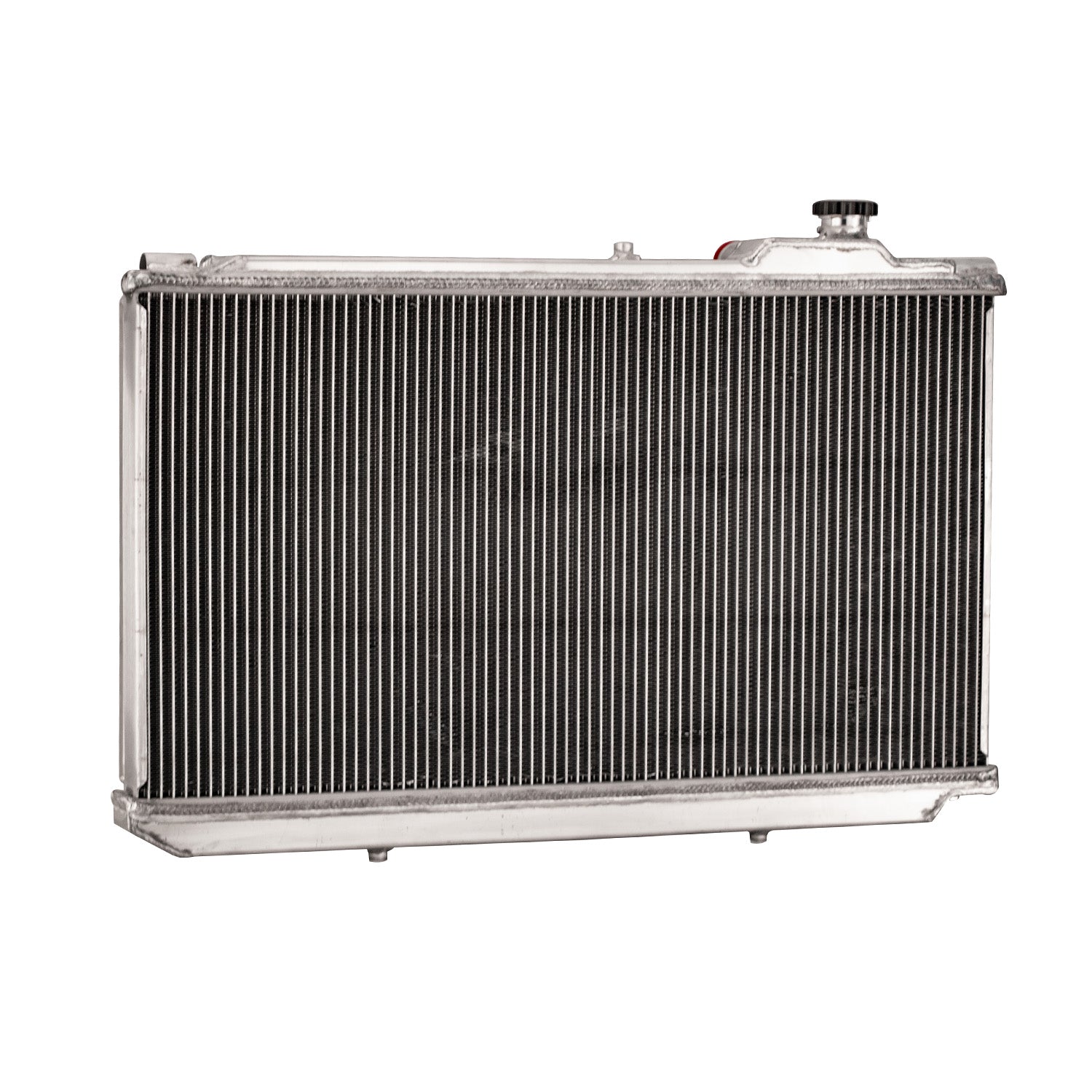

Radiator Configuration:

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Core Size: 16" H x 30" W

Upper Inlet: 1.4"

Lower Outlet: 1.4"

Transmission Oil Cooler: Not Included

Please check the product size and specifications before purchasing.

Application:

For 1998-2005 Toyota Aristo JZS161 2JZ-GTE LEXUS GS300 GS400 MT(Manual Only)

Fan Specification:

Diameter : 12'' (Blade to Blade)

Voltage: DC 12 Volts

Fan Thickness: 2.5"

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Description:

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

1.made of AA5052 aircraft aluminum,stronger than other popular alloys and has increased corrosion resistance.

2.Brazed core technology to guarantee optimum performance and dependability.

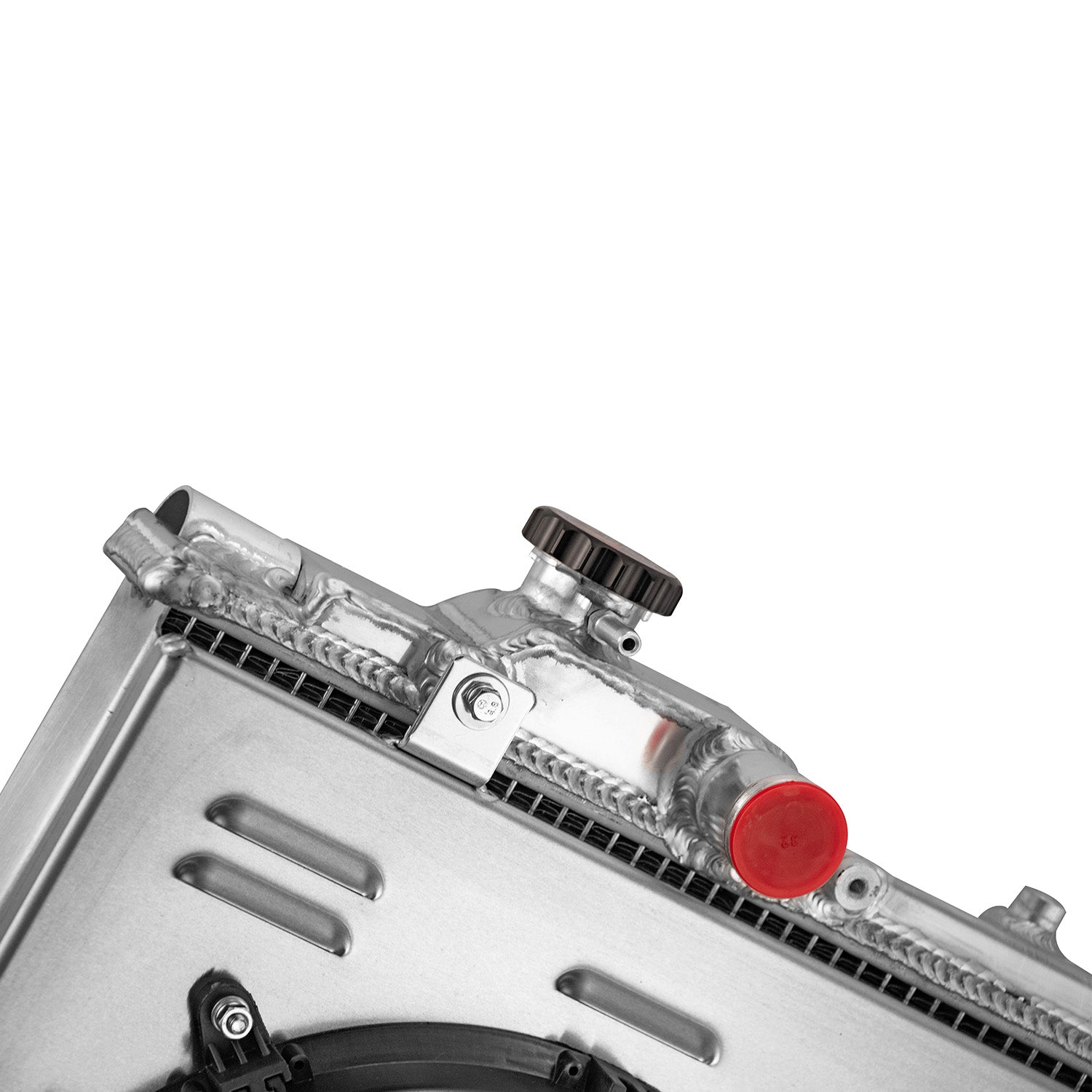

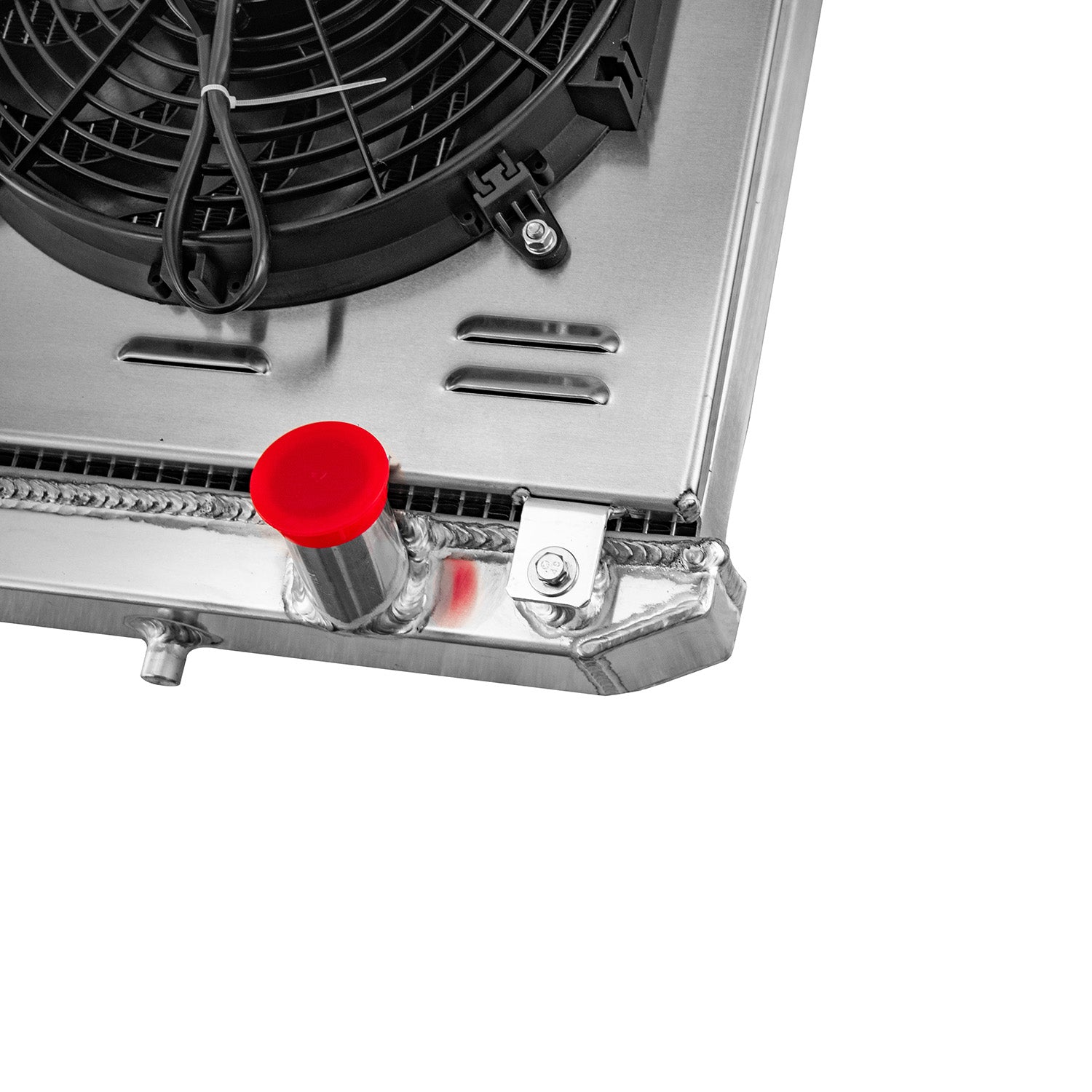

3.AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable.

4.Higher density core: cooling rows are spaced 3/8" apart.giving you 25% more rows within the core than other aluminum radiators.

5.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.

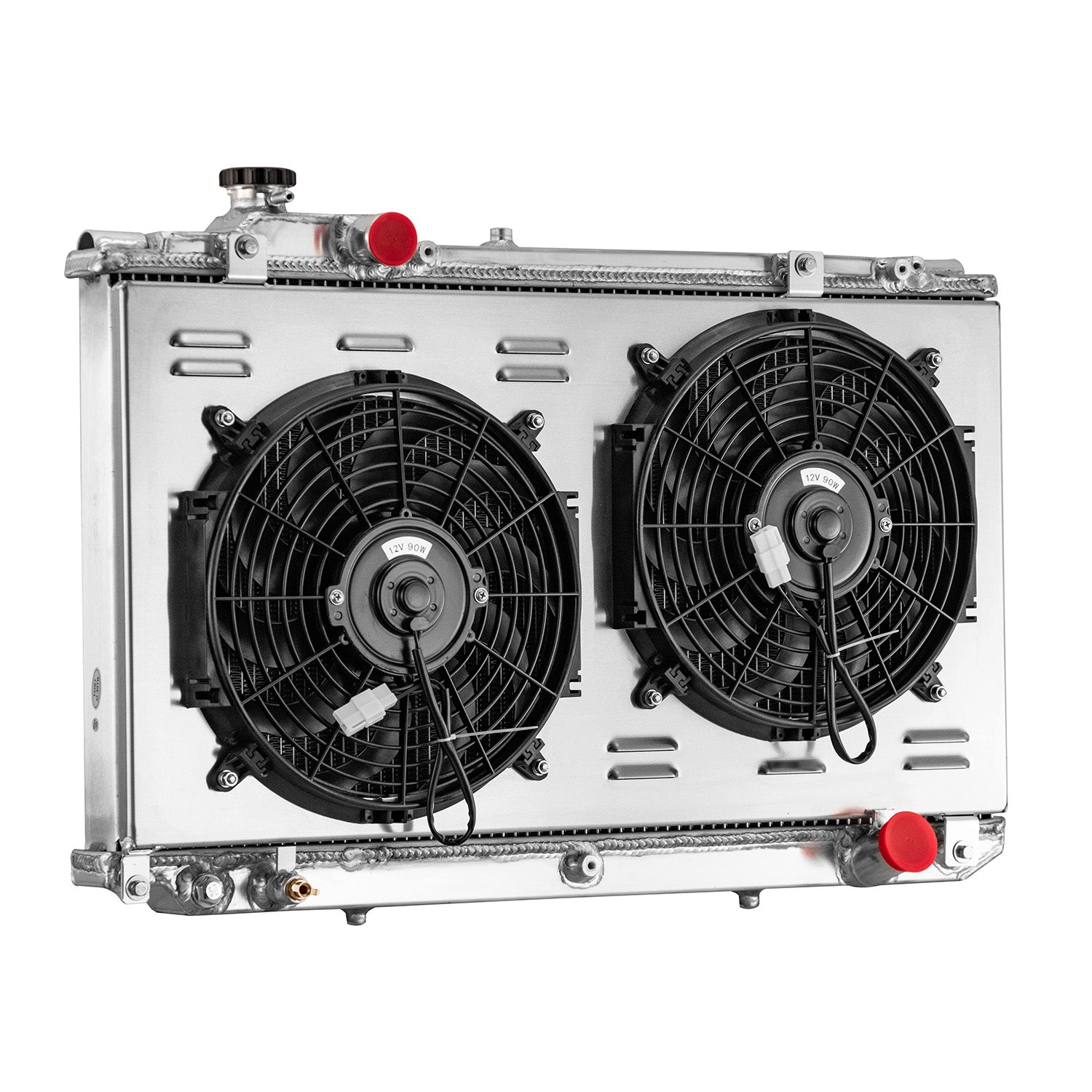

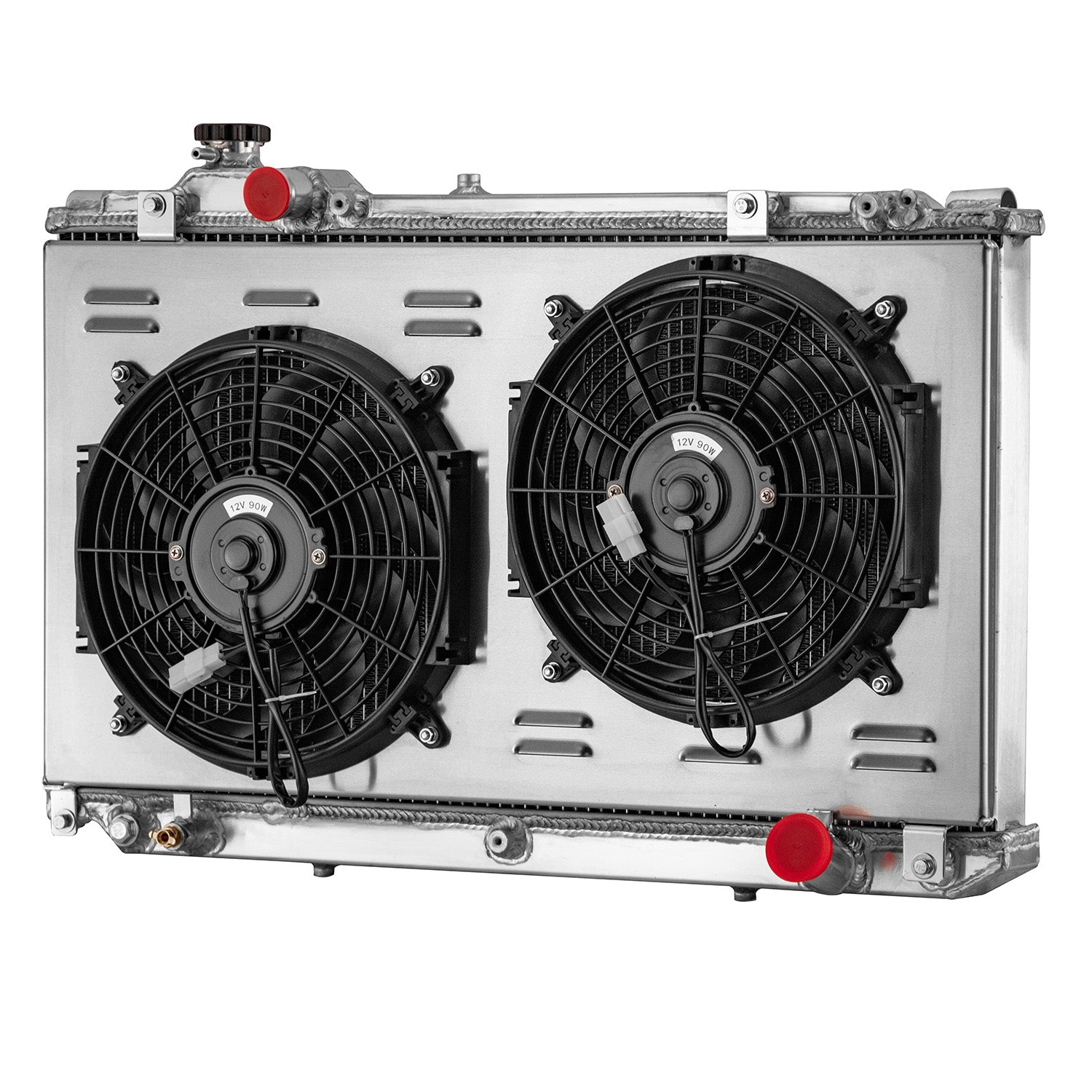

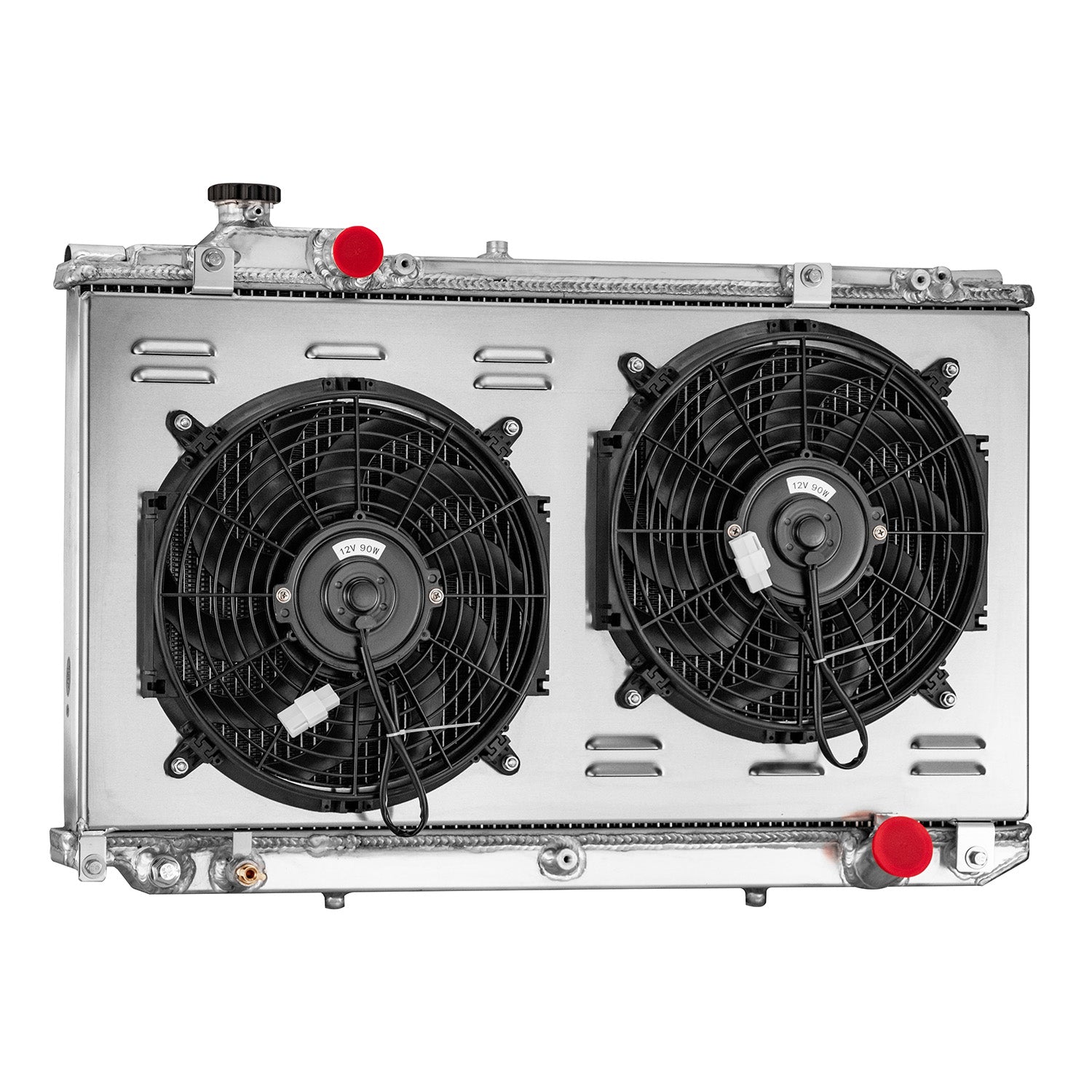

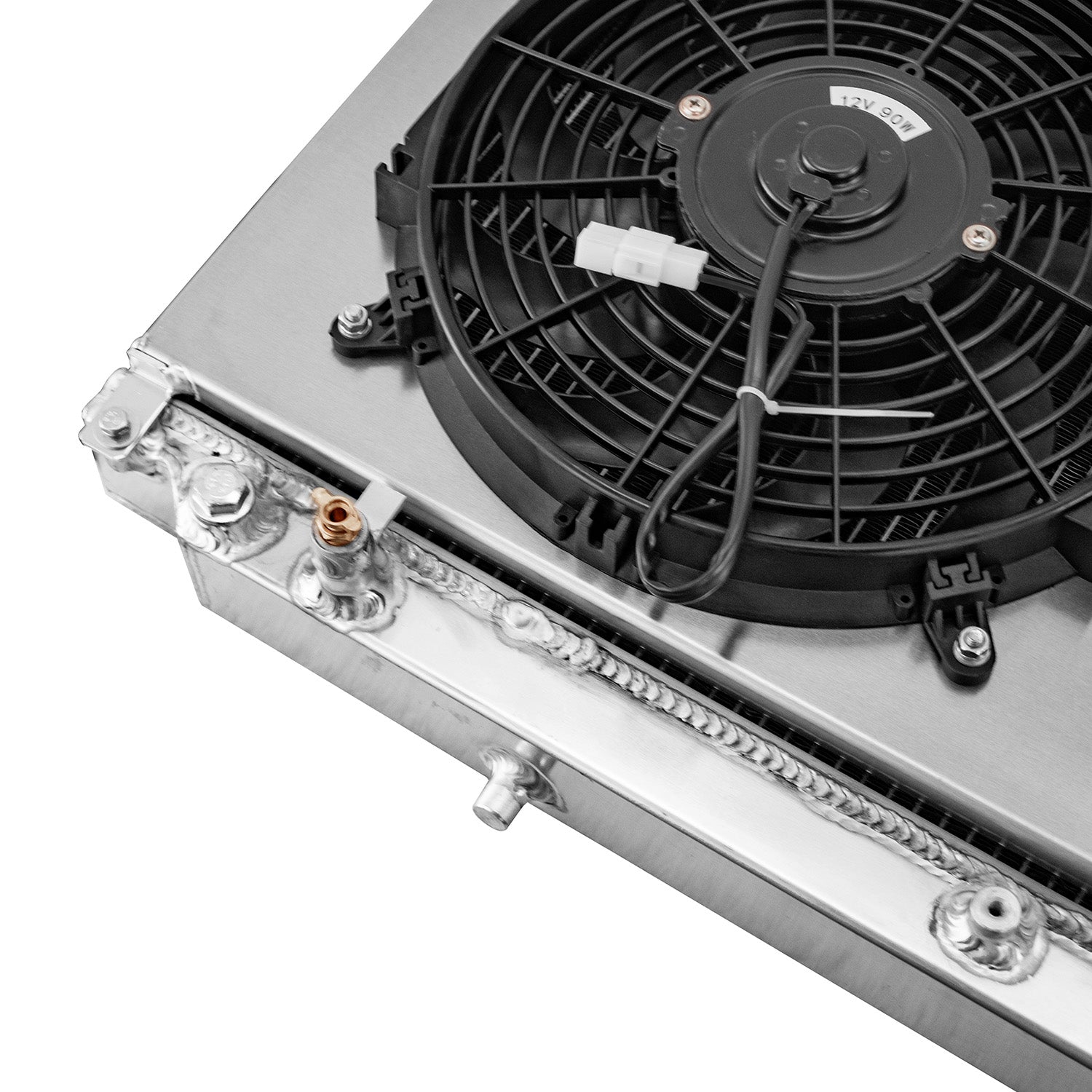

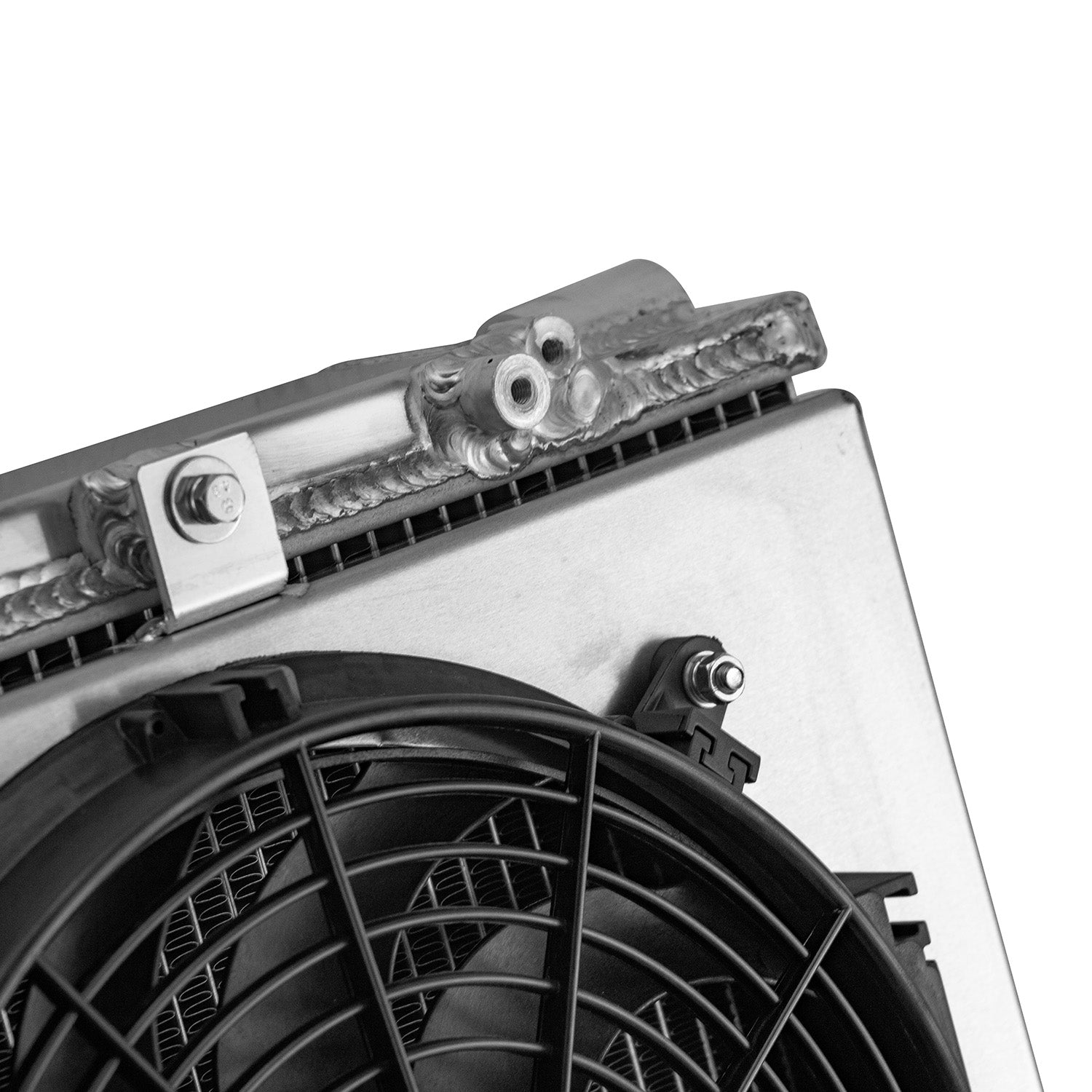

AA5052 Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice,consider for every detail and needed.

Thermostat Kit:

Work with any 12 volt system.

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

185'F turn-on temperature, 165'F turn-off temperature.

Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions：

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.
