ASI Performance 4 ROW RADIATOR For 66-79 FORD F-100 F-150 F-250,F-350 PICKUP TRUCK CHEVY ENGINES

ASI2546

In stock

SKU: MC833DZ-BN Barcode: ASI2546

No reviews

$259.00

~~$284.90~~ Sale $259.00

Core Size

25.51"x18.90"x2.44"

More Options 4

ASI Performance 3 Rows Aluminum Radiator FITS 1966-79 Ford F100/F150/F250/F350 CHEVY v8 7.5L.

Out of Stock

$218.90 $199.00

ASI Performance 3-Row Aluminum Radiator For 1966-1979 Ford F150/F250 F350 Bronco Chevy V8 Black

In Stock

$229.90 $209.00

ASI Performance 3 Row Radiator Shroud Fan for 66-79 Ford F100 F150 F250 F350 PICKUP Chevy V8 Eng

In Stock

$284.90 $259.00

ASI Performance 4 Rows Radiator Shroud Fan FOR 1966-1979 Ford F100 F150 F250 F350 Bronco Truck

Out of Stock

$361.90 $329.00

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Please Note:
Top hose on Driver Side, bottom hose on Passenger Side.
If you need the opposite inlet and outlet configuration with this radiator (V8 ENG), we also have it available. Please check the size and inlet/outlet positions before ordering.

Package Includes

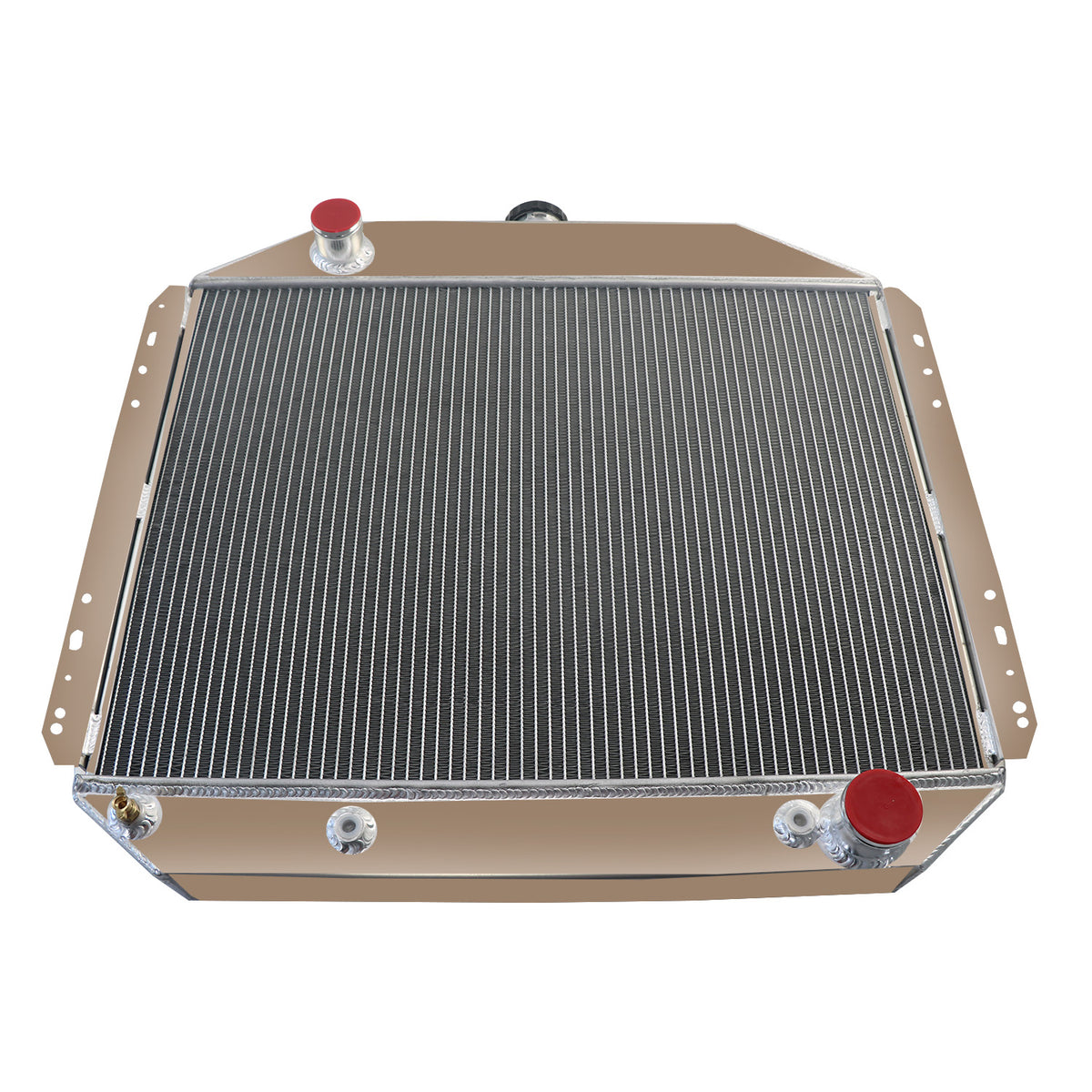

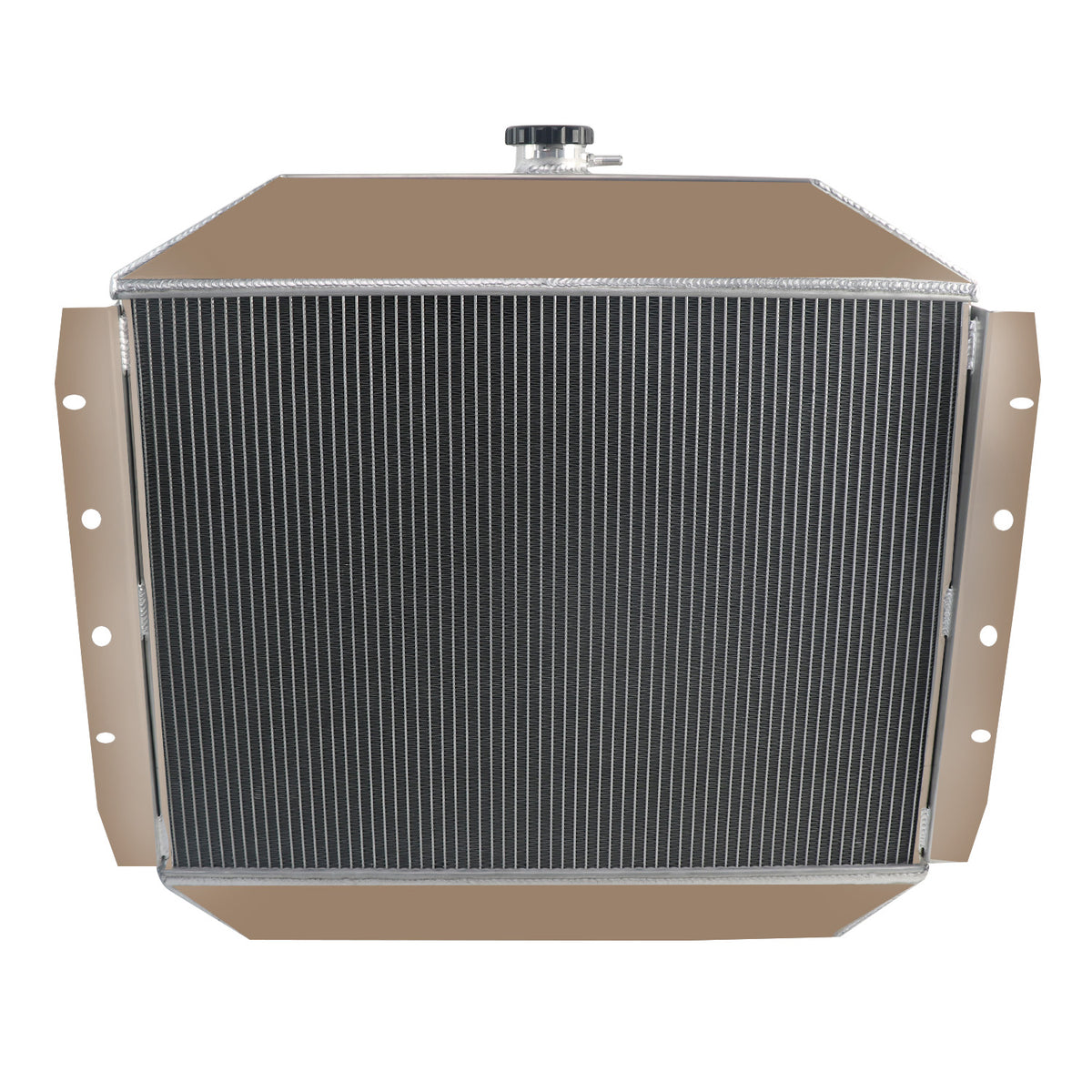

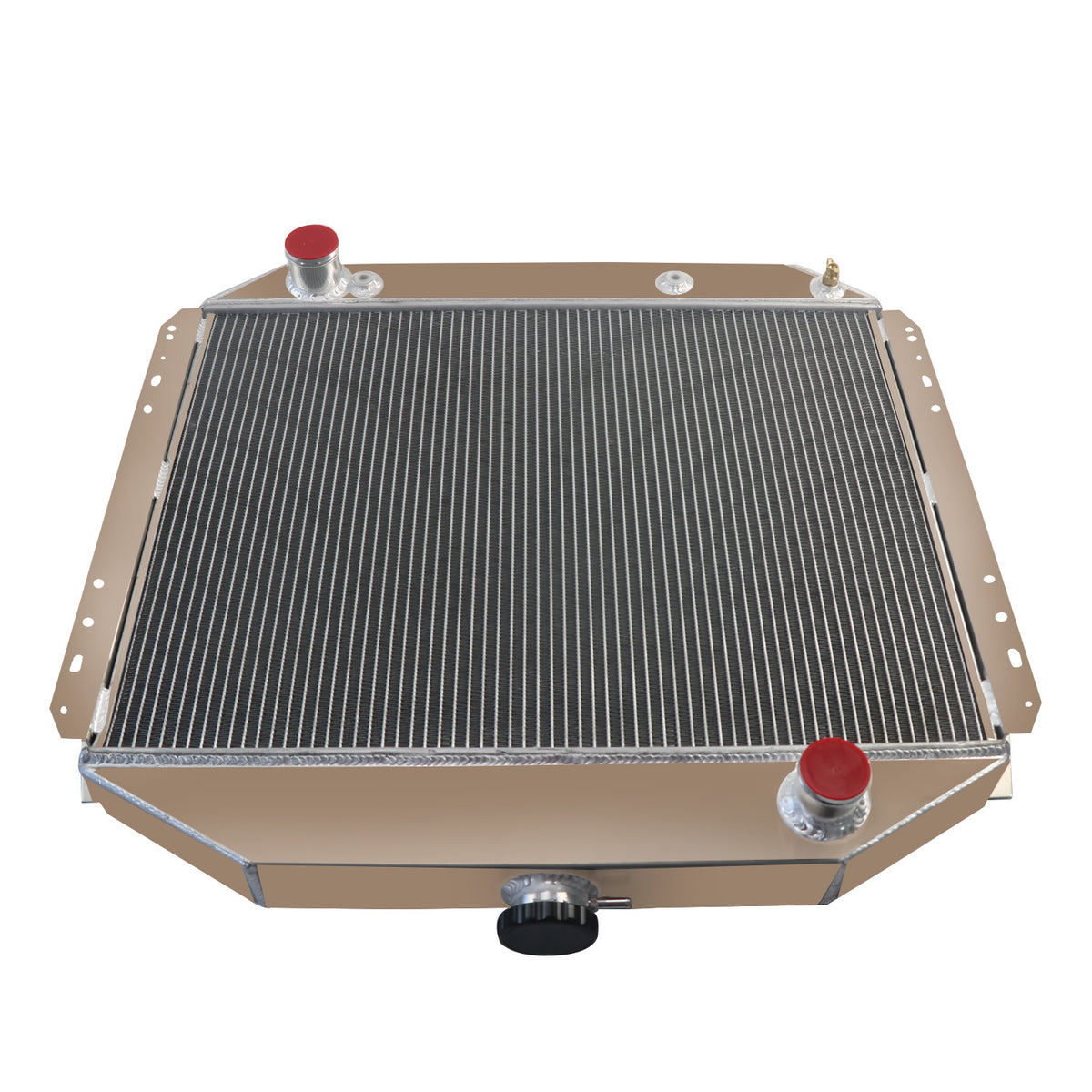

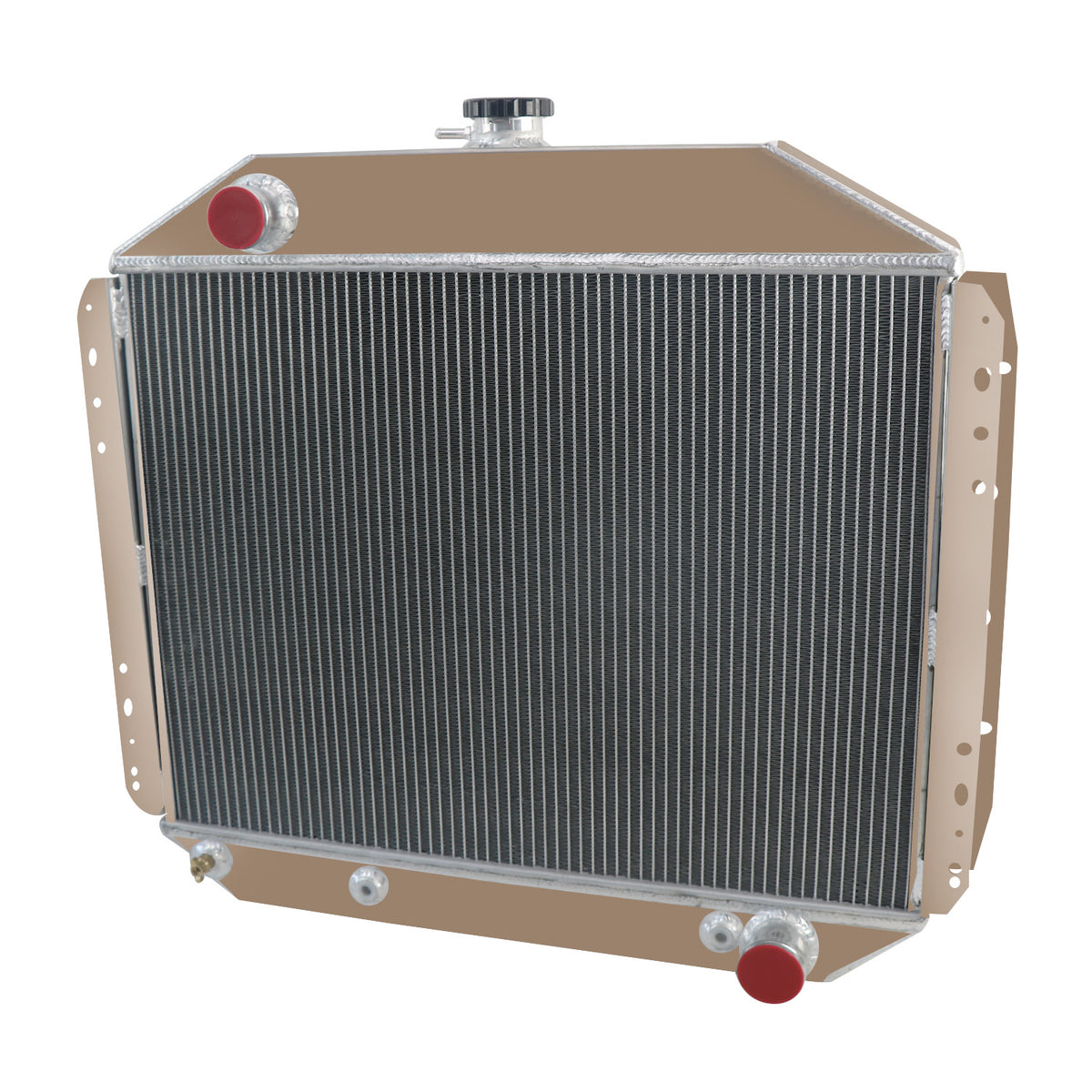

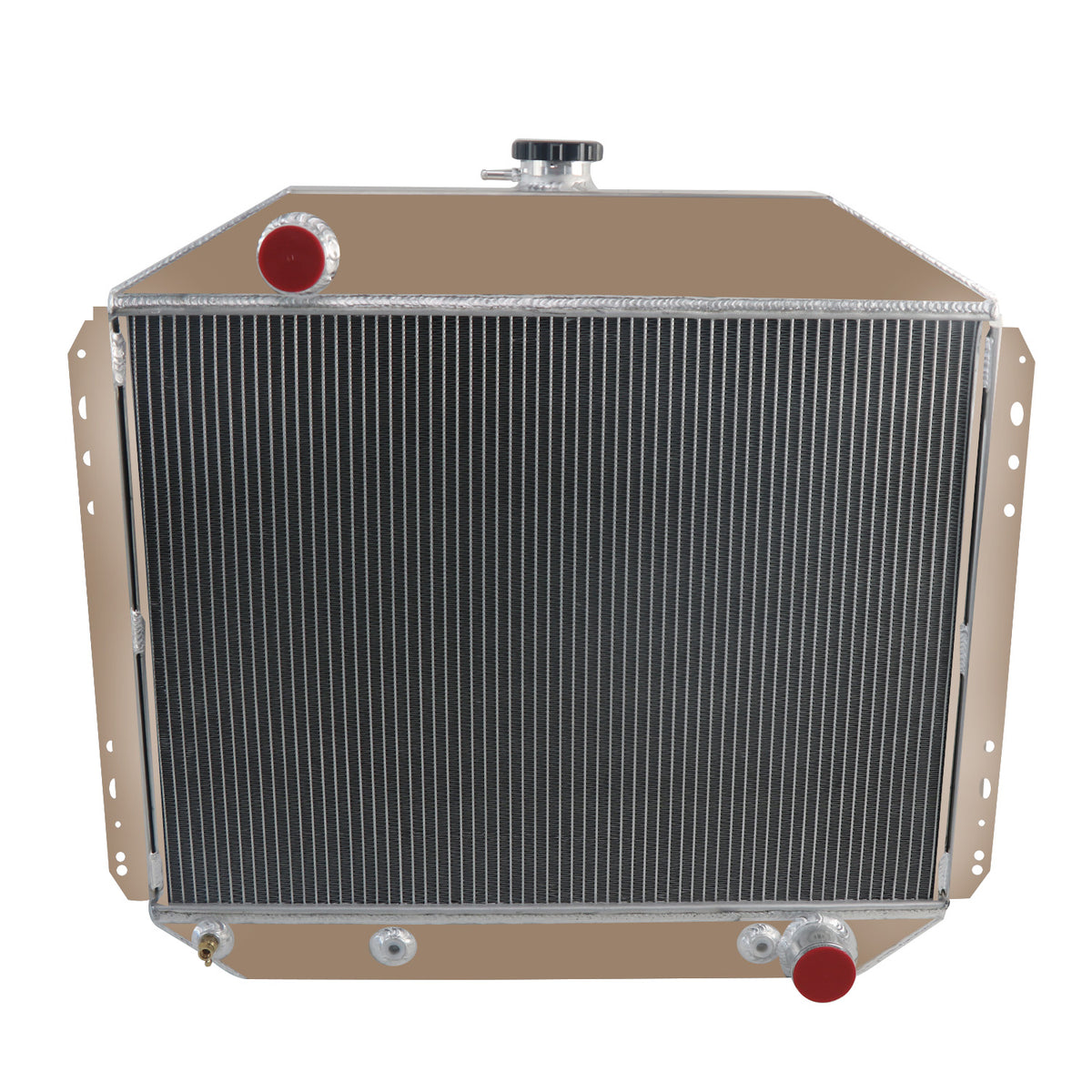

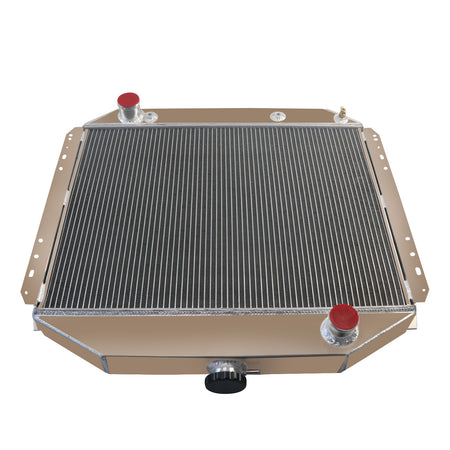

1 × 4-Row AA5052 Aluminum Radiator
1 × CNC Machined Radiator Cap

Radiator Specifications

Core Design	4-Row Tube Core Racing Design
Core Size	648 × 480 × 62 mm / 25.51" × 18.90" × 2.44"

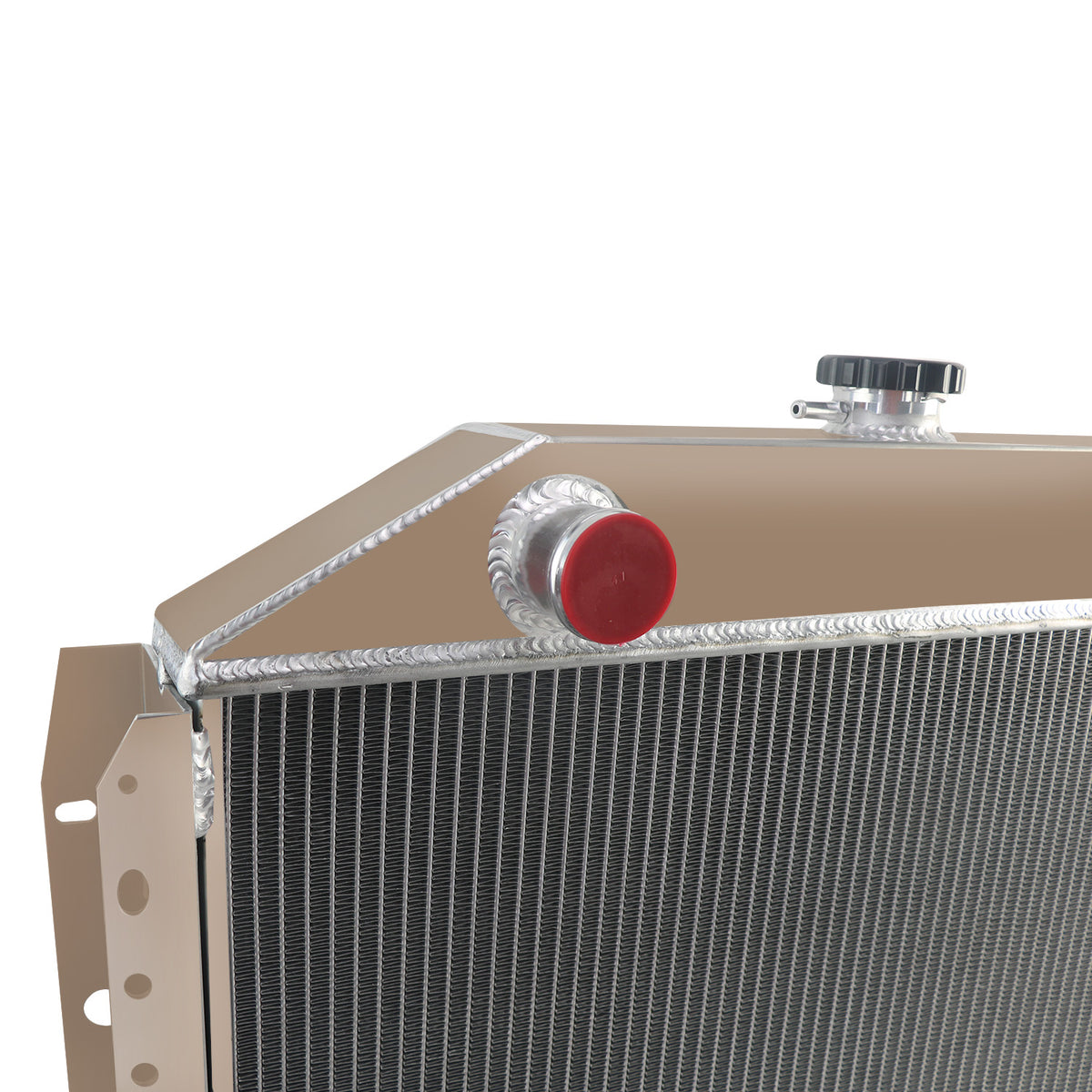

Upper Inlet	1 1/2" Located on the Driver Side
Lower Outlet	1 3/4" Located on the Passenger Side
Transmission Oil Cooler	Included
Transmission Oil Cooler Fitting Type	φ26 × 305 × 1/4NPT (T)

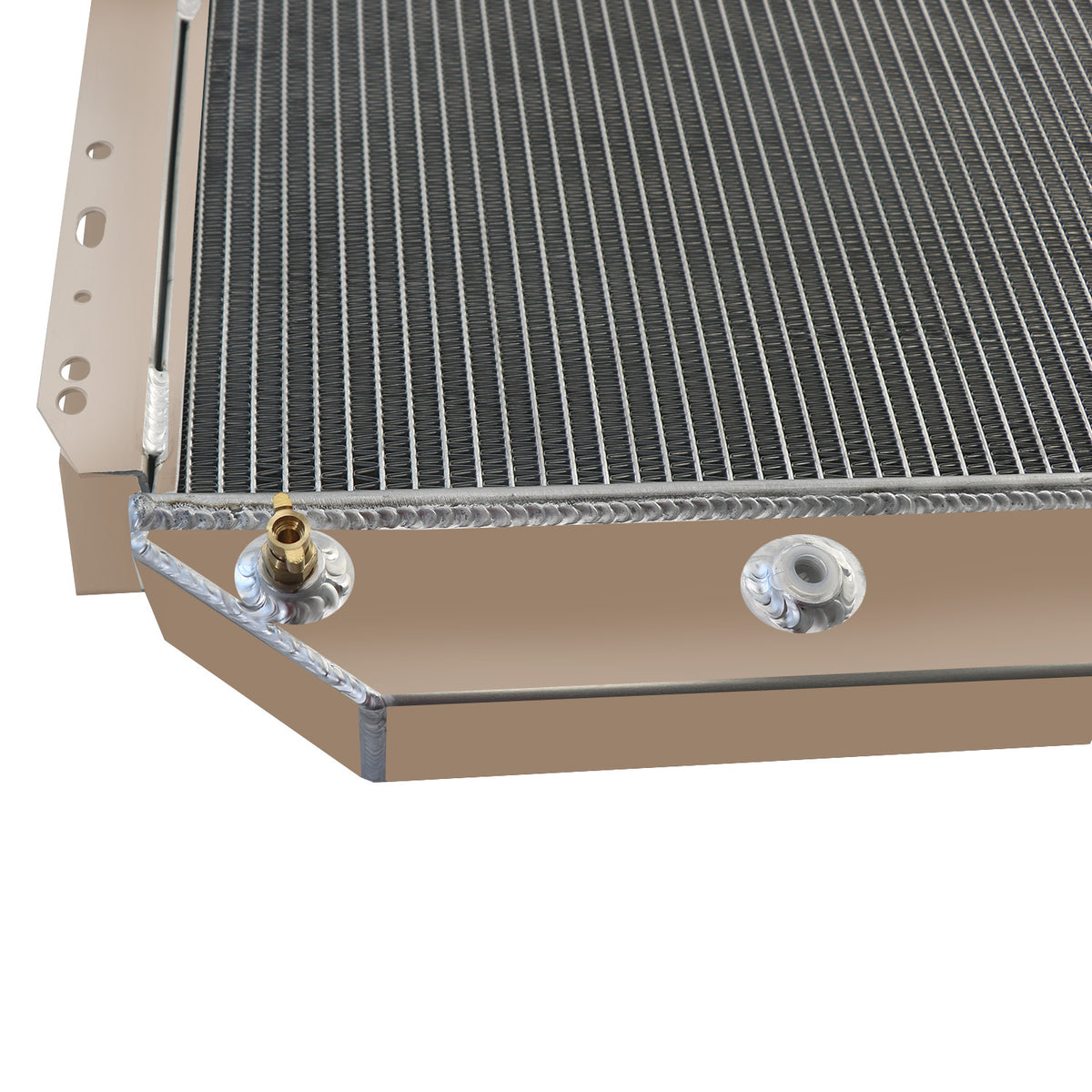

Petcock Drain	OEM Style Brass Petcock Drain

Vehicle Fitment

1966-1979 Ford F-Series Pickup Truck Chevy Engines
1966-1979 Ford Bronco F150 F250 F350 Pickup L6 V8 Chevy Engines

Description

Our radiator is made of AA5052 aircraft aluminum. It is different from the T-3303 Series aluminum used by many other sellers.

More than 90% of aftermarket manufacturers use T-3303 Series aluminum because it is cheaper and easier to obtain. However, T-3303 aluminum has disadvantages such as poor polishing effect, softness, susceptibility to scratches and corrosion, and poor heat dissipation. If a T-3303 aluminum radiator operates under high pressure and high temperature for a long period, leaking may occur sooner.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability, cold workability, and strength. The main alloying element of AA5052 is magnesium, which provides good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, sheet metal parts for transportation vehicles and ships, hardware products, and electrical-appliance casings.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to help prevent premature engine failure. Its lightweight, high-heat-transfer aluminum construction features a tube-and-fin design that dramatically increases surface area, allowing heat to dissipate more efficiently.

This AA5052 Aluminum Radiator is at least 30%–45% more efficient than stock radiators. Most importantly, it has a much higher coolant capacity than stock units, helping the cooling system operate more efficiently and resist temperature surges in racing applications.

Features

Made from aircraft AA5052 grade aluminum for a prolonged lifespan with a raw aluminum finish.
Brazed core technology helps provide optimum performance and dependability.
AA5052 aluminum 2 mm thick tanks and fittings help ensure strength and durability.
Billet aluminum CNC-machined fill neck for strength and durability.
Ergonomic CNC-machined cap with engraved craftsmanship and anodized treatment.
Carefully crafted to exceptional OE standards for precise fit.
OEM-style brass petcock drain, providing greater durability than a plastic drain.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
