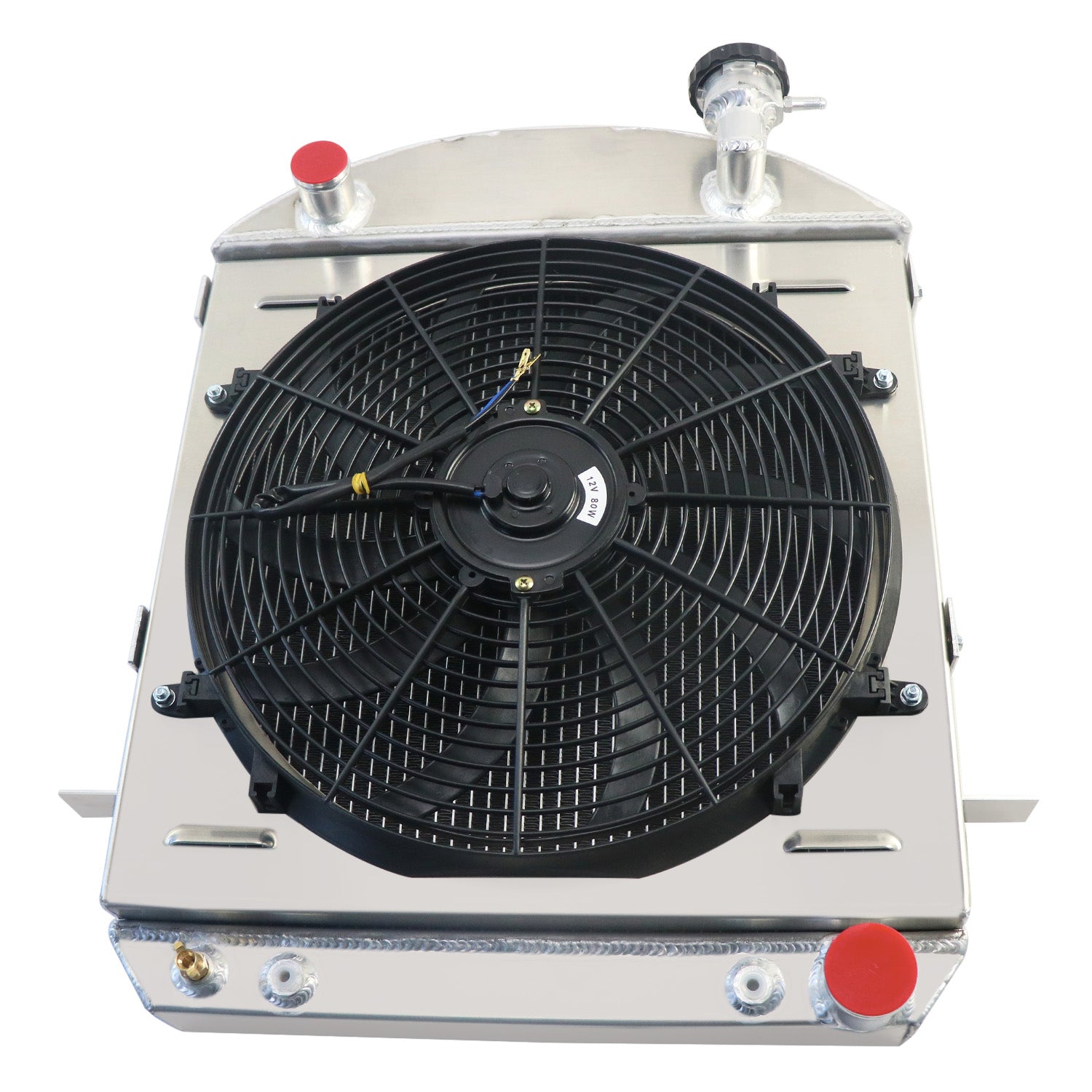

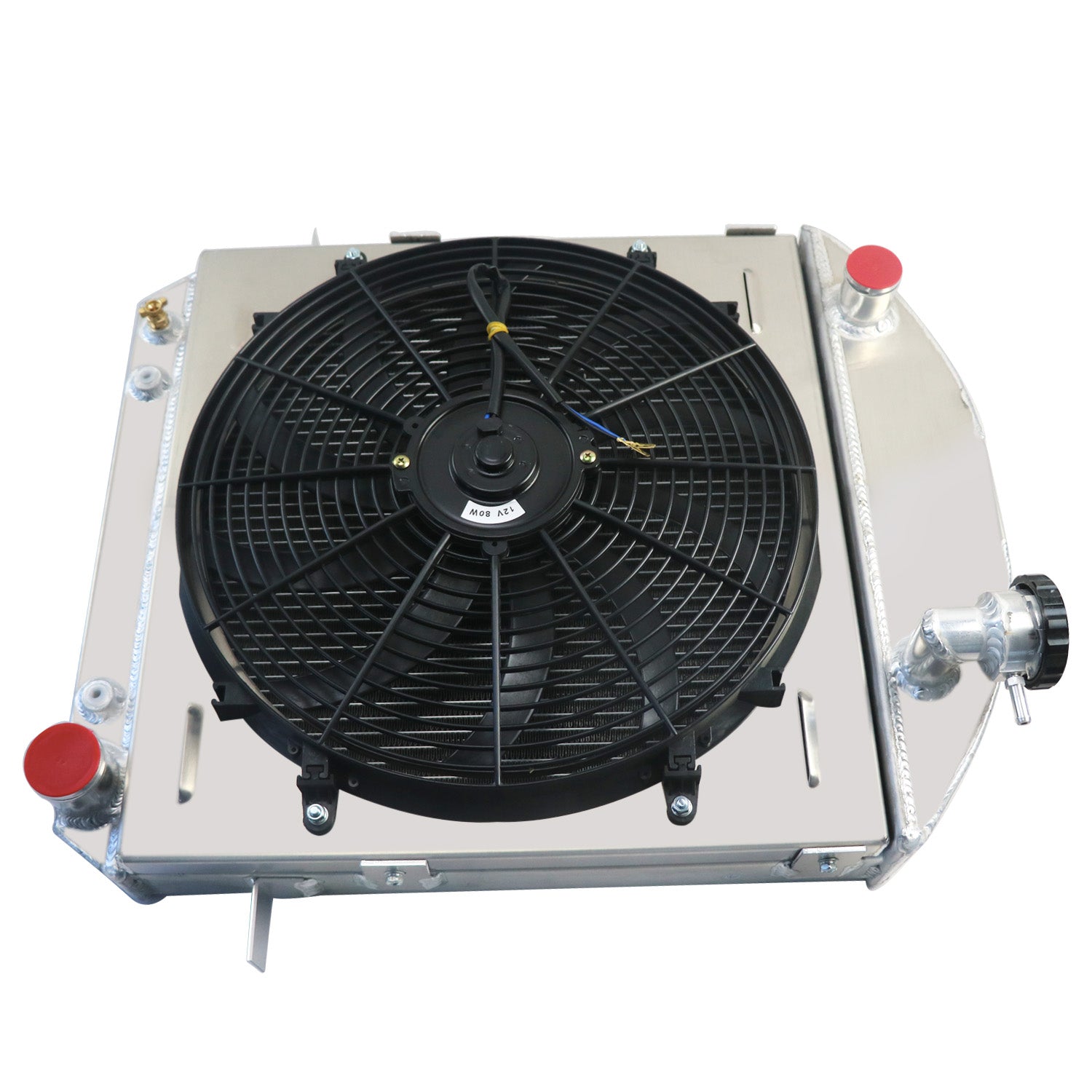

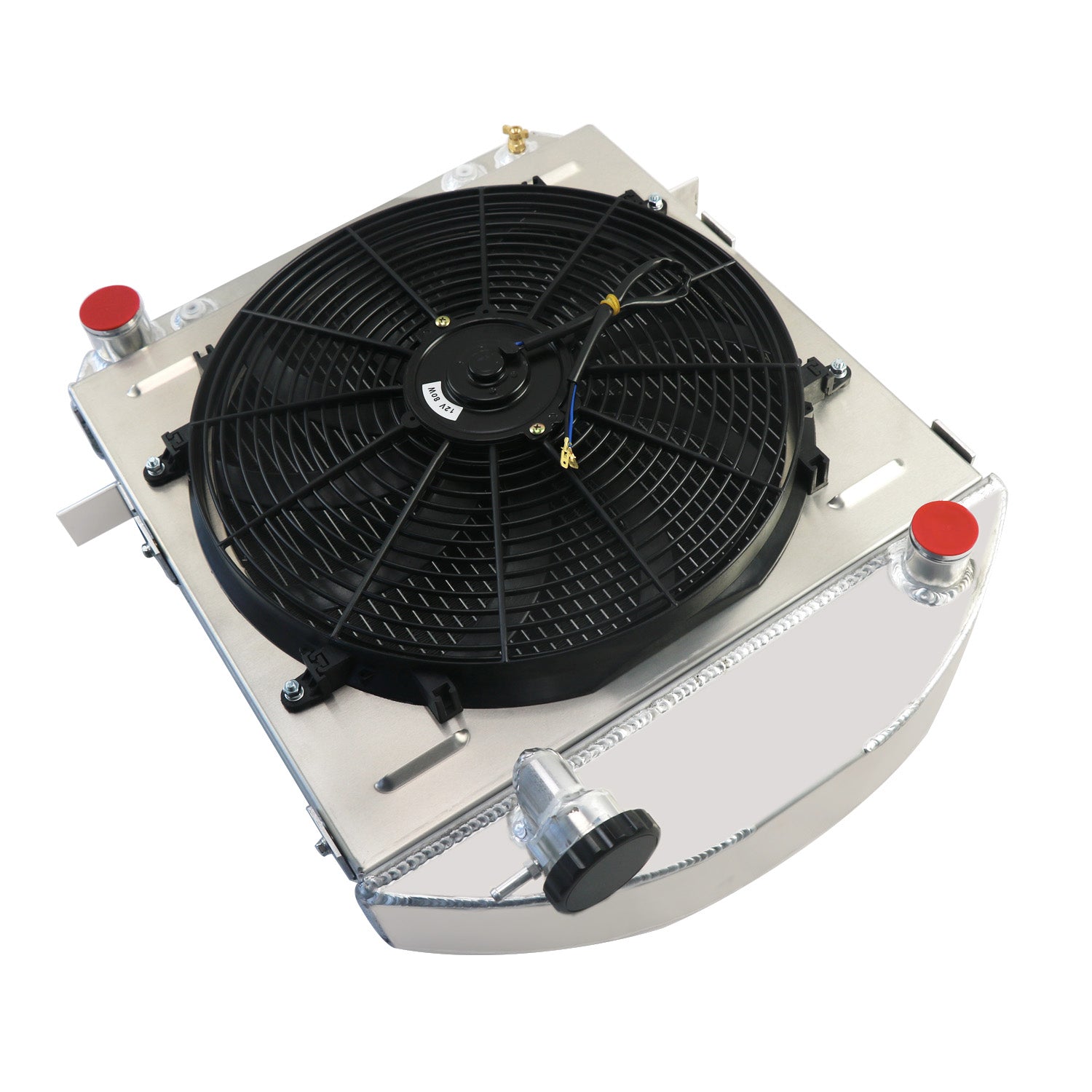

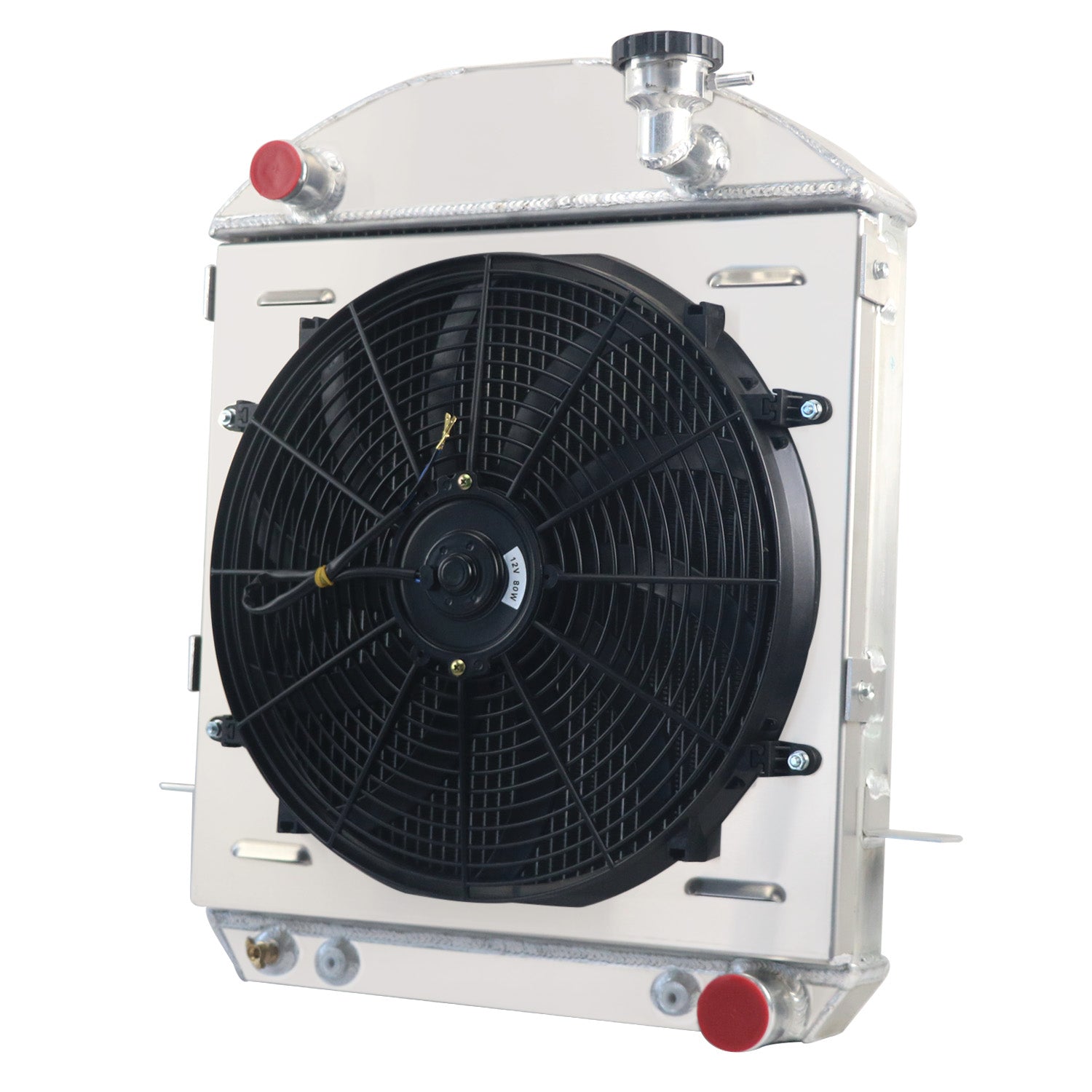

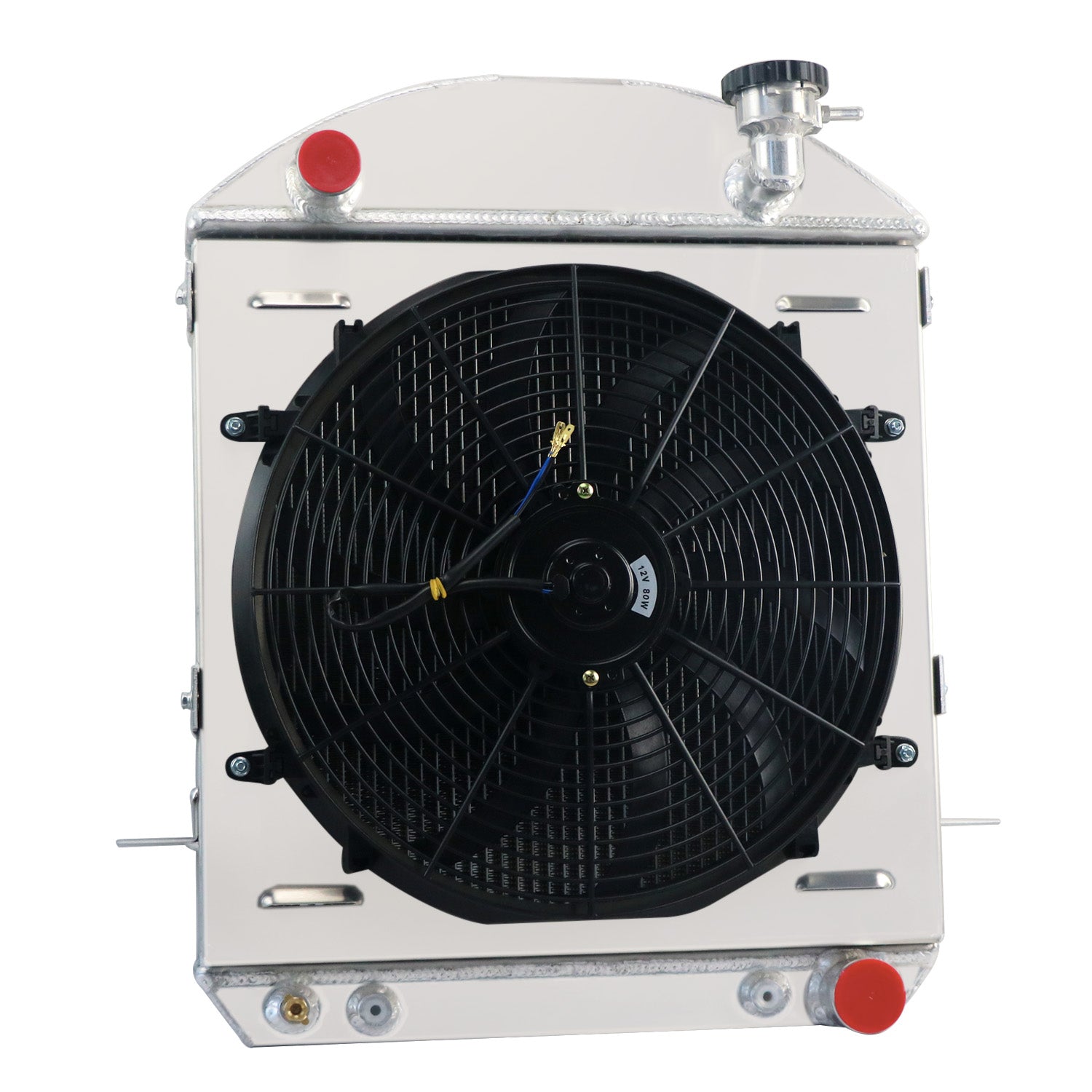

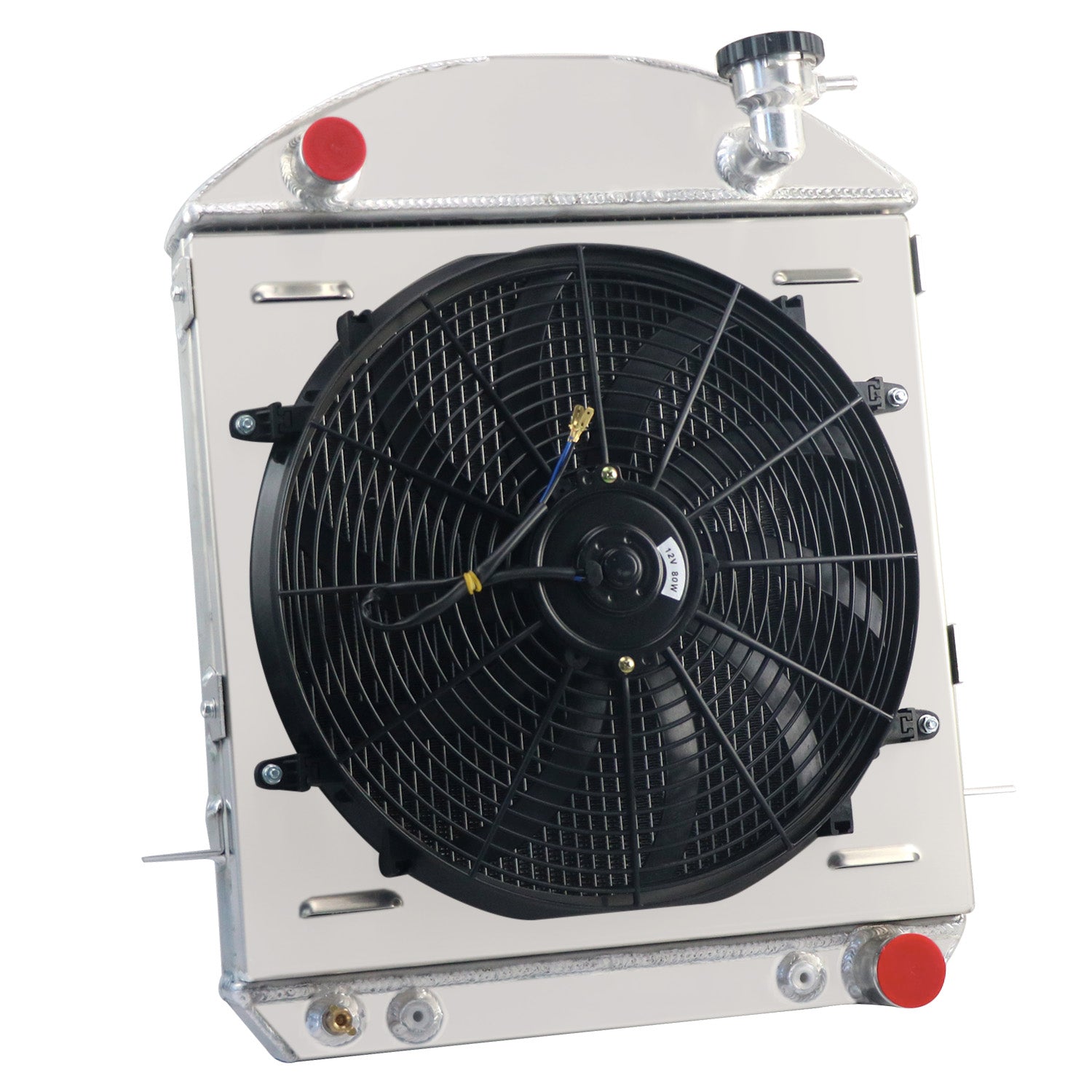

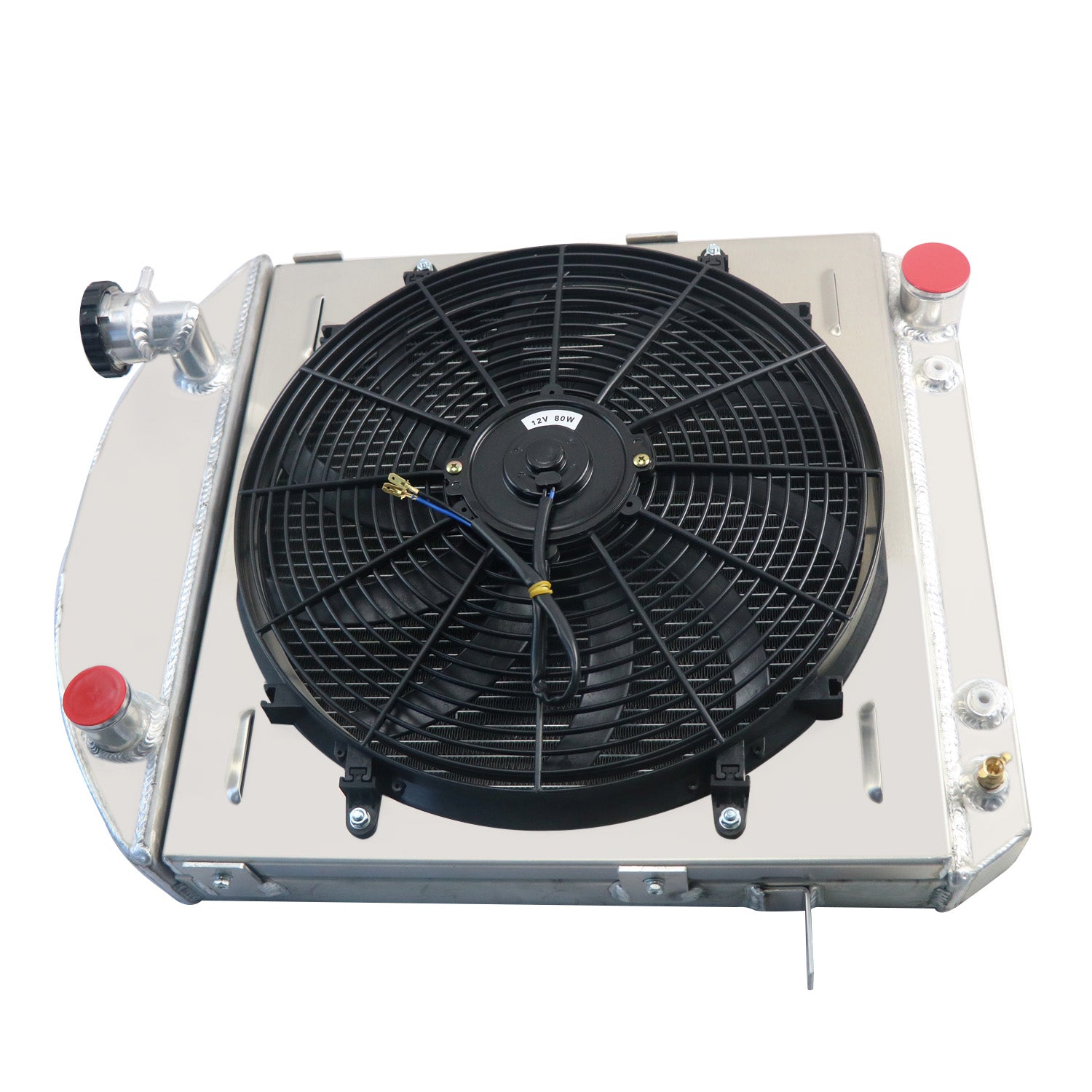

ASI Performance 4 Row Radiator Shroud Fan Fit 1917-1927 1923 Ford Model T Bucket Chevy V8 Engine

Fitment:

Package Includes:

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

1 X 16" Fan (Includes mounting kits)

1 X Thermostat Relay Kit

Application:

1917-1927 T-Bucket with Chevy Configuration Engine

Radiator Size:

High Performance Racing Spec.

4-Row of tubes Core Racing Design

Tank Material: AA5052 Aircraft Grade Aluminum

Core Dimensions: 18" (H) x 18-1/2" (W)

Overall Dimensions: 24" (H) x 22-1/2" (W)

Inlet Location: 1-1/2" On Driver Side

Outlet Location: 1-3/4" On Passenger Side

Transmission Cooler: Included

All TIG WELDED, NO EPOXY

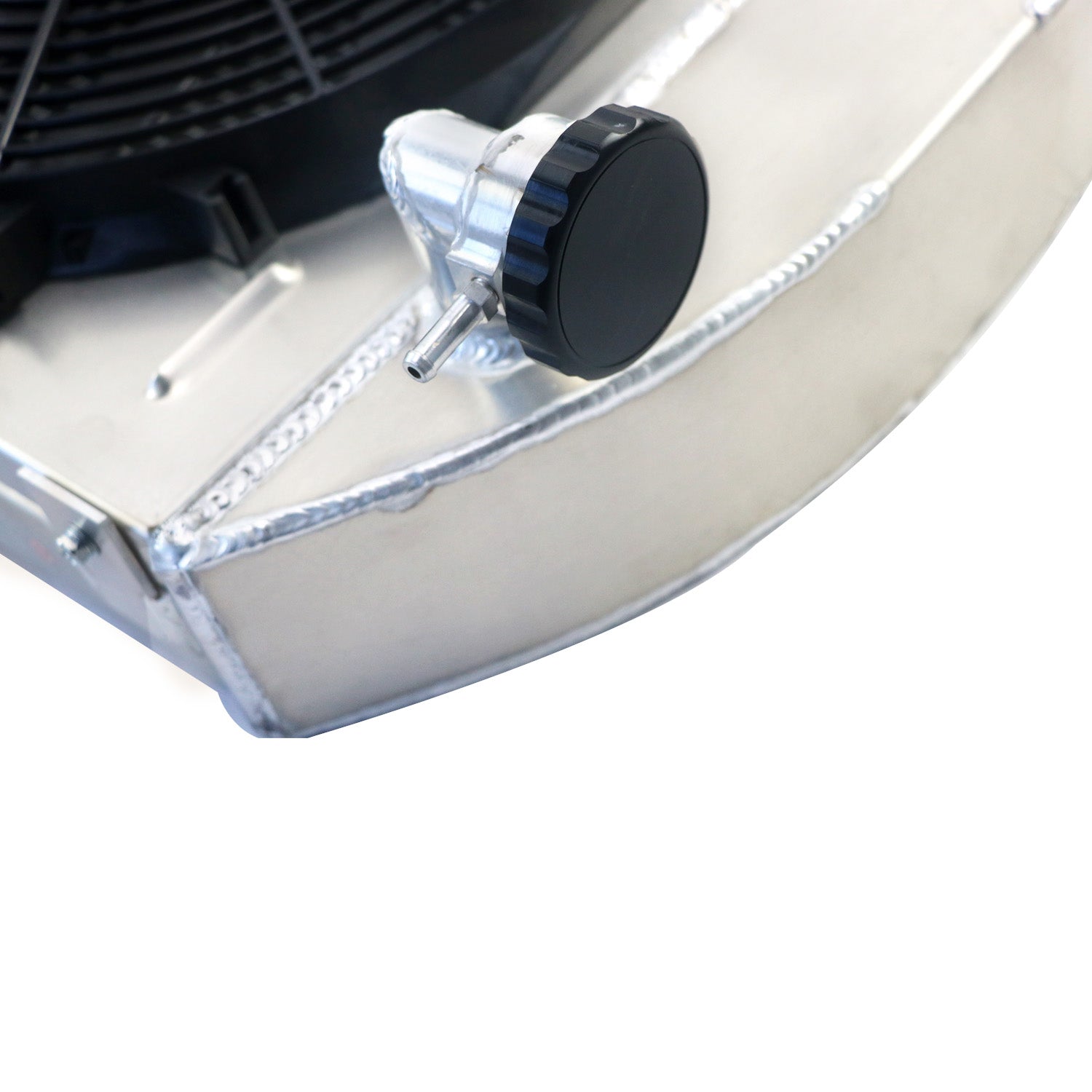

Radiator Cap: CNC Precision Machined Radiator Cap

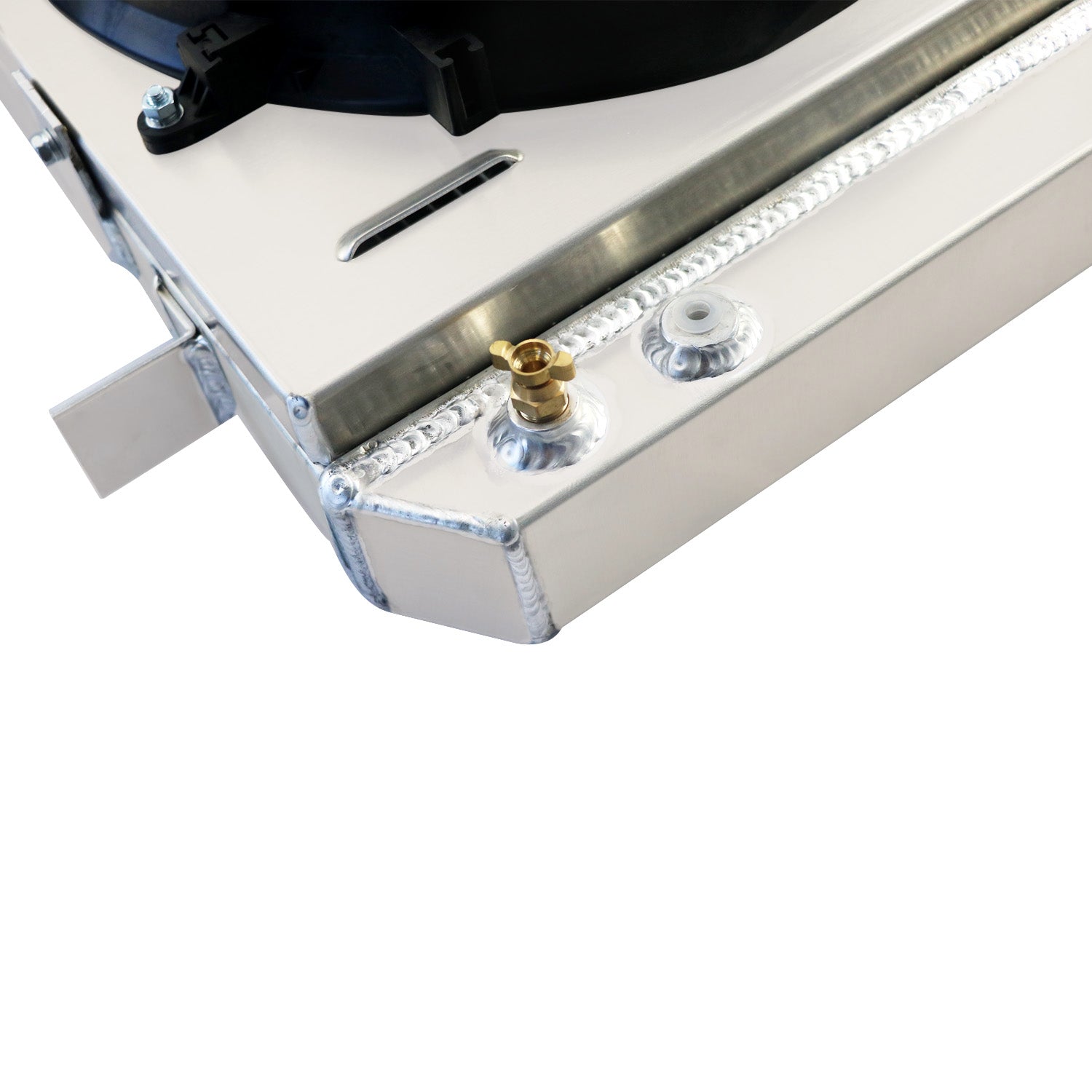

Radiator Drain Plug: OEM Style Brass Petcock Drain.

Fan Specification:

Diameter: 16'' (Blade to Blade)

Number of Blades: 10 pcs

Maximum Fan CFM（Cubic Feet per Minute）: 2,150 cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2,250 rpm

Max. Amp Draw: 15amp

Voltage: DC 12V

Wattage: 120W

Description:

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Advantages:

1. Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish

2. Brazed core technology to guarantee optimum performance and dependability

3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable

4. Billet Aluminum CNC machined fill neck rugged and durable

5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.

6. OEM style brass petcock drain much better than other plastic one on eBay

7. Carefully crafted to exceptional OE standards for precise fit.

AA5052 Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat, professional matching advice, consider for every detail and needed

Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe

Probe typically threads into radiator, water outlet or manifold.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.
