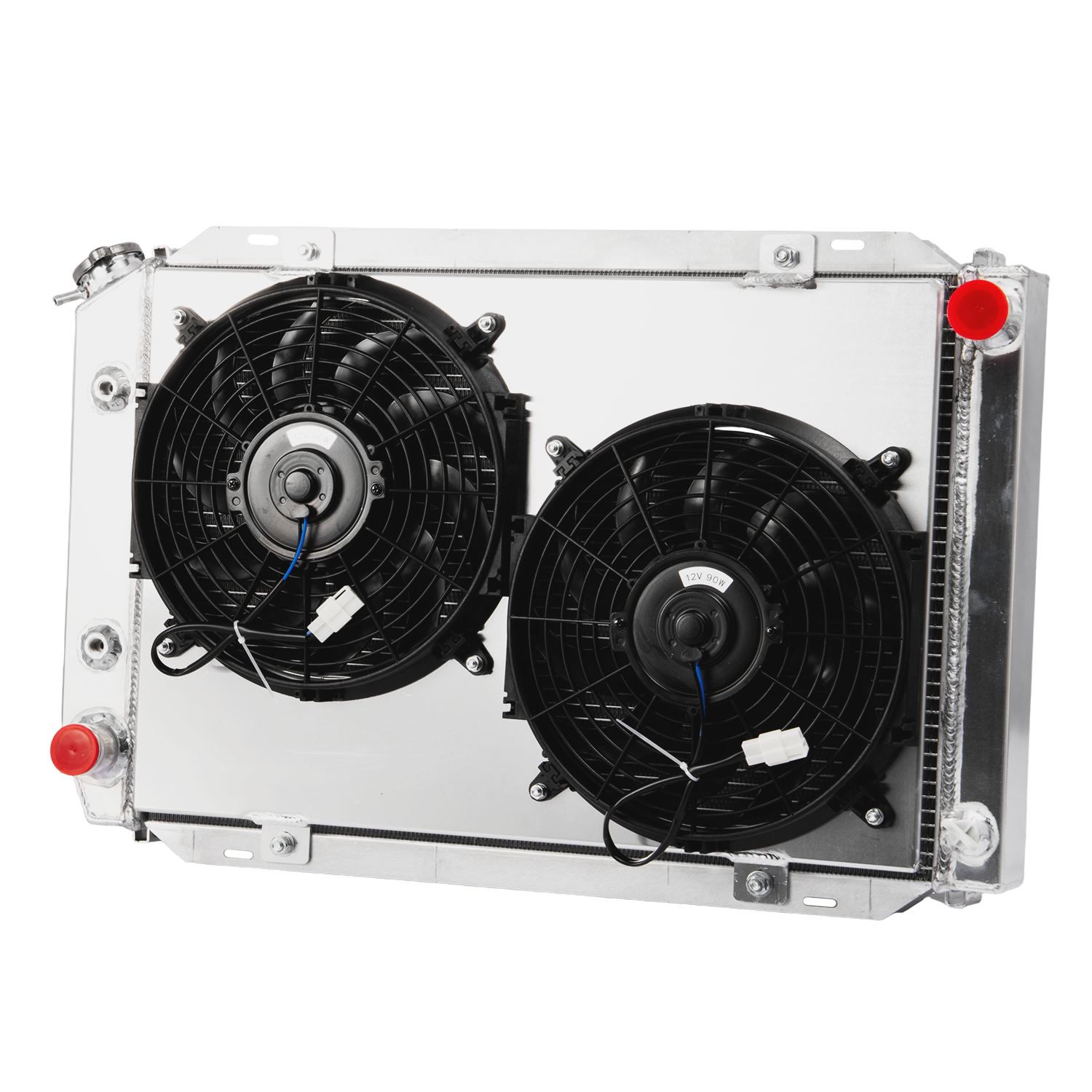

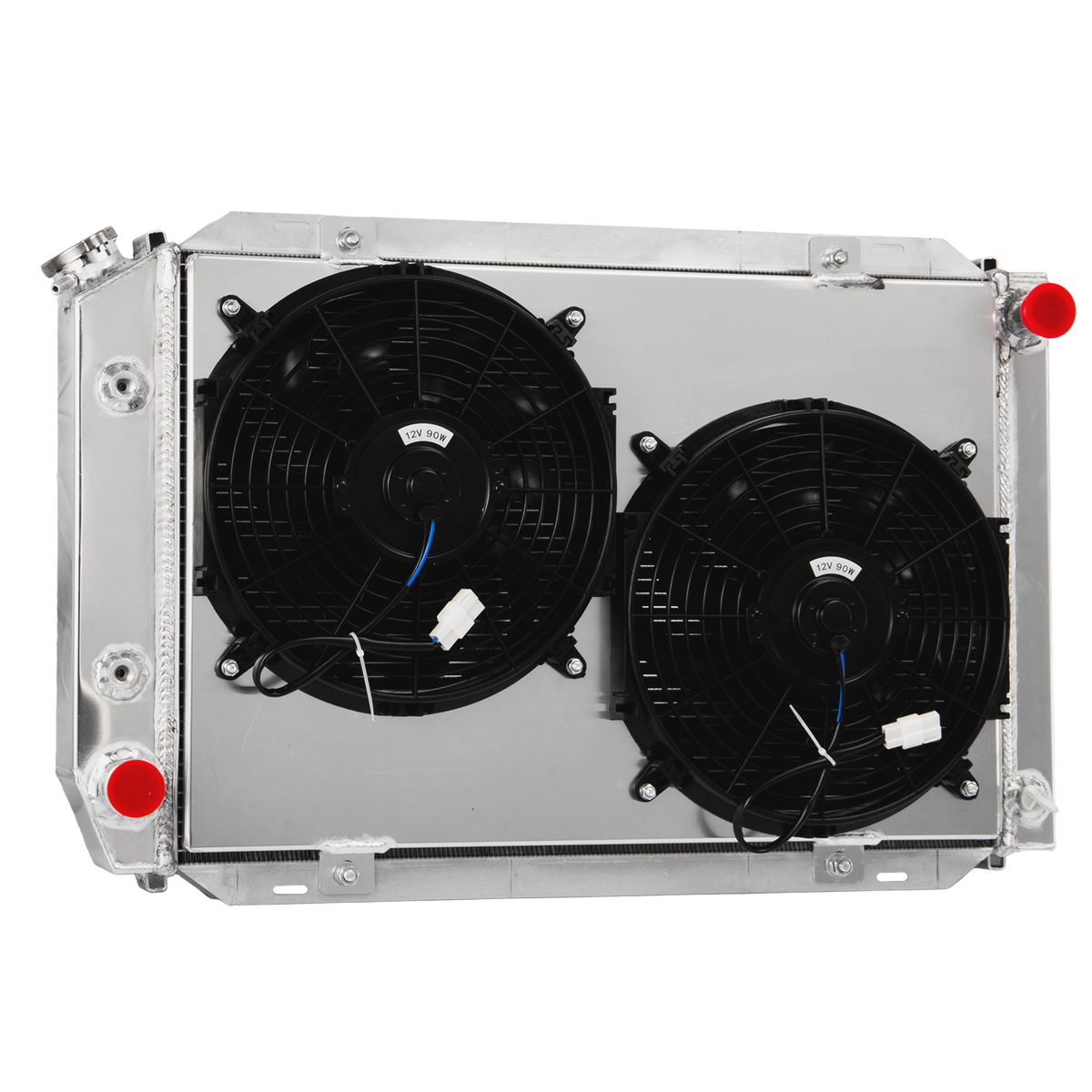

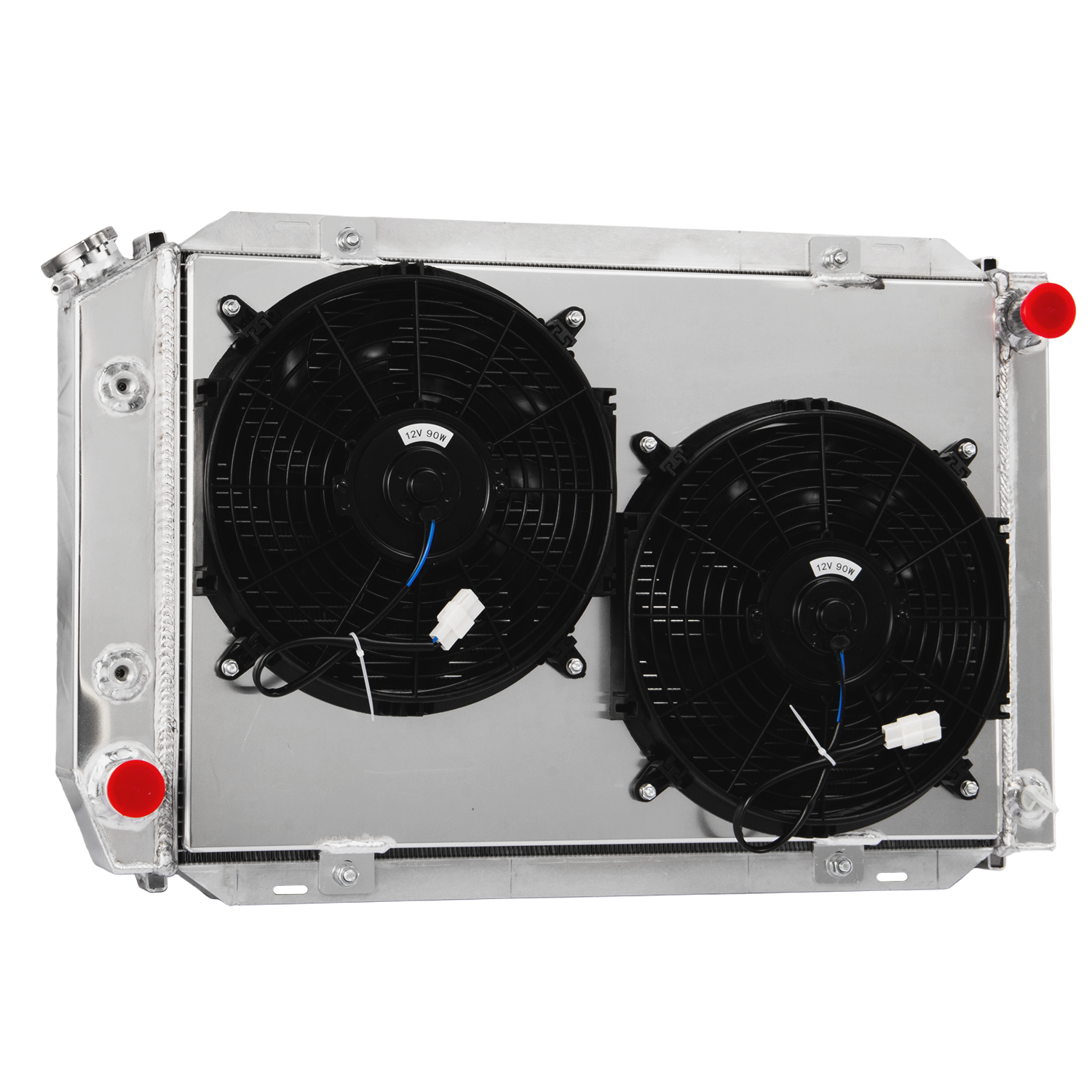

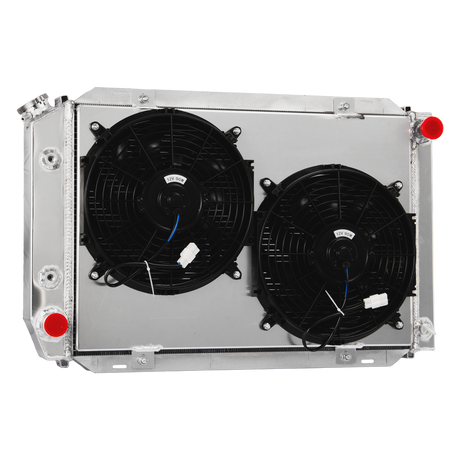

ASI Performance 4 Row Radiator Shroud Fan Fits 1979-1993 Ford Mustang GT SVT LX Foxbody 5.0L V8

Fitment:

Package Include:

1 X 4-Row Aluminum Radiator

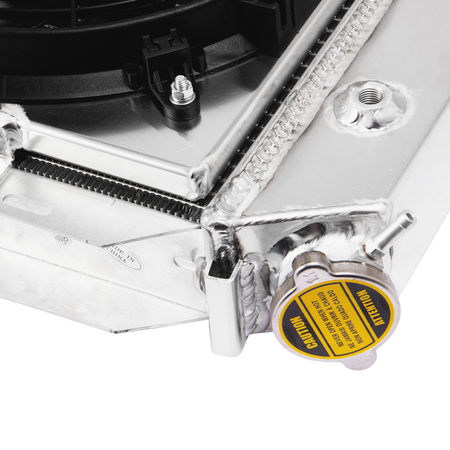

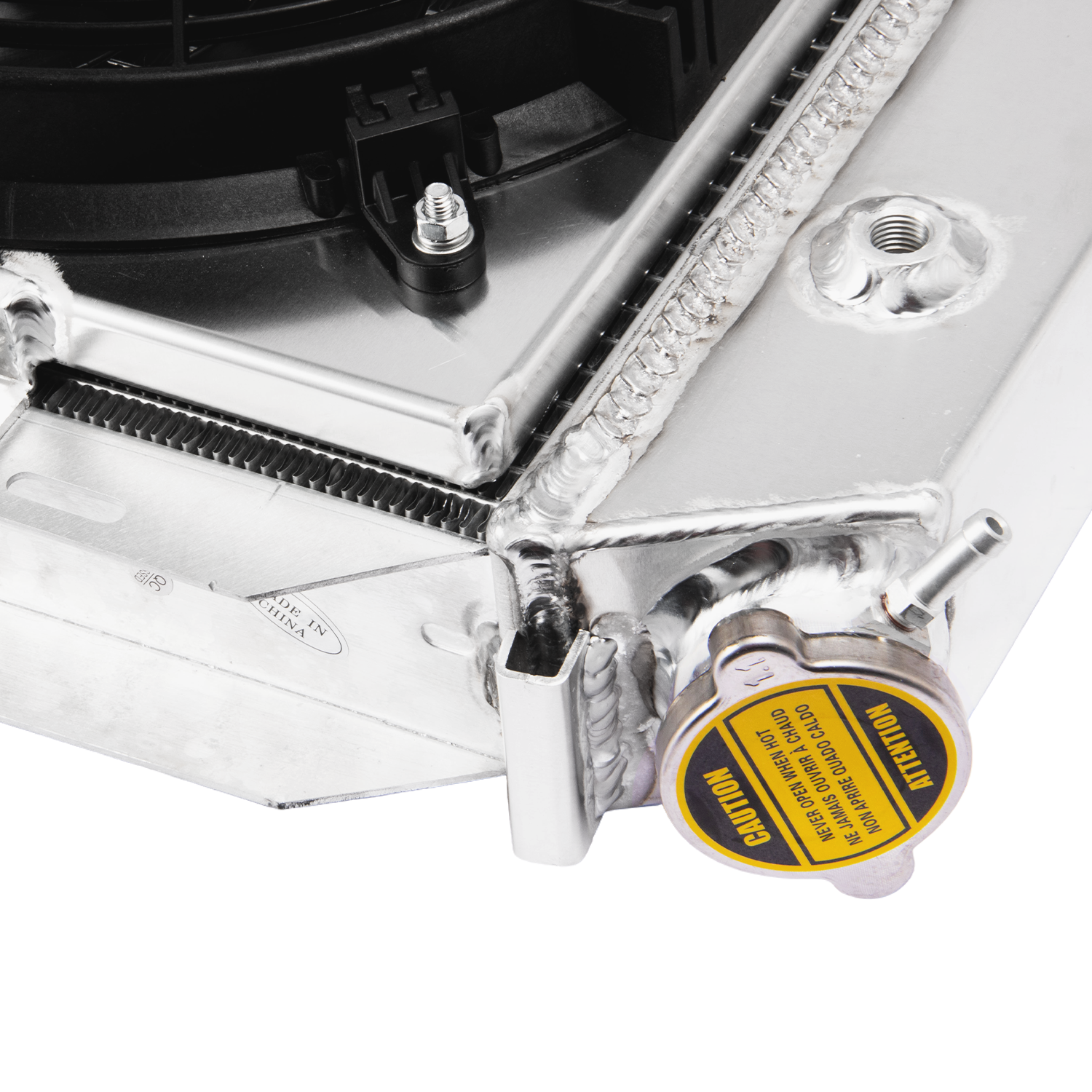

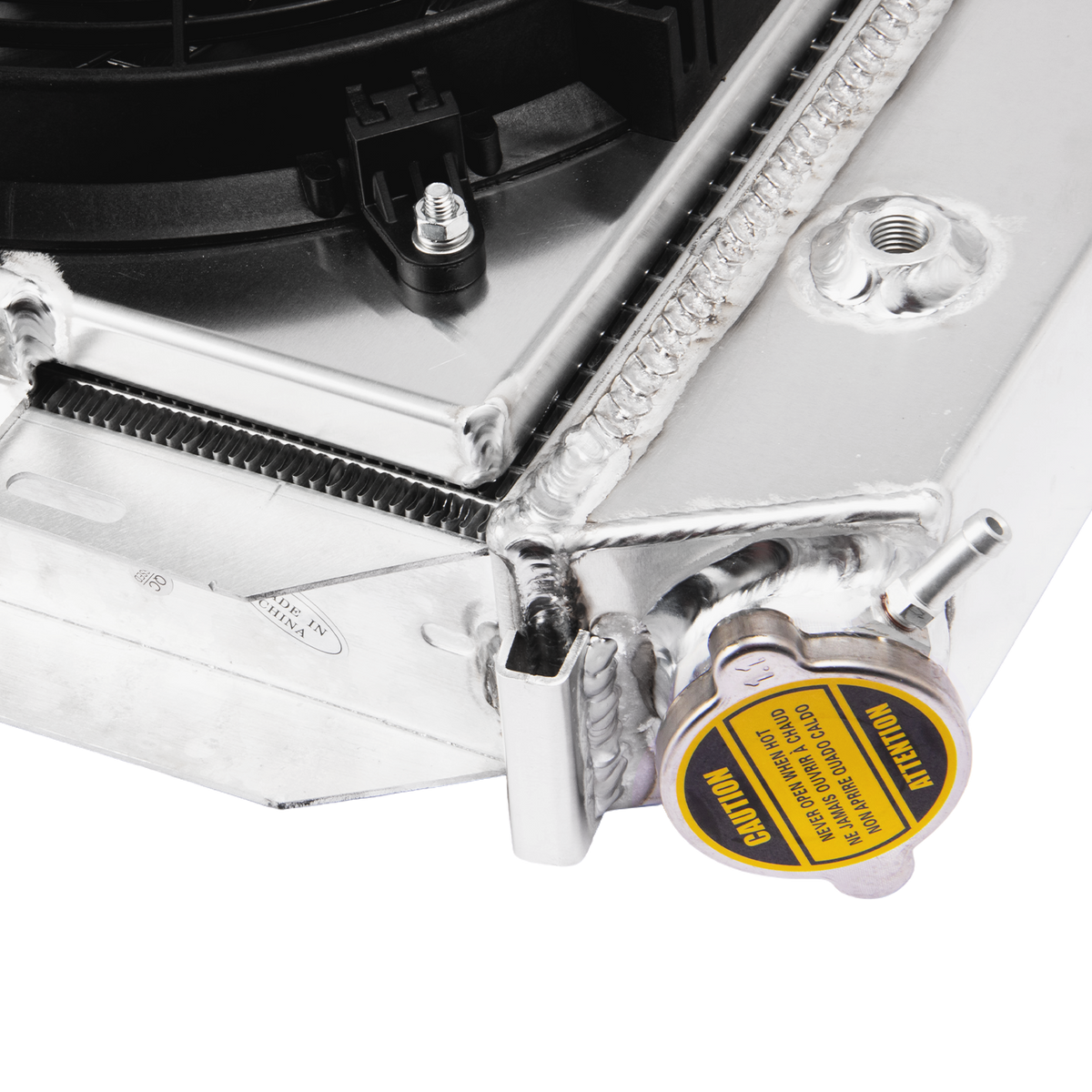

1 X Radiator Cap

1 X Aluminum Shroud

2 X 12" Fans (Includes mounting kits)

Application:

For 1980-1993 Ford Mustang All Engines

For 1981-1982 Ford Granada All Engines

For 1980-1983 Ford Fairmont/Futura All Engines

For 1980-1988 Ford Thunderbird All Engines

For 1983-1986 Mercury Marquis All Engines

For 1980-1988 Mercury Cougar/XR7 All Engines

For 1980-1986 Mercury Capri All Engines

For 1980-1983 Mercury Zephyr All Engines

For 1982-1987 Lincoln Continental All Engines

For 1984-1992 Lincoln Mark Vii All Engines

Please Notice

To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part.

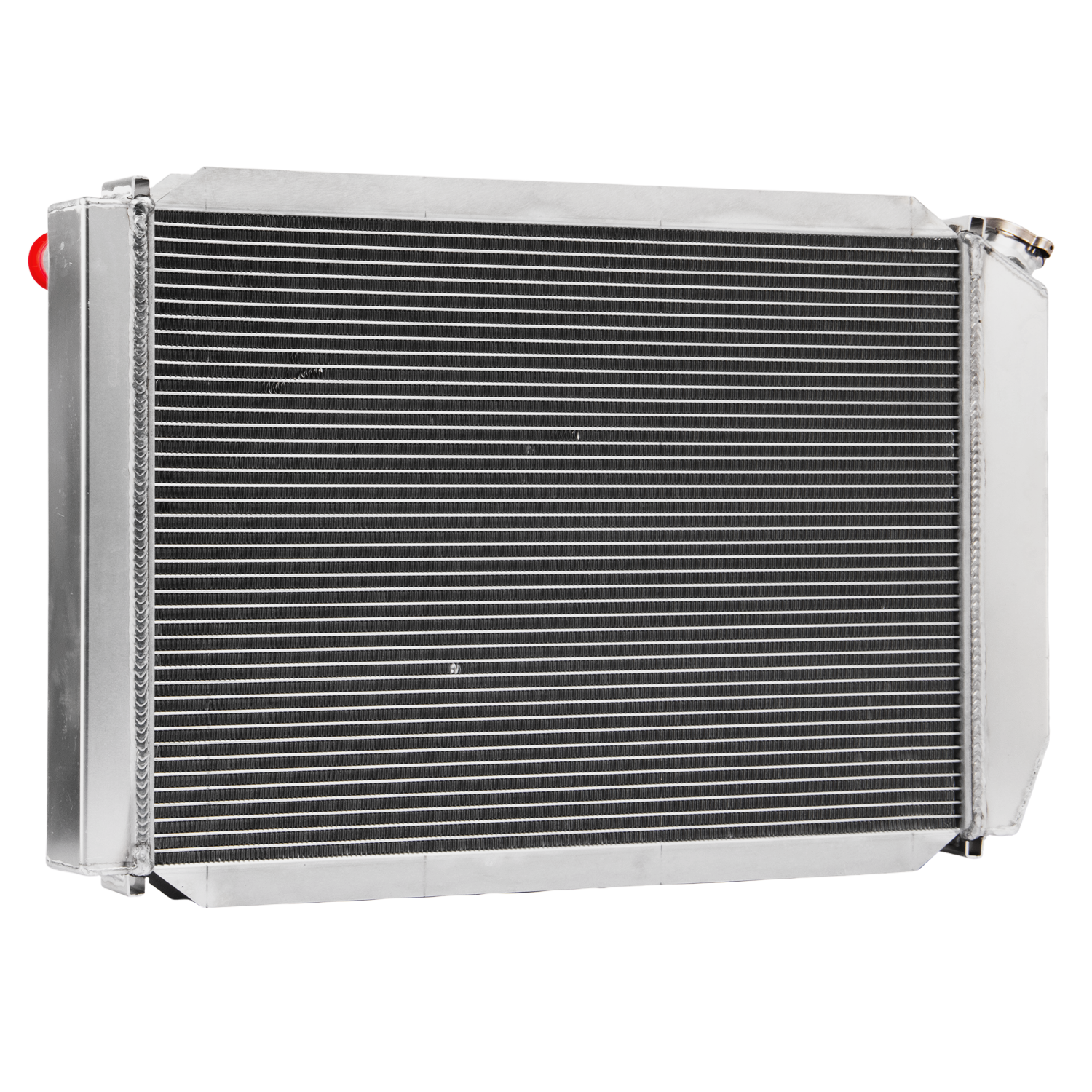

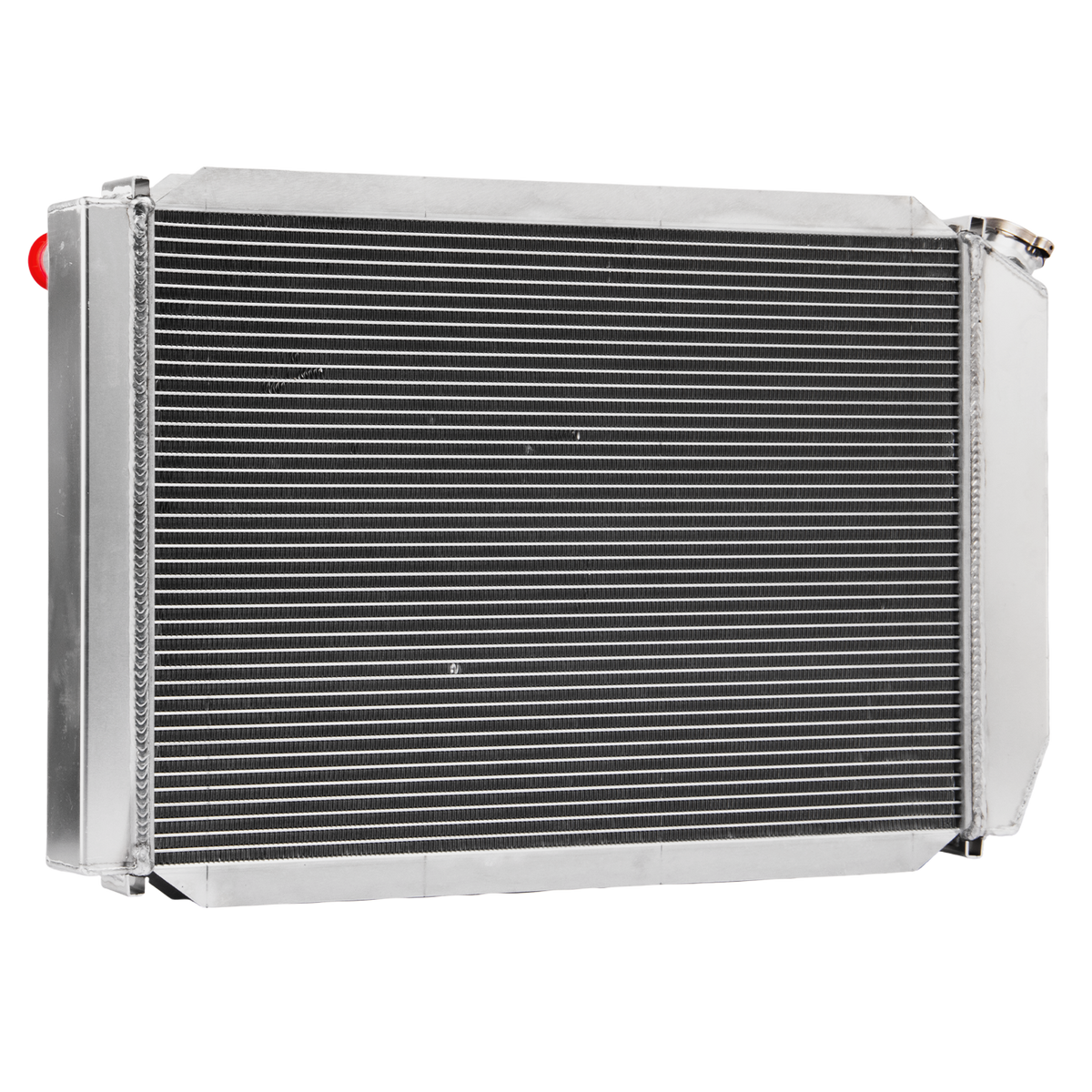

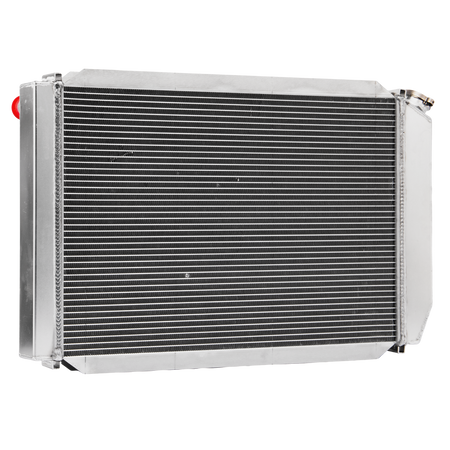

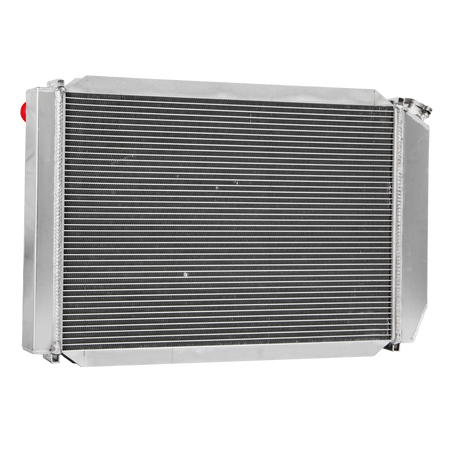

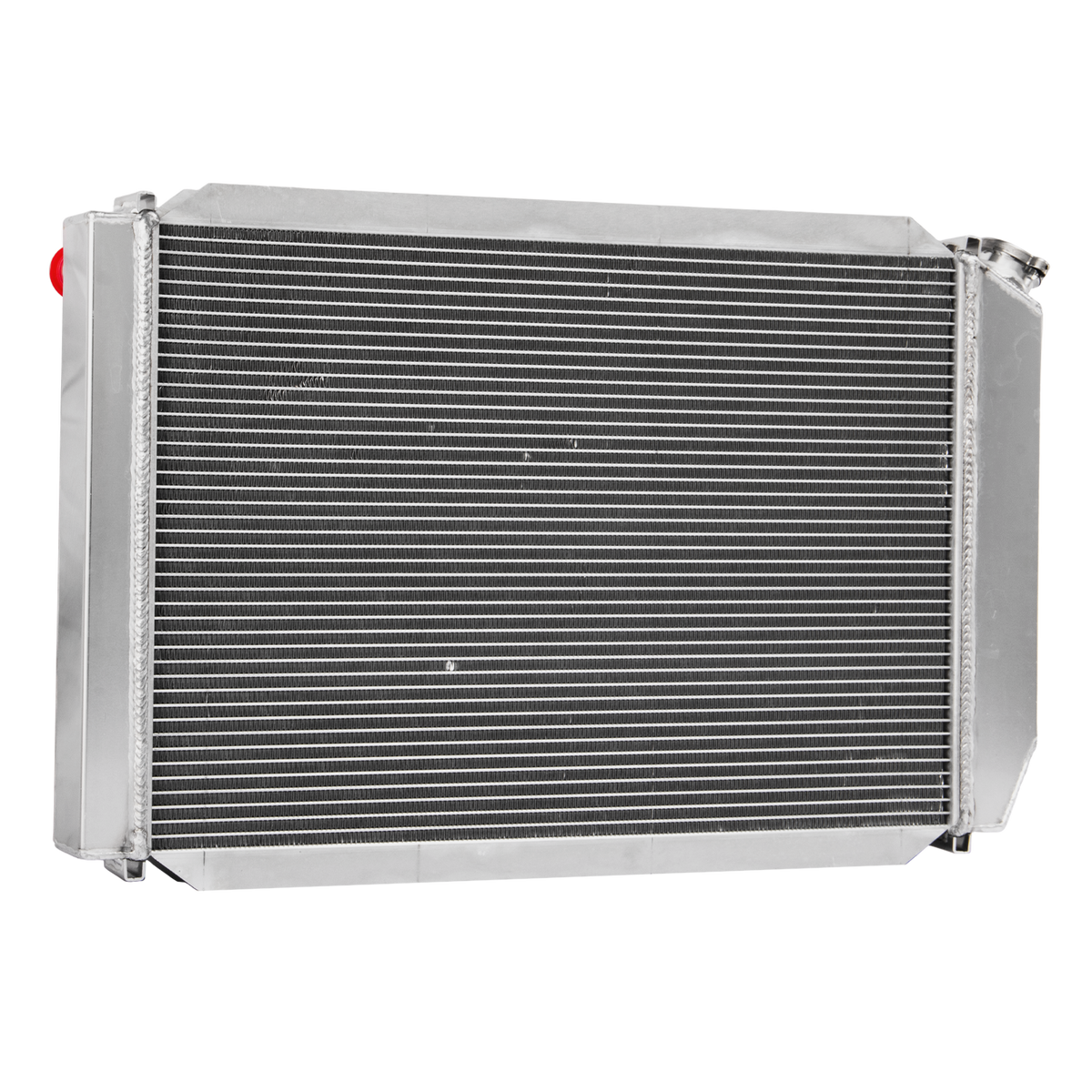

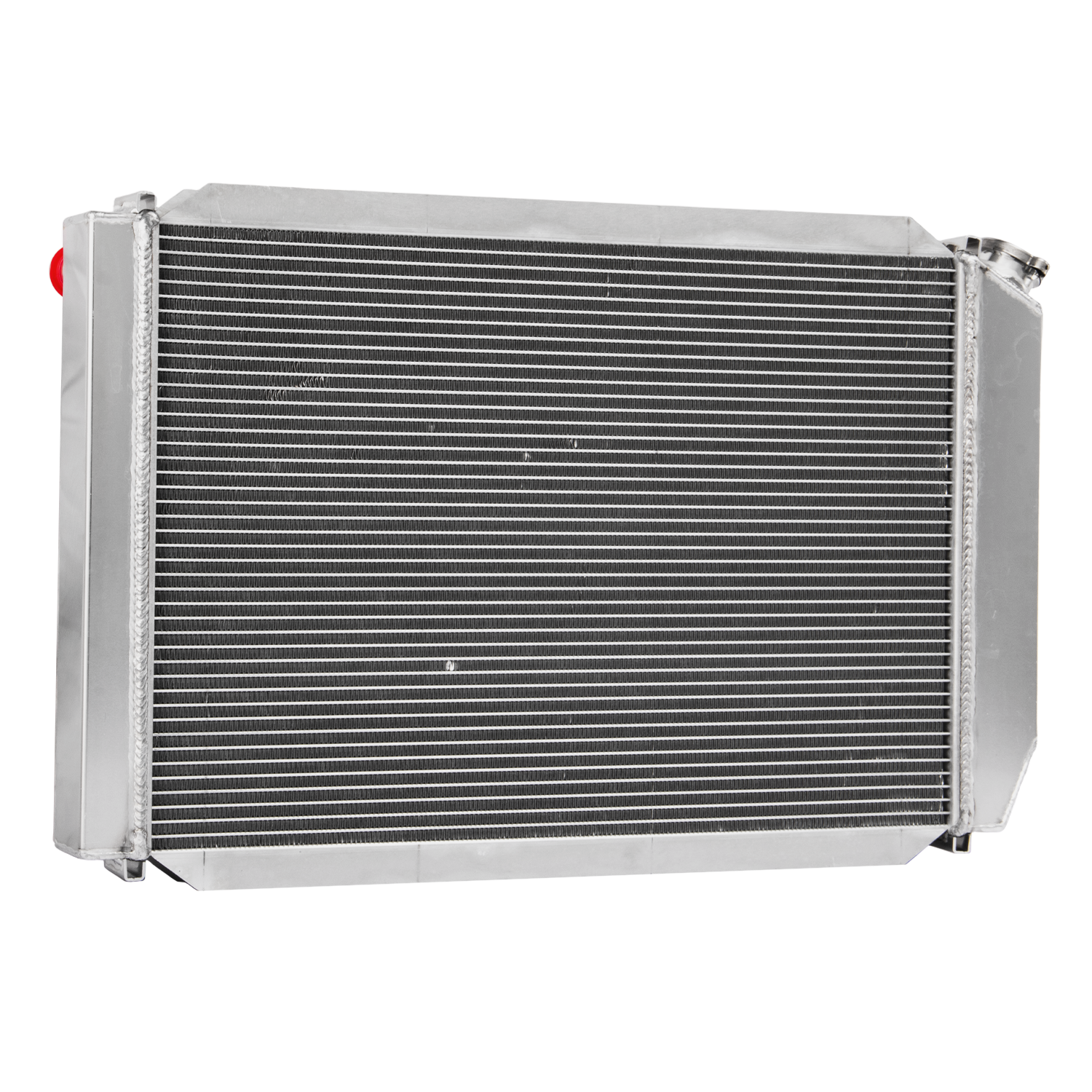

Radiator Configuration:

Material:Full Aluminium

High Performance Racing Spec.

4-Row of tubes Core Racing Design

Core Size: 24 4/9"x 16 4/9"

Overall Size：19 1/9" x 29 1/2"

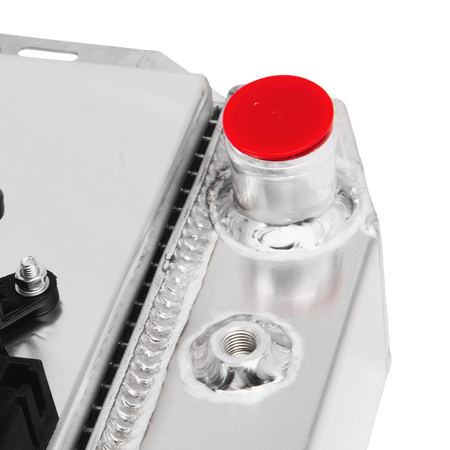

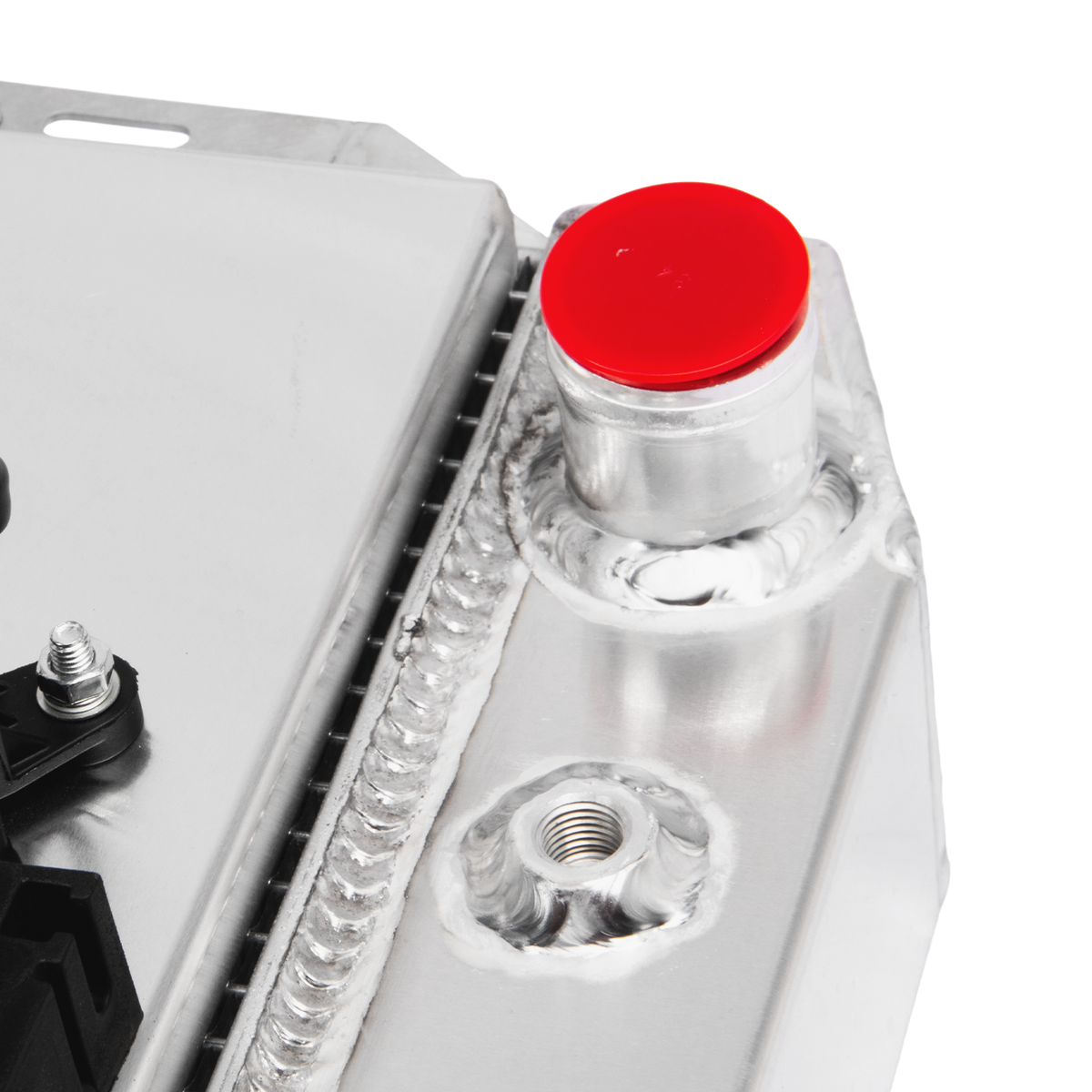

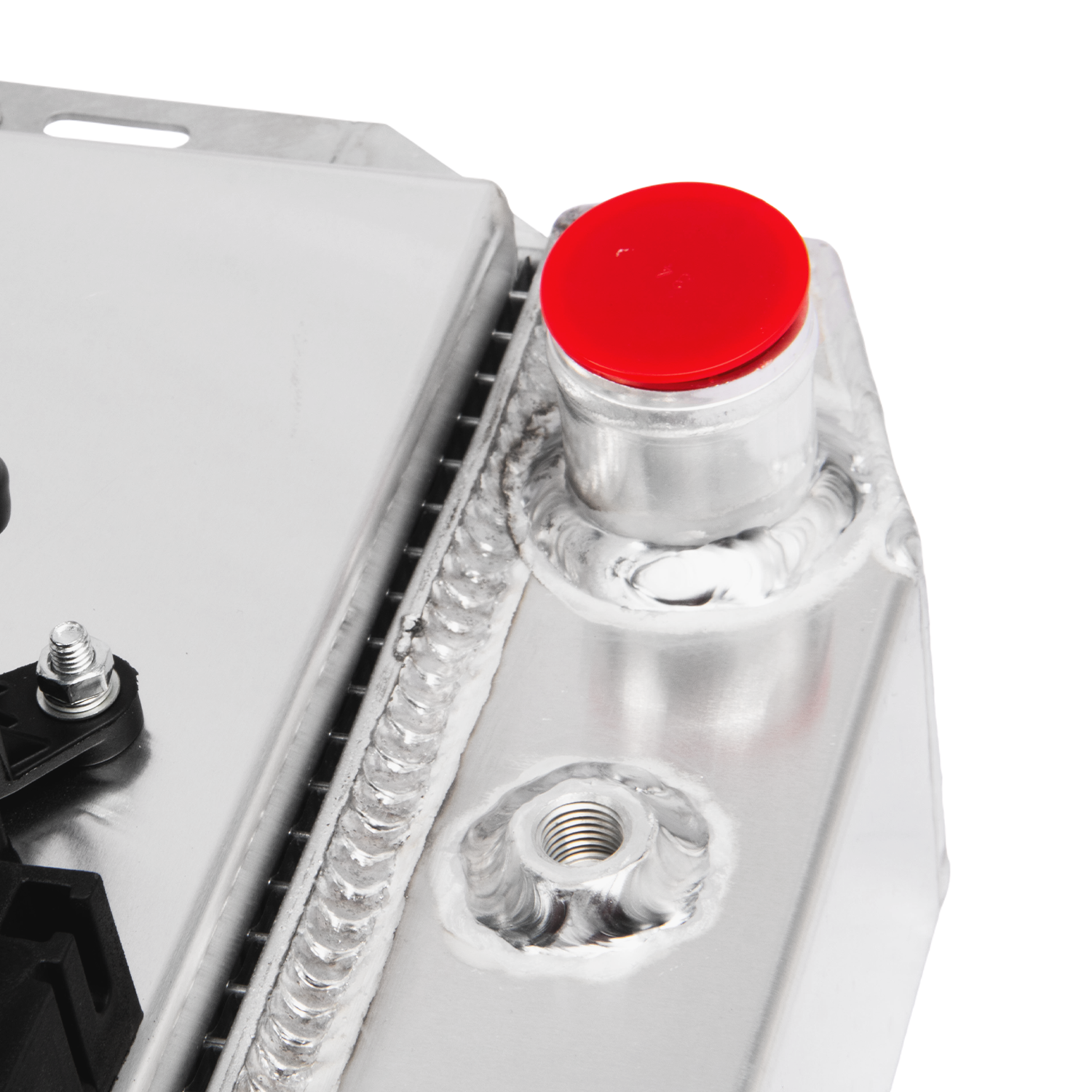

Inlet Hose Connection: 1 1/4 Passenger Side

Outlet Hose Connection: 1 1/2 Driver Side

Transmission Oil Cooler: φ38*200*1/4-18NPT(T)

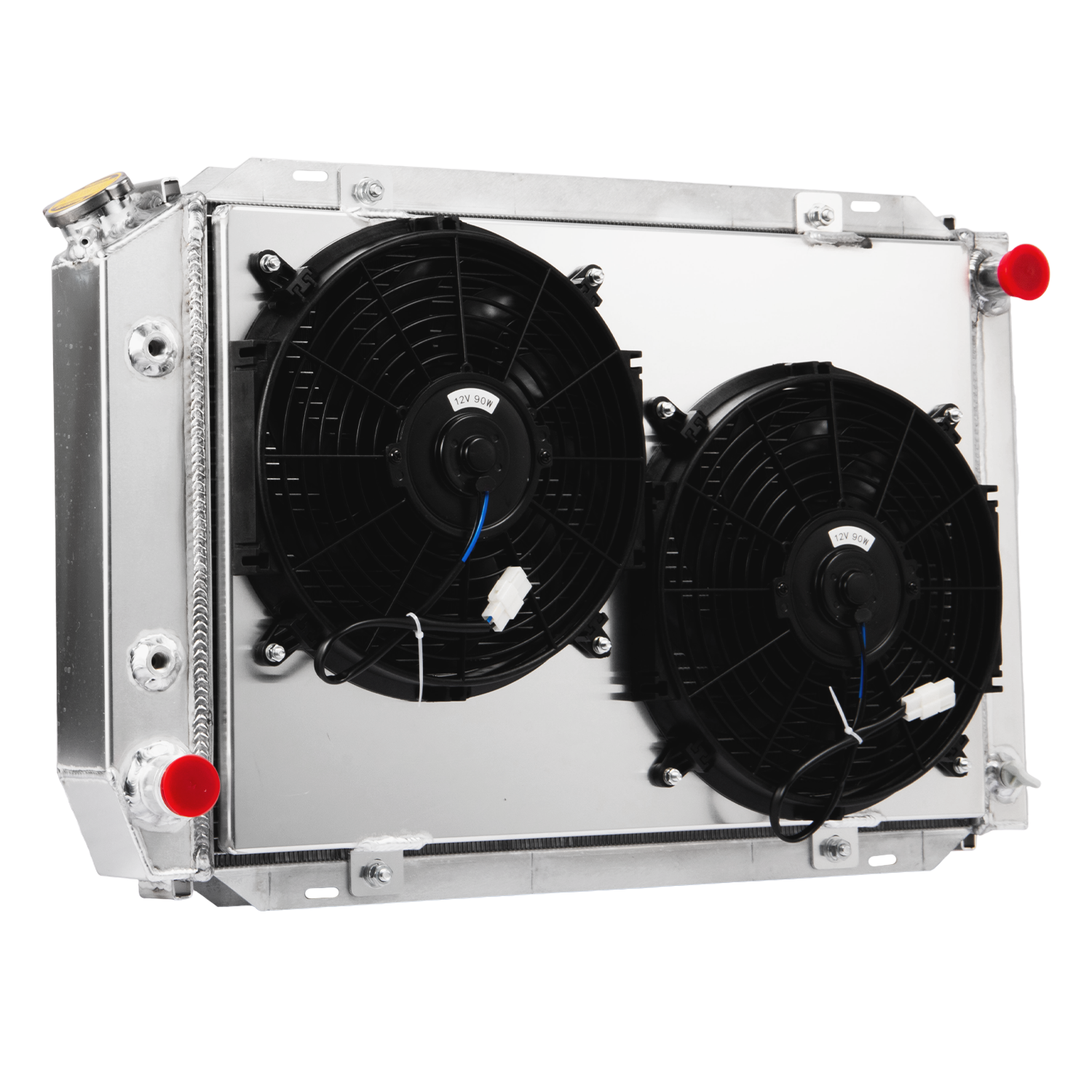

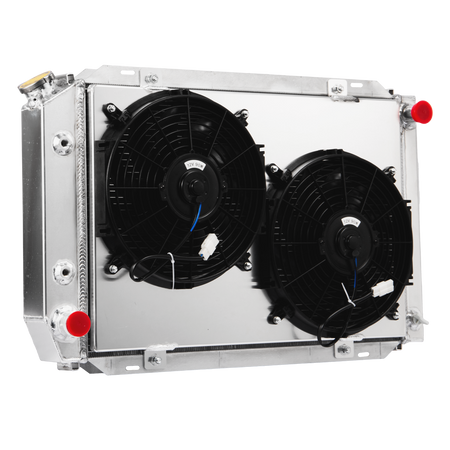

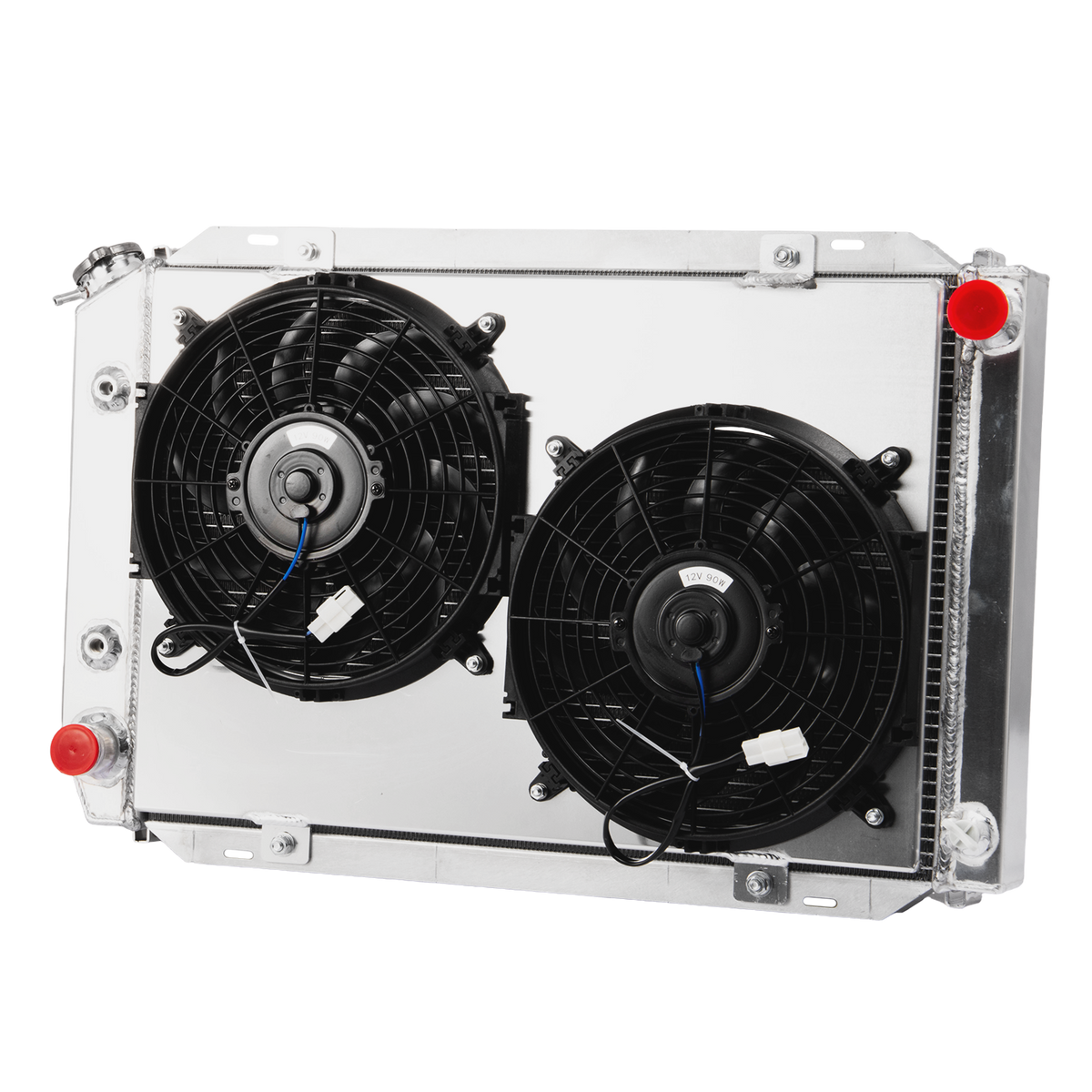

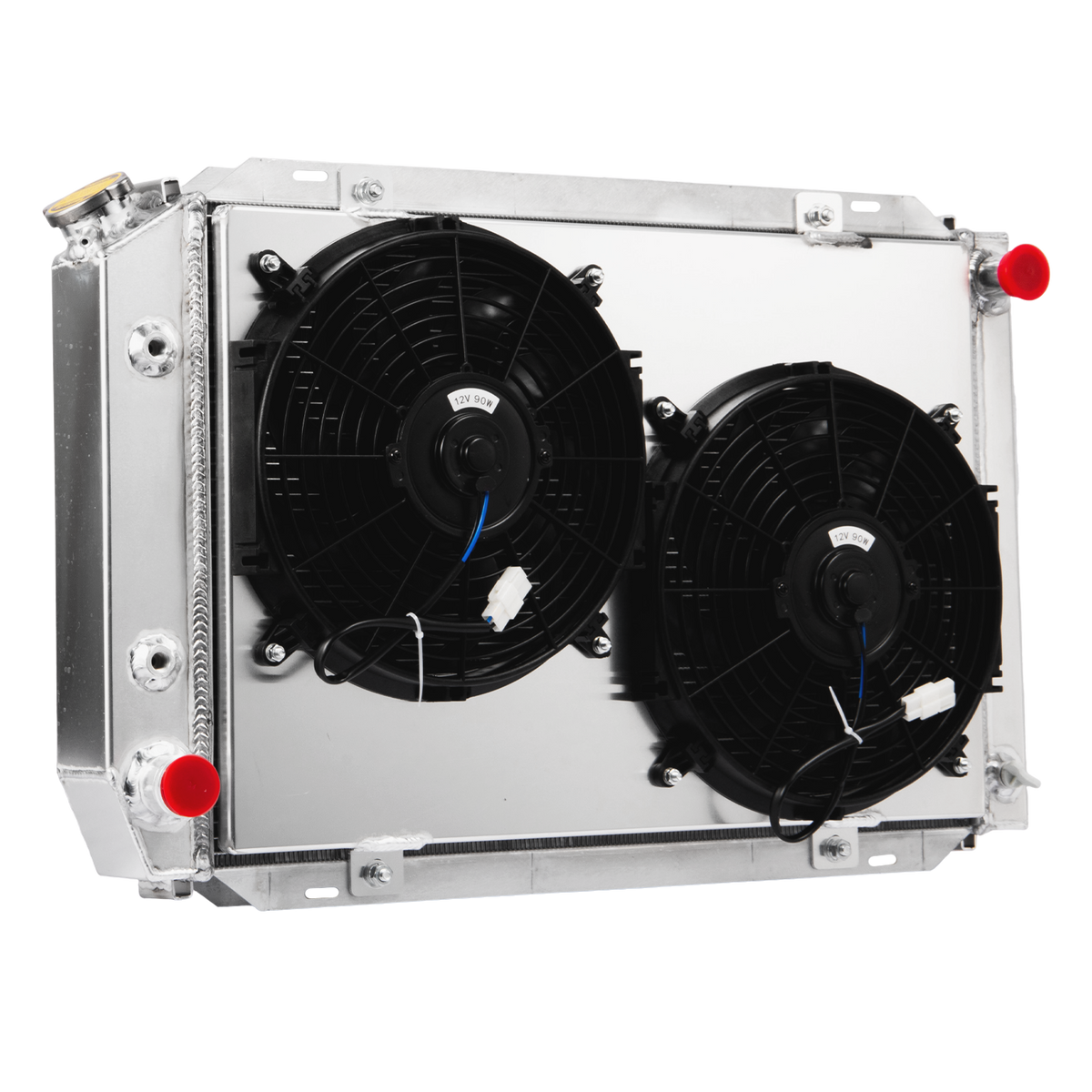

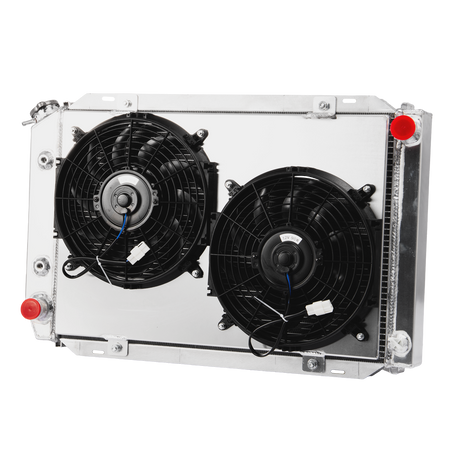

Aluminum Shroud Fan:

These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1. Shuttered design fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.

2. S blade fans, Push or Pull Type design, lightweight Plastic Durable Material.

FAN Specification:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 S-Type blades

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Description:

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
