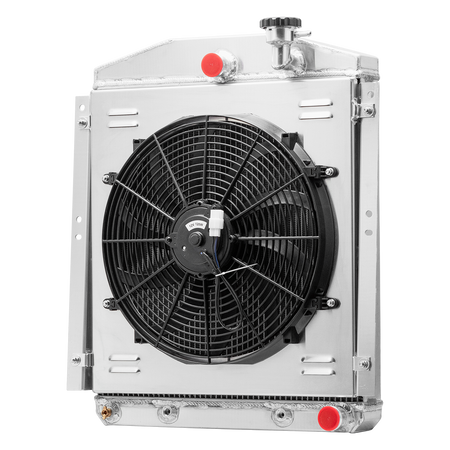

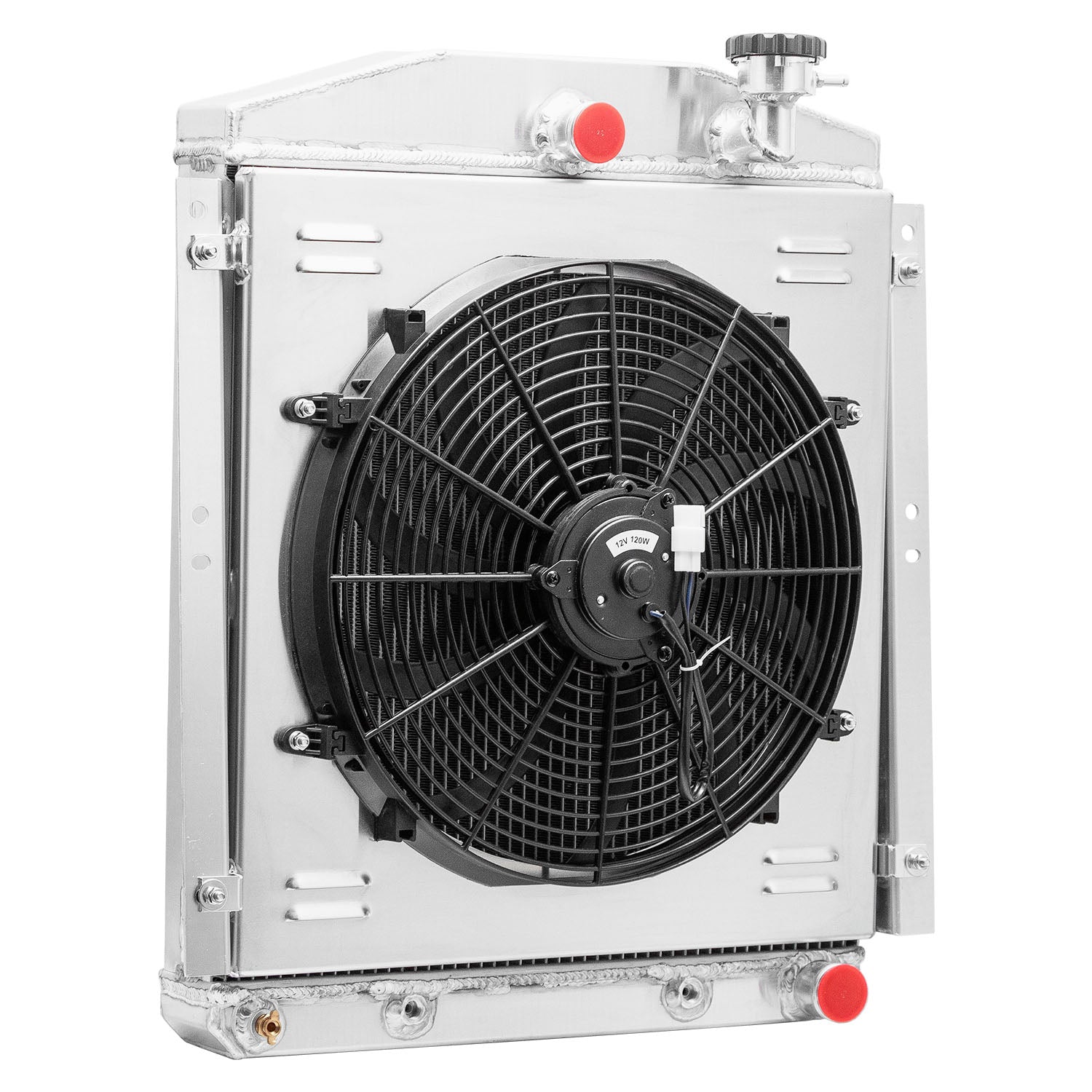

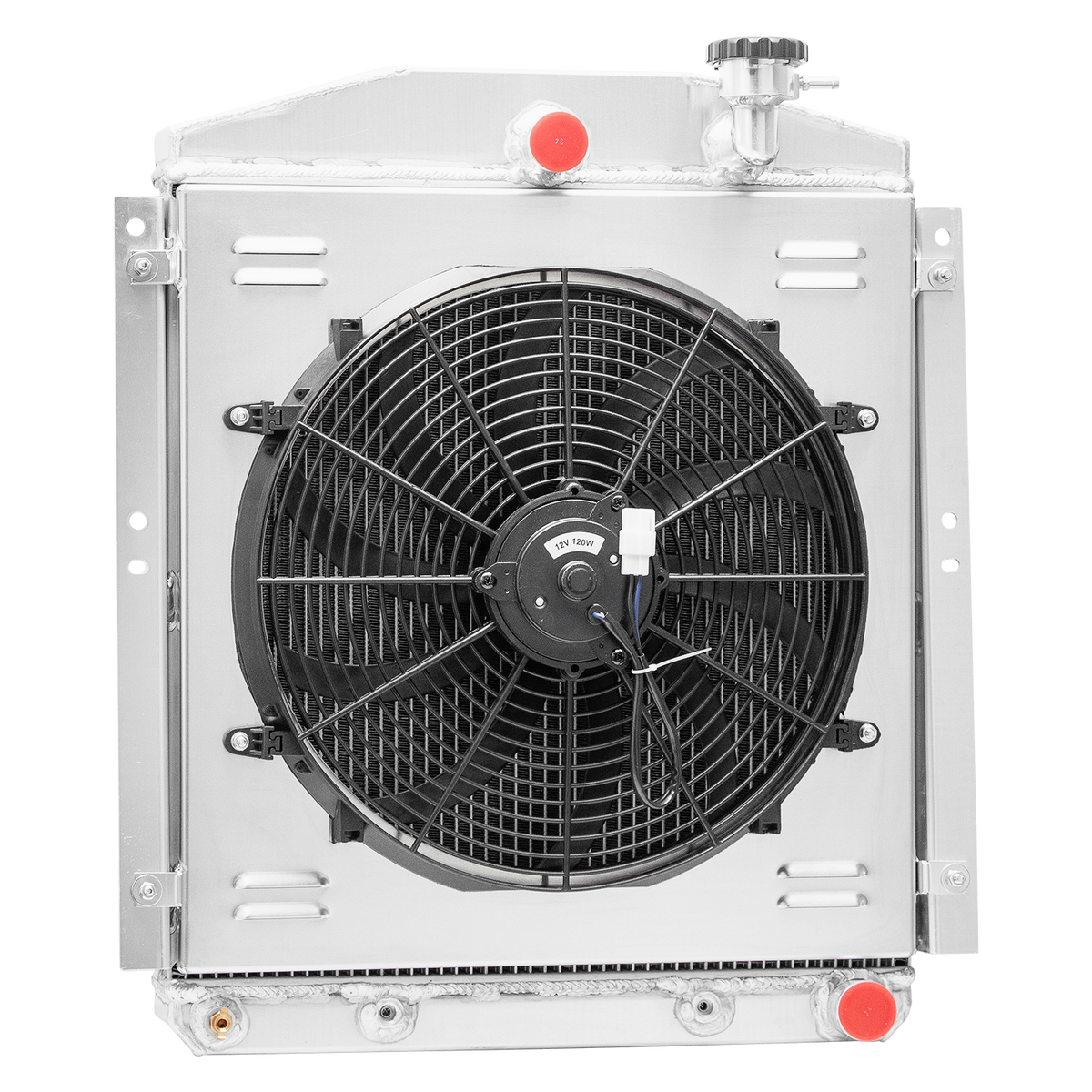

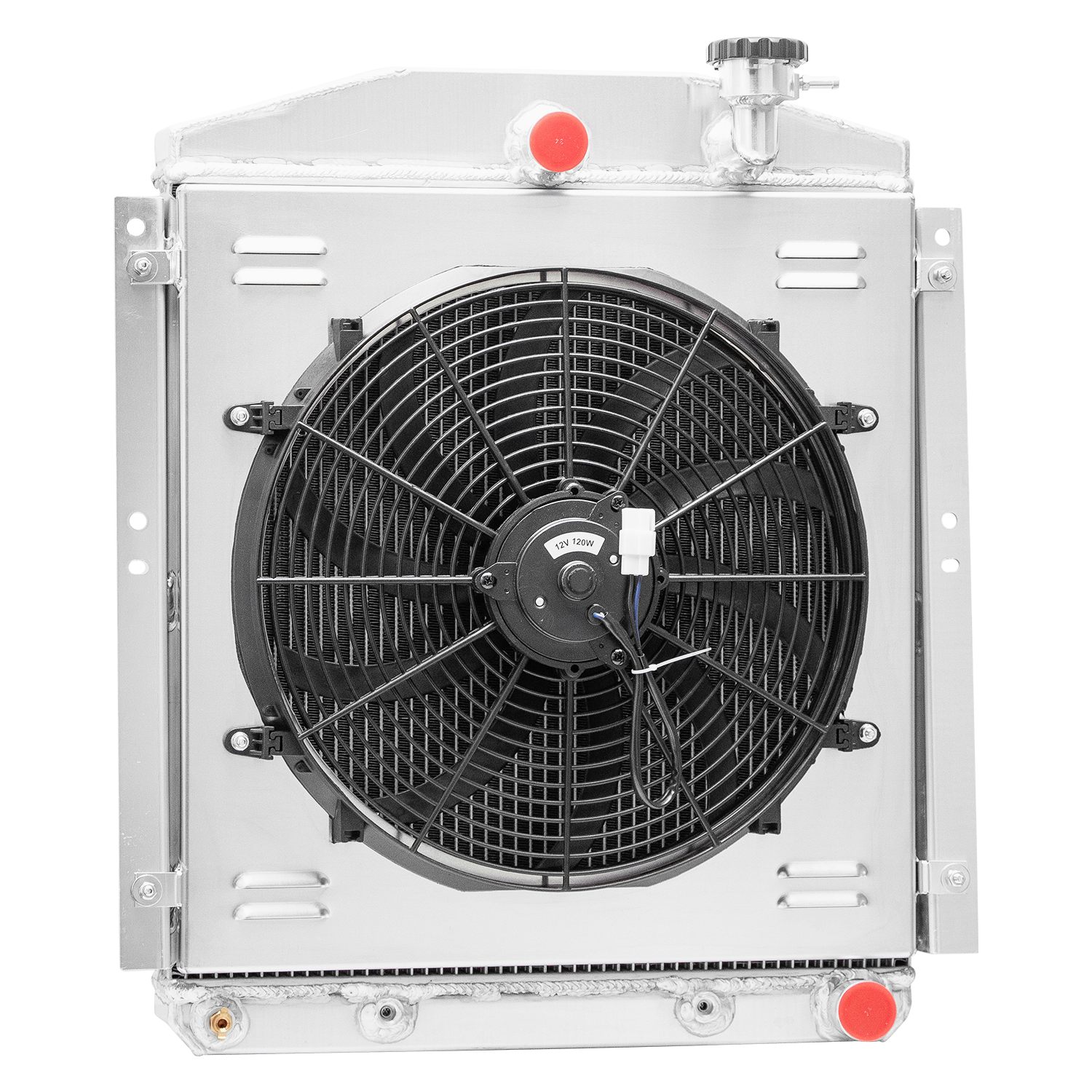

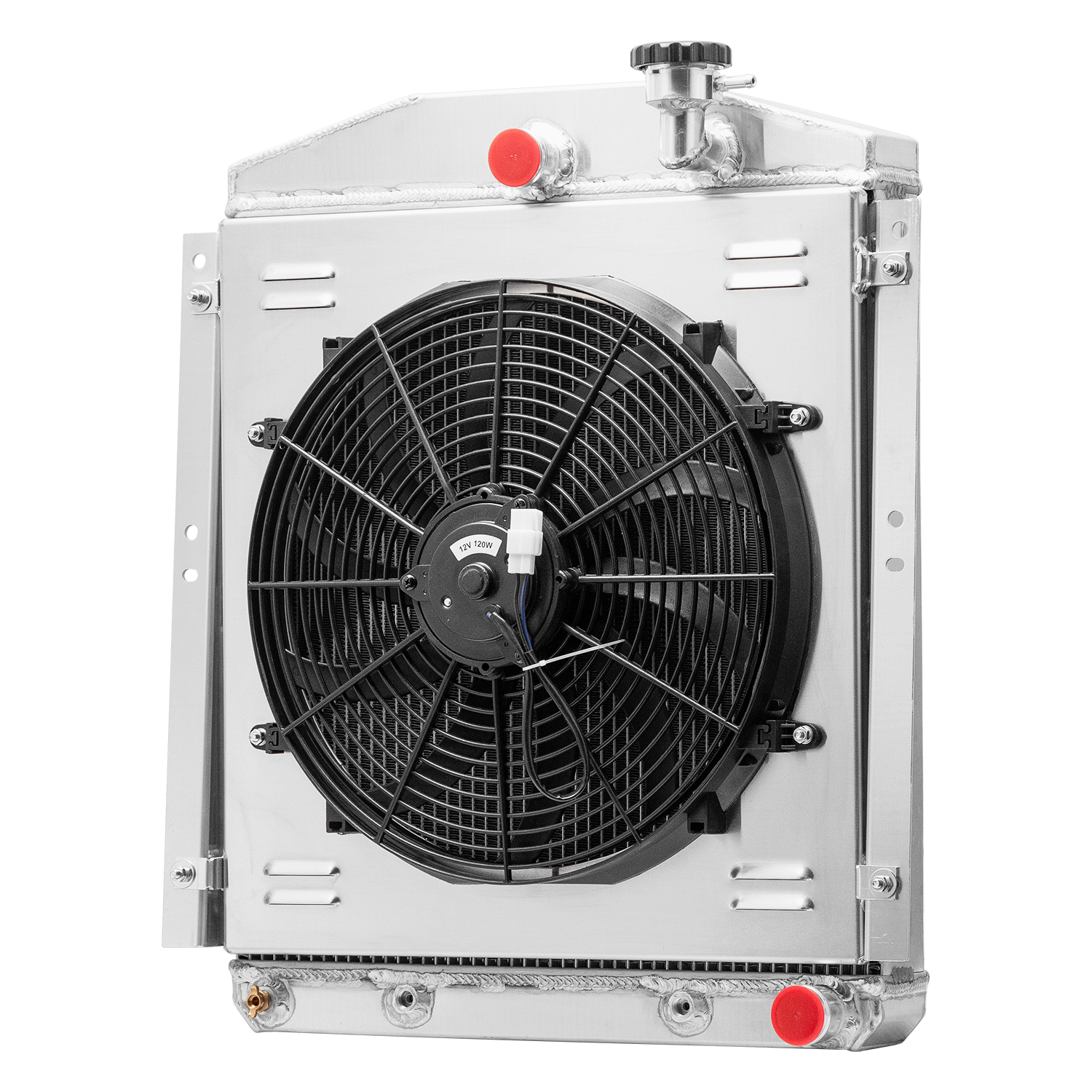

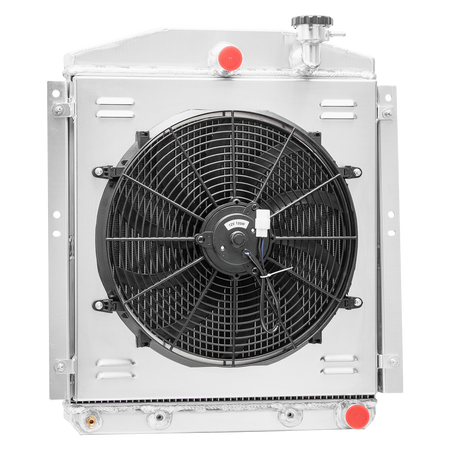

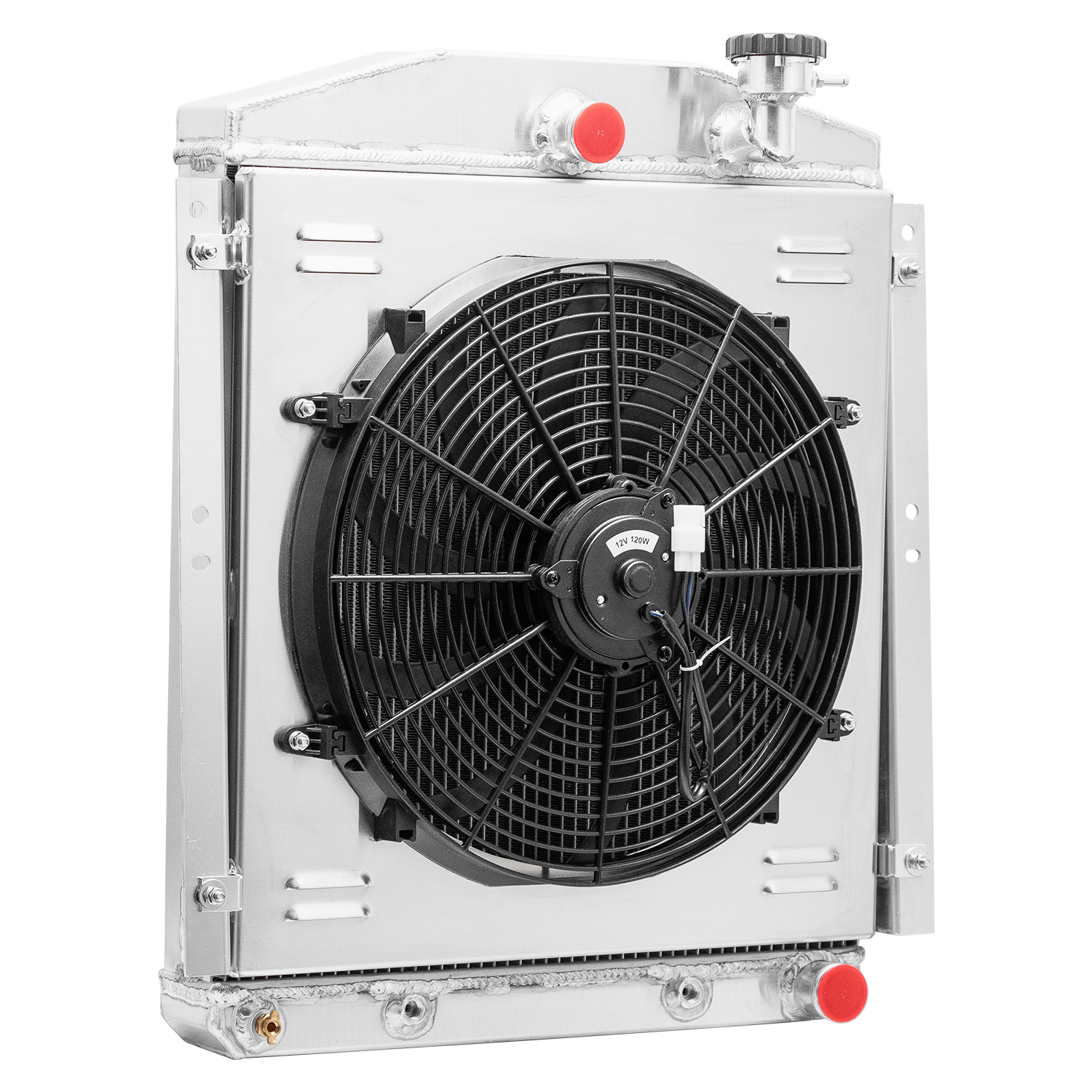

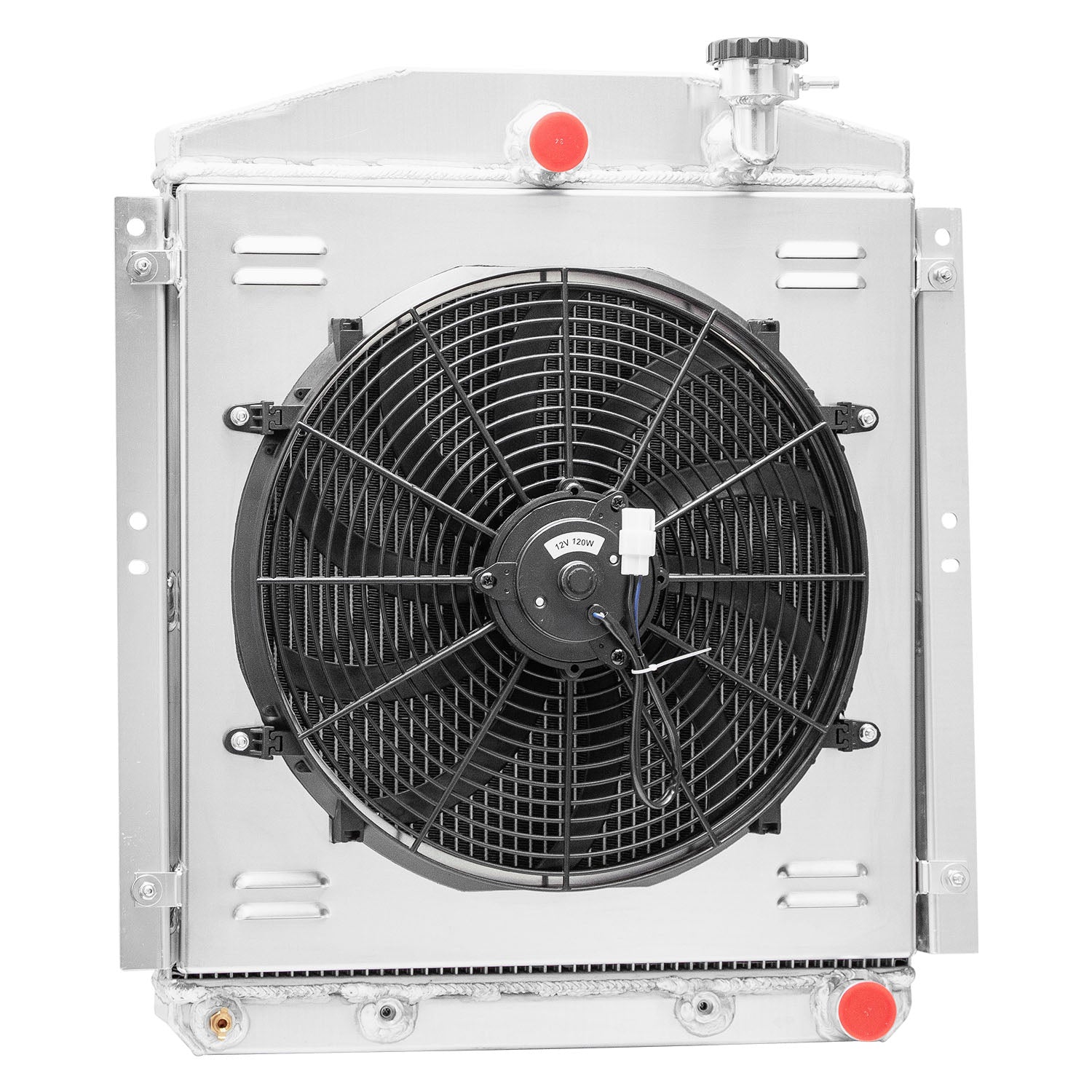

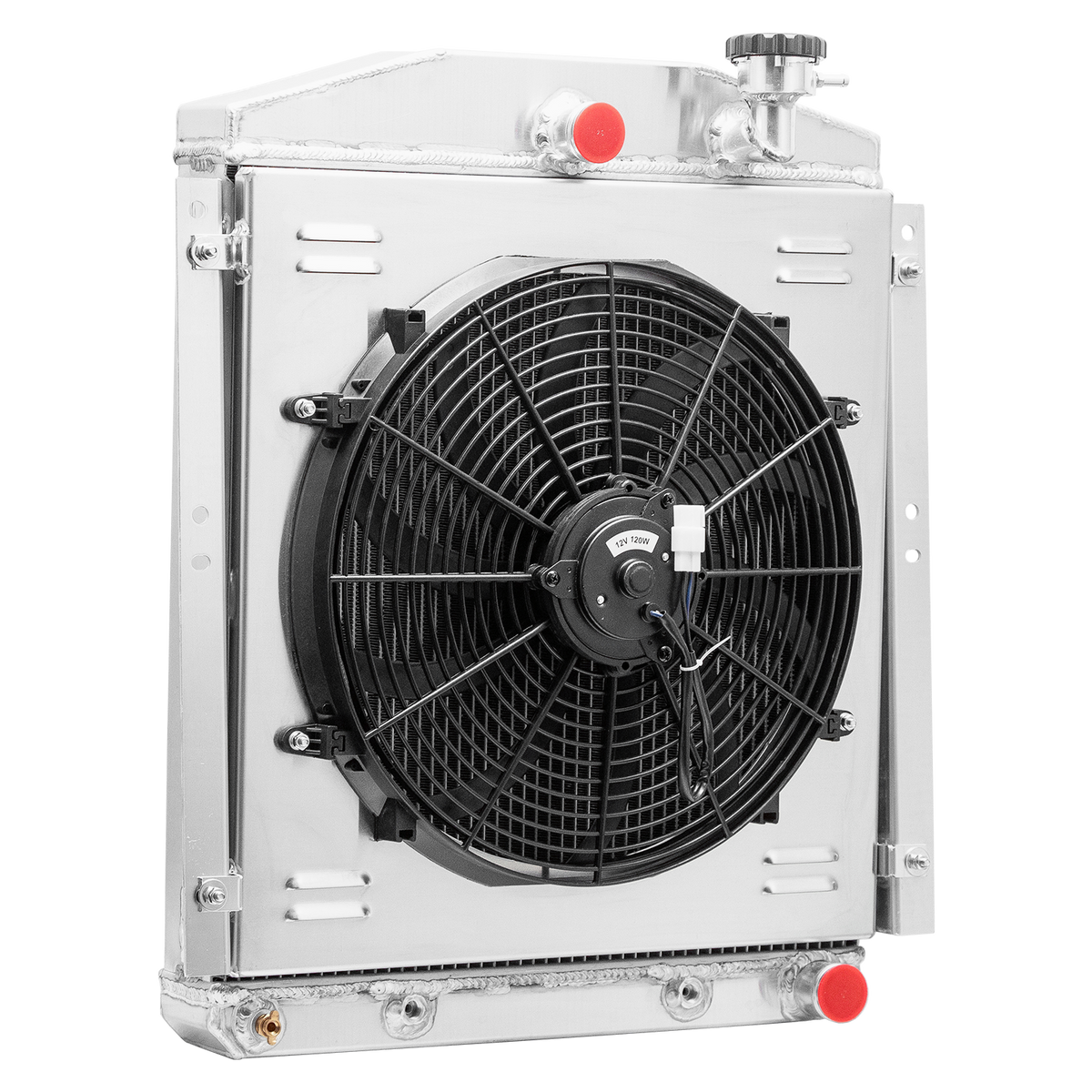

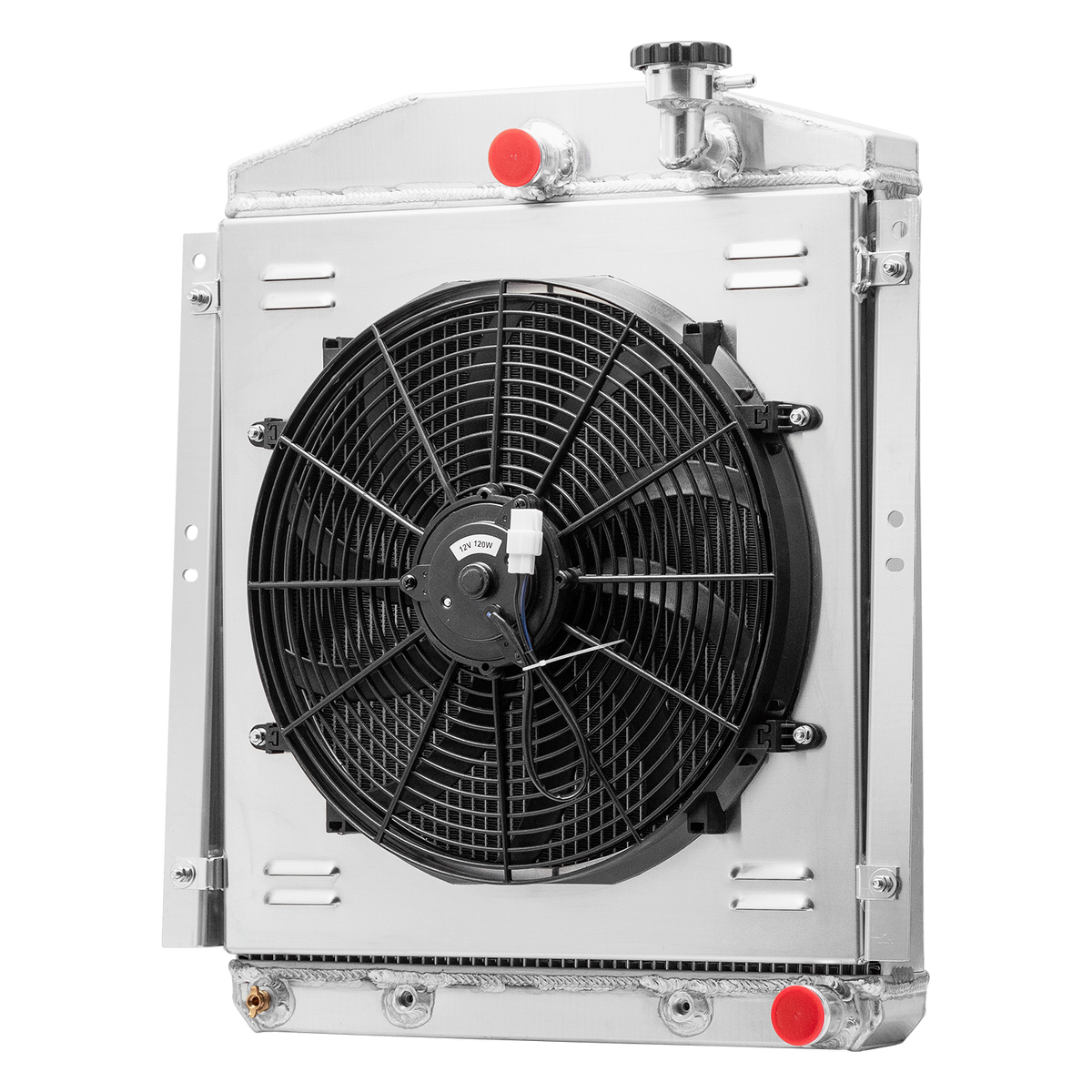

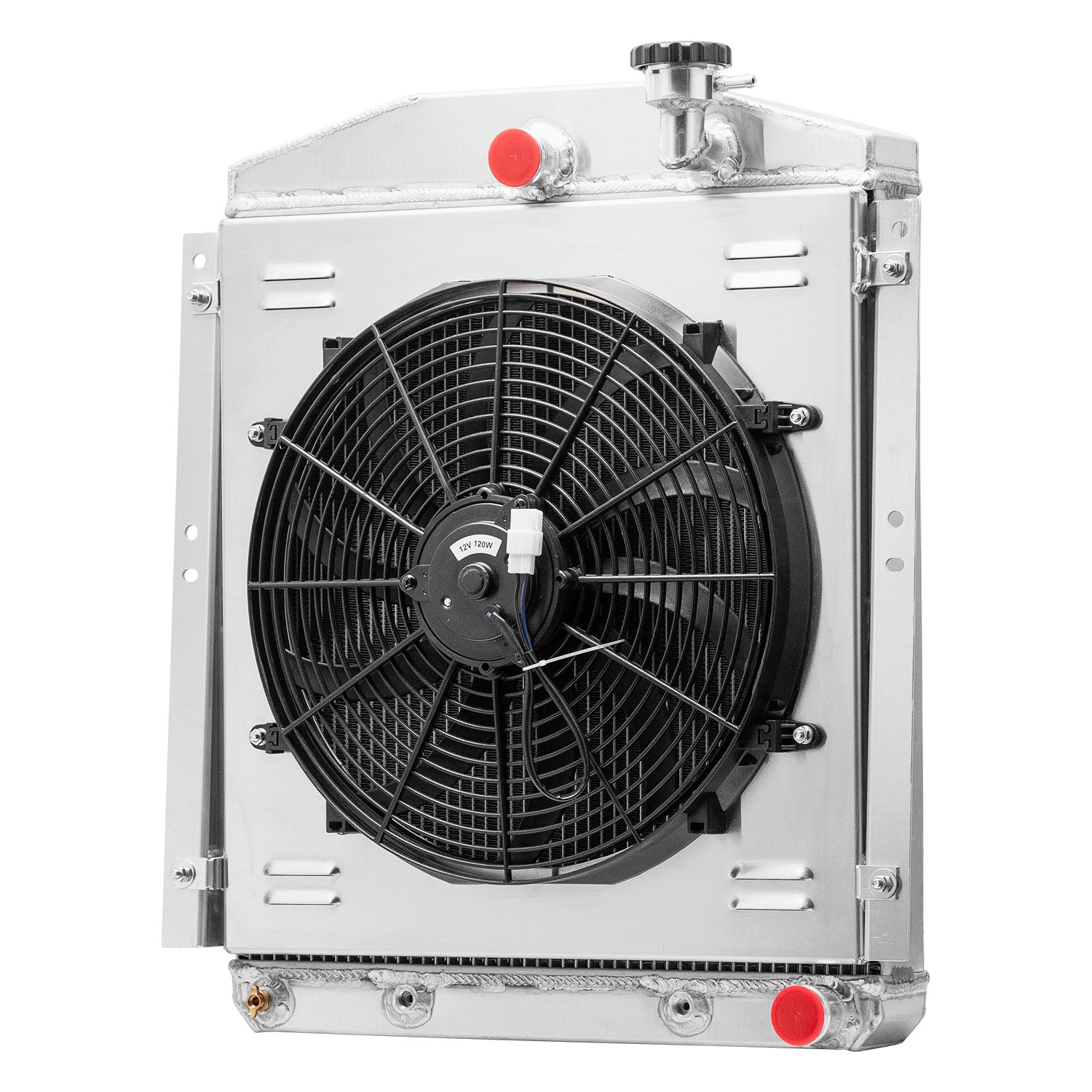

ASI Performance 4 Row Radiator+Shroud Fan+Relay For Chevrolet GMC Truck 3100 3600 1948-1954 1953

ASI6635

In stock

SKU: 535-50407DZFSXJ120W-BN Barcode: ASI6635

No reviews

$359.00

Overall Size:

26 1/5"H x 22 3/5"W

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Package Includes

1 × 4-Row AA5052 Aluminum Radiator
1 × CNC Machined Radiator Cap
1 × AA5052 Aluminum Shroud
1 × 16" Fan (Includes mounting kits)
1 × Thermostat Relay Kit

Technical Specifications

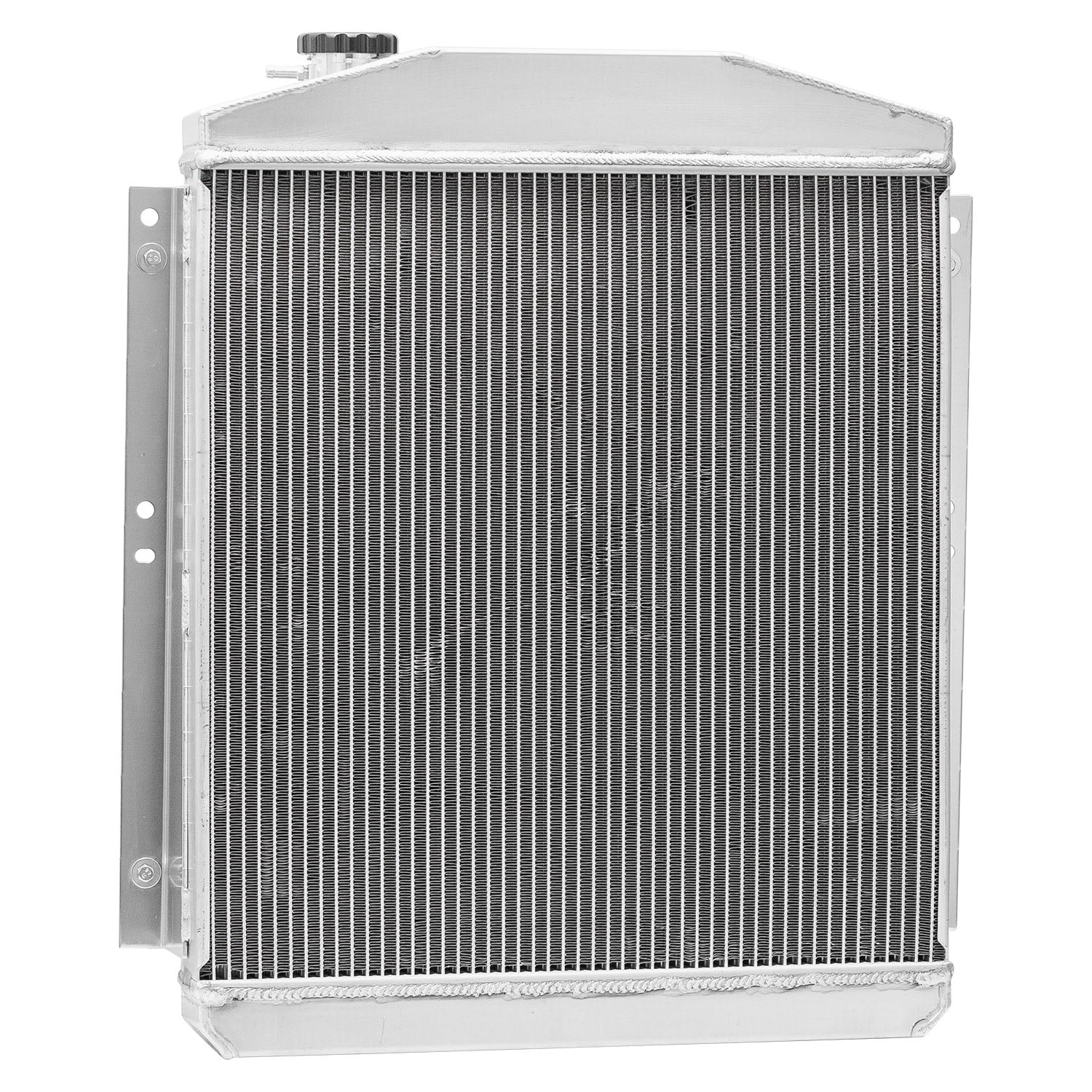

Core Design	4-Row Tube Core Racing Design
Material	AA5052 Aluminum
Core Size	20 1/2" H × 19 3/5" W × 2 1/2"
Overall Size	26 1/5" H × 22 3/5" W
Inlet Diameter	1 1/2"
Outlet Diameter	1 1/2"
Transmission Oil Cooler Fitting	G1/4
Tank & Fitting Thickness	2 mm

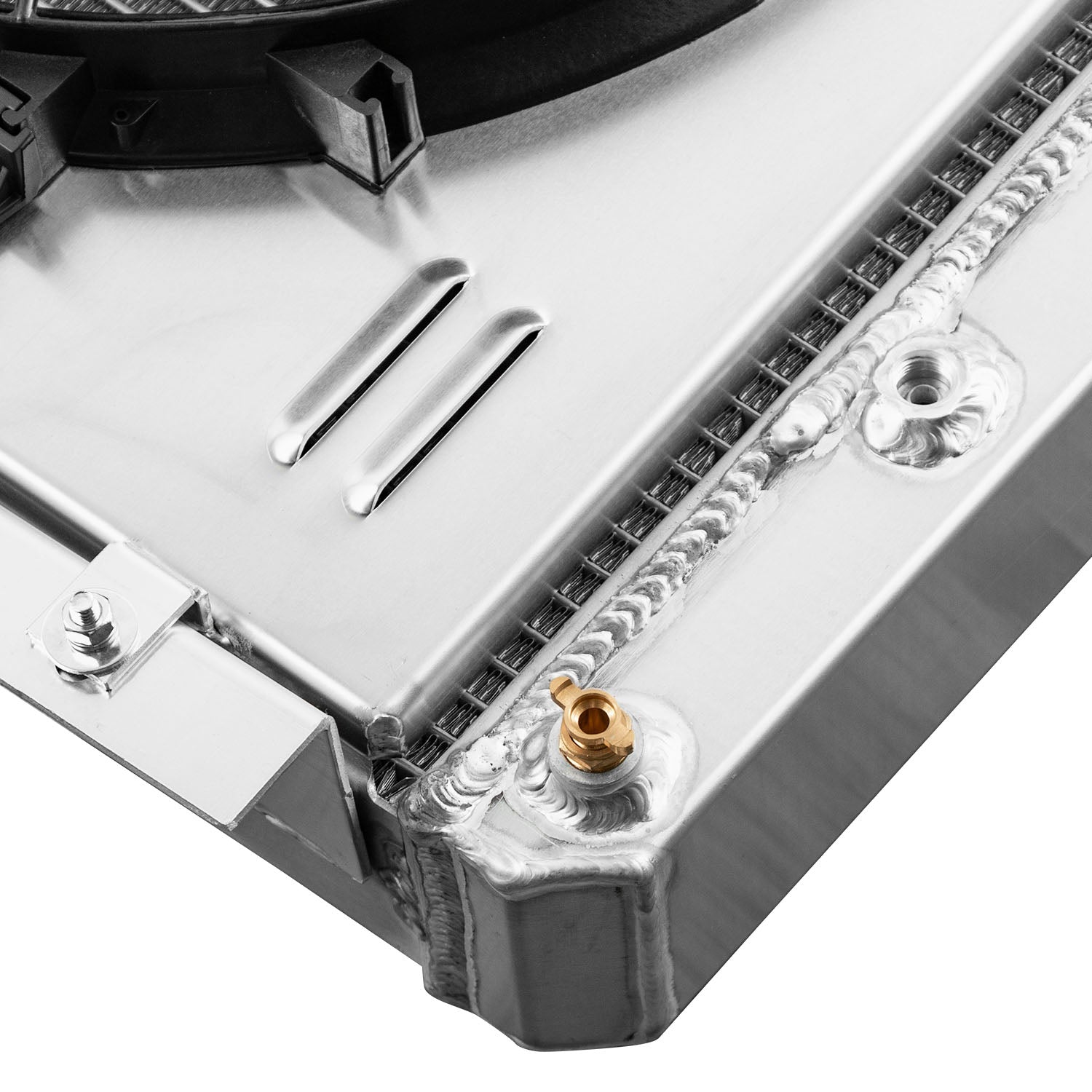

Petcock Drain	OEM Style Brass Petcock Drain

Important Fitment Note:
This radiator is easy to order incorrectly. Please carefully verify the inlet and outlet locations and radiator dimensions before purchasing.

Vehicle Fitment

1954 Chevrolet Truck 3.8L 3852CC 235Cu. In. L6 GAS OHV Naturally Aspirated
1954 Chevrolet Truck 4.3L 4278CC 261Cu. In. L6 GAS OHV Naturally Aspirated
1953 Chevrolet Truck 3.8L 3852CC 235Cu. In. L6 GAS OHV Naturally Aspirated
1952 Chevrolet Truck 3.8L 3852CC 235Cu. In. L6 GAS OHV Naturally Aspirated
1951 Chevrolet Truck 3.8L 3852CC 235Cu. In. L6 GAS OHV Naturally Aspirated
1950 Chevrolet Truck 3.8L 3852CC 235Cu. In. L6 GAS OHV Naturally Aspirated
1949 Chevrolet Truck 3.8L 3852CC 235Cu. In. L6 GAS OHV Naturally Aspirated
1948 Chevrolet Truck 3.8L 3852CC 235Cu. In. L6 GAS OHV Naturally Aspirated
1954 GMC Truck 4.1L 4065CC 248Cu. In. L6 GAS OHV Naturally Aspirated
1953 GMC Truck 3.7L 3737CC 228Cu. In. L6 GAS OHV Naturally Aspirated
1953 GMC Truck 4.1L 4065CC 248Cu. In. L6 GAS OHV Naturally Aspirated
1952 GMC Truck 3.7L 228Cu. In. L6 GAS OHV Naturally Aspirated
1951 GMC Truck 3.7L 228Cu. In. L6 GAS OHV Naturally Aspirated
1950 GMC Truck 3.7L 228Cu. In. L6 GAS OHV Naturally Aspirated

Fan Specifications

Fan Diameter	16"
Voltage	DC 12V
Maximum Fan CFM	2150 CFM
Wattage	120W
Fan Thickness	2.95"
Number of Blades	10 S-Type Blades
Maximum Fan RPM	2,250 RPM
Amp Draw	10 Amps

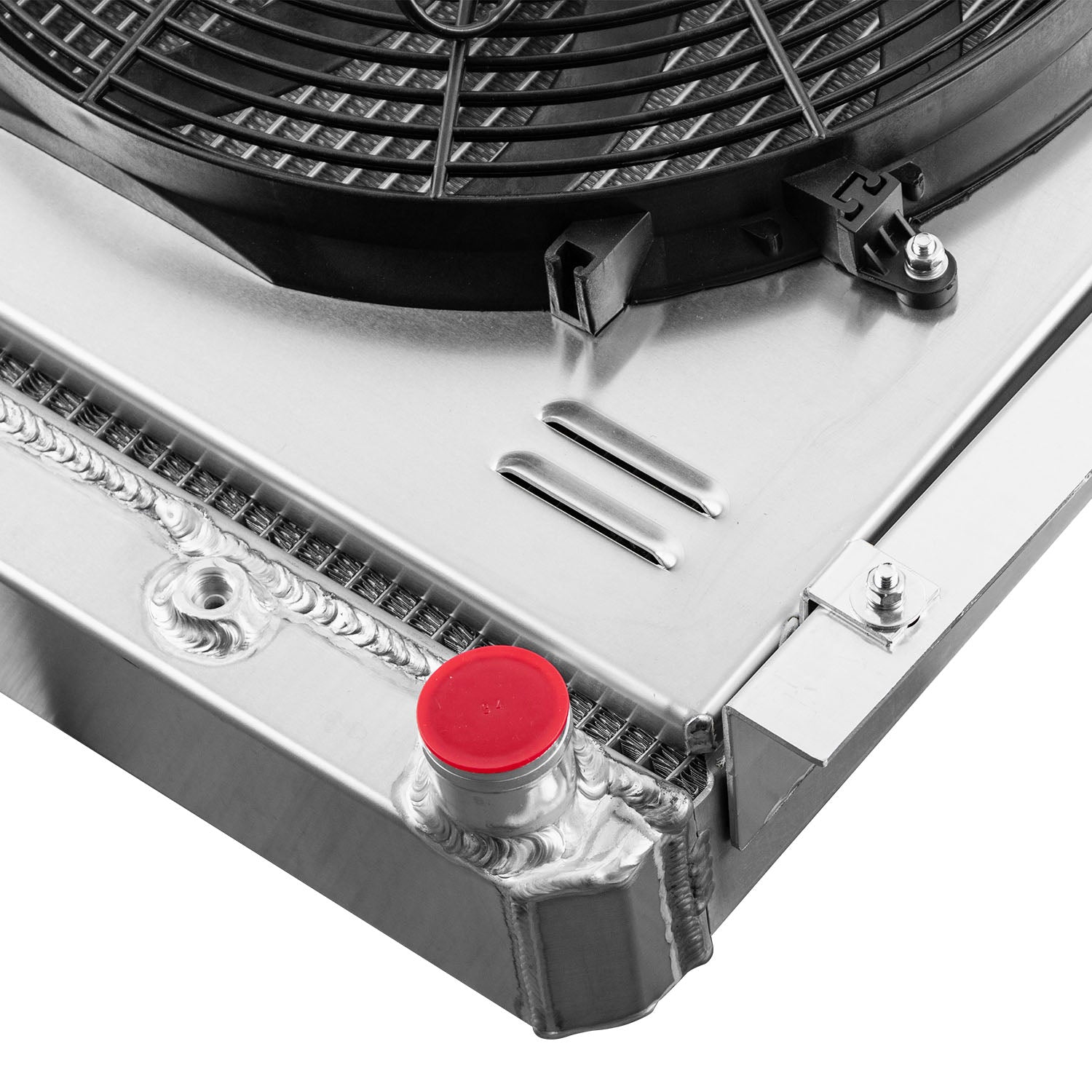

AA5052 Aluminum Shroud and Fan

The fan and AA5052 aluminum fan shroud are designed to improve airflow through the radiator and help direct heat away from the engine compartment.

The fan shroud securely houses the fan blades, helps improve airflow distribution, and reduces the risk of interference with nearby engine components.

1. Shuttered-design AA5052 aluminum fan shroud helps improve airflow efficiency.
2. S-Type blade fan supports Push or Pull Type installation with lightweight, durable plastic construction.
3. Includes a thermostat relay kit for temperature-controlled fan operation.

Thermostat Relay Kit

Universal fit for automotive electric fan applications.

Activates the electric fan by grounding it at the preset temperature.

Turn-On Temperature: 185°F
Turn-Off Temperature: 165°F

Wiring:
RED (+) — Connect directly to the battery.
WHITE — Connect to the ignition switch power source.
BLACK — Connect to the thermostat switch.
BLUE — Connect to the fan.

This setup is designed to run the fan as a puller, drawing air through the radiator.

Advantages

1. Made from aircraft-grade AA5052 aluminum with a raw aluminum finish for increased durability and corrosion resistance.
2. Brazed core technology for improved performance and dependability.
3. AA5052 aluminum 2 mm thick tanks and fittings for increased strength and durability.

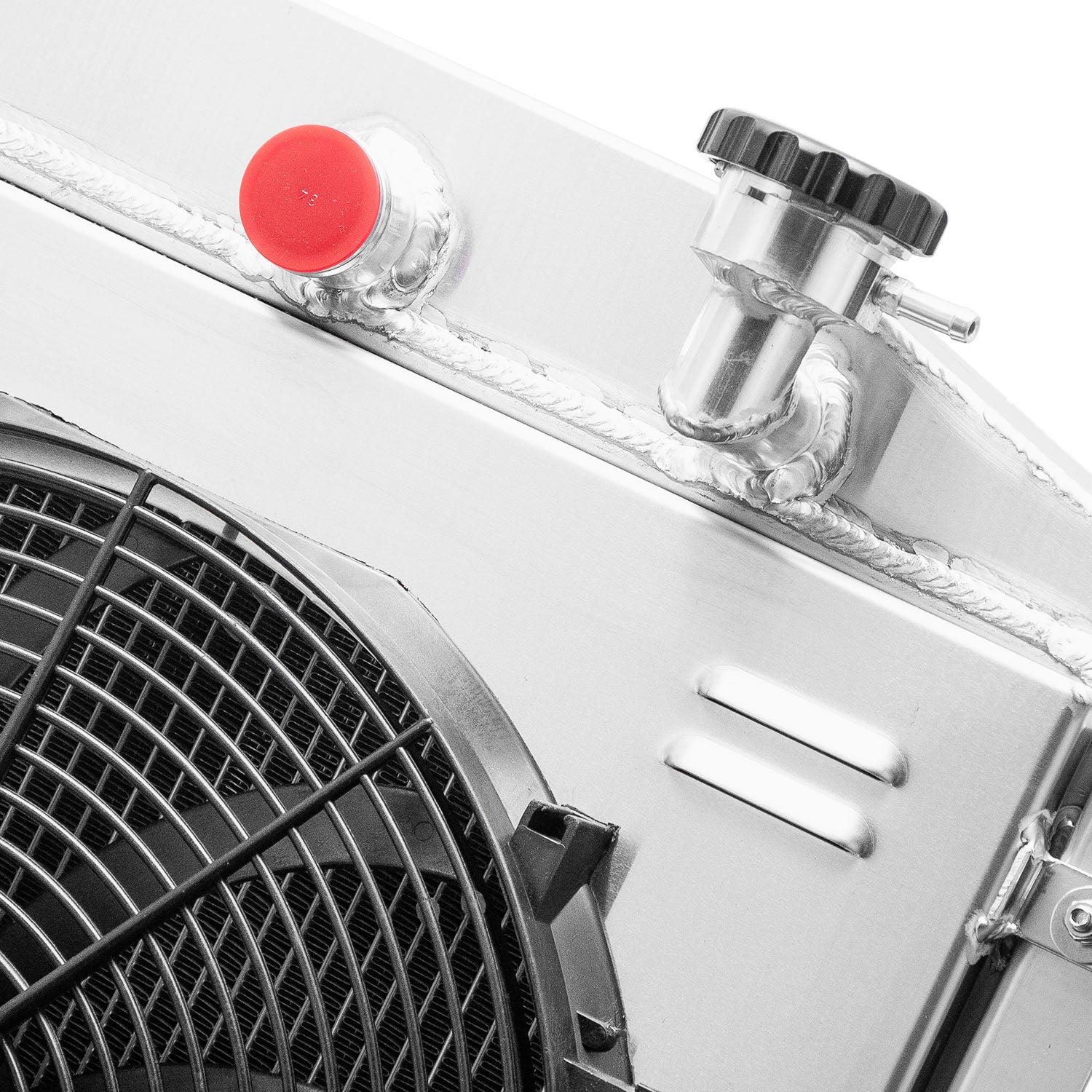

4. Billet aluminum CNC-machined filler neck for improved durability.
5. CNC-machined radiator cap with engraved craftsmanship and anodized treatment.
6. OEM-style brass petcock drain.
7. Carefully crafted to OE standards for precise fit.

Description

This radiator is made from AA5052 aluminum, an Al-Mg alloy known for good corrosion resistance, strength, reliability, and workability.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency and help prevent premature engine failure.

Its lightweight, high heat-transfer aluminum construction features a tube-and-fin design that increases surface area, allowing heat to dissipate more efficiently.

This AA5052 Aluminum Radiator is approximately 30%–45% more efficient than stock radiators and provides increased coolant capacity, helping the cooling system maintain stable temperatures and resist temperature surges in demanding applications.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
