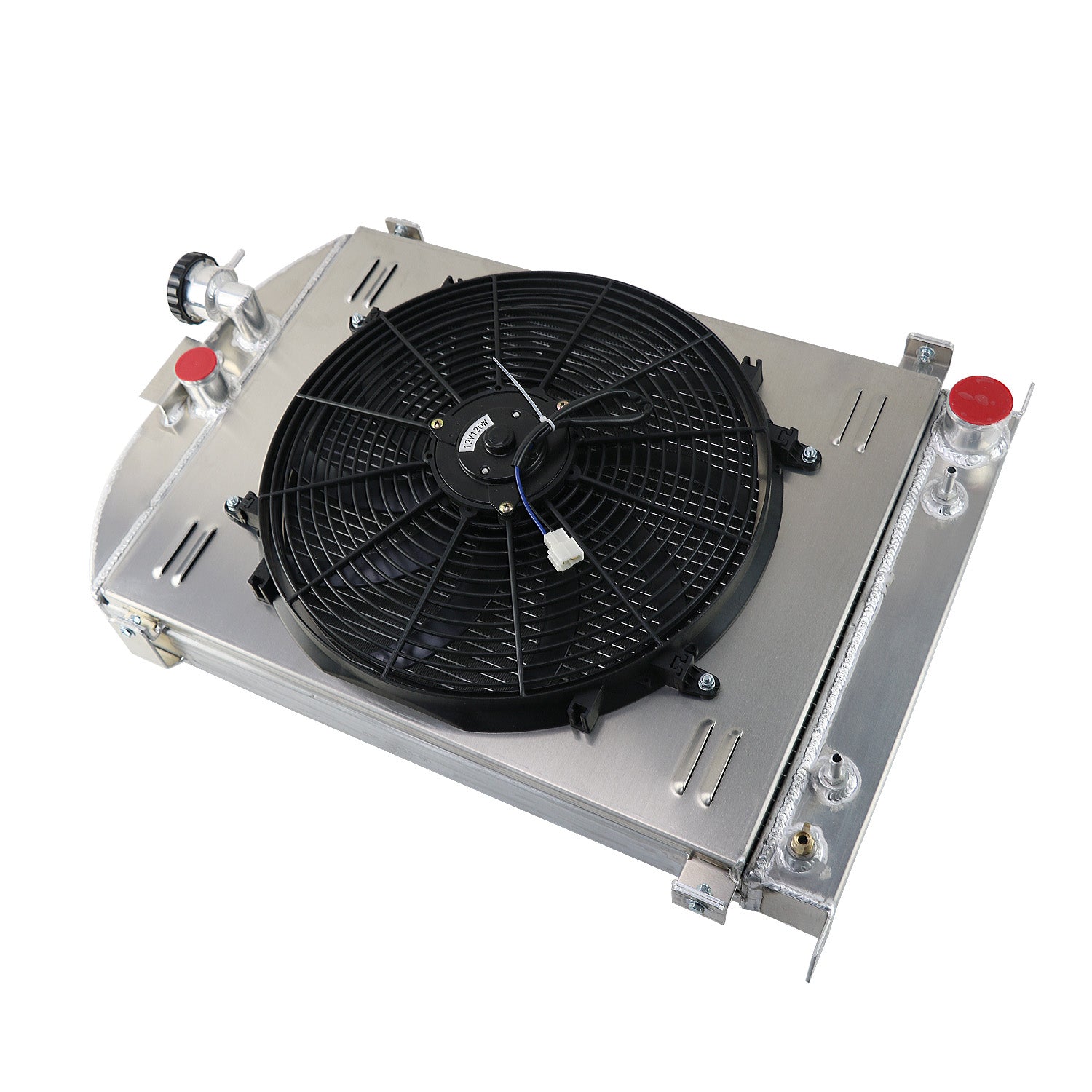

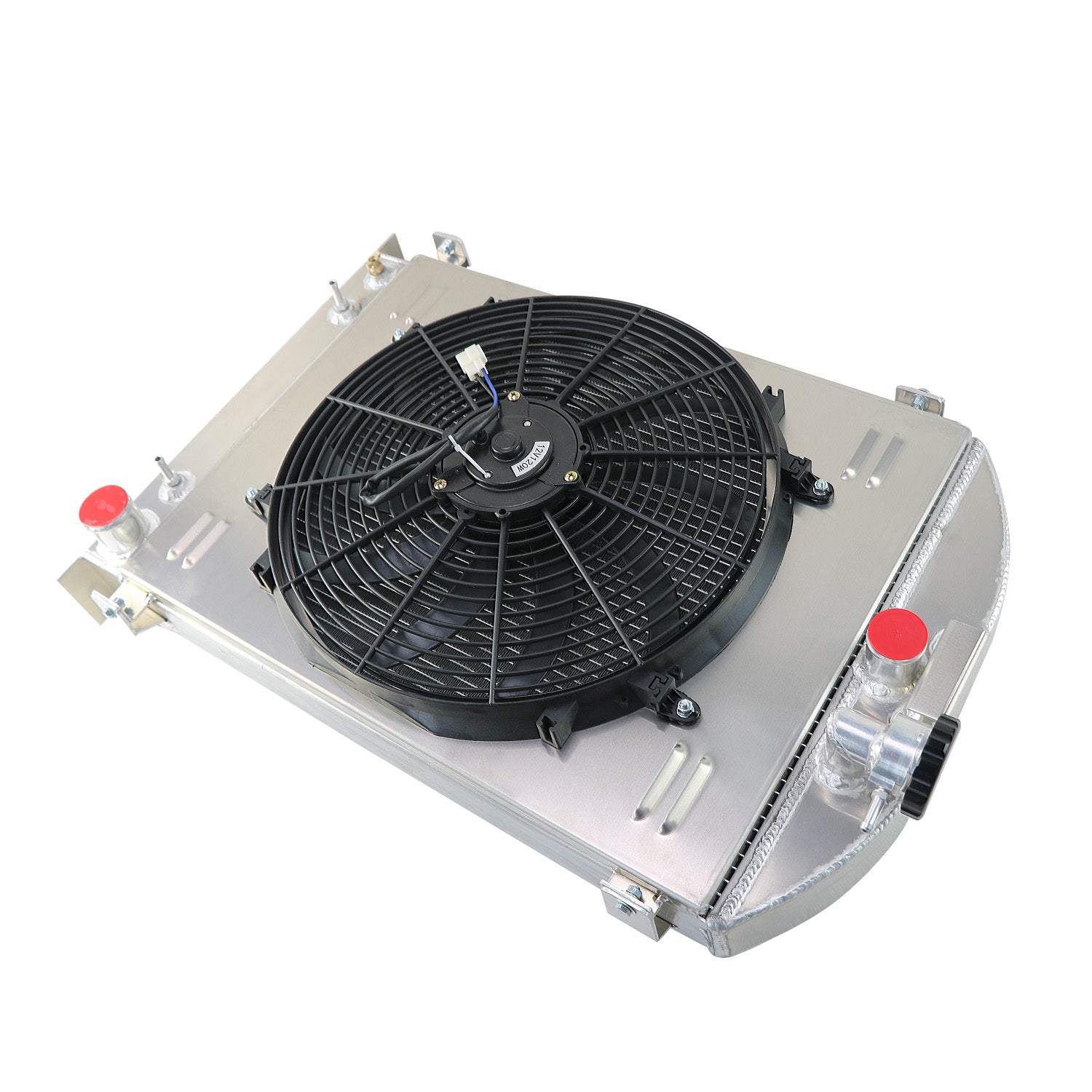

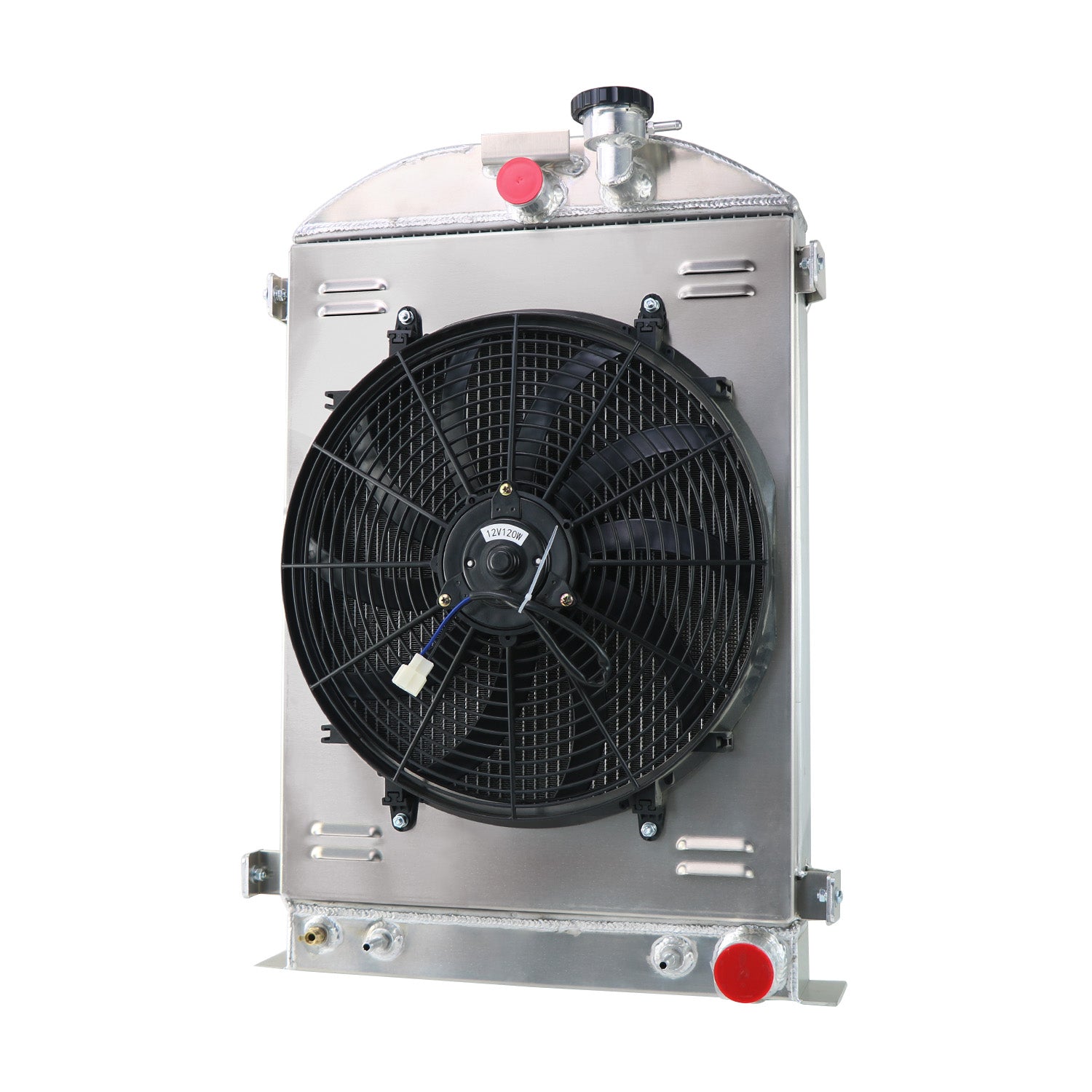

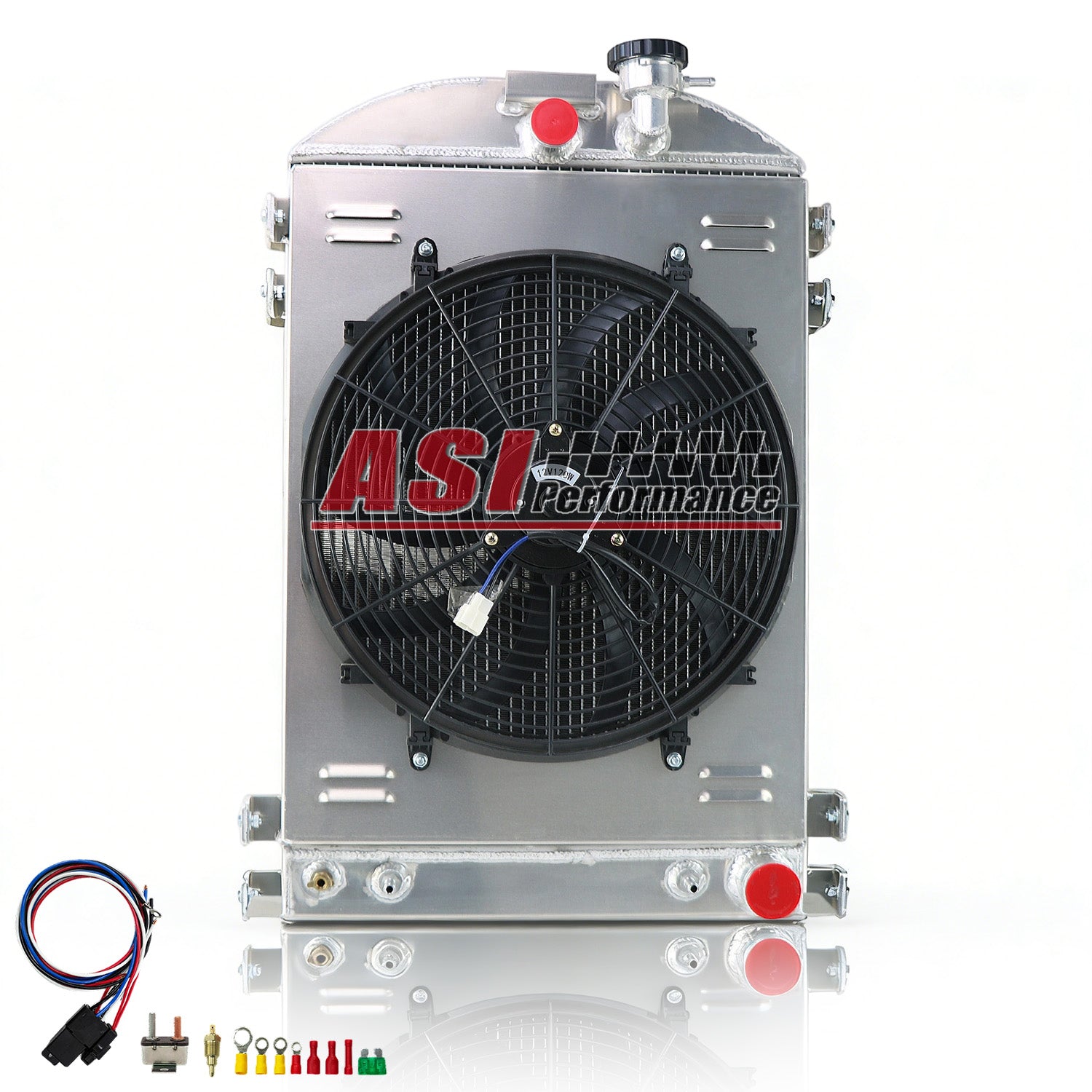

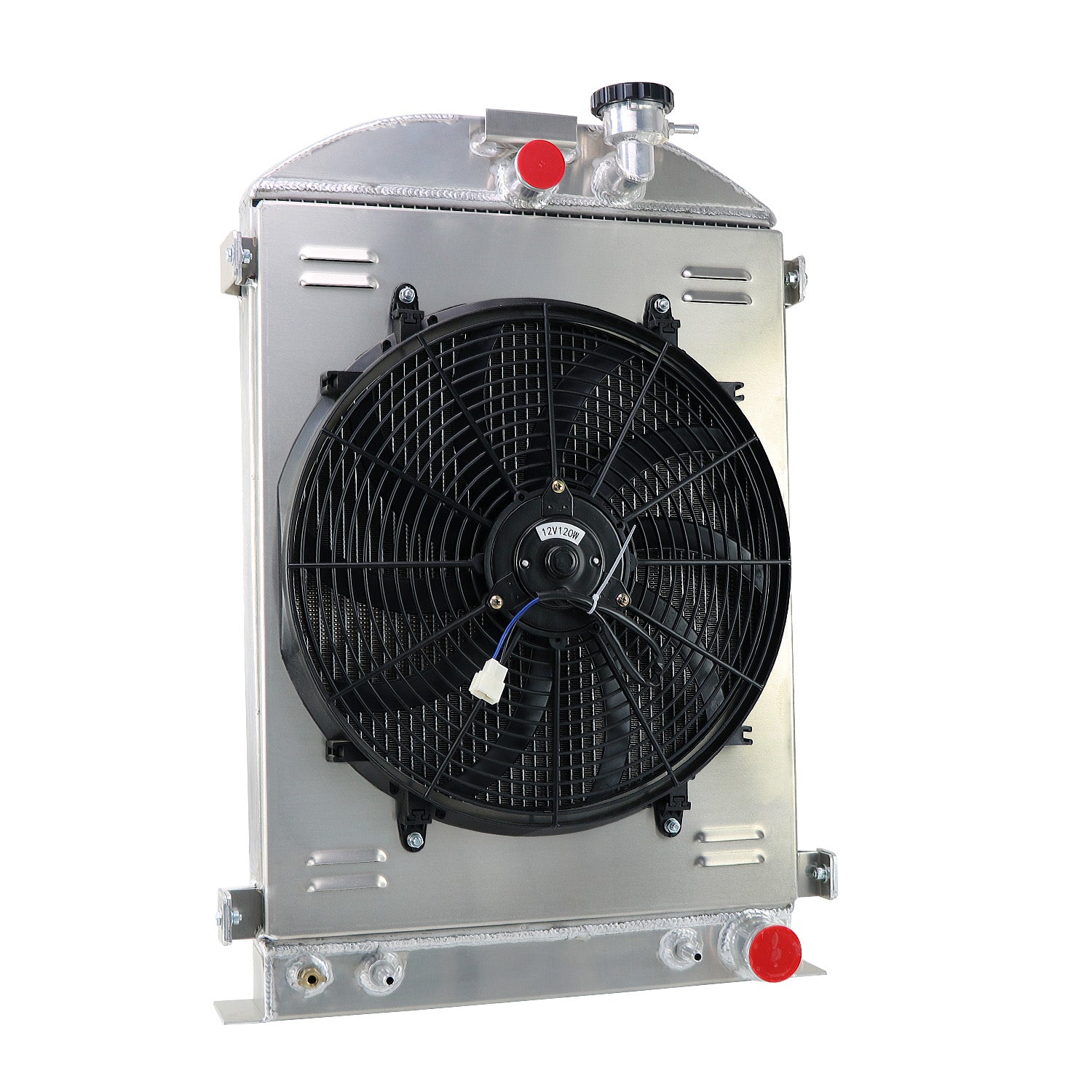

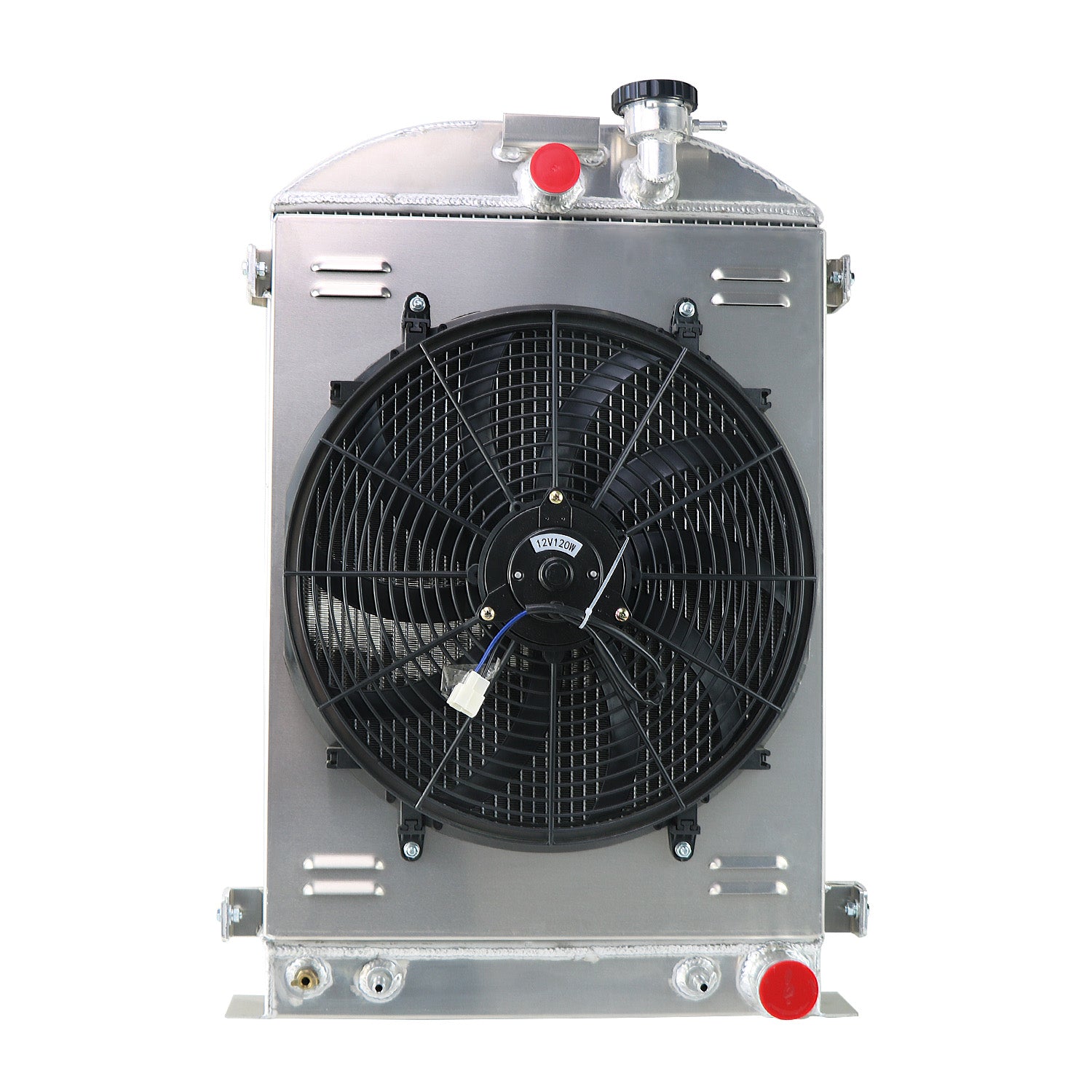

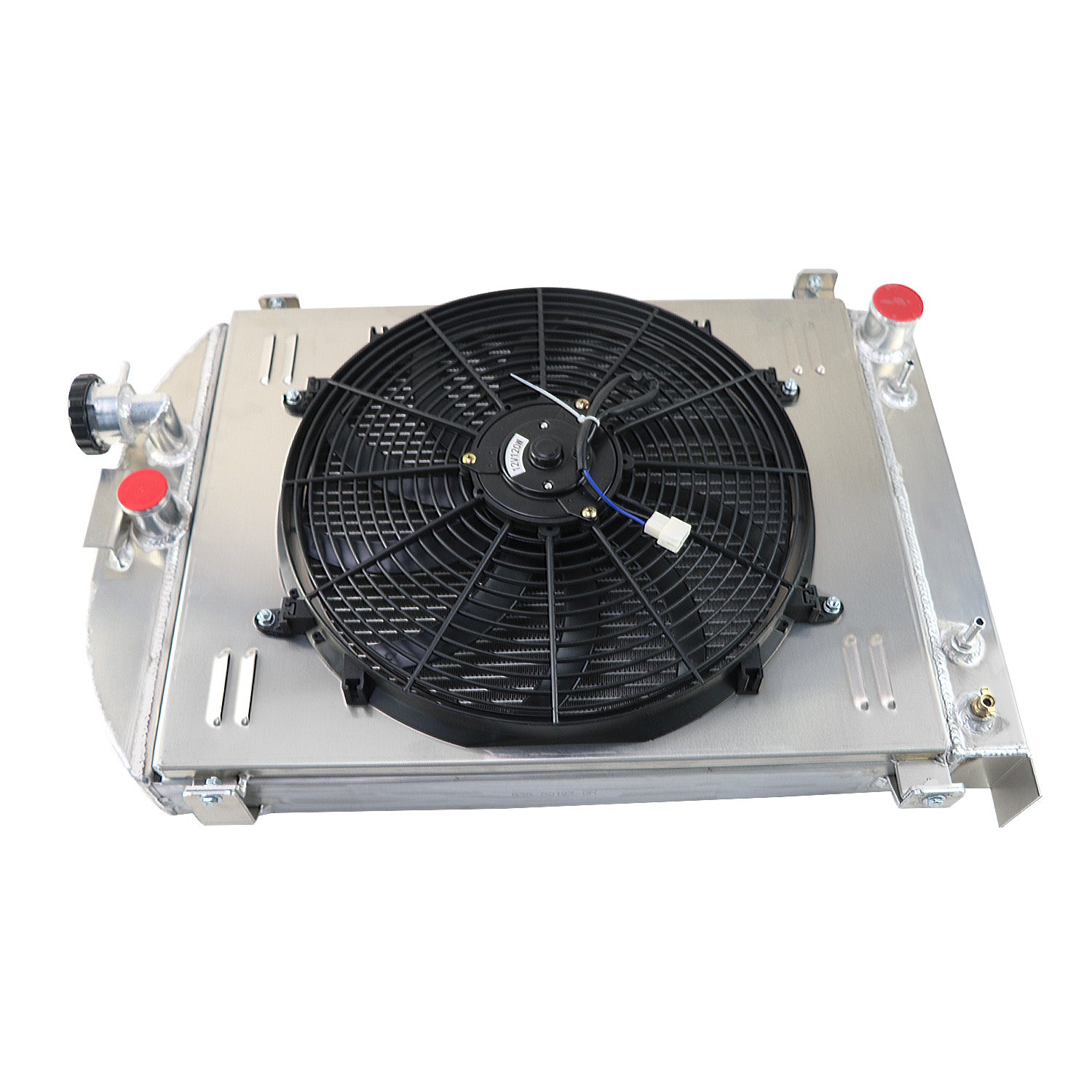

ASI Performance 4 Row Radiator with Shroud Fan For 1933-1935 Ford MODEL Hot Rod Chevy V8 Engine AT 28''Height x 19 4/5''Width

Package Include:

Radiator Size:

Material:Full Aluminium
4-Row of tubes Core Racing Design
Tank Material: AA5052 Aircraft Grade Aluminum
Overall Dimensions: 28'' H x 19-4/5'' W
Core Dimensions: 22-1/2'' H x 17-1/4''W _x 2 3/4''T inch
Inlet/outlet: 1 1/2''&1 3/4'' inch
Trans cooler: included.
Mount System: Flanges

16"Fan:

Voltage: DC 12 Volts
Maximum Fan CFM: 2150 cfm
Wattage: 120 Wattage
Thickness (in): 2.500"
Number of Blades: 10 S-Type blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 10 amps

Thermostat Kit Installation:

Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

The advantages of our radiator:

Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.

More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength. The main alloying element of T-5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
