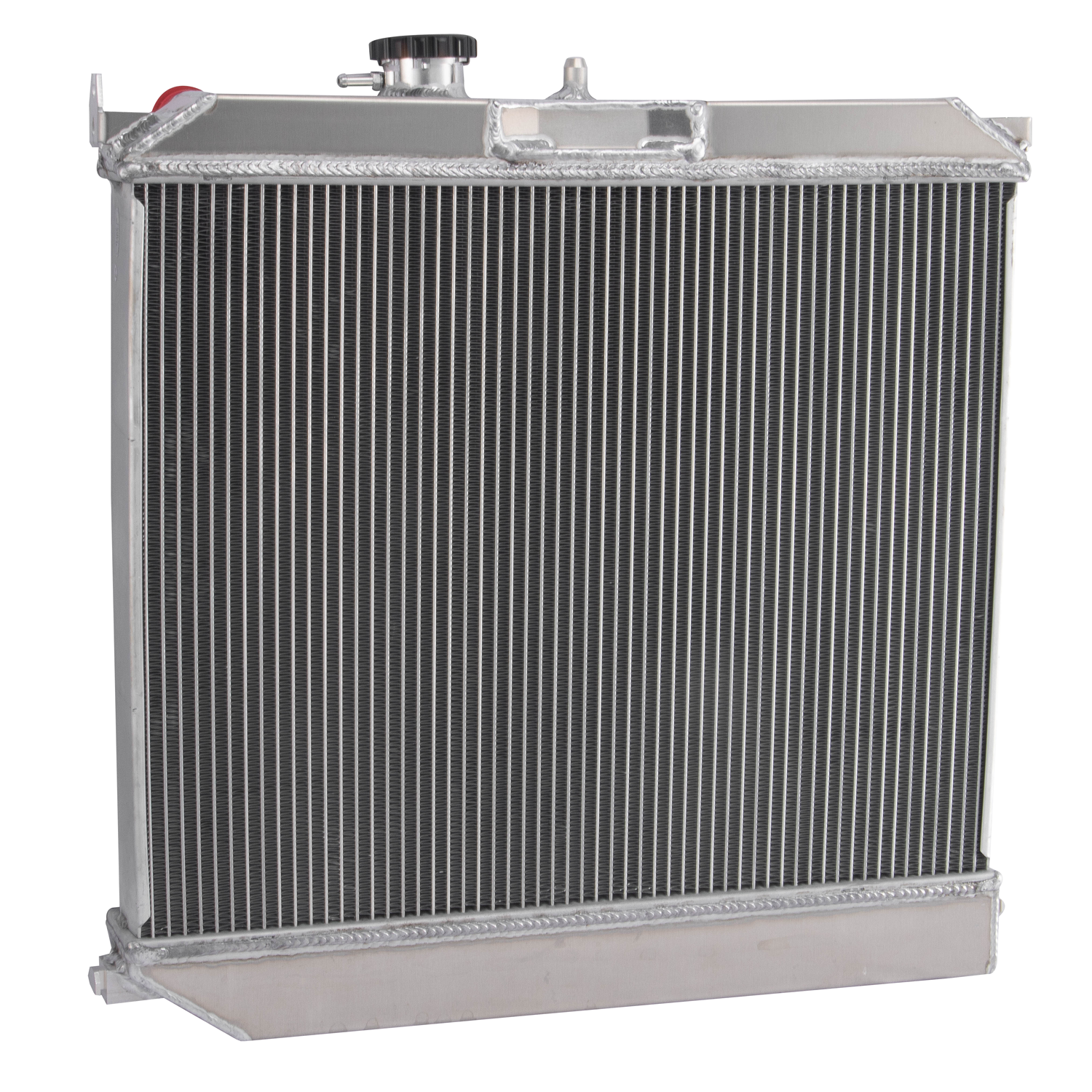

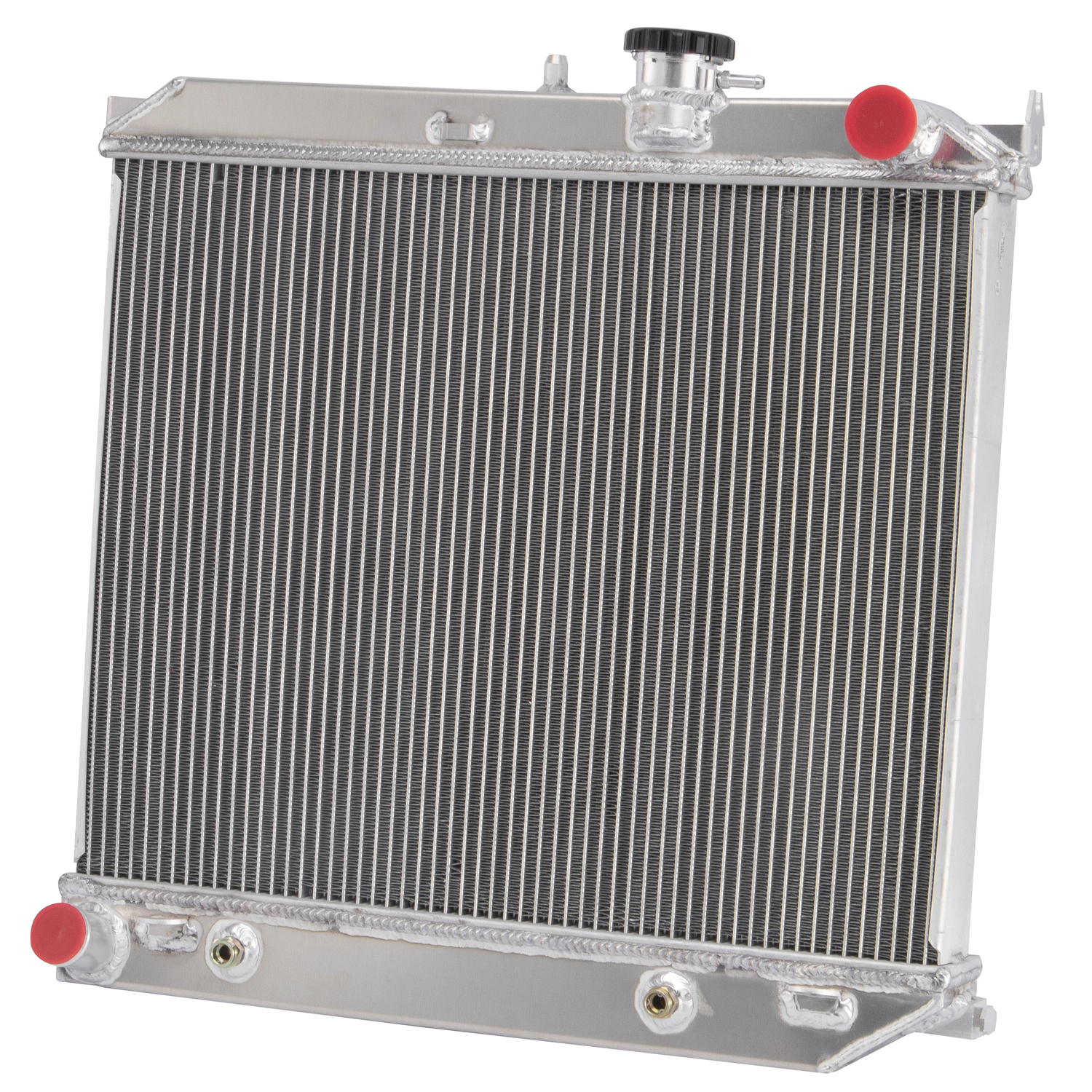

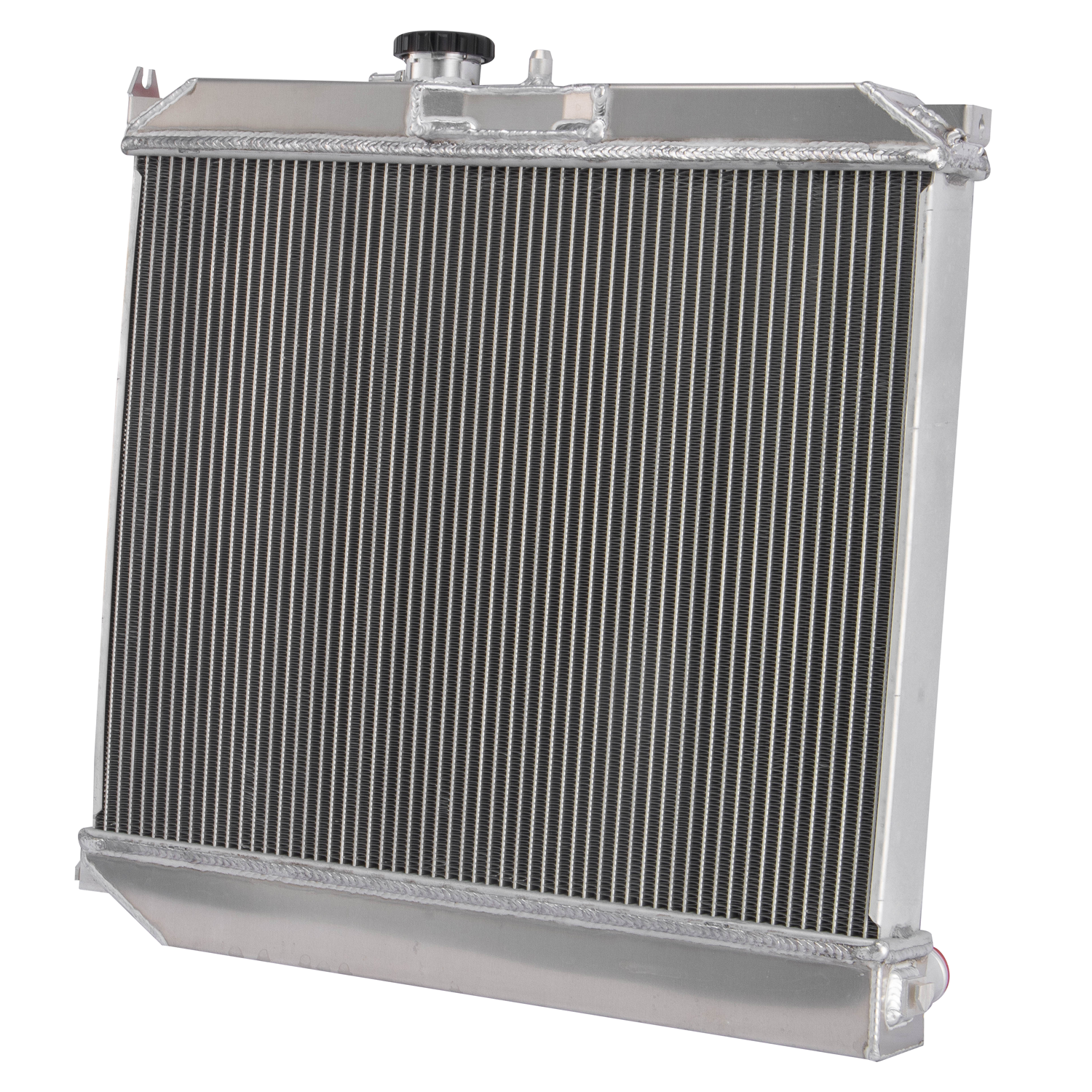

ASI Performance 4-Rows Aluminum Radiator Fit 2004-12 Chevy Colorado GMC Canyon 2.8 2.9L 3.7L US

Fitment:

Package Include:

1 X 4-Row AA5052 Aluminum Radiator

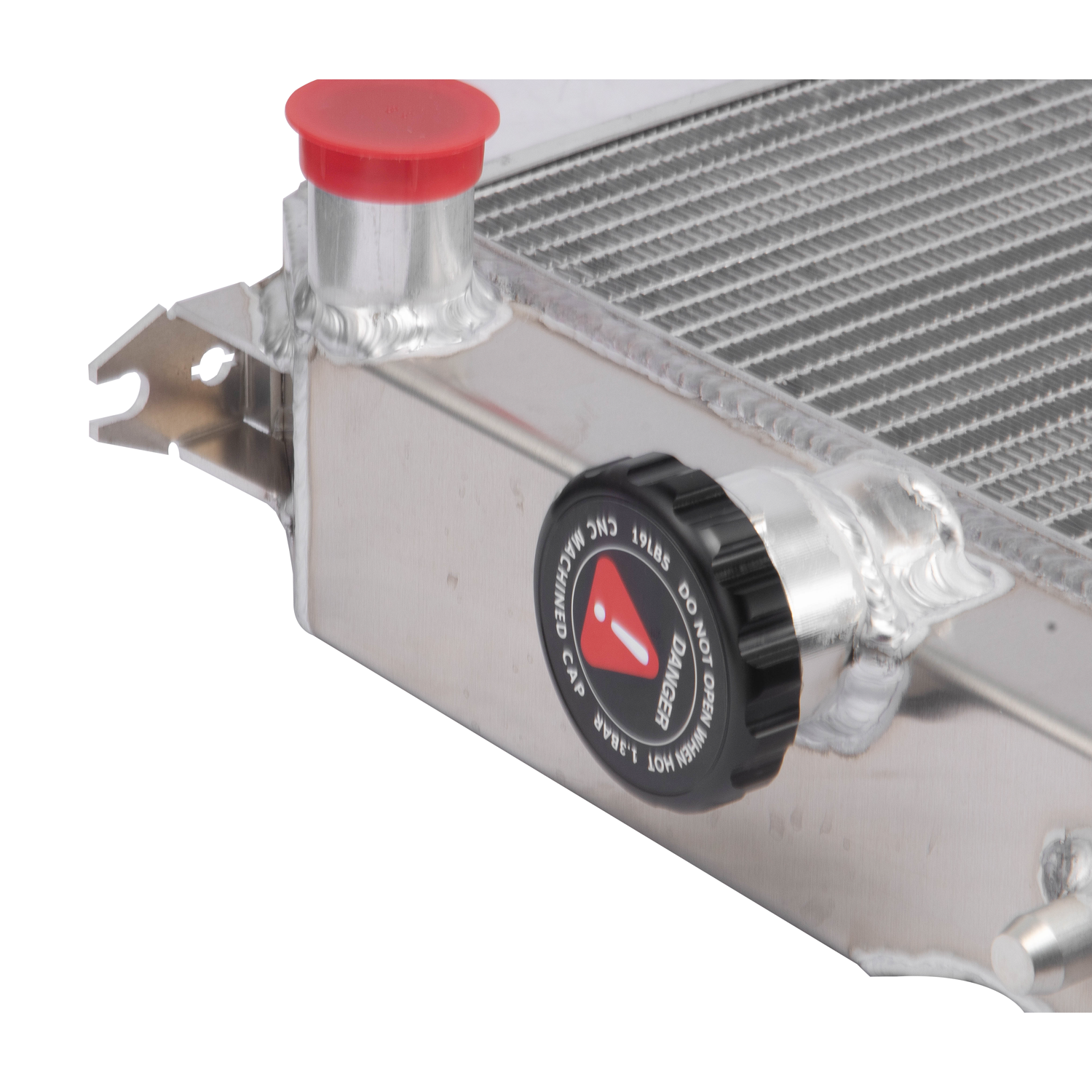

1 X CNC Machined Radiator Cap

This Radiator Configuration:

Material: AA5052 Aluminium

High Performance Racing Spec.

4-Row of tubes Core Racing Design

Core Size: 22.88 In. x 18.13 In.

Inlet Hose Connection: 1.31''

Outlet Hose Connection: 1.56''

Transmission Oil Cooler: Yes

Engine Oil Cooler: NO

Please Check the Size Before You Buy!

Application:

2004-2006 Chevrolet Colorado L4 2.8L

2007-2012 Chevrolet Colorado L4 2.9L

2004-2006 Chevrolet Colorado L5 3.5L

2007-2012 Chevrolet Colorado L5 3.7L

2004-2006 GMC Canyon L4 2.8L

2007-2012 GMC Canyon L4 2.9L

2004-2006 GMC Canyon L5 3.5L

2007-2012 GMC Canyon L5 3.7L

2006-2006 Isuzu i-280 L4 2.8L

2007-2008 Isuzu i-290 L4 2.9L

2006-2006 Isuzu i-350 L5 3.5L

2007-2008 Isuzu i-370 L5 3.7L

Manufacturer Part Number: 2707, CSF3471, 15120862, 15199308, 21524, 2219057, 433859, 52491742, 52491743, 8012707

Features：

1.Made from Aircraft AA5052 grade aluminum for prolonged lifespanand with raw aluminum finish

2.Brazed core technology to guarantee optimum performance and dependability

3.All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable

4.Billet Aluminum CNC machined fill neck rugged and durable

5.Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment

6.Carefully crafted to exceptional OE standards for precise fit.

DESCRIPTION:

Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.

More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.

AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
