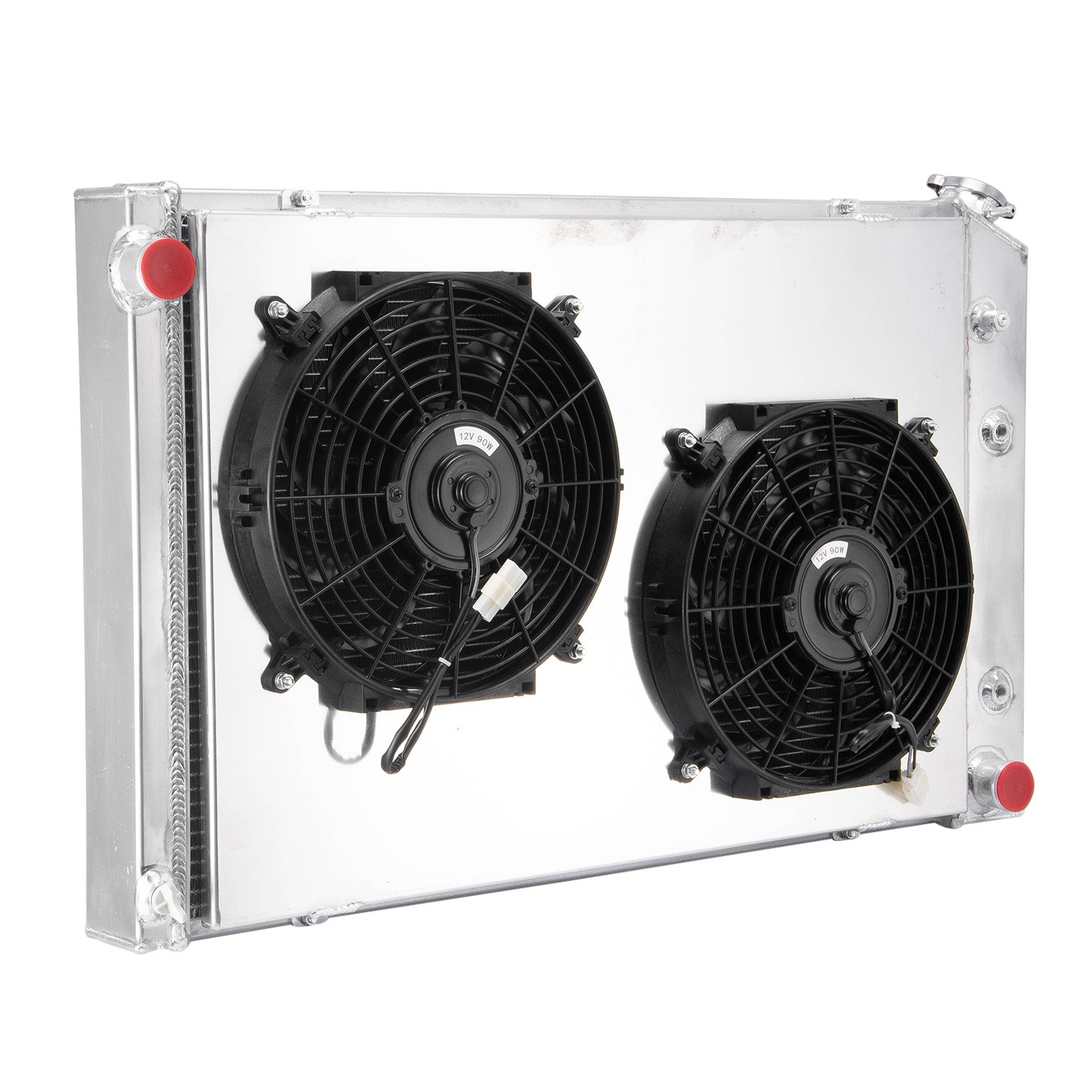

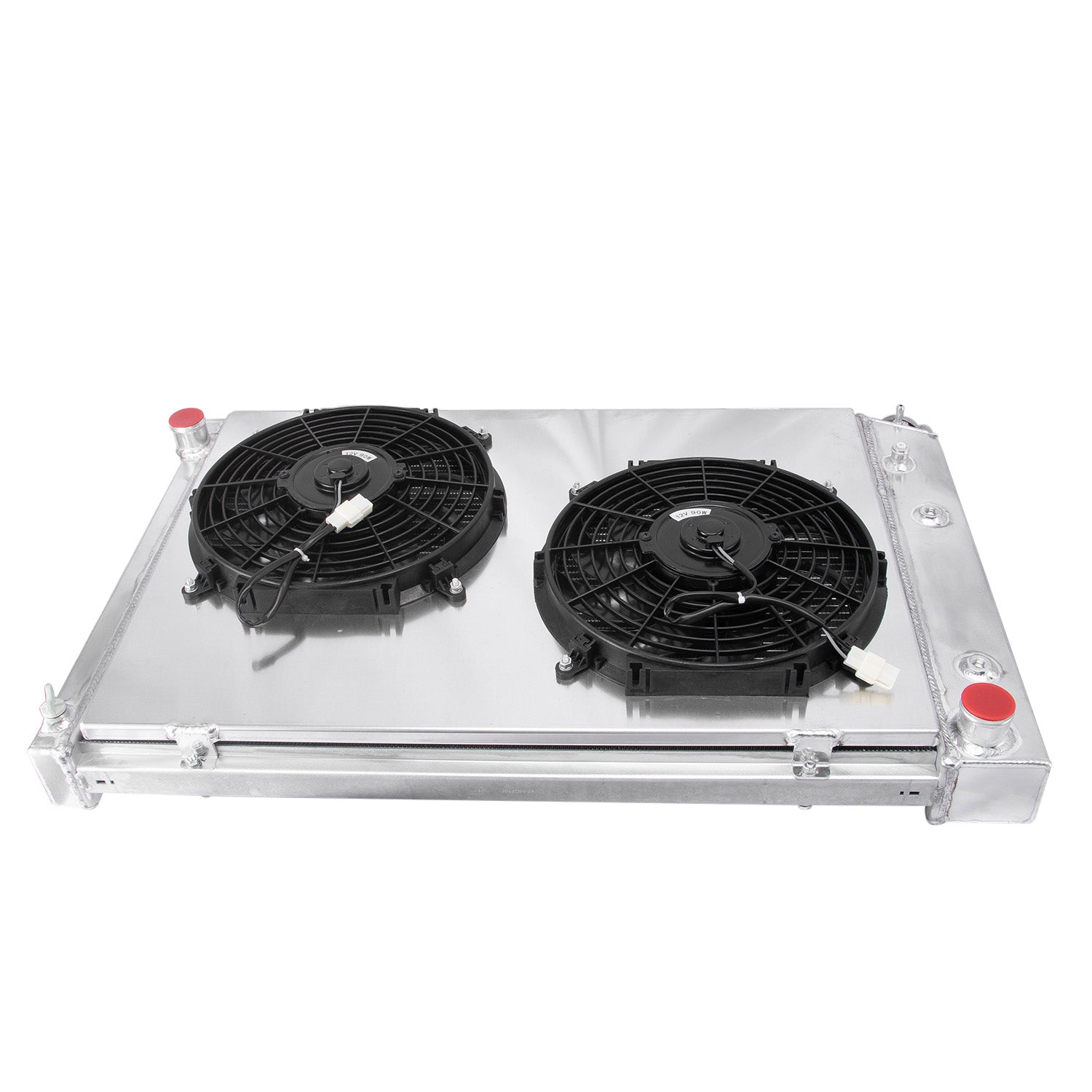

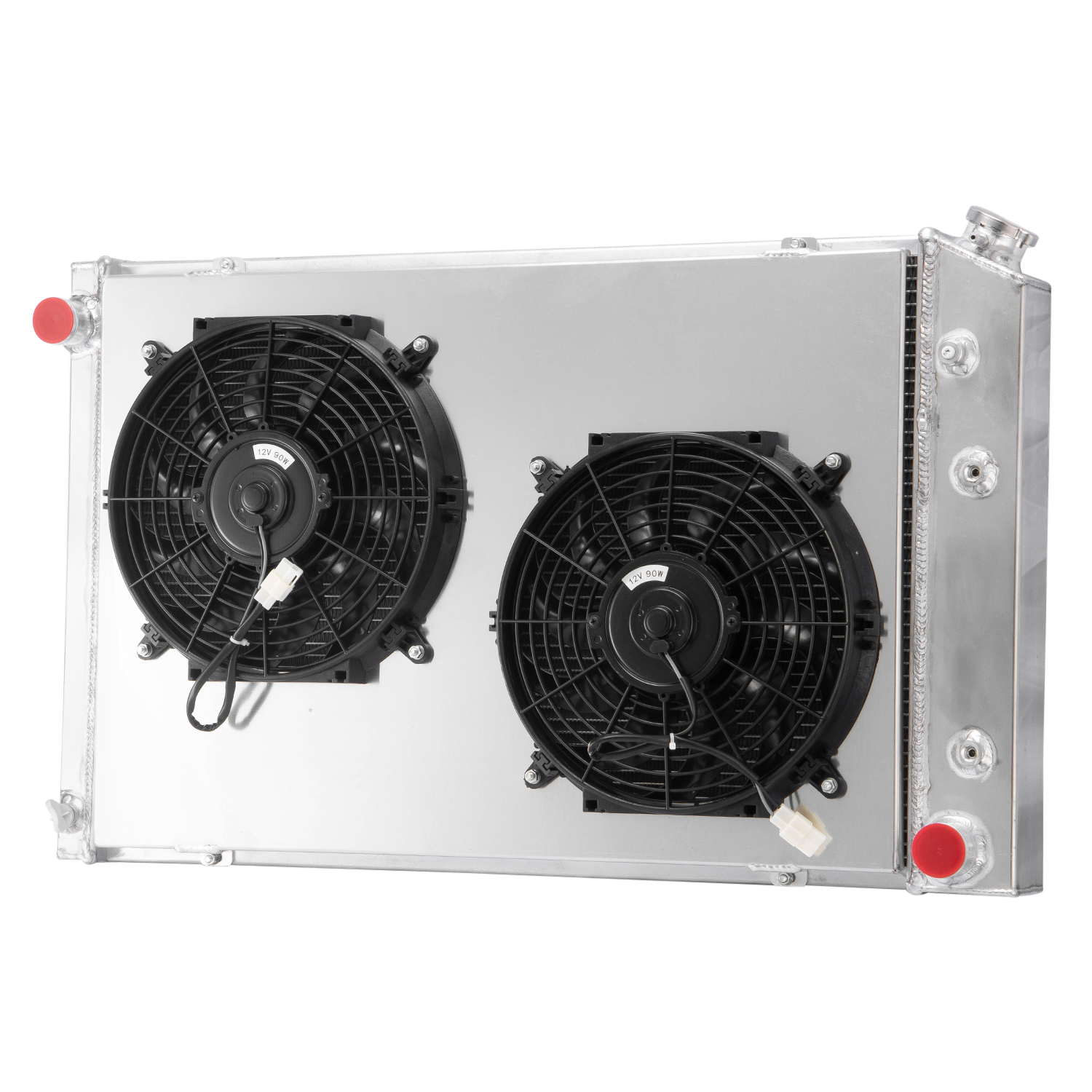

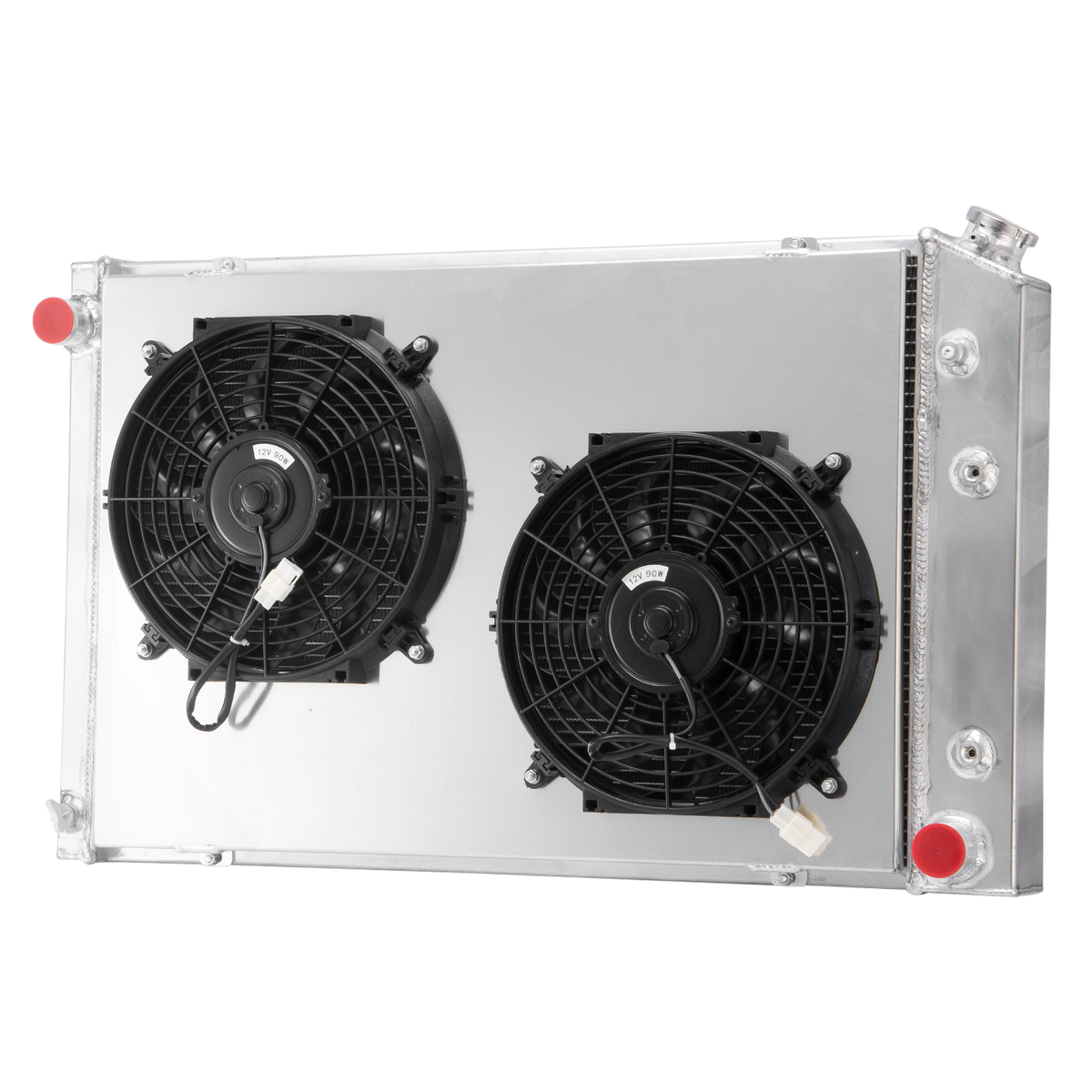

ASI Performance 716 4 Row Radiator Shroud Fan For 73-87 Chevy C/K C10 C20 C30 K10 20 GMC Truck

Fitment:

Package included：

1 X 4-ROW Aluminum Radiator+1.3BAR CAP

1 X Aluminum Shroud

2 X 12"Fan

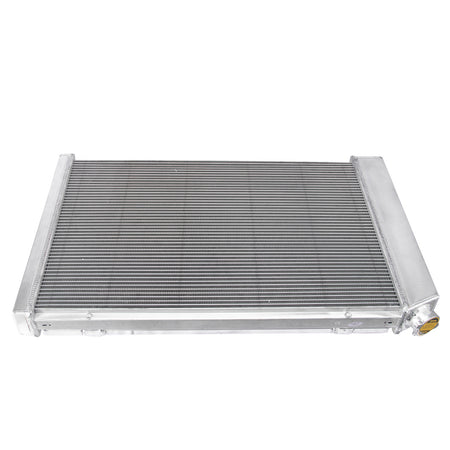

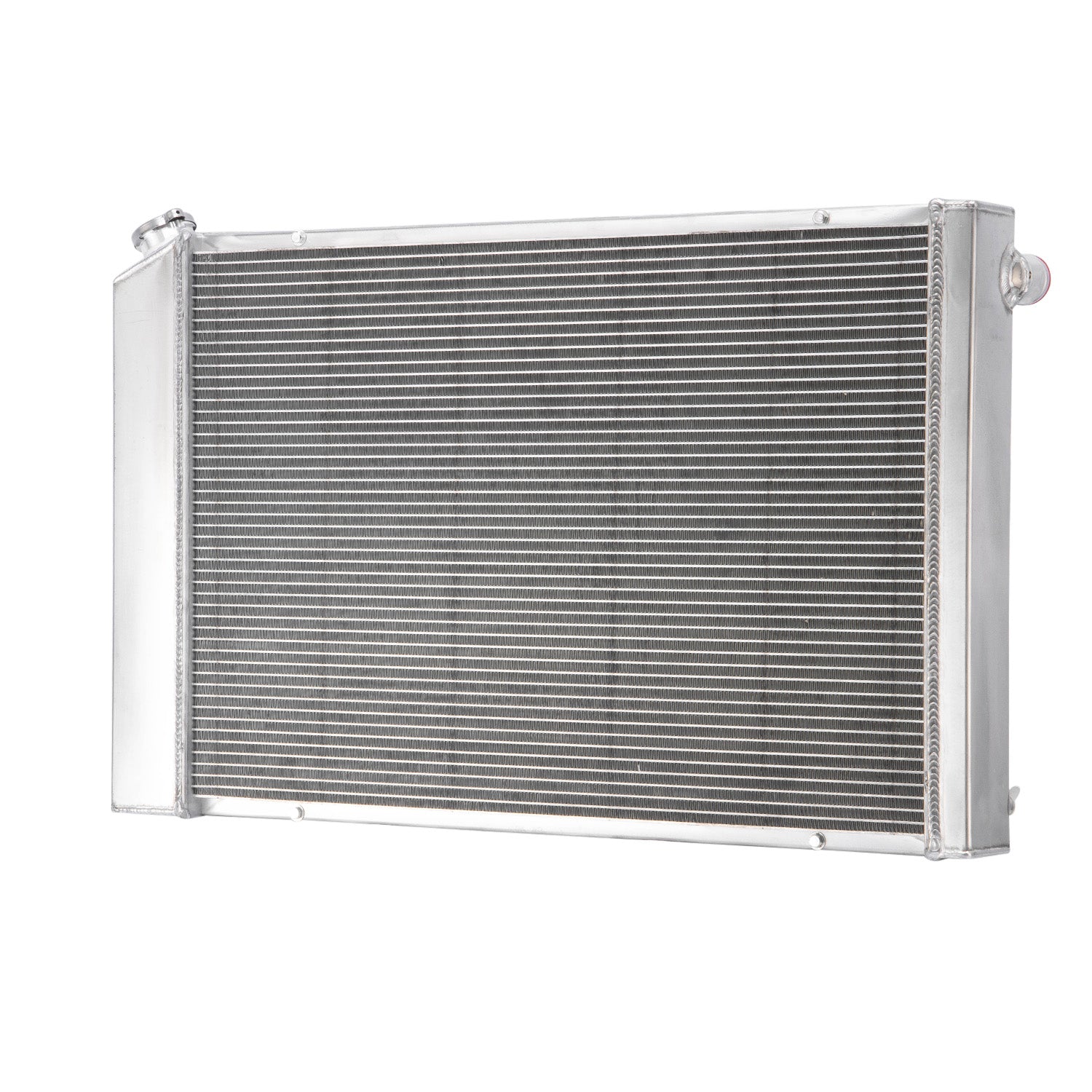

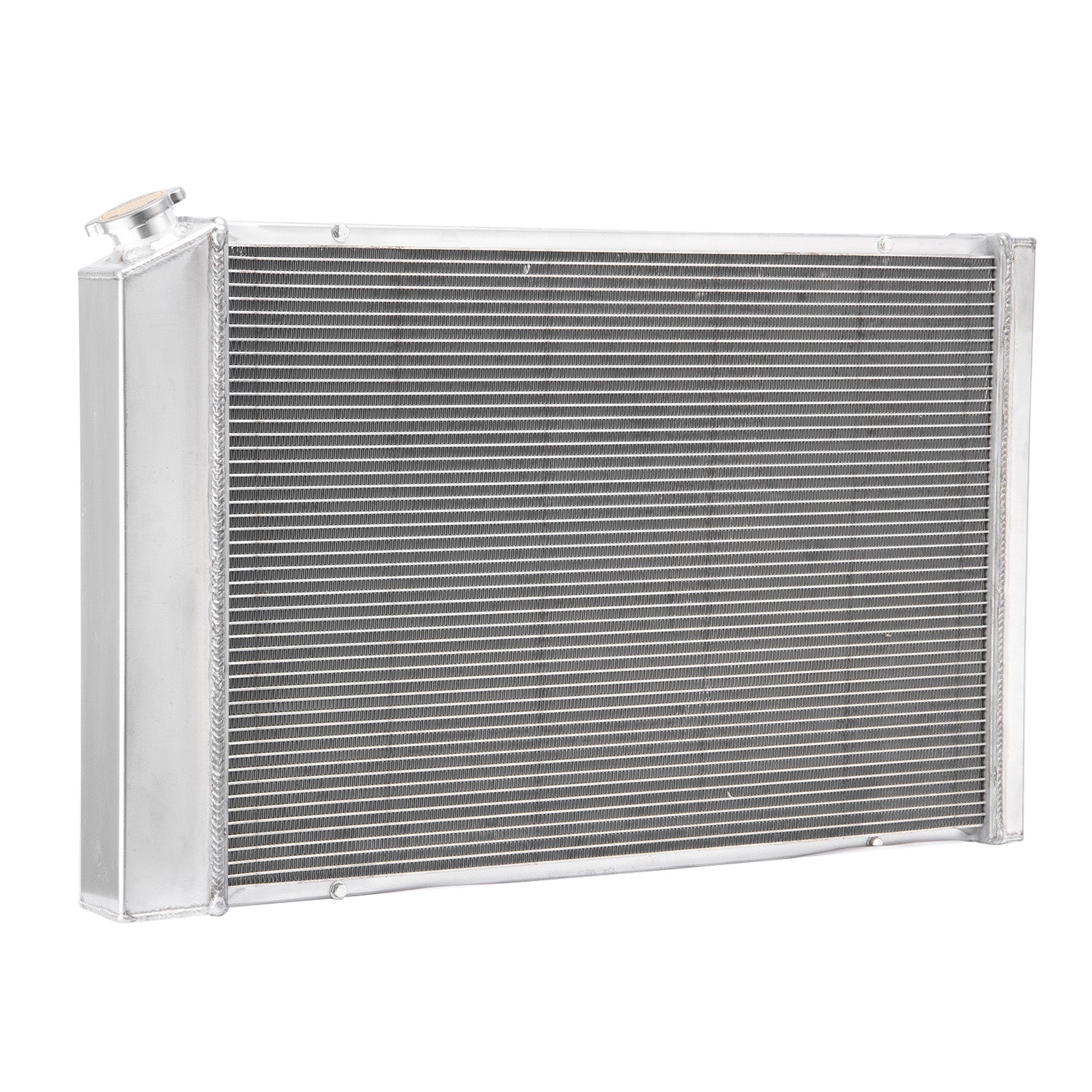

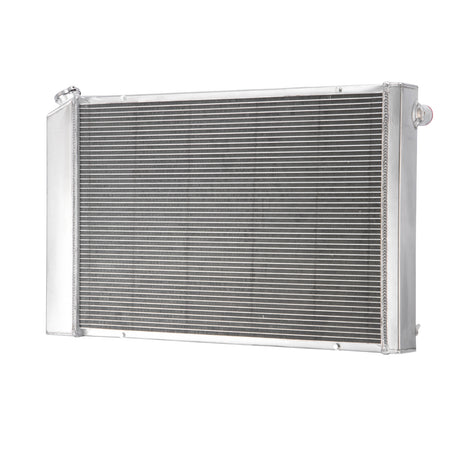

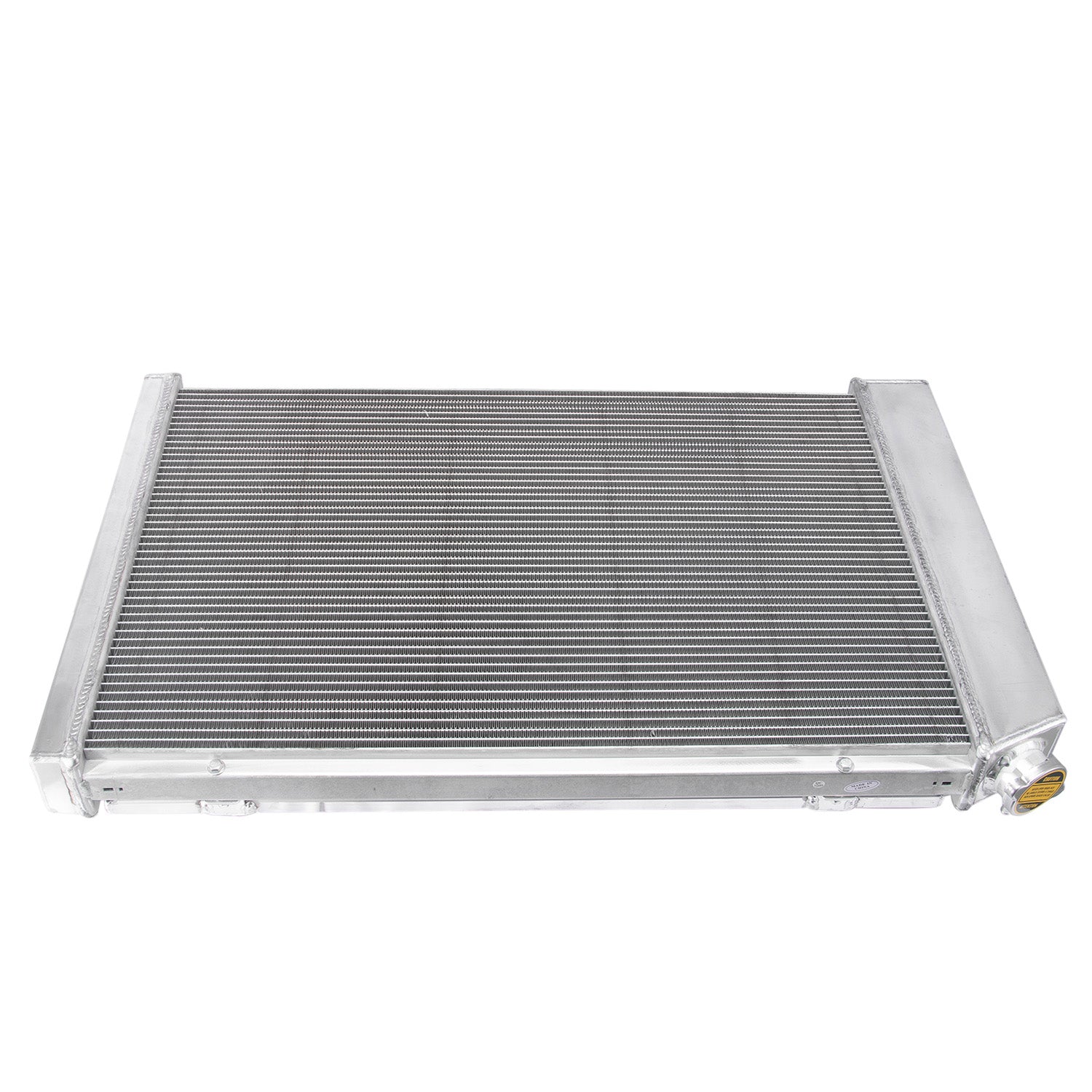

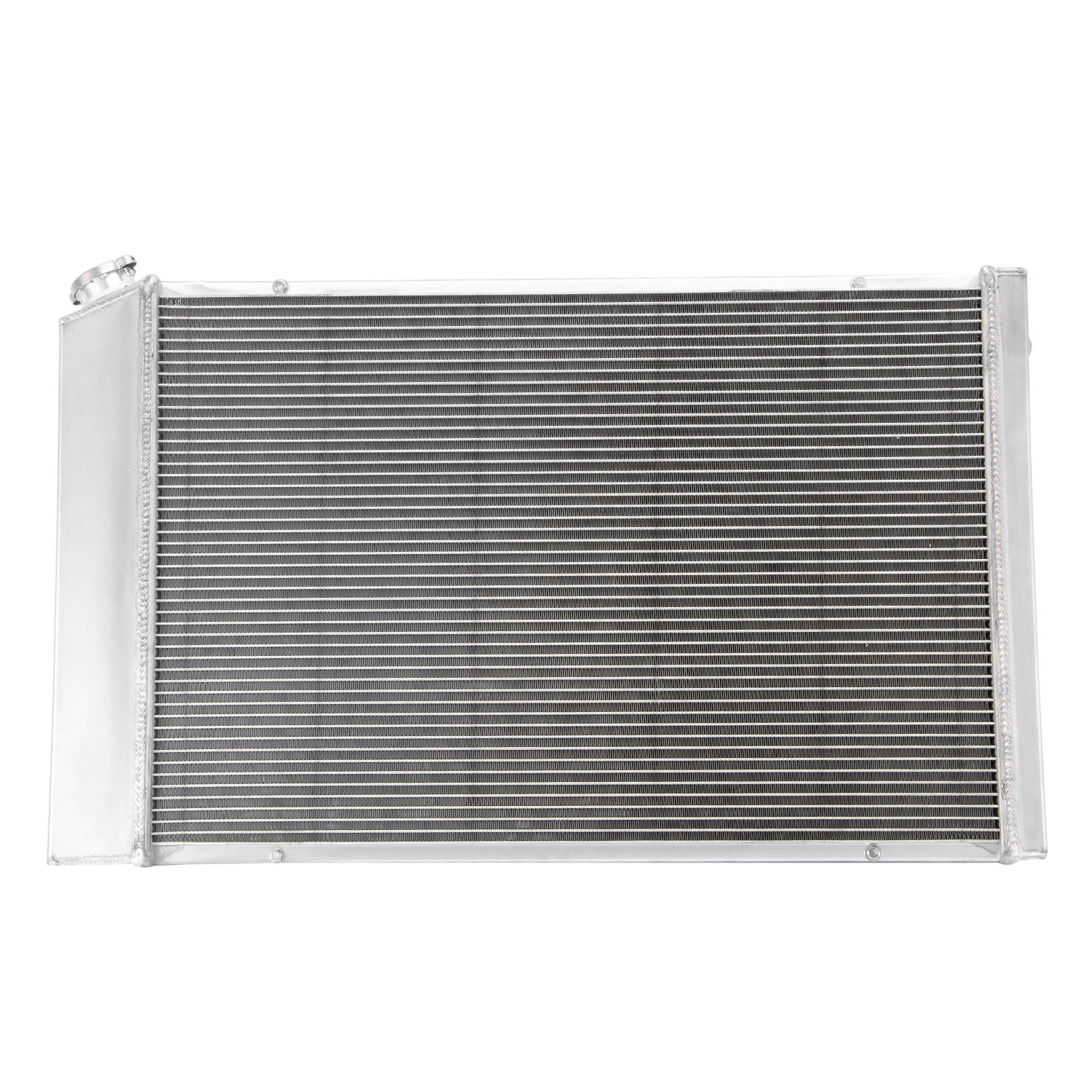

This Radiator Size:

High Performance Racing Spec.

4-Row of tubes Core Racing Design

Core Size: 19" height x 28-1/4" width

Overall Size: 20-1/4" height x 33-1/4" width

Upper inlets: 1 1/2" located on the driver side

Lower outlets: 1 1/2" located on the passenger side

Transmission Oil Cooler：￠32×215×G1/4（Z）

Great Strength & High Cooling Efficiency.

Improves Cooling by 35% to 45% Temperature.

Description

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

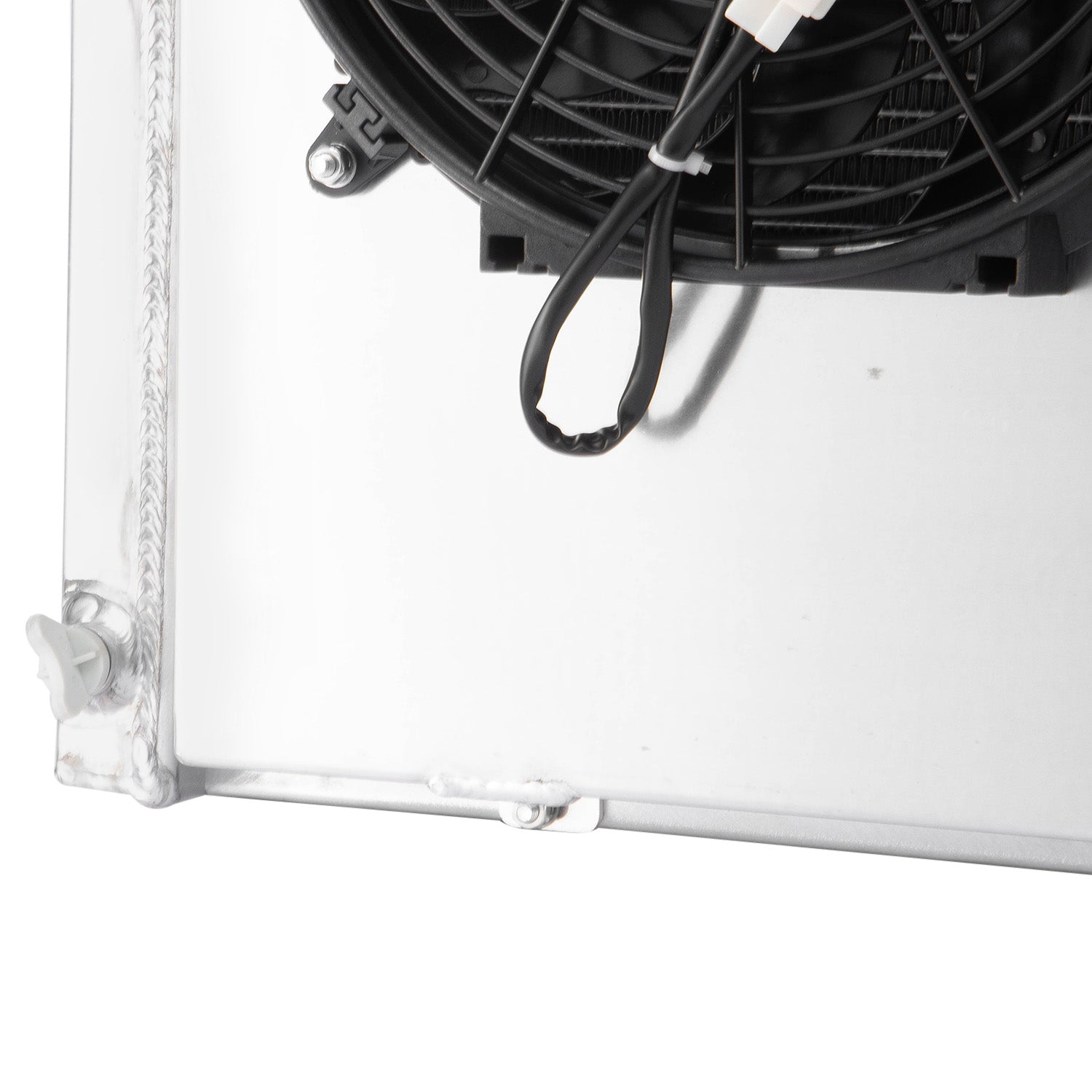

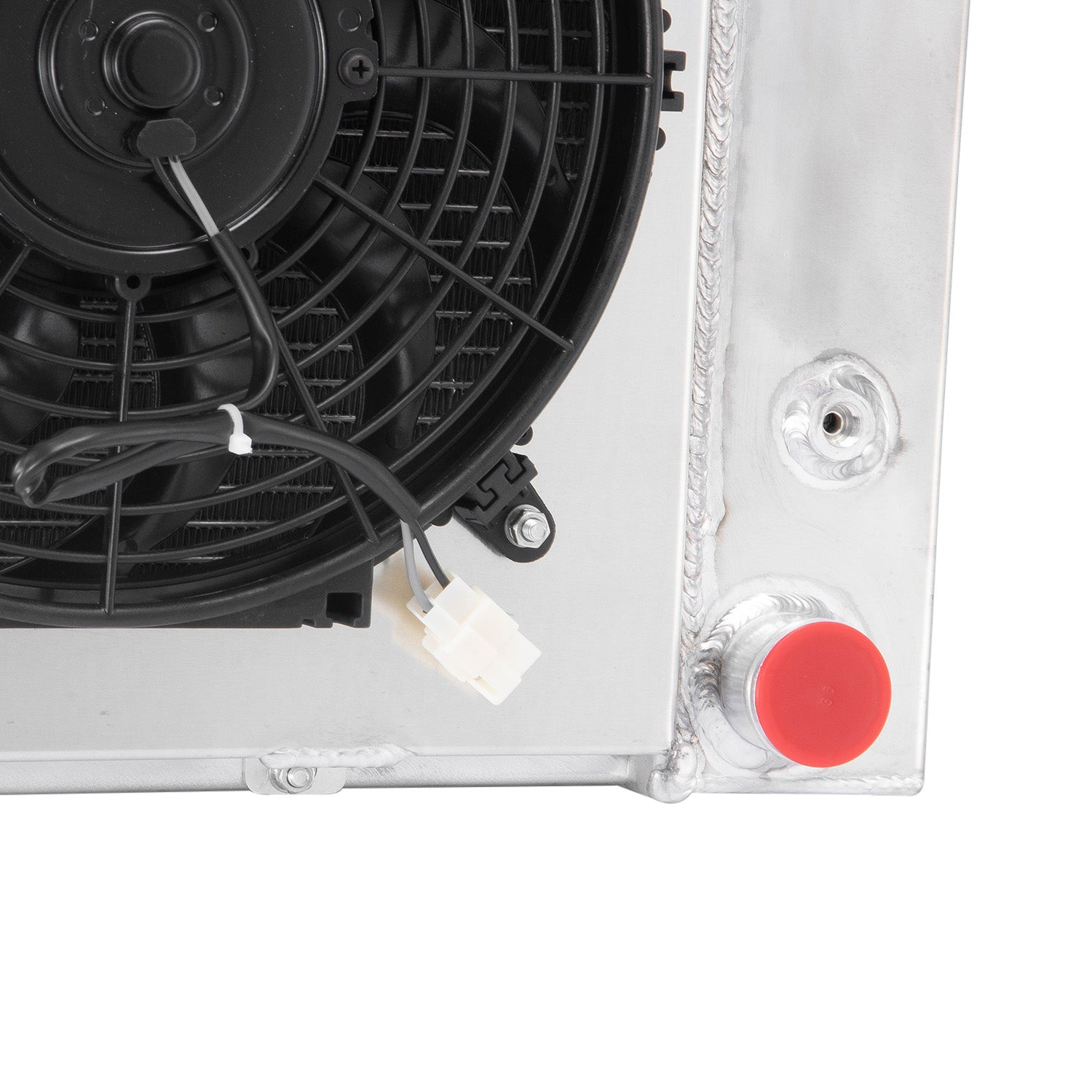

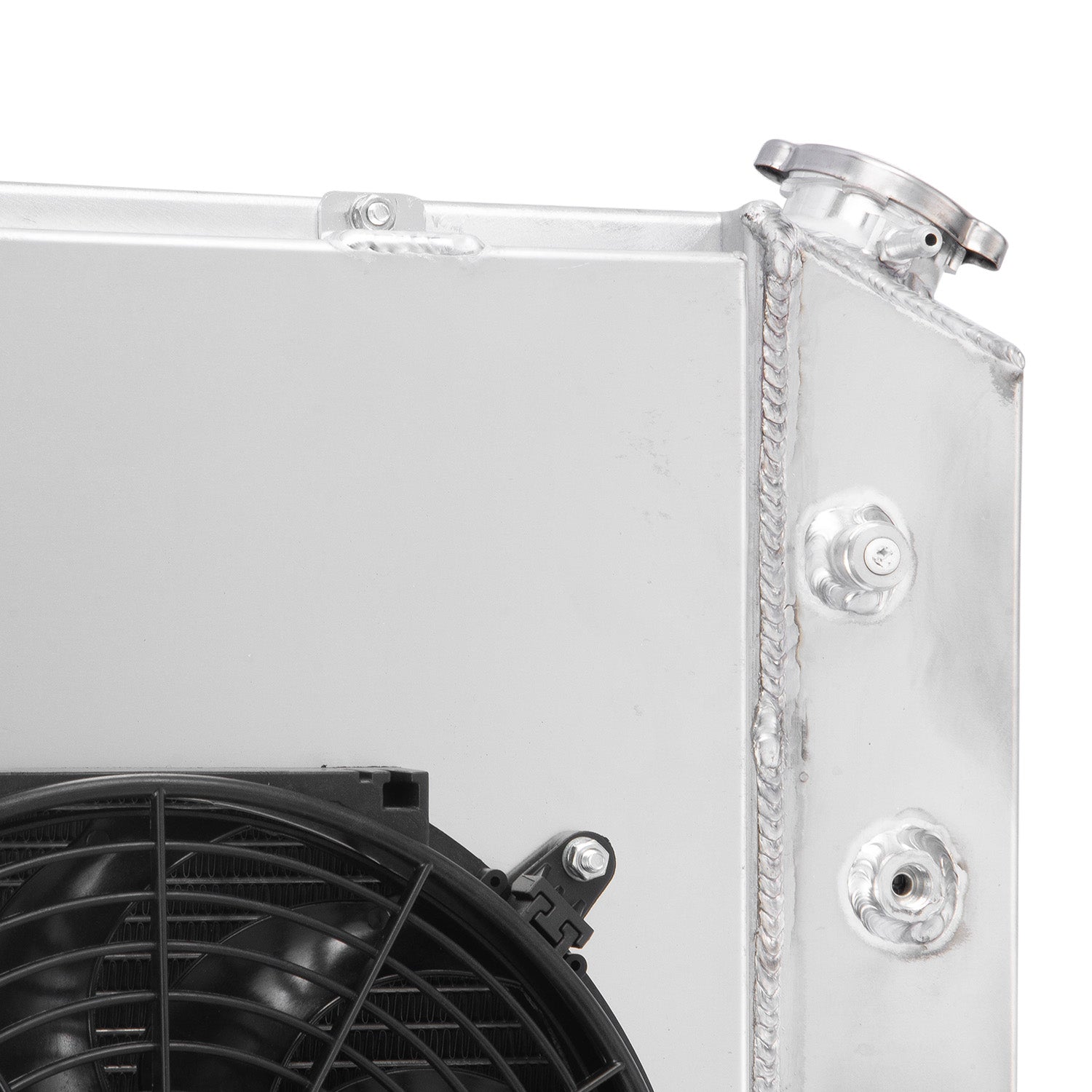

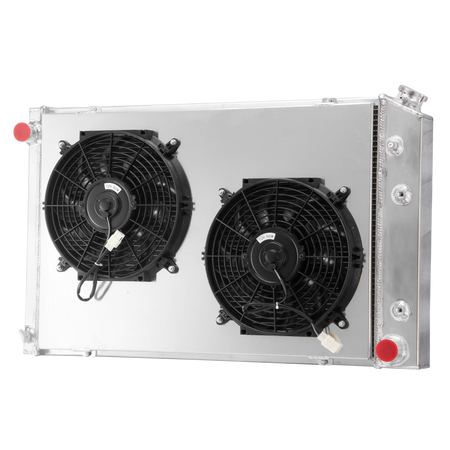

Aluminum Shroud Fan:

These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low profile electric fans.

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1. Shuttered design fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect.

2. S blade fans, Push or Pull Type design, lightweight Plastic Durable Material.

Fan Specification:

Diameter : 12'' (Blade to Blade)

Voltage: DC 12 Volts

Fan Thickness: 2.5"

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Fitment:

FOR 1990 Chevrolet Blazer /GMC V3500

FOR 1975 1979 1981 1983 Chevrolet C10 4.1L 4.8L 5.0L 5.7L 6.2L 6.6L 7.4L

FOR 1974 1975 1979 1985 Chevrolet C10 Suburban

FOR 1976 1980 1981 1982 1986 Chevrolet C20 4.1L 4.3L 4.8L 5.0L 5.7L 6.2L 7.4L

FOR 1974 1975 1979 1983 Chevrolet C20 Suburban

FOR 1977 1982 1986 Chevrolet C30

FOR 1974 Chevrolet C30 Pickup

FOR 1978 1979 1982 1986 Chevrolet K10

FOR 1973 Chevrolet K10 Pickup/ GMC P35/P3500 Van

FOR 1979 1984 Chevrolet K10 Suburban

FOR 1975 1979 1985 Chevrolet K20

FOR 1974 1978 1982 1986 Chevrolet K20 Suburban

FOR 1978 1984 Chevrolet K30

FOR 1974 Chevrolet K30 Pickup

FOR 1979 Chevrolet K5 Blazer 4.1L 5.0L 5.7L 6.6L

FOR 1973 Chevrolet P10 Van 4.1L 5.0L 5.7L 7.4L

FOR 1979 1983 1988 Chevrolet P20

FOR 1977 1981 1985 1993 Chevrolet P30

FOR 1974 Chevrolet P30 Van

FOR 1987 Chevrolet R10 / V30 GMC R1500 Suburban/ R2500 Suburban/ V1500

FOR 1990 Chevrolet R1500 Suburban

FOR 1988 Chevrolet R20 Suburban/ V20 Suburban GMC R3500

FOR 1990 Chevrolet R2500 Suburban 5.7L 6.2L 7.4L

FOR 1989 Chevrolet V1500 Suburban / GMC V2500 Suburban

FOR 1973 1975 GMC C15/C1500 Pickup 4.1L 4.8L 5.0L 5.7L 7.4L

FOR 1976 GMC C15 Suburban/ C35

FOR 1981 1985 GMC C1500

FOR 1983 GMC C1500 Suburban

FOR 1977-1978 GMC C25 / K35

FOR 1977 GMC C25 Suburban

FOR 1973 GMC C25/C2500 Pickup/ K25/K2500 Suburban

FOR 1981 1982 1986 GMC C2500

FOR 1981 1985 GMC C2500 Suburban

FOR 1979 1982 1986 GMC C3500

FOR 1979 GMC G2500

FOR 1976 1980 1986 1990 GMC Jimmy

FOR 1975 GMC K15/ K15 Suburban/ K25/ K25 Suburban

FOR 1974 GMC K15/K1500 Pickup

FOR 1979 1982 1983 GMC K1500

FOR 1979 1983 GMC K1500 Suburban/ K2500/ K2500 Suburban

FOR 1982 1986 GMC K3500

FOR 1980 GMC P1500 4.8L

FOR 1982 1989 GMC P2500

FOR 1975 GMC P35 4.8L 5.7L 7.4L

FOR 1983 1989 1993 GMC P3500

FOR 1988 1989 GMC V1500 Suburban
