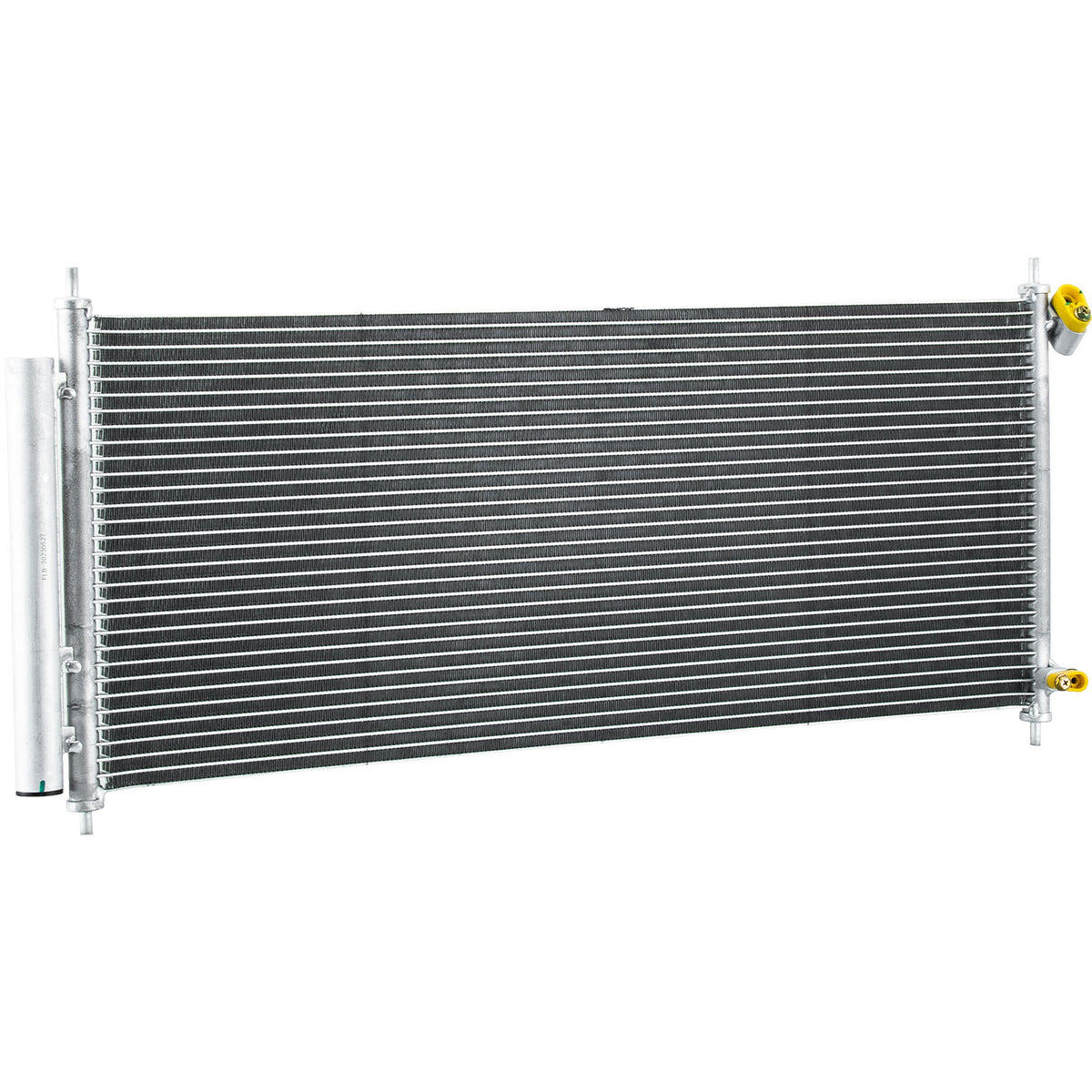

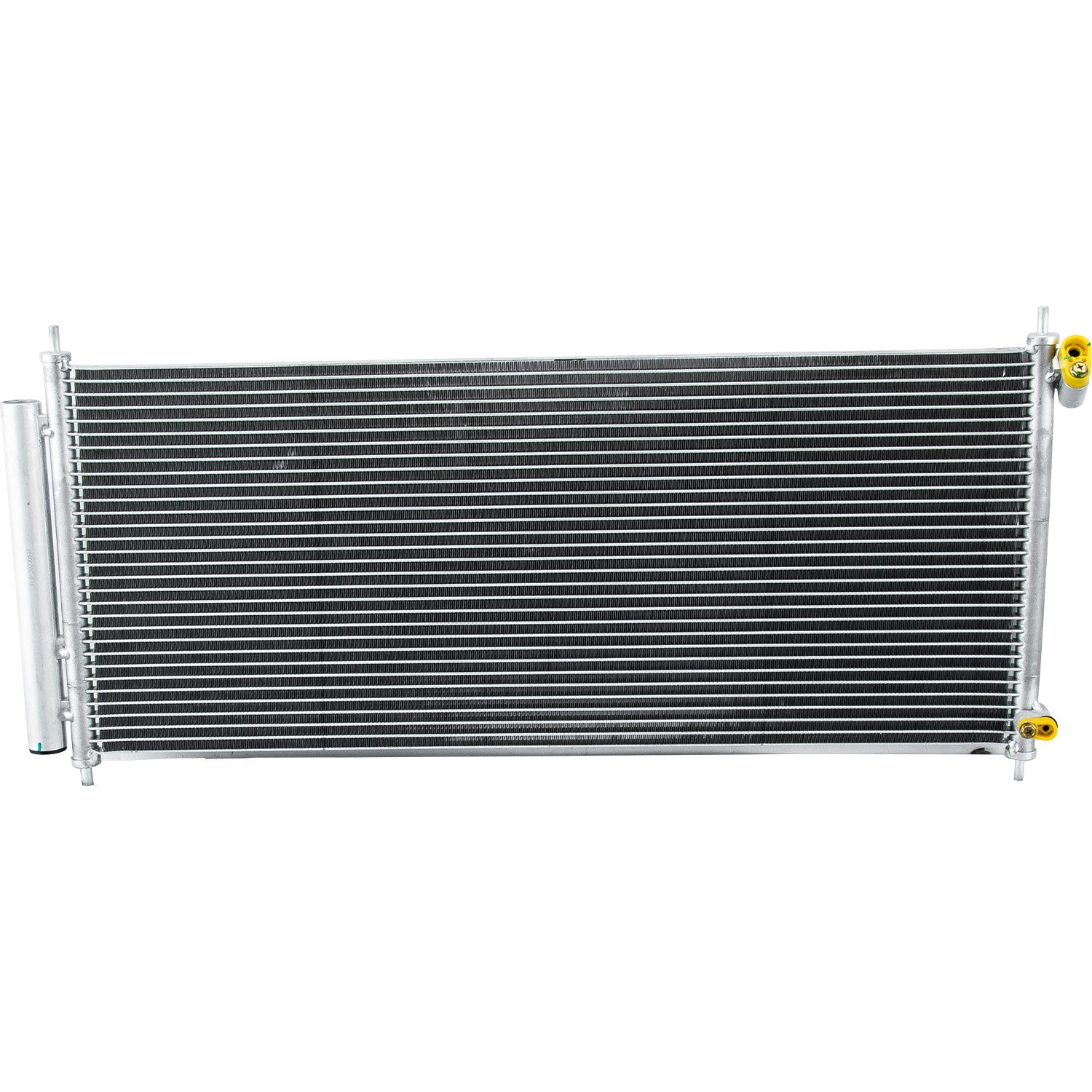

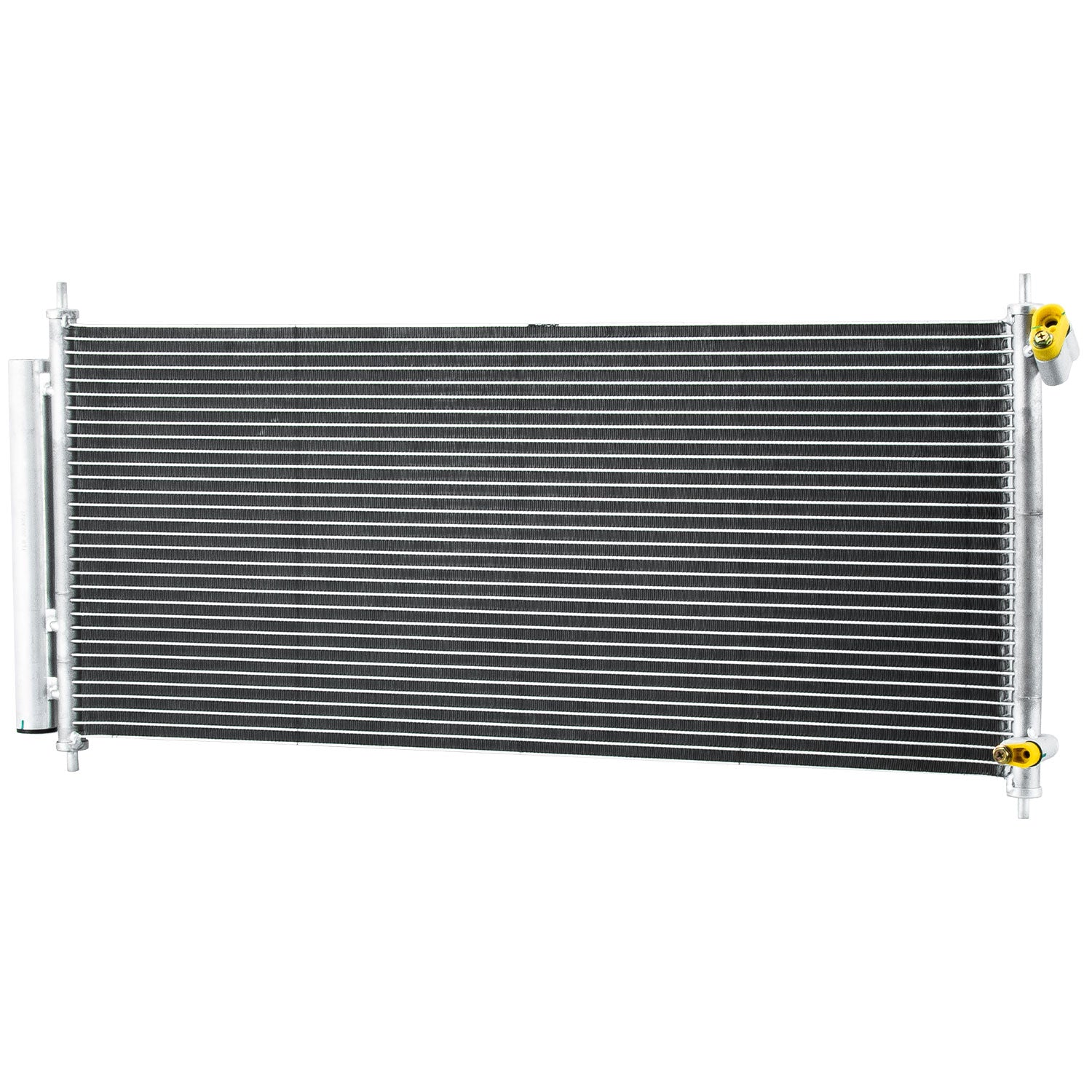

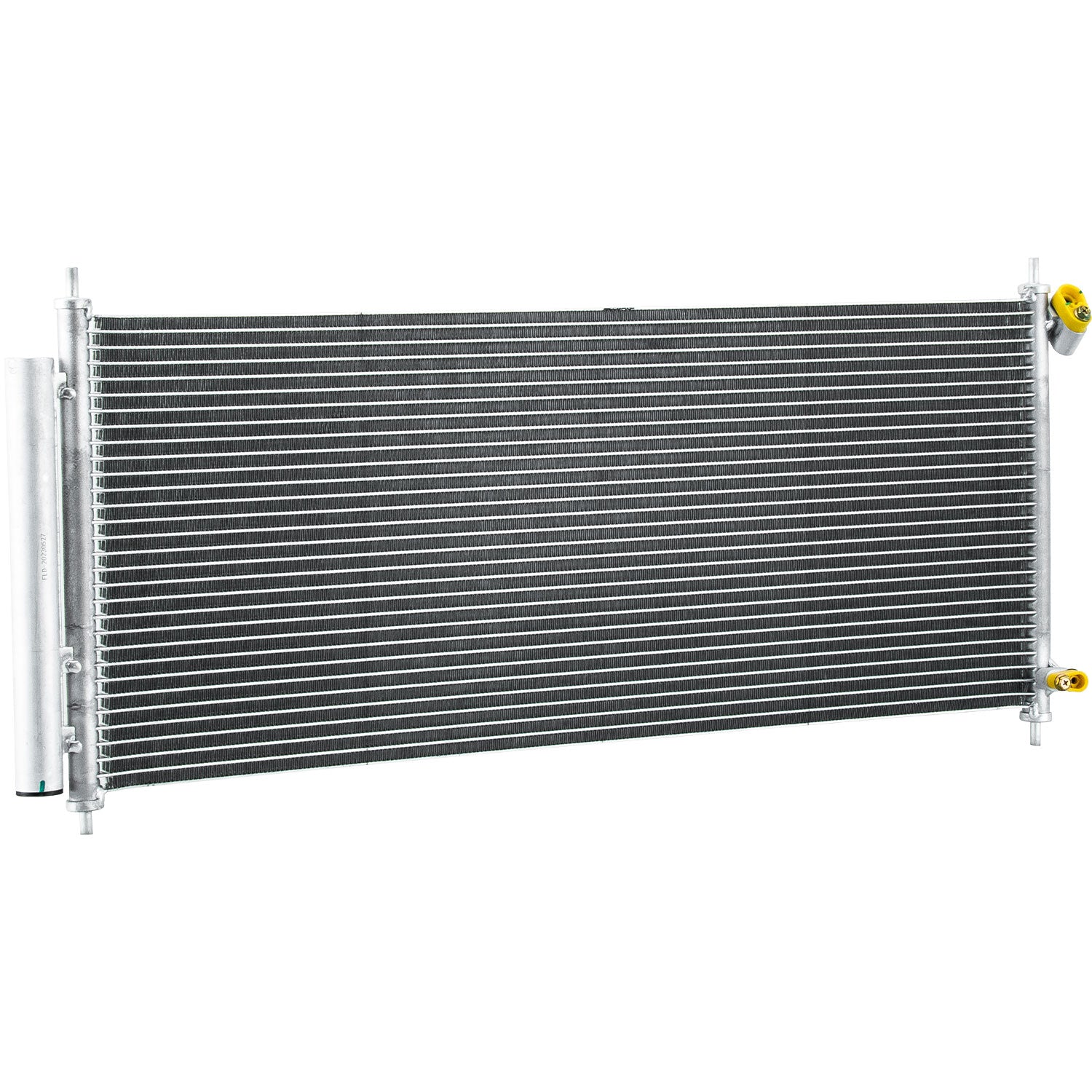

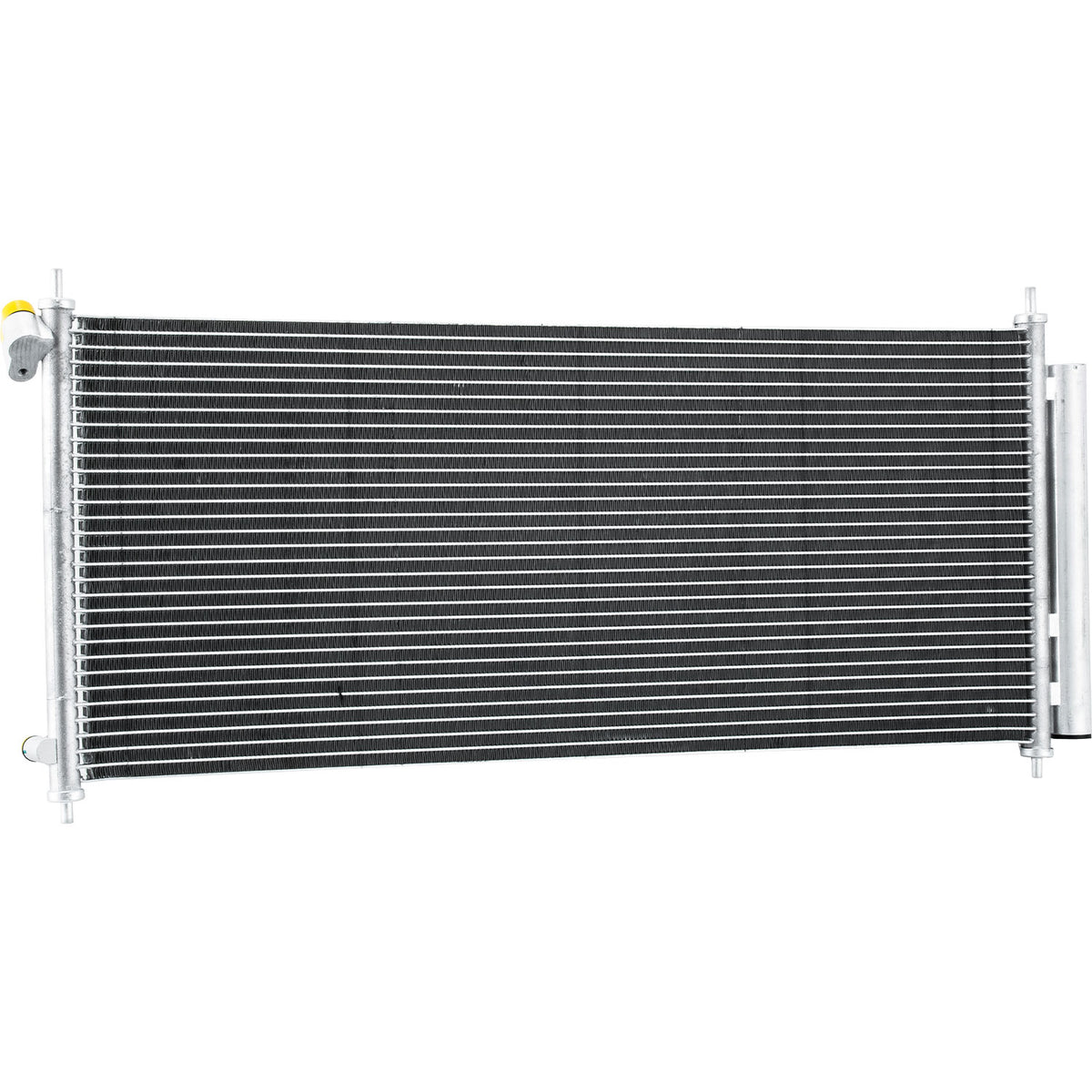

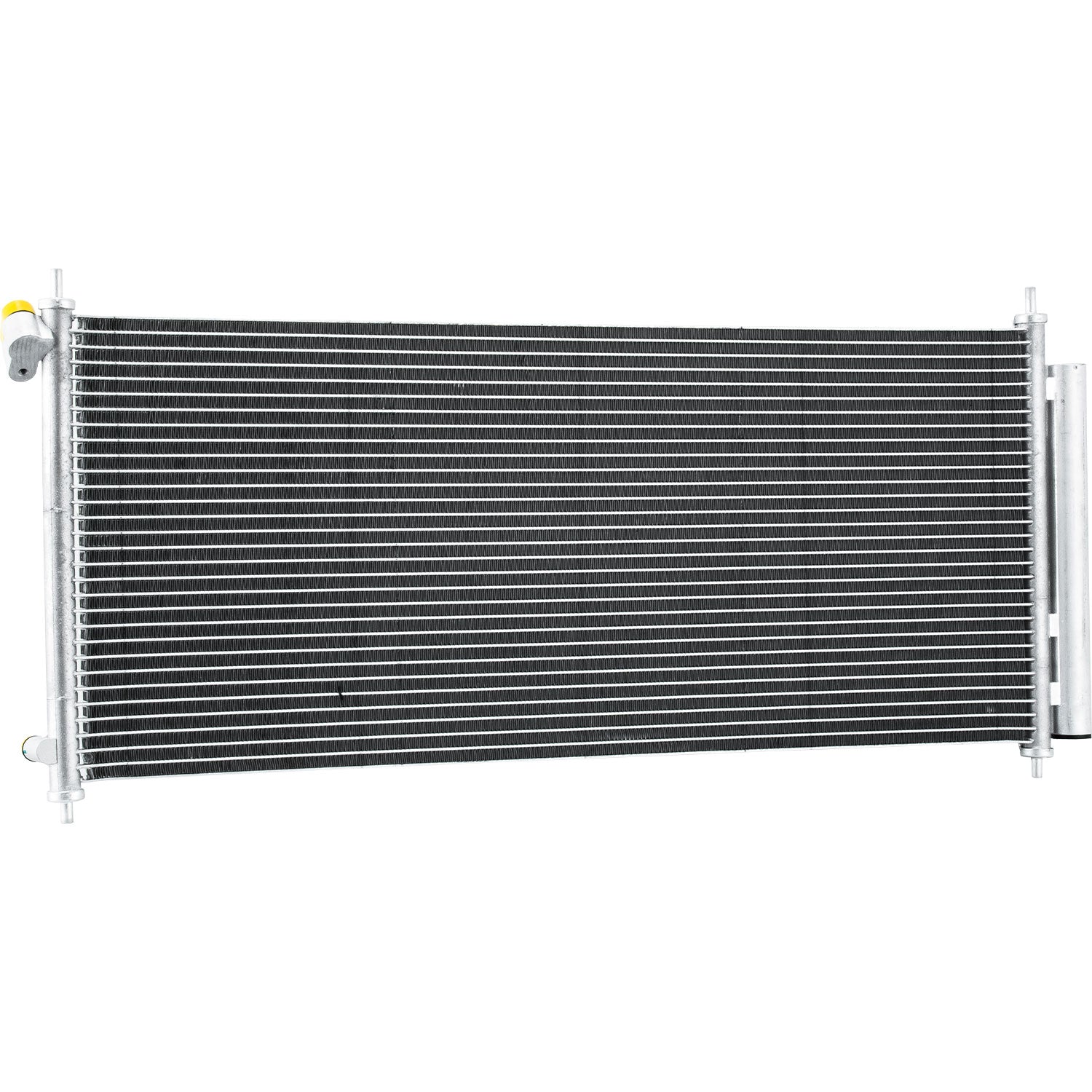

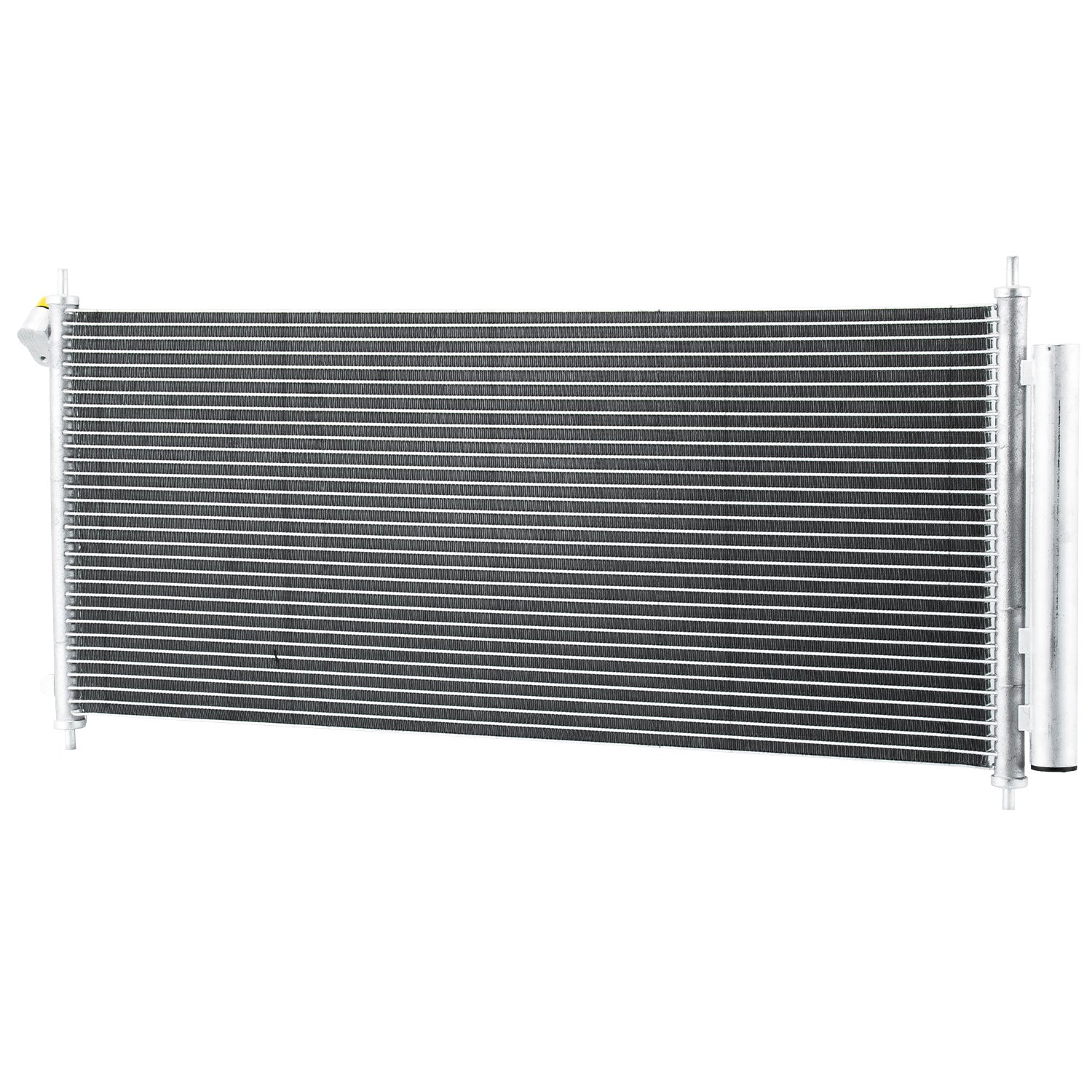

ASI Performance A/C Condenser Fit 07-2008 Honda Fit For 1.5L L4 HO3030149 80110SAA013

Fitment:

A/C Condenser Size:

High Performance Racing Spec.

Core Size: 29.69 '' x 12.63 ''

Fitment:

For 2007-2008 Honda FIT A/C Condenser and Receiver Drier Assembly

Replaces OEM part numbers : 3593, 73593, 10485, 80110SAA013, HO3030149

Description:

The air-conditioning condenser is located between the car's grille and the engine-cooling radiator in which the gaseous refrigerant sheds heat and returns to a liquid state. The liquid refrigerant flows to the evaporator inside the dashboard, where it cools the cabin.

The condenser works as a car radiator by dissipating out heat but also cooling the high-pressure refrigerant gas, so it forms into a high-pressure liquid, then gets streamed to the receiver-dryer until it continues to the expansion valve.

If you feel not cool enough, it might result from a clogged air-conditioning condenser or disabled cooling fan. A leak in the condenser will also result in a loss of refrigerant.

How to Replace A/C Condenser:

Step 1: Discharging and recovering the AC refrigerant.

Step 2: Condenser removal and replacement.

Step 3: Remove parts that are in the way of the condenser.

Step 4: Take off the A/C lines that run to the condenser.

Step 5: Take off the condenser.

Step 6: Install a new condenser.

Step 7: Install the A/C lines and replace the o-rings.

Vehicle Fitment：

For 2007-2008 Honda Fit 1.5L L4 (submodel: Base, Sport)

For 2008 Honda Fit 1.5L L4 (submodel: DX, LX)
