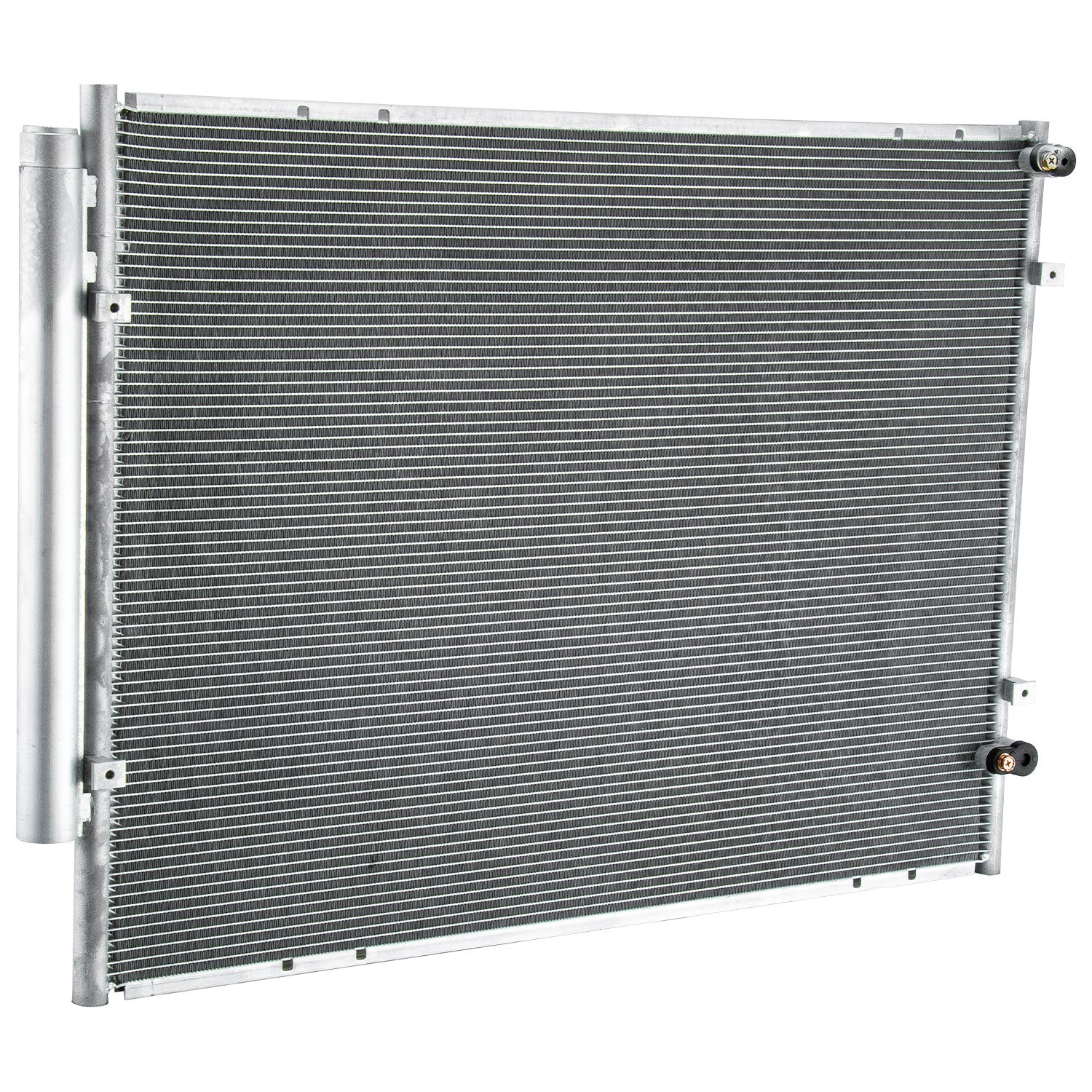

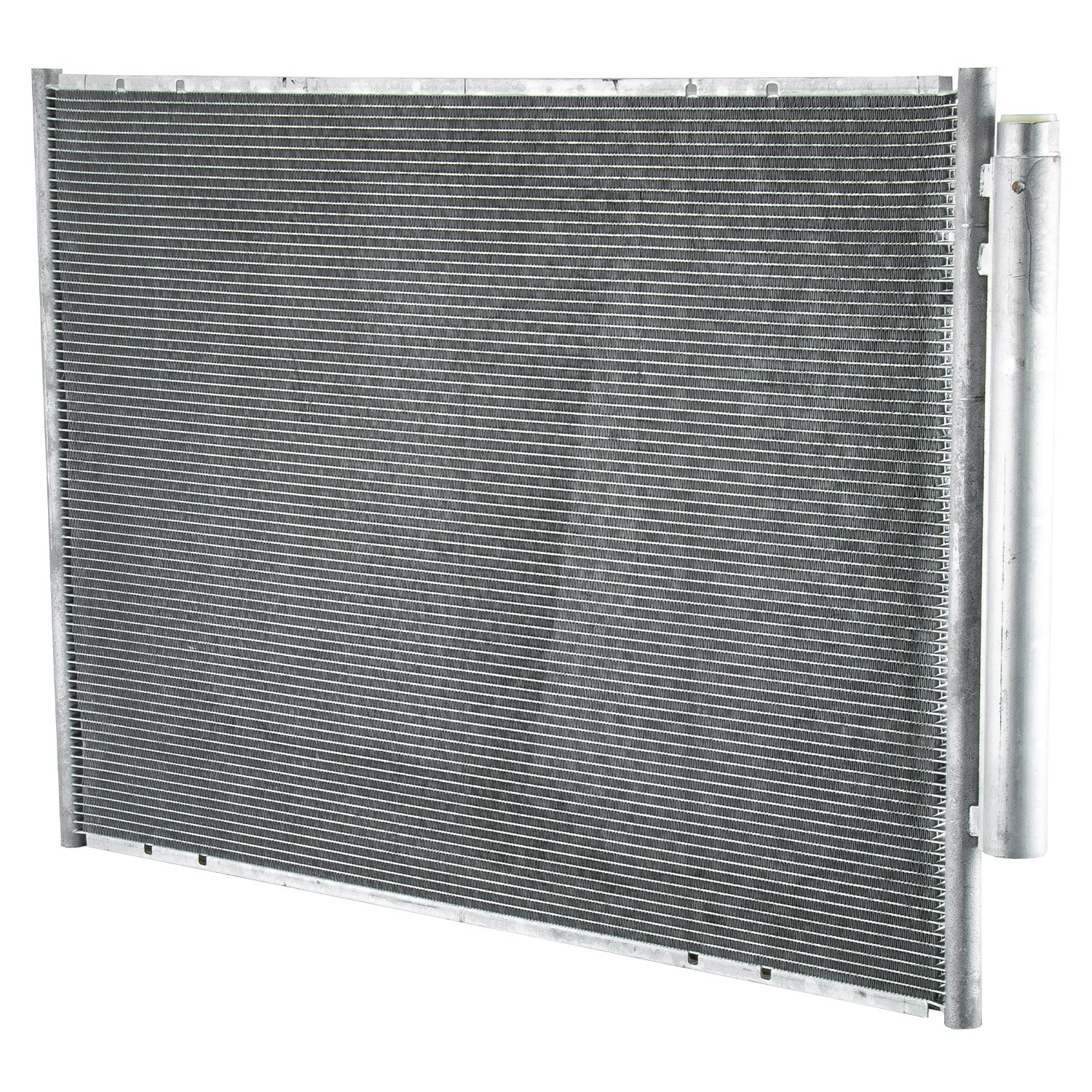

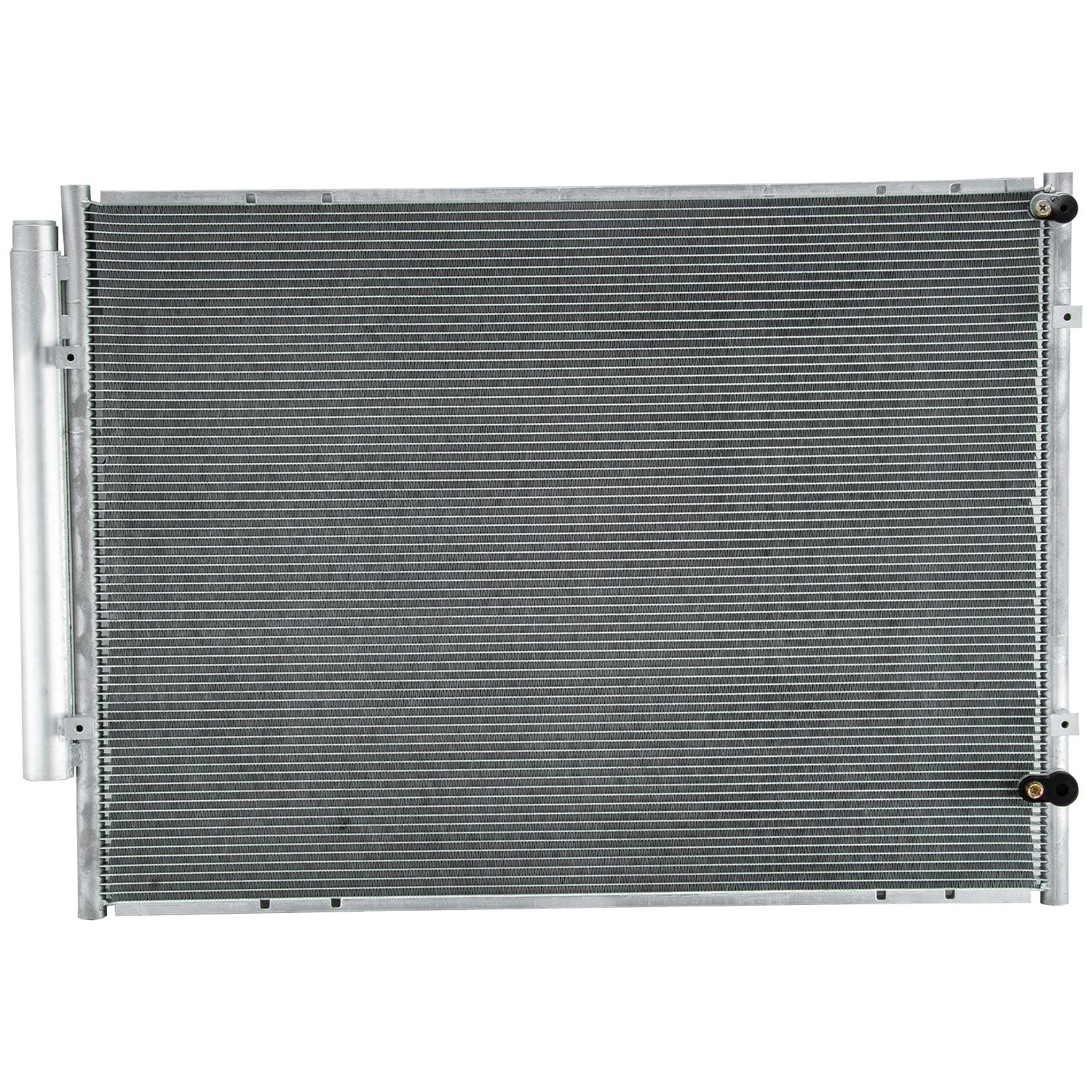

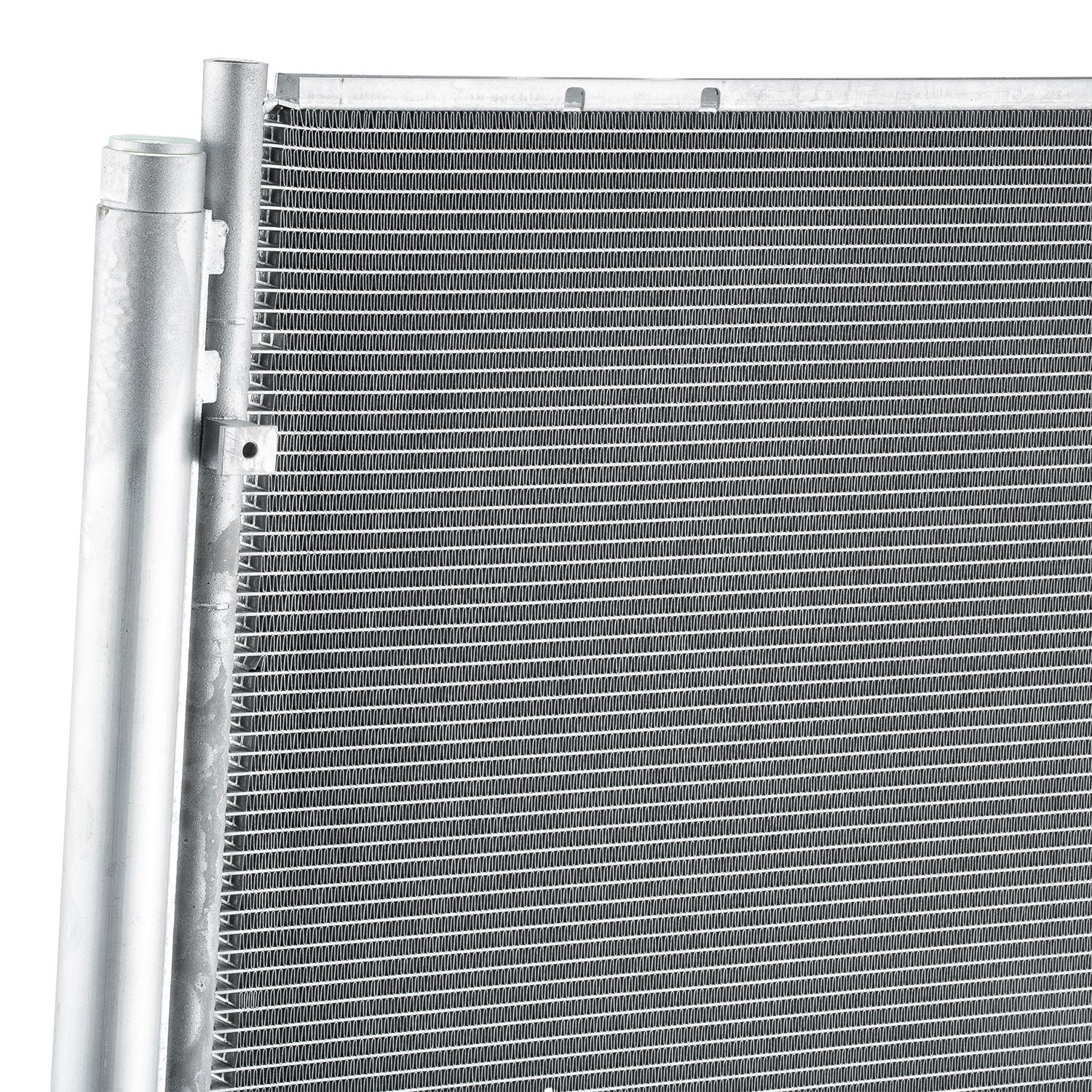

ASI Performance AC Condenser w/ Drier For 2006~07 Toyota Highlander 06-08 Lexus RX400h 3.3L

Fitment:

Specification:

Condenser Core Type: Parallel Flow

Core Length (IN): 17.87"

Core Width (IN): 27"

Drier Included: Yes

Bracket Included: No

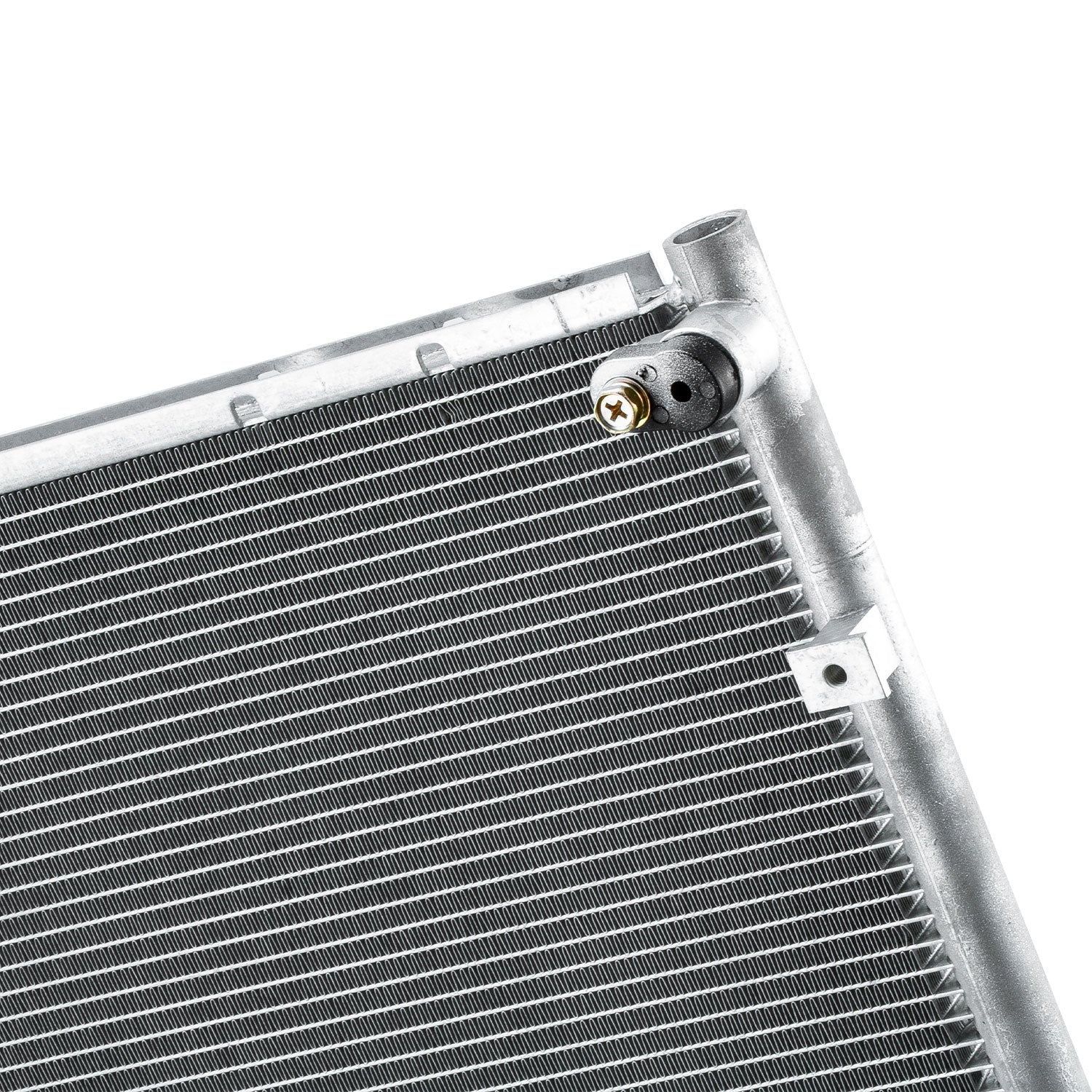

Inlet Fitting Type: Block Fitting

Oil Cooler Included: No

Outlet Fitting Type: Block Fitting

Vehicle Fitment：

For 2006-2007 Toyota Highlander V6 3.3L Only fit for V6 3.3L ELECTRIC/GAS

For 2006-2008 Lexus RX400h V6 3.3L

Replaces part numbers below：3500, 940168, 8846048060, 8846048061, 8846048080, 8846048081

Description:

The air-conditioning condenser is located between the car's grille and the engine-cooling radiator in which the gaseous refrigerant sheds heat and returns to a liquid state. The liquid refrigerant flows to the evaporator inside the dashboard, where it cools the cabin.

The condenser works as a car radiator by dissipating out heat but also cooling the high-pressure refrigerant gas, so it forms into a high-pressure liquid, then gets streamed to the receiver-dryer until it continues to the expansion valve.

If you feel not cool enough, it might result from a clogged air-conditioning condenser or disabled cooling fan. A leak in the condenser will also result in a loss of refrigerant.

How to Replace A/C Condenser:

Step 1: Discharging and recovering the AC refrigerant.

Step 2: Condenser removal and replacement.

Step 3: Remove parts that are in the way of the condenser.

Step 4: Take off the A/C lines that run to the condenser.

Step 5: Take off the condenser.

Step 6: Install a new condenser.

Step 7: Install the A/C lines and replace the o-rings.
