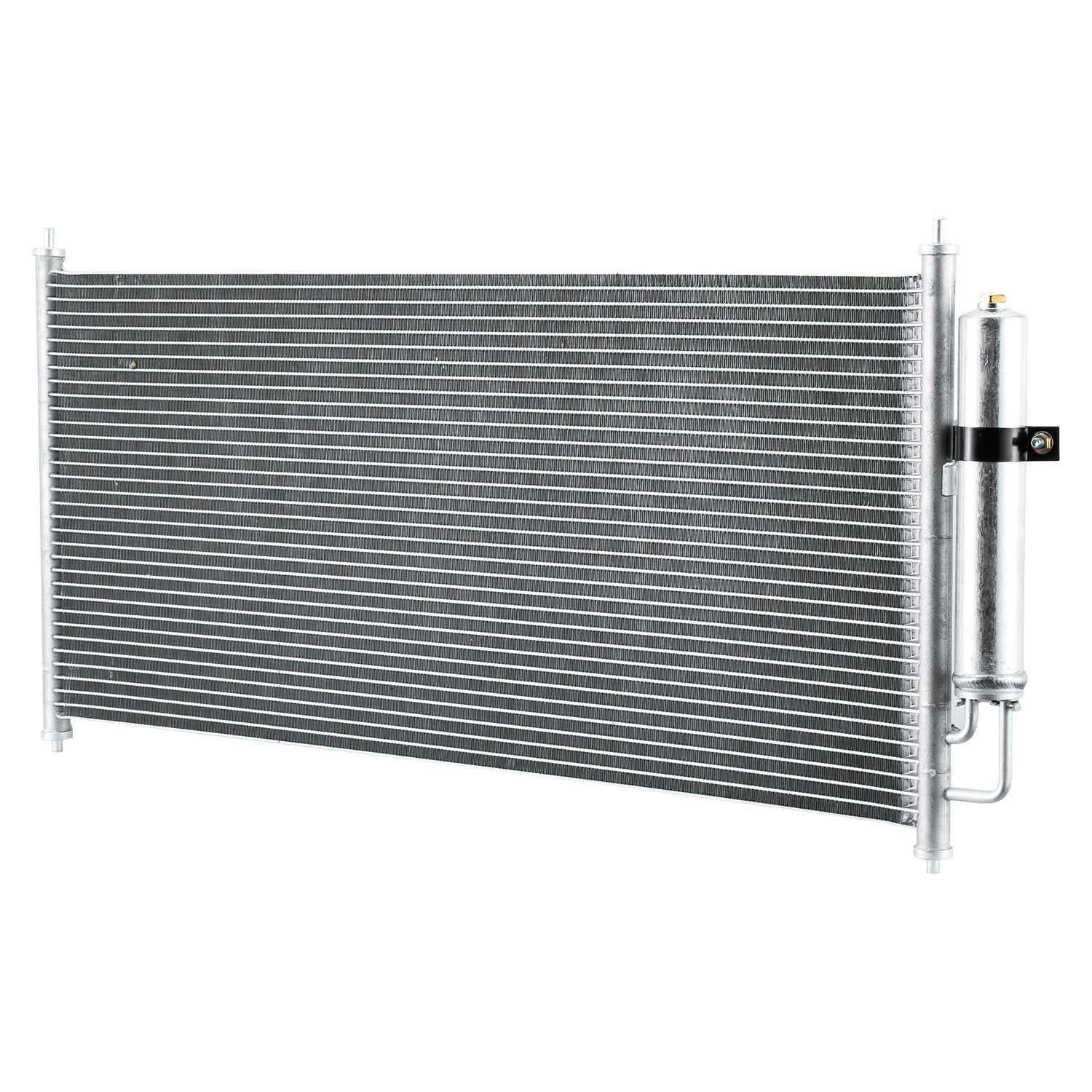

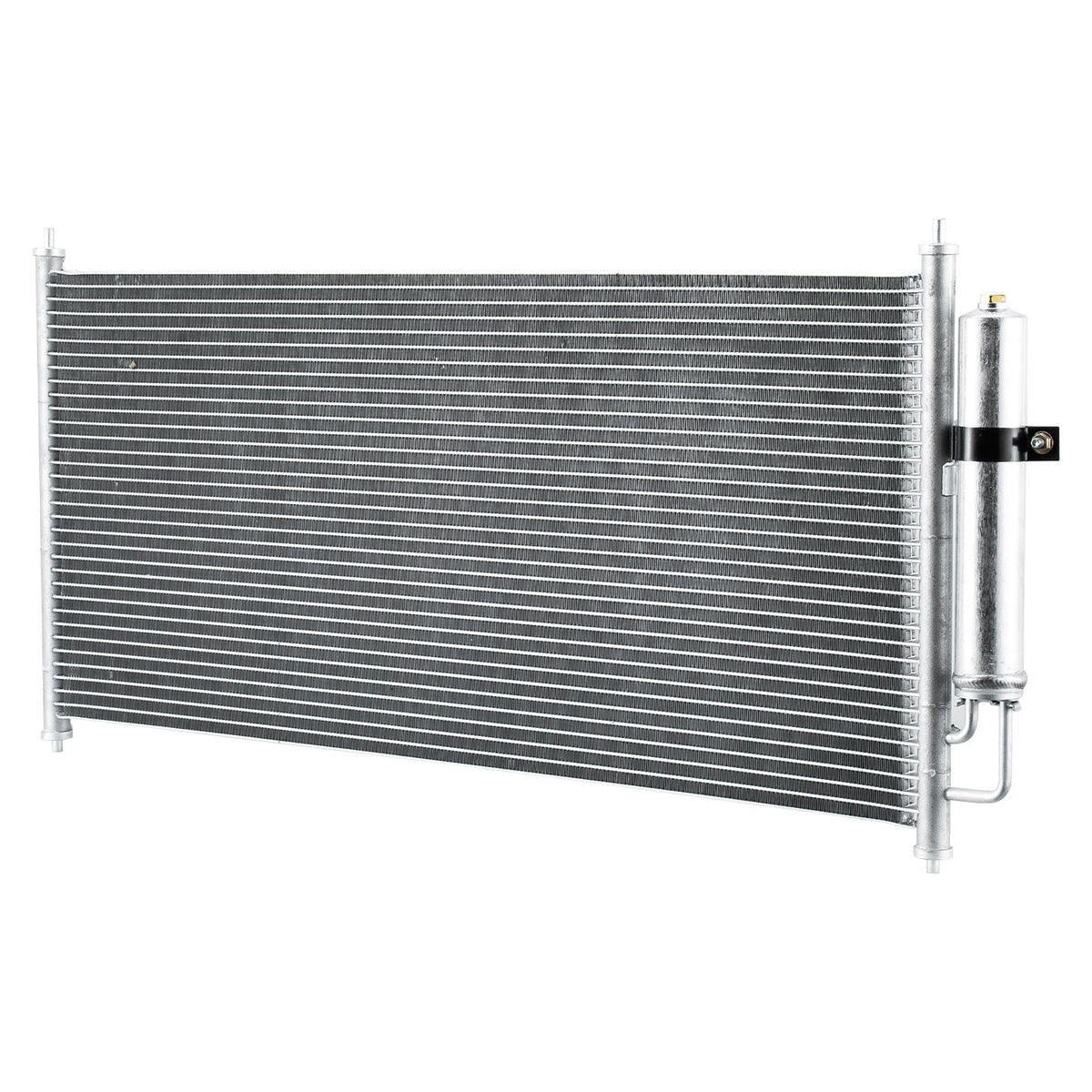

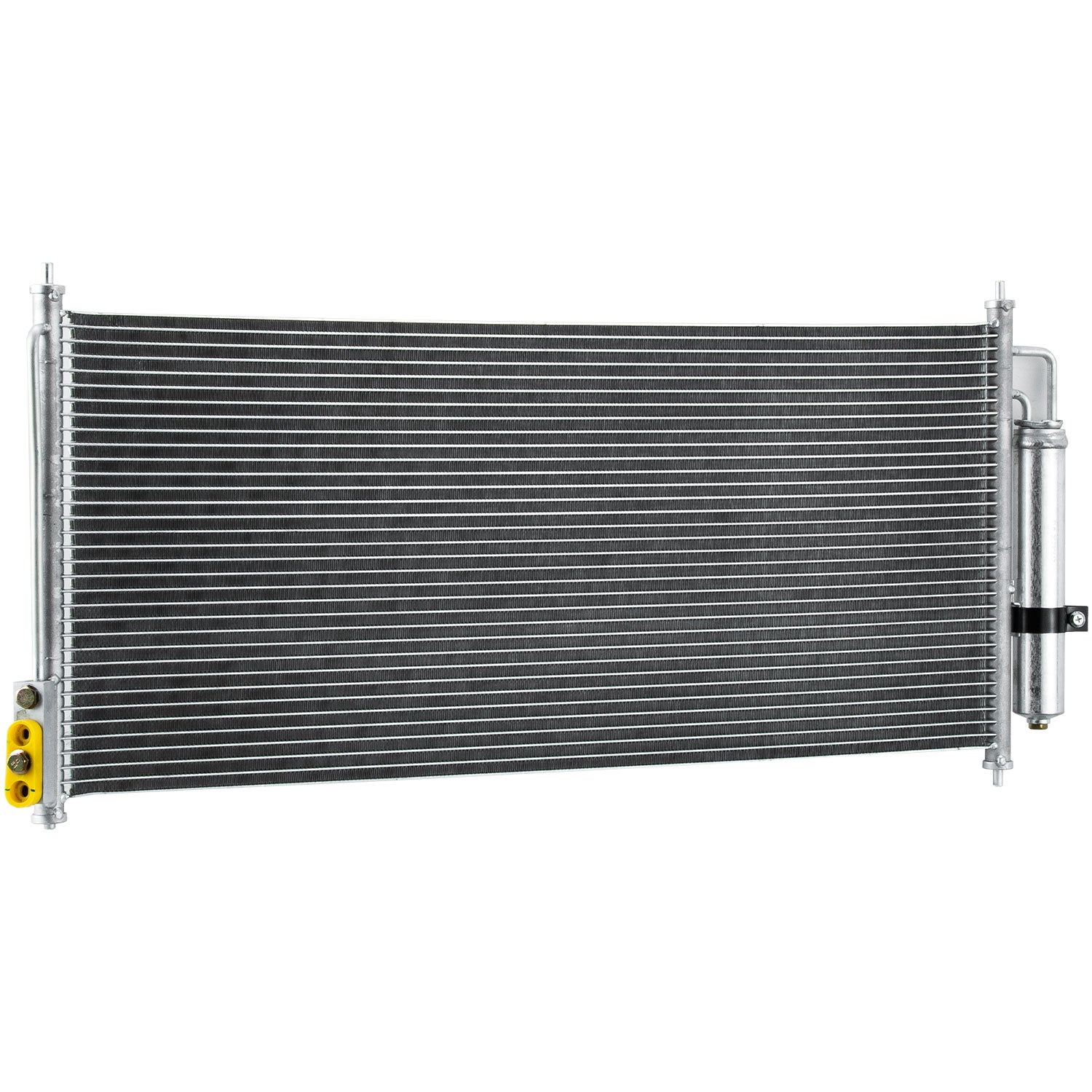

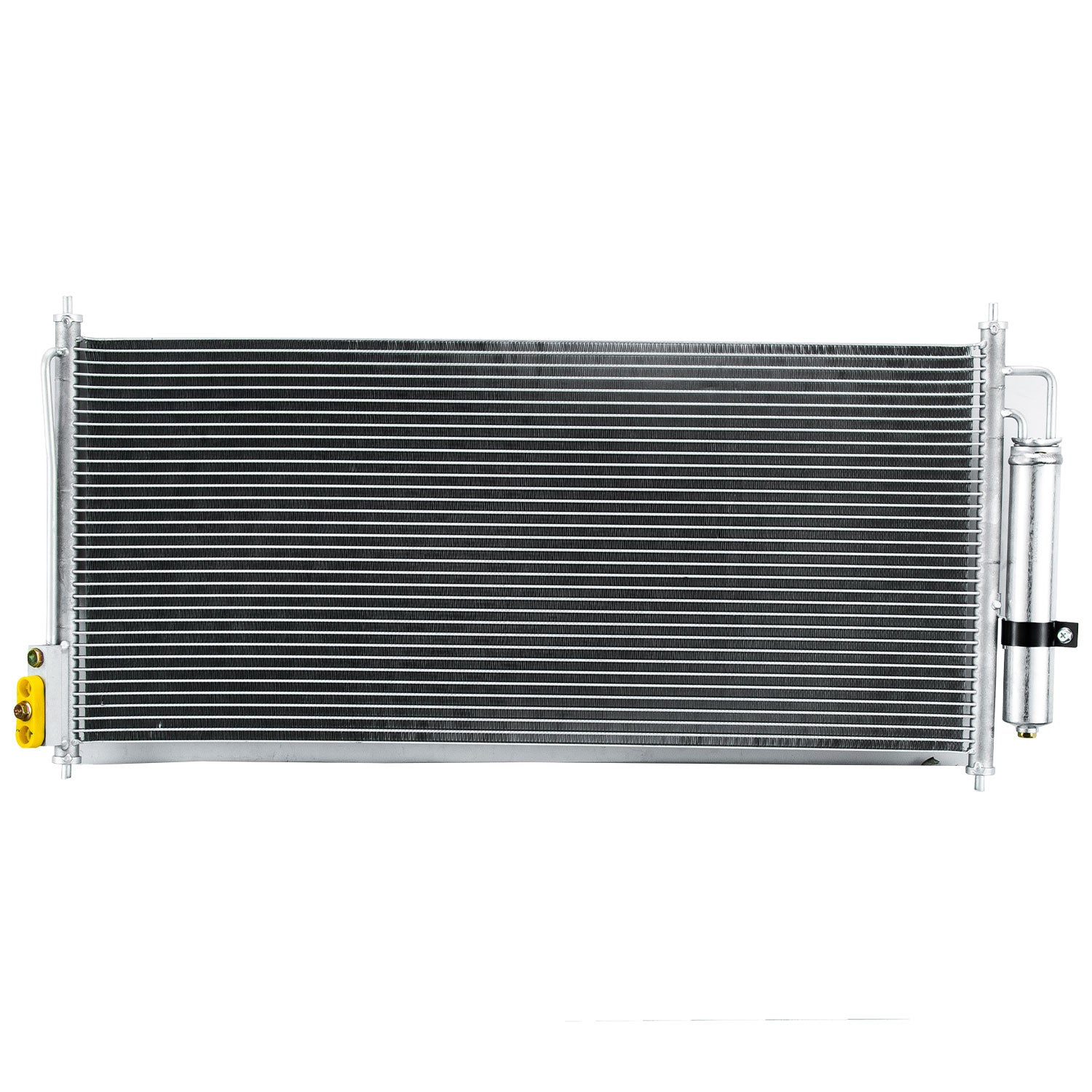

ASI Performance Aluminum A/C Condenser For Nissan 2002-2006 Altima 2004-2008 Maxima

Fitment:

Description:

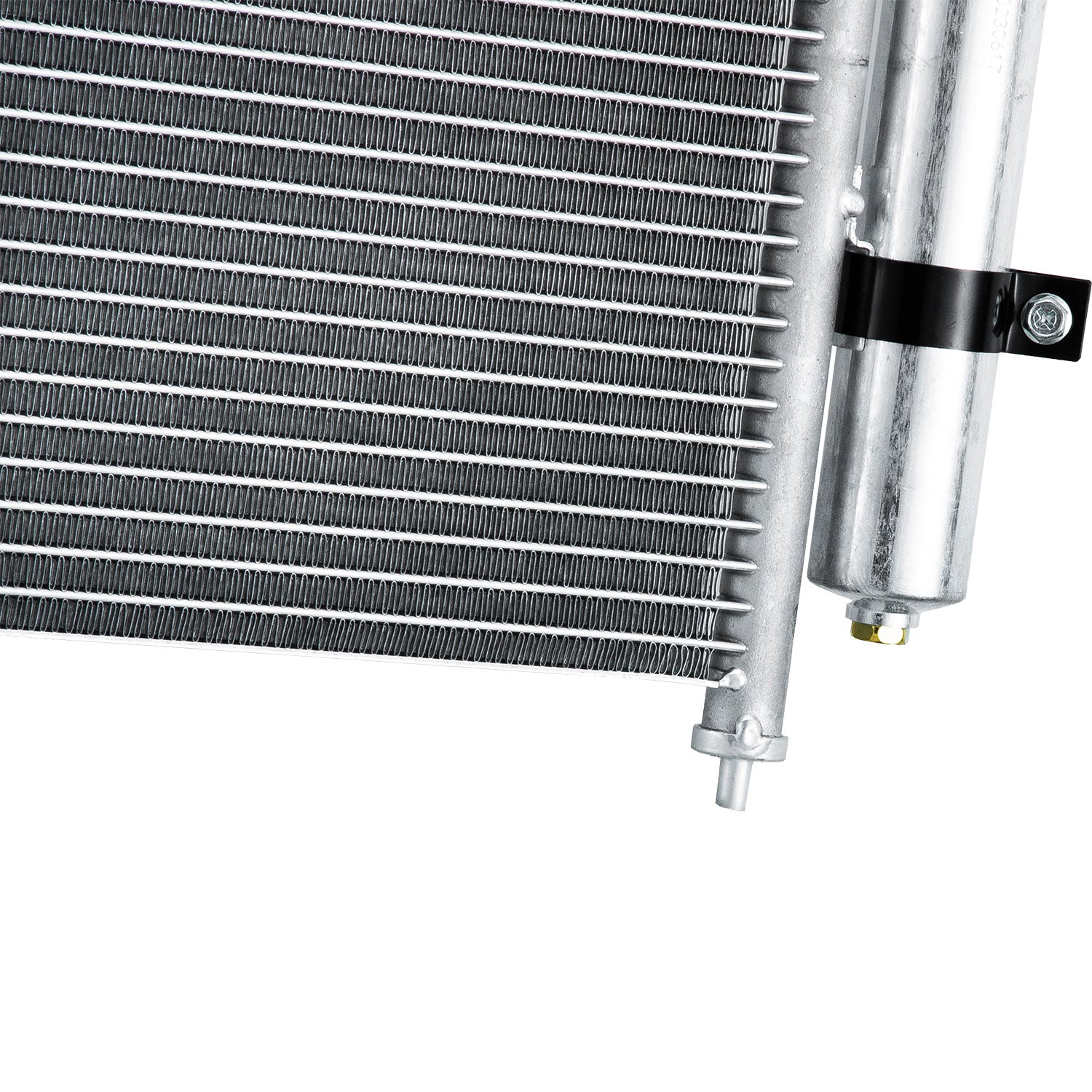

Built-in Dryer: Yes

Built-in Oil Cooler: No

Configuration: Parallel Flow Condenser

Core Height (IN): 13.39"

Core Length (IN): 30.28"

Core Thickness (IN): 0.71"

Inlet Diameter (IN): 0.61"

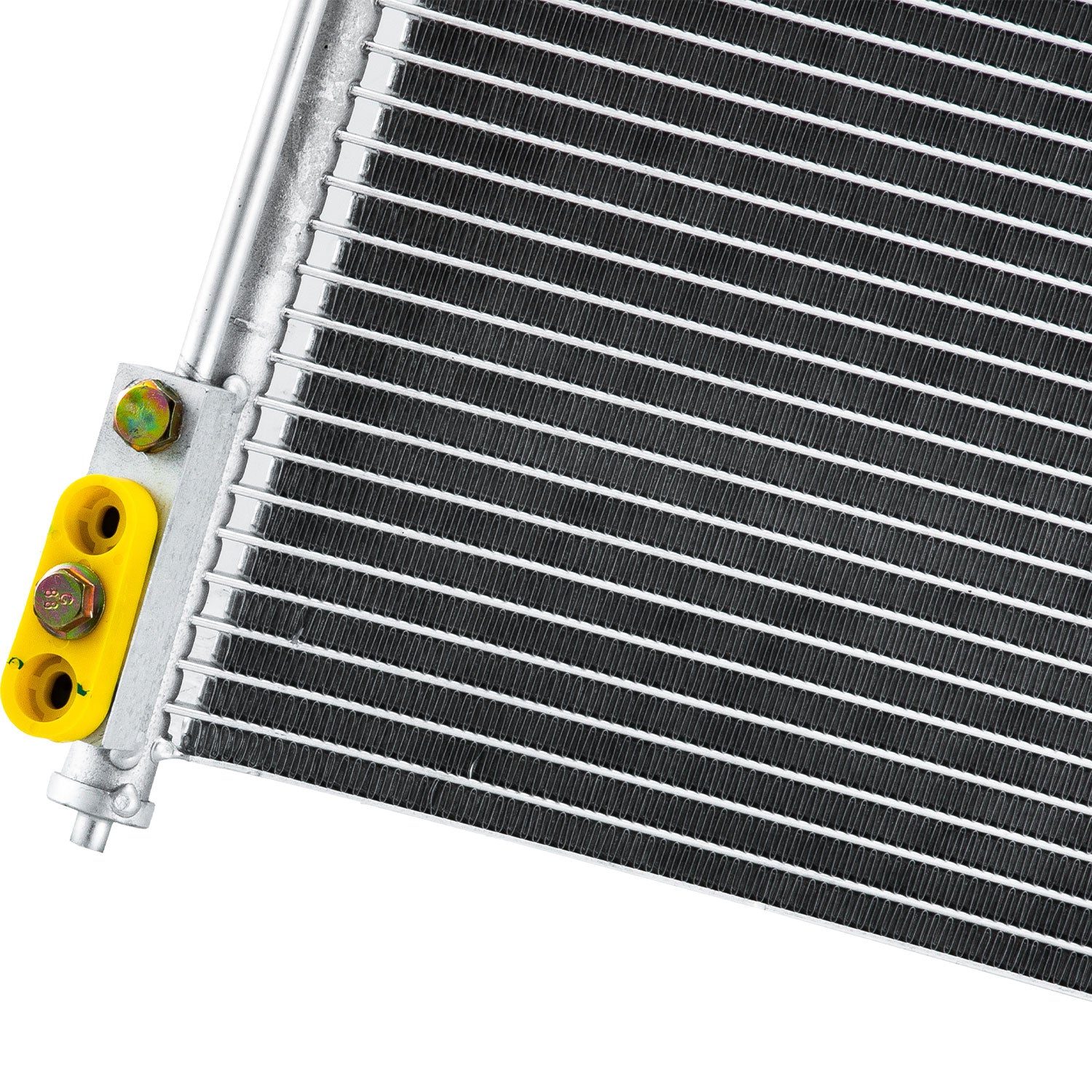

Inlet Fitting Design: Block

Outlet Diamter (IN): 0.40"

Outlet Fitting Design: Block

OE Reference Number:NI3030155

Aftermarket Reference Number:3057, 679-59341 679-59419 7-3057 921007Y000 921008J050 NI3030155

Fitment:

For 2002-06 Nissan Altima A/C Condenser and Receiver Drier Assembly

For 2004-08 Nissan Maxima A/C Condenser and Receiver Drier Assembly

Feature:

The air-conditioning condenser is located between the car's grille and the engine-cooling radiator in which the gaseous refrigerant sheds heat and returns to a liquid state.

The liquid refrigerant flows to the evaporator inside the dashboard, where it cools the cabin.

All-aluminum design with durable TIG-welded construction ;High performance racing design, improves cooling by 35 -45% Temp.

Note: 100% Leak Tested, A/C Condenser , Durability Tested; High performance racing design, improves cooling by 35 -45% Temp. No Drilling/Modification Needed

How to Replace A/C Condenser:

Step 1: Discharging and recovering the AC refrigerant.

Step 2: Condenser removal and replacement.

Step 3: Remove parts that are in the way of the condenser.

Step 4: Take off the A/C lines that run to the condenser.

Step 5: Take off the condenser.

Step 6: Install a new condenser.

Step 7: Install the A/C lines and replace the o-rings.
