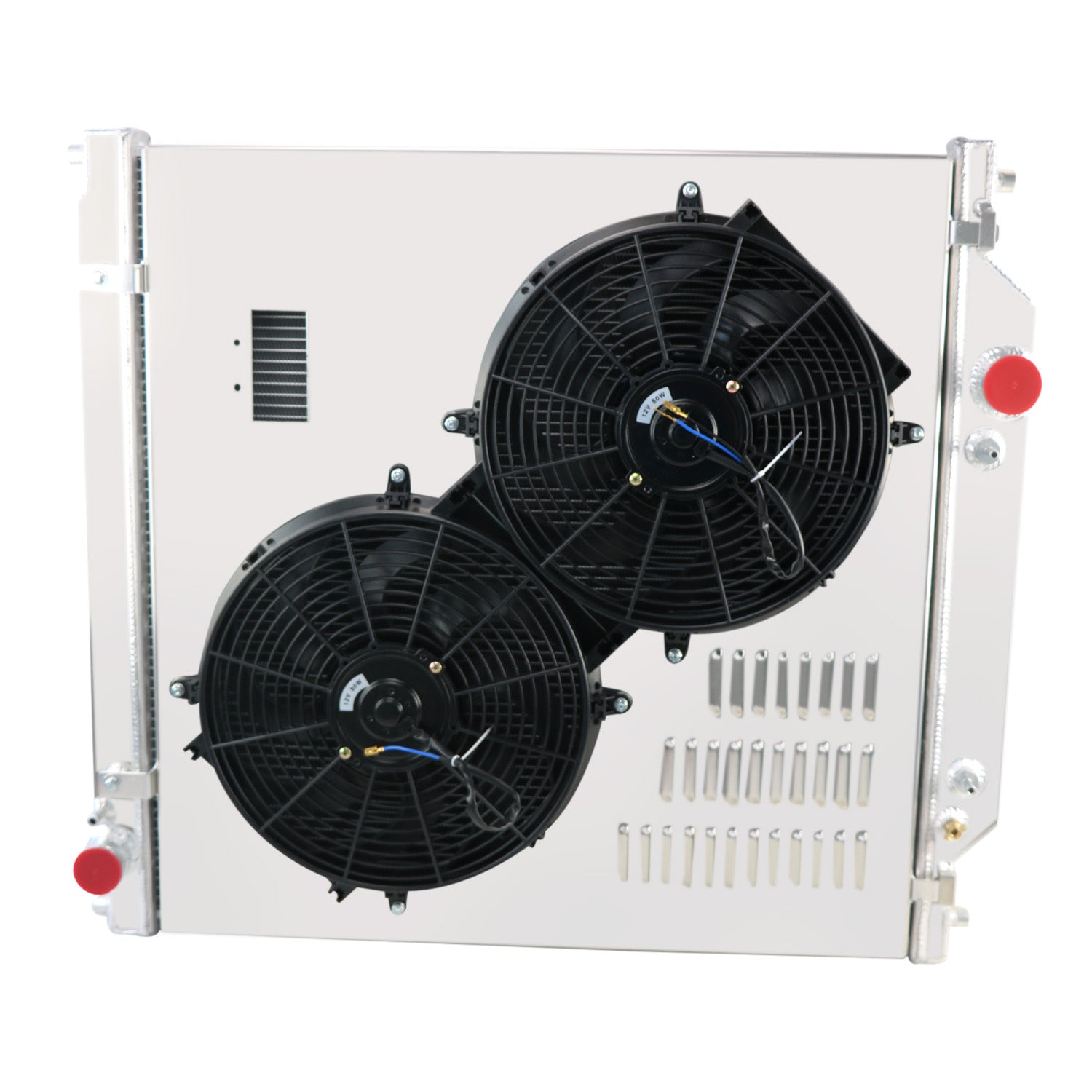

ASI Performance Aluminum radiator + shroud fan + relay fit 2003-07 Ford F250, F350 Super Duty 6.0L

Fitment:

Radiator Configuration:

High Performance Racing Spec.

1-Row of tubes Core Racing Design

Material: Full Aluminium

Overall Size: 875*765*135mm

Core Size: 728*725*26mm

Inlet: 1.77"

Outlet: 1.97"

Tank Wall Thickness:0.08"

Drain Plug Thread Size: M12 x 1.5

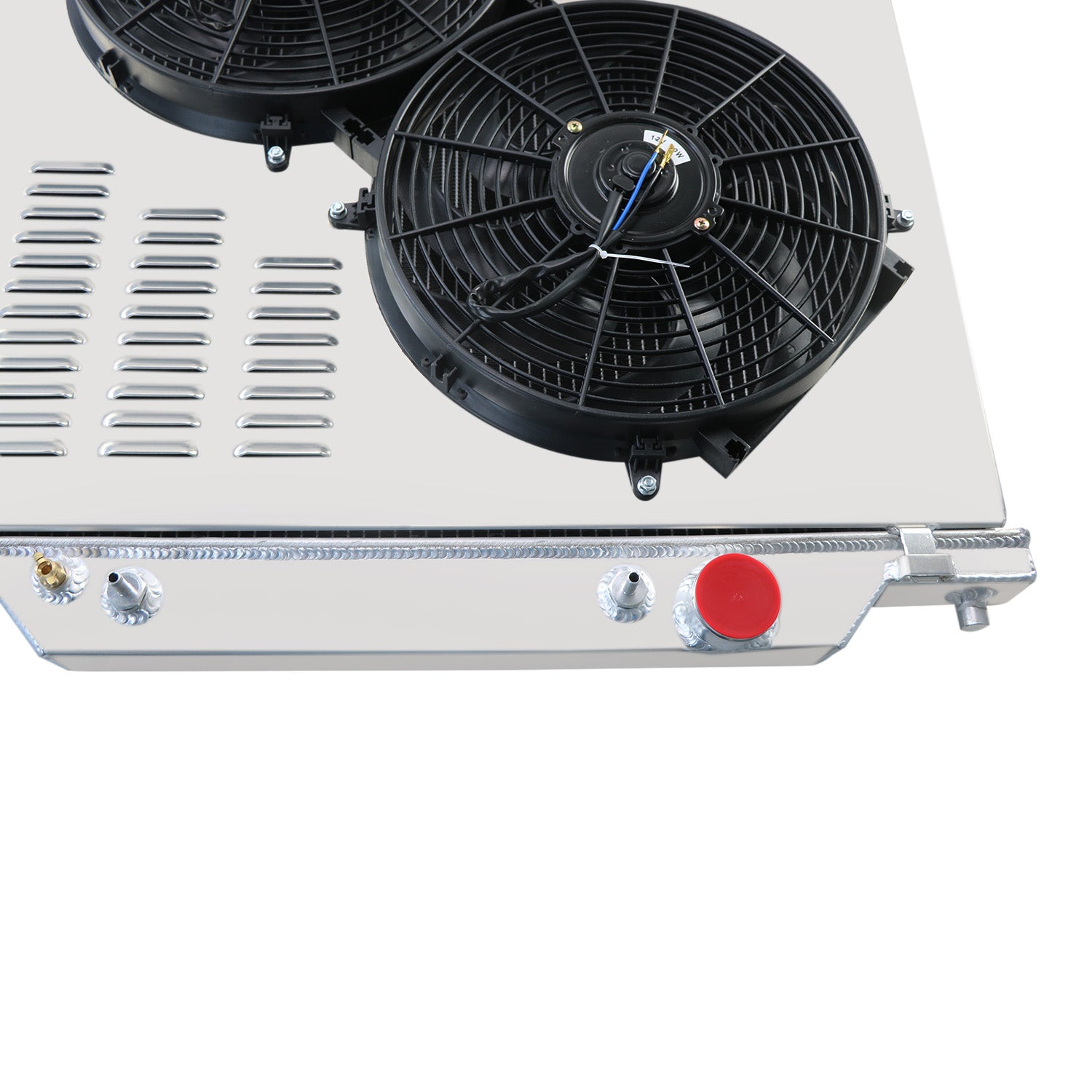

OEM Style Brass Petcock Drain

Please Check the Size Before You Buy!

Description:

This AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold work ability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Features:

1. Made from Aircraft AA5052 grade aluminum for prolonged life span with raw aluminum finish

2. Brazed core technology to guarantee optimum performance and dependability

3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable

4. Carefully crafted to exceptional OE standards for precise fit.

5. OEM style brass petcock drain much better than other plastic ones

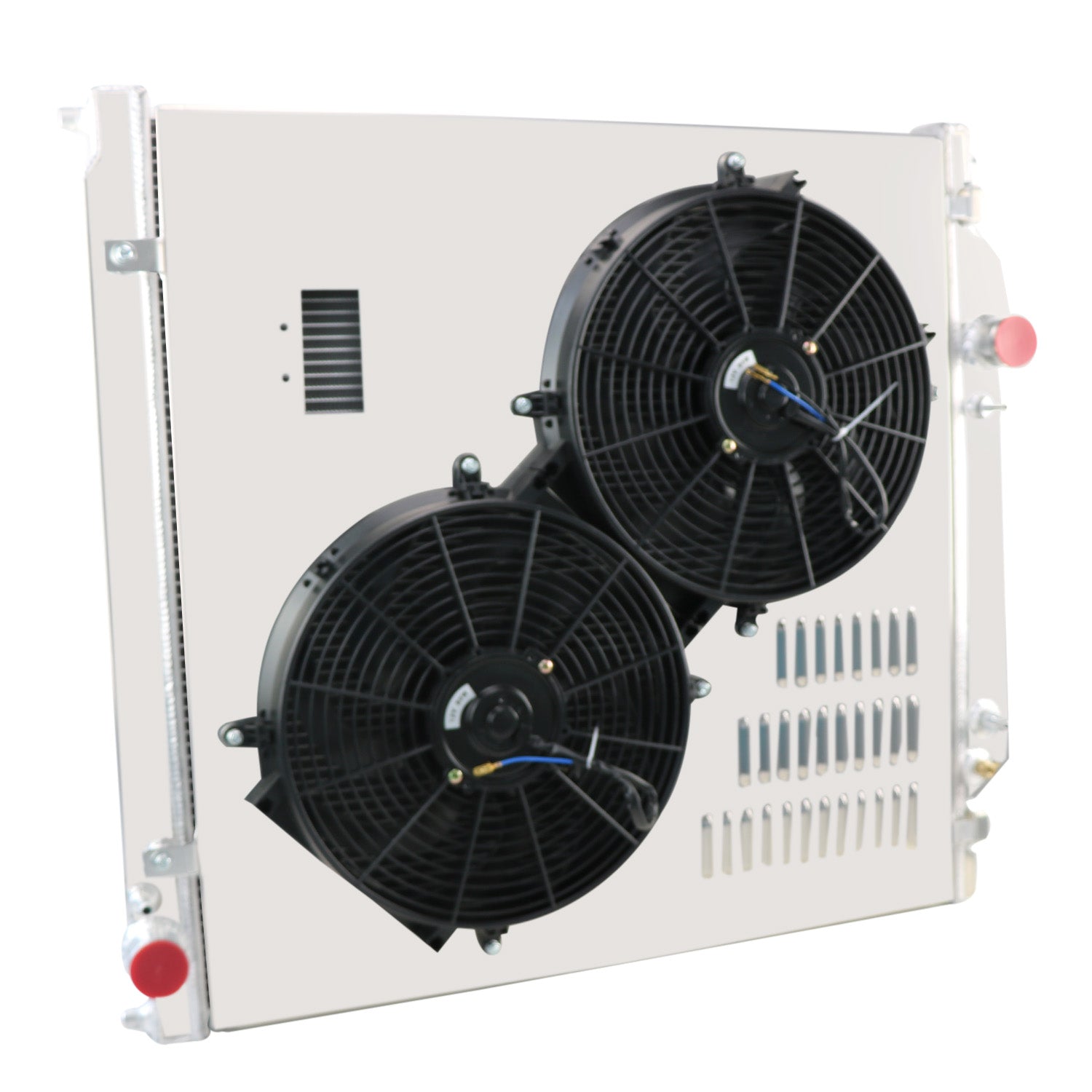

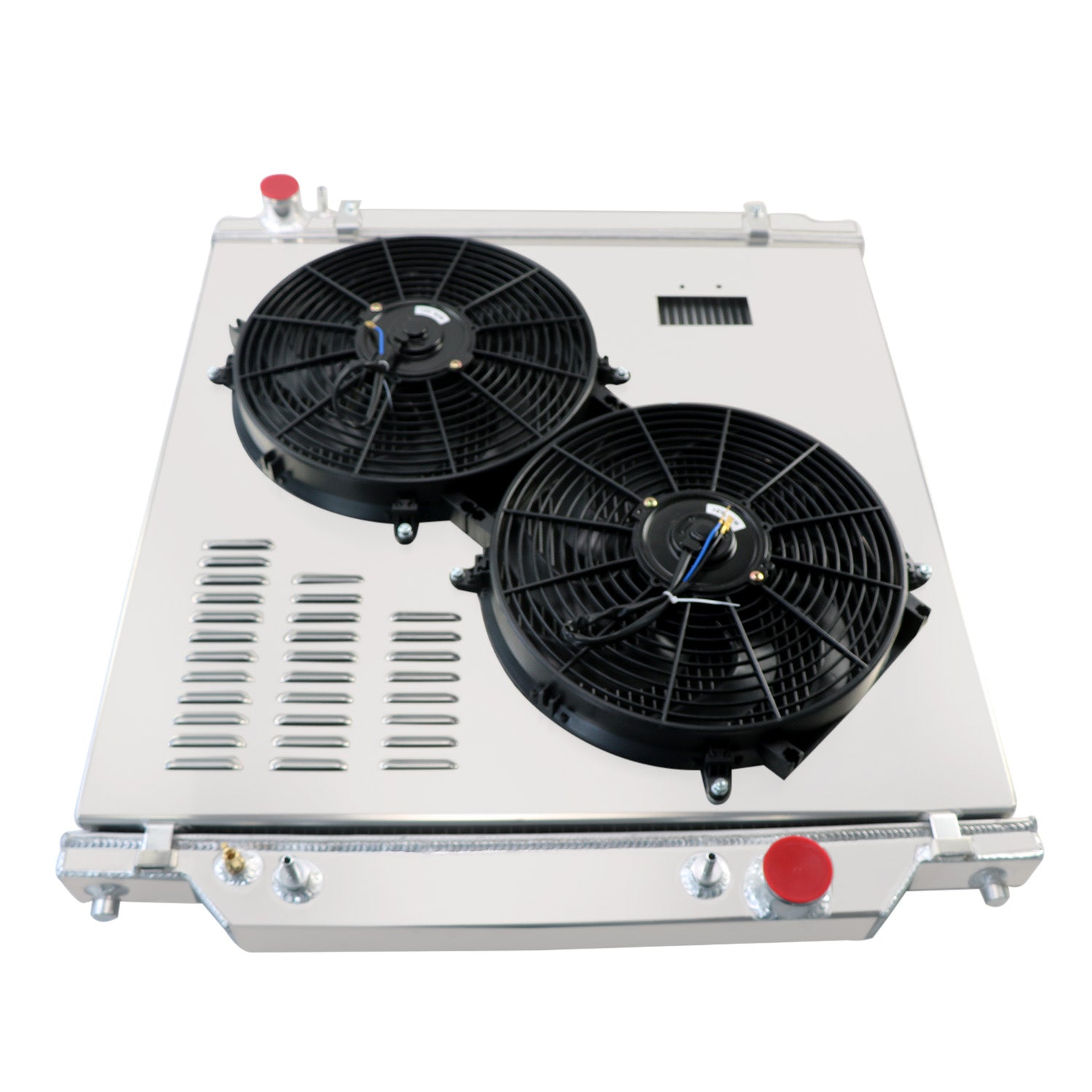

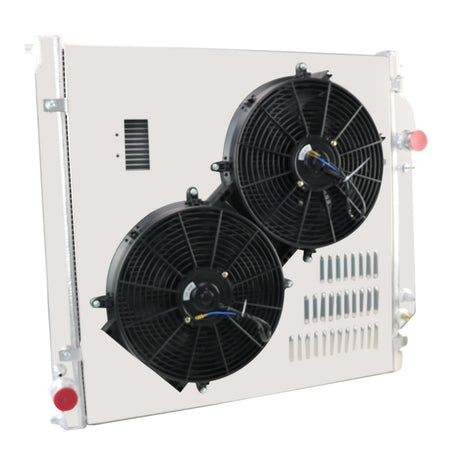

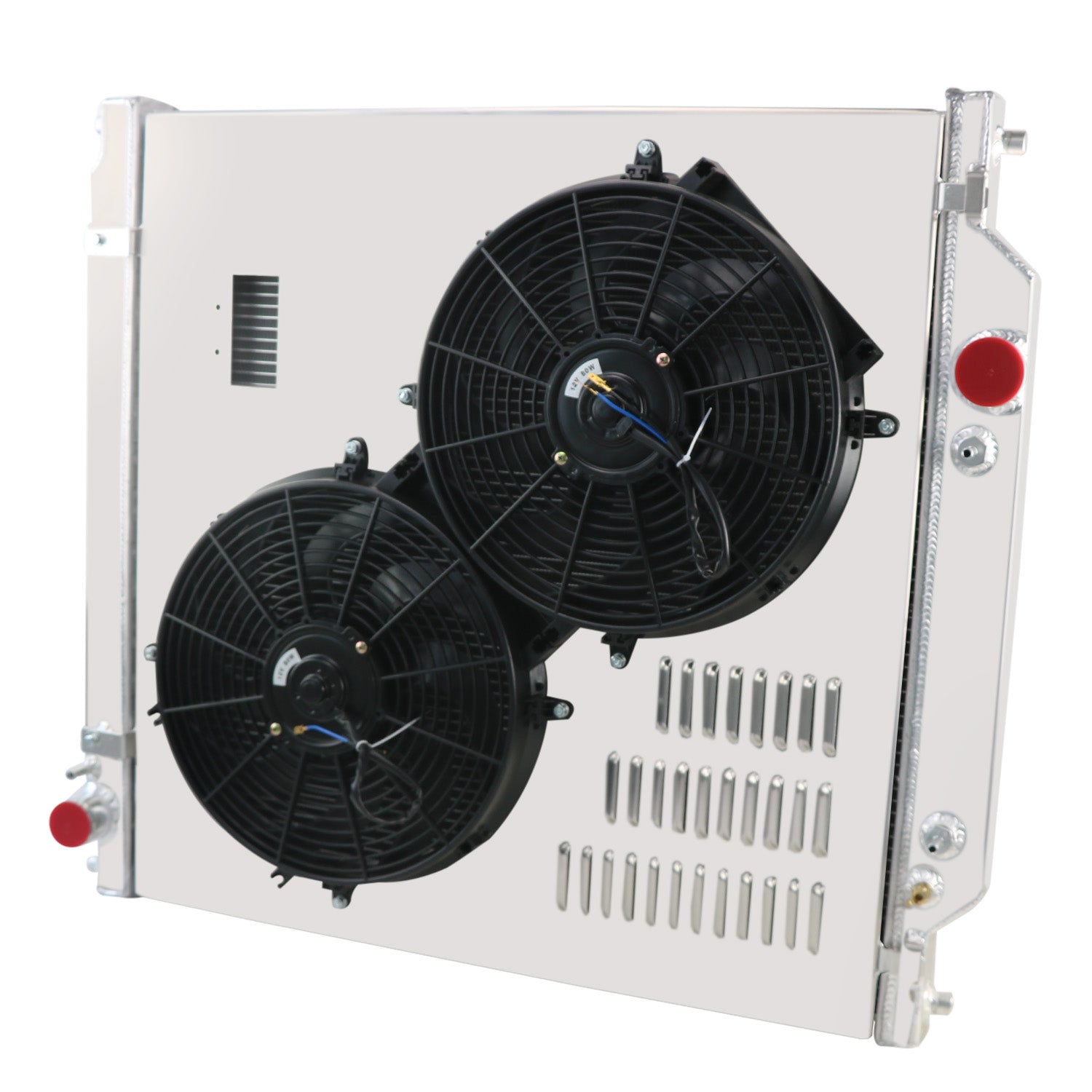

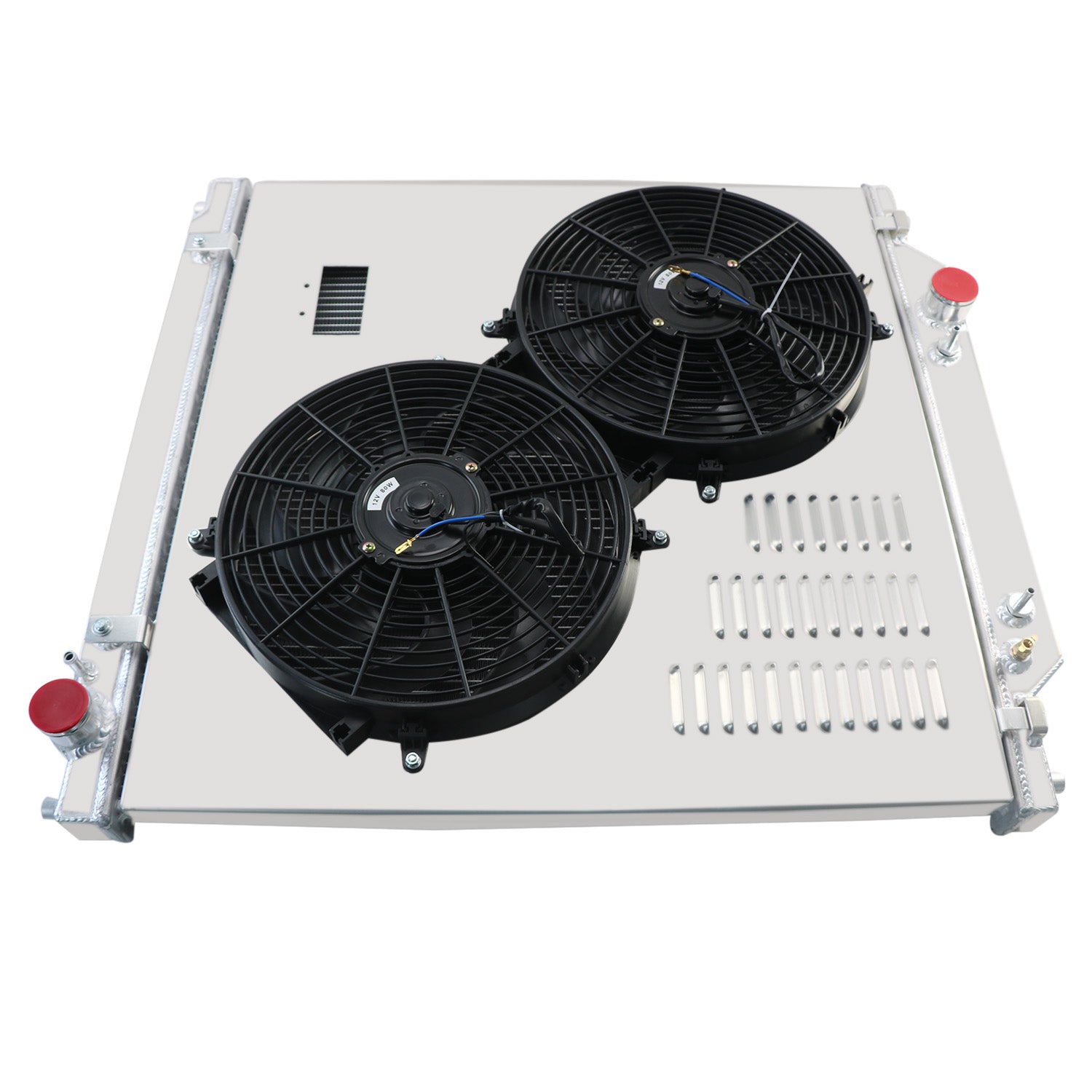

AA5052 Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

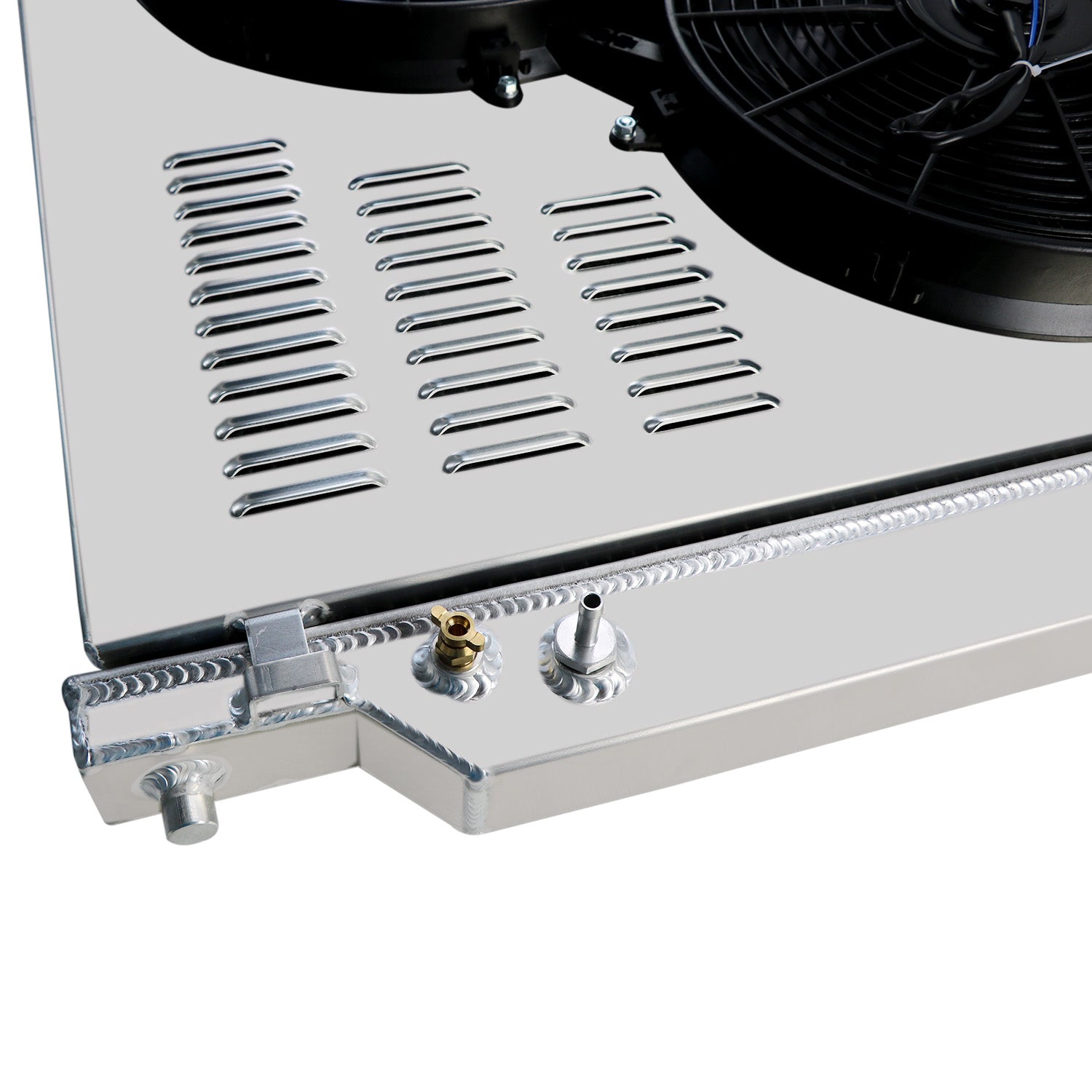

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, consider for every detail and needed

Thermostat Relay Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

3/8" NPT thread-in brass probe

Probe typically threads into radiator, water outlet or manifold.

Thermostat Kit Instructions:

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

Fan Specification:

12" Fan

Voltage: DC 12 Volts

Wattage: 80 Wattage

Thickness (in): 2.500"

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Amp Draw: 12.70 amps
