ASI Performance Aluminum Shroud Fan+Relay Fit 68-74 Chevy Nova/75-87 El Camino 68-81 Pontiac 571

ASI0315

In stock

SKU: WH571-DFZXJ120W-BN Barcode: ASI0315

No reviews

$84.95

Size

68-74 Chevy Nova/75-87 El Camino 68-81 Pontiac

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Package Include:

1 X AA5052 Aluminum Shroud

1 X 16" Fan (Includes mounting kits)

1 X Thermostat Relay Kit

Application:

CHEVY SERIES

1969-1979 Chevrolet Nova 3.8L 4.1L 4.3L V6 5.0L 5.7L V8

1979-1987 Chevrolet Monte Carlo 3.3L 3.8L 4.3L V6

1975-1983 Chevrolet Malibu 3.3L 3.8L 4.1L 4.3L V6

1971-1985 Chevrolet Impala 3.8L 4.1L 4.3L V6

1975-1984 Chevrolet El Camino 3.8L 4.1L V6

1968-1973 Chevrolet Chevelle 3.8L 4.1L V6 5.0L V8

1972-1980 Chevrolet Caprice 3.8L 4.1L V6

1974-1981 Chevrolet Camaro 3.8L 4.1L V6 5.0L 5.7L V8

1971-1973 Chevrolet Bel Air 4.1L V6

1971-1972 Chevrolet Biscayne Brookwood 4.1L V6

BUICK SERIES

1980-1987 Buick Regal 3.8L 4.1L V6

1978-1985 Buick LeSabre 3.8L 4.1L V6

1964-1979 Buick Skylark 3.7L 4.1L V6 4.9L 5.0L V8

1973-1975 Buick Apollo 4.1L L6

1977-1981 Buick Century 3.8L V6 5.0L V8

1980-1984 Buick Electra 4.1L L6

GMC SERIES:

1978-1987 GMC Caballero 3.8L 4.3L V6

Oldsmobile SERIES:

1977-1987 Oldsmobile Cutlass Supreme 3.8L 4.3L V6

1979-1985 Oldsmobile Delta 88 3.8L V6

1973-1979 Oldsmobile Omega 4.1L 5.0L

1981-1983 Oldsmobile 98 4.1L

1979-1981 Oldsmobile Cutlass 3.8L 4.3L V6

PONTIAC SERIES:

1968-1981 Pontiac LeMans 3.8L 4.1L V6

1979-1987 Pontiac Grand Prix 3.8L 4.3L V6

1980-1986 Pontiac Bonneville 3.8L 4.3L V6

1980-1981 Pontiac Catalina 3.8L 4.3L V6

1970-1976 Pontiac Firebird 4.1L V6

1979-1981 Pontiac Grand LeMans 3.8L V6

1977-1979 Pontiac Phoenix 5.0L 5.7L

1968-1970 Pontiac Tempest 4.1L

1972-1976 Pontiac Ventura 4.1L V6

Fan Specification:

Diameter : 16'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 120W

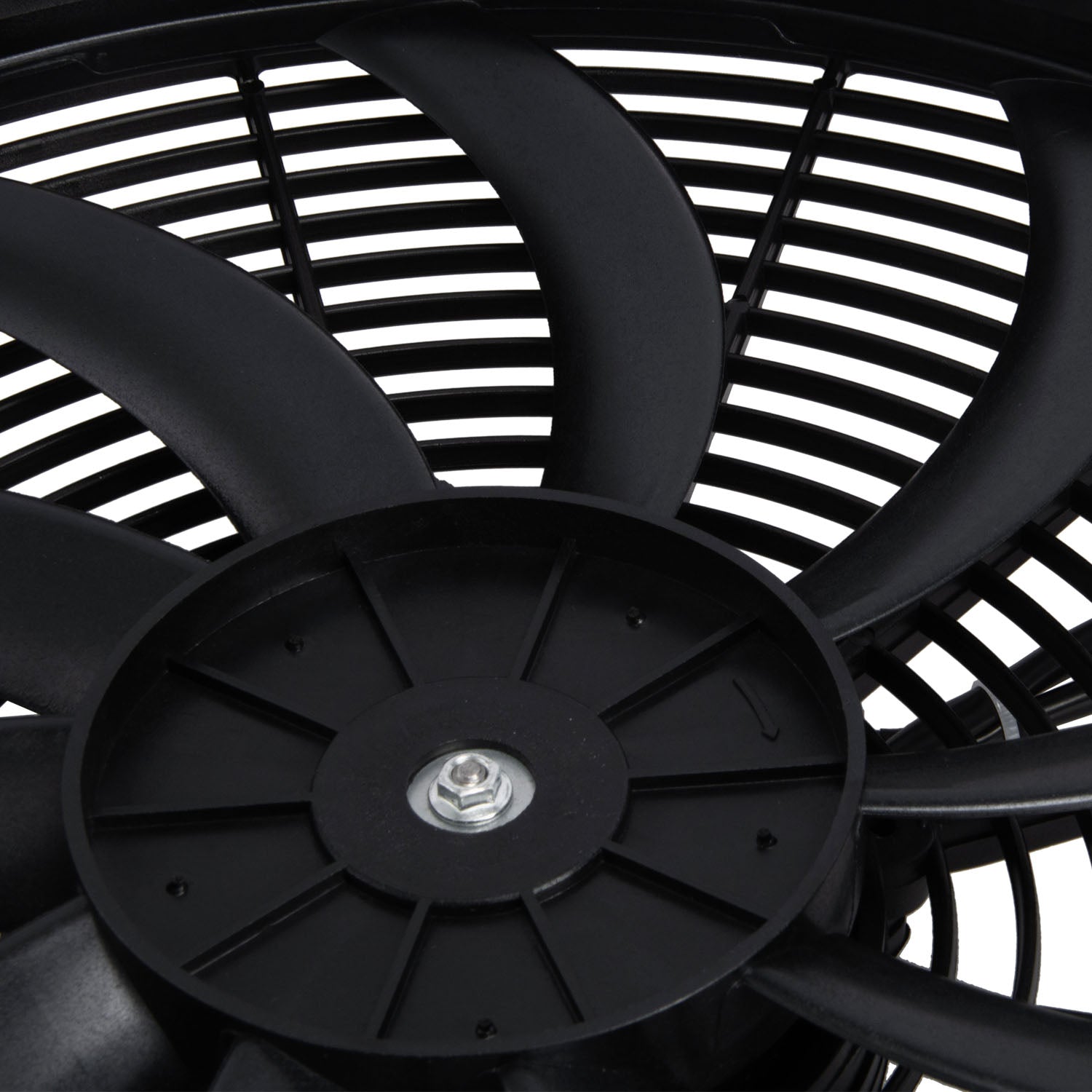

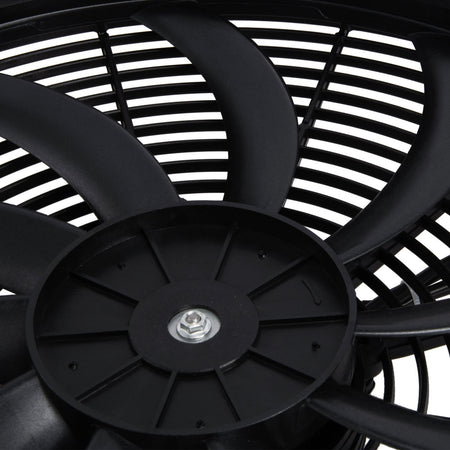

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

Amp Draw: 10amp

Fan Thickness: 2.95"

S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect

Powerful 120 watt motor will keep your engine cool.

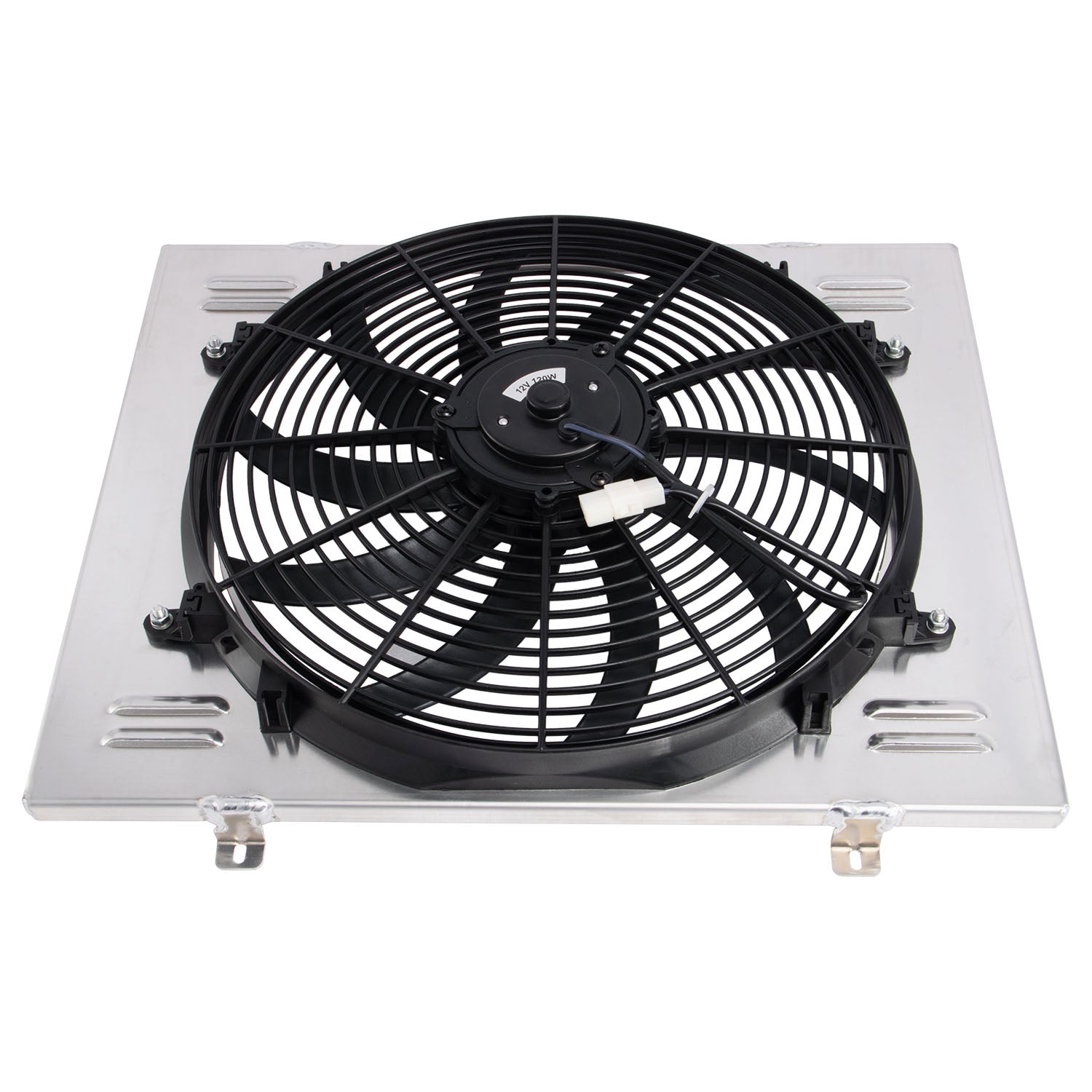

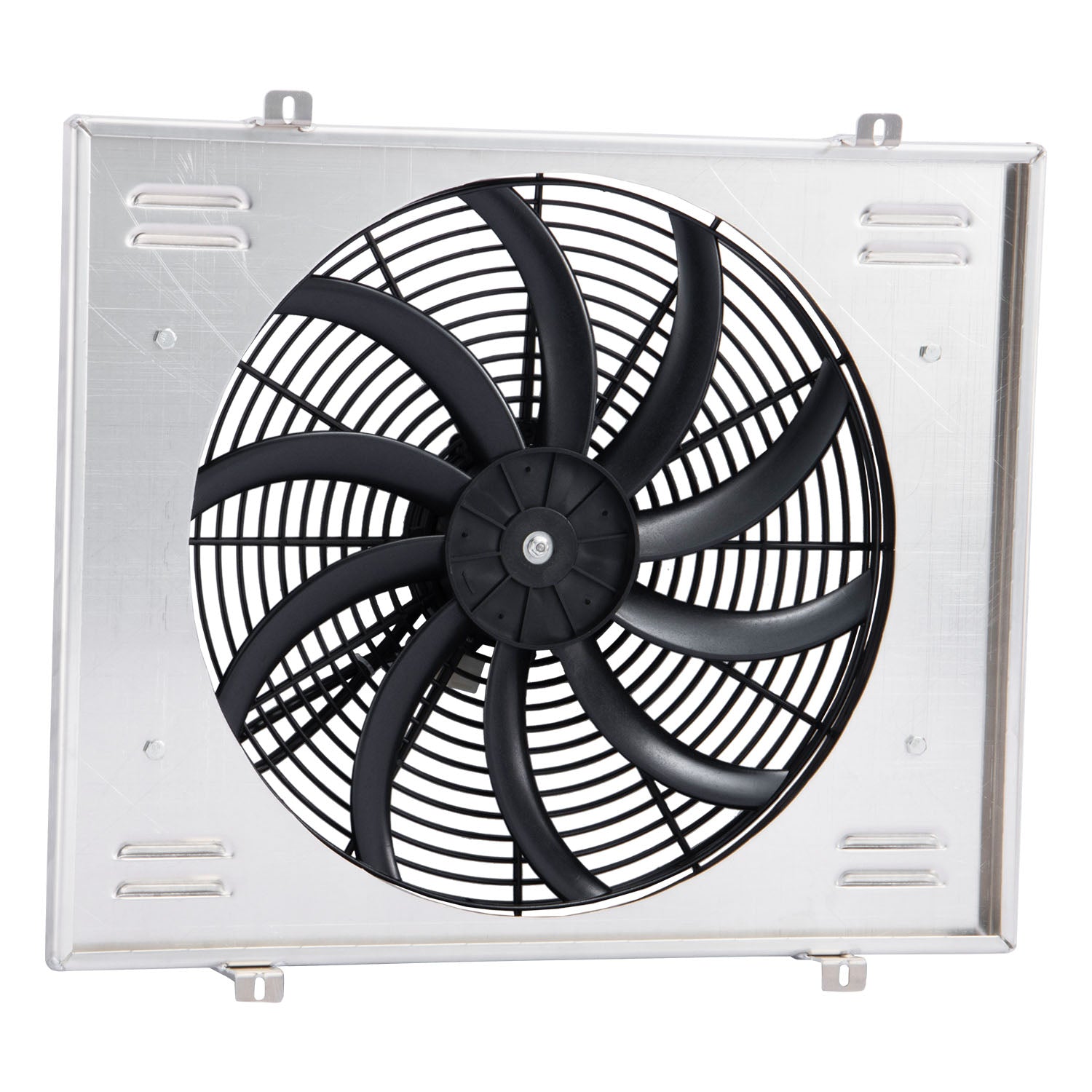

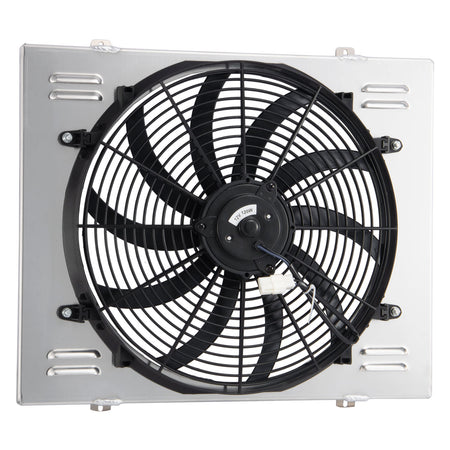

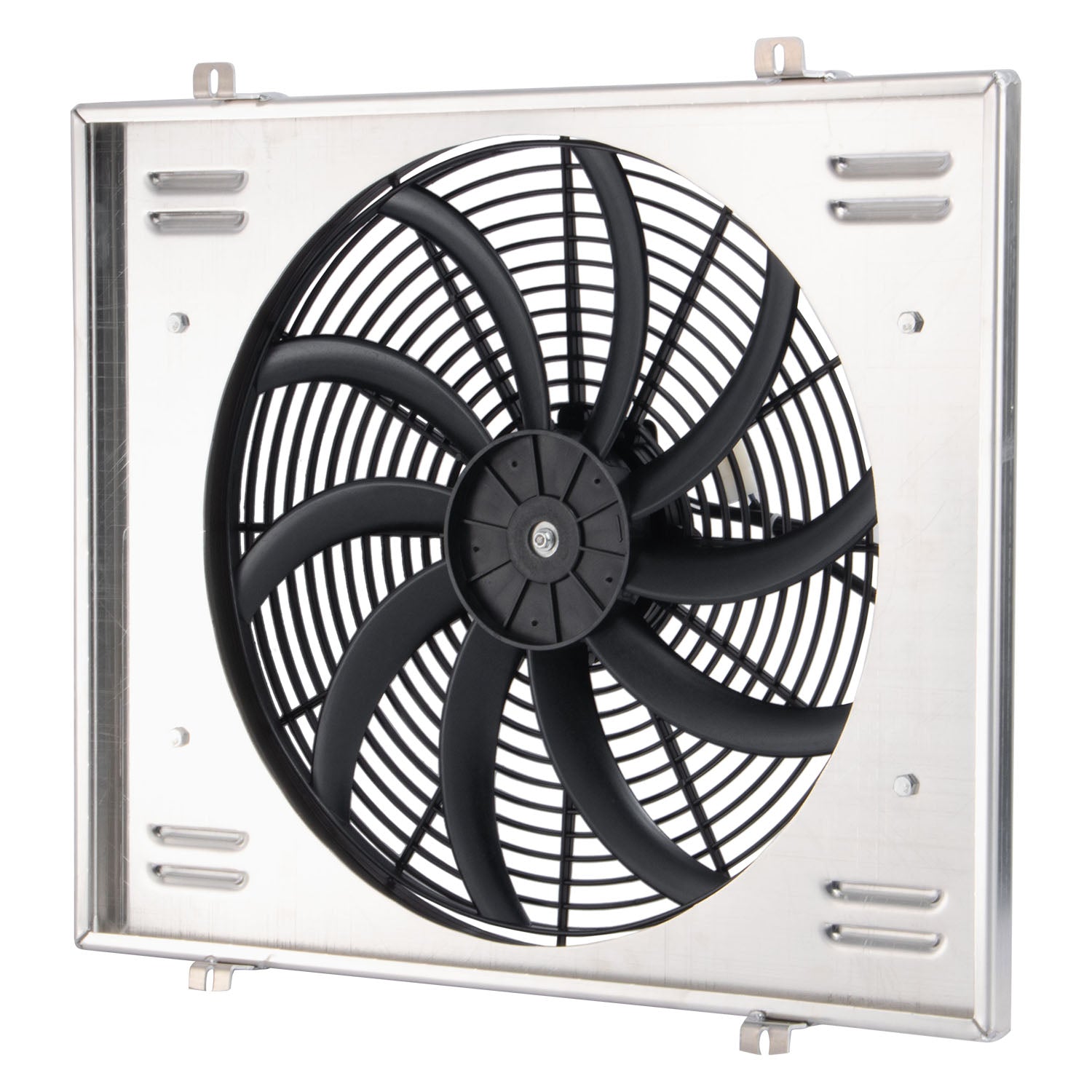

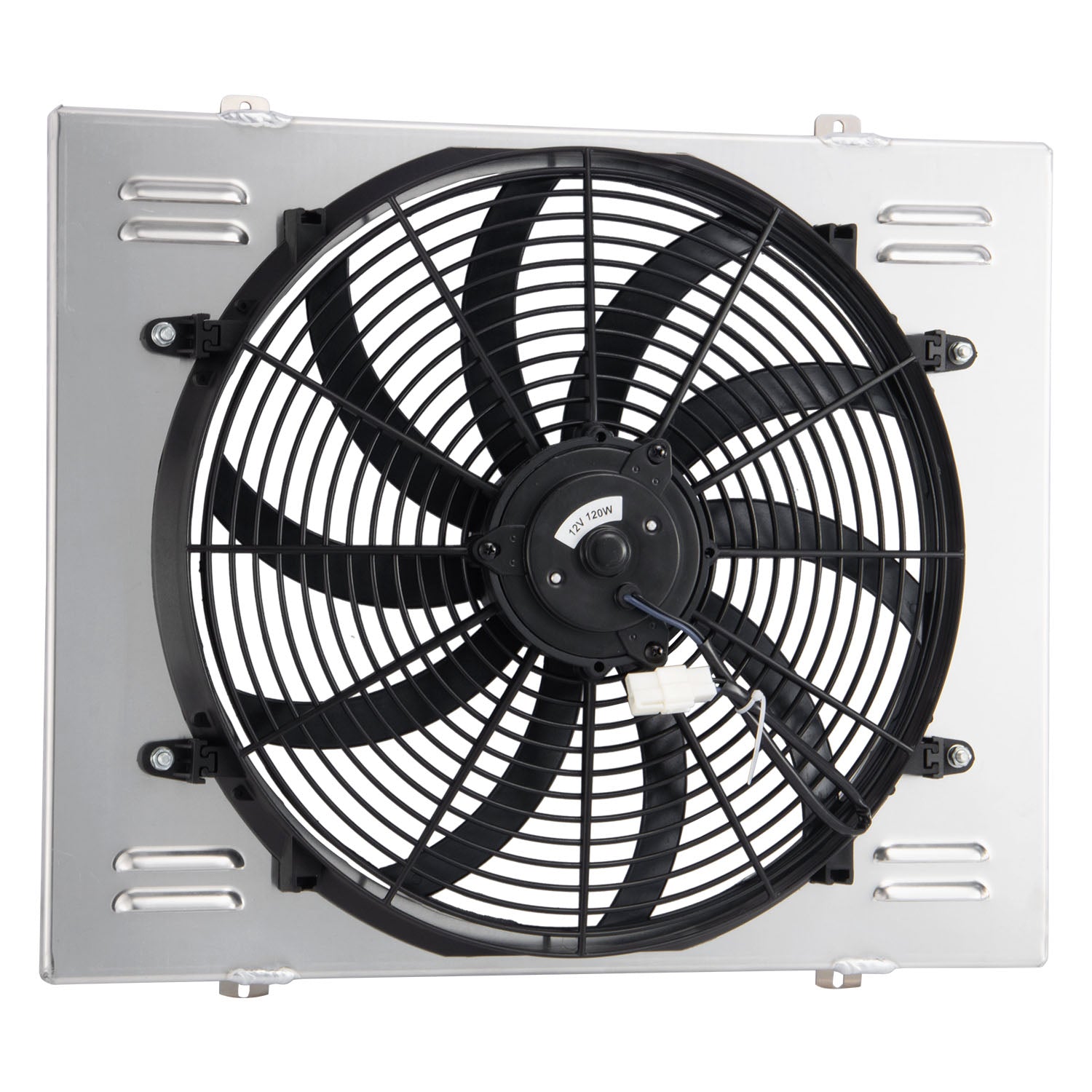

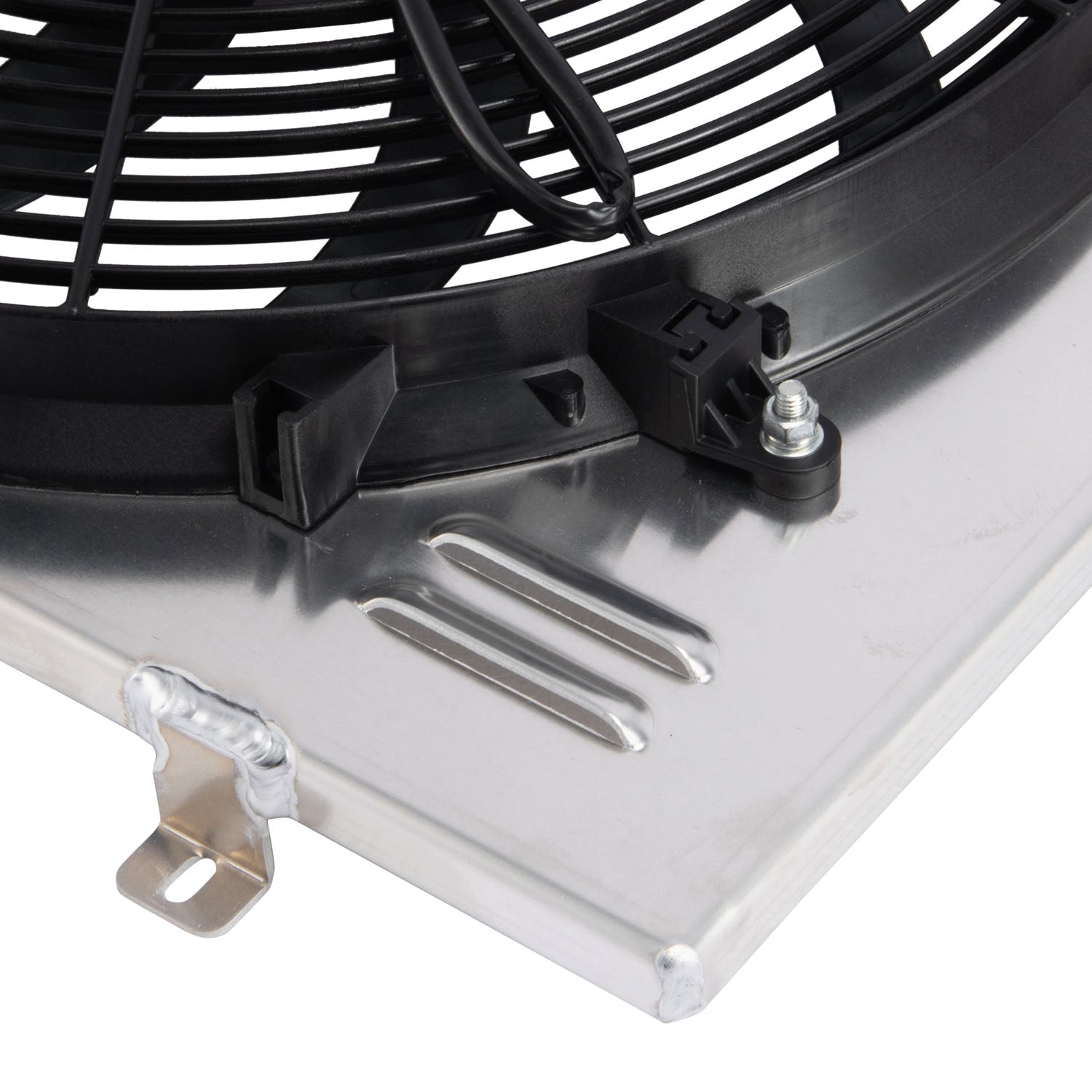

AA5052 Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

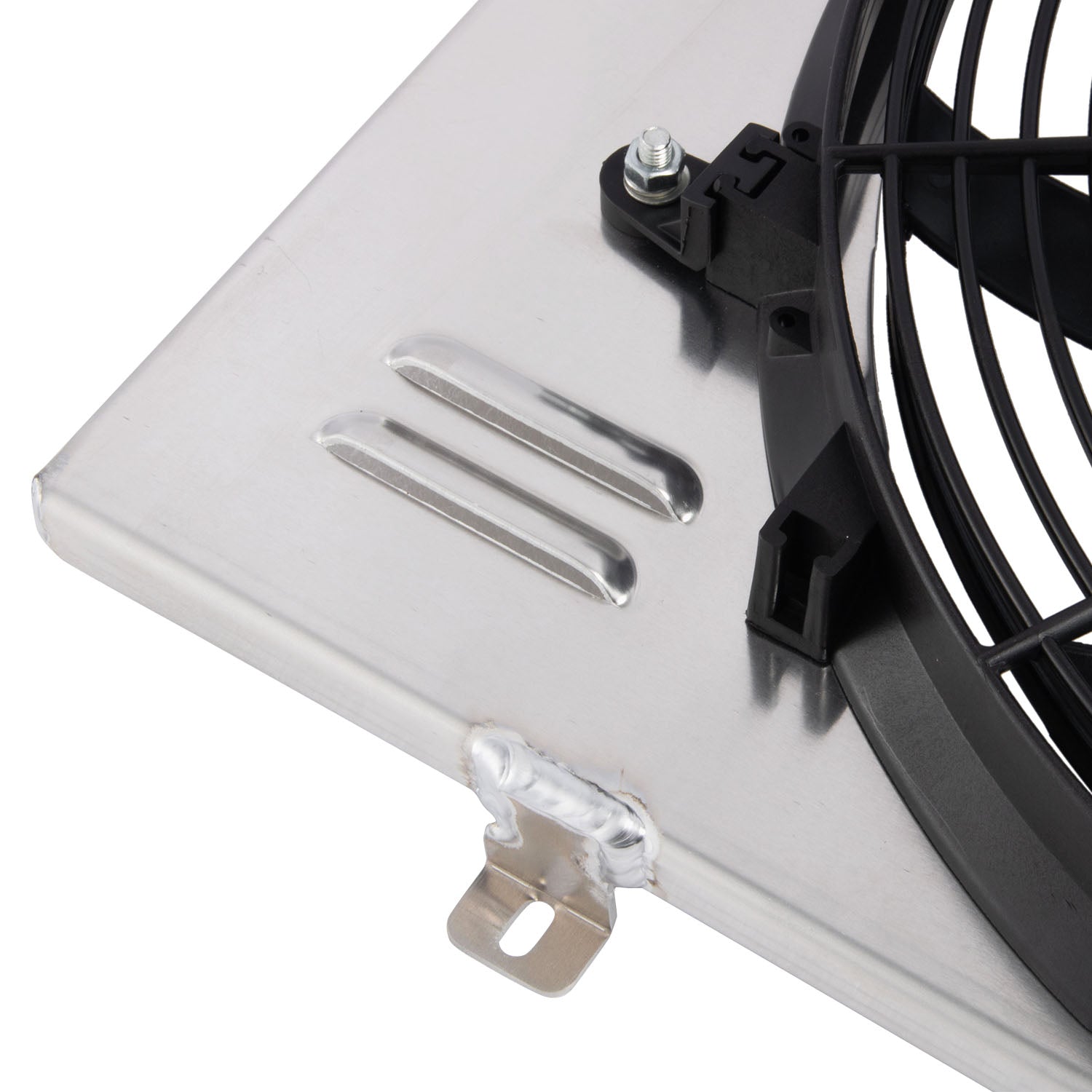

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, consider for every detail and needed.

Thermostat Kit:

Work with any 12 volt system.

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

185'F turn-on temperature, 165'F turn-off temperature.

Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions：

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
