ASI Performance Aluminum Shroud Fan Relay fits 85~94 Fitd Ranger 91-94 Explorer Bronco II

ASI0693

In stock

SKU: WH1164-DFZXJ90W-BN Barcode: ASI0693

No reviews

$84.95

Fan Diameter

14.050”

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Package Include:

1 X AA5052 Aluminum Shroud

1 X 14" Fan (Includes mounting kits)

1 X Thermostat Relay Kit

The size of radiator which the shroud fan fits:

Overall Diameter: Height 27" x Width 21 6/7"

Core Diameter: Height 18 " x Width 17 5/8"

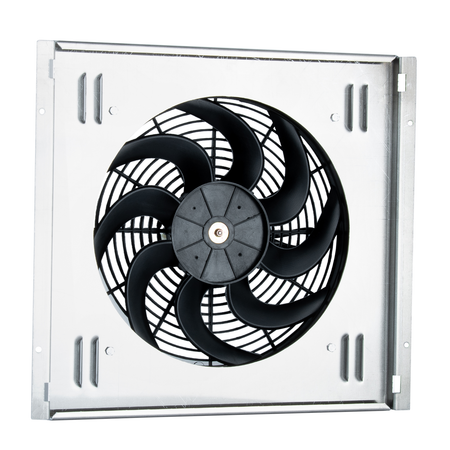

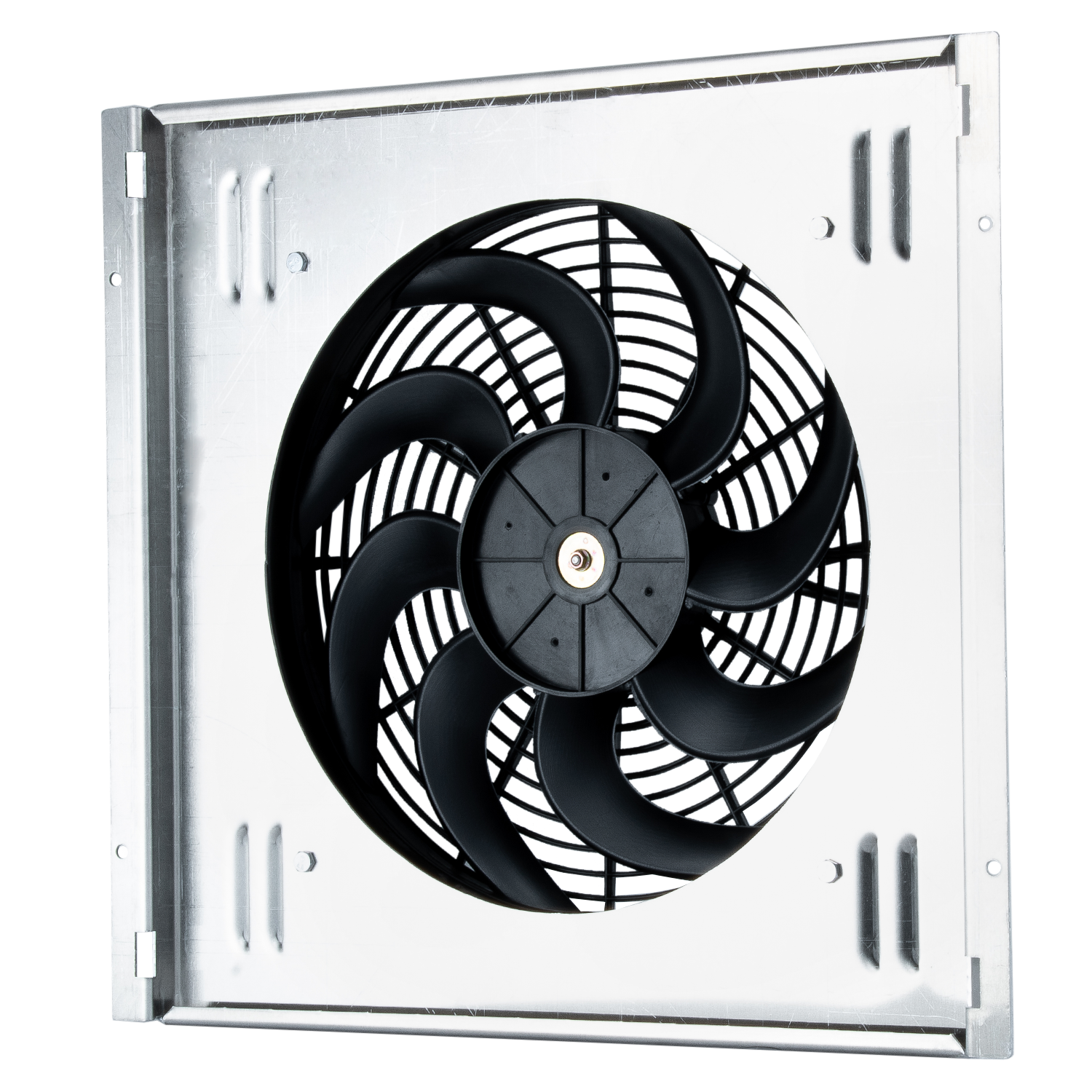

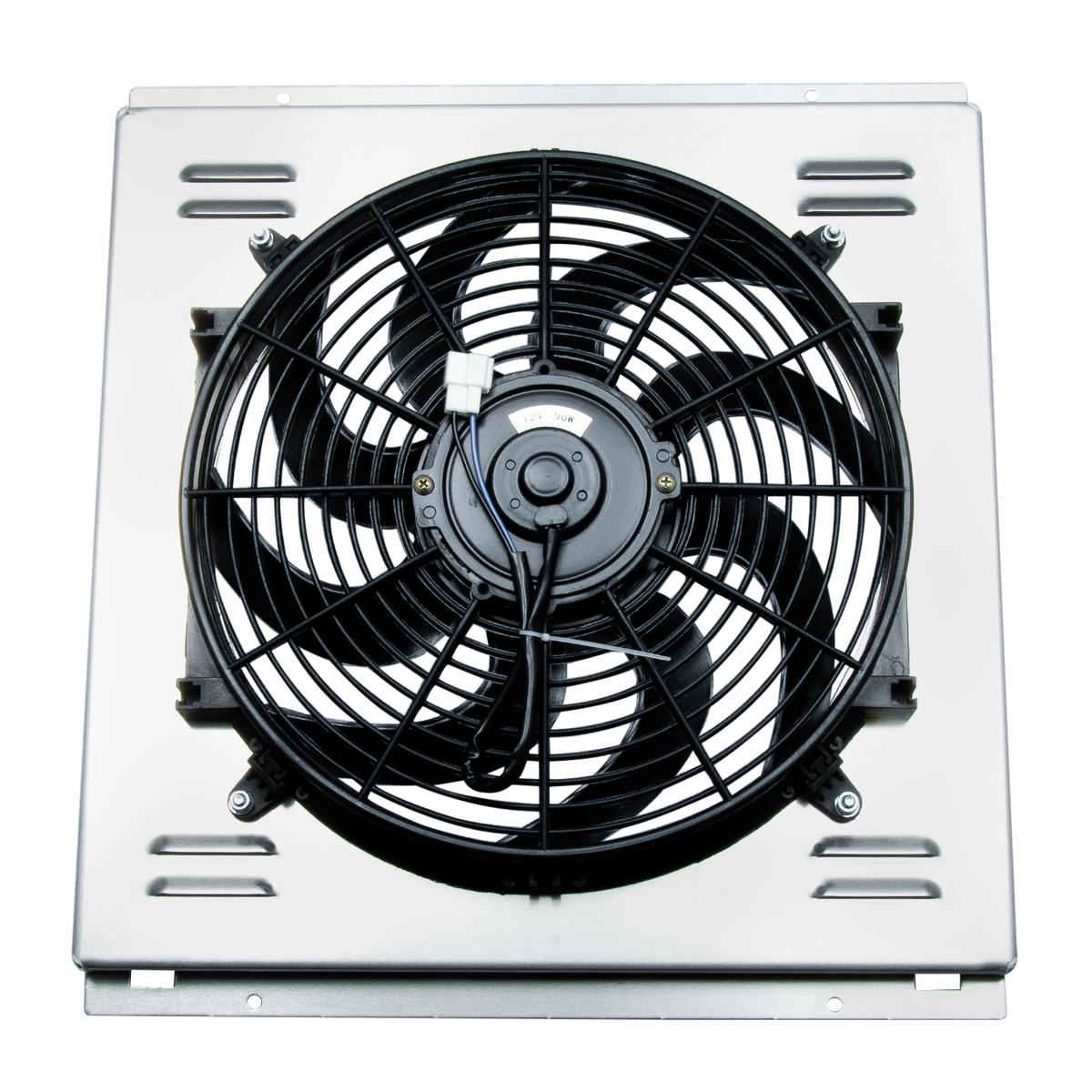

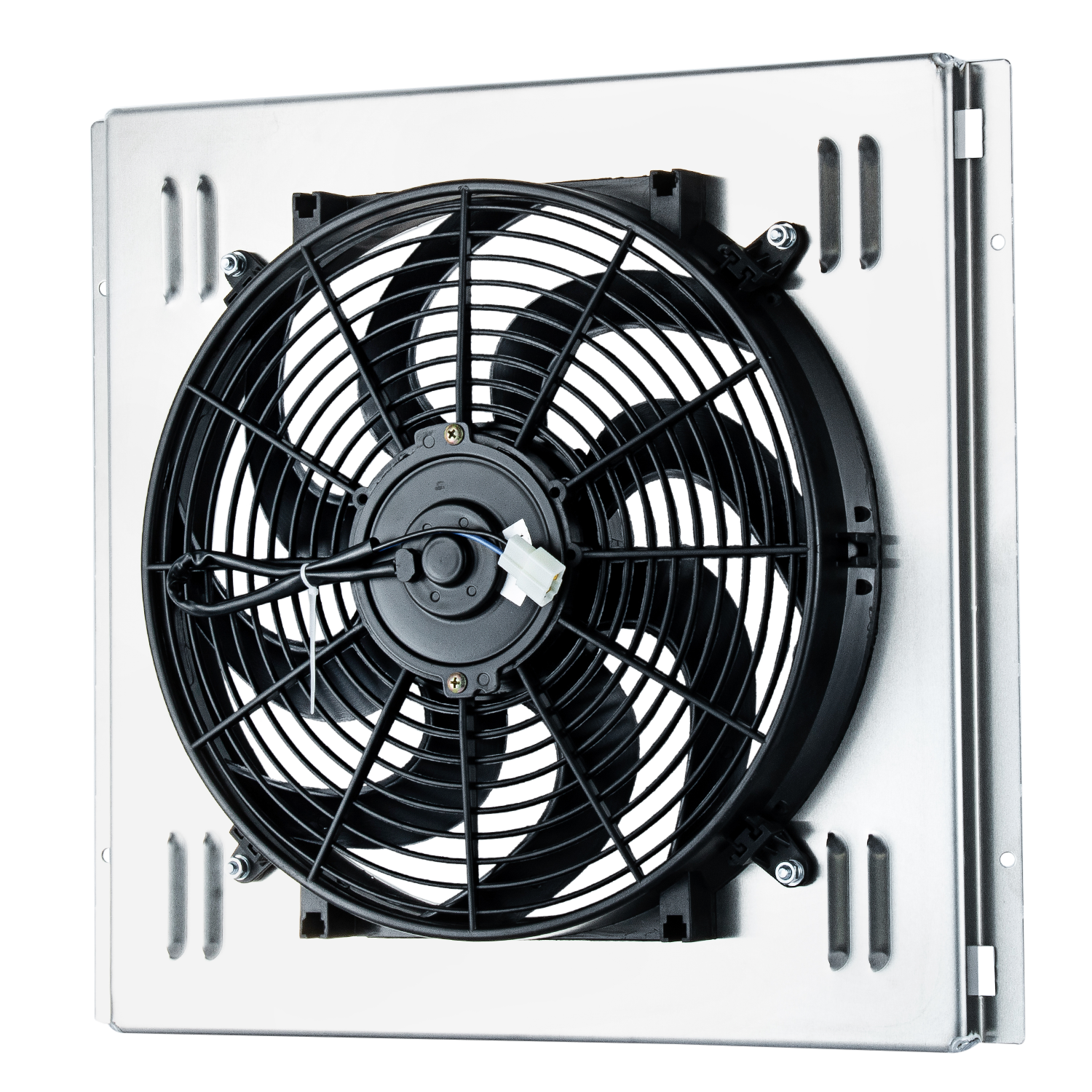

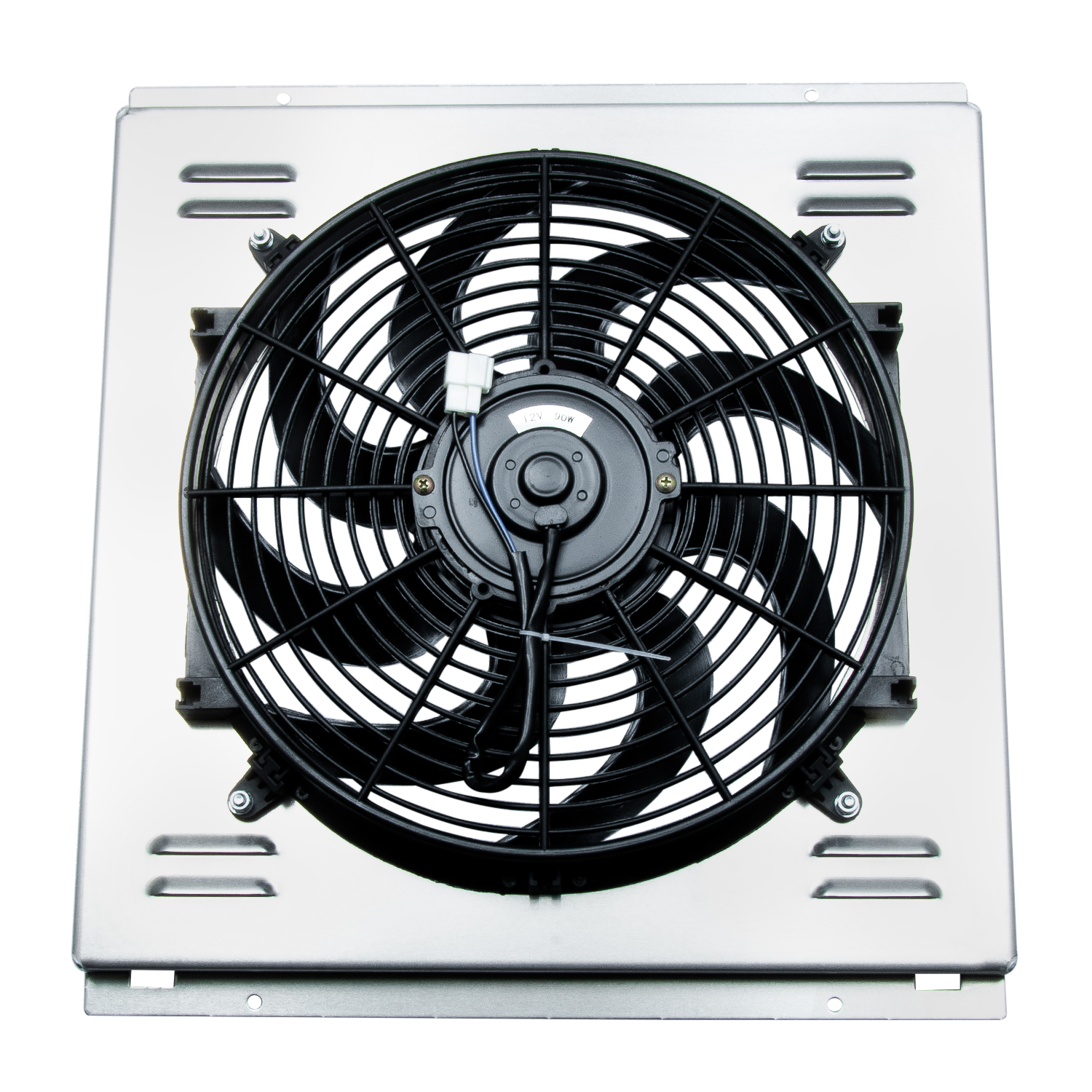

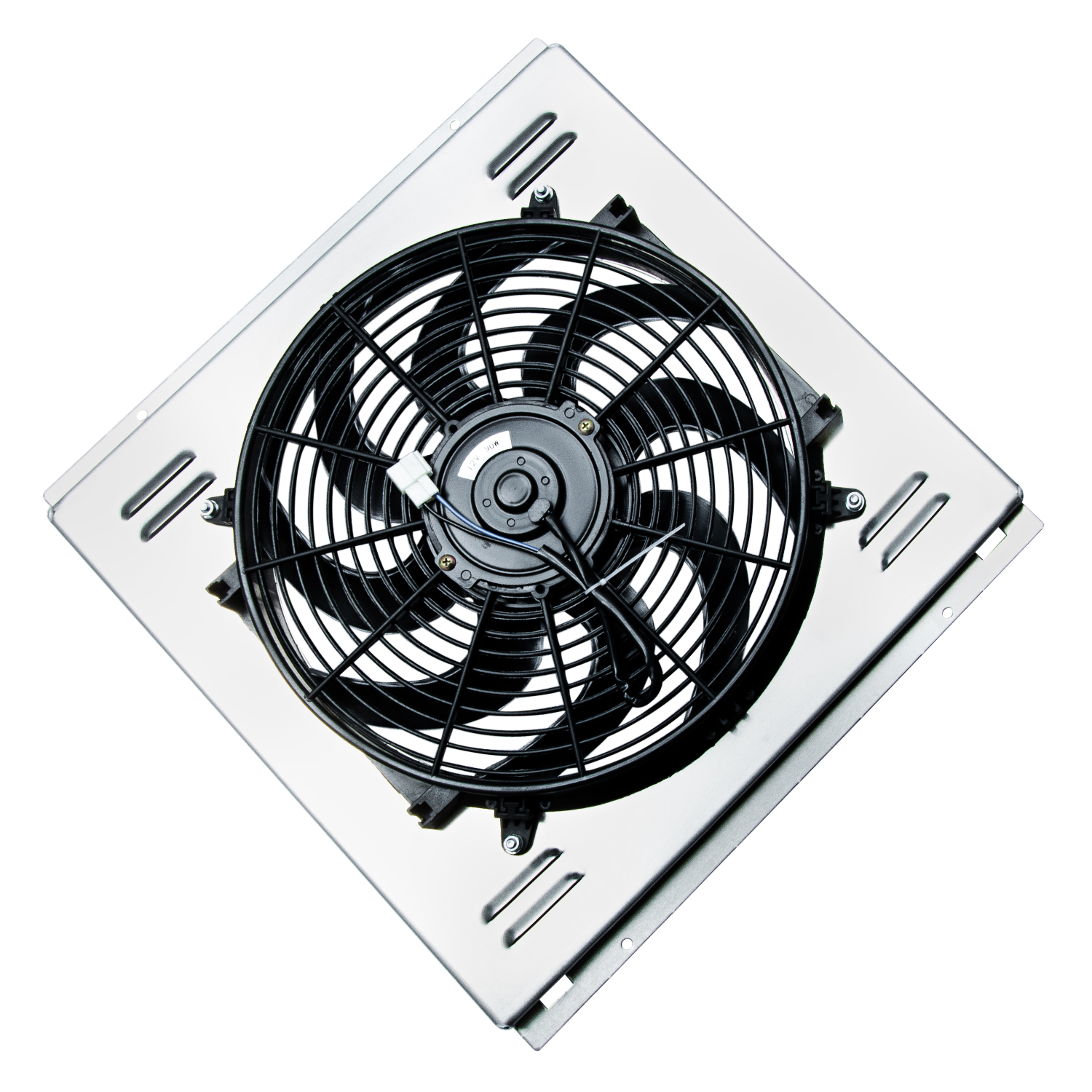

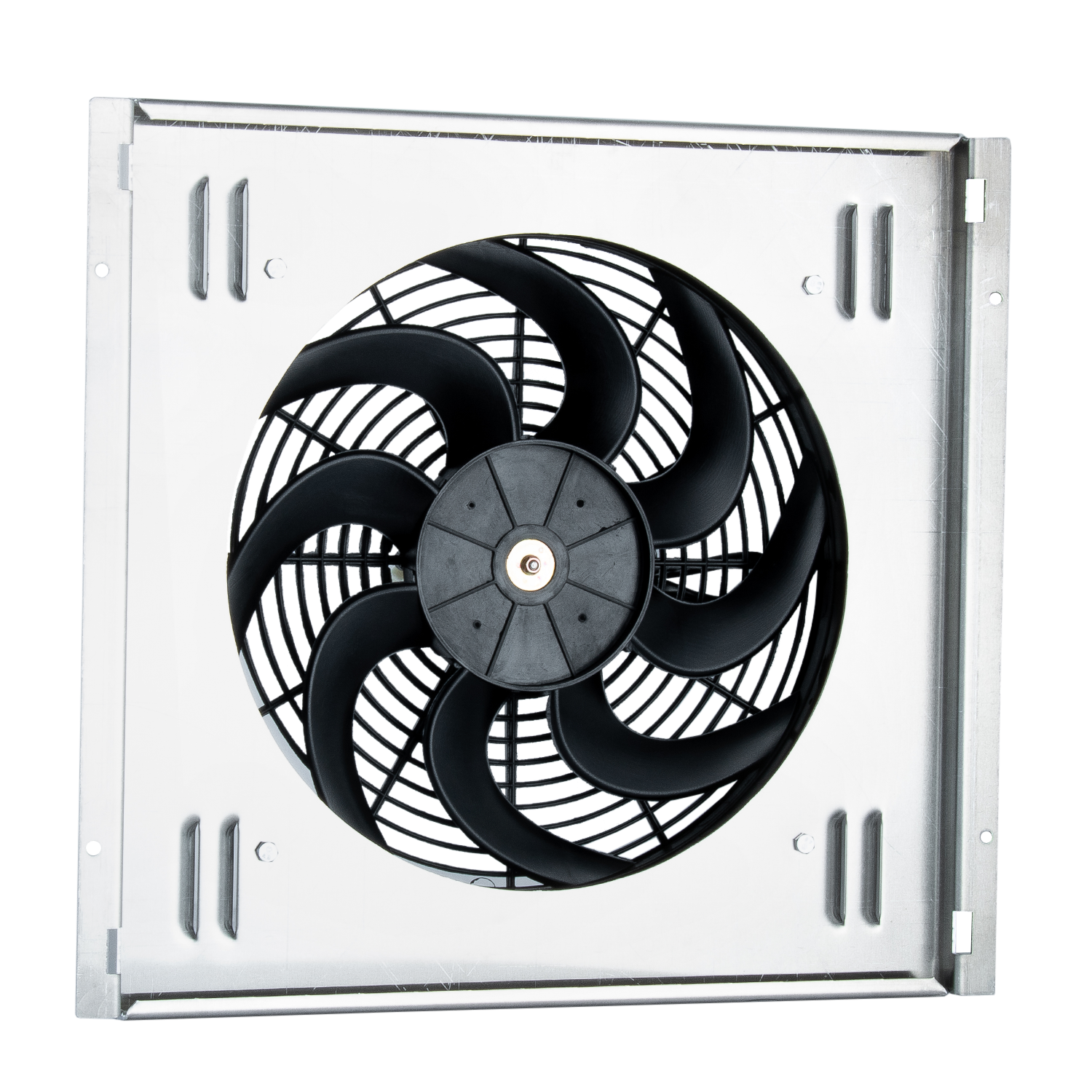

AA5052 Aluminum Shroud and Fans:

The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.

1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!

2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.

3. Additional with thermostat,professional matching advice, consider for every detail and needed

Fans Details：

Volt :12v

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 14.050”

Thickness (in): 2.500”

Number of Blades: 8 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

Probe typically threads into radiator, water outlet or manifold.

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

Vehicle Fitment

1991-1994 Ford Explorer 4.0L

1985-1994 Ford Ranger 2.8L 2.9L 3.0L 4.0L

1991-1994 Ford Bronco II 2.8L 2.9L

1994 Mazda B4000 4.0L

1991-1994 Mazda Navajo 4.0L
