ASI Performance Ford 4 Rows Radiator 1979-93 Mustang 2.3L 3.3L 3.8L 4.2L 5.0L Shroud Fan Relay For MT

Only 1 left

SKU: 536-51341DZFSXJ90W-BN

No reviews

$359.00

~~$369.00~~ Sale $359.00

Overall Size

29 1/4" W × 19 1/4" H

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

```html

Vehicle Fitment

For 1979-1993 Ford Mustang GT LX Convertible Hatchback Coupe Sedan

5.0L V8 Engine, Manual Transmission Only

Package Includes

1 X 4-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

1 X AA5052 Aluminum Shroud

2 X 12" Fans (Includes Mounting Kits)

1 X Thermostat Relay Kit

Radiator Specifications

Rows	4-Row Core
Material	AA5052 Aluminum
Core Size	24 1/2" W × 18" H
Overall Size	29 1/4" W × 19 1/4" H
Inlet	1 1/4", Passenger Side
Outlet	1 1/2", Driver Side

Fan Specifications

Quantity	2 Fans
Diameter	12" (Blade to Blade)
Voltage	DC 12 Volts
Wattage	80W
Fan Thickness	2.5"
Number of Blades	10 S-Type Blades
Maximum Fan CFM	2150 CFM
Maximum Fan RPM	2000 ±10%

S-Type blade push/pull design helps improve airflow and cooling efficiency.

Powerful 80W motor will help keep your engine cool.

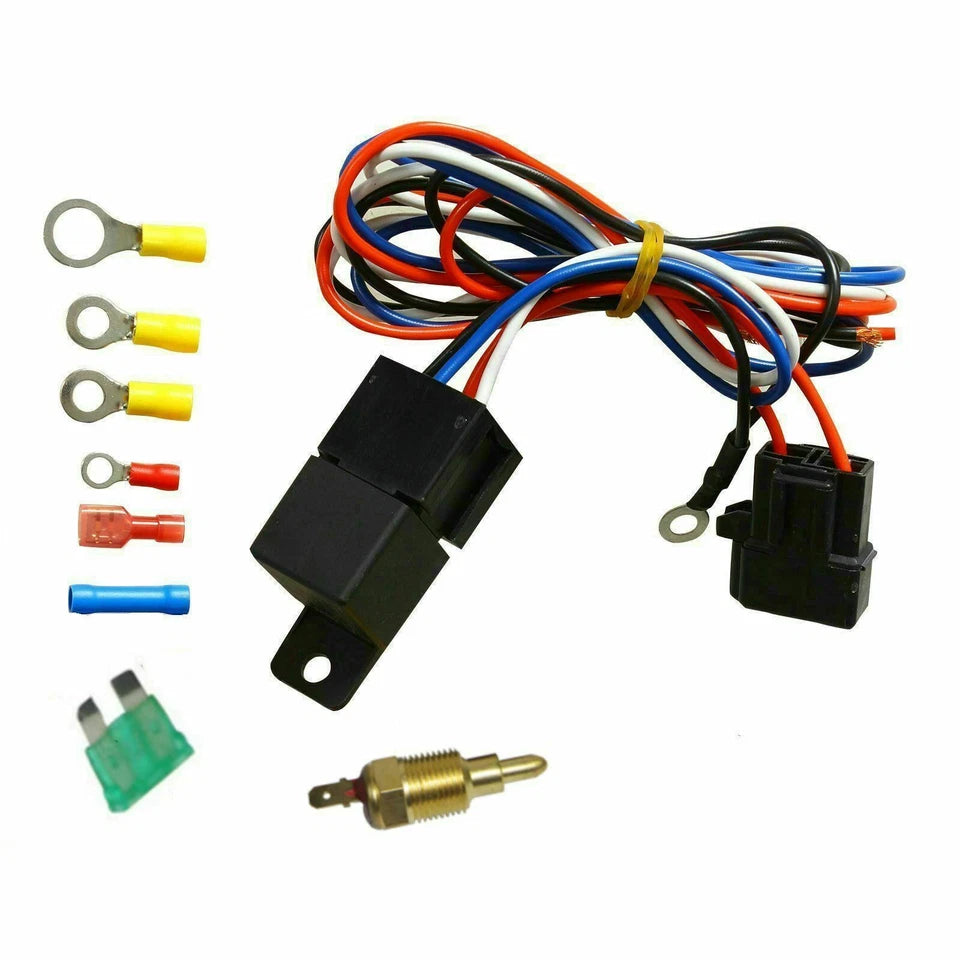

Thermostat Kit

Works with any 12 volt system.

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

185°F turn-on temperature, 165°F turn-off temperature.

3/8" NPT thread-in brass probe included.

Probe typically threads into radiator, water outlet or manifold.

Thermostat Relay Kit Instructions:

RED (+) → Connect directly to battery.

WHITE → Connect to ignition switch power source.

BLACK → Connect to thermo switch.

BLUE → Connect to the fans.

Application/Description

Features:

1. Made from Aircraft AA5052 grade aluminum for prolonged lifespan and with raw aluminum finish.

2. Brazed core technology to guarantee optimum performance and dependability.

3. All AA5052 Aluminum 2mm thick tanks and fittings ensure strength and durability.

4. Billet Aluminum CNC machined filler neck, rugged and durable.

5. Ergonomic design CNC machined cap with engraved craftsmanship and anodized treatment.

6. OEM style brass petcock drain, more durable than typical plastic drains.

7. Carefully crafted to exceptional OE standards for precise fit.

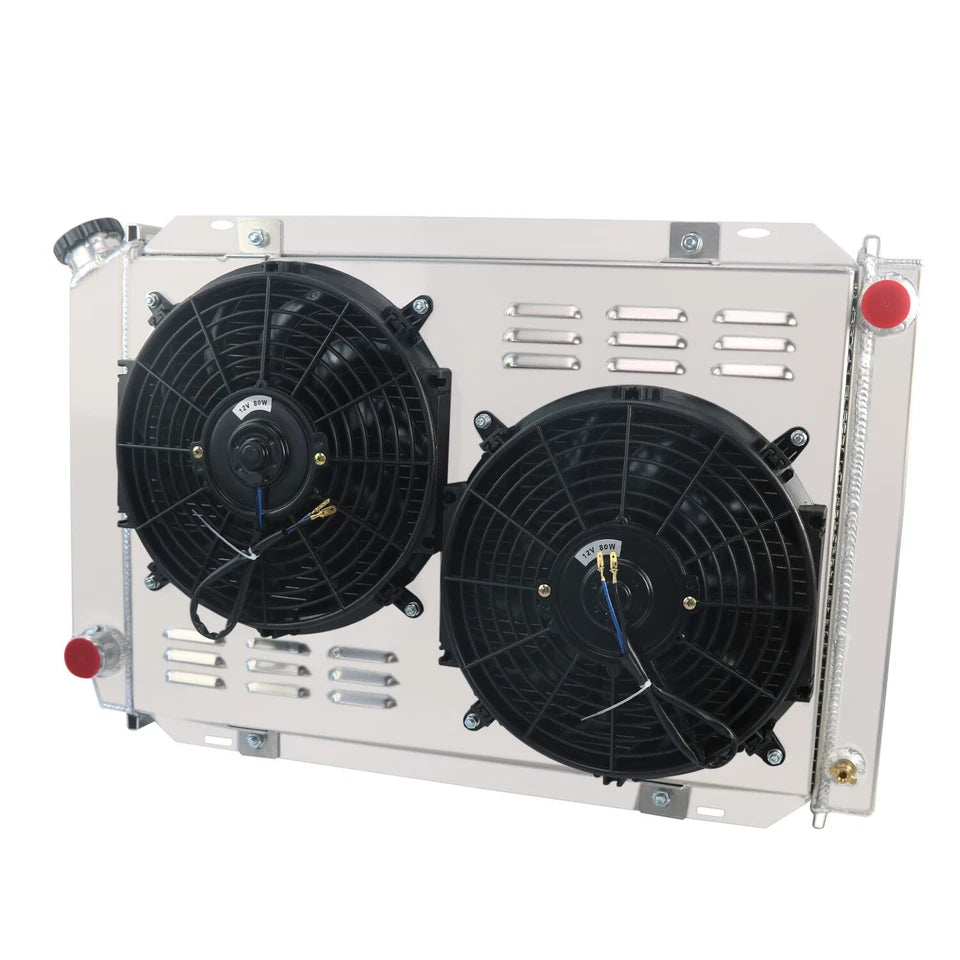

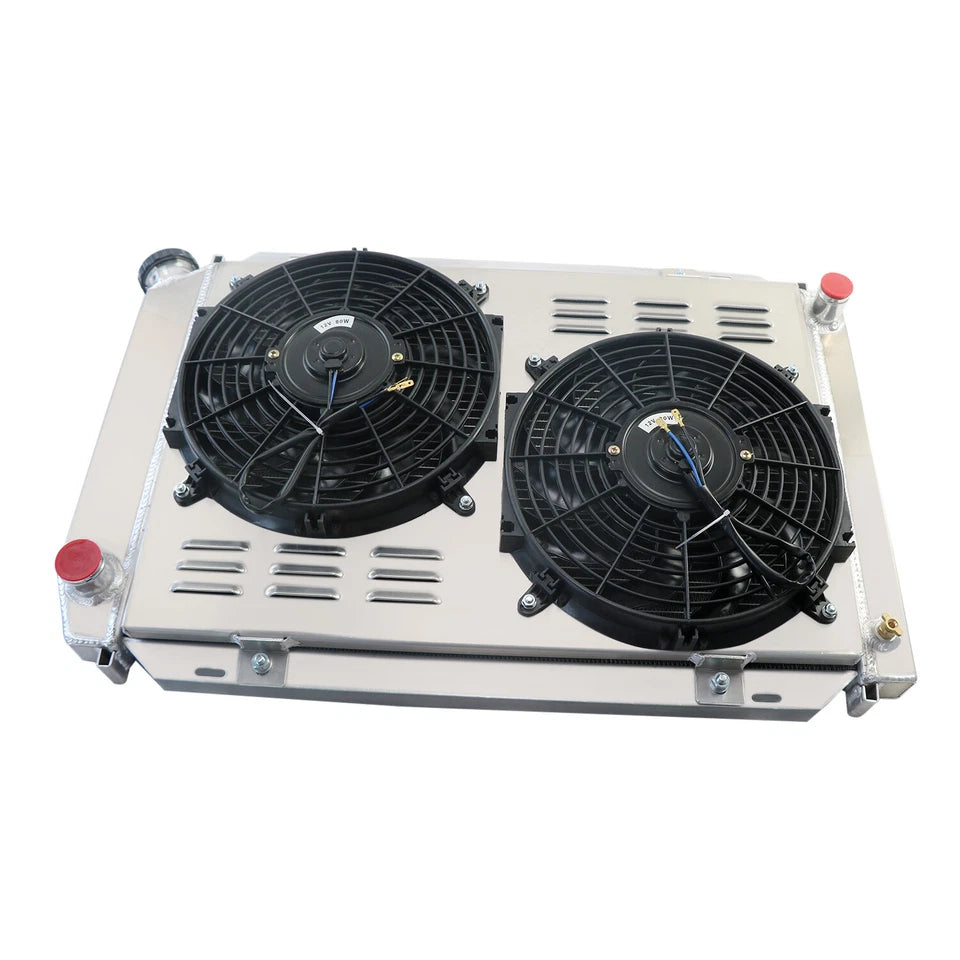

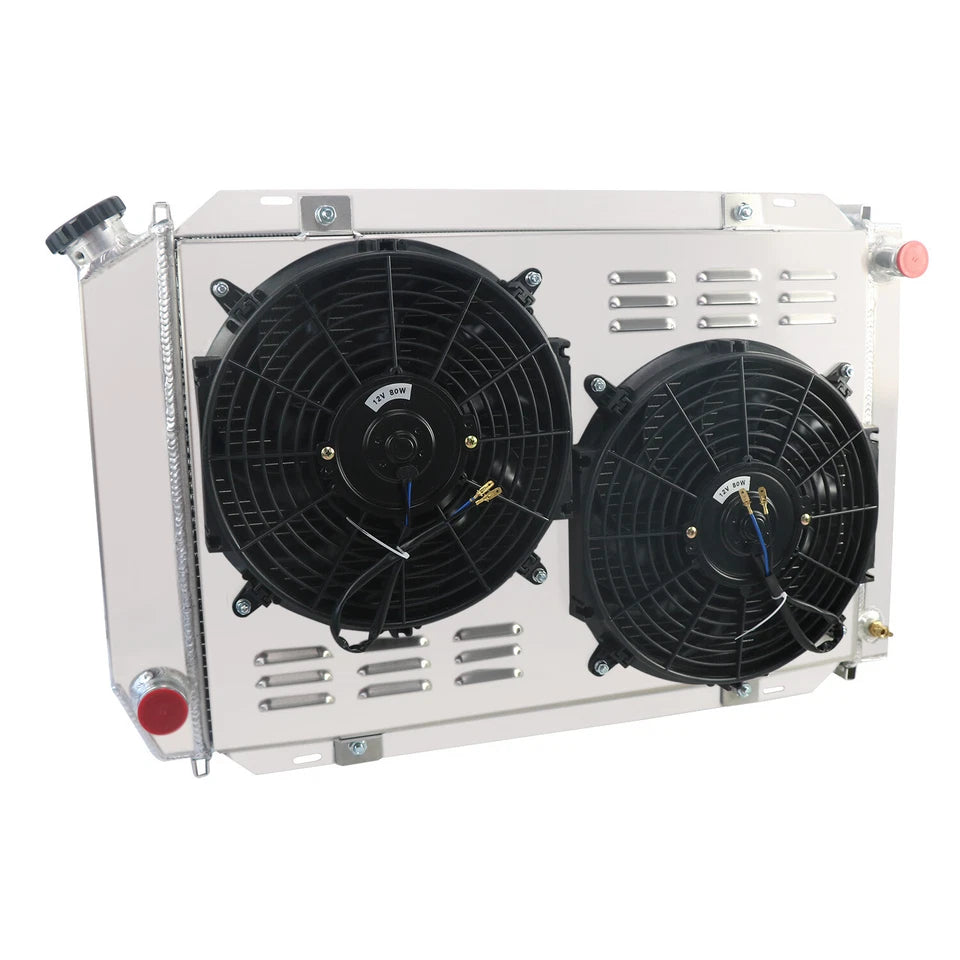

AA5052 Aluminum Shroud + Fan:

Our custom-made AA5052 aluminum fan shrouds are manufactured to fit our ALLOYWORKS and ASI PERFORMANCE radiators. These fan shrouds are fabricated for use with our electric cooling fans but allow for use with most low-profile electric fans.

The fan and the fan shroud effectively drive the heat over and out of the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades, securing them in place and keeping them from damaging other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized.

1. Shuttered design AA5052 fan shroud helps airflow pass efficiently.

2. S-blade fans feature a push or pull type design with lightweight, durable plastic construction.

Description:

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat-transferring aluminum features a tube and fin design that dramatically increases surface area, enabling the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and more resistant to temperature surges in racing applications.

1. Made of AA5052 aircraft aluminum, stronger than other popular alloys and with increased corrosion resistance.

2. Brazed core technology to guarantee optimum performance and dependability.

3. AA5052 Aluminum 2mm thick tanks and fittings ensure strength and durability.

4. Higher density core: cooling rows are spaced 3/8" apart, providing 25% more rows within the core than other aluminum radiators.

5. 14-16 cooling fins per inch, providing approximately 1500 more cooling fins than other aluminum radiators to dissipate more heat.

```

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
