ASI Performance TSM 4 Row Radiator Shroud Brushless Fan Fit Ford F150 F250 350 Bronco 1985-1996

ASI6222

In stock

SKU: TSM45010FS Barcode: ASI6222

No reviews

$529.00

Overall Size

22 1/2" H x 37 1/4" W

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Description:

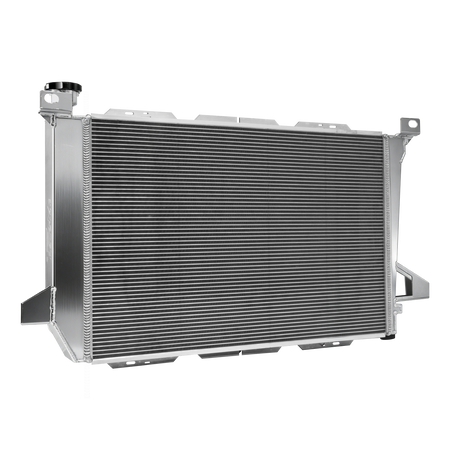

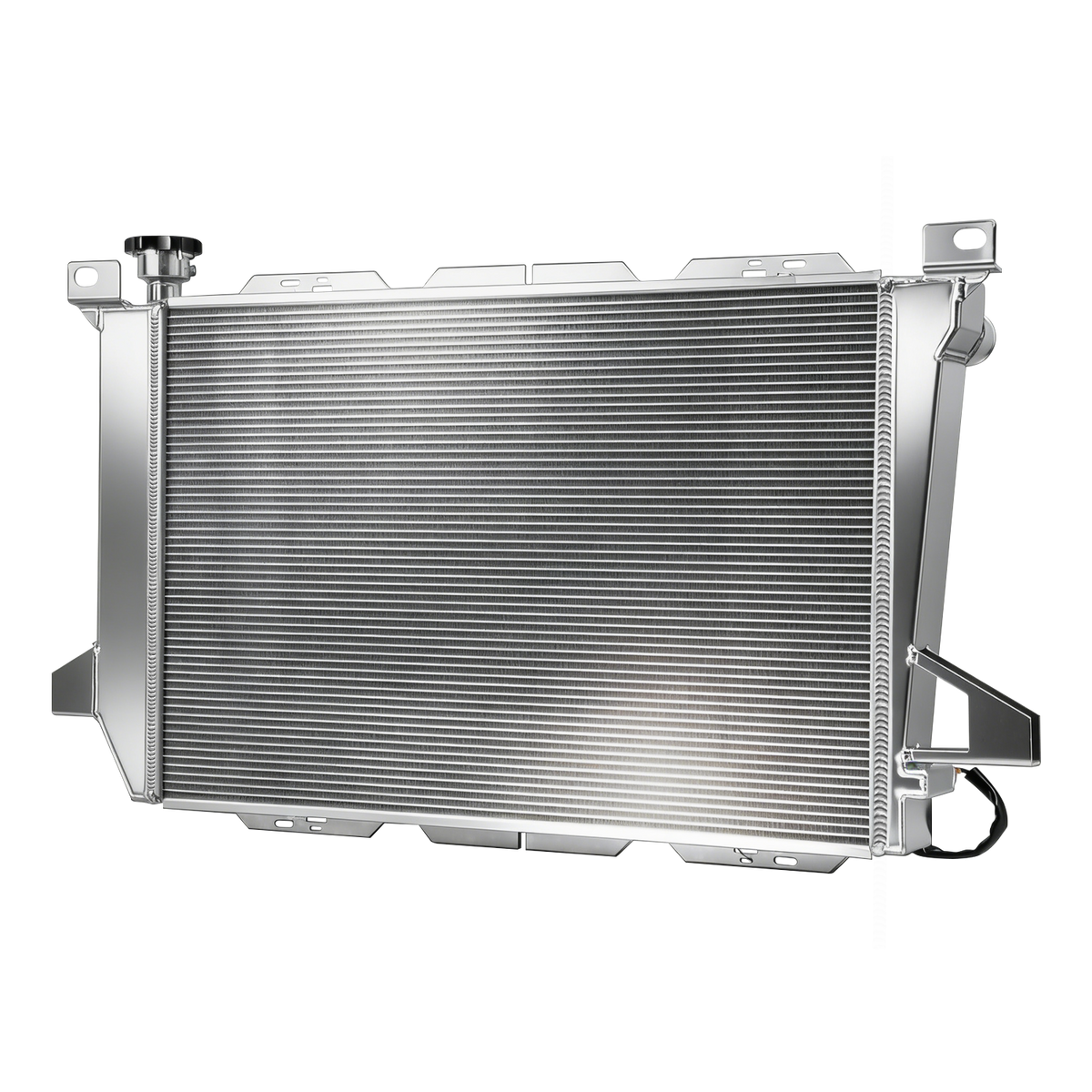

This TSM® AA5083 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5083 Aluminum Radiator is at least 30%-45% more efficient than stock ones and make

your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

1.Made of AA5083 aircraft aluminum.

2.Brazed core technology .

3.2mm thick tanks and fittings.

4.Fin hight: 6mm

5.Higher density core: cooling rows are spaced 3/8" apart.

6.14-16 cooling fins per inch.

Radiator Configuration:

High Performance Racing Spec.

4-Row of tubes Core Racing Design

Material: Aircraft AA5083 Aluminum

CORE SIZE: 18" H x 28 1/8" W x 2 1/2"

OVERALL SIZE: 22 1/2" H x 37 1/4" W

Upper Hose: 1 3/4"-right

Lower Hose: 1 3/4"-left

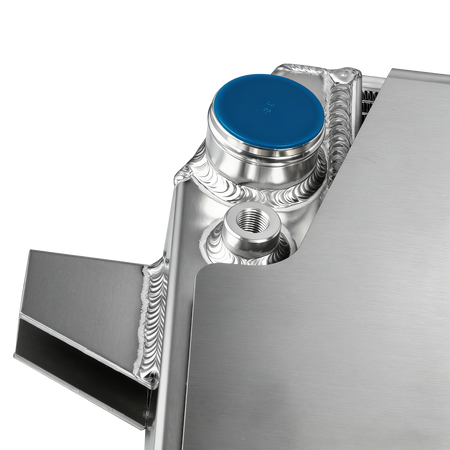

OEM Style Brass Petcock Drain.

CNC Machined Billet and High Pressure Radiator Cap 1.3 Bar

Vehicle Fitment

Year Make Model Engine

1985-1992 Ford Bronco 4.9L

1985-1996 Ford F-150 4.9L

1985-1996 Ford F-250 4.9L

1985-1996 Ford F-350 4.9L

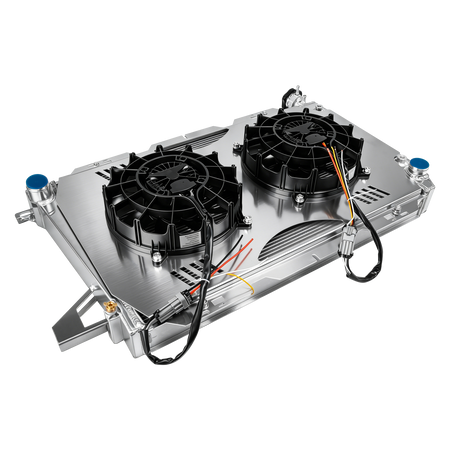

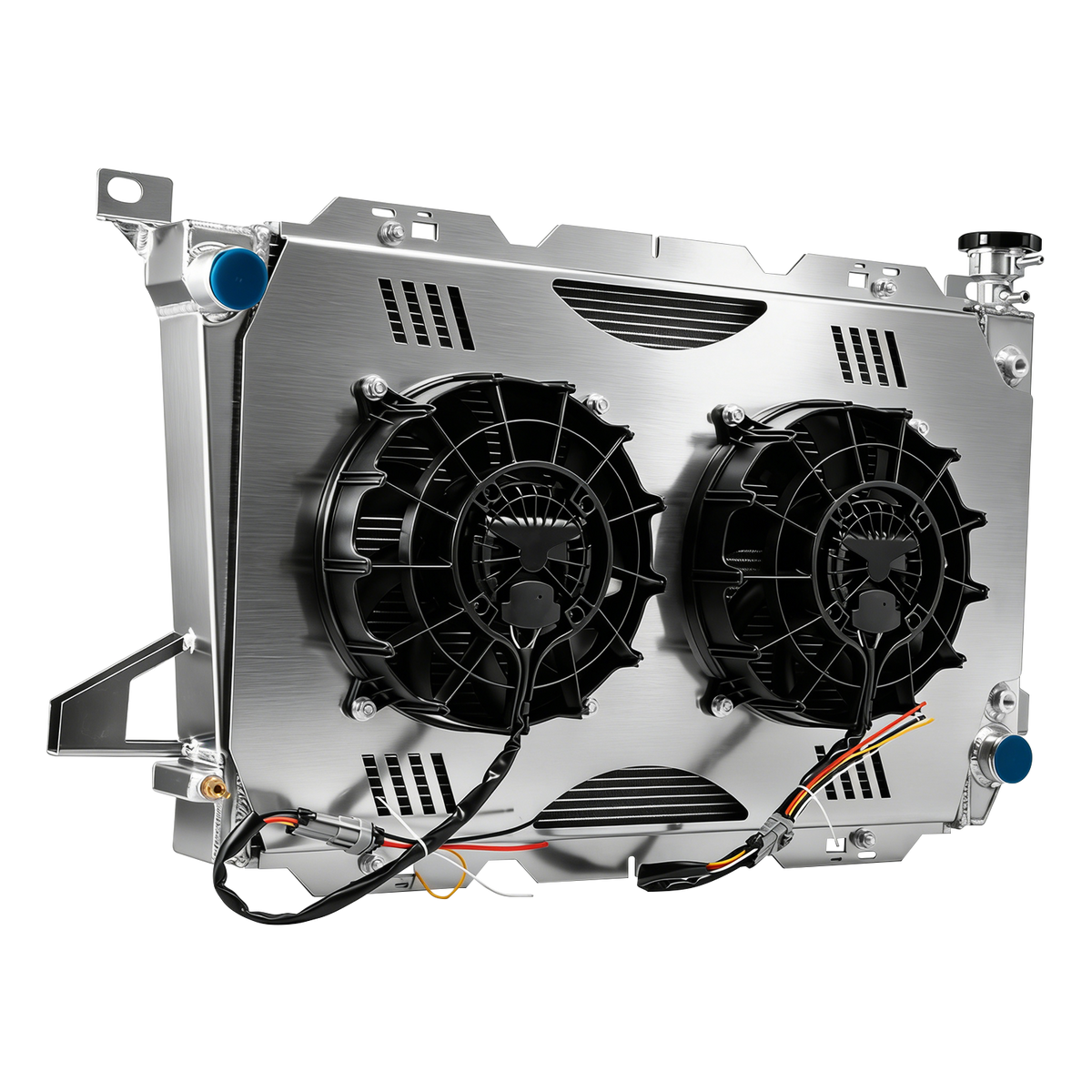

AA5083 Aluminum Fan Shroud Performance Advantages：

1.Premium AA5083 Marine-Grade Aluminum Construction: High-strength, corrosion-resistant alloy delivers superior durability vs. standard aluminum, perfect for harsh engine bay environments

2.Sealed, High-Efficiency Airflow Design: Precision-fitted shroud eliminates air leakage around the radiator core, forcing 100% of fan airflow through the cooling fins for 30-50% better heat rejection than unshrouded setups

3.Aerodynamic Vented Structure: Optimized vent design reduces turbulence, prevents hot spots, and efficiently expels hot air out of the engine compartment, rather than trapping it near the engine

4.Engine Protection & Structural Reinforcement: Secures fan blades in place, preventing contact with other engine components; reinforces the radiator core to resist vibration and road debris damage

5.Maintains Optimal Engine Conditions: Ensures consistent, even cooling to preserve engine performance, extend service life, and improve overall ride quality

6.Direct Bolt-On Fitment: Precision-machined for easy, no-modification installation, perfect for a clean, professional engine bay finish

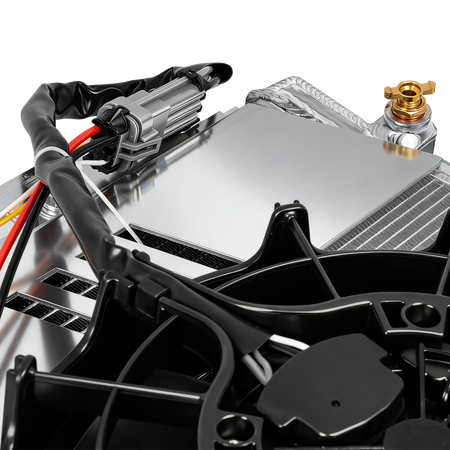

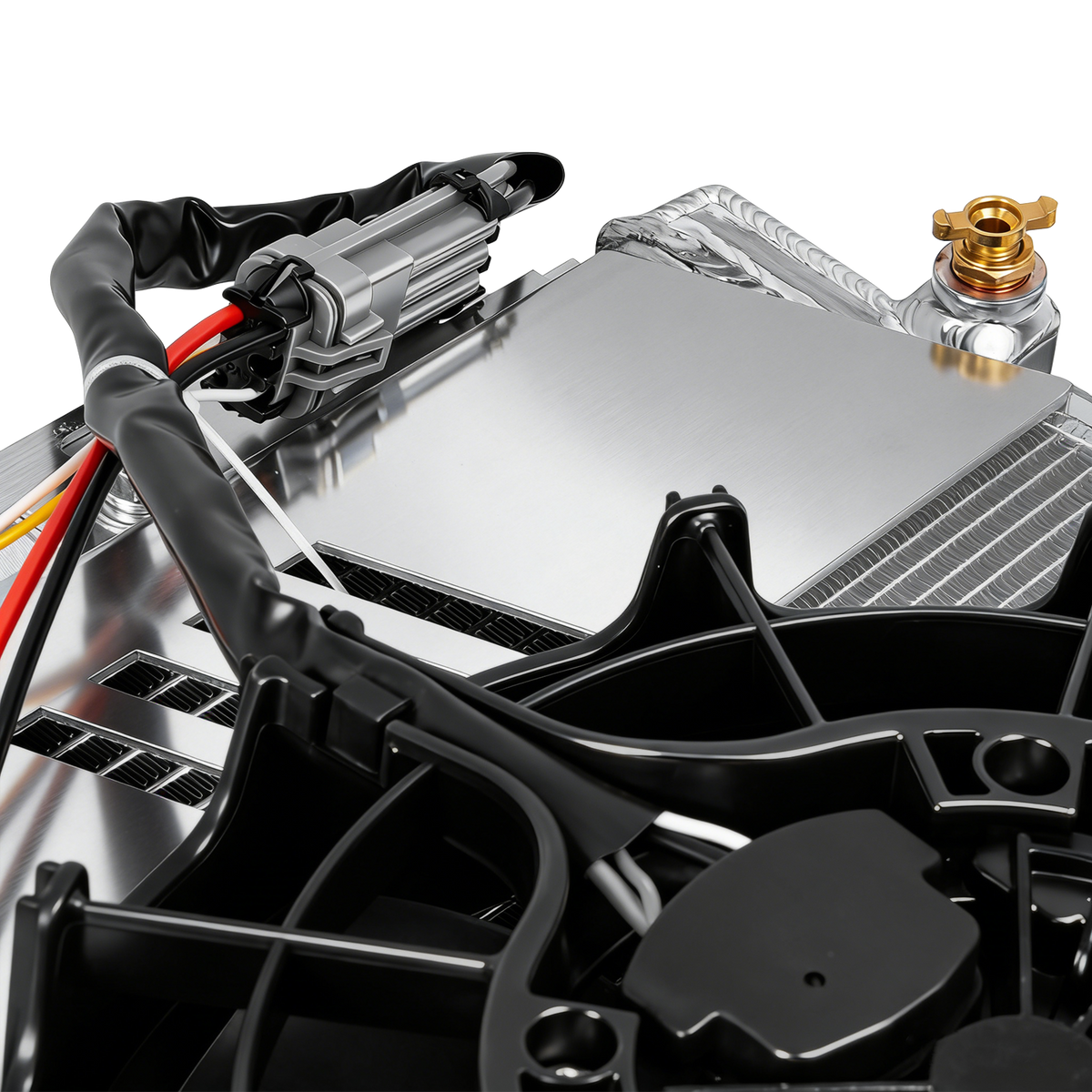

12" 24V Brushless Cooling Fan Features:

1.High-Performance Brushless Motor: Eliminates friction and wear for 10x longer service life than traditional brushed fans, with consistent, reliable performance.

2.Powerful Axial Cooling Design: Compact, high-torque 12-inch fan delivers massive airflow (1800+ CFM), high-horsepower engines, turbocharged builds, and heavy-duty applications.

3.Quiet, Vibration-Free Operation: Precision-balanced blades and motor ensure smooth, low-noise operation, even under continuous use

Built for Harsh Environments: Sealed motor housing resists dust, moisture, and extreme temperatures, engineered for continuous-duty operation.

4.Maintenance-Free Performance: No brushes to replace, no regular maintenance required, for hassle-free ownership

5.Energy-Efficient Operation: Low power draw reduces electrical system load, making it perfect for 24V commercial, performance, and off-road applications
