ASI Performance TSM 4 Row Radiator Shroud Fan Fit Chevy GMC C/K C10 C20 K20 K30 C2500 1973-1987

ASI6001

Only 3 left

SKU: TSM45029FS Barcode: ASI6001

No reviews

$529.00

Overall Size

33 1/4" W × 20 1/4" H

Fitment Notice: The fitment tool is for reference only. Please compare the dimensions, inlet/outlet sizes and positions, mounting points, and cooler connections with your original part before placing your order.

Quantity:

We Accept

U.S. Stock | Free Shipping (Excludes HI & AK)

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

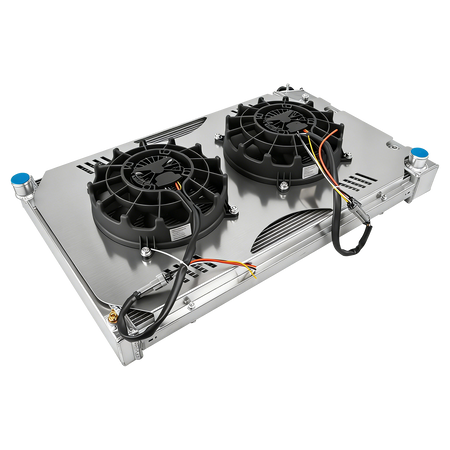

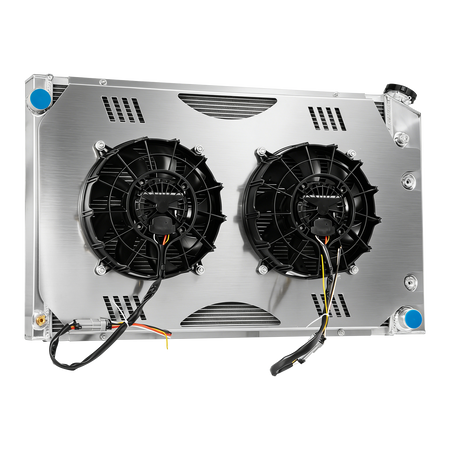

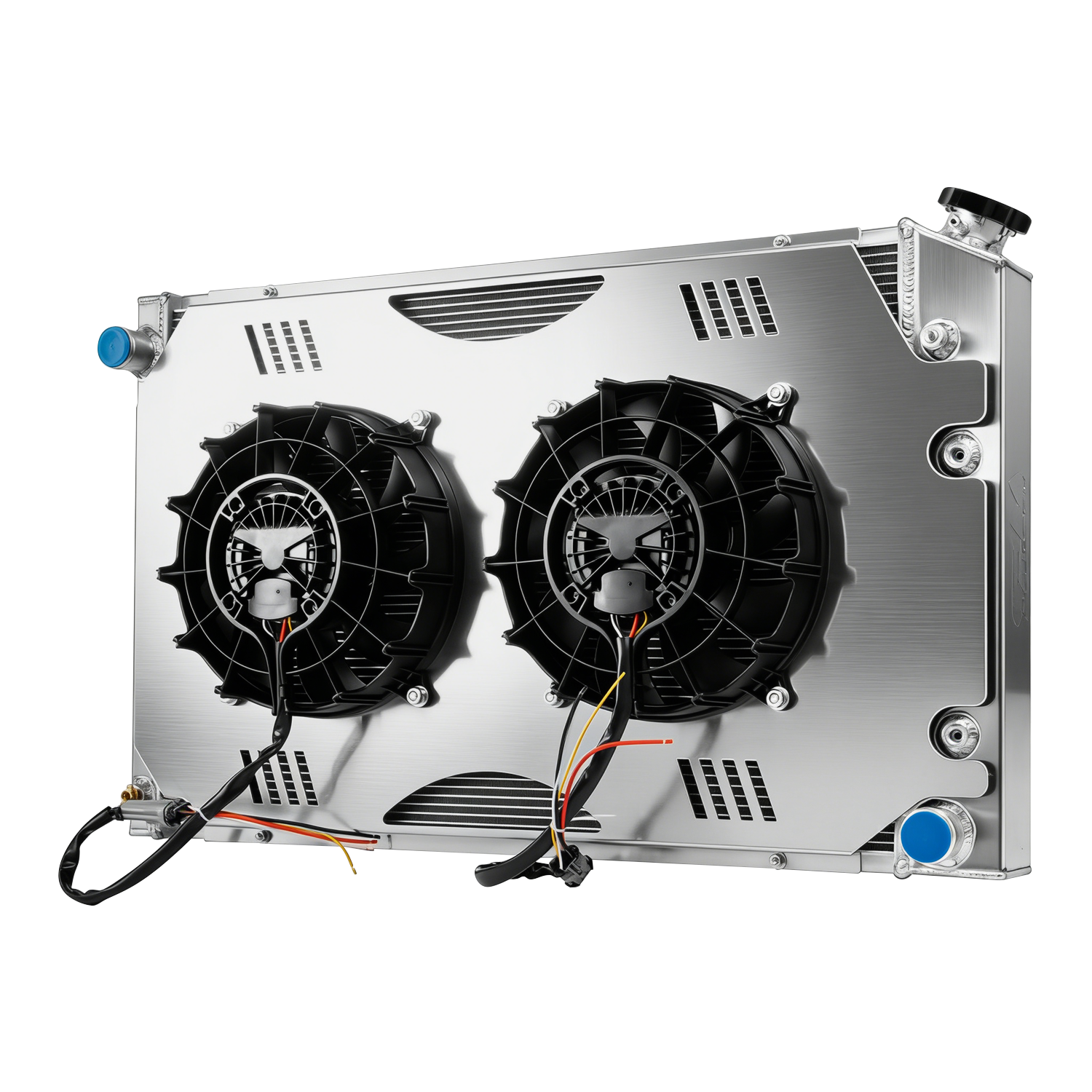

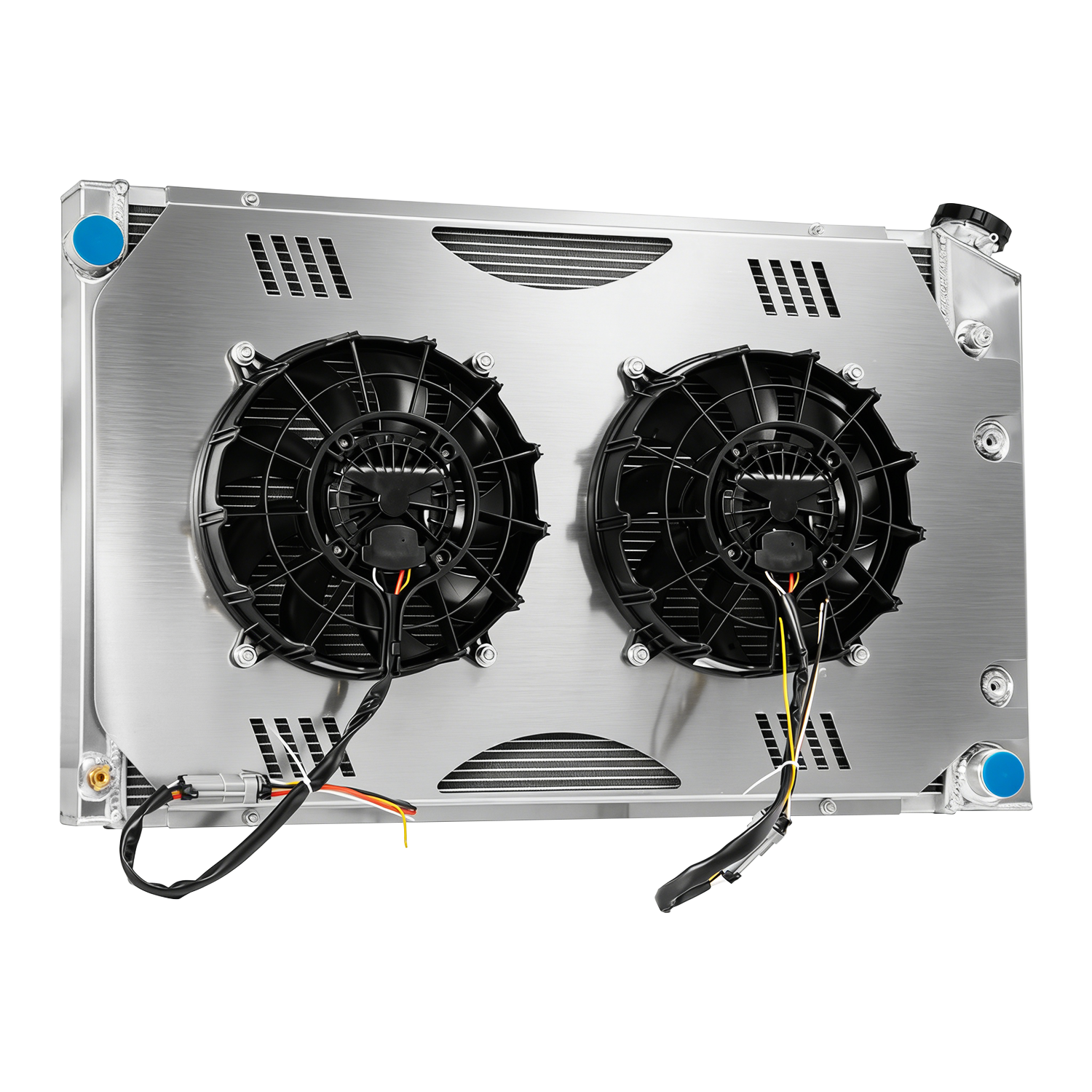

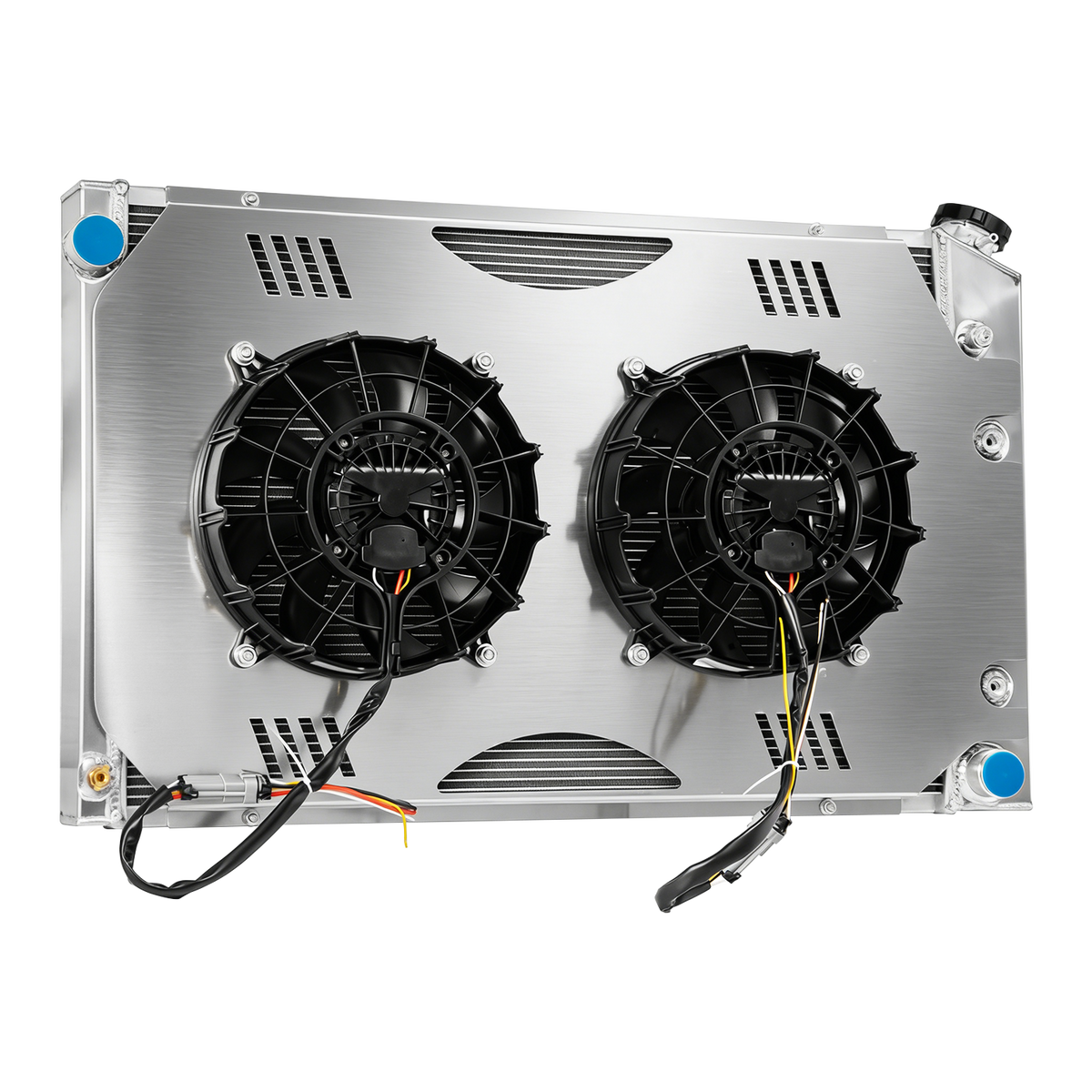

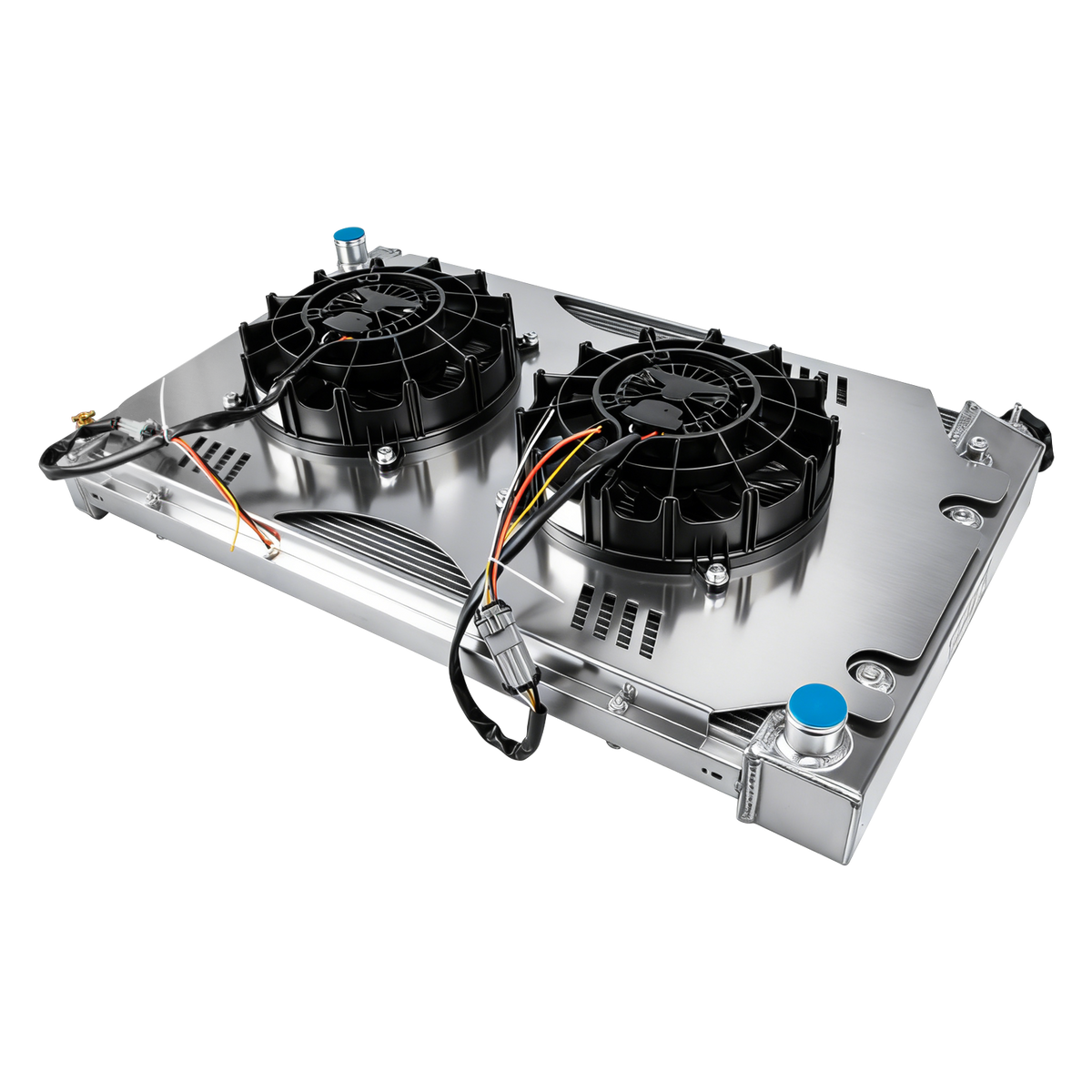

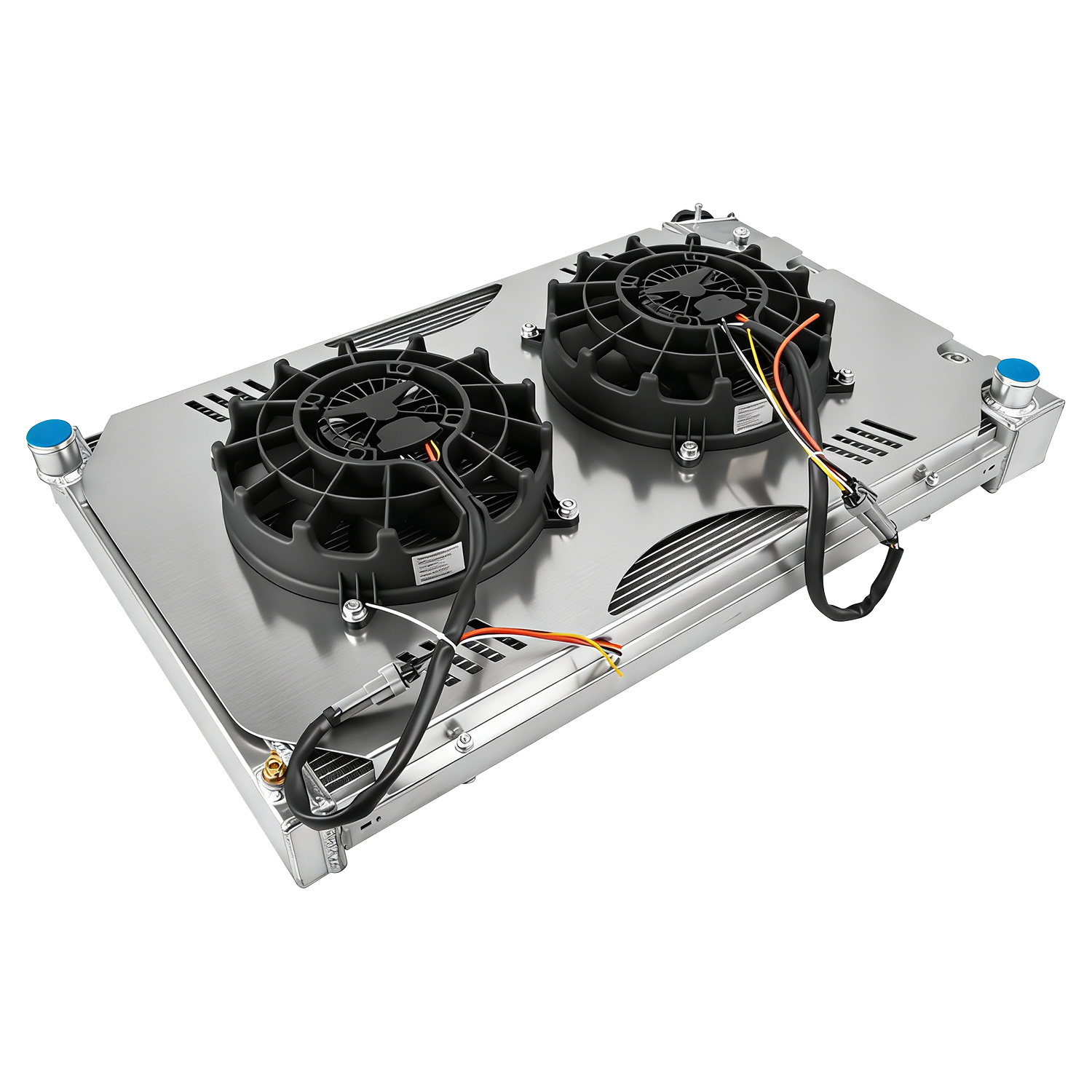

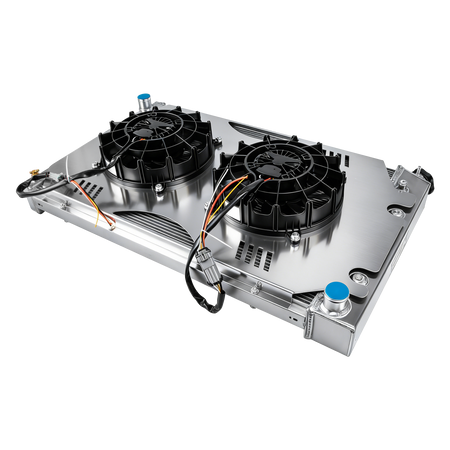

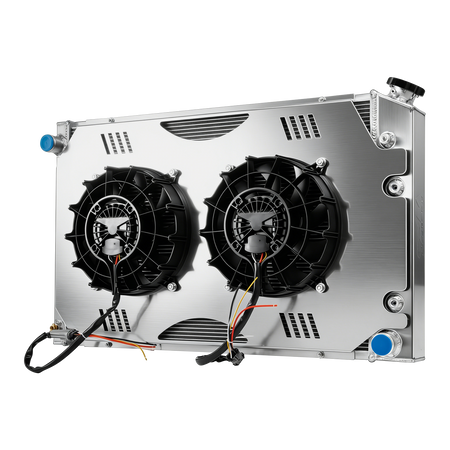

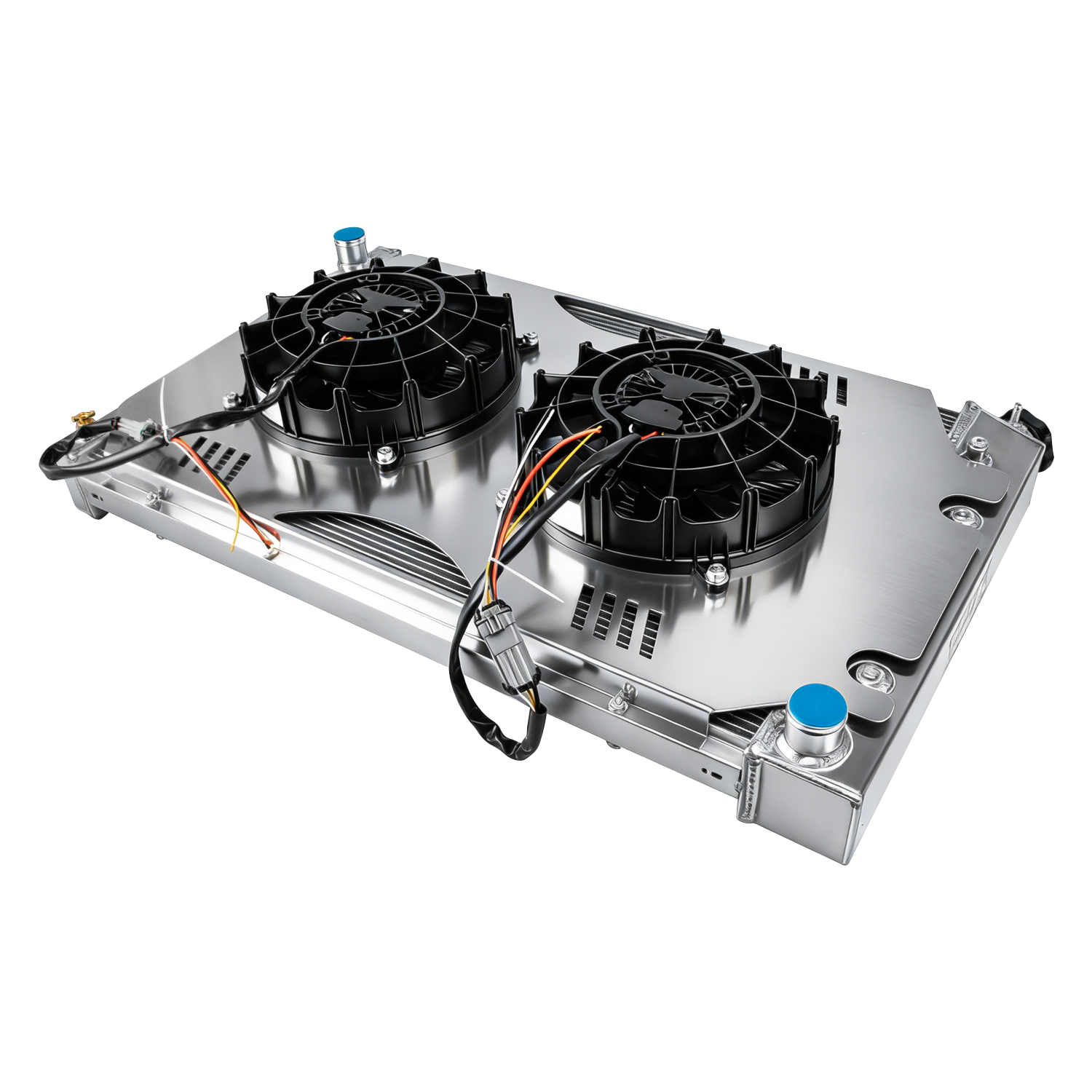

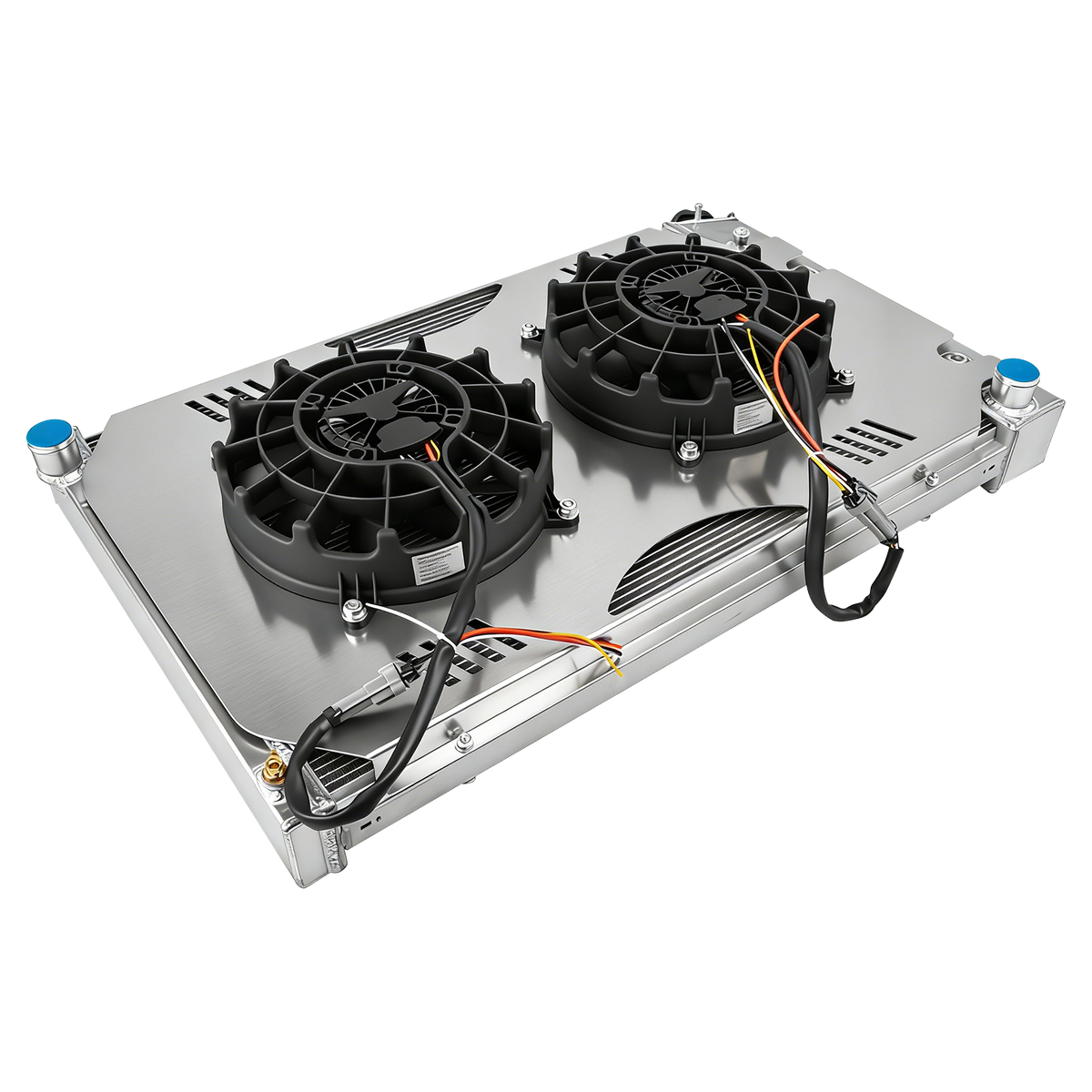

Package Includes

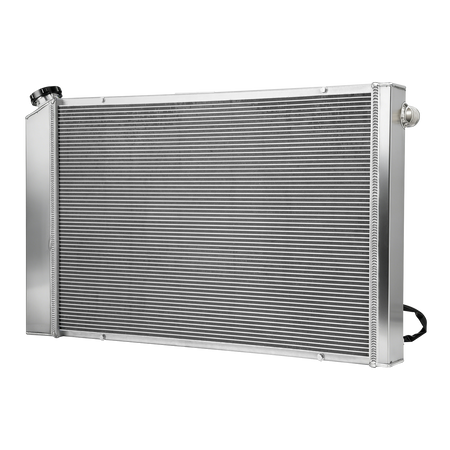

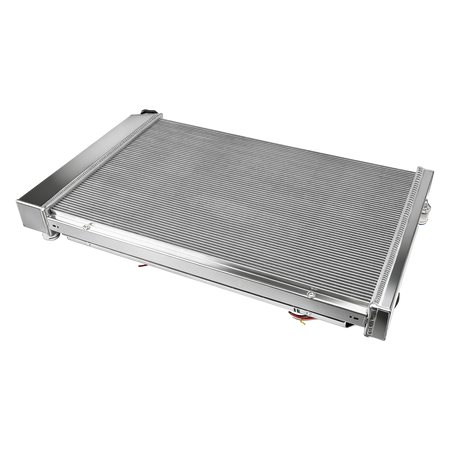

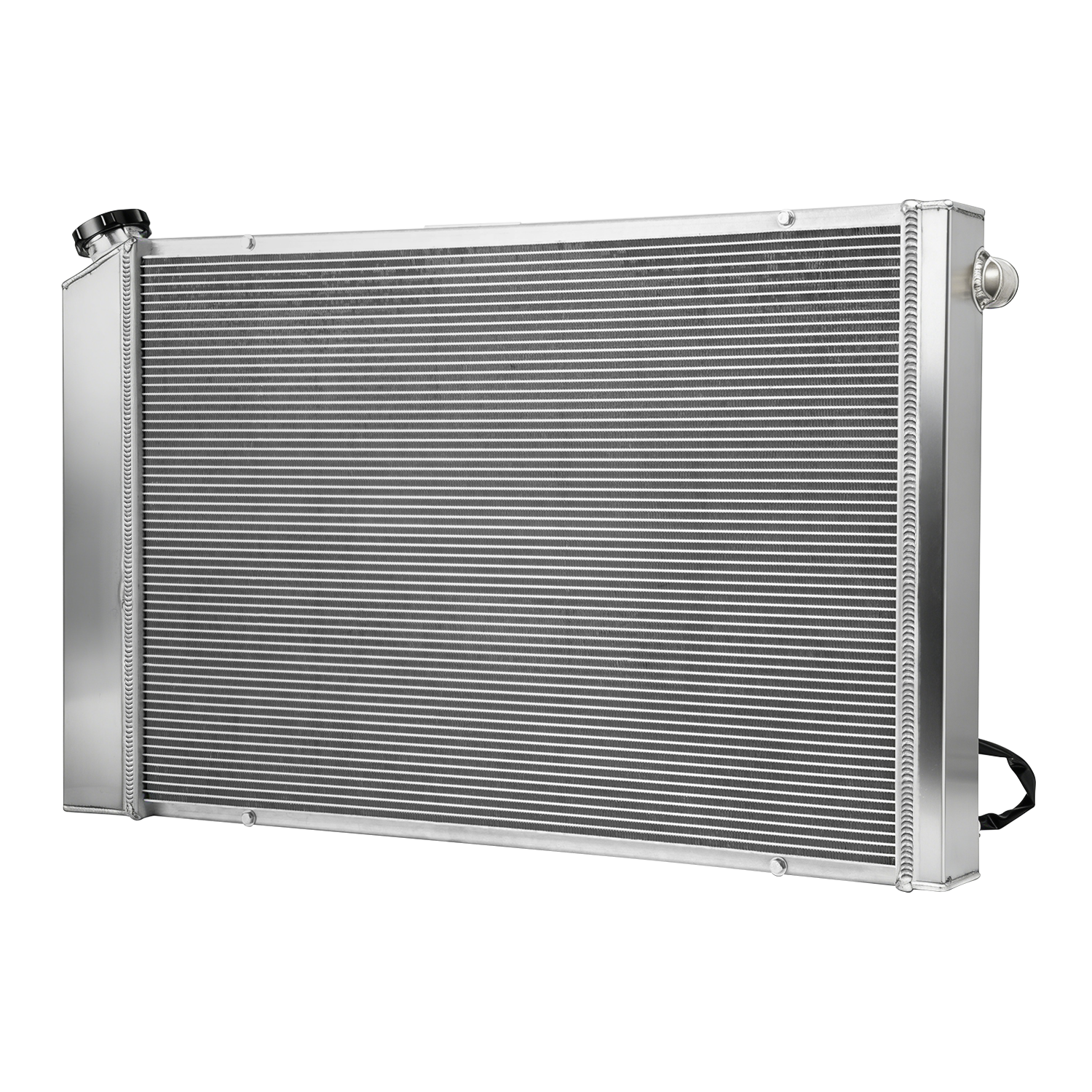

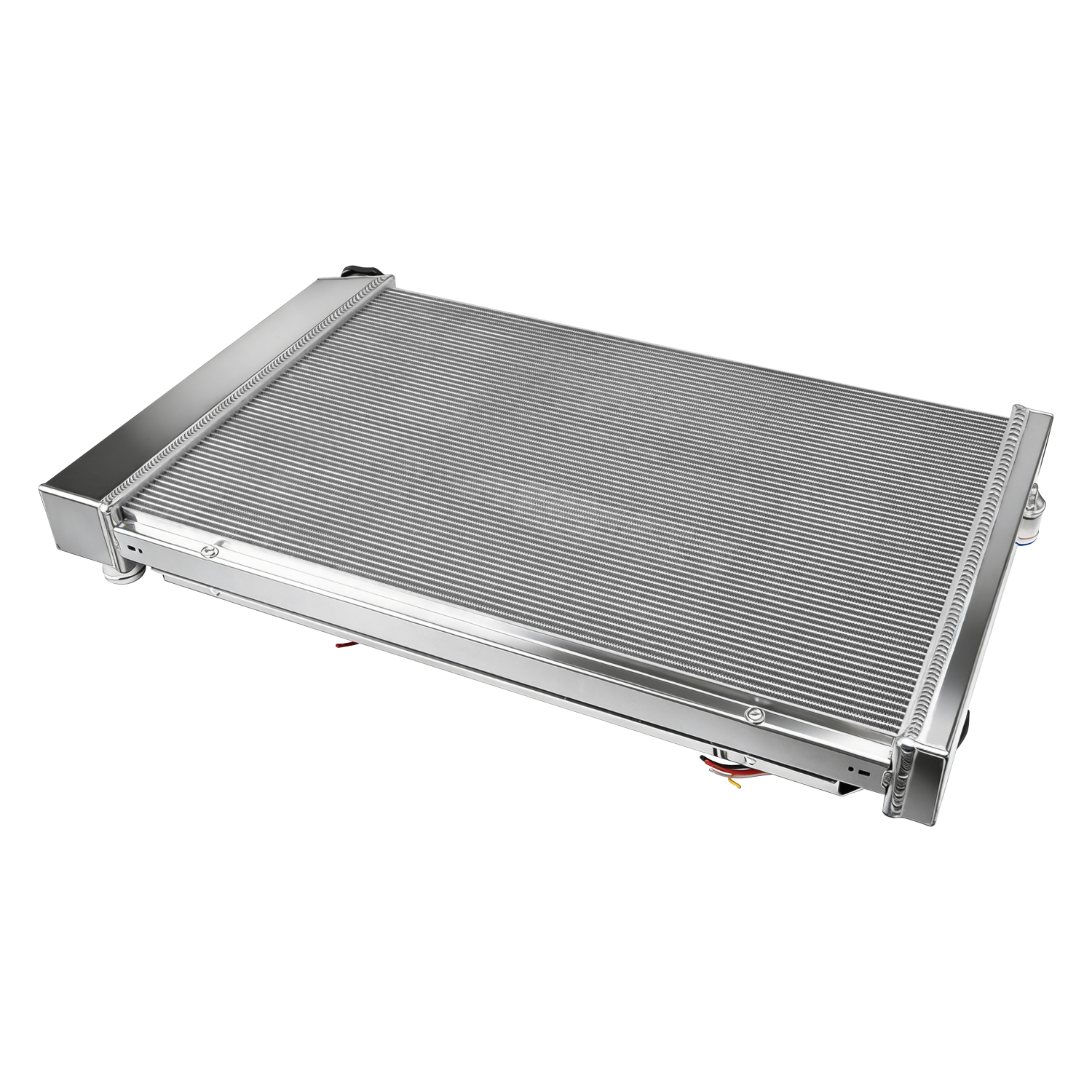

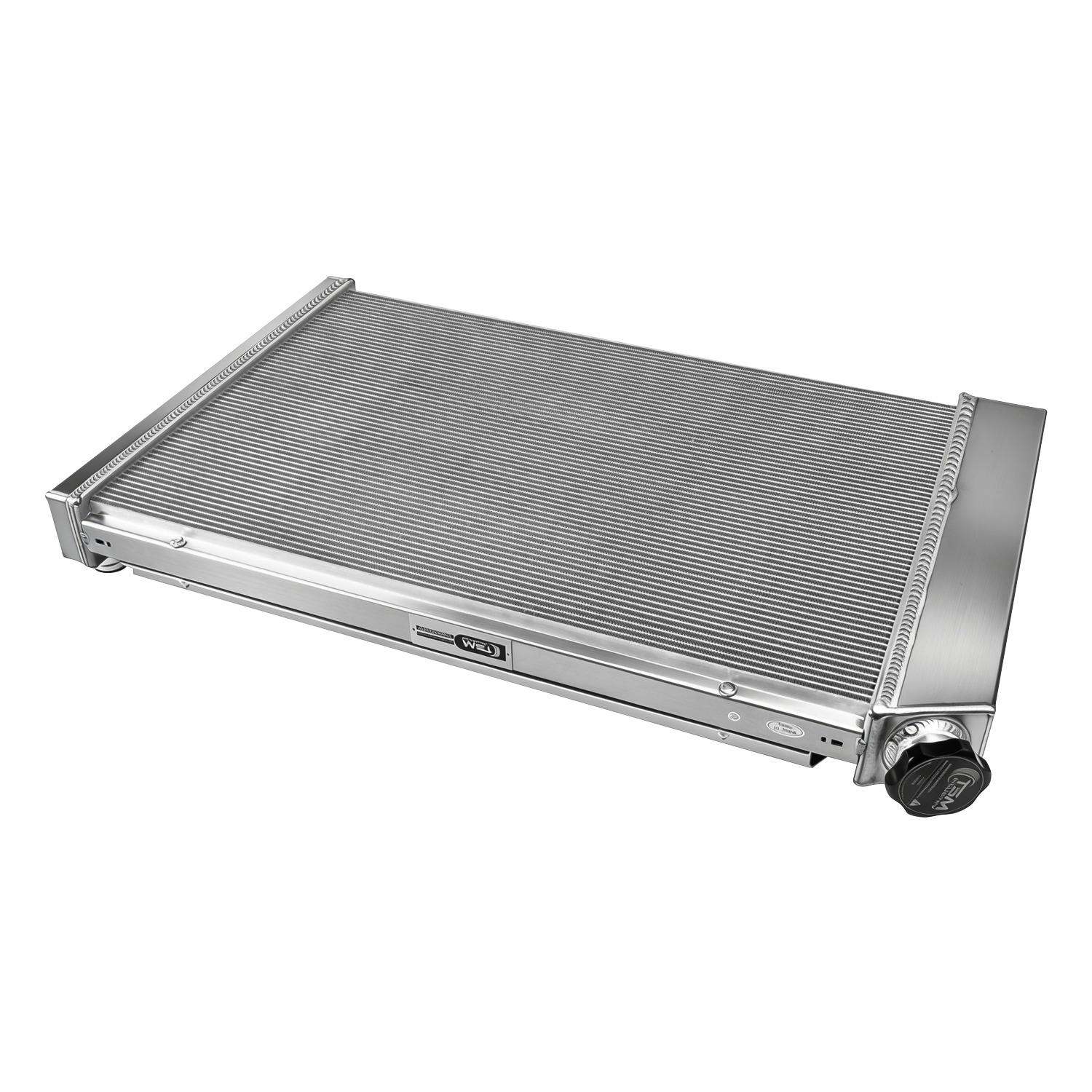

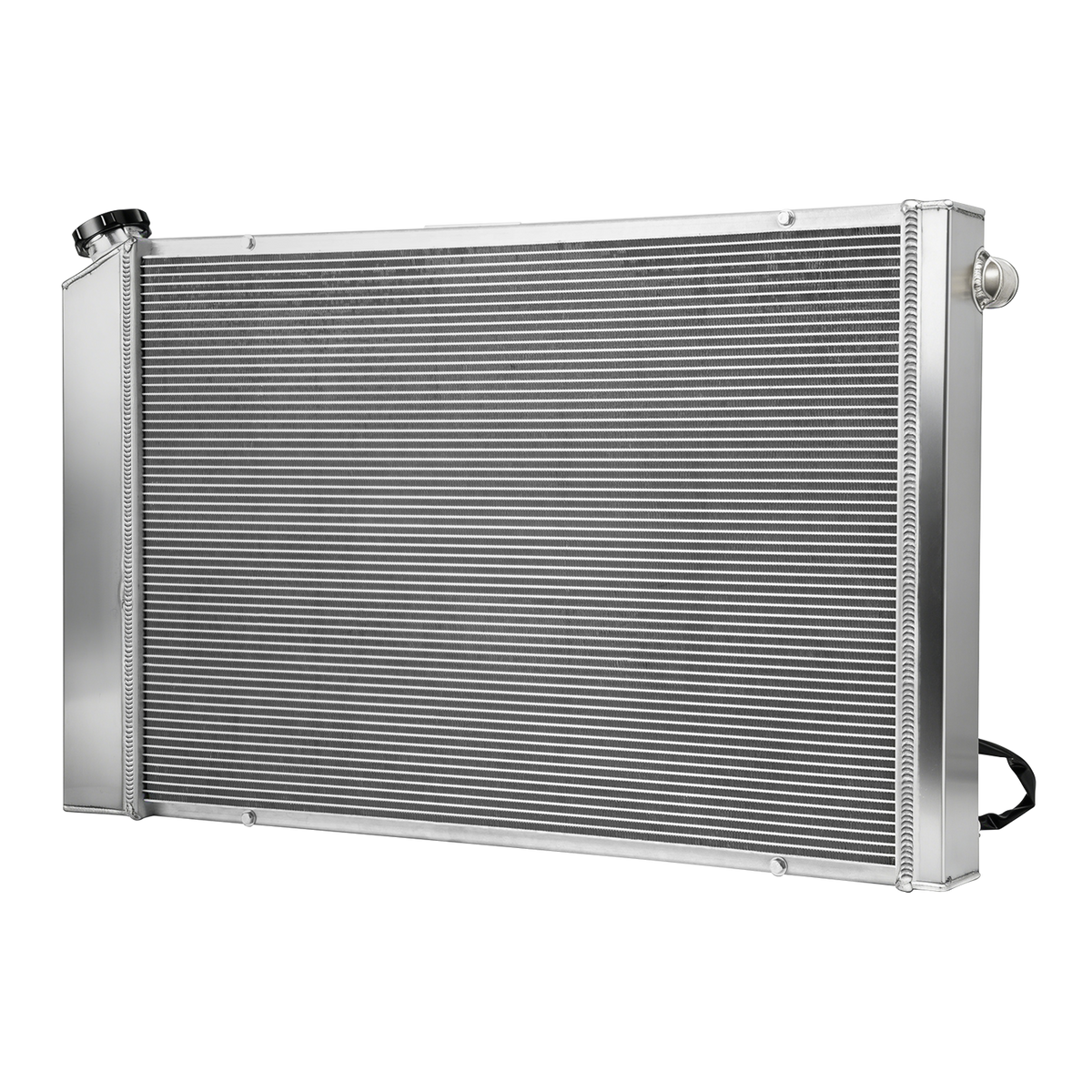

1 × 4-Row Tsmindustry AA5083 Aluminum Radiator
1 × Tsmindustry CNC-Machined Radiator Cap

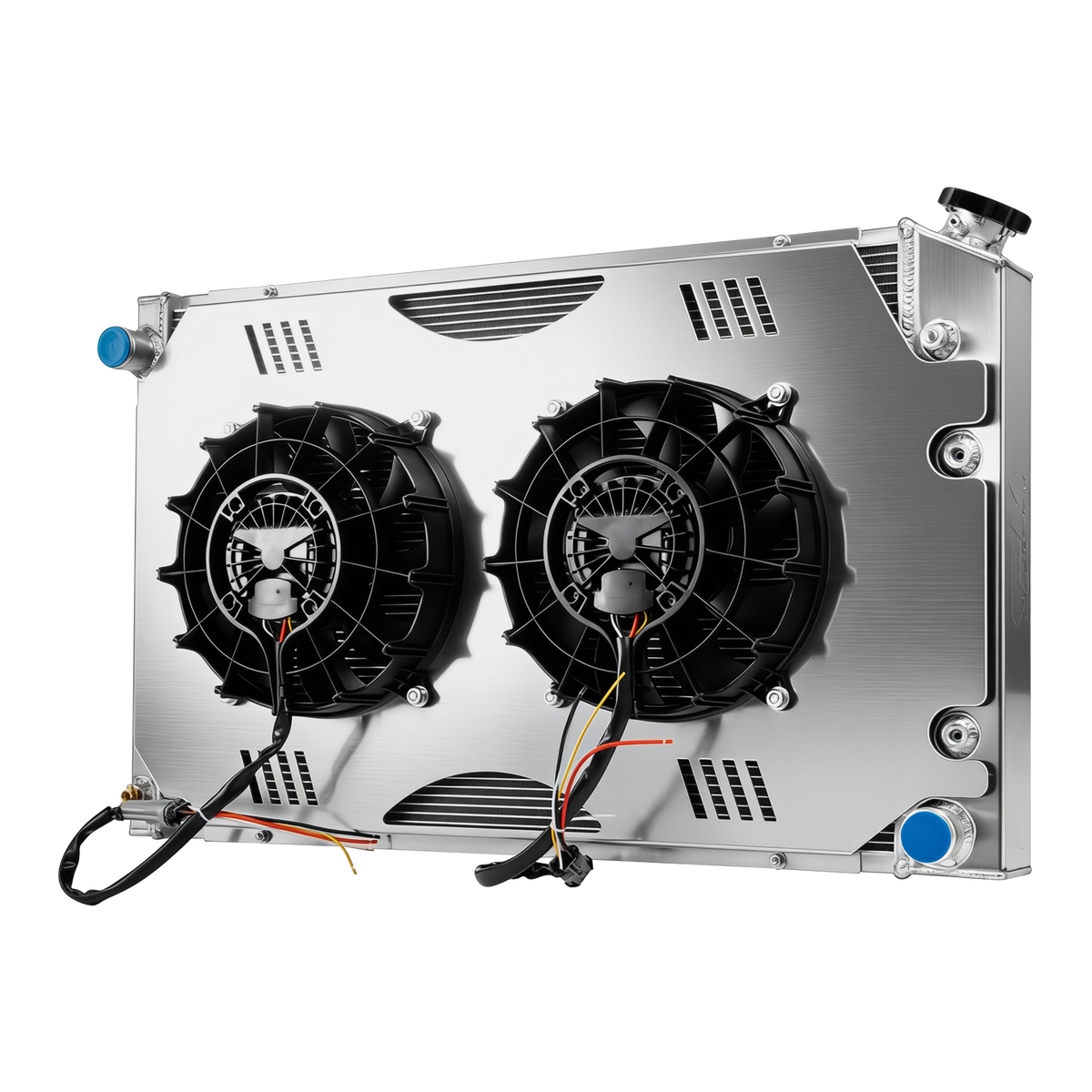

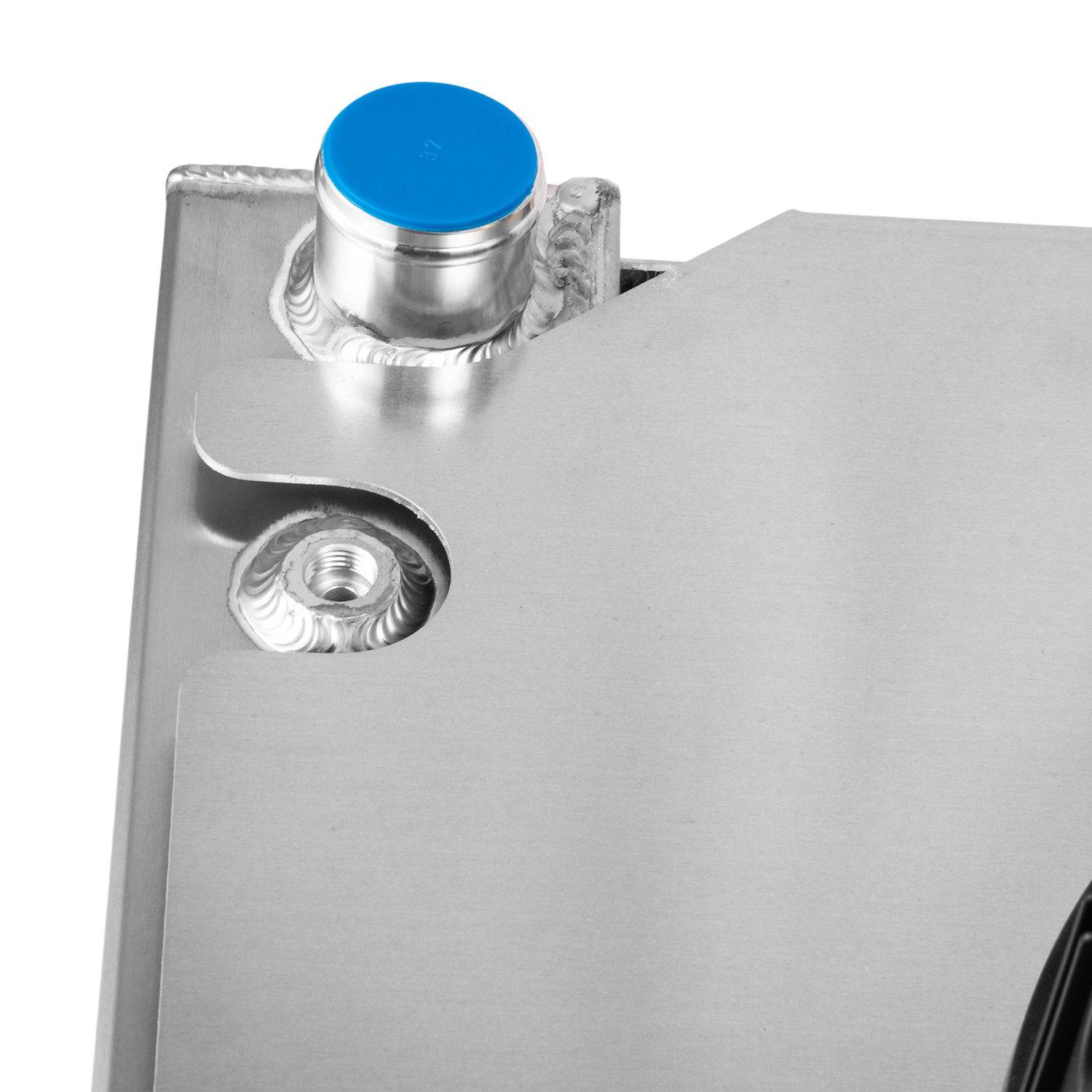

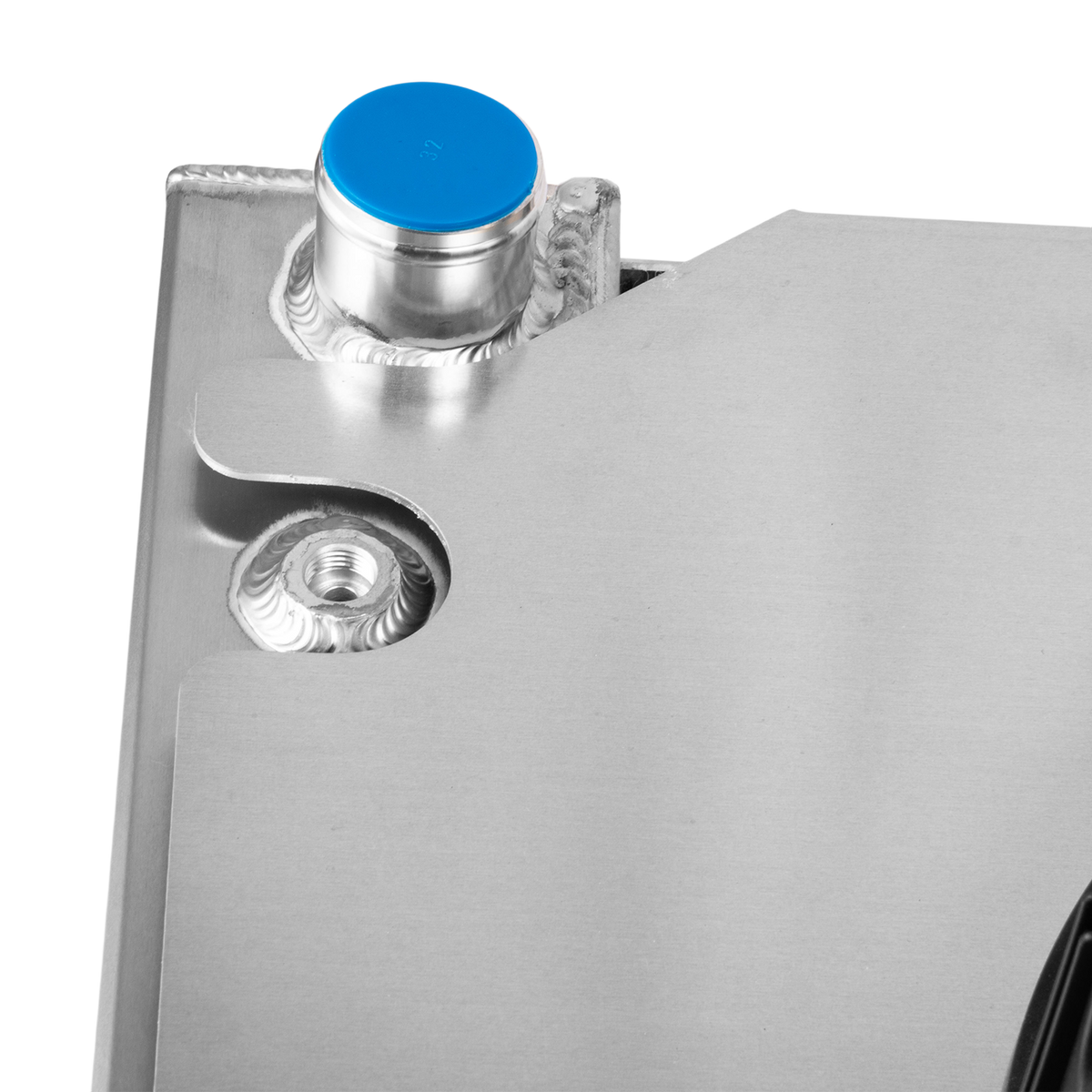

1 × Tsmindustry AA5083 Aluminum Shroud
2 × 12" 24V Brushless Cooling Fans

Technical Specifications

Performance	High Performance Racing Spec.
Core Design	4-Row Tube Core Racing Design
Material	Aircraft-Grade AA5083 Aluminum, Raw Finish
Core Size	28 1/4" W × 19" H
Overall Size	33 1/4" W × 20 1/4" H
Upper Inlet	1 1/2" Diameter, Driver Side
Lower Outlet	1 1/2" Diameter, Passenger Side
Transmission Oil Cooler	Ø32 × 215 × G1/4 (Z)
Petcock Drain	OEM-Style Brass Petcock Drain

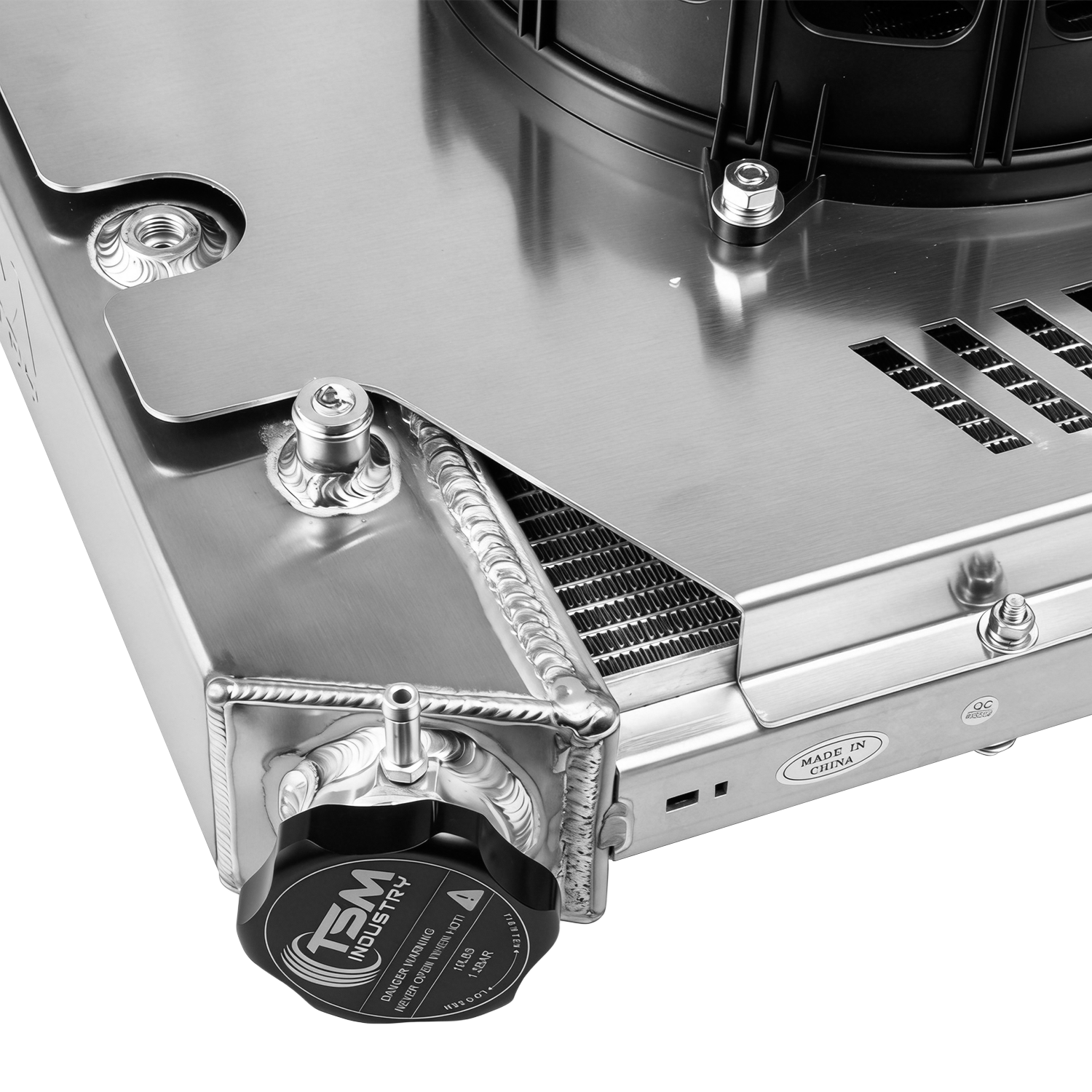

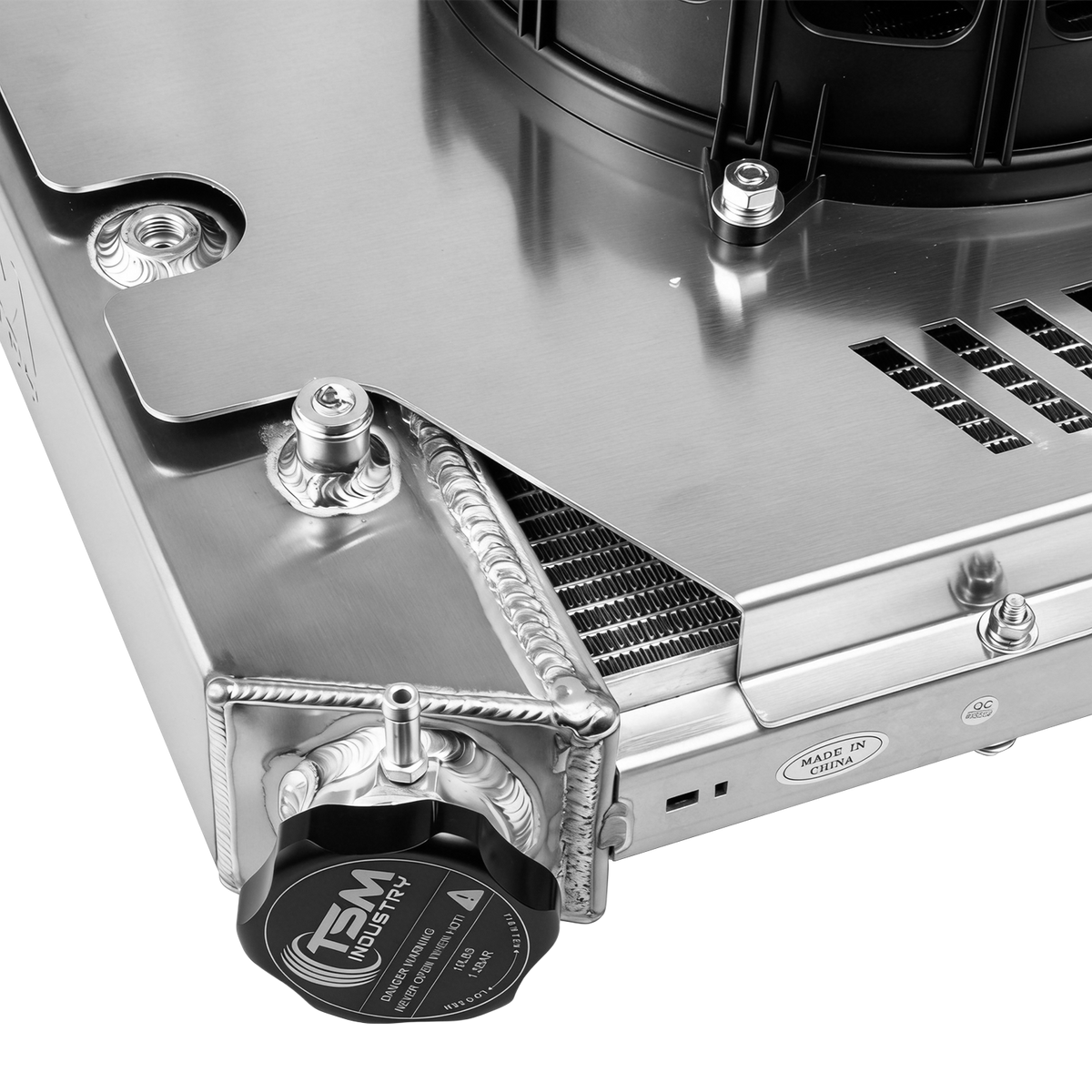

Radiator Cap	CNC-Machined Billet High-Pressure Radiator Cap, 1.3 Bar

Fan Specifications

Quantity	2 Fans
Fan Size	12"
Voltage	24V
Motor Type	Brushless
Airflow	1,800+ CFM

Vehicle Fitment

Multiple radiators were used for this application. Please verify that your original radiator has a 28 1/4" wide × 19" tall core and is for a V8 engine.

Please also verify the hose configuration: inlet on the driver side and outlet on the passenger side.

This radiator can easily be ordered incorrectly. Please verify all dimensions and connection positions before ordering.

Description

This TSM® AA5083 aluminum radiator is designed to provide maximum cooling efficiency and help prevent premature engine failure. Its lightweight, high-heat-transfer aluminum construction features a tube-and-fin design that significantly increases the surface area, allowing heat to dissipate more efficiently.

This AA5083 aluminum radiator is approximately 30%–45% more efficient than a stock radiator, helping the cooling system operate more efficiently and resist temperature surges in racing applications.

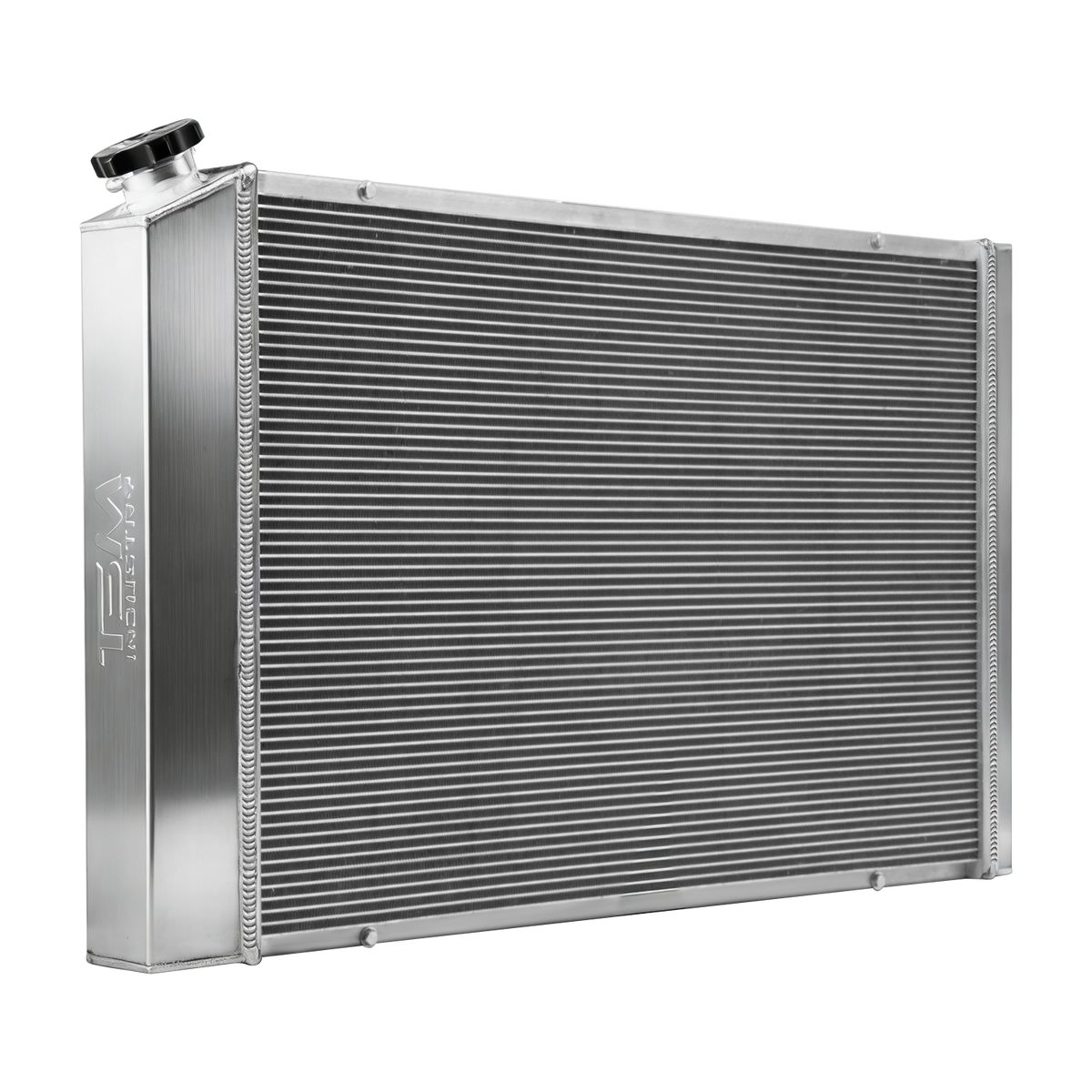

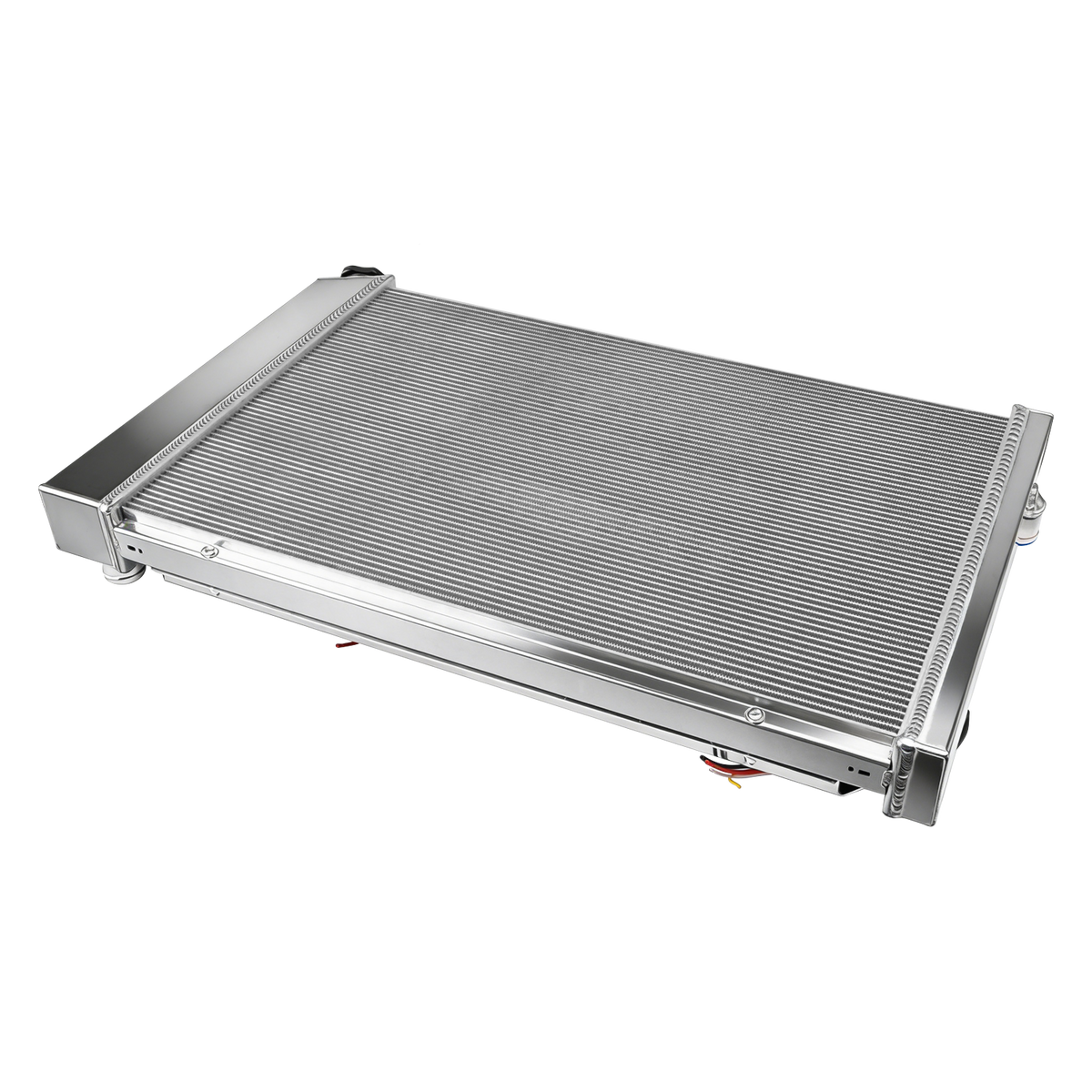

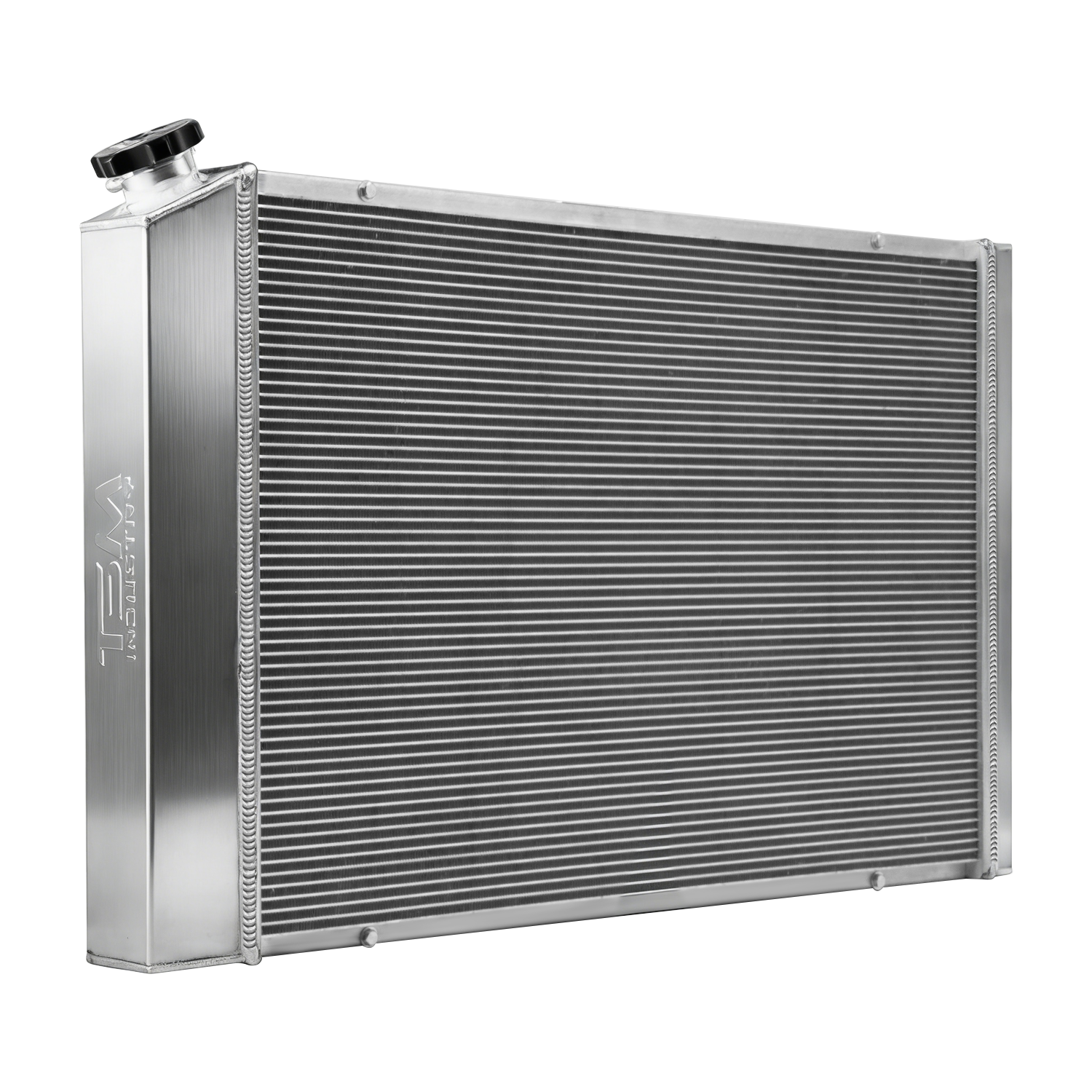

Radiator Construction Features

Made of AA5083 aircraft-grade aluminum.
Brazed core technology.
3.2 mm thick tanks and fittings.
6 mm fin height.
Higher-density core with cooling rows spaced 3/8" apart.
14–16 cooling fins per inch.

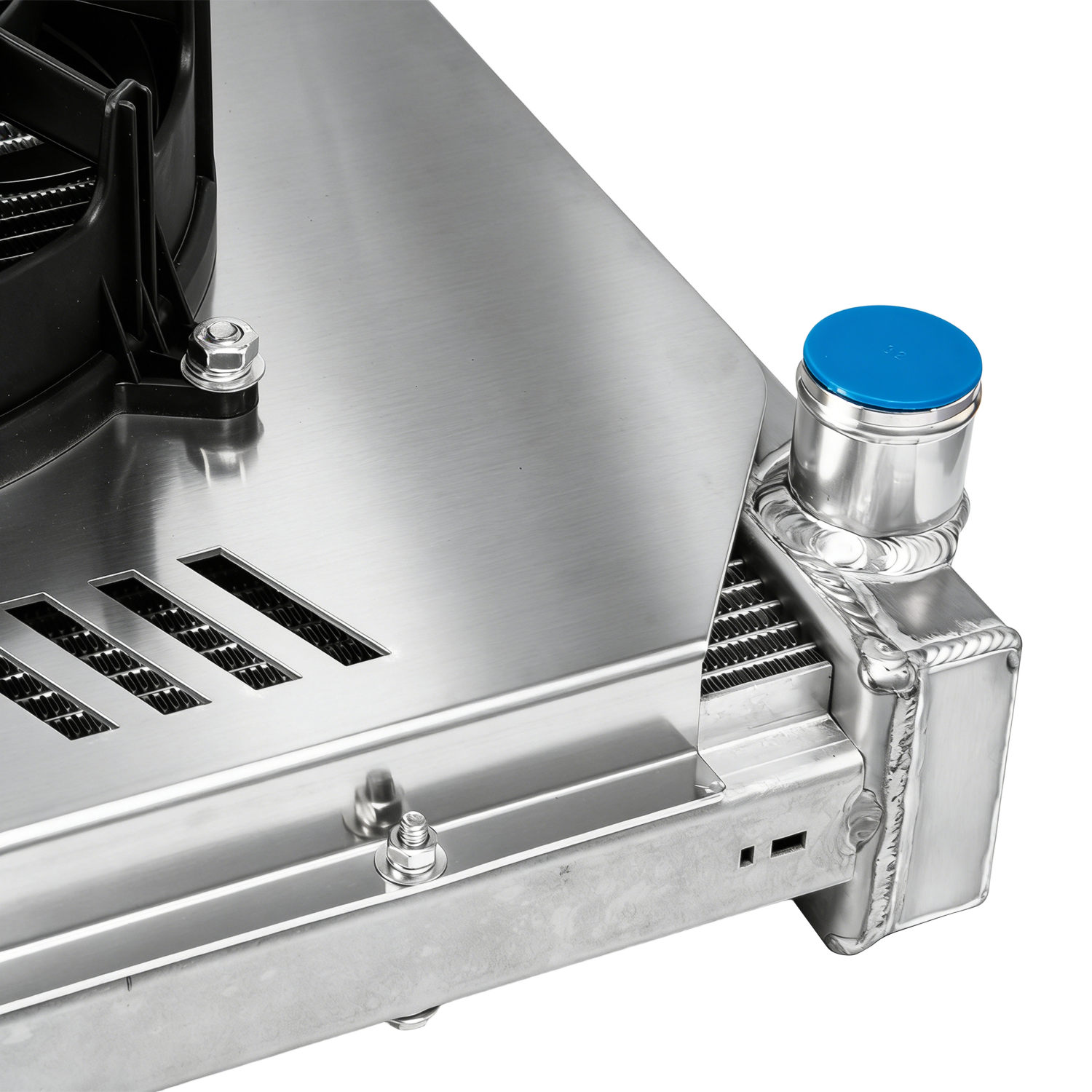

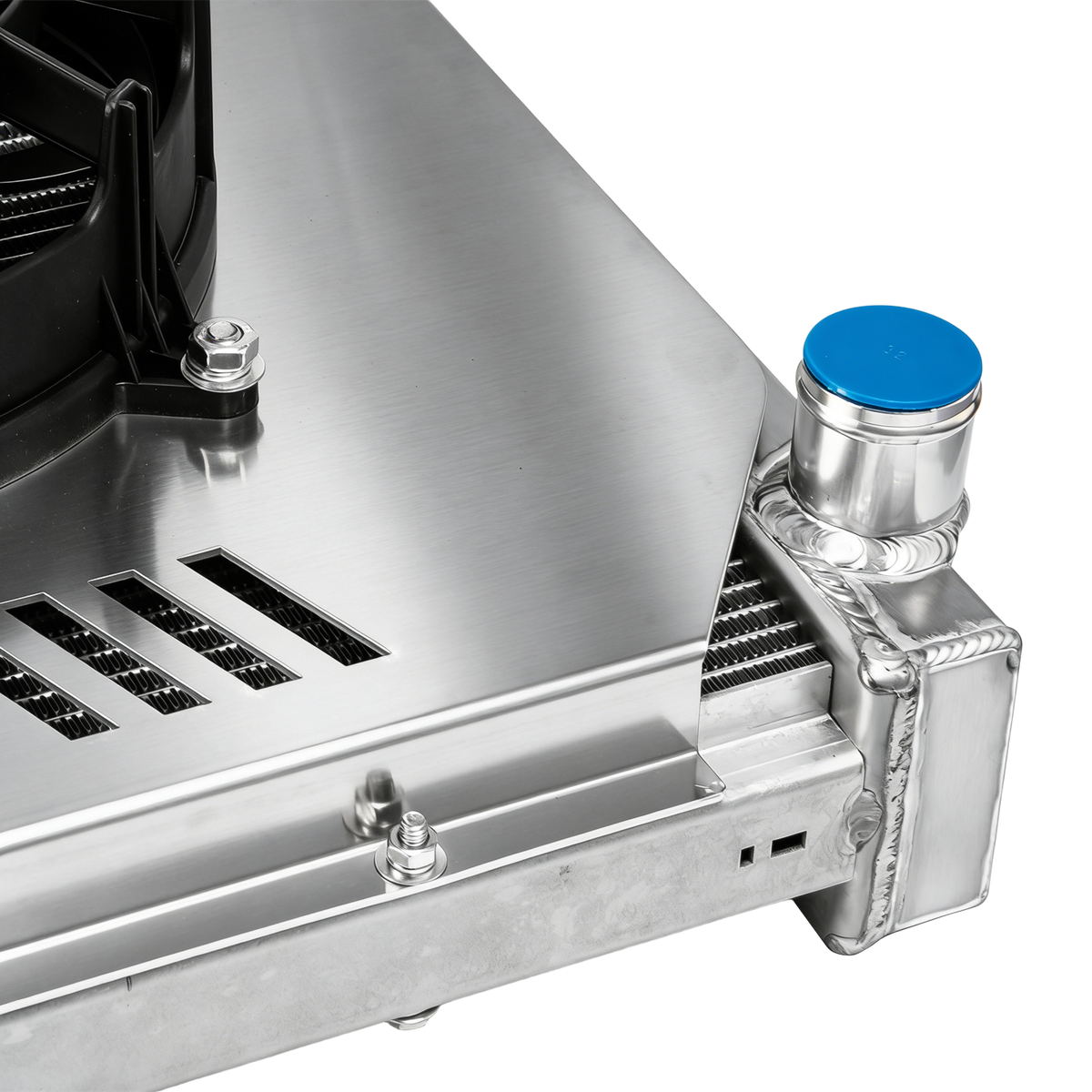

AA5083 Aluminum Fan Shroud Performance Advantages

Premium AA5083 marine-grade aluminum construction: High-strength, corrosion-resistant alloy provides superior durability compared with standard aluminum and is suitable for harsh engine-bay environments.
Sealed, high-efficiency airflow design: The precision-fitted shroud reduces air leakage around the radiator core and directs fan airflow through the cooling fins for 30%–50% better heat rejection than unshrouded setups.
Aerodynamic vented structure: The optimized vent design reduces turbulence, helps prevent hot spots, and efficiently expels hot air from the engine compartment.
Engine protection and structural reinforcement: The shroud helps secure the fan blades, prevents contact with nearby engine components, and reinforces the radiator core against vibration and road-debris damage.
Maintains optimal engine conditions: Provides consistent and even cooling to help preserve engine performance, extend service life, and improve overall ride quality.
Direct bolt-on fitment: Precision-machined for straightforward installation without modification, creating a clean and professional engine-bay finish.

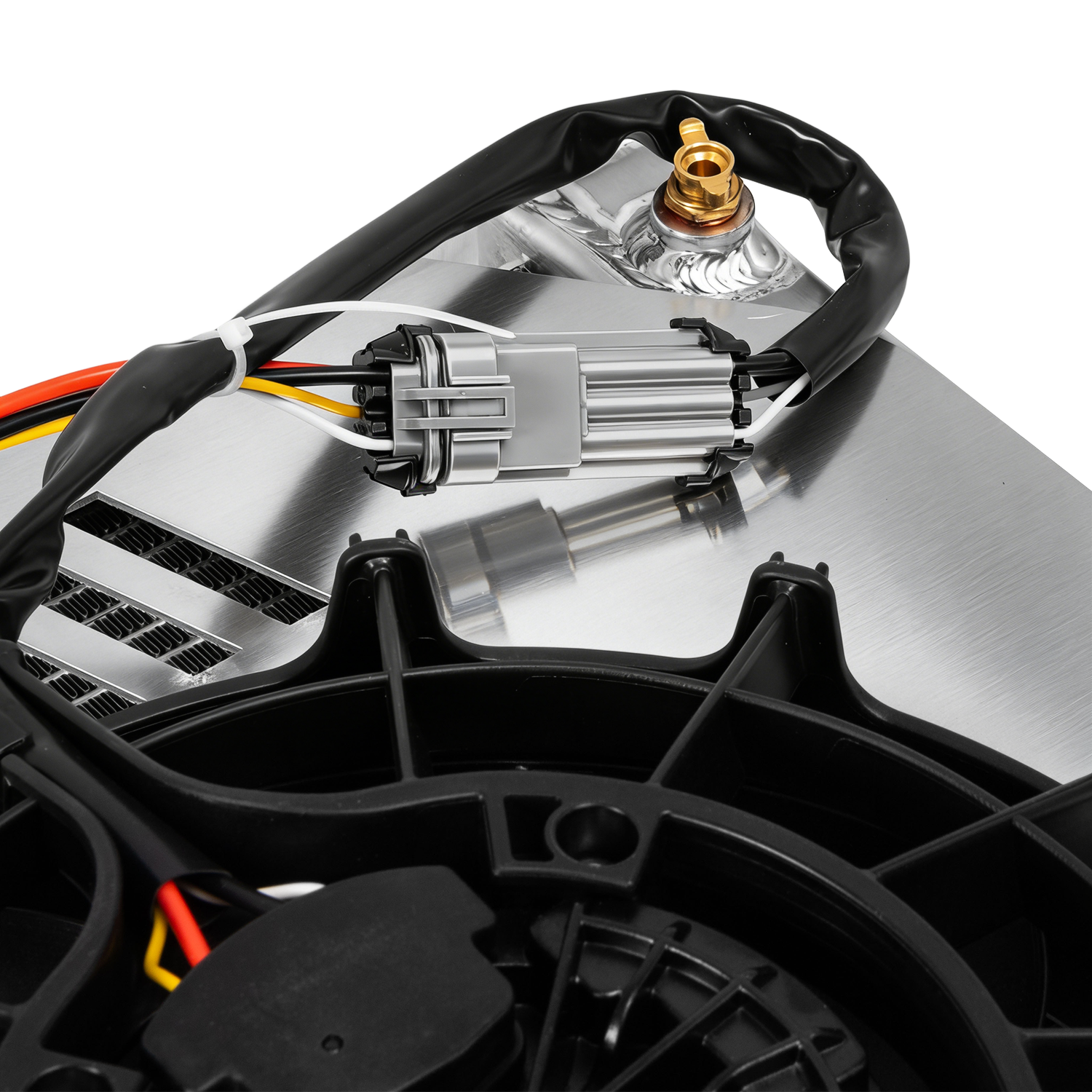

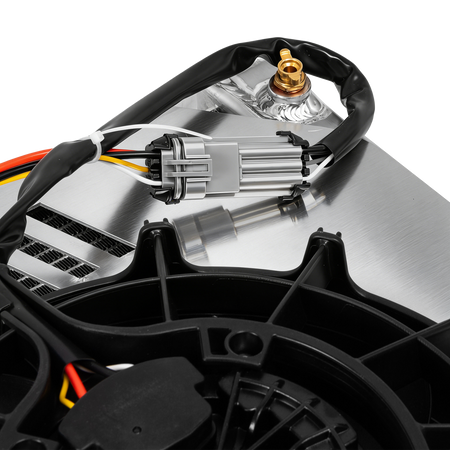

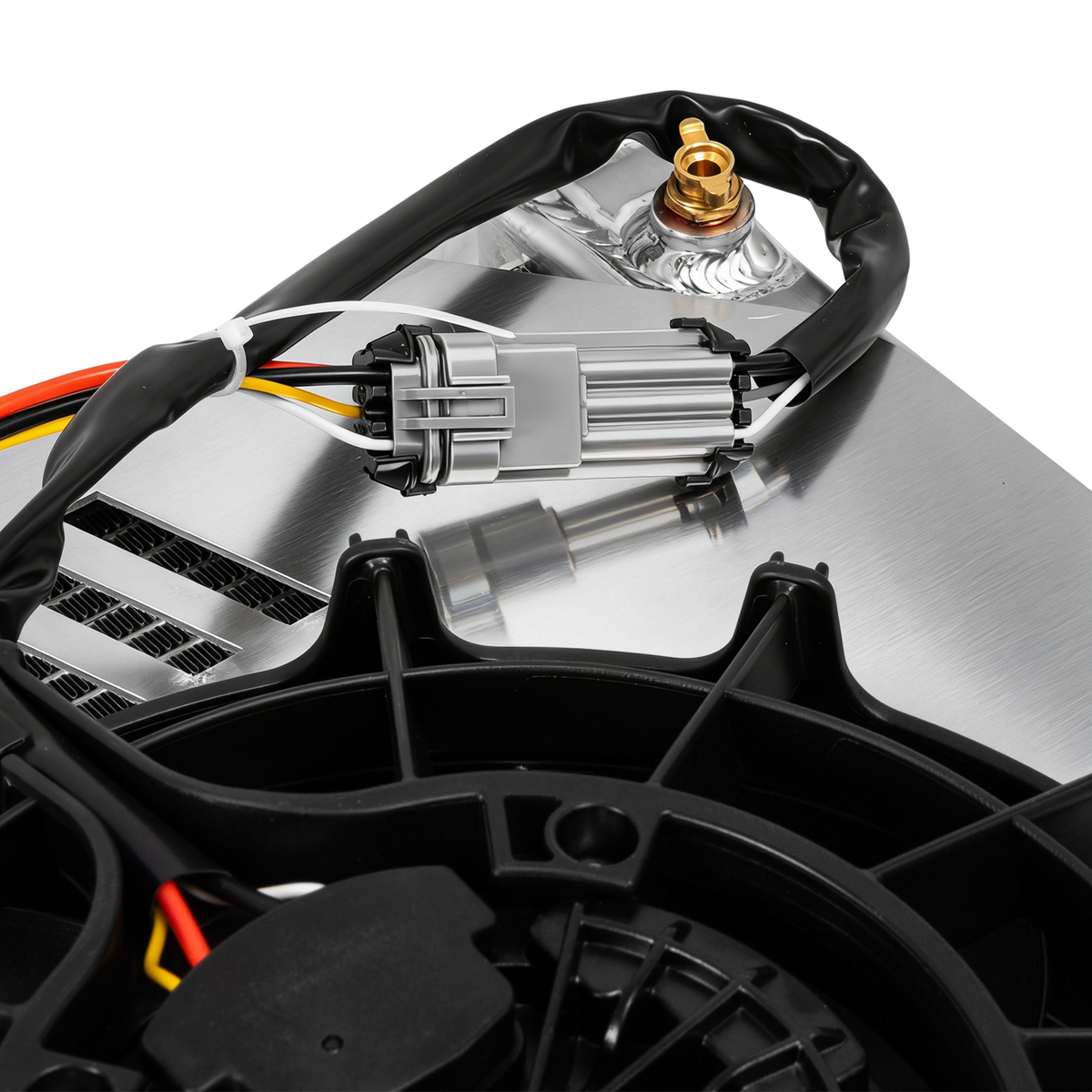

12" 24V Brushless Cooling Fan Features

High-performance brushless motor: Eliminates brush friction and wear for up to 10 times longer service life than traditional brushed fans, with consistent and reliable performance.
Powerful axial cooling design: The compact, high-torque 12-inch fan delivers more than 1,800 CFM of airflow for high-horsepower engines, turbocharged builds, and heavy-duty applications.
Quiet, vibration-free operation: Precision-balanced blades and motor provide smooth, low-noise operation, even during continuous use.
Built for harsh environments: The sealed motor housing resists dust, moisture, and extreme temperatures and is engineered for continuous-duty operation.
Maintenance-free performance: No brushes to replace and no regular maintenance required.
Energy-efficient operation: Low power draw reduces the load on the electrical system, making the fans suitable for 24V commercial, performance, and off-road applications.

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
