ASI Performance 3-Row Radiator+Shroud Fan Relay fit 82-92 86 Pontiac Firebird Chevy Camaro

ASI0541

In stock

SKU: WH951DZFSXJ90W-BN Barcode: ASI0541

No reviews

$249.99

SAVE 8%, code: ASI8OFF

overall size

WIDE x 19 1/2" HIGH

Quantity:

US Local Stock Fast Shipping - Arrives in 3 –7 Days

1 Year Warranty

Official ASI Store

Do you have questions about this product?

Ask an expert!

Fitment:

Package Include:

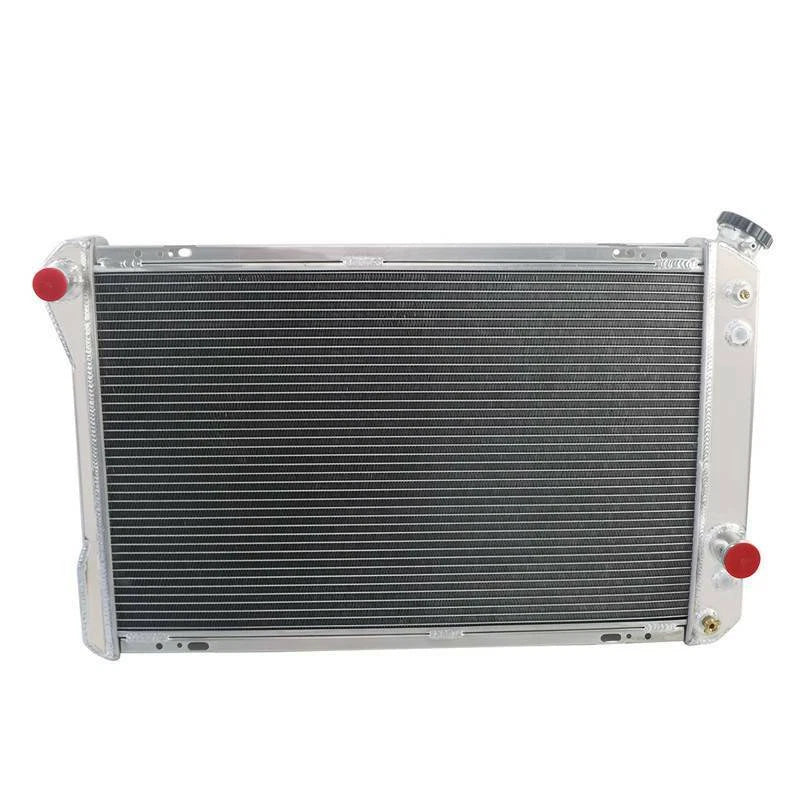

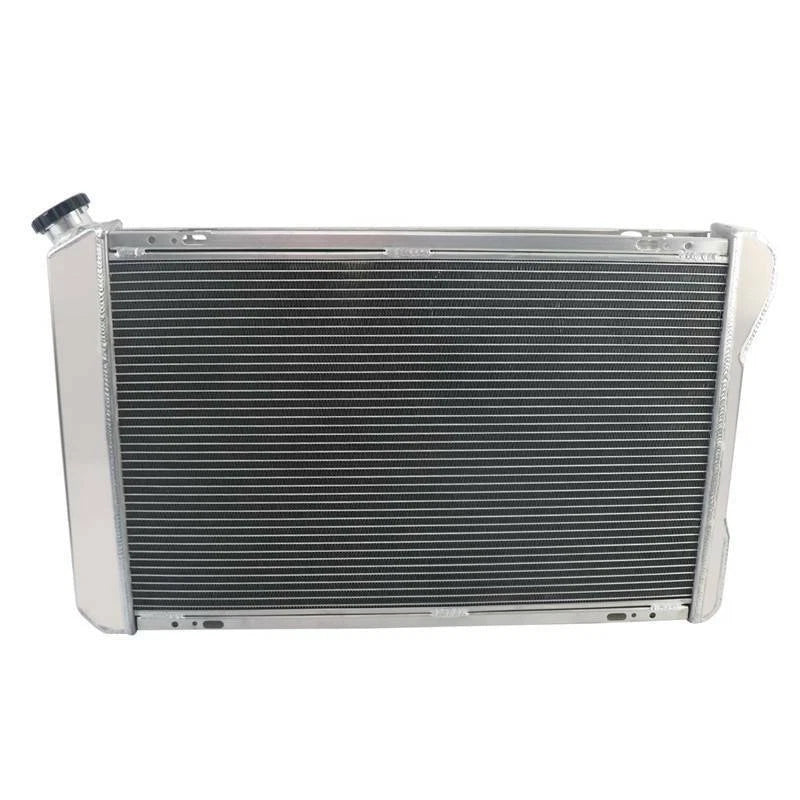

1 X 3-Row AA5052 Aluminum Radiator

1 X CNC Machined Radiator Cap

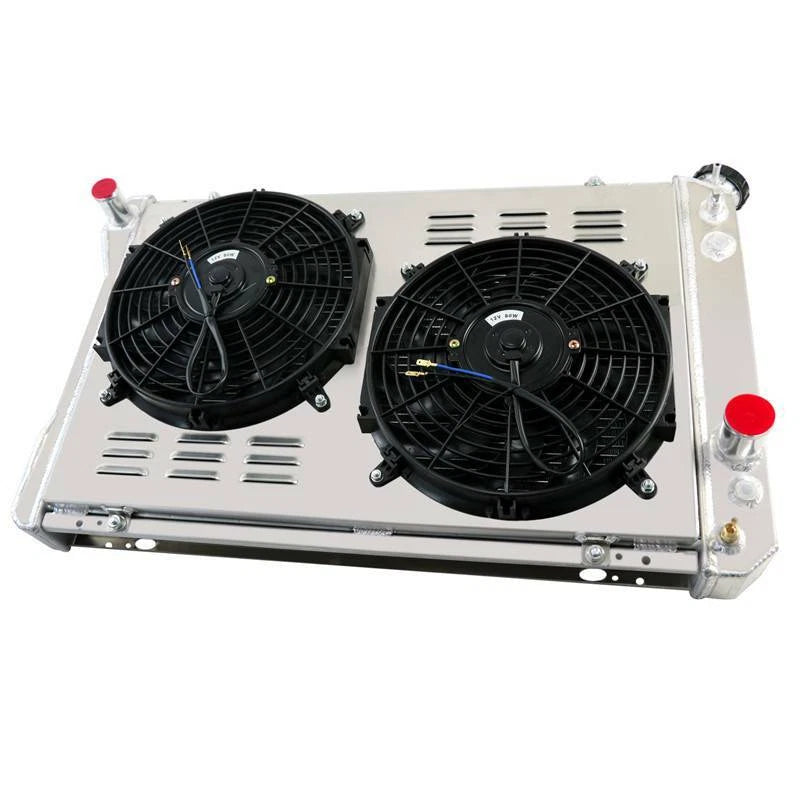

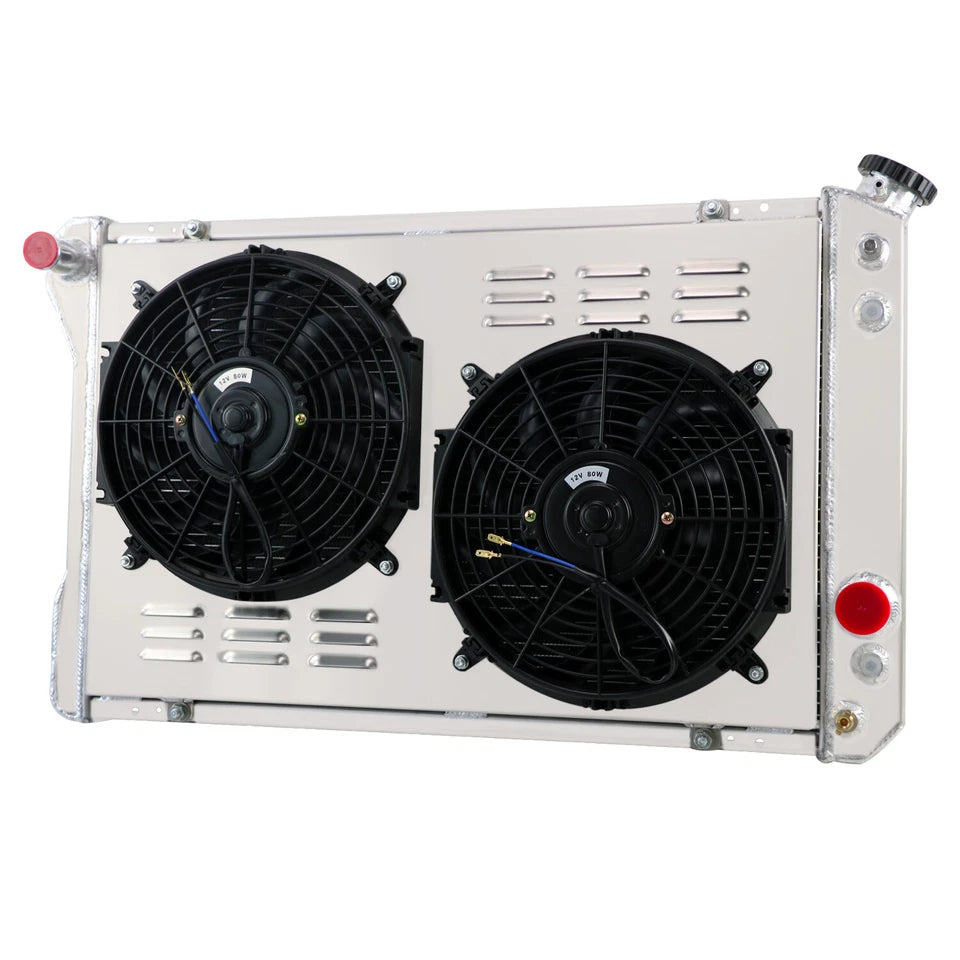

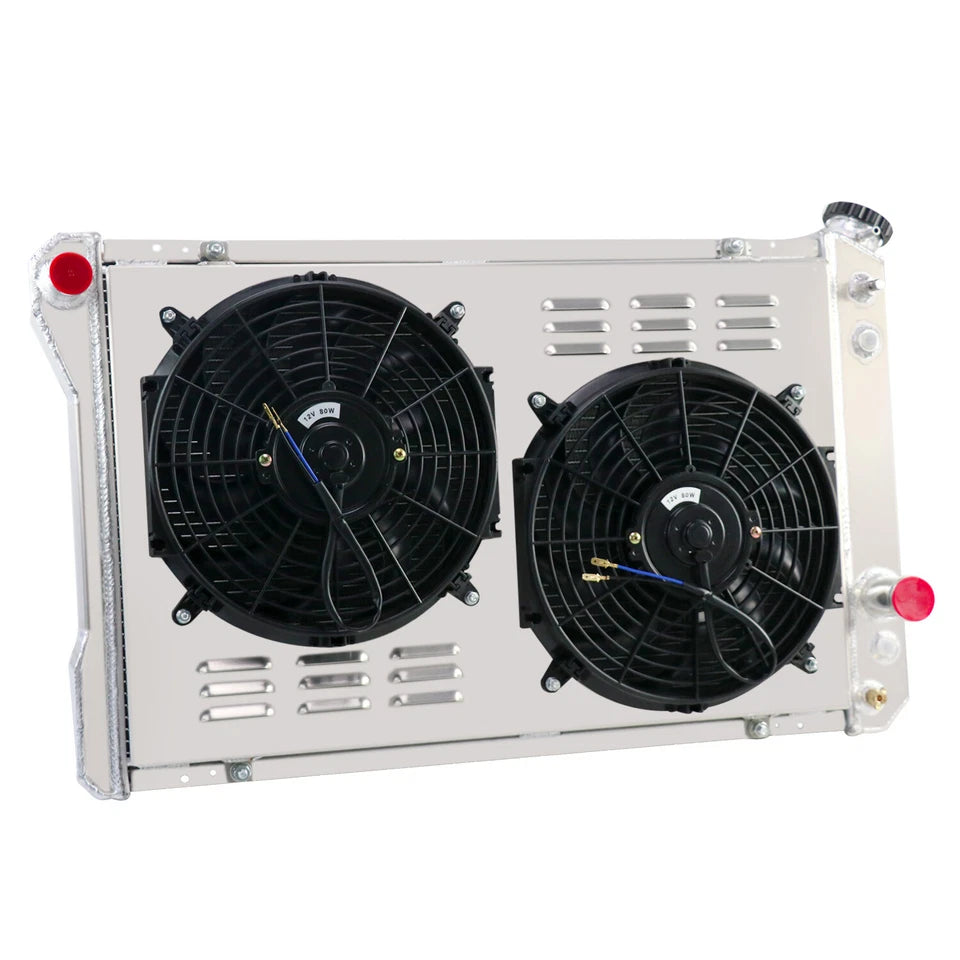

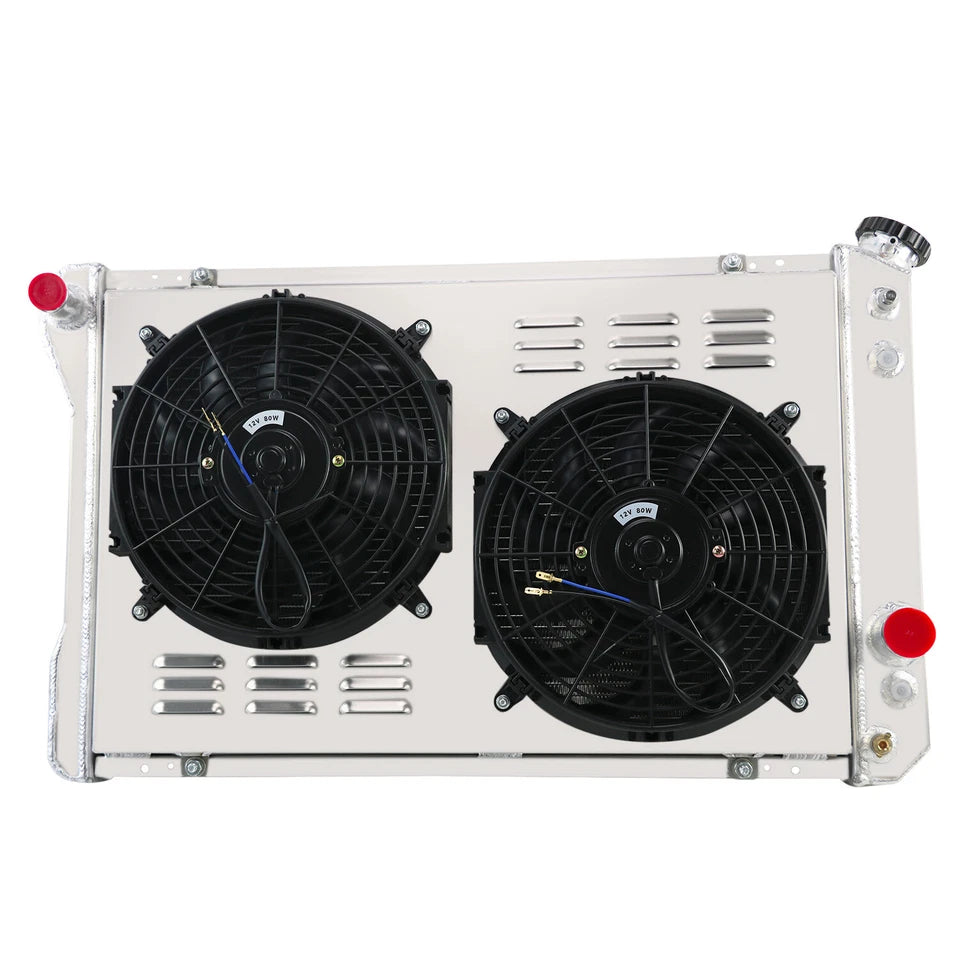

1 X AA5052 Aluminum Shroud

2X 12" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

This Radiator Size:

High Performance Racing Spec.

3-Row of tubes Core Racing Design

Core Material: All Aluminum

Tank Material: AA5052 Aircraft Grade Aluminum

Surface Finish: Aircraft Grade Raw Aluminum

Core Row: 3 Row Core

Core Size: 26 1/4" w x 17 3/8" h

OVERALL DIMENSIONS:32" WIDE x 19 1/2" HIGH

Tank Size: 2 1/2 x 18 5/8

Inlet Hose Connection: 1 3/8 Driver Side

Outlet Hose Connection: 1 5/8 Passenger Side

FITS AUTOMATIC OR MANUAL TRANSMISSIONS

Transmission Oil Cooler: YES

Trans Cooler Details: φ26*290*M12*1.25（Z)

Mounting Type: Saddle

Mounting Specs: Vert - 22 3/8 Horizontal - 17 1/2

Upgrade performance:

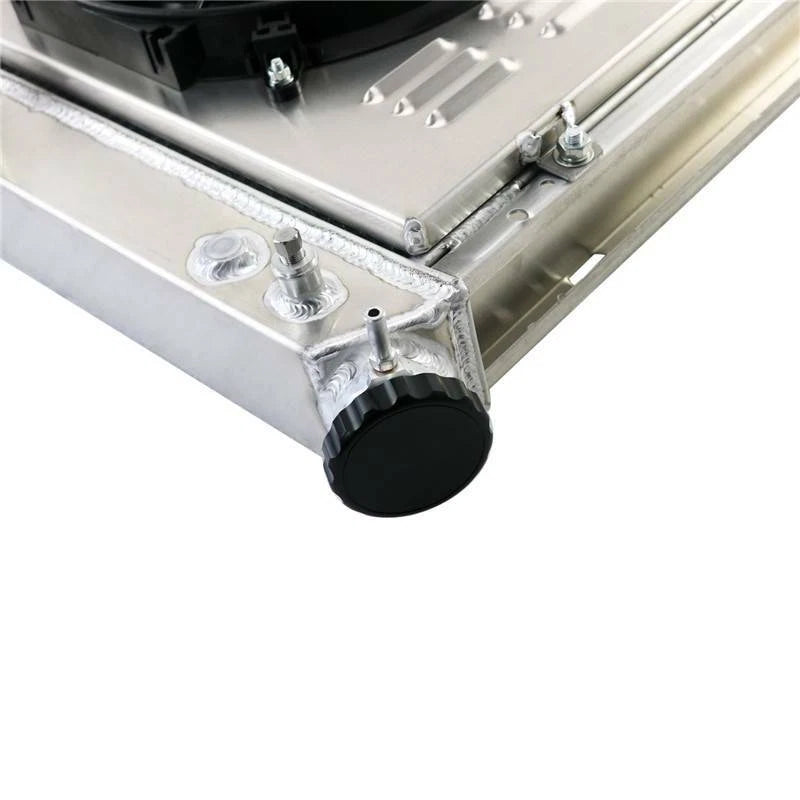

1. CNC machined filler neck and cap

2. Aircraft 5052 grade aluminum and with raw aluminum finish

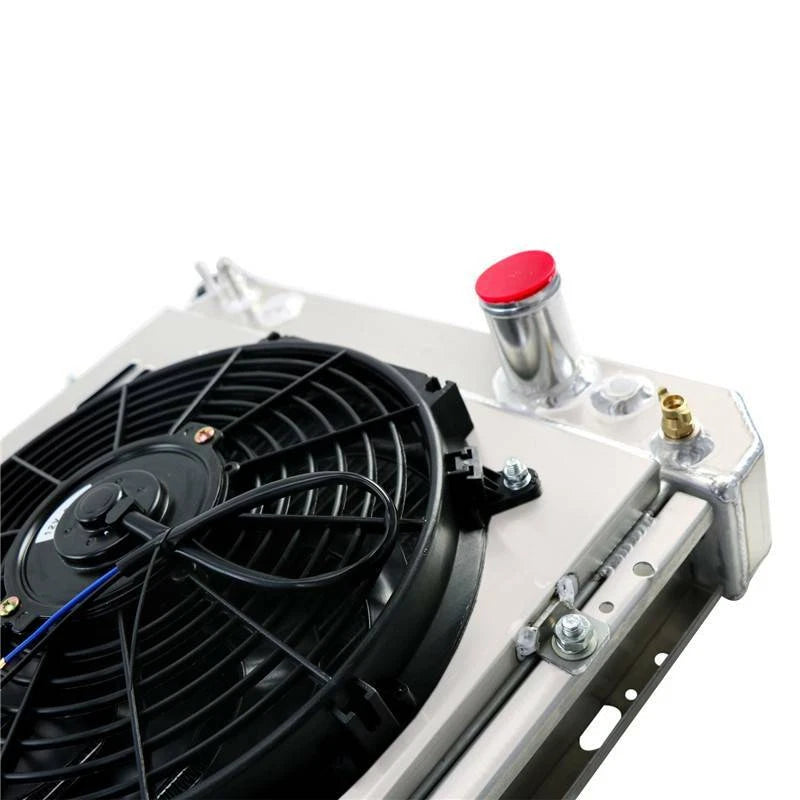

3. OEM style brass petcock drain.

FAN SIZE:

Maximum Fan CFM: 1730 cfm

Fan Diameter (in): 12.050”

Thickness (in): 2.500”

Number of Blades: 10 blades

Maximum Fan RPM: 2,250 rpm

Blade Material: Plastic

Amp Draw: 12.70 amps

Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:

RED + connect directly to battery.

WHITE wire to ignition switch power source.

BLACK goes to thermos switch.

BLUE wire goes to the Fans.

Fitment:

Chevrolet Camaro Base 5.0L V8 1988

Chevrolet Camaro Berlinetta V8 5.0L 1982-1986

Chevrolet Camaro Iroc-Z V8 5.0L 1985-199V8

Chevrolet Camaro Iroc-Z V8 5.7L 1987-199V8

Chevrolet Camaro LT V8 5.0L 1987

Chevrolet Camaro RS V6 3.1L 9V8-1992

Chevrolet Camaro RS V8 5.0L 1989-1992

Chevrolet Camaro RS Heritage Edition V6 3.1L 92

Chevrolet Camaro RS Heritage Edition V8 5.0L 92

Chevrolet Camaro Sport V8 5.0L 1982-1987

Chevrolet Camaro Sport L4 2.5L 1982-1984

Chevrolet Camaro Z28 V8 5.0L 1982-1992

Chevrolet Camaro Z28 V8 5.7L 91-1992

Chevrolet Camaro Z28 Heritage Edition V8 5.0L 92

Chevrolet Camaro Z28 Heritage Edition V8 5.7L 92

Chevrolet Camaro Z28 Indianapolis 5V8V8 Pace Car V8 5.0L 1982

Chevrolet P20 Base V8 5.7L 1989

Chevrolet P20 Step-Van V8 5.7L 1989

Chevrolet P30 Base V8 5.7L 1989-199V8

Chevrolet P30 Step-Van V8 5.7L 1989-199V8

GMC P2500 Base V8 5.7L 1989

GMC P2500 Value Van V8 5.7L 1989

GMC P3500 Base V8 5.7L 1989-199V8

GMC P3500 Value Van V8 5.7L 1989-199V8

Pontiac Firebird Base V6 3.1L 199V8-1992

Pontiac Firebird Base V8 5.0L 1982-1992

Pontiac Firebird Base V8 5.7L 1987

Pontiac Firebird Formula V8 5.0L 1989-1992

Pontiac Firebird Formula V8 5.7L 1989-1992

Pontiac Firebird S/E V8 5.0L 1982-1986

Pontiac Firebird Trans Am V8 5.0L 1982-1992

Pontiac Firebird Trans Am V8 5.7L 1987-1992

Pontiac Firebird Trans Am V6 3.198L 1989

Pontiac Firebird Trans Am GTA V8 5.0L 1989-1992

Pontiac Firebird Trans Am GTA V8 5.7L 1989-1992

Pontiac Firebird Trans Am GTA SE V6 3.198L 1989

About ASI Performance

ASI Performance was founded in 2006, driven by a passion for engineering excellence and a commitment to high-performance cooling solutions for the automotive industry. Backed by an investment of over USD 1.5 million, we specialize in the development and manufacturing of radiators, intercoolers, silicone hoses, wheel spacer adapters, and related products for automotive, motorcycle, and ATV applications.

With a growing portfolio of over 3,000 products, ASI Performance continues to expand its range through constant innovation. More than 1,000 newly developed products, along with optimized upgrades of both modern and classic radiator models, have been successfully introduced to international markets worldwide.

As we continue to grow, our mission remains unchanged: to deliver reliable, performance-driven products and build long-term partnerships with customers around the world.

US Local Stock for Fast Delivery

We provide free shipping within the United States on all orders with no minimum spend. (Excludes remote areas such as Alaska and Hawaii. We are not able to deliver to Puerto Rico, Guam, or the Virgin Islands at this time.)

Estimated Shipping Time:

United States: 3-7 business days
We ship orders after payment is received. Once shipped, a tracking number will be generated and sent to your email.

Return Pollicy:

For returns or exchanges initiated due to product quality or delivery issues, asiproformance will cover the associated delivery charges.
However, if a return or exchange is requested due to the wrong size purchased or if the customer no longer wishes to keep the product, the customer will be responsible for covering the delivery charges incurred during the return or exchange process.

Warranty

Why choose us?

ASI Performance is a leading manufacturer of high-performance automotive components, including radiators, intercoolers, fitting & hoses, AC condensers and more. We design and manufacture our products in-house, controlling every step from material selection to final assembly to ensure precision and reliability. Each component undergoes strict quality inspections, including performance and durability tests, so you get products that meet or exceed industry standards. Our US local warehouse system ensures fast, secure shipping, with real-time tracking and careful packaging to prevent damage. On top of that, our responsive after-sales team provides professional guidance, troubleshooting, and warranty support, ensuring your investment is protected and your equipment performs at its best.

What is a radiator?

The radiator's job is to remove heat from the engine's coolant. As hot coolant passes through the radiator it is cooled before returning to the engine, where it absorbs heat and returns to the radiator. This cooling process keeps the engine from overheating.

How does the radiator work?

The engine generates heat when it is running; this heat must be removed to prevent damage to the engine. Coolant circulates throughout the engine and absorbs this heat. The water pump pushes the coolant through the radiator (where it is cooled) and returns it to the engine once more to absorb the engine’s heat, before returning it to the radiator to be cooled again. When a vehicle is traveling fast, rushing air flows through the radiator and cools the engine. When a vehicle is in stop-and-go traffic or stuck at a traffic light, the engine’s cooling fan pushes air through the radiator.

Can I drive with a radiator problem?

A sub-performing Radiator has far reaching effects. An inoperative heater, loss of coolant, or engine damage from overheating could occur. Overheating causes severe damage to an engine, including failure of the head gasket. Continuing to drive an overheating vehicle may disable the motor.

How often do radiators need to be replaced?

Replacement intervals vary greatly by vehicle and driving conditions. We typically see the radiator replaced at approximately 80,000 miles. While the radiator does not wear the same as a belt or brake pad, the repeated heating and cooling cycles the radiator experiences will eventually cause the degradation of its plastic end-tanks and seals.

How is a radiator replaced?

To replace the Radiator, the technician will drain the coolant from the cooling system and remove the Radiator and radiator hoses from the vehicle. This may also require removal of plastic shrouds and other engine bay cladding to reach the part. Where applicable, the cooling fan switch and electric cooling fan assemblies are transferred to the new Radiator. Once the new Radiator is installed, the cooling system is refilled with fresh coolant and the system is bled of any air, then rechecked to ensure all leaks have been fixed.
