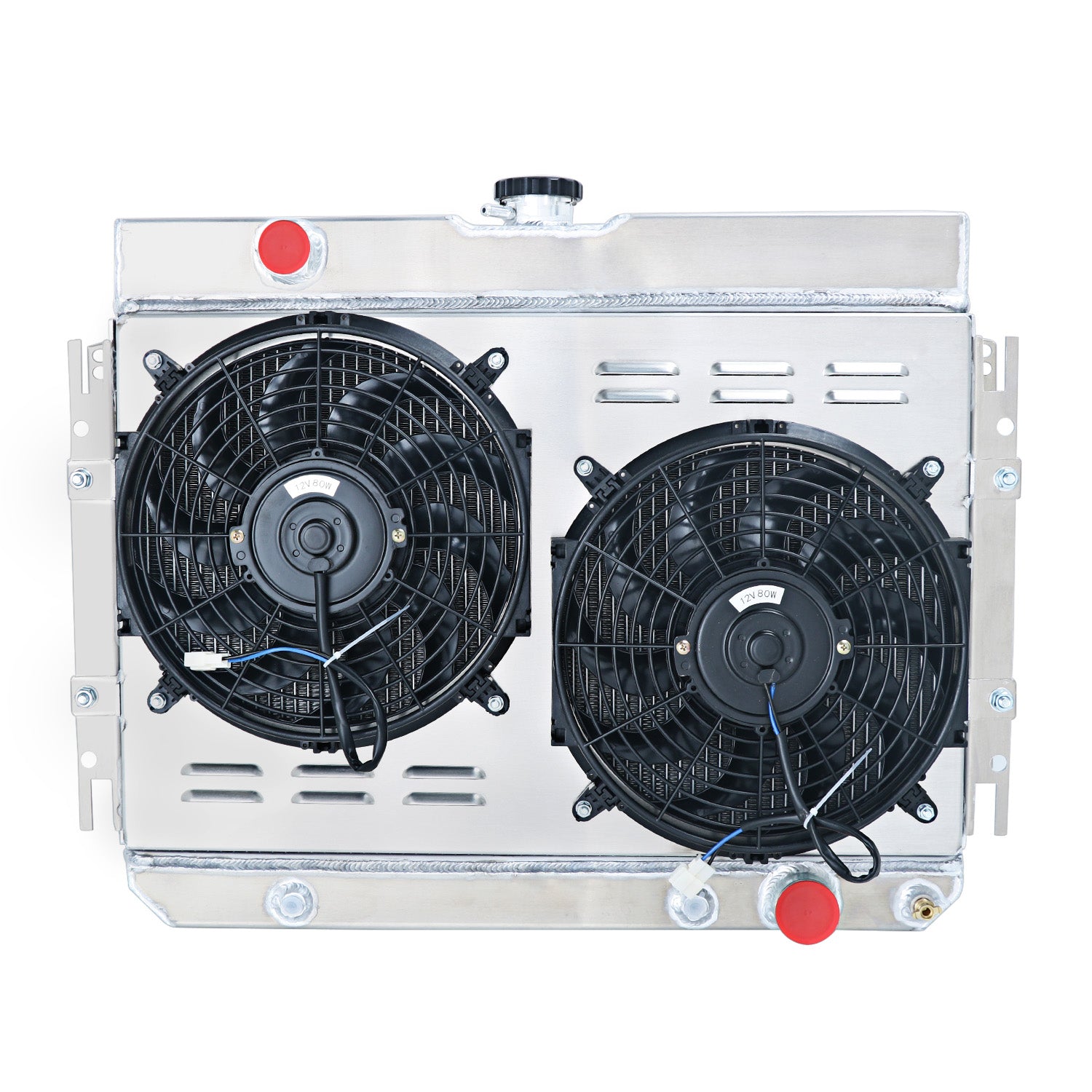

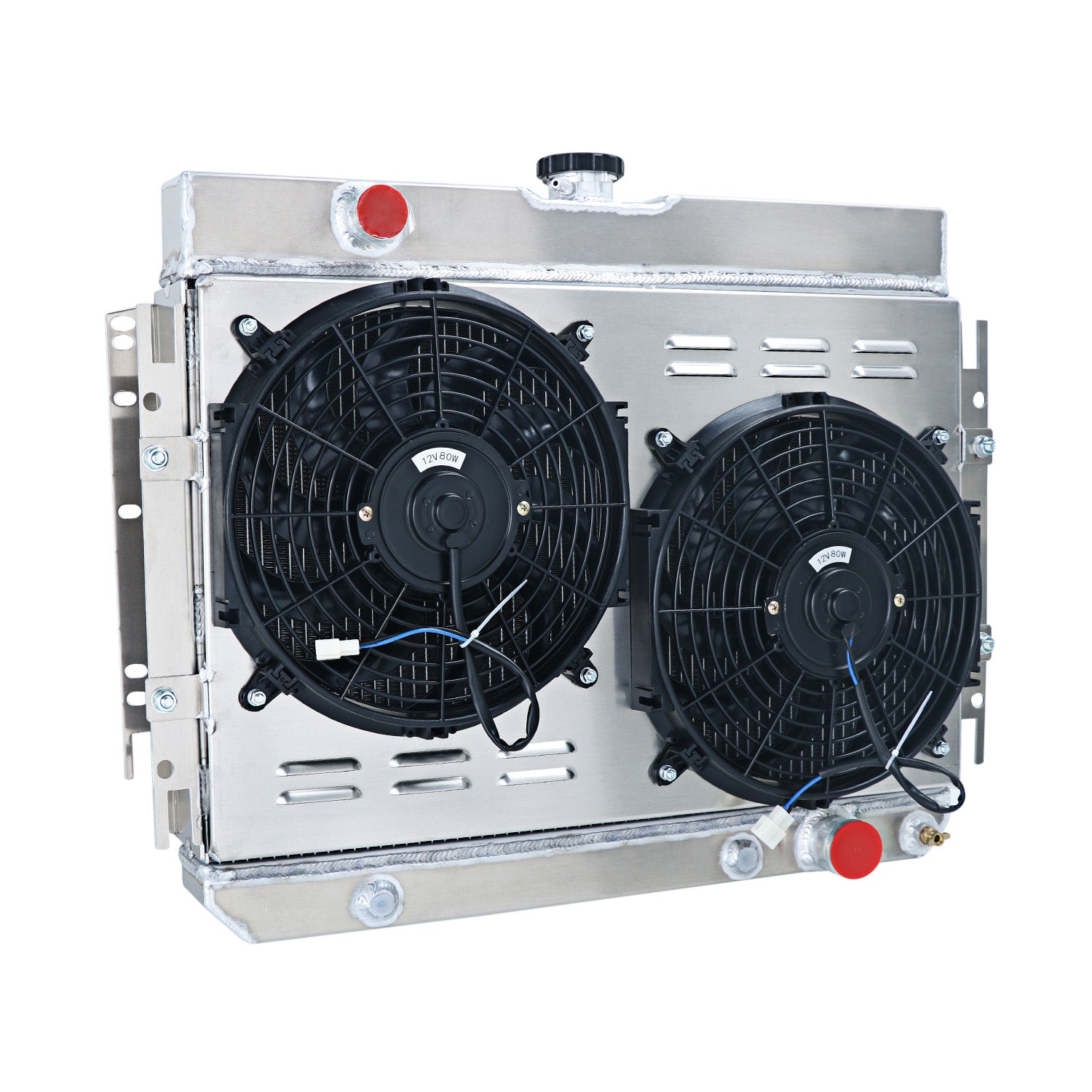

ASI Performance 4 Rows Radiator with Shroud & Fan Fits 1963-1968 64 Chevy Impala Bel Air Chevelle Biscayne

Fitment:

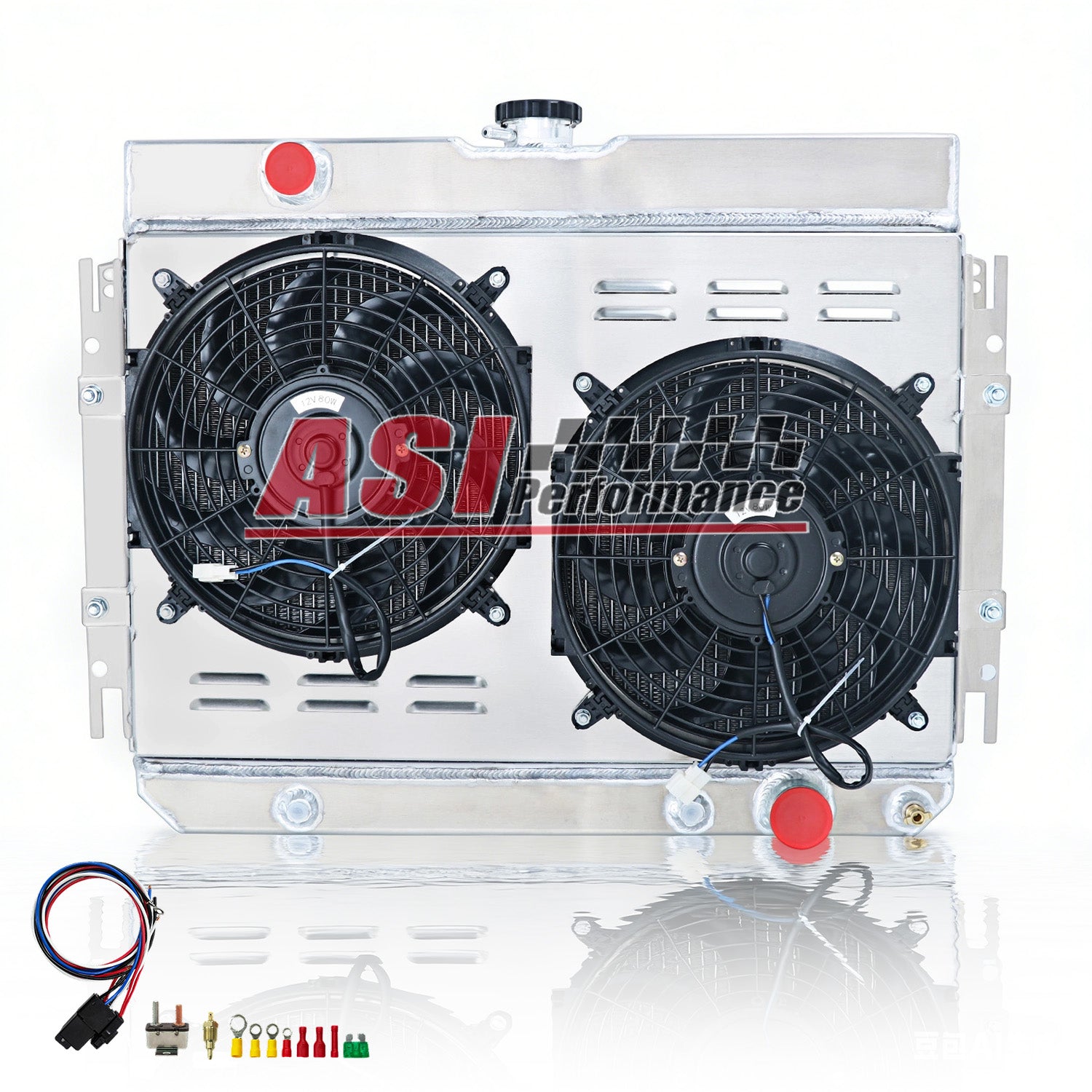

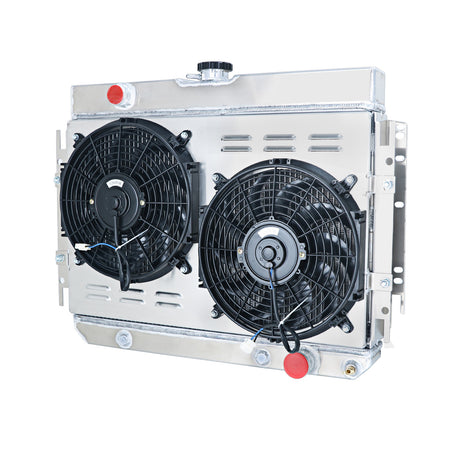

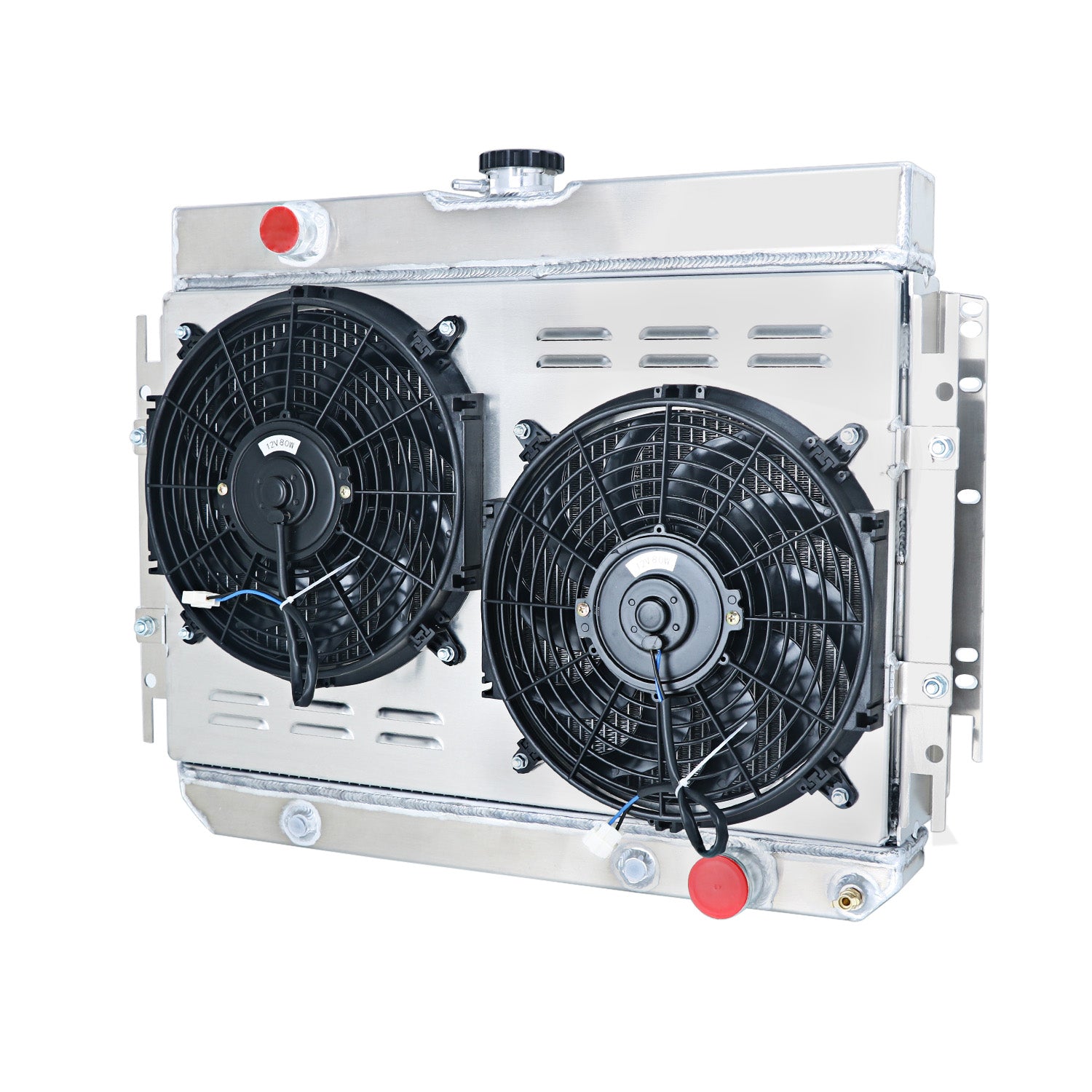

Package Includes

1 × 4-Row Aluminum Radiator (Includes Radiator Cap)
1 × Aluminum Shroud
2 × 12" Fans (Includes mounting kits)
1 × Thermostat Relay Kit

Technical Specifications

AA5052 Aluminum Shroud + Fans

The AA5052 aluminum fan shroud and fan assembly are designed to improve airflow efficiency by directing heat away from the engine compartment instead of pushing it back toward the radiator.

The fan shroud securely houses the fan blades, improves airflow distribution, and helps maintain stable engine operating temperatures.

Features:
1. Shuttered design AA5052 aluminum fan shroud improves airflow efficiency and provides a clean engine bay appearance.
2. S-Type blade fans support push or pull installation with lightweight durable plastic construction.
3. Includes thermostat system for improved temperature control.

Fan Specifications

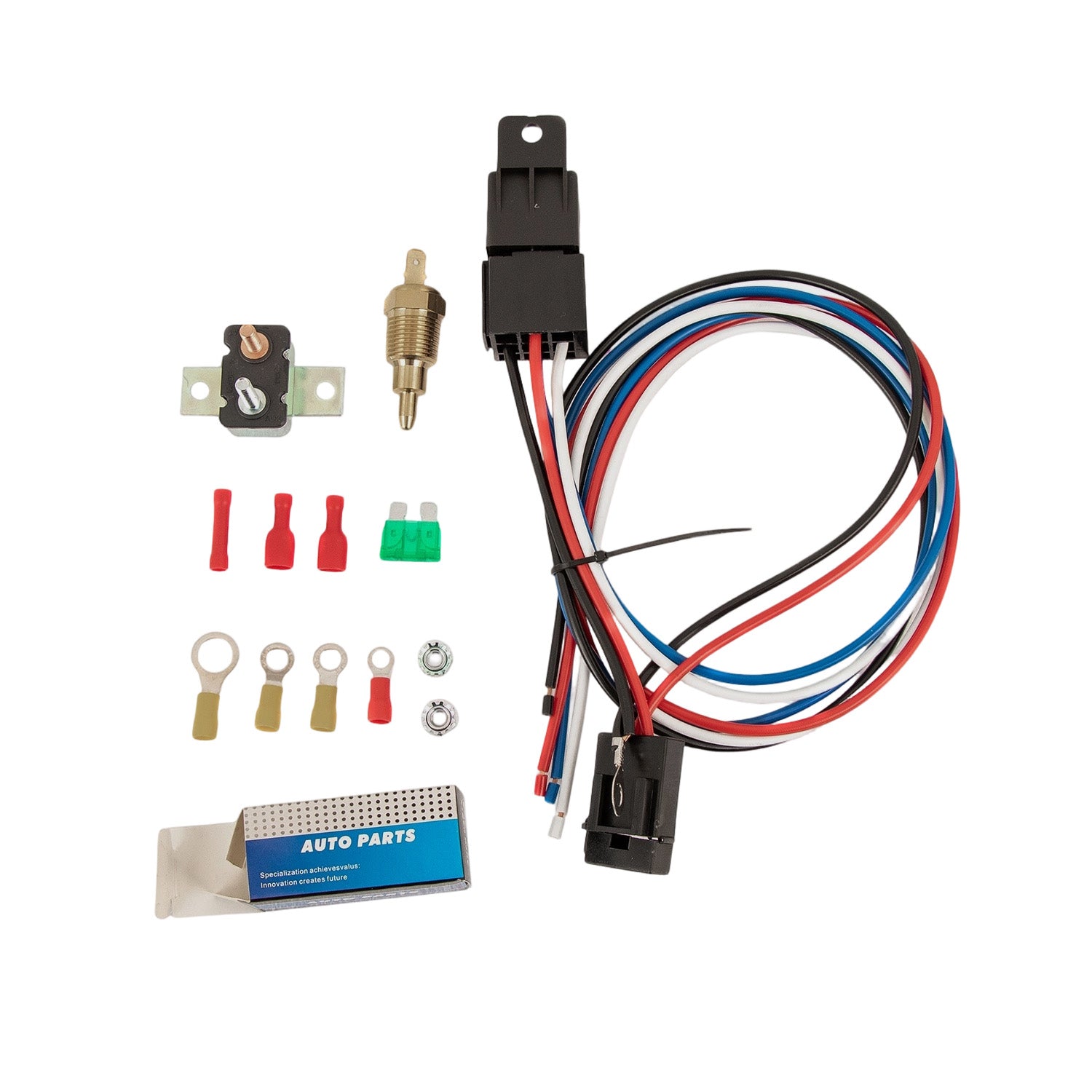

Thermostat Relay Kit

Universal fit for automotive vehicles and electric fans.
Activates electric fans by grounding at preset temperature.
180°F turn-on temperature, 165°F turn-off temperature.
3/8" NPT thread-in brass probe with 1/2" NPT adapter included.
Probe typically installs into radiator, water outlet, or manifold.

RED + connects directly to battery.
WHITE wire connects to ignition switch power source.
BLACK connects to thermostat switch.
BLUE wire connects to fans.

Description

Our radiator is made of AA5052 aircraft aluminum, providing excellent corrosion resistance, reliability, and strength compared with commonly used T-3303 aluminum.

AA5052 aluminum is an Al-Mg alloy with excellent forming properties, corrosion resistance, and durability. It is widely used in transportation, marine, and industrial applications.

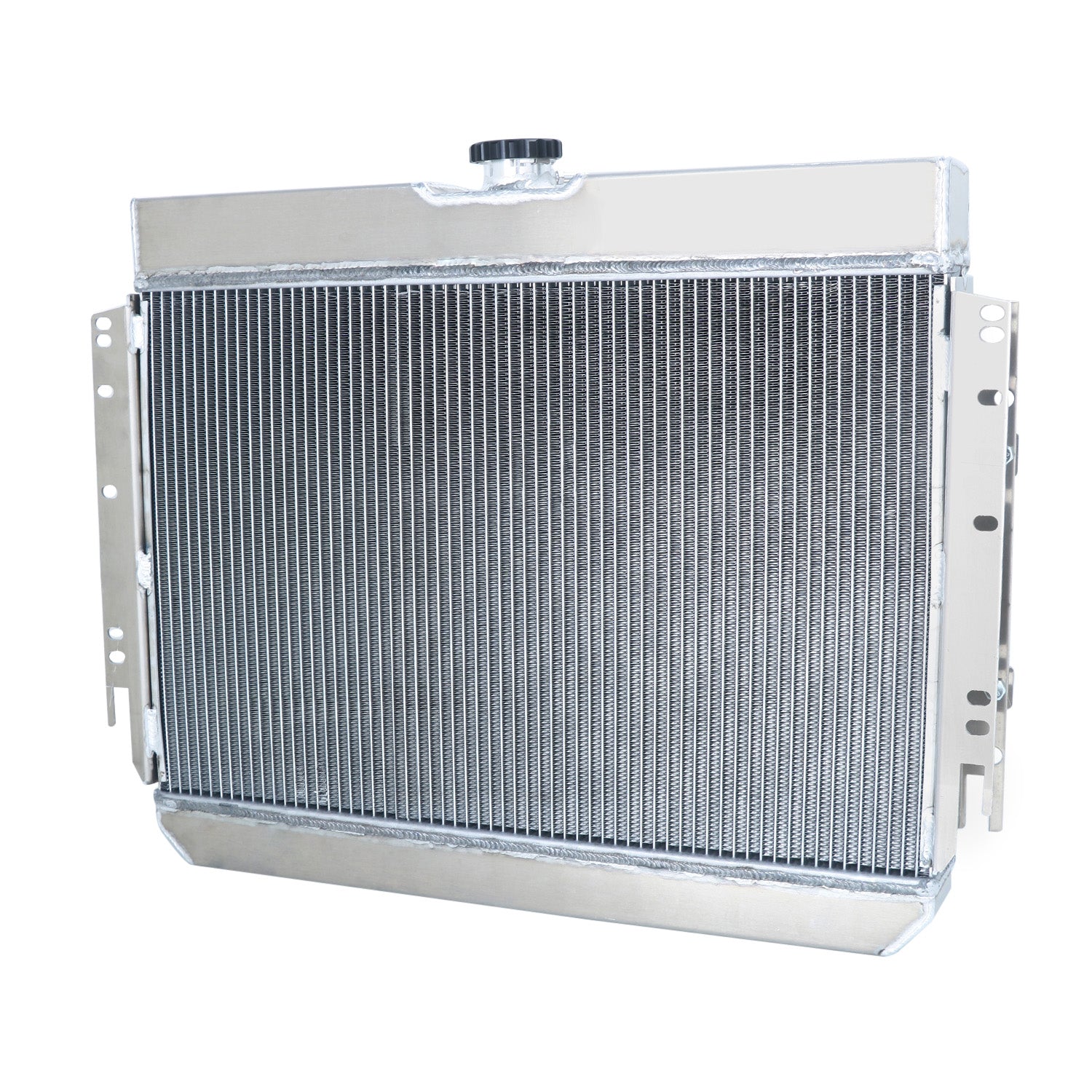

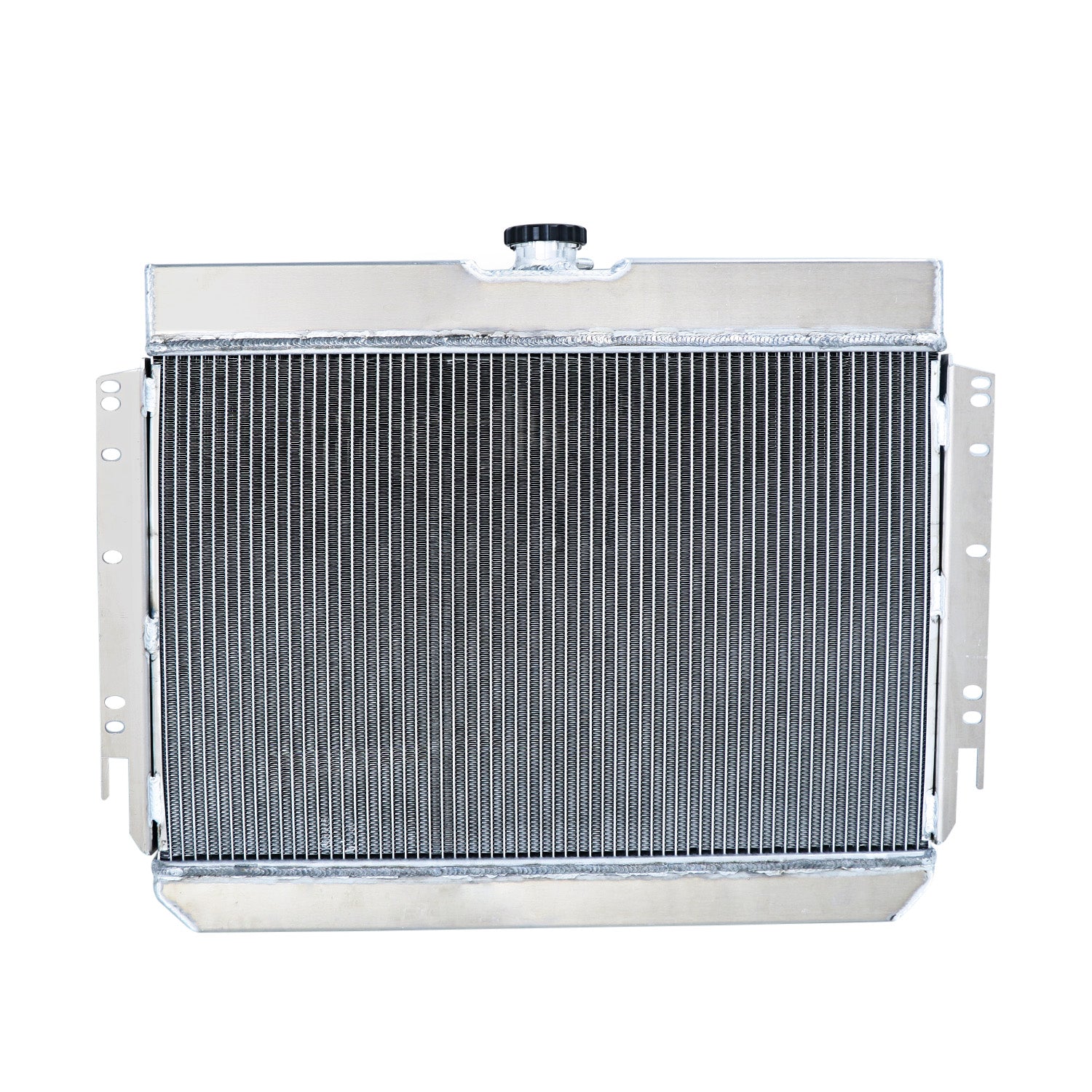

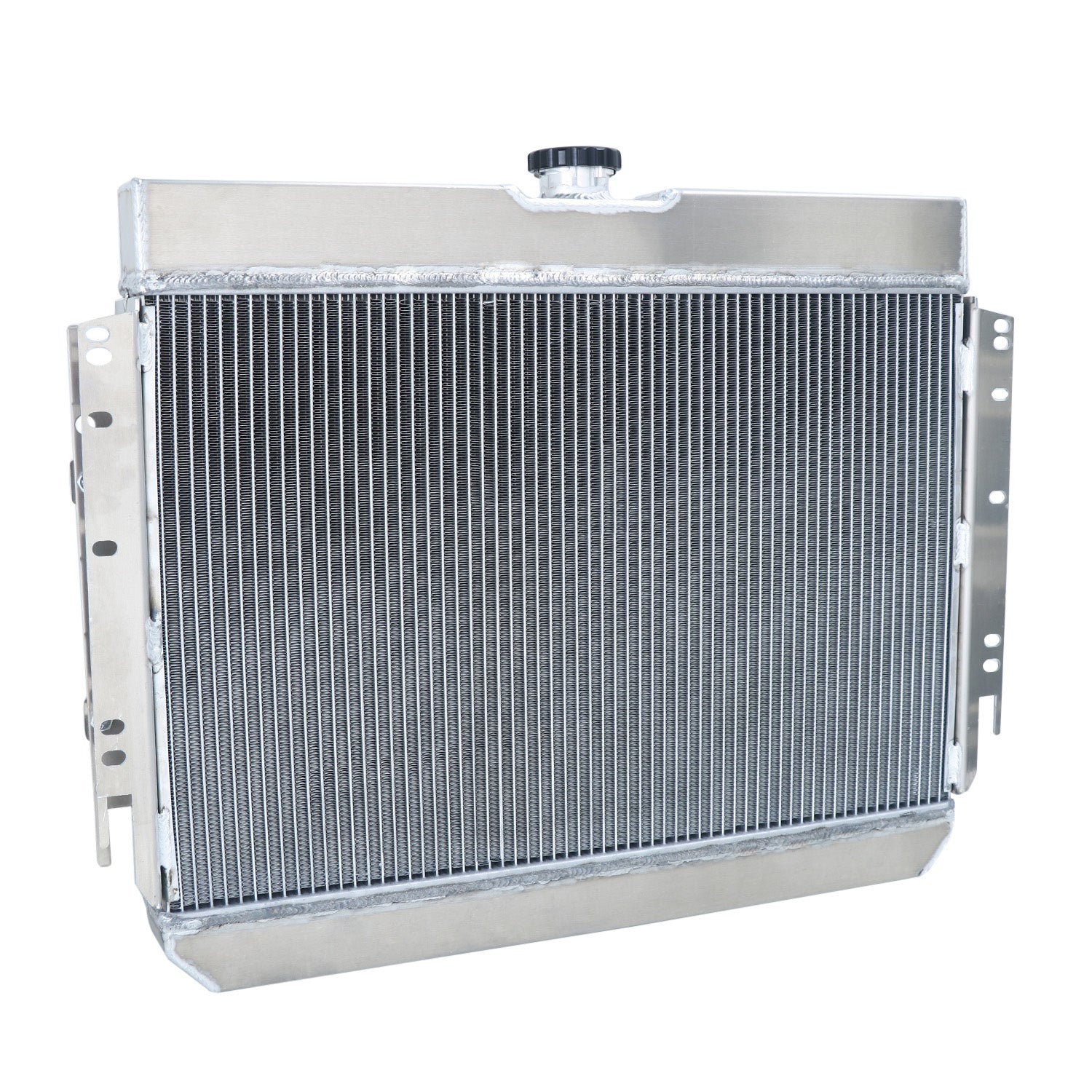

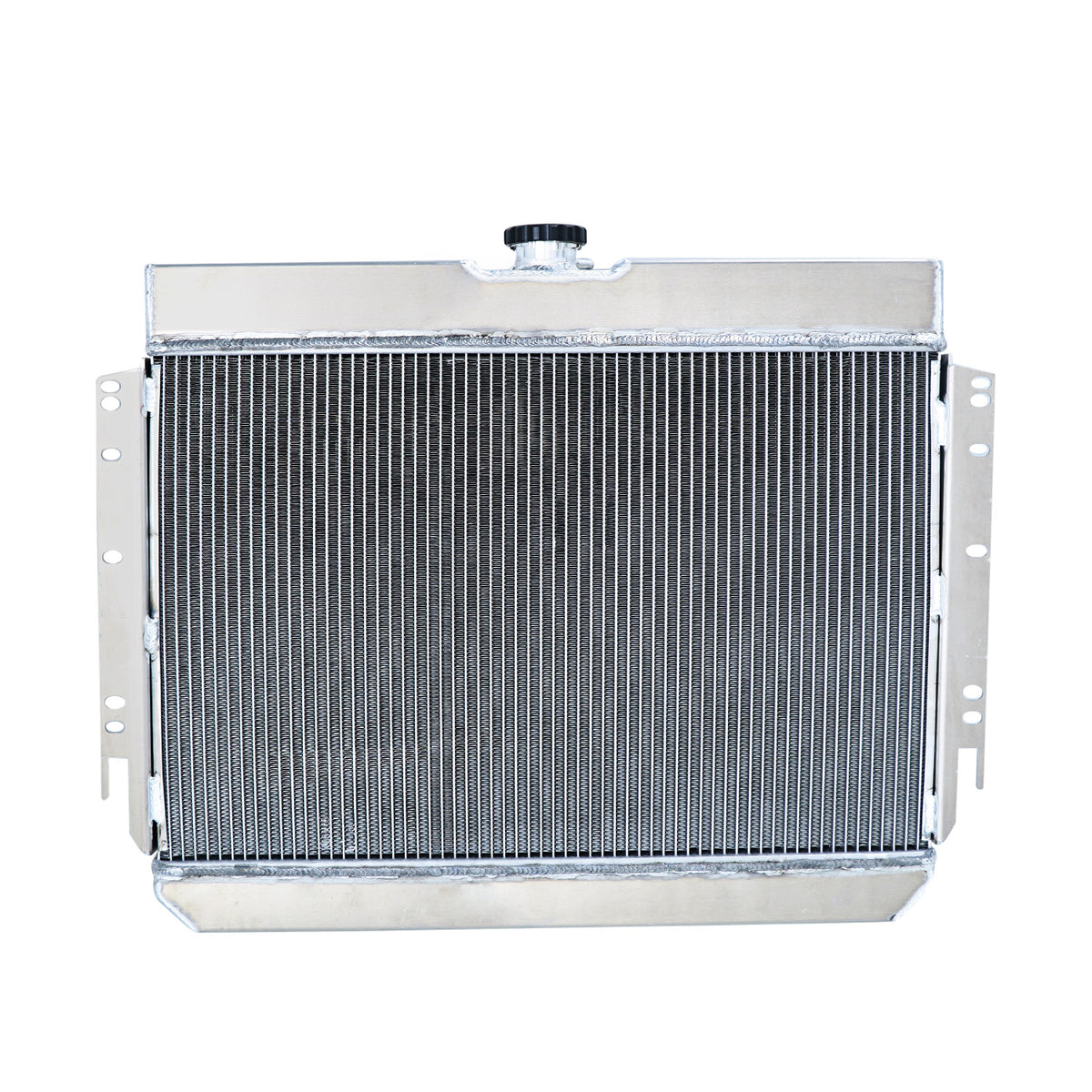

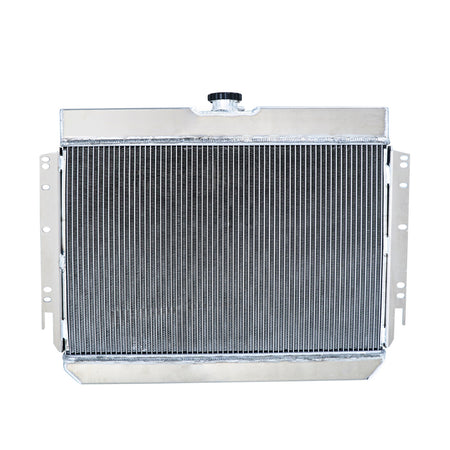

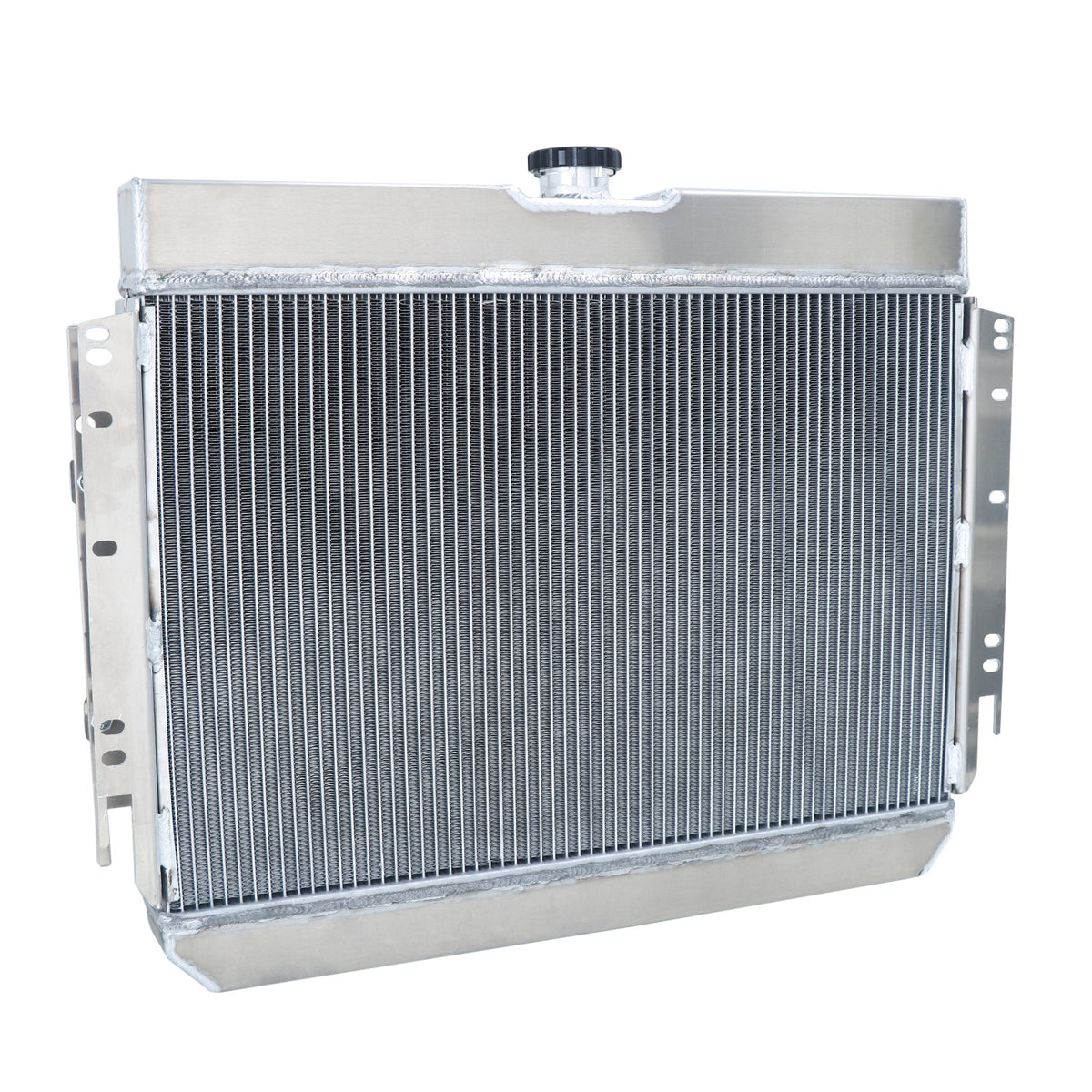

This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency and help prevent premature engine failure. Its lightweight construction and high heat transfer capability allow the tube-and-fin design to dissipate heat more efficiently.

This AA5052 Aluminum Radiator is approximately 30%–45% more efficient than stock radiators and provides increased coolant capacity, helping the cooling system maintain stable temperatures in demanding applications.

Features

1. Made from Aircraft AA5052 grade aluminum with raw aluminum finish for extended lifespan.
2. Brazed core technology ensures optimum performance and reliability.
3. AA5052 aluminum tanks and fittings with 2mm thickness for strength and durability.

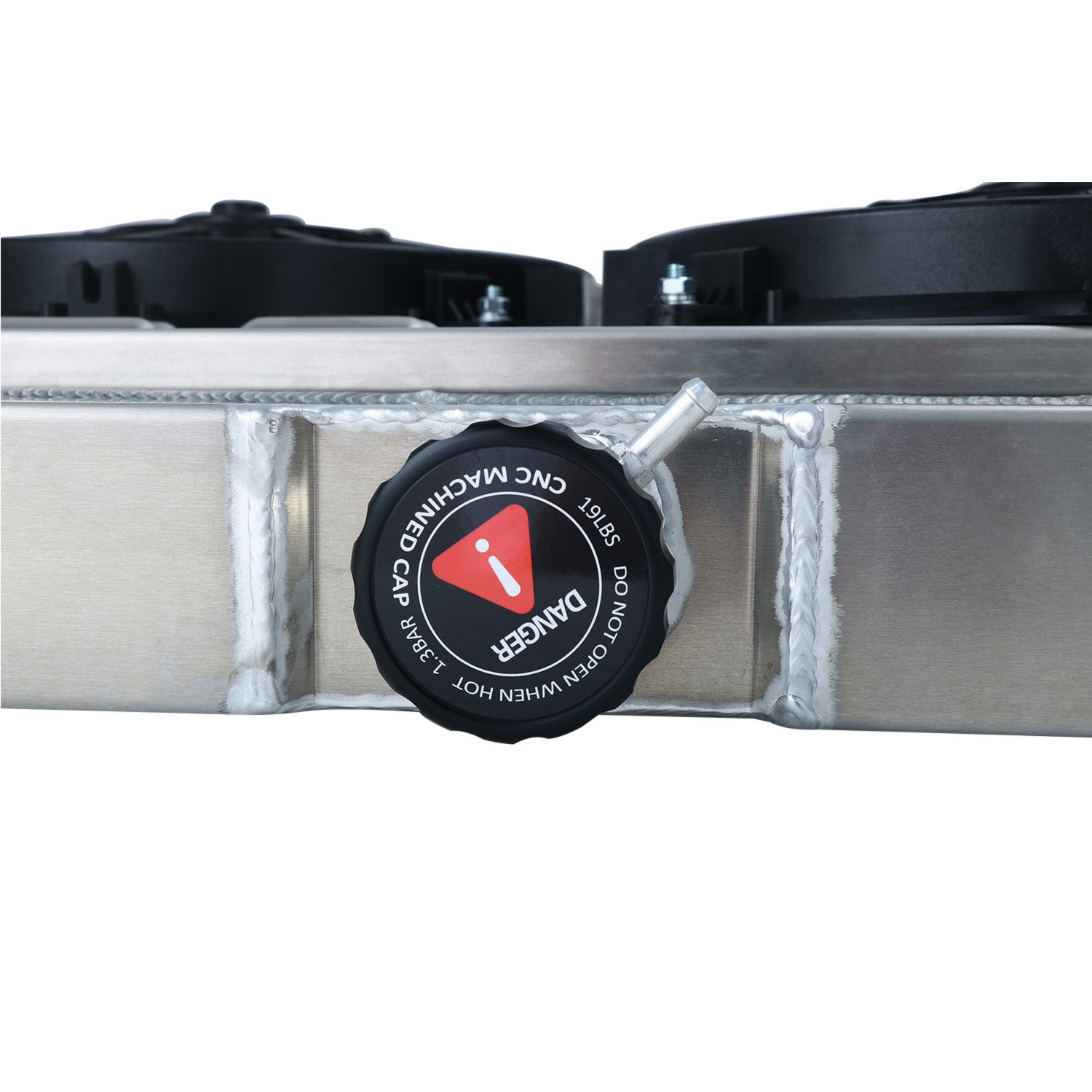

4. Billet aluminum CNC machined filler neck for improved durability.

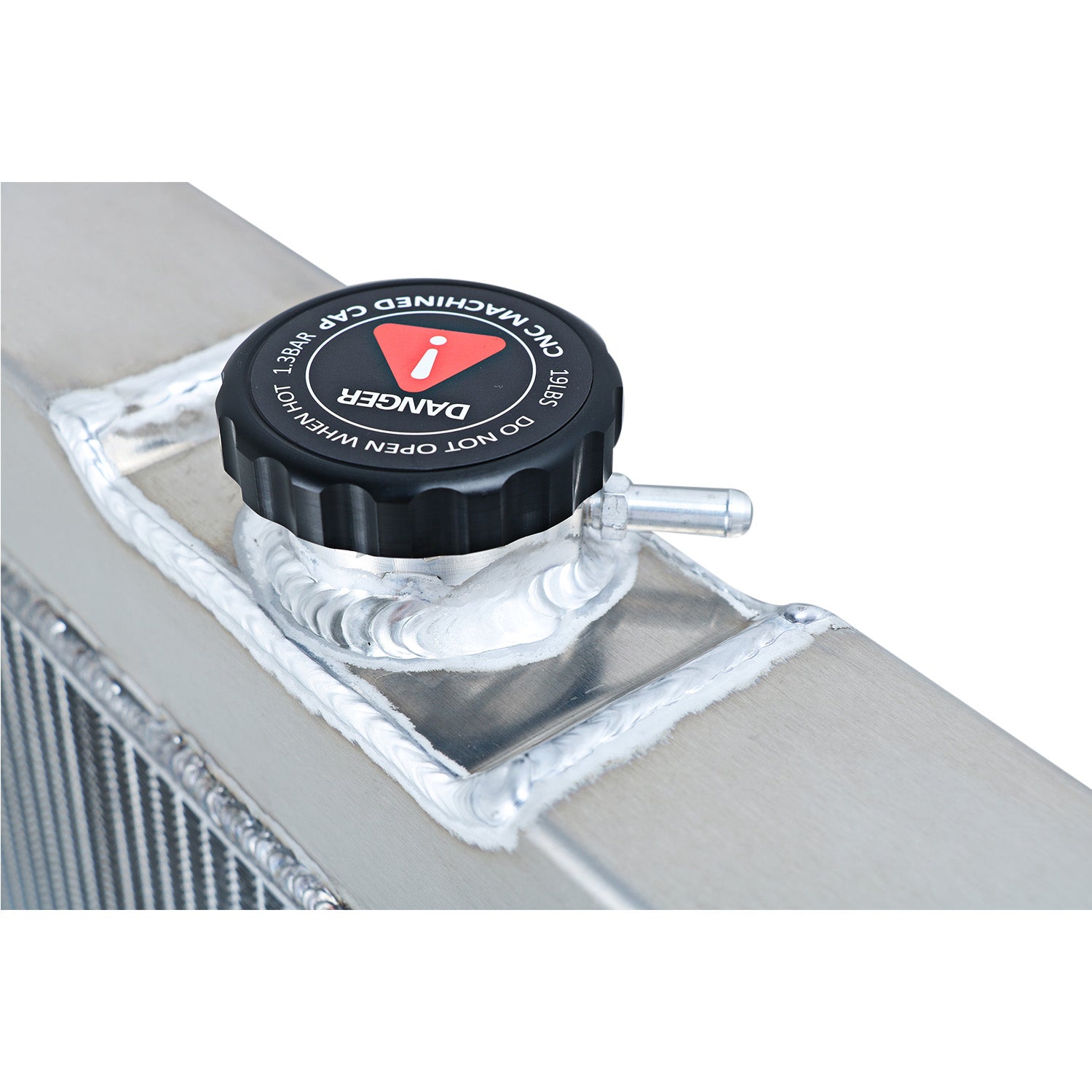

5. Ergonomic CNC machined cap with engraved craftsmanship and anodized treatment.
